Product Type	Electric Pruner (Pole Pruner)
Brand	ATIKA
Model	KSH 600
Motor Power	600 W
Supply Voltage	230 V~
Network Frequency	50 Hz
Idle Speed	8500 min⁻¹
Chain Speed	13 m/s
Weight (without cutting equipment, empty oil tank)	approx. 3.9 kg
Pole Length (telescopic)	Adjustable (approx. 1.5 to 2.5 m)
Guide Bar Length	180 mm (8 inches)
Cutting Chain	90JG033X (3/8 in - 1.1 - 33 links)
Guide Bar	080NATA A041 (8 inches)
Oil Tank Volume	110 ml
Lubrication	Automatic, use recommended biodegradable oil (ref. 400144)
Guaranteed Sound Power Level (LWA)	103 dB(A)
Sound Pressure Level at Ear (LpA)	82 dB(A)
Hand-arm Vibrations (avhw)	< 3.5 m/s²
Protection Class	II (double insulation)
Safety Devices	Chain brake, anti-kickback protection, safety switch, start lockout
Accessories Included	Guide bar, chain, chain guard, front handle, wrench, shoulder strap
Intended Use	Pruning of tree branches on standing trees (private use, not forestry)

Frequently Asked Questions - KSH 600 ATIKA

How to tension the chain on the KSH 600 pruner?

Before any intervention, unplug the device. Wear protective gloves. Loosen the fixing screw (3) by a maximum of one turn. Slightly lift the nose of the guide bar and turn the tension adjustment screw (21) clockwise until you can lift the chain about 3-4 mm at the middle of the guide bar. Retighten the fixing screw.

How to check that the chain lubrication is working?

Start the pruner and point the tip of the guide bar toward a piece of cardboard about 20 cm from the ground. If an oil trace appears, the automatic lubrication is working. If not, clean the oil channel (25) and the tensioner hole (26). Also check the oil level in the tank.

What to do if the pruner does not start?

First check that the chain brake is disengaged. Check the electrical supply (socket, fuse, extension cable). If the cable is damaged, replace it. If the problem persists, the motor or switch may be defective; contact after-sales service.

What type of oil to use for the chain?

Use a biodegradable special chain oil, preferably the ATIKA reference 400144 (chain oil 1 liter). Never use recycled or used oil, as this will void the warranty.

How to avoid chainsaw kickback?

Never cut with the tip of the guide bar. Use the lower edge of the guide bar and hold the pole with both hands. Start cutting only when the chain is running. Keep the chain sharp and properly tensioned. Maintain a safety distance of 10 m from power lines.

How to clean the KSH 600 pruner?

After each use, clean the casing with a soft brush or dry cloth. Do not use water or solvents. Clear the motor ventilation slots. After 1 to 3 hours of work, remove the cover, guide bar, and chain to brush clean. Clean the sprocket (20) and oil channel (25).

When should the chain be sharpened?

Sharpen the chain when wood dust comes out instead of chips, or when you have to push the pruner into the wood. Use a suitable sharpening equipment (ref. KSG 220, code 302360) or have it sharpened by after-sales service. A poorly sharpened chain increases the risk of kickback.

How to store the pruner for a long period?

Thoroughly clean the device. Drain the oil tank completely. To rinse the lubrication system, fill the tank halfway with chain cleaner, run the machine without guide bar and chain until the product is expelled. Immerse the chain in an oil bath, wrap it in oiled paper, and replace the chain guard. Store in a dry, locked place.

What are the essential safety instructions?

Always read the manual before use. Wear full protective equipment: helmet, eye and ear protection, cut-resistant gloves, safety trousers and shoes. Maintain a minimum safety distance of 6 m from other people. Do not work in rain or near power lines. Keep children away.

How to transport the pruner safely?

Always unplug the device before transport. Put the chain guard in place. Ensure the chain cannot come into contact with objects. Transport the pole pruner in a stable manner, without excessive swinging.

USER MANUAL KSH 600 ATIKA

Original instructions – Safety instructions – Spare parts

Seite 1

Page 11

Perche élagueurse

GB Electrical devices do not go into the domestic rubbish. Give devices, accessories and packaging to an ecofriendly recycling.

According to the European Directive 2002/96/EC on electrical and electronic scrap, electrical devices that are no longer serviceable must be separately collected and brought to a facility for an environmentally compatible recycling.

You may not start to operate the machine until you have read these operating instructions, observed all the instructions given and installed the machine as described!

Contents

Extent of delivery	11
Operating times	11
Symbols operating manual	11
Symbols on the power pruner	12
Normal intended use	12
Residual risks	12
Safety instructions	12
- Electrical safety	13
Assembly	14
Before the first start-up	14
- Chain lubrication	14
- Charging the oil tank	14
- Checking the chain lubrication	14
Start-up	14
- Clamping of saw chain	14
- Mains connection	15
- Mains fuse	15
- Mounting of the extension cable	15
- Wearing the shoulder belt	15
- Setting the working height	15
- Switching on / off	15
- Vibrations	15
Working with the power pruner	15
- Saw backstroke	15
- How to avoid backstrokes	15
- General conduct when pruning	15
- Before sawing	16
Work instructions (saw techniques)	16
- Step cut	16
Maintenance and cleaning	17
- Maintenance	17
- Sharpening of saw chain	17
- Cleaning of guide bar	17
- Exchanging saw chain and guide bar	17
- Chain wheel	17
- Checking of the oil automatic	17
- Cleaning	17
Transport	17
Storage	17
Possible faults	18
Description of device / spare parts	18
Technical data	19
EC Declaration of Conformity	19
Guarantee	19

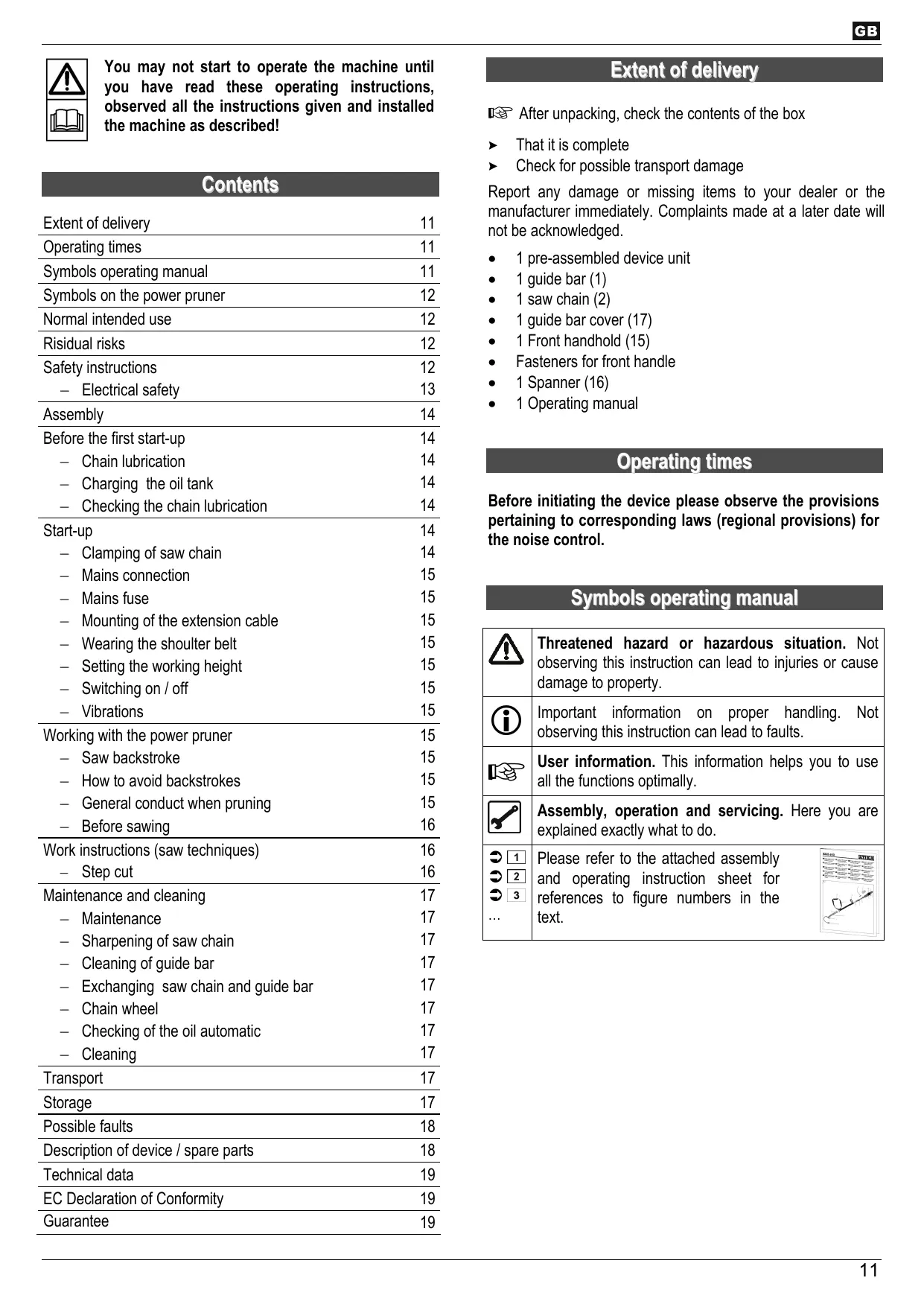

Extent of delivery

After unpacking, check the contents of the box

That it is complete
Check for possible transport damage

Report any damage or missing items to your dealer or the manufacturer immediately. Complaints made at a later date will not be acknowledged.

1 pre-assembled device unit
1 guide bar (1)
1 saw chain (2)
1 guide bar cover (17)
1 Front handhold (15)
Fasteners for front handle
1 Spanner (16)
1 Operating manual

Operating times

Before initiating the device please observe the provisions pertaining to corresponding laws (regional provisions) for the noise control.

Symbols operating manual

	Threatened hazard or hazardous situation. Not observing this instruction can lead to injuries or cause damage to property.
	Important information on proper handling. Not observing this instruction can lead to faults.
	User information. This information helps you to use all the functions optimally.
	Assembly, operation and servicing. Here you are explained exactly what to do.
	Please refer to the attached assembly and operating instruction sheet for references to figure numbers in the text.

Symbols on the power pruner

Carefully read operator's manual and the safety instructions before starting the machine and observe the instructions when operating.

Before starting any repair, maintenance or cleaning work, always switch off the motor and remove the plug from the socket.

When connecting cable is damaged or cut through immediately pull out the power plug.

Wear hardhat, eye and ear protection.

Wear protective gloves.

Wear safety shoes.

Do not expose to rain. Protect against humidity.

Keep other persons away from the work area. Safety distance at least 6 m.

Do not operate the power pruner near cables, power or phone lines.
Keep a safety distance of 10m to overhead power lines when working with the power pruner.

Normal intended use

The power pruner is only suitable for cutting branches on standing trees.
The power pruner is not suitable to cut down trees, saplings or shrubs.
- Do not use the power pruner for sawing building materials and plastics.
The power pruner is only suitable for private use in gardens and allotments.
- The power pruner is not suitable for forestry works (pruning branches in the forest). The necessary safety of the operator is not guaranteed by the cable joint.
- The intended usage also includes compliance with the operating, servicing and repair conditions prescribed by the manufacturer and following the safety instructions included in the instructions.
- Any other use is deemed not to be intended use. The manufacturer is not liable for any type of damage resulting from this: the user bears the sole risk.

Risidual risks

Even if used properly, residual risks can exist even if the relevant safety regulations are complied with due to the design determined by the intended purpose.

Residual risks can be minimised if the "Safety instructions" and the "Normal intended use" as well as the whole of the operating instructions are observed.

Observing these instructions, and taking proper care, will reduce the risk of personal injury or damage to the equipment.

■ Risk of backstrokes when touching the guide bar tip with a hard object.
■ Risk of injuries of fingers and hands by the tool (saw chain).
Injury by catapulted workpiece parts.
Electric shock.
■ Risk from electricity, by using non-standard electrical connections.
Touching live parts of opened electrical components.
Impairment of hearing when working on the machine for longer periods of time without ear protection.
Risk of fire.

In addition, in spite of all the precautionary measures taken, non-obvious residual risks can still exist.

Safety instructions

Before starting this device, read and keep to the following advice. Also observe the preventive regulations of your professional association and the safety provisions applicable in the respective country, in order to protect yourself and others from possible injury.

Keep these safety instructions (operating instructions) always together with the power pruner.
This device is not intended to be used by persons (including children) with restricted physical, sensory or mental abilities or a lack of experience and/or know-how unless they are supervised by a person responsible for their safety or they have been instructed by such a person on the use of the device.
Give or lend the power pruner only to persons who are familiar with the power pruner and its operation. Pass the safety instructions on to all persons who work with the machine.
Repair works on the device must be carried out by the manufacturer or by companies appointed by the manufacturer respectively.

• Persons who work with the power pruner must exhibit on request a training certificate appropriate to the intended use and be familiar with the use of the power pruner and personal protective equipment.

• Be attentive. Be careful what you do. Behave sensibly when working. Do not use the device when you are tired or under the influence of drugs, alcohol or medicaments. One moment of carelessness when using the device can result in serious injuries.

• Make yourself familiar with the equipment before using it, by reading and understanding the operating instructions.

• Do not use the machine for unsuitable purposes (see "Normal intended use").
• Do not modify the device or parts of the device respectively.
  Supervise children to make sure they do not play with the device.
• Do not allow other persons, especially children, to touch the tool or the cable.
• Persons under the age of 18 may not operate the power pruner.
• The operator is responsible to third persons within the area of operations.
• The operator is responsible for accidents or risks which occur to other persons or their properties.
• Before leaving the power pruner for work breaks bring it in a safe condition (cover the chain guard) and put it on a place where nobody is endangered. Secure the power pruner against unauthorized access.

• Never work without suited protective equipment.

• Do not wear loose-fitting clothes or jewellery, they could be caught by movable parts.
  Hairnet in case of long hair
  certificatedhardhat

• Visor
  ear protection
• Protective jacket with striking colour
  Cut-proof trousers and gloves
• Anti-slipping cut-proof boots (safety shoes) with steelltoes

• First-aid material
  Mobile telephone if required

• Switch the machine off and remove the mains plug from the socket when

• Contacting the power pruner with soil, stones, nails or other foreign substances Check immediately chain and guide bar.
  carrying out repair works

• maintenance and cleaning
• Eliminating faults.
  cut through connection cables

• Checking connecting lines, whether these are knotted or damaged.
  Transport
  clamping again the chain
  chain change
  Leaving the machine (also during temporary interruption)

• Protect yourself against an electric shock. Avoid body contact with grounded parts (e.g. pipes, heating apparatus, cookers, fridges etc.)

• Maintain your power pruner with care:

• Comply with the maintenance instructions and the advices for lubrication and for the tool change.

• Keep your tools sharp and clean in order to be able to work better and safer.

• Keep the handholds dry and free from resin, oil and grease.

• Do not expose the power pruner to rain.

• Check the machine for possible damage:

• Before further use of the machine the safety devices must be checked carefully for their proper and intended function. Only operate the machine with complete and correctly attached safety equipment and do not alter anything on the machine that could impair the safety.

• Check whether movable parts function perfectly and do not stick or whether parts are damaged. All parts must be correctly installed and fulfil all conditions to ensure perfect operation of the machine.
• Damaged guards and parts must be properly repaired or exchanged by a recognized, specialist workshop; insofar as nothing else is stated in the instructions for use.

• Damaged or illegible safety labels should be replaced immediately.

• Do not allow any tool to be plugged in!

Before switching on, check always that all tools are removed.

Electrical safety

• Design of the connection cable according to IEC 60245 (H 07 RN-F) with a core cross-section of at least

1.5 mm² for cable lengths up to 25 m
2.5 mm² for cable lengths over 25m

• Long and thin connection lines result in a potential drop. The motor does not reach any longer its maximal power; the function of the device is reduced.
• Plugs and coupler outlets on connection cables must be made of rubber, non-rigid PVC or other thermoplastic material of same mechanical stability or be covered with this material.
• The connector of the connection cable must be splash-proof.
• When running the connection line observe that it is not squeezed, bended and the plug connection does not get wet.
• Do not use the connection cable for purposes for which it is not meant. Protect the connection cable against heat, oil and sharp edges. Do not use the connection cable to pull the plug from the socket.
• Wind off completely the cable when using a cable drum.
• Regularly check the connection cables and replace them if they are damaged.
• Do not use any defective connection cables.
• When working outdoors, only use connection cables especially approved and appropriately labelled for outdoor use.
• Do not set up any provisional electrical connections.
• Never bypass protective devices or deactivate them.
• Only hook up the machine by means of a fault-current circuit breaker (30 mA).

The electrical connection or repairs to electrical parts of the machine must be carried out by a certified electrician or one of our customer service points. Local regulations - especially regarding protective measures - must be observed.

Do not carry out repair operations on the machine other than those described in section "Maintenance" but contact the manufacturer or authorized customer service centres.
Use only original spare parts. Accidents can arise for the user through the use of other spare parts. The manufacturer is not liable for any damage or injury resulting from such action.

Assembly

Connect the power pruner to the power supply system only after having finished the complete assembly.

Attaching the front handle

Put the bushing (27) in the handle (15).
Push the handle with the bushing on the lower telescope rod (7) and fasten it with the hexagon screw (22), washer (23) and nut (24).

Installing the guide bar and the saw chain

Risk of injury!

Wear protective gloves when working on the guide bar and the saw chain.

4 Place the power pruner on an even surface as shown.
4 Remove the cover (4) by loosening the fastening screw (3).
5 Turn the chain stretching screw (21) anticlockwise until the chain stretching pin (28) is at the rear end of the thread.
6 Insert the saw chain (2) into the circular guide slot of the guide bar (1).

Attend to the correct running direction of the chain links.

Put on the guide bar (1). The chain stretching pin (28) must engage in the provided hole (26) in the guide bar.

When assembling, pay attention that the chain links are lying correctly within the guide slot and on the chain wheel.

8 Remount the cover (4) and tighten the fastening screw (3) hand-tight.

Clamping the saw chain as described in section "Clamping of saw chain".

Before the first start-up

Chain lubrication

The power pruner is not delivered filled with saw chain adhering oil.
Any use without chain saw oil may result in damage of the saw chain and guide bar.

The durability and cutting power of the chain depends on the optimal lubrication. During operation the saw chain is automatically wetted with oil.

Charging the oil tank

Stop the engine and wear protective gloves. Avoid eye and skin contact.

Put the power pruner on a suitable base.
Unscrew the oil tank lock (18).

Fill the oil tank with bio-degradable chainsaw oil (order no. 400144). For easier filling use a funnel.

When filling observe that no dirt reaches the oil tank.

9 Screw on the oil tank lock again.
Never use recycled oil or used oil. The guarantee expires when using oil which is not allowed for such devices.

Checking the chain lubrication

Never operate the power pruner without functioning chain lubrication.

Check the function of the automatic chain lubrication by switching on the power pruner and holding it with the spike in direction of a carton or paper on the ground.

Do not get in contact with the ground with the chain. Keep a safe distance of 20~cm .

If an increasing oil track is caused when checking it the oil automatic works faultless.

If there is no oil track despite full oil tank

5 Clean the oil flow channel (25) and
6 clean the chain clamping boring (26)

If this is not successful please contact the customer service.

Start-up

Clamping of saw chain

• Before setting or checking the saw chain tension pull out power plug.
  In order to avoid injuries wear protective gloves.

Check the saw chain tension

before start of work
after the first steps
during sawing regularly all 10 minutes

Only with a correct clamped saw chain and a sufficient lubrication you can influence the durability.

(1) Please observe the following:

a new saw chain must be reclamped more often.
in case of heating of chain to operating temperature it expands and needs to be reclamped.

After finishing the sawing works release tension of saw chain as in case of cooling too high tensions would emerge in the saw chain.

if chain flackers or comes out of the guide clamp it again immediately.

Clamping of saw chain

8 Place the power pruner on an even surface as shown.
8 Loosen the retaining screw (3) by max. 1 turn.
10 Slightly lift the guide bar tip and turn the chain stretching screw (21) clockwise until the correct chain tension is reached.
The saw chain is correctly stretched when it can be lifted in the centre of the chain guide by appr. 3 - 4mm
10 Turn the chain stretching screw (21) anti-clockwise when the saw chain is stretched too much.

Check that the chain links are positioned correctly in the guiding groove of the guide bar.

8 Tighten the retaining screw (3) again.

Mains connection

Compare the voltage given on the machine model plate e.g. 230V with the mains voltage and connect the machine to the relevant and properly earthed plug.
① Use a shockproof plug, mains voltage 230 V with residual current circuit breaker (FI switch 30 mA).
Only use extension cables with sufficient core cross-section.

Mains fuse

10 A inert

Mounting of the extension cable

Plug the female connector of the extension cable on the male connector of the device.
Thread the extension cable through the pull relief device (10) as a loop and hang it up.
12 Make sure that the extension cable has sufficient play and is routed toward the rear away from the power pruner, outside of the range of the saw chain and material to be sawed.

Wearing the shoulder belt

13 Place the belt over the shoulder and adjust the belt length so that the belt attachment (A) is positioned at hip level. The quick acting closure (14) is located at the front.
The quick acting closure can be opened with the left hand.

Setting the working height

14 Loosen the clamping screw (6); you can then pull the two telescope rods (5, 7) apart or push them together.

Switching on / off

Do not use any device where the switch can not be switched on and off. Damaged switches must be repaired or replaced immediately by the customer service.

Securely support the power pruner when switching it on and hold it with both hands. Chain and guide bar must stand free.

Switching on

Push and hold automatic trip switch (8). Then operate the On/Off switch (9). Now, you can release the throttle automatic trip switch.

Switching off

Release On/Off switch.

Vibrations

If persons who have blood circulation problems are too often exposed to vibrations damages to the nervous system or to blood vessels may occur.

You can reduce vibrations:

• by thick and warm working gloves,
• shorter working time (have longer breaks).

See a doctor if your fingers swell, you don't feel well or your fingers become numb.

Working with the power pruner

Saw backstroke

What is saw backstroke? Saw backstroke is the sudden strike upwards or backwards of the running power pruner in direction of the operator.

This happens when

• the guide bar tip gets in contact with the sawing material (unintended) or other hard objects.
• the saw chain is jammed at the guide bar tip.

The power pruner reacts uncontrolled and frequently causes heavy injuries of the operator.

How to avoid saw backstroke?

• For better control saw with the lower edge of the guide bar. Place the power pruner as horizontally as possible when contacting wood.
• Never saw with the guide bar tip.
• Sawing with the upper guide bar edge may cause a saw backstroke if the saw gets jammed or hits a hard object in the wood.
• Start cutting only with running saw chain.
• Never switch on the machine with the saw chain put on.
  Always hold the power pruner firmly with both hands.
• Only work with correctly sharpened and clamped saw chain.

General conduct when pruning

Take into consideration environmental influences:

• Do not work on snow, ice or recently peeled wood – slip hazard.

• Do not work under insufficient light conditions (e.g. fog, rain, snow flurry or twilight). You can not see anymore details within the falling area – risk of accident.
  Delay the work in case of disadvantageous weather (rain, snow, ice, wind) – increased risk of accidents!

• Do not use the power pruner near inflammable liquids or gases.

• Keep a safety distance of 10m to overhead power lines.

• Do not use the power pruner in a humid or wet environment.

• Plan an escape route from falling branches in advance. This escape route must be free from obstacles to ensure retreating without danger.

• Position yourself outside the range of falling branches.
• Make sure that someone is within calling distance in case of an accident.
• Keep other persons away. The safety distance is 2.5-times the length of the branch to be cut, but at least 6m . 15
• Avoid abnormal posture. Keep at any time the balance. Do not work with the upper part of the body leaned forward.
• Operate the power pruner only with safe standing position. Hold the power pruner slightly to the right of the own body.
• Hold the power pruner always firmly with both hands, left hand on the front handle (15) and right hand on the rear handle (12). Always use the carrying strep supplied.
• Frequently change the working position to prevent a one-sided work position.
• Immediately stop working when you feel unwell (e.g. headache, dizziness, nausea, etc.). Otherwise there is an increased risk of accidents. Observe sufficient break times to rest.
• Never work
• with stretched arms
• standing on a ladder, a staging or a tree.
• Do not attempt to hit an already existing cut.
• Do not use the power pruner for lifting or moving of wood.
• Saw splintered wood with care. There is risk of injury by wood pieces carried away.
• Make sure that the wood is free of foreign object (nails etc).
• Do not overload the machine! You work better and safer in the given performance range.
• Be careful at the end of a sawing cut. As soon as the power pruner leaves the wood the force of weight changes. There is risk of accident for legs and feet.
• Remove the power pruner only with running saw chain out of the cut.
• If the saw chain gets jammed in the wood, stop it immediately and remove the mains plug from the socket. Use a wedge to free the guide bar.
• Do not use any cracked saw chains or such that have changed their shape.
• Never touch wire fences or the ground with the running saw chain.
• Switch off the power pruner between the cuts when several cuts are carried out.
• Make breaks when sawing so that the engine can cool down.

Before sawing

Carry out the following checks before the initiation and regularly during the sawing process:

Has the power pruner been assembled completely and properly?
Is the power pruner in good and safe condition?

Is the oil tank filled?

Check the oil level on a regular basis. Replenish immediately oil when oil level indicates "MIN" so that the saw chain does not run dry.

Is saw chain clamped correctly?

Observe the points in paragraph „Clamping saw chain".

Is saw chain sharpened correctly?

Use only well sharpened saw chains as edgeless saw chains increase not only the risk of backstrokes but also charge the motor.

Is handhold clean and dry - free of oil and resin?
Is workplace free of risks to stumble?
Do you wear the required protective equipment?
Did you read and understand all advices?
Is the power plug and the extension cable in good condition?

Do not use any defective cables.

Is the extension cable correctly placed? 12

Work instructions (saw techniques)

• Do not cut thin branches or bosks. The power pruner is not suitable for those works.
  Cut larger branches into several sections to avoid splintering and breaking.
• Do not cut any branches where their diameter is greater than the cutting length of the device.
• Do not stand directly underneath a branch to be cut.
  Watch out especially for falling branches.
  Also look out for branches snapping back.

Always wear a helmet in order to protect yourself against perches falling down.

Stepcut 16

For horizontal branches without being top heavy

The branch section falls down in a controlled manner without tipping over.

1 Set the first cut from below, approx. one third of the branch diameter.
The second cut is made on the same level as the first cut or moved further toward the inside (negative breaking step).
3 Remove the remaining branch section.

Attention: Step cut error! 17

If the cut is made offset toward the outside (positive breaking step) and exceeded, the power pruner can be pulled along.

Maintenance and cleaning

Before each maintenance and cleaning work

• switch off device
• Wait for standstill of the power pruner
• Pull out power plug

Maintenance and repair work other than those described in this chapter is only allowed to be carried out by service staff.

For maintaining and cleaning, removed security devices must unconditionally be mounted properly and proved again.

Use only original parts. Other parts can result in unexpected damages and injuries.

Maintenance

In order to aviod possible injuries wear gloves.

To guarantee a long and reliable usage of the power pruner carry out the following maintenance works regularly.

Check the power pruner for

• loose or damaged saw chain
• loose fastenings
• wear, especially chain, guide bar and chain wheel
• worn or damaged components
• correct assembly and faultless covers and protective devices.

Necessary repair works or maintenance have to be carried out before using the power pruner.

Saw chain and guide bar

Saw chain and guide bar are exposed to a great extent of wearing. Replace the saw chain and the guide bar without any delay if their proper function is no longer ensured. "Installing the guide bar and the saw chain".

Sharpening of saw chain

You can only work safely and well with a sharp and clean saw chain. Damaged or incorrectly sharpened saw chains increase the risk of kickbacks.

The saw chain has to be sharpened if

instead of wood shavings only saw dust is ejected
you have to press the power pruner through the wood during cutting

For sharpening a saw chain some expertise is necessary. The saw chain must be regrinded in a specialised shop.

You can also sharpen your saw chain yourself by using our electric sharpener KSG 220 (article-no.: 302360).

Cleaning of guide bar

Regularly inspect and clean

the guide slot (B) of the guide bar and
the chain clamping boring (26)

Remove any burr using a flat file and emery paper.
Turn round the guide bar after each chain exchange/sharpening to avoid single-side wearing.

Immediately replace a damaged guide bar.

Chain wheel

The demand of the chain wheel (20) is particularly great. Check regularly the teeth of the chain wheel for wear or damages.

A worn or damaged chain wheel reduces the durability of the saw chain and should therefore immediately be exchanged by the customer service.

Cleaning

Clean the power pruner carefully after each application so that the faultless function is kept.

Clean the case with a soft brush or a dry cloth.
Water, solvents and polishing agents shall not be applied.
Check that the ventilation slots for the motor cooling are free (risk of overheating).
After a longer operation period (1 - 3 hours) remove the cover (4), the guide bar (1) and the chain (2) and clean them with a brush.
If heavily contaminated, clean the device using a commercial chain cleaner.
Remove all adhering substances with a brush from the chain wheel (20) and the guide bar fastening (C).
Clean the oil flow canal (25) with a clean cloth or a brush.

Transport

Remove mains plug before each transport.

Transport the power pruner only with the chain protection put on.

Storage

• Store unused equipment in a dry, locked place out of the reach of children.
  Before a longer period of storage carry out the following to extend the power pruner's service life and ensure an easy operation:

thoroughly clean the device
Remove the oil from the oil tank.

• Some chain oils tend to encrustations after a longer period. For this reason the oil system should be flushed before a longer storing with a chain saw cleaner. Fill the cleaner up to the middle (appr. 50 ml) into the oil tank. Close the tank. Switch on the power pruner without assembled guide bar and chain until the complete cleaner has left the oil opening of the power pruner.
  Put the saw chain for a short time into an oil bath and enwrap it afterwards in an oil paper.
  Put the chain guard in place.

Possible faults

Before each fault elimination:

• switch off device
  Wait for the power pruner to come to a standstill
• Pull out power plug

After each fault clearance, put into operation and recheck all security installations.

Fault	Possible cause	Remedy
Power pruner does not start after switching on	no powerExtension cable damagedMains plug, motor or switch defect	Check power supply, power outlet, fuse protectionCheck extension cable, exchange defect cable immediatelyHave motor or switch checked by an approved electrician or replaced by original spare parts
Power pruner works with interruptions	external loose connectioninternal loose connectionON / OFF switch defective.	Contact the customer service
Power pruner picks, vibrates or does not saw correctly	Chain edgelessChain wornChain tensionChain not assembled correctly (teeth face to wrong direction)	Chain must be regrinded or exchangedExchange chainCheck and adjust chain tensionAssemble chain again
Power pruner does not work with full power	Extension cable too long, or cross-section too small.Socket too far from mains supply.	Only use extension cables with sufficient core cross-section.Use power outlet which is nearer within the working area
Saw chain gets hot	no oil in the tankoil flow canal blockedchain tension too highChain edgeless	Refill oilClean oil flow canalAdjust chain tensionChain must be regrinded or exchanged
no saw chain lubrication	no oil in the tankoil flow canal blocked	Refill oilClean oil flow canal

Description of device / spare parts

Pos.	Order-No.	Denomination
1	364405	Guide bar (sword)
2	364406	Saw chain
3	390074	Fixing screw
4	364407	Cover
5		Upper telescope rod
6	364408	Holding screw
7		Lower telescope rod
8		Trip switch
9		On/Off switch
10		Cable strain relief
11		Apparatus cable with plug
12		Rear handle
13	364409	Carrying strap
14		Quick acting closure
15	364410	Front handhold

Pos.	Order-No.	Denomination
16	364411	Spanner
17	364412	Guide bar cover (scabbard)
18	364413	Oil tank cap
19	364404	Safety label
20	364414	Chain wheel
21	403111	Chain clamping screw
22	364415	Hexagonal screw M 6 x 65
23	391634	Washer A 6
24	364416	Hexagonal nut M6
25		Oil flow canal
26		Chain clamping bore
27	364417	Bushing
28		Chain stretching pin
	364418	Carbon brush set (without picture)
	400144	Saw chain oil 1 I

Technical data

Typ	KSH 600
Motor rating P1	600 W
Mains voltage	230 V
Mains frequency	50 Hz
Mains fuse	10 A inert
No-load speed	8500 min-1
Saw chain speed	13 m/s
Oil tank volume max.	110 ml
Protection class	II ☑
Saw chain	90JG033X (3/8 - 1.1 - 33)
Guide bar	080NATA A041, 8"
Cutting length	180 mm
Measured sound power level LWA	101.5 dB (A).
Guaranteed sound power level LWA	103 dB (A).
(measured according to regulation 2000/14/EC)
Sound pressure level LPA (according to regulation 2000/14/EC)	82 dB (A)
Hand arm vibration	avhw < 3.5 m/s2
according to EN 1033/DIN 45675
Weight without cutting assembly and with empty oil tank	3.9 kg

EC Declaration of Conformity

according to EC directive: 98/37/EC until 28.12.2009

2006/42/EC from 29.12.2009

We,

ATIKA GmbH & Co. KG

Schinkelstraße 97

59227 Ahlen - Germany

herewith declare under our sole responsibility that the product

Power Pruner Type KSH 600

is conform with the above mentioned EC directives as well as with the provisions of the guidelines below:

2004/108/EC, 2006/95/EC, 2000/14/EC

Following harmonized standards have been applied:

EN 60335-1:2002+A11:2004+A1:2004+A12:2006:A2:2006; EN 50366:2003+A1:2006; Parts of ISO 11680-1:2000;

EN 55014-1:2006; EN 55014-2:1997/+A1:2001; EN 61000-3-2:2006; EN 61000-3-3:1995/+A1:2001/+A2:2005

Conformity assessment procedure: 2000/14/EC - Appendix V.

Measured sound power level L_WA 101.5 dB (A).

Guaranteed sound power level L_WA103dB (A).

Keeping of technical documents at: ATIKA GmbH & Co. KG – Technical department – Schinkelstr. 97 – 59227 Ahlen – Germany

Ahlen, 05.10.2009

A. Pollmeier, management

Guarantee

Please observe the enclosed terms of guarantee.

2004/108/CE, 2006/95/CE, 2000/14/CE

Proceded evaluation of the conformity: 2000/14 CE - Annexe V

A. Pollmeier, direction

Conditions de garantie

D-59227 Ahlen - Germany

2004/108/EF, 2006/95/EØF, 2000/14/EF

2004/108/CE, 2006/95/CE, 2000/14/CE.

A. Pollmeier, Adm. dir.

Inhoud

A. Pollmeier, management

Garantie
