USER MANUAL FLEXSCAN S2401W EIZO

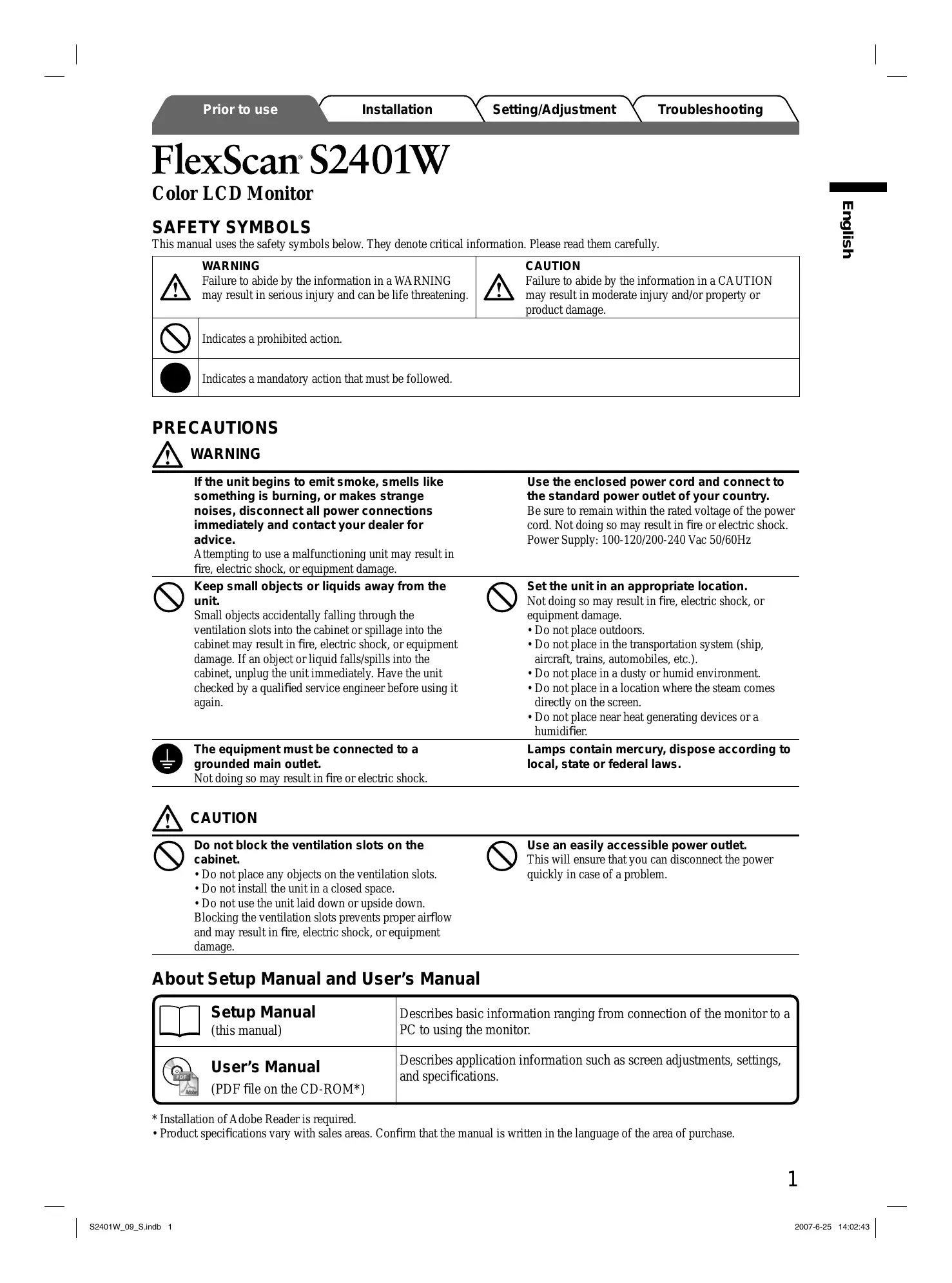

Prior to use Installation FlexScan S2401W Color LCD Monitor SAFETY SYMBOLS This manual uses the safety symbols below. They denote critical information. Please read them carefully. Setting/Adjustment Troubleshooting

WARNING Failure to abide by the information in a WARNING may result in serious injury and can be life threatening.

CAUTION Failure to abide by the information in a CAUTION may result in moderate injury and/or property or product damage.

Indicates a prohibited action. Indicates a mandatory action that must be followed. PRECAUTIONS VAN WARNING If the unit begins to emit smoke, smells like something is burning, or makes strange noises, disconnect all power connections immediately and contact your dealer for advice. Attempting to use a malfunctioning unit may result in fire, electric shock, or equipment damage. Use the enclosed power cord and connect to the standard power outlet of your country. Be sure to remain within the rated voltage of the power cord. Not doing so may result in fire or electric shock. Power Supply: 100-120/200-240 Vac 50/60Hz

Keep small objects or liquids away from the unit. Small objects accidentally falling through the ventilation slots into the cabinet or spillage into the cabinet may result in fire, electric shock, or equipment damage. If an object or liquid falls/spills into the cabinet, unplug the unit immediately. Have the unit checked by a qualified service engineer before using it again. Set the unit in an appropriate location. Not doing so may result in fire, electric shock, or equipment damage. + Do not place outdoors. + Do not place in the transportation system (ship, aircraft, trains, automobiles, etc.). + Do not place in a dusty or humid environment. + Do not place in a location where the steam comes directly on the screen. + Do not place near heat generating devices or a humidifier. The equipment must be connected to a grounded main outlet. Not doing so may result in fire or electric shock. Lamps contain mercury, dispose according to local, state or federal laws. A CAUTION

Do not block the ventilation slots on the cabinet. + Do not place any objects on the ventilation slots. + Do not install the unit in a closed space. + Do not use the unit laid down or upside down. Blocking the ventilation slots prevents proper airflow and may result in fire, electric shock, or equipment damage.

Use an easily accessible power outlet. This will ensure that you can disconnect the power quickly in case of a problem. About Setup Manual and User'’s Manual Setup Manual (this manual) Describes basic information ranging from connection of the monitor to a PC to using the monitor.

User's Manual (PDF file on the CD-ROM*) Describes application information such as screen adjustments, settings, and specifications.

• Installation of A dobe Reader is required. + Product specifications vary with sales areas. Confirm that the manual is written in the language of the area of purchase. S2401W_09_Sndb 1 ysufuz I 2007-6-25 14:02:43

rto use Installation Setting/Adjustment Troubleshooting Package Contents NOTE a Monitor a Power cord ysufuz I a Digital signal cable: FD-C39 a Analog signal cable: MD-C87 Check that all the following items are included in the packaging box. If any items are missing or damaged, contact your local dealer. + Please keep the packaging box and materials for future movement or transport of the monitor. LD 1)

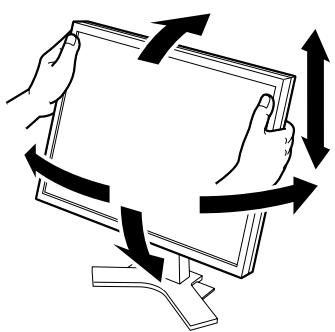

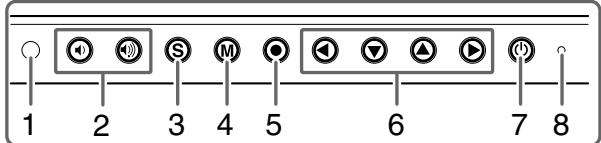

(So +-0-Hi o EIZO USB cable: MD-C93 a Stereo mini jack cable D ——}— a EIZO LCD Utility Disk (CD-ROM) *User's Manual o Setup Manual (this manual) o Limited warranty a Recycling Information a Mounting Screws (M4 x 12mm, 4 pcs) a Cable holder (for EZ-UP stand) Example of height adjustable stand Adjustment menu = (ScreenManager 9, AE 21 ( ©[© © © sl? || I | I __ L 2 3 4 5 6 7 8 10 1112 13 Sensor Detects ambient brightness. BrightR egulator function (page 6). Volume control buttons Displays the volume adjustment menu to volume up or down Switches input signals for display when two PCs are connected to the monitor. Mode button Allows you to switch the display mode.

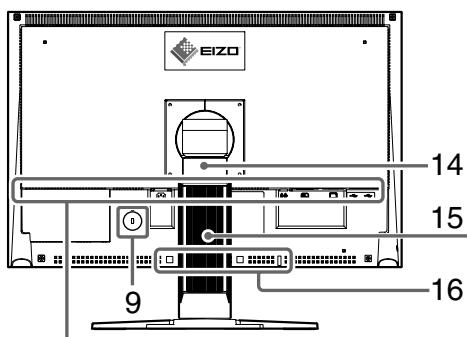

• Chooses an adjustment item or increases/decreases adjusted values for advanced adjustments using the Adjustment menu (page 6). + © or ® button: Displays the brightness adjustment window (page 6). 7 | Power button Turns the power on or off. 8 | Powerindicator Indicates monitor's operation status Blue: Operating Orange: Power saving Off: Power off 9 | Security lock slot Complies with Kensington's MicroS aver security system. mounting holes 10 | Power connector Connects the power connector. 11] Stereo mini jack Connects the stereo mini jack cable. 12 | Input signal connectors DVI-1 Connector/D-Sub mini 15-pin connector 13 | USB port (Up) Connects the USB cable to use the ScreenManager P ro for LCD software (for Windows). For how to use it, refer to the User's Manual on the CD-ROM. USB Port (Down) ‘Connects a peripheral USB device. | | | UT | 14 | Stand Used to adjust the height and angle of the monitor screen. 15 | Cable holder Covers the monitor cables. 16 | Option speaker (i-Sound L3) | Used to attach the option speaker (Sound L3). (May not allowed to attach the option speaker depending on the stand type.)

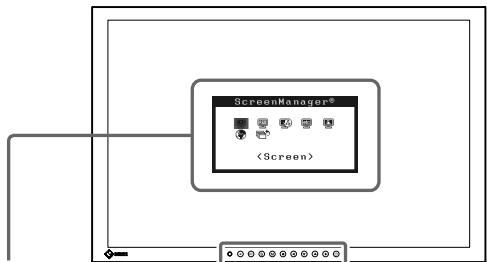

• ScreenManager ® is an EIZO's nickname of the A djustment menu. (For how to use ScreenManager, refer to the Users Manual on the CD-ROM.)

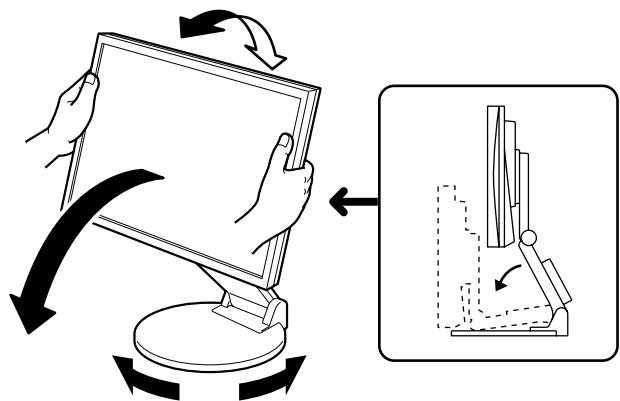

Installation Setting/Adjustment Troubleshooting Installation/storage of the monitor with EZ-UP stand If you have purchased the monitor with EZ-UP stand, please perform the following procedures when installing and storing. The stand of the monitor is locked with a lock metal fitting at the packing. Remove the lock metal fitting after placing the monitor on the desk or the stand may be unfolded suddenly. Keep the lock metal fitting for future movement or transportation of the monitor. ysufuz I Installing the monitor 1 Lift the monitor screen in the arrow direction. Lift it by holding the panel portion with both hands, until you may hear the “click”. If it clicks, the monitor stand lock is surely functioned to use the monitor. 2 Lower the monitor screen position, and remove the lock metal fitting. Lock metal fitting Attention + Removing the lock metal fiting may allow the stand unfolding suddenly.

• Do notuse the monitor when the EZ-UP stand is folded.

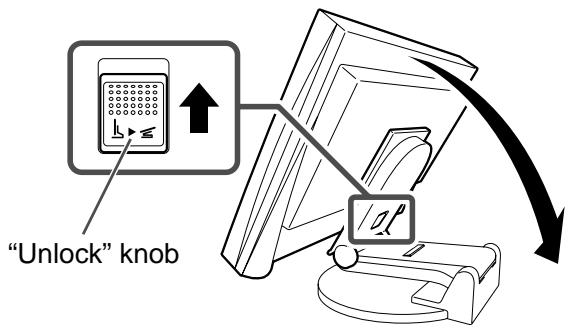

• After releasing the lock, take care not to catch your fingers when lowering the monitor. This may cause injury or damage the monitor. Storage the monitor L Remove the cable holder. 2 Lower the monitor screen position until the hinge of the stand touches the stand base, and attach the lock metal fitting. Adjust the monitor angle so as the monitor screen not to touch the stand base. 3 Fall the monitor screen backward with keeping slide-up the “Unlock” knob. When maximally tilting (252) the monitor screen backward, the “Unlock” knob may be hard to be slid-up. Then, slightly tit up the monitor to vertical direction and slide-up the “Unlock” knob. “Unlock” knob S2401W_09_Sindb 3 2007-6-25 14:02:44

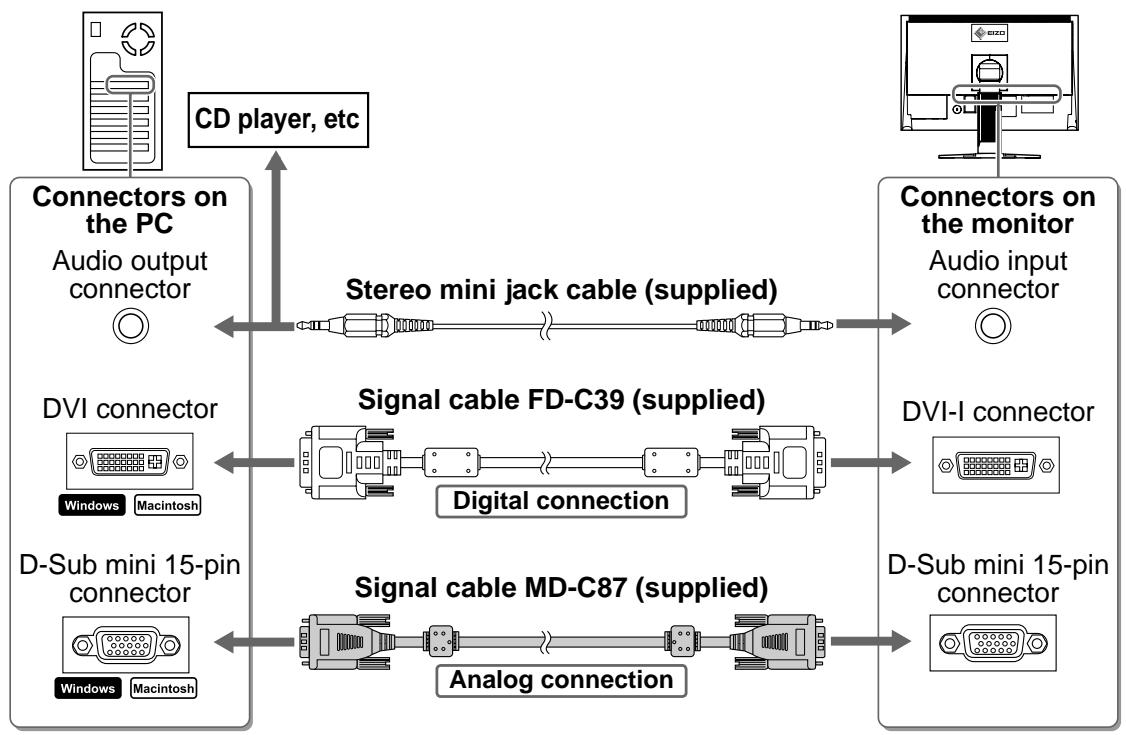

Installation Setting/Adjustment Troubleshooting Connecting Cables Attention + When replacing the current monitor with a S2401W monitor, be sure to change the PC settings for resolution and vertical frequency to those which are available for the S2401W monitor referring to the resolution table (back of cover page) before connecting the PC. NOTE + When connecting two PCs to the monitor, refer to the User's Manual on the CD-ROM. ysufuz I L Check thatthe monitor and the PC are powered off. 2 Connect the monitor to the PC with a signal cable that matches the connectors. After connecting the cable connectors, tighten the screws of the connectors to secure the coupling. D #S Lu] =] CD player, etc Connectors on Connectors on the PC the monitor Audio output Audio input connector Stereo mini jack cable (supplied) connector DVI connector Signal cable FD-C39 (supplied) DVI: connector Digital connection D-Sub mini 15-pin D-Sub mini 15-pin connector Signal cable MD-C87 (supplied) connector 3 Plug the power cord into a power outlet and the Power connector on the monitor. Adjusting Screen Height CE Hold left and right edge of the monitor with both hands, and adjust the screen height, tilt and swivel of the screen to the best condition for working. Height adjustable stand EZ-UP stand Hold left and right edge of the monitor with both hands to Hold the left and right edges of the monitor with both adjust the screen up, down, left and right directions. hands and adjust the screen angle by moving them upwards, downwards, or to the left or right.

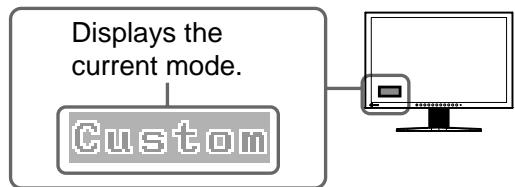

Prior to use Installation Setting/Adjustment Troubleshooting Displaying the Screen L Press © to turn on the monitor. The monitor's power indicator lights up blue. 2 Turn on the PC. The screen image appears. When turning on the monitor and PC for the first time with the analog signal, the Auto Adjustment function works to adjust the clock, phase, and display position automatically. ysufuz I Attention + Turn off the monitor and PC after using them. Unplugging the power cord completely shuts off power supply to the monitor. justing Speaker Volume 1 Press © or @. Speaker volume adjustment screen The speaker volume adjustment screen appears. 2 Adjust the speaker volume with @ or @). electing Display Mode FineContrast allows you to select the best display mode easily according to monitor's application. For details of FineContrast, refer to the User’s Manual on the CD-ROM. FineContrast Mode Custom Available for making desired setting. sRGB Suitable for color matching with SRGB compatible peripherals. Text Suitable for displaying texts for word processing or spreadsheets. Picture Suitable for displaying images such as photos or picture images. Movie Suitable for playing back animated images. 1 Press @. The FineContrast mode appears. FineContrast mode name 2 Press () again while the FineContrast Dept mode is displayed. L Each time you press the button, the mode is switched to the Cmeatorn ee = other mode. (Refer to the FineContrast Mode table.) 3 Press © at the desired mode. The selected mode is set. S2401W_09_Sindb 5 2007-6-25 14:02:45

Prior to use Installation Setting/Adjustment Troubleshooting Adjusting Brightness == lLPress Cor. The brightness adjustment screen appears. Brightness adjustment screen 2 Adjust the brightness with (© or (D). Press (@) to increase screen brightness or press @ to decrease. ysufuz 3 Press (e) at the desired brightness. The specified brightness is saved. NOTE + Screen will be adjusted automatically to the appropriate brightness that accepted environment as the sensor on the lower side of the monitor detects the surrounding brightness with the BrightR egulator function. For details, refer to the User's Manual on the CD-ROM. erforming Advanced Settings/Adjustme Advanced adjustments for the screen or color Adjustment menu and various settings are available using the [ Il EE Adjustment menu. For details of each adjustment function, refer a uw gps us to the User’s Manual on the CD-ROM. Fée Fe <auto najuatment <sereen> At analog signal input At digital signal input The basic settings and adjustments are completed. For advanced settings/adjustments, refer to the User’'s Manual on the CD-ROM. S2401W_09_Sindb 6 2007-6-25 14:02:46

Prior to use Installation No-Picture Problem Setting/Adjustment Troubleshooting If no picture is displayed on the monitor even after the following remedial action is taken, contact your local dealer.

1. Check the Power indicator.

Symptom Status Possible cause and remedy No picture Power indicator does not light. Check whether the power cord is connected correctly. Ifthe problem persists, turn off the monitor, and then turn it on again a few minutes later. ysufuz I Press ©) Power indicator is lighting blue. Check <Gain>* setting. Power indicator is lighting orange. Switch the input signal with (S). Operate the mouse or keyboard. Check whether the PC is turned on.

• For details of the gain adjustment, please refer to the User’s Manual on the CD-ROM.

2. Check the error message on the screen.

These messages appear when the input signal is incorrect even if the monitor is functioning. Atanalog signal input Signal Check DUI No Signal At digital signal input Symptom Status Possible cause and remedy No signal is input. The message shown left may appear, because some PCs do not outputthe signal soon after D-sUB power-on. No Signal Check whether the PC is turned on. Check whether the signal cable is connected properly. Switch the input signal with (S) Signal Error DUI Digital fD:162.8MHz fH: 75.4kHz £fU: 60.4Hz The input signal is out of the specified frequency range. (Such signal frequency is displayed in red.) Rebootthe PC. Select an appropriate display mode using the graphics board's utility software. Refer to the manual of the graphics board for details S2401W_09_Sindb 7 2007-6-25 14:02:46
