USER MANUAL FlexScan EV2400R EIZO

User's Manual - Setup Guide

FlexScan® EV2400R

Color LCD Monitor

Setup Procedure 2

Attaching a Monitor Arm....6

LIMITED WARRANTY 10

Regulatory Compliance Notice......ii

Information for Radio Interference .... iii

Contact Addresses....vi

Important

Please read PRECAUTIONS, this Setup Guide and the User's Manual carefully to familiarize yourself with safe and effective usage. Please retain this guide for future reference.

1

*1 *2 *2

PP200 (DisplayPort™ - DisplayPort)

UU200SS (USB-A - USB-B)

*1 Instructions for attaching the stand are provided in the separate "Assembly Instructions."
*2 Not included if you purchased the free mount type monitor.
*3 Included only with the free mount type monitor.

CAUTION

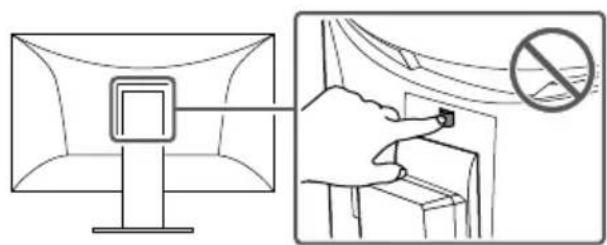

Diagram showing a computer monitor connected to a screen with a stopper, and a hand holding a stopper with a prohibition symbol.

The lock button is only used to remove the stand from the monitor. In other cases, using the lock button may result in product damage or personal injury due to the monitor becoming detached from the stand.

2

① DisplayPort ② USB-A - USB-B

3

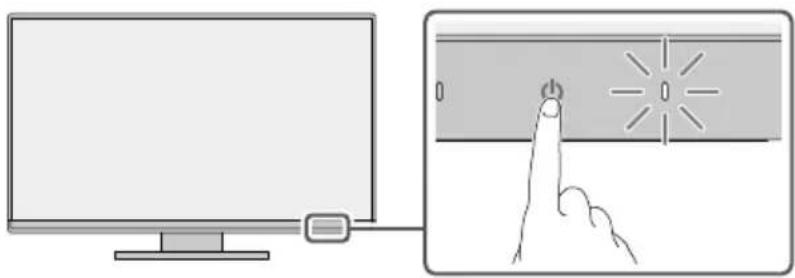

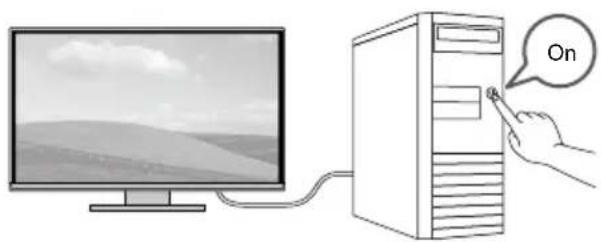

Illustration of a computer monitor connected to a screen with a finger pressing the button (no text or symbols present)

On

4

Pure graphical toolbar icons without any text or symbols

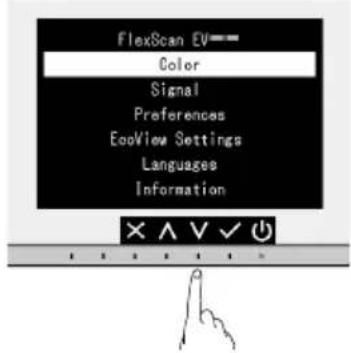

FlexScan EV Color Signal Preferences EcoView Settings Languages Information

Languages English Deutsch Français Español Italiano Svenska 日本語 简体中文 繁體中文

5

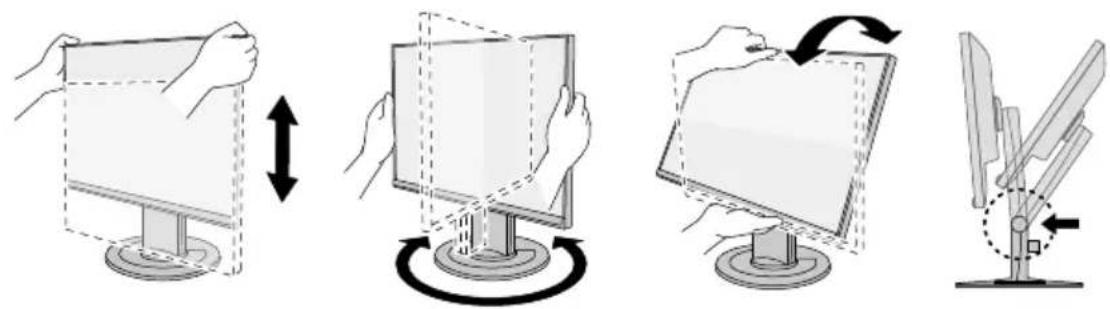

Four-step diagram showing a computer monitor with a stand, folding screen, and rotating screen (no text or symbols)

6

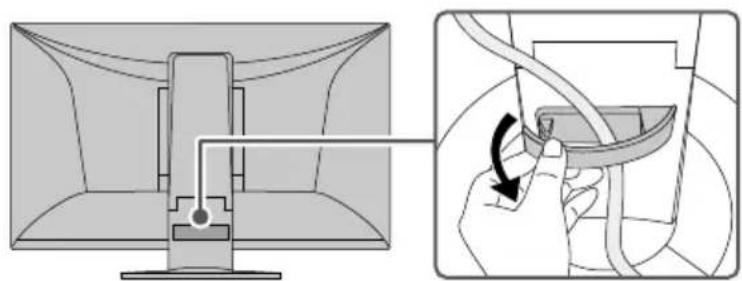

Diagram showing a computer monitor connected to a cable with a hand holding a switch, illustrating the process (no text or symbols present)

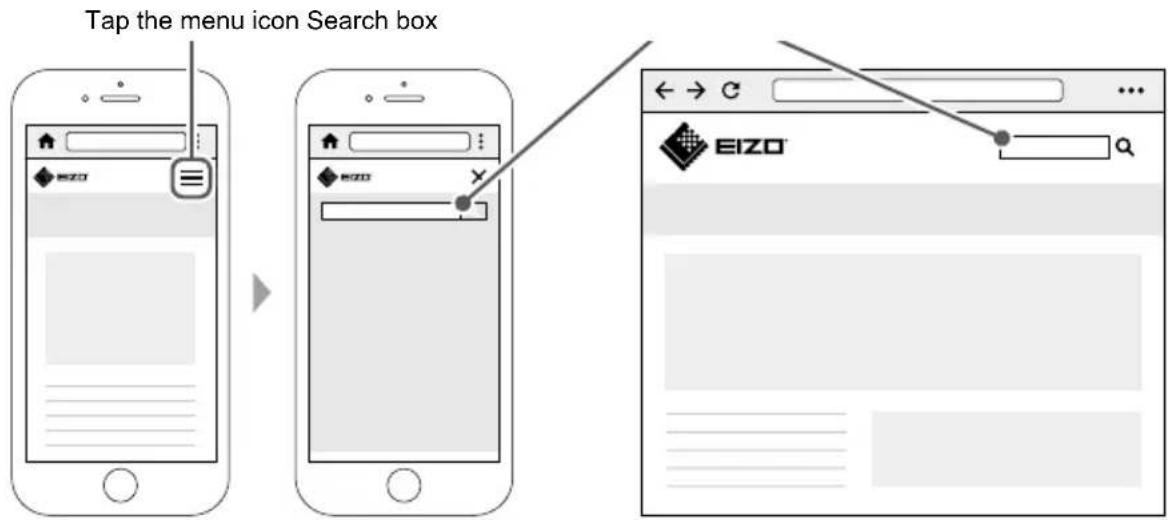

7 For the latest product information including the "User's Manual", refer to our web site: www.eizoglobal.com

Tap the menu icon Search box EIZO EIZO EIZO

Attaching a Monitor Arm

This product can be replaced with another arm or stand by removing the stand part ^*1 .

Attachable Arms and Stands

The attachable arms and stands are as follows.

EIZO products Refer to	the EIZO Web site (www.eizoglobal.com).
Other manufacturer's products	VESA standard compliant arms or stands that meet the following conditions- Clearance between mounting part screw holes: 100 mm × 100 mm- Mounting part external dimensions: 122 mm × 122 mm or smaller- Plate thickness: 2.6 mm- Weight tolerance: Strong enough to support the weight of the monitor unit and attachments such as cables.

Installation Conditions

The possible installation directions and tilt angle ranges are as follows.

Orientation Tilt angle
				Between 45° upward to 45° downward

When used between 5^ to 45^ downward

When installing the monitor on a wall or suspended from the ceiling facing downward from 5° to 45°, be sure to install the “edge support” to the monitor unit. If you use the monitor without installing the edge support, the front panel surface of the monitor may come off. Also, it will not be covered by the product warranty. For how to install the edge support, refer to page 8. Some models don’t come with an edge support. When you need it, please contact the EIZO group company or distributor in your country or territory.

www.eizoglobal.com/contact/

Installation method Tilt angle
Wall-mounted	Ceiling-mounted	Arm-mounted	Between 5° to 45° downward

*1 If you purchased the free mount type monitor, the stand is not included.

Installing an Arm or Stand

If you purchased the free mount type monitor, skip steps 1 through 3.

1. Raise the height of the monitor to the maximum height.

Attention

- If the monitor is not raised to the maximum height, there may be cases when the height of the monitor accidentally changes while removing the stand. This may be the cause of injury or damage.

1. Lay a soft cloth on a stable surface, and place the monitor on top with the screen face down.

Attention

- Be careful not to press down on the screen with your hands or pinch your fingers.

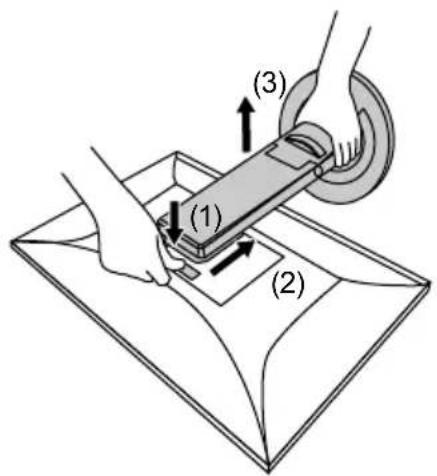

1. While pressing the lock button (1), firmly hold the stand brace, and slide the stand in the direction of the pedestal on the bottom (2). Then, lift up the stand (3).

(1) (2) (3)

Attention

• There is a protrusion on the fitting part of the removed stand. Be careful not to touch the fitting part.

• Do not move the removed stand up and down. Doing so may result in injury or device damage.

• Install the arm or stand on the monitor.

For the installation method, refer to the User's Manual for the arm or stand.

For installation, use commercially available screws that meet the following conditions:

- Nominal diameter: M4

- Length: between 7.6 mm and 11.4 mm (when using a washer, add the thickness of the washer)

Attention

- Regularly check the tightness of the screws. If they are insufficiently tightened, the monitor may come off, which may cause injury or device damage.

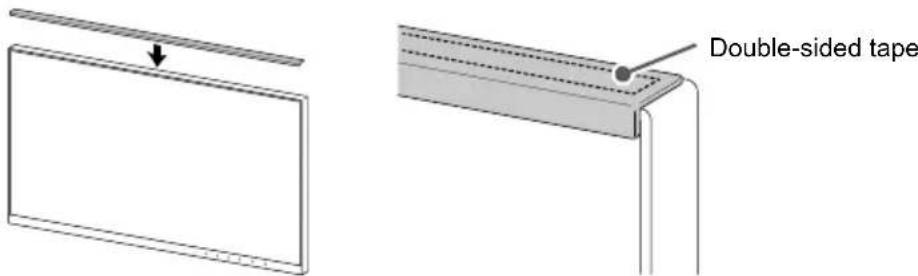

Edge Support Installation Method

When installing the monitor facing downward between 5° to 45°, install the "edge support" on the monitor unit.

Location of installation

Simple line drawing of a rectangular frame with dashed lines indicating top and bottom edges (no text or symbols)

Installation procedure

Attention

• When installing an edge support, be careful not to press down on the screen with your hands. Pressing down on the LCD screen may cause it to become scratched or otherwise damaged.

• Do not reuse an edge support that has previously been removed from a monitor. Also, do not use an edge support if its adhesive side is dirty or otherwise contaminated. Contamination causes decreases in adhesive ability.

• Firmly wipe down the top portion of the monitor using a cleaning cloth or other such item.

• Remove the release liner of the edge support's double-sided tape.

Pure diagram of a curved pipe or duct with an arrow indicating upward motion (no text or symbols)

1. Have one corner of the edge support aligned with the inside of the frame. Do this while taking care to ensure that the double-sided tape of the edge support does not stick to the monitor.

Double-sided tape

1. Install the edge support at the aligned position while ensuring that there are no gaps between the LCD panel surface and the edge support.

2. Using your finger, firmly rub down on the top surface of the edge support to ensure adhesion.

Line drawing of hands holding a ruler or tab, with an arrow indicating measurement direction (no text or symbols present)

Confirm that the edge support is firmly adhered.

LIMITED WARRANTY

EIZO Corporation (hereinafter referred to as "EIZO") and distributors authorized by EIZO (hereinafter referred to as the "Distributors") warrant, subject to and in accordance with the terms of this limited warranty (hereinafter referred to as the "Warranty"), to the original purchaser (hereinafter referred to as the "Original Purchaser") who purchased the product specified in this document (hereinafter referred to as the "Product") from EIZO or Distributors, that EIZO and Distributors shall, at their sole discretion, either repair or replace the Product at no charge if the Original Purchaser becomes aware within the Warranty Period (defined below) that the Product malfunctions or is damaged in the course of normal use of the Product in accordance with the description in the instruction manual of the Product (hereinafter referred to as the "User's Manual").

The period of this Warranty is five (5) years from the date of purchase of the Product or 30,000 hours of usage time, whichever comes earlier (hereinafter referred to as the "Warranty Period"). EIZO and Distributors shall bear no liability or obligation with regard to the Product in relation to the Original Purchaser or any third parties other than as provided under this Warranty.

EIZO and Distributors will cease to hold or store any parts (excluding design parts) of the Product upon expiration of five (5) years after the production of the Product is discontinued. In repairing the Product, EIZO and Distributors will use renewal parts which comply with our QC standards. If the unit cannot be repaired due to its condition or the stockout of a relevant part, EIZO and Distributors may offer the replacement by a product with equivalent performance instead of repairing it.

The Warranty is valid only in the countries or territories where the Distributors are located. The Warranty does not restrict any legal rights of the Original Purchaser.

Notwithstanding any other provision of this Warranty, EIZO and Distributors shall have no obligation under this Warranty whatsoever in any of the cases as set forth below:

(a) Any defect of the Product caused by freight damage, modification, alteration, abuse, misuse, accident, incorrect installation, disaster, adherent dust, faulty maintenance and/or improper repair by third party other than EIZO and Distributors;
(b) Any incompatibility of the Product due to possible technical innovations and/or regulations;
(c) Any deterioration of the sensor, including measurement value of the sensor;
(d) Any defect of the Product caused by external equipments;
(e) Any defect of the Product caused by the use under environmental conditions not anticipated by EIZO;
(f) Any deterioration of the attachments of the Product (e.g. cables, User's Manual, CD-ROM, etc.);
(g) Any deterioration of the consumables, and/or accessories of the Product (e.g. batteries, remote controller, touch pen, etc.);
(h) Any exterior deterioration or discoloration of the Product, including that of the surface of the LCD panel, the touch panel and the protect panel;
(i) Any defect of the Product caused by placement in a location where it may be affected by strong vibrations or shocks;
(j) Any defect of the Product caused by leaking battery liquid;
(k) Any deterioration of display performance caused by the deterioration of expendable parts such as the LCD panel and/or backlight, etc. (e.g. changes in brightness, changes in brightness uniformity, changes in color, changes in color uniformity, defects in pixels including burnt pixels, etc.);
(I) Any deterioration or malfunction of the cooling fan caused by adherent dust.

To obtain service under the Warranty, the Original Purchaser must deliver the Product, freight prepaid, in its original package or other adequate package affording an equal degree of protection, assuming the risk of damage and/or loss in transit, to the local Distributor. The Original Purchaser must present proof of purchase of the Product and the date of such purchase when requesting services under the Warranty.

The Warranty Period for any replaced and/or repaired product under this Warranty shall expire at the end of the original Warranty Period.

EIZO OR DISTRIBUTORS ARE NOT RESPONSIBLE FOR ANY DAMAGE TO, OR LOSS OF, DATA OR OTHER INFORMATION STORED IN ANY MEDIA OR ANY PART OF ANY PRODUCT RETURNED TO EIZO OR DISTRIBUTORS FOR REPAIR.

EIZO AND DISTRIBUTORS MAKE NO FURTHER WARRANTIES, EXPRESSED OR IMPLIED, WITH RESPECT TO, INCLUDING, WITHOUT LIMITATION, THE PRODUCT AND ITS QUALITY, PERFORMANCE, MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR USE.

IN NO EVENT SHALL EIZO OR DISTRIBUTORS BE LIABLE FOR ANY INCIDENTAL, INDIRECT, SPECIAL, CONSEQUENTIAL OR OTHER DAMAGE WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFIT, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF THE USE OR INABILITY TO USE THE PRODUCT OR IN ANY CONNECTION WITH THE PRODUCT, WHETHER BASED ON CONTRACT, TORT, NEGLIGENCE, STRICT LIABILITY OR OTHERWISE, EVEN IF EIZO OR DISTRIBUTORS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

THIS EXCLUSION ALSO INCLUDES ANY LIABILITY WHICH MAY ARISE OUT OF THIRD PARTY CLAIMS AGAINST THE ORIGINAL PURCHASER. THE ESSENCE OF THIS PROVISION IS TO LIMIT THE POTENTIAL LIABILITY OF EIZO AND DISTRIBUTORS ARISING OUT OF THIS LIMITED WARRANTY AND/OR SALES.

Regulatory Compliance Notice......ii

Information for Radio Interference ....iii

Contact Addresses....vi

Wichtig

Diagram showing a computer monitor connected to a screen with a stopper, and a hand holding a stopper with a no-smoking symbol.

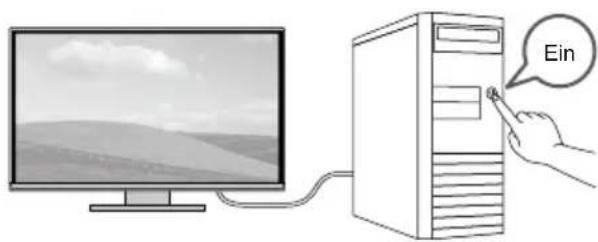

Illustration of a computer monitor connected to a screen with a finger pressing the button (no text or symbols present)

Ein

4

User interface toolbar with icons for photo, settings, refresh, and navigation controls

FlexScan EV Color Signal Preferences EcoView Settings Languages Information

Languages English Deutsch Français Español Italiano Svenska 日本語 简体中文 繁體中文

5

Illustration of four different mechanical or architectural diagrams showing hand positioning and rotation of a device (no text or symbols present)

6

Diagram showing a computer monitor connected to a cable with a hand holding a switch, illustrating the process (no text or symbols present)

Diagram illustrating the step-by-step conversion of a mobile app interface to an EIZO browser window, showing UI controls and search functionality.

- Nenndurchmesser: M4

Simple line drawing of a rectangular frame with dashed lines indicating top and bottom edges (no text or symbols)

Installation

Achtung

Pure diagram of a curved pipe or channel with an arrow indicating upward motion (no text or symbols)

Simple line drawing of a rectangular frame with a horizontal line above it and a downward arrow pointing to the top edge (no text or symbols)

Pure diagram of a rectangular structure with internal dashed lines and a small circular element, no text or symbols present.

Line drawing of two hands holding a rectangular object with a horizontal bar, no text or symbols present

Regulatory Compliance Notice......ii

Information for Radio Interference ....iii

Product Information......v

Contact Addresses....vi

Important

Diagram showing a computer monitor connected to a screen with a stopper, and a hand holding a switch with a prohibition symbol.

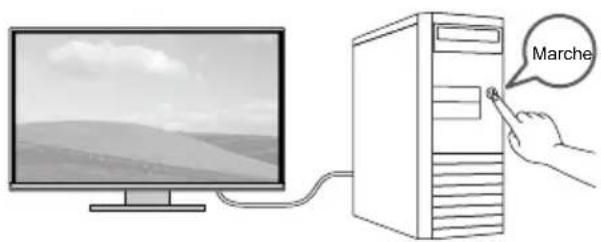

Illustration of a computer monitor connected to a screen with a finger pressing the button (no text or symbols present)

Marche

4

User interface toolbar with icons for photo, settings, and navigation controls

FlexScan EV Color Signal Preferences EcoView Settings Languages Information

Languages English Deutsch Français Español Italiano Svenska 日本語 简体中文 繁體中文

5

Four-step diagram showing a computer monitor with a stand, folding screen, and rotating screen (no text or symbols)

6

Diagram showing a computer monitor connected to a cable with a hand holding a switch, illustrating the process (no text or symbols present)

Diagram illustrating the step-by-step conversion of a mobile app interface to an EIZO browser window, showing UI controls and search functionality.

Simple line drawing of a rectangular frame with dashed lines indicating top and bottom edges (no text or symbols)

Pure diagram of a curved pipe or duct with an arrow indicating upward motion (no text or symbols)

Simple line drawing of a rectangular frame with a downward arrow indicating compression or alignment (no text or symbols)

Pure diagram of a rectangular structure with internal lines and a small circular element, no text or symbols present.

Line drawing of hands holding a ruler on a rectangular object (no text or symbols)

Regulatory Compliance Notice....ii

Information for Radio Interference ....iii

Contact Addresses....vi

Важно!

Diagram illustrating a computer monitor with a lock and a hand holding a device, alongside a prohibition symbol indicating no barrier.

Illustration of a computer monitor connected to a screen with a finger pressing the button (no text or symbols present)

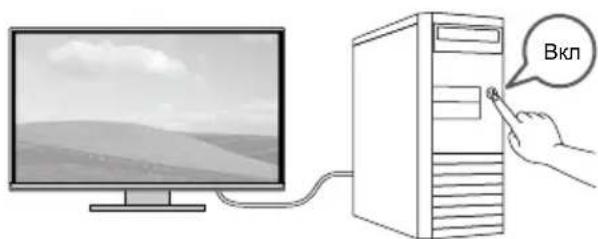

Вкл

4

User interface toolbar with icons for file, folder, refresh, and menu items, plus a hand cursor pointing at the last bar.

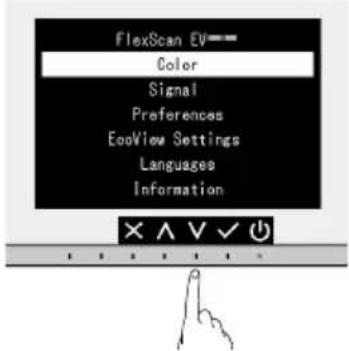

FlexScan EV—— Color Signal Preferences EcoView Settings Languages Information

Languages English Deutsch Français Español Italiano Svenska 日本語 简体中文 繁體中文

5

Four-panel diagram illustrating a computer monitor operation: left, top, bottom, and right (no text or symbols)

6

Diagram showing a computer monitor connected to a cable with a hand holding a device (no text or symbols present)

Simple line drawing of a rectangular frame with dashed lines indicating top and bottom edges (no text or symbols)

Процедура установки

Внимание

Pure diagram of a curved pipe or duct with an arrow indicating upward motion (no text or symbols)

Simple line drawing of a rectangular frame with a horizontal line above it and an arrow pointing downward (no text or symbols)

Дв

Line drawing of two hands holding a rectangular object with a ruler, no text or symbols present

Regulatory Compliance Notice

Information for Radio Interference

About FCC Supplier's Declaration of Conformity and Canadian notice based on ICES-003, refer to the User's Manual. Compliance labeling on the product itself can be found in the "Information" menu of the product. For details, refer to the User's Manual.

As an ENERGY STAR Partner, EIZO Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

Power consumption may increase depending on product settings and connection conditions.

This product carries the TCO Certified designation (EcoView Optimizer 2: Off). TCO Certified is the leading independent sustainability certification for IT products.

A third-party certification according to ISO 14024

Illustration of various electronic devices including desktops, laptops, headphones, and monitor (no text or symbols)

Toward sustainable IT products

Say hello to a more sustainable product

IT products are associated with a wide range of sustainability risks throughout their life cycle. Human rights violations are common in the factories. Harmful substances are used both in products and their manufacture. Products can often have a short lifespan because of poor ergonomics, low quality and when they are not able to be repaired or upgraded.

This product is a better choice. It meets all the criteria in TCO Certified, the world's most comprehensive sustainability certification for IT products. Thank you for making a responsible product choice, that help drive progress towards a more sustainable future!

Criteria in TCO Certified have a life-cycle perspective and balance environmental and social responsibility. Conformity is verified by independent and approved verifiers that specialize in IT products, social responsibility or other sustainability issues. Verification is done both before and after the certificate is issued, covering the entire validity period. The process also includes ensuring that corrective actions are implemented in all cases of factory non-conformities. And last but not least, to make sure that the certification and independent verification is accurate, both TCO Certified and the verifiers are reviewed regularly.

Want to know more?

Read information about TCO Certified, full criteria documents, news and updates at tcocertified.com. On the website you'll also find our Product Finder, which presents a complete, searchable listing of certified products.

Commission Regulation (EU) 2019 / 2021

This product complies with this regulation (input signal : DisplayPort / 60Hz).

Power consumption may increase depending on the product settings and connection status.

	Parameter		Parameter or value and precision Unit
1.	E20plier's name or trademark
	Supplier's address		EIZO Europe GmbH, Belgrader Straße 2, 41069 Mönchengladbach, Germany
2.	FM36eainen12400R
3.	Energy efficiency class for Standard Dynamic Range (SDR)		B
4.	70mnode power demand in SDR
5.	nEnergy efficiency class for High Dynamic Range (HDR)
6.	nOn mode power demand in HDR, if implemented
7.	03mnode, power demand, if applicable
8.	0Standby mode power demand, if applicable
9.	nNetworked standby mode power demand, if applicable
10.	Mantonic display category
11.	Size ratio
12.	Screen thickness pixels
13.	Screen diagonal cm
14.	Screen diagonal inches
15.	Mobile screen area			dm ^2
16.	Panel technology used
17.	Automatic Brightness Control (ABC) available		No
18.	Voice recognition sensor available		No
19.	Room presence sensor available		No
20.	Storage refresh frequency rate (default)
21.	Minimum guaranteed availability of software and firmware updates (from the date of end of the placement on the market)		5	Years
22.	Minimum guaranteed availability of spare parts (from the date of end of the placement on the market)		5	Years
23.	Minimum guaranteed product support		5	Years
	Minimum duration of the general guarantee offered by the supplier		5	Years
24.	Power supply type
25.	External power supply (non standardized and included in the product box)
	i	-
	ii	Input voltage	-	V
	iii	Output voltage	-	V
26.	External standardised suitable power supply (if not included in the product box)
	i	-
	ii	Required output voltage	-	V
	iii	Required delivered current (minimum)	-	A
	iv	Required current frequency	-	Hz

Contact Addresses

For Europe Only.

Please contact the EIZO group company or distributor in your country with any inquiries about purchasing or technical support. Visit the EIZO website for further contact information: www.eizoglobal.com

Manufacturer's Contact Addresses in Europe

Company Address
EIZO AG Moosacherstrasse 6, Au CH - 8820 Wädenswil, Switzerland
EIZO Austria GmbH Pfarrgasse	87 1230, Vienna, Austria
EIZO Europe GmbH Belgrader Straße 2, 41069 Mönchengladbach, Germany
EIZO Europe GmbH Belgian Branch	Antwerpsesteenweg 22, 2860 Mechelen (Sint-Katelijne-Waver), Belgium
EIZO Europe GmbH Czech Branch	Meteor Centre Office Park “B”, Sokolovska 100/94, CZ-186 00 Praha-8, Karlin, Czech Republic
EIZO Europe GmbH Netherlands Branch	Dr. Holtroplaan 34-36, 5652 XR Eindhoven, The Netherlands
EIZO Europe GmbH Succursale per l'Italia	Via Torino 3/5 20814 Varedo (MB), Italy
EIZO Limited	1 Queens Square, Ascot Business Park, Lyndhurst Road, Ascot, Berkshire SL5 9FE, UK
EIZO Nordic AB Lövängsvägen	14 SE-194 45 Upplands Väsby, Sweden
ALSTOR ZOO ul. Wenecka 12,	03-244 Warszawa, Poland
Aryan Comunicaciones, s.a. Avda. De La Industria 4 Natea Bussines Park 2B (Planta 3) ES-28108 Alcobendas, Spain
Feeder S.A.S 564 Avenue des Rosiers, Le Parc des restanques II, Bat 3A, 13600 La Ciotat, France
K&D Computer Systems Ltd 82	Ayias, Phylaxeos Street, P.O. Box 55024 3820 Limassol, Cyprus
Odak Kimya Endüstri Ürünleri San.Tic.Ltd Şti.	Esentepe Mah. Cevizli D-100 Güney Yanyol Cad. Kartal Vizyon Sitesi D Blok No:13 İç Kapı No: 26 KARTAL -İSTANBUL
i-Micro Corporation Ltd 6, Militou street, 146 71, Nea Erythrea, Athens, Greece

Importer Addresses in Europe

Company Address
EIZO AG Moosacherstrasse 6, Au CH - 8820 Wädenswil, Switzerland
EIZO Europe GmbH Belgrader Straße 2, 41069 Mönchengladbach, Germany
EIZO Limited	1 Queens Square, Ascot Business Park, Lyndhurst Road, Ascot, Berkshire SL5 9FE, UK
EIZO Nordic AB Lövängsvägen	14 SE-194 45 Upplands Väsby, Sweden
ALSTOR ZOO ul. Wenecka 12, 03-244 Warszawa, Poland
Aryan Comunicaciones, s.a. Avda. De La Industria 4 Natea Bussines Park 2B (Planta 3) ES-28108 Alcobendas, Spain
Feeder S.A.S 564 Avenue des Rosiers, Le Parc des restanques II, Bat 3A, 13600 La Ciotat, France
K&D Computer Systems Ltd 82	Ayias, Phylaxeos Str., P.O. Box 55024 3820 Limassol, Cyprus
Odak Kimya Endüstri Ürünleri San.Tic.Ltd Şti.	Cevizli Mah. Zuhal Cad. Dumankaya Ritim İstanbul 60 Parsel Kat:13 Daire: 131-132 Maltepe-İstanbul Turkey
i-Micro Corporation Ltd 6, Militou street, 146 71, Nea Erythrea, Athens, Greece
