USER MANUAL FLEXSCAN S2111W EIZO

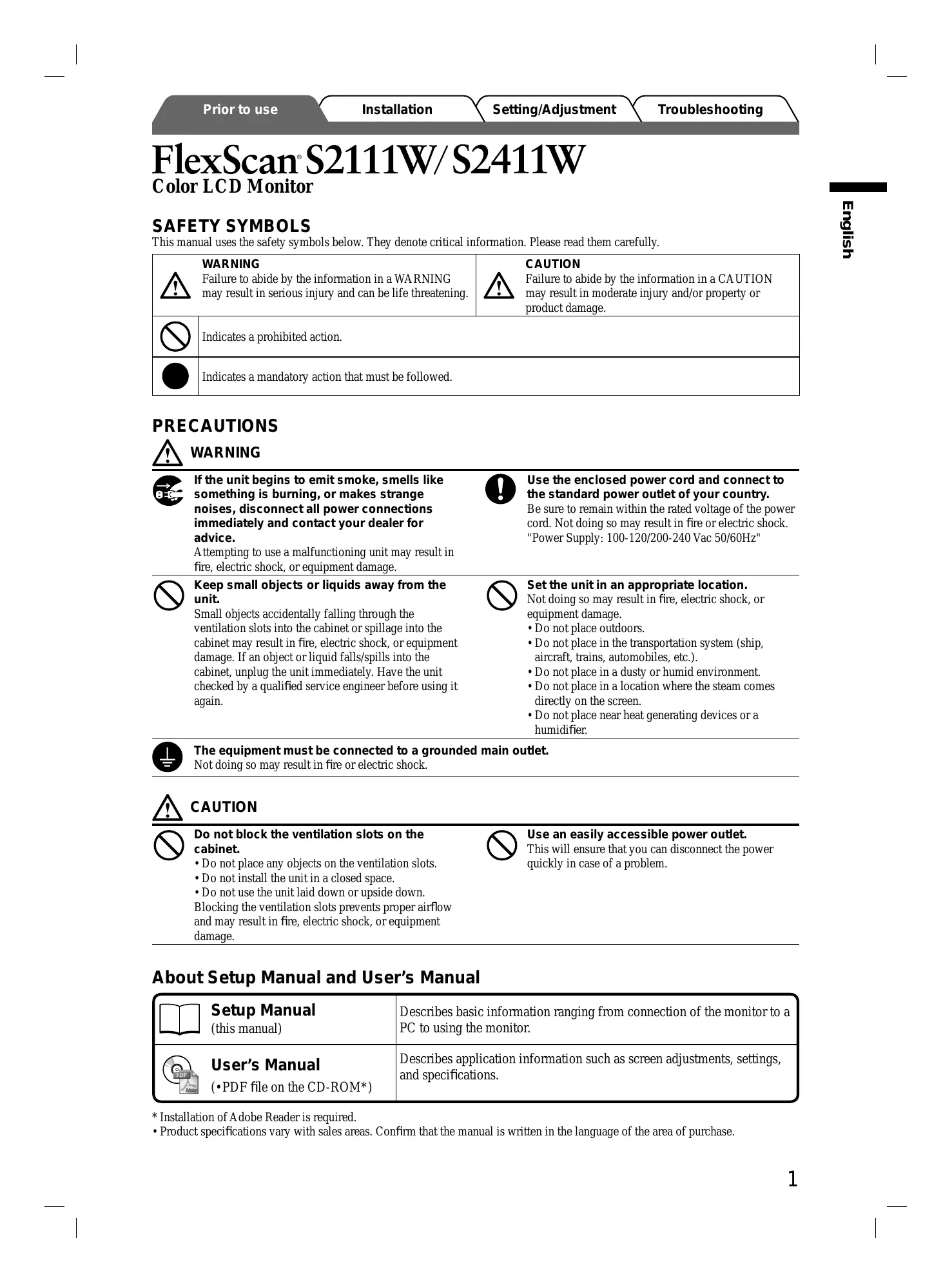

rto use Installation Setting/Adjustment Troubleshooting FlexScan S2111W/S2411W Color LCD Monitor SAFETY SYMBOLS This manual uses the safety symbols below. They denote critical information. Please read them carefully. WARNING CAUTION À Failure to abide by the information in a WARNING À Failure to abide by the information in a CAUTION may result in serious injury and can be life threatening. may result in moderate injury and/or property or product damage. O Indicates a prohibited action. @ Indicates a mandatory action that must be followed. PRECAUTIONS AN varnine If the unit begins to emit smoke, smells like Use the enclosed power cord and connect to & something is burning, or makes strange O the standard power outlet of your country. noises, disconnect all power connections Be sure to remain within the rated voltage of the power immediately and contact your dealer for cord. Not doing so may result in fire or electric shock. advice. "Power Supply: 100-120/200-240 Vac 50/60Hz" Attempting to use a malfunctioning unit may result in fire, electric shock, or equipment damage. Keep small objects or liquids away from the Set the unit in an appropriate location. SO unit. O Not doing so may result in fire, electric shock, or Small objects accidentally falling through the equipment damage. ventilation slots into the cabinet or spillage into the + Do not place outdoors. cabinet may result in fire, electric shock, or equipment * Do not place in the transportation system (ship, damage. If an object or liquid falls/spills into the aircraft, trains, automobiles, etc.). cabinet, unplug the unit immediately. Have the unit + Do not place in a dusty or humid environment. checked by a qualified service engineer before using it + Do not place in a location where the steam comes again. directly on the screen. + Do not place near heat generating devices or a humidifier. The equipment must be connected to a grounded main outlet. Not doing so may result in fire or electric shock. VAN CAUTION Do not block the ventilation slots on the Use an easily accessible power outlet. cabinet. This will ensure that you can disconnect the power + Do not place any objects on the ventilation slots. quickly in case of a problem. + Do not install the unit in a closed space. + Do not use the unit laid down or upside down. Blocking the ventilation slots prevents proper airflow and may result in fire, electric shock, or equipment damage. About Setup Manual and User'’s Manual Setup Manual Describes basic information ranging from connection of the monitor to a (this manual) PC to using the monitor. à User’s Manual Describes application information such as screen adjustments, settings, and specifications. (PDF file on the CD-ROM*)

• Installation of A dobe Reader is required. + Product specifications vary with sales areas. Confirm that the manual is written in the language of the area of purchase. ysufuz I

ysufuz I a Monitor a Power cord

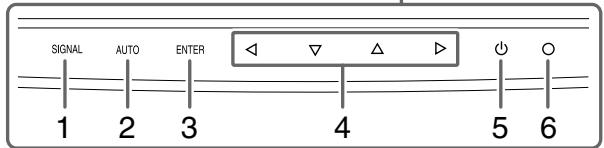

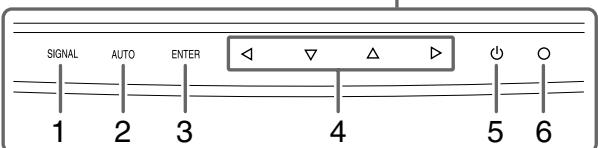

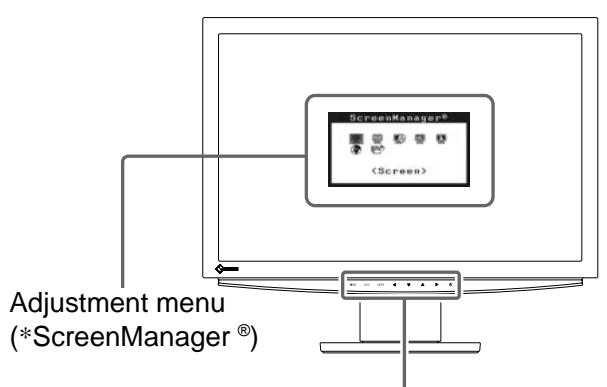

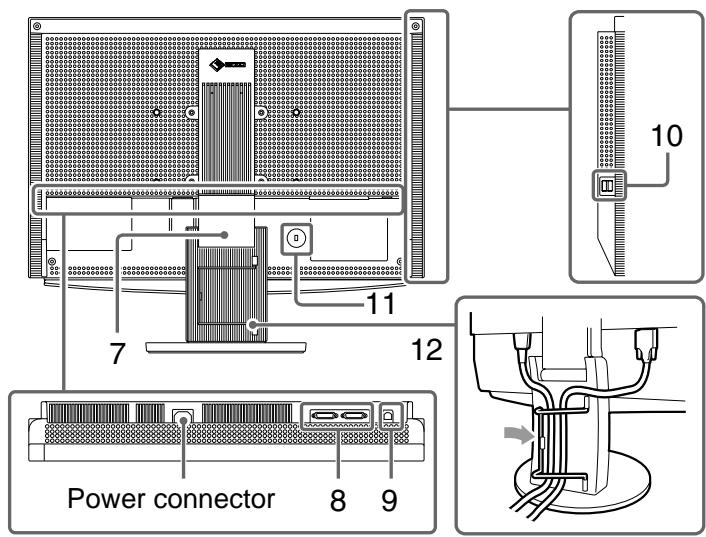

a Digital signal cable (FD-C39) a Analog signal cable (FD-C16) Prior to use Installation Setting/Adjustment Troubleshooting [ à Package Contents Check that all the following items are included in the packaging box. If any items are missing or damaged, contact your local dealer. NOTE + Please keep the packaging box and materials for future movement or transport of the monitor. o EIZO USB cable (MD-C93) a EIZO LCD Utility Disk (CD-ROM) *User's Manual o Setup Manual (this manual) o Limited warranty a Mounting Screws (M4 x 12, 4 pcs (S2111W)/ 6 pcs (S2411W)) Adjustment menu (*ScreenManager ©) es, >| o 5 6 Power connector 1 | Input Signal Selection switch | Switches input signals for display when two PCs are connected to the {SIGNAL ) monitor. 2 CAT nent swlich Performs the function to adjust the screen automatically. (analog input only) à Displays the Adjustment menu, determines an item on the menu screen, and 3 | Enterswitch (ENTER) saves values adjusted. 4 | Control switches (Left, Down, + < or switch: Displays the FineContrast menu (page 5). Up, Right) (V AD) + A or v switch: Displays the brightness adjustment window (page 5). + Chooses an adjustment item or increases/decreases adjusted values for advanced adjustments using the Adjustment menu (page 5). 5 | Power switch (0) Turns the power on or off. 6 | Powerindicator Indicates monitor's operation status. Blue : Operating Off : Power off Orange : Power saving 7 | ArcSwing 2 Stand Used to adjust the height and angle of the monitor screen. 8 | Input signal connectors DVI-I Connector x 2 9 | USB port (Up) Connects the USB cable to use the ScreenManager Pro for LCD software (for Windows). For how to use it, refer to the User's Manual on the CD-ROM. 10 | USB Port (Down) Connects a peripheral USB device. 11 | Security lock slot Complies with Kensington's MicroS aver security system. 12 | Cable holder Covers the monitor cables.

• ScreenManager * is an EIZO's nickname of the A djustment menu. (For how to use ScreenManager, refer to the Users Manual on the CD-ROM.)

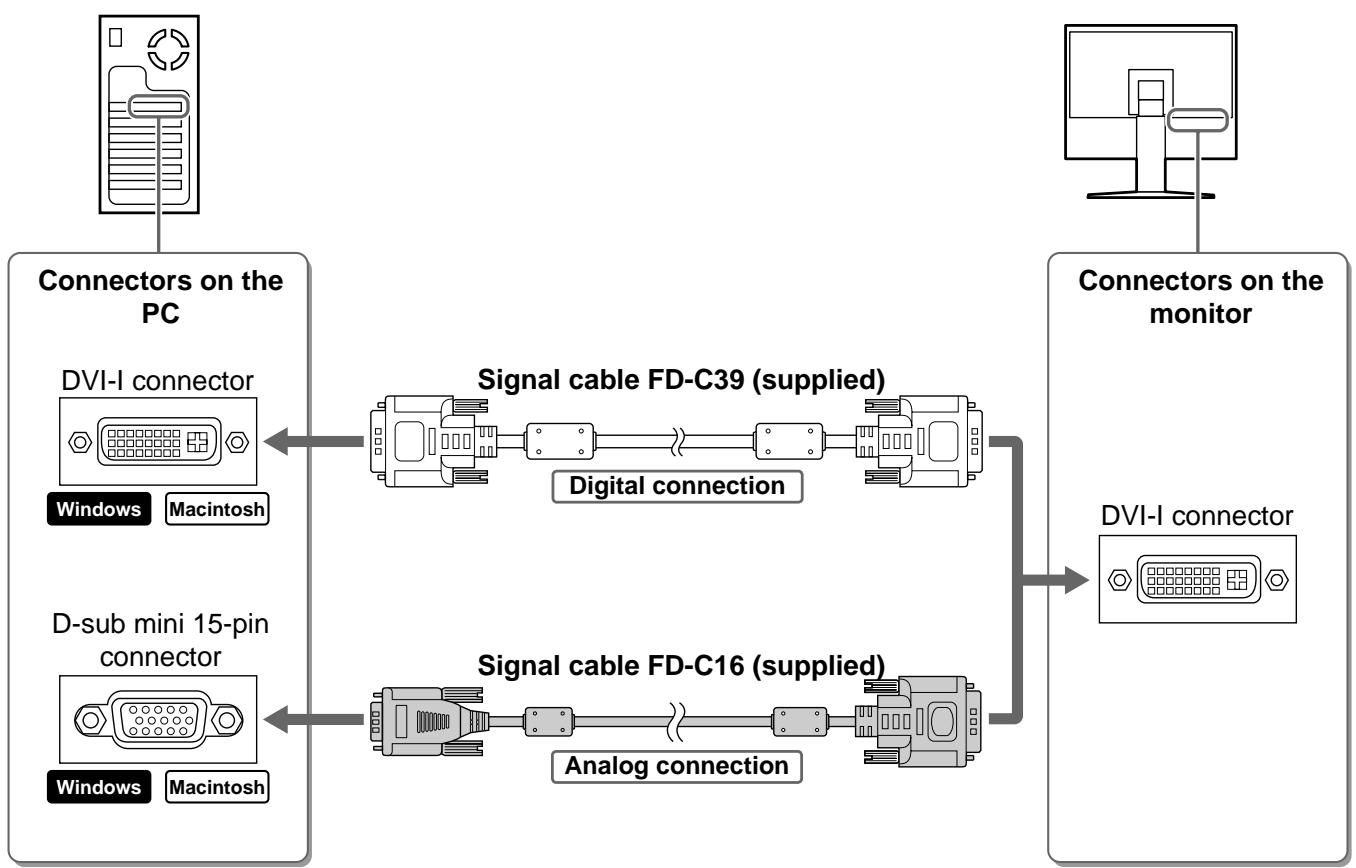

Installation Setting/Adjustment Troubleshooting Connecting Cables Attention + When replacing the current monitor with an S2111W/S2411W monitor, be sure to change the PC settings for resolution and vertical frequency to those which are available for the S2111W/S2411W monitor referring to the resolution table (back of cover page) before connecting the PC. NOTE + When connecting two PCs to the monitor, refer to the User's Manual on the CD-ROM. ysufuz I 1 Check that the monitor and the PC are powered off. 2 Connectthe monitor to the PC with a signal cable that matches the connectors. After connecting the cable connectors, tighten the screws of the connectors to secure the coupling.

Connectors on the Connectors on the PC monitor DVI-I connector DVI connector D-sub mini 15-pin connector Signal cable FD-C16 (supplied) a En — —{ ec CON 4 | T = Analog connection 3 Plug the power cord into a power outlet and the Power connector on the monitor. justing the Screen Hei Adjust the screen height, tilt and swivel the screen to the best condition for working.

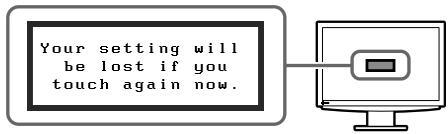

Prior to use Installation Setting/Adjustment Troubleshooting Displaying the Screen =" 7] Touch © to turn on the monitor. The monitor's Power indicator lights up blue. ysufuz 2 Turn onthe PC. The screen image appears. 3 When using analog input signals, perform the Auto Adjustment function. (Refer to “Performing Auto Adjustment function” below.) The Auto Adjustment function is not necessary when digital signals are input because images are displayed correctly based on the preset data of the monitor. + Turn off the monitor and PC after using them. Unplugging the power cord completely shuts off power supply to the monitor. Attention | Performing Auto Adjustment Function (Analog input only) When analog signals are input, the Auto A djustment function enables the automatic adjustment of clock, phase, screen position, and resolution. For details of the Auto A djustment function, refer to the User’s Manual on the CD-ROM. 1 Touch auro. A message window appears. Your setting will RME = 2 Touch AUTO again while the message is displayed. IL The Auto Adjustment function is activated and clock, phase, screen position, and resolution are adjusted automatically. Attention + The Auto Adjustment function works correctly when an image is fully displayed over the display area of a PC screen. It does not work properly when an image is displayed only on a part of the screen (DOS prompt window, for example) or when a black background (wallpaper, etc.) is in use. + The Auto Adjustment function may not work properly with some graphics boards.

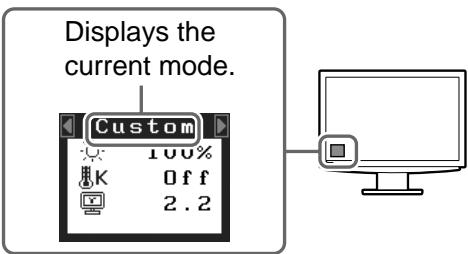

Prior to use Installation Setting/Adjustment Troubleshooting Selecting Display Mode FineContrast allows you to select the best display mode easily according to monitor's application. For details of FineContrast, refer to the User’s Manual on the CD-ROM. _— FineContrast Mode ä Custom Available for making desired setting. ÿ sRGB Suitable for color matching with SRGB compatible peripherals. Text Suitable for displaying texts for word processing or spreadsheets. Picture Suitable for displaying images such as photos or picture images. Movie Suitable for playing back animated images. TL Touch <orD. FineContrast menu The FineContrast menu appears. Displays the 2 Touch < or © again while the FineContrast current mode. menu is displayed. Each time you touch the switch, the mode is switched to the other mode. (Refer to the FineContrast Mode table.) 3 Touch ENTER at the desired mode. The selected mode is set. Adjusting Brightness 1 Touch À or v. The brightness adjustment window appears. Brightness menu 2 Adjustthe brightness with A or V. Touch A to increase screen brightness or touch w to decrease. 3 Touch ENTER at the desired brightness. The specified brightness is saved. erformin Advanced Settings/A Advanced adjustments for the screen or color and various settings are available using the A djustment menu. For details of each adjustment function, refer to the User’s Manual on the CD-ROM. Be eve

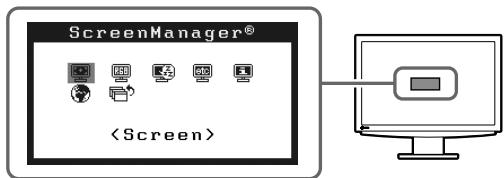

{Screen> The basic settings and adjustments are completed. For advanced settings/adjustments, refer to the User’'s Manual on the CD-ROM.

ysufuz I Prior to use Installation No-Picture Problem Setting/Adjustment Troubleshooting If no picture is displayed on the monitor even after the following remedial action is taken, contact your local dealer.

1. Check the Power indicator.

Symptom Status Possible cause and remedy No picture Power indicator does not light up. + Check whether the power cord is correctiy connected. + Touch O. Power indicator lights blue. Power indicator lights yellow. Check the gain* setting. Switch the input signal with SIGNAL . Touch a key on the keyboard or click the mouse. Turn on the PC.

• For detail of the gain adjustment, please refer to the User’s Manual on the CD-ROM.

2. Check the error message that remains on the screen.

These messages appear when the input signal is incorrect even if the monitor is functioning. Symptom Status Possible cause and remedy Signal Check The input signal is not received. Check whether the PC is turned on. Check whether the signal cable is properly connected to the PC. Switch the input signal with SIGNAL . Signal Error Signal 1 fD:165.0MHz fH: 75.0kHz fU: 60.0Hz The signal frequency is outside the specification. Incorrect signal frequency is shown in red. Change the mode to an appropriate mode using the graphics board's utility software. Refer to the manual of the graphics board for details
