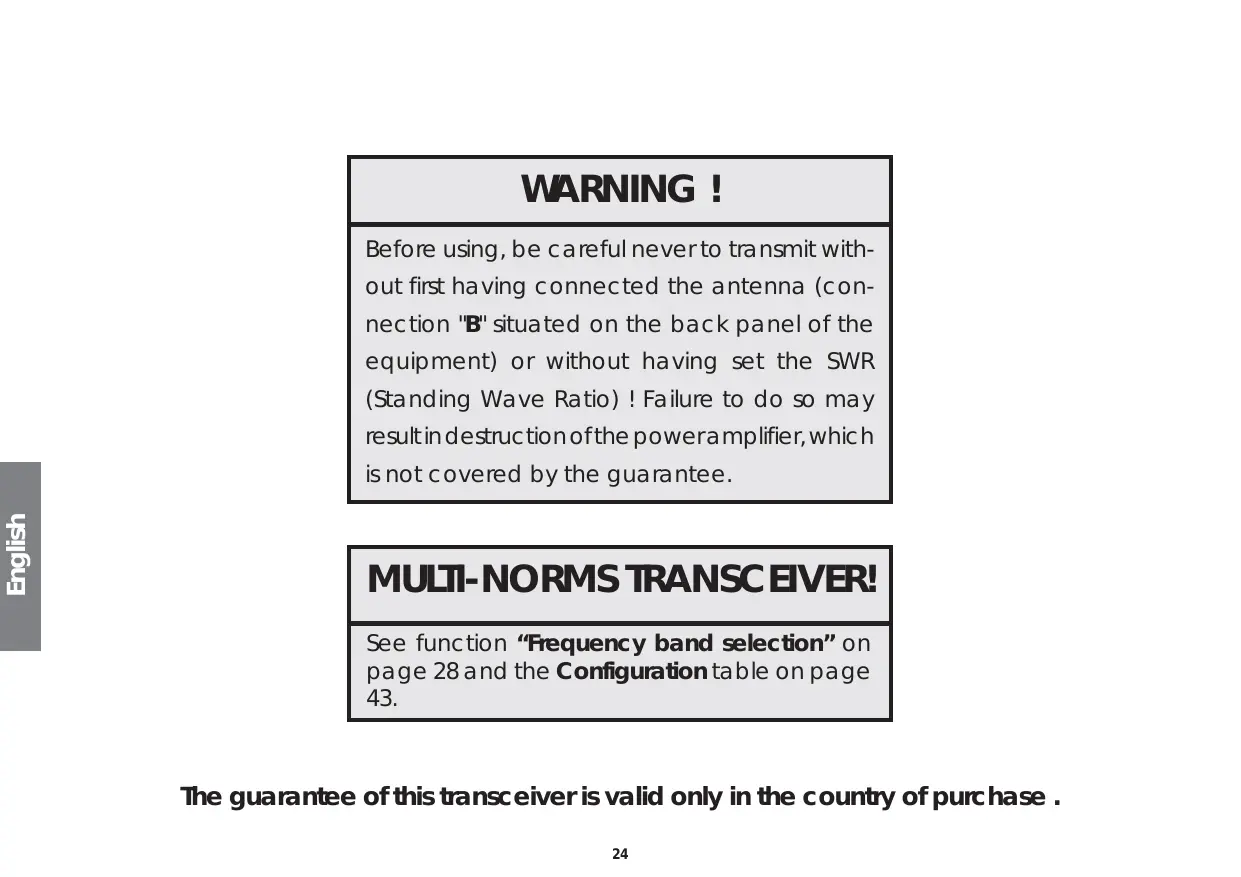

Before using, be careful never to transmit without first having connected the antenna (connection "B" situated on the back panel of the equipment) or without having set the SWR (Standing Wave Ratio)! Failure to do so may result in destruction of the power amplifier, which is not covered by the guarantee.

MULTI-NORMS TRANSCEIVER!

See function "Frequency band selection" on page 28 and the Configuration table on page 43.

The guarantee of this transceiver is valid only in the country of purchase .

Welcome to the world of the new generation of CB radios. The new EMPEROR range gives you access to top performance CB equipment. With the use of up-to-date technology, which guarantees unprecedented quality, your EMPEROR KENJI is a new step in personal communication and is the surest choice for the most demanding of professional CB radio users. To ensure that you make the most of all its capacities, we advise you to read carefully this manual before installing and using your EMPEROR KENJI.

A) INSTALLATION

1) WHERE AND HOW TO MOUNT YOUR MOBILE CB RADIO

a) You should choose the most appropriate setting from a simple and practical point of view.

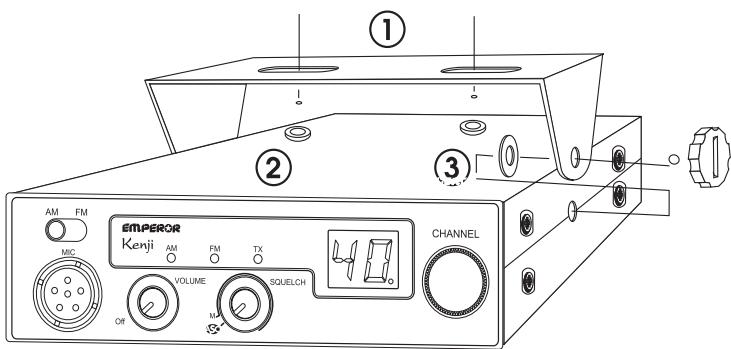

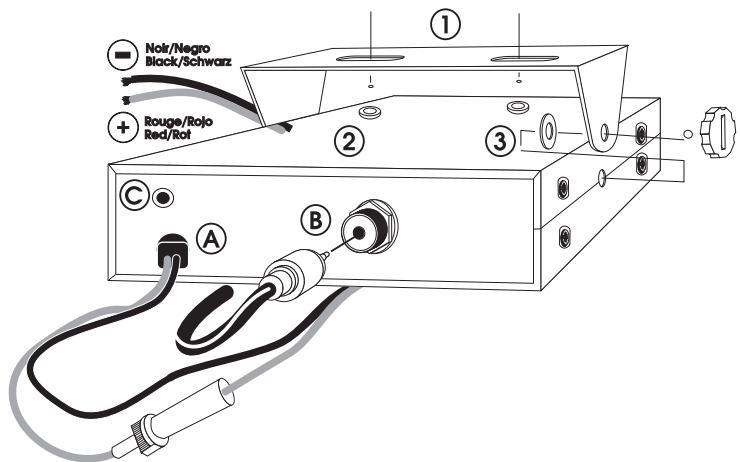

MOUNTING DIAGRAM

b) Your CB radio should not interfere with the driver or the passengers.
c) Remember to provide for the passing and protection of different wires (e.g. power, antenna, accessory cabling) so that they do not in any way interfere with the driving of the vehicle.
d) To install your equipment, use the cradle (1) and the self-tapping screws [2] provided (drilling diameter 3.2mm ). Take care not to damage the vehicle's electrical system while drilling the dash board.
f) Choose where to place the microphone support and remember that the microphone cord must stretch to the driver without interfering with the controls of the vehicle.
- N.B.: As the transceiver has a frontal microphone socket, it can be set into the dash board. In this case, you will need to add an external loud speaker to improve the sound quality of communications (connector EXT.SP situated on the back panel: C). Ask your dealer for advice on mounting your CB radio.

2) ANTENNA INSTALLATION

a) Choosing your antenna:

• For CB radios, the longer the antenna, the better its results. Your dealer will be able to help you with your choice of antenna.

b) Mobile antenna:

• Must be fixed to the vehicle where there is a maximum of metallic surface (ground plane), away from windscreen mountings.
• If you already have a radio-telephone antenna installed, the CB antenna should be higher than this.
• There are two types of antenna: pre-regulated which should be used on a good ground plane (e.g. car roof or lid of the boot), and
  adjustable which offer a much larger range and can be used on a smaller ground plane (see § 5, Adjustment of SWR).
• For an antenna which must be fixed by drilling, you will need a good contact between the antenna and the ground plane. To obtain this, you should lightly scratch the surface where the screw and tightening star are to be placed.
• Be careful not to pinch or flatten the coaxial cable (as this runs the risk of break down and/or short circuiting).
• Connect the antenna (B).

c) Fixed antenna:

• A fixed antenna should be installed in a clear space as possible. If it is fixed to a mast, it will perhaps be necessary to stay it, according to the laws in force (you should seek professional advice). All PRESIDENT antennas and accessories are designed to give maximum efficiency to each CB radio within the range.

OUTPUT RADIUS PATTERNS

3) POWER CONNECTION

Your EMPEROR KENJI is protected against an inversion of polarities. However, before switching it on, you are advised to check all the connections. Your equipment must be supplied with a continued current of 12 volts (A). Today, most cars and lorries are negative earth. You can check this by making sure that the negative terminal of the battery is connected either to the engine block or to the chassis. If this is not the case, you should consult your dealer.

WARNING: Lorries generally have two batteries and an electrical installation of 24 volts, in which case it will be necessary to insert a 24/12 volt converter (type CV 24/12 PRESIDENT) into the electrical circuit. The following connection steps should be carried out with the power cable disconnected from the set.

a) Check that the battery is of 12 volts.

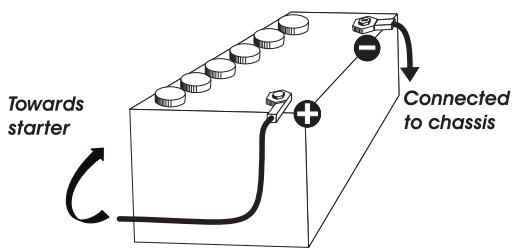

b) Locate the positive and negative terminals of the battery (+ is red and - is black). Should it be necessary to lengthen the power cable, you should use the same or a superior type of cable.
c) It is necessary to connect your CB to a permanent (+) and (-). We advise you to connect the power cable directly to the battery (as the connection of the CB cable to the wiring of the car-radio or other parts of the electrical circuit may, in somecases, increase the likelihood of interference).
d) Connect the red wire (+) to the positive terminal of the battery and the black (-) wire to the negative terminal of the battery.
e) Connect the power cable to your CB radio.

WARNING: Never replace the original fuse (2 A) by one of a different value.

4) BASIC OPERATIONS TO BE CARRIED OUT BEFORE USING YOUR SET FOR THE FIRST TIME (without transmitting and without using the «push-to-talk» switch on the microphone)

a) Connect the microphone
b) Check the antenna connections
c) Turn the set on by turning the knob VOLUME (1) clockwise.
d) Turn the SQUELCH knob to minimum (anti-clockwise).
e) Adjust the volume to a comfortable level.
f) Go to Channel 20 using the rotary knob on the front panel or UP/DOWN button on microphone (4).

5) ADJUSTMENT OF SWR (Standing wave ratio)

WARNING: This must be carried out when you use your CBradio for the first time (and whenever you re-position your antenna). The adjustment must be carried out in an obstacle-free area.

• Using an external SWR meter (e.g. SWR 1 or SWR 2):
  a) To connect the SWR meter :
• Connect the SWR meter between the CB radio and the antenna as close as possible to the CB (use a maximum of 40~cm cable, type President CA 2C).

b) To adjust the SWR meter:

• Set the CB to channel 20.
• Put the switch on the SWR meter to position CAL ou FWD.
• Press the «push-to-talk» switch on the microphone to transmit.
• Bring the index needle to by using the calibration key.
• Change the switch to position SWR (reading of the SWR level). The reading on the V.U. meter should be as near as possible to 1. If this is not the case, re-adjust your antenna to obtain a reading as close as possible to 1. (An SWR reading between 1 and 1.8 is acceptable).
• It will be necessary to re-calibrate the SWR meter after each adjustment of the antenna.

WARNING: In order to avoid any losses and attenuations in cables used for connection between the radio and its accessories, PRESIDENT recommends to use a cable with a length inferior to 3m.

Your CB is now ready for use.

a) To turn the set on, turn the knob (1) clockwise
b) To increase the sound level, turn the same knob further clockwise.

2) ASC (Automatic Squelch Control)/SQUEELCH

Suppresses undesirable background noises when there are no communication. Squelch does not effect neither sound nor transmission power, but allows a considerable improvement in listening comfort.

a) ASC: Automatic Squelch Control Worldwide patent, a PRESIDENT exclusivity
No repetitive manual adjustment and a permanent improvement in listening comfort when this function is active. It can be disconnected by turning the switch (2) clockwise, in this case the manual squelch control becomes active again.
b) Turn the squelch knob clockwise to the exact point where all background noise disappears. This adjustment should be done with precision as, if set to maximum, (i.e. fully clockwise) only the strongest signals will be received.
3) CHANNEL SELECTOR ROTARY KNOB

Turning this knob allows you to choose a channel (1-40) for transmitting and receiving.

4) DISPLAY

The display shows the working channel.

5) TRANSMISSION INDICATOR

is active when the PTT key on the mike (8) is pressed to transmit.

6) AM/FM INDICATORS

Displays the active mode, AM or FM.

7) AM/FM

Allows the selection of AM/FM mode.

8) PTT ON THE MIKE

Press to talk and release to receive a message.

A) Power supply (13,8 V)
B) Antenna connector (SO-239)
C) Jack for external loudspeaker (8 , 0 3,5 mm)

The frequency bands must be chosen according to the country where you are going to operate. Do not use another configuration. Some countries require user's licence.

Procedure :

• Switch off the transceiver
• Switch on the transceiver pressing the key on the mike simultaneously
• The code blinks, release the PTT key of the mike after 3 seconds; the code blinks more quickly
• Choose the code with the channel rotary selector, then press 2 seconds on the PTT key of the mike
• Switch off the transceiver, then switch on to confirm the chosen code

Code	Country
01	Italy 40 CH AM/FM 4 Watt
02	Italy 34 CH AM/FM 4 Watt
03	Germany 80 CH FM 4 Watt/ 40 CH AM 1 Watt
04	Germany 40 CH FM 4 Watt/ 40 CH AM 1 Watt
05	Europe 40 CH FM 4 Watt/ 40 CH AM 1 Watt
06	CEPT 40 CH FM 4 Watt
07	Spain 40 CH AM/FM 4 Watt
08	France 40 CH FM 4 Watt / 40 CH AM 1 Watt
09	Poland 40 CH AM/FM 4 Watt (-5KHz)
00	England 40 CH FM 4 Watt English frequencies / CEPT 40 CH FM 4 W

Remark : Code 00

• in order to select the English channels, put the AM/FM switch on FM. The AM indicator lights up.
• in order to select the FMCEPT frequencies, put the AM/FM switch on AM. The FM indicator lights up.

C) TECHNICAL CHARACTERISTICS

1) GENERAL

• Channels

(according to the selected band)

: 40 channels

• Frequency range

: 26.965 to 27.405 MHz

• Frequencies

：PLL

• Operating Temperature Range

: -10°C / +55°C

• DC input voltage

13.2 V DC ±15%

-Size

: 140 (L) x 180 (H) x 35 (D) mm

Weight

: 0.850 kg

2) RECEIVER

Receiving system

• Intermediate Frequency

: 1^ IF :10.695 MHz, 2^ IF :455 MHz

• Sensitivity

: 0.5 V for 20 dB SINAD in FM

• Audio Distortion

: less than 8% @ 1 KHz

• Image rejection

:65dB

• Adjacent Channel rejection

:65dB

• Signal/Noise Ratio

:45dB

• Current drain at Standby

: 325 mA

3) TRANSMITTER

• Output power

: 4W@ 13.2 V DC

• Modulation

: FM : 1.8 KHz ± 0.2 KHz

Frequency response

: from 400 Hz to 2.5 KHz

• Output impedance

: RF 50 Ohms

• Signal/Noise Ratio

: 40 dB MIN

• Current Drain

: 1300 mA

D) TROUBLE SHOOTING

1) YOUR CB RADIO WILL NOT TRANSMIT OR YOUR TRANSMISSION IS OF POOR QUALITY

• Check that the antenna is correctly connected and that the SWR is properly adjusted.
• Check that the microphone is properly plugged in.

2) YOUR CB RADIO WILL NOT RECEIVE OR RECEPTION IS POOR

• Check that the squelch level is properly adjusted.
• Check that the volume is set to a comfortable listening level.
• Check that the microphone is properly plugged in.
• Check that the antenna is correctly connected and that the SWR is properly adjusted.
• Check that you are using the same modulation mode as your correspondent.

3) YOUR CB WILL NOT LIGHT UP

• Check the power supply.
• Check the connection wiring.
• Check the fuse.

E) HOW TO TRANSMIT OR RECEIVE AMESSAGE

Now that you have read the manual, make sure that your CB Radio is ready for use (i.e. check that your antenna is connected).

Choose your channel (19, 27).

Choose your mode (AM/FM) which must be the same as that of your correspondent.

Press the «push-to-talk» switch and announce your message «Attention stations, transmission testing» which will allow you to check the clearness and the power of your signal. Release the switch and wait for a reply. You should receive a reply like, «Strong and clear».

If you use a calling channel (19, 27) and you have established communication with someone, it is common practice to choose another available channel so as not to block the calling channel.

F) GLOSSARY

Below you will find some of the most frequently used CB radio expressions. Remember this is meant for fun and that you are by no means obliged to use them. In an emergency, you should be as clear as possible.

INTERNATIONAL PHONETIC ALPHABET

A Alpha H Hotel P Papa Whiskey

B Bravo India Q Quebec Y Yankee

C Charlie J Juliet R Romeo ZZulu

D Delta L Lima S Sierra

E Echo M Mike T Tango

F Foxtrott N November U Uniform

G Golf 0 Oscar V Victor

TECHNICAL VOCABULARY

DW	:	Dual Watch
FM	:	Frequency Modulation
GMT	:	Greenwich Meantime
HF	:	High Frequency
LF	:	Low Frequency
LSB	:	Lower Side Band
RX	:	Receiver
SSB	:	Single Side Band
SWR	:	Standing Wave Ratio
SWL	:	Short Wave Listening
SW	:	Short Wave
TX	:	CB Transceiver
UHF	:	Ultra High Frequency
USB	:	Upper Side Band
VHF	:	Very High Frequency

CB LANGUAGE

Advertising	:	Flashing lights of police car
Back off	:	Slow down
Basement	:	Channel 1
Base station	:	A CB set in fixed location
Bear	:	Policeman
Bear bite	:	Speeding fine
Bear cage	:	Police station
Big slab	:	Motorway

Big 10-4	:	Absolutely
Bleeding	:	Signal from an adjacent channel interfering with the transmission
Blocking the channel	:	Pressing the PTT switch without talking
Blue boys	:	Police
Break	:	Used to ask permission to join a conversation
Breaker	:	A CBer wishing to join a channel
Clean and green	:	Clear of police
Cleaner channel	:	Channel with less interference
Coming in loud and proud	:	Good reception
Doughnut	:	Tyre
Down and gone	:	Turning CB off
Down one	:	Go to a lower channel
Do you copy?	:	Understand?
DX	:	Long distance
Eighty eights	:	Love and kisses
Eye ball	:	CBers meeting together
Good buddy	:	Fellow CBer
Hammer	:	Accelerator
Handle	:	CBer's nickname
Harvey wall banger	:	Dangerous driver
How am I hitting you?	:	How are you receiving me?
Keying the mike	:	Pressing the PTT switch without talking
Kojac with a kodak	:	Police radar
Land line	:	Telephone
Lunch box	:	CB set
Man with a gun	:	Police radar
Mayday	:	SOS
Meat wagon	:	Ambulance
Midnight shopper	:	Thief
Modulation	:	Conversation
Negative copy	:	No reply
Over your shoulder	:	Right behind you
Part your hair	:	Behave yourself - police ahead
Pull your hammer back	:	Slow down
Rat race	:	Congested traffic
Rubberbander	:	New CBer
Sail boat fuel	:	Wind
Smokey dozing	:	Parked police car
Smokey with a camera	:	Police radar
Spaghetti bowl	:	Interchange
Stinger	:	Antenna
Turkey	:	Dumb CBer
Up one	:	Go up one channel
Wall to wall	:	All over/everywhere
What am I putting to you?	:	Please give me an S-meter reading.

CERTIFICATE OF CONFORMITY

We, GROUPE PRESIDENT ELECTRONICS, Route de Sète, BP 100 - 34540 Balaruc - FRANCE,

Declare, on our own responsibility that the CB radio-communication transceiver

Brand:EMPEROR

Model: KENJI

Manufactured in Thailand

is in conformity with the essential requirements of the Directive 1999/5/CE (Article 3) adapted to the national law, as well as with the following European Standards:

EN 300 135-2:v1.1.1 (2000)

EN 300 433-2 :v1.1.2 (2000)

EN 301 489-13 v 1.2.1 (2002)

EN 60215 (1996)

Balaruc, the 2006-05-02

Jean-Gilbert MULLER

General Manager

ACHTUNG!

WARNING: In order to avoid any losses and attenuations in cables used for connection between the radio and its accessories, PRESIDENT recommends to use a cable with a length inferior to 3m .

Code	Land
01	Italy 40 CH AM/FM 4 Watt
02	Italy 34 CH AM/FM 4 Watt
03	Germany 80 CH FM 4 Watt/ 40 CH AM 1 Watt
04	Germany 40 CH FM 4 Watt/ 40 CH AM 1 Watt
05	Europe 40 CH FM 4 Watt/ 40 CH AM 1 Watt
06	CEPT 40 CH FM 4 Watt
07	Spain 40 CH AM/FM 4 Watt
08	France 40 CH FM 4 Watt / 40 CH AM 1 Watt
09	Poland 40 CH AM/FM 4 Watt (-5KHz)
00	England 40 CH FM 4 Watt english frequencies / CEPT 40 CH FM 4 W

Bemerkung: Code 00

: 26.965 to 27.405 MHz

Brea
Cheerio
CQ
CL
DX
Fading
HI
Mike
Mull
Negative
OK
Roger
Skip
Standby
Stereo
TVI
UB
VY
WX
YL

FREQUENCY TABLE for 00 (ENG)

CB-KANÄLE UND IHRE FREQUENZEN fur 00 (ENG)

N° du canal N° Canal Channel Kanal	Fréquences Frecuencia Frequency Frequenzens	N° du canal N° Canal Channel Kanal	Fréquences Frecuencia Frequency Frequenzens
1	27,60125	21	27,80125
2	27,61125	22	27,81125
3	27,62125	23	27,82125
4	27,63125	24	27,83125
5	27,64125	25	27,84125
6	27,65125	26	27,85125
7	27,66125	27	27,86125
8	27,67125	28	27,87125
9	27,68125	29	27,88125
10	27,69125	30	27,89125
11	27,70125	31	27,90125
12	27,71125	32	27,91125
13	27,72125	33	27,92125
14	27,73125	34	27,93125
15	27,74125	35	27,94125
16	27,75125	36	27,95125
17	27,76125	37	27,96125
18	27,77125	38	27,97125
19	27,78125	39	27,98125
20	27,79125	40	27,99125

FREQUENCY TABLE for 03

CB-KANÄLE UND IHRE FREQUENZEN fur 03

N° du canal N° Canal Channel Kanal	Fréquences Frecuencia Frequency Frequenzens	N° du canal N° Canal Channel Kanal	Fréquences Frecuencia Frequency Frequenzens
1	26,965	21	27,215
2	26,975	22	27,225
3	26,985	23	27,255
4	27,005	24	27,235
5	27,015	25	27,245
6	27,025	26	27,265
7	27,035	27	27,275
8	27,055	28	27,285
9	27,065	29	27,295
10	27,075	30	27,305
11	27,085	31	27,315
12	27,105	32	27,325
13	27,115	33	27,335
14	27,125	34	27,345
15	27,135	35	27,355
16	27,155	36	27,365
17	27,165	37	27,375
18	27,175	38	27,385
19	27,185	39	27,395
20	27,205	40	27,405

N° du canal N° Canal Channel Kanal	Fréquences Frecuencia Frequency Frequenzens	N° du canal N° Canal Channel Kanal	Fréquences Frecuencia Frequency Frequenzens
41	26,565	61	26,765
42	26,575	62	26,775
43	26,585	63	26,785
44	26,595	64	26,795
45	26,605	65	26,805
46	26,615	66	26,815
47	26,625	67	26,825
48	26,635	68	26,835
49	26,645	69	26,845
50	26,655	70	26,855
51	26,665	71	26,865
52	26,675	72	26,875
53	26,685	73	26,885
54	26,695	74	26,895
55	26,705	75	26,905
56	26,715	76	26,915
57	26,725	77	26,925
58	26,735	78	26,935
59	26,745	79	26,945
60	26,755	80	26,955

FREQUENCY TABLE for 09

Countries in which there are particular restrictions

Countries in which the national regulations authorize a transmission power superior to the limit fixed by the harmonised standard, notified in the 4th paragraph of the preface of the proper harmonised standard EN 300 433.
