JOHNNY II - Radio transceiver PRESIDENT - Free user manual and instructions

Product Type	CB Transceiver
Brand	PRESIDENT
Model	JOHNNY II ASC
Number of Channels	40 (AM)
Frequency Range	26,965 MHz to 27,405 MHz
Antenna Impedance	50 ohms
Supply Voltage	13.2 V DC (12 V nominal)
Dimensions (W × D × H)	115 × 180 × 35 mm
Weight	0.8 kg
Included Accessories	Electret Microphone, microphone bracket, mounting cradle, screws
Main Functions	ASC (automatic squelch), manual squelch, RF Gain, Hi-Cut, CH19, rotary channel selector, display with bargraph
Transmit Power (carrier)	1 W AM
Receive Sensitivity	0.5 µV (20 dB SINAD)
Maximum Audio Power	5 W
Power Consumption	Transmit: 1.7 A; Receive: 500 to 800 mA
Protection	Reverse polarity protection; 2 A fuse
Maintenance and Cleaning	Clean with a soft, dry cloth. Do not use solvents.
Safety	Never transmit without an antenna connected or SWR adjusted. Respect 12 V polarity.
Warranty	3 years parts and labor (excluding misuse)
Built-in Filter	ANL (Automatic Noise Limiter)

Frequently Asked Questions - JOHNNY II PRESIDENT

How to adjust SWR (Standing Wave Ratio) on the PRESIDENT JOHNNY II ?

To adjust SWR, connect an external SWR meter (such as PRESIDENT TOS-1 or TOS-2) between the radio and the antenna. Select channel 20, then in transmit mode, calibrate the SWR meter and read the SWR value. Adjust the antenna to obtain a value as close to 1 as possible (acceptable up to 1.8). This operation is mandatory upon first use or after changing the antenna.

How to use the ASC (Automatic Squelch Control) function ?

ASC is an automatic squelch adjustment, exclusive to PRESIDENT. To activate it, turn the SQUELCH knob fully counterclockwise. This continuously optimizes sensitivity and listening comfort. To deactivate ASC and switch to manual squelch, turn the knob clockwise until the background noise disappears.

Which antenna to use with the PRESIDENT JOHNNY II ?

It is recommended to use a CB antenna with an impedance of 50 ohms. For a mobile installation, choose an antenna suitable for your vehicle (pre-tuned or adjustable). For a fixed station, prefer a clear antenna, possibly on a guyed mast. The choice of antenna affects efficiency and SWR.

What to do if the device does not turn on ?

First check the supply voltage (12 V DC) and polarity: red wire to (+), black wire to (-). Check the fuse (2 A). Make sure the power cord is correctly connected to the radio and the battery. If the problem persists, consult your dealer.

How to adjust the RF GAIN ?

The RF GAIN knob adjusts receive sensitivity. For long-distance communications, set it to maximum (clockwise). For short-range communications, decrease the gain to avoid distortion. The normal position is at maximum.

How to select a frequency band ?

Turn off the device, set the F/OFF switch to F, turn on again, rotate the channel selector to choose the desired band (see table on page 48 of the manual). Set F/OFF back to OFF, turn off then on to confirm.

What does the TX indicator mean ?

The TX indicator lights up when the device switches to transmit (when you press the microphone PTT). It confirms that the radio is transmitting. If it flashes, check that the antenna is connected and that SWR is correct.

How to clean and maintain the PRESIDENT JOHNNY II ?

Clean the device with a soft, dry cloth. Do not use solvents or abrasive products. Avoid moisture and extreme temperatures. Regularly check connections and the fuse condition.

What is the maximum receive power ?

The maximum audio power in receive is 5 W. Use an external speaker (8 Ω, 3.5 mm jack) if necessary for better listening.

How to use channel 19 ?

To directly access channel 19 (road channel), set the CH19 switch to ON. The radio automatically tunes to channel 19. To return to the previous channel, set the switch back to OFF.

USER MANUAL JOHNNY II PRESIDENT

Owner's manual / Handbuch

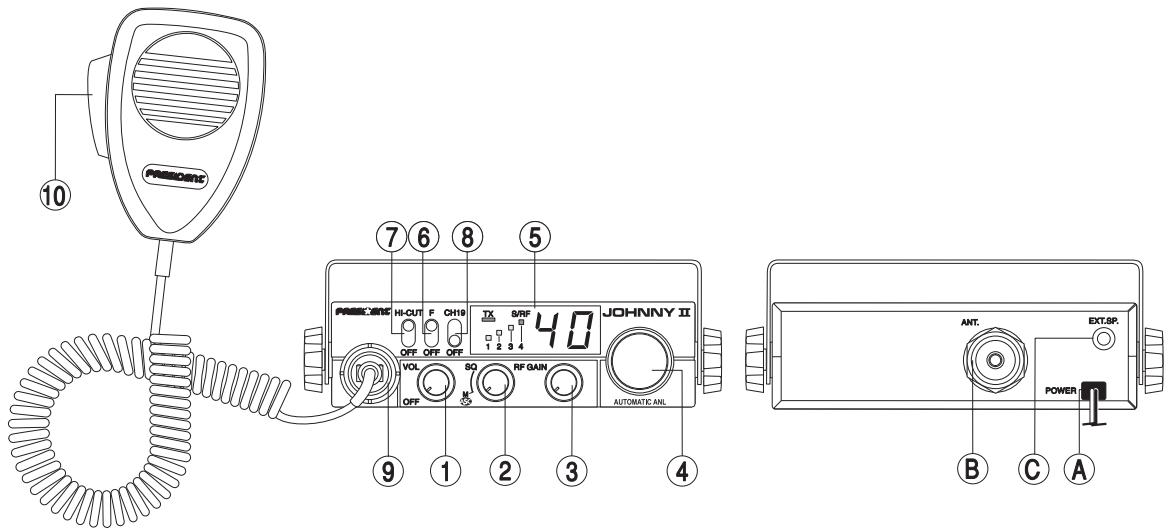

Votre PRESIDENT JOHNNY II ASC en un coup d'œil Un vistazo a vuestro PRESIDENT JOHNNY II ASC

10 PRESIDENTS 7 6 8 5 PHRISCONE HI-CUT F CH19 TX SRF 40 JOHNNY II OFF OFF OFF 1 2 3 4 VOL SO RF GAIN AUTOMATIC ANL ⑨ ① ② ③ ④ ANT. EXT.SP. POWER B C A

Six identical diagrams showing top-down views of a car with various perspective projections (no text or symbols)

3) CONNEXION DE L'ALIMENTATION :

TX S/RF 1 2 3 4 40

: Continuous waves (morse)

Jan-Glibert MullER Director General Balaure, le 17/01/2005

EN 300 433-2: v1.1.2 (2000) EN 301 489-13 v 1.2.1 (2002) EN 60215 (1996)

Abstract line drawing with overlapping ovals and a stylus (no text or symbols)

La Direction Technique

et

Le Service Qualité

Abstract line drawing with curved strokes and a small arrow (no text or symbols)

Date d'achat : ....

Type : radio CB JOHNNY II ASC

N° de série : ....

Six identical diagrams showing top-down views of a car with various perspective projections (no text or symbols)

TX S/RF 1 2 3 4 40

i B W M o

CONDICIONES GENERALES DE GRANTÍA EN ESPAÑA

Abstract line drawing with intertwined curves and a central arrow (no text or symbols)

Abstract line drawing with curved strokes and a small arrow (no text or symbols)

Nombre Apellidos

Dirección ....

Before using, be careful never to transmit without first having connected the antenna (connection "B" situated on the back panel of the equipment) or without having set the SWR (Standing Wave Ratio)! Failure to do so may result in destruction of the power amplifier, which is not covered by the guarantee.

The guarantee of this transceiver is valid only in the country pf purchase.

Welcome to the world of the new generation of CB radios. The new PRESIDENT range gives you access to top performance CB equipment. With the use of up-to-date technology, which guarantees unprecedented quality, your PRESIDENT JOHNNY II ASC is a new step in personal communication and is the surest choice for the most demanding of professional CB radio users. To ensure that you make the most of all its capacities, we advise you to read carefully this manual before installing and using your PRESIDENT JOHNNY II ASC.

A) INSTALLATION:

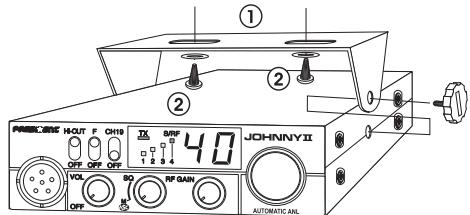

1) WHERE AND HOW TO MOUNT YOUR MOBILE CB RADIO:

a) You should choose the most appropriate setting from a simple and practical point of view.
b) Your CB radio should not interfere with the driver or the passengers.

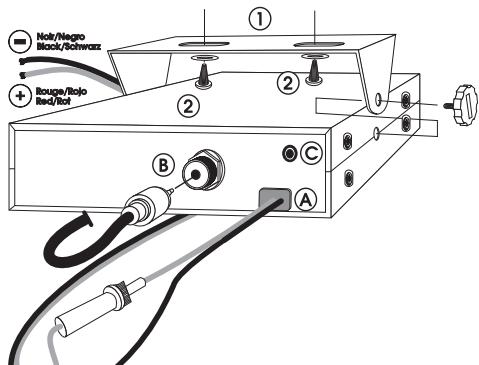

MOUNTING DIAGRAM

PROFESSIONAL TEST HOUT F CH10 TX 5V/FF 40 OFF OFF OFF VOL 8Q RF GAIN OFF JOHNNYII AUTOMATIC RAIL

Noit/Negro Black/Schwarz Bouge/Bojo Red/Rot ① ② ② ② ② ② ② ② ② ② ② ② ② ② ② ② ② A B C

c) Remember to provide for the passing and protection of different wires (e.g. power, antenna, accessory cabling) so that they do not in any way interfere with the driving of the vehicle.
d) To install your equipment, use the cradle (1) and the self-tapping screws (2) provided (drilling diameter 3.2 mm). Take care not to damage the vehicle's electrical system while drilling the dash board.
e) Choose where to place the microphone support and remember that the microphone cord must stretch to the driver without interfering with the controls of the vehicle.

- N.B.: As the transceiver has a frontal microphone socket, it can be set into the dash board. In this case, you will need to add an external loud speaker to improve the sound quality of communications (connector EXT.SP situated on the back panel: C). Ask your dealer for advice on mounting your CB radio.

2) ANTENNA INSTALLATION:

a) Choosing your antenna:

- For CB radios, the longer the antenna, the better its results. Your dealer will be able to help you with your choice of antenna.

b) Mobile antenna:

• Must be fixed to the vehicle where there is a maximum of metallic surface (ground plane), away from windscreen mountings.
• If you already have a radio-telephone antenna installed, the CB antenna should be higher than this.
• There are two types of antenna: pre-regulated which should be used on a good ground plane (e.g. car roof or lid of the boot), and
  adjustable which offer a much larger range and can be used on a smaller ground plane (see p 27 § 5, Adjustment of SWR).
• For an antenna which must be fixed by drilling, you will need a good contact between the antenna and the ground plane. To obtain this, you should lightly scratch the surface where the screw and tightening star are to be placed.
• Be careful not to pinch or flatten the coaxial cable (as this runs the risk of break down and/or short circuiting).
• Connect the antenna (B).

c) Fixed antenna:

- A fixed antenna should be installed in a clear space as possible. If it is fixed to a mast, it will perhaps be necessary to stay it, according to the laws in force (you should seek

professional advice). All PRESIDENT antennas and accessories are designed to give maximum efficiency to each CB radio within the range.

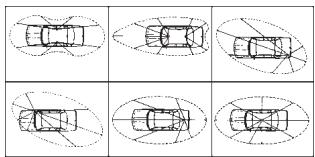

Six identical top-down diagrams of a car with various front, side, and perspective views (no text or symbols)

OUTPUT RADIUS PATTERN

3) POWER CONNECTION:

Your PRESIDENT JOHNNY II ASC is protected against an inversion of polarities. However, before switching it on, you are advised to check all the connections. Your equipment must be supplied with a continued current of 12 volts (A). Today, most cars and lorries are negative earth. You can check this by making sure that the negative terminal of the battery is connected either to the engine block or to the chassis. If this is not the case, you should consult your dealer.

WARNING: Lorries generally have two batteries and an electrical installation of 24 volts, in which case it will be necessary to insert a 24/12 volt converter (type CV 24/12 PRESIDENT) into the electrical circuit. The following connection steps should be carried out with the power cable disconnected from the set.

a) Check that the battery is of 12 volts.
b) Locate the positive and negative terminals of the battery (+ is red and - is black). Should it be necessary to lengthen the power cable, you should use the same or a superior type of cable.
c) It is necessary to connect your CB to a permanent (+) and (-). We advise you to connect the power cable directly to the battery (as the connection of the CB cable to the wiring of the car-radio or other parts of the electrical circuit may, in some cases, increase the likelihood of interference).

d) Connect the red wire (+) to the positive terminal of the battery and the black (-) wire to the negative terminal of the battery.

e) Connect the power cable to your CB radio.

WARNING: Never replace the original fuse (2 A) by one of a different value.

Towards starter Connected to chassis

4) BASIC OPERATIONS TO BE CARRIED OUT BEFORE USING YOUR SET FOR THE FIRST TIME (without transmitting and without using the «push-to-talk» switch on the microphone):

a) Connect the microphone
b) Check the antenna connections
c) Turn the set on by turning the knob VOLUME clockwise.
d) Turn the SQUELCH knob to minimum (anti-clockwise). Adjust the volume to a comfortable level.
e) Go to Channel 20 using the rotary knob on the front panel.

5) ADJUSTMENT OF SWR (Standing wave ratio):

WARNING: This must be carried out when you use your CB radio for the first time (and whenever you re-position your antenna). The adjustment must be carried out in an obstacle-free area.

* Using an external SWR meter (e.g. SWR 1 or SWR 2):

a) To connect the SWR meter :
- Connect the SWR meter between the CB radio and the antenna as close as possible to the CB (use a maximum of 40 cm cable, type President CA 2C).
b) To adjust the SWR meter:

• Set the CB to channel 20.
• Put the switch on the SWR meter to position CAL ou FWD.
• Press the «push-to-talk» switch on the microphone to transmit.
• Bring the index needle to ▼ by using the calibration key.
• Change the switch to position SWR (reading of the SWR level). The reading on the V.U. meter should be as near as possible to 1. If this is not the case, re-adjust your antenna to obtain a reading as close as possible to 1. (An SWR reading between 1 and 1.8 is acceptable).
• It will be necessary to re-calibrate the SWR meter after each adjustment of the antenna.

Your CB is now ready for use.

a) To turn the set on, turn the knob (1) clockwise
b) To increase the sound level, turn the same knob further clockwise.

2) ASC (Automatic Squelch Control)/SQUELCH :

Suppresses undesirable back-ground noises when there are no communication. Squelch does not effect neither sound nor transmission power, but allows a considerable improvement in listening comfort.

a) ASC: Automatic Squelch Control

Worldwide patent, a PRESIDENT exclusivity

No repetitive manual adjustment and a permanent improvement in listening comfort when this function is active. It can be disconnected by turning the switch (2) clockwise, in this case the manual squelch control becomes active again.

b) Manual squelch

Turn the squelch knob clockwise to the exact point where all background noise disappears. This adjustment should be done with precision as, if set to maximum, (i.e. fully clockwise) only the strongest signals will be received.

3) RF GAIN:

This knob is for adjusting sensitivity during reception. For long distance communications RF GAIN should be set to maximum. RF GAIN can be reduced to avoid distortion, when your correspondent is close by and who does not have the RF POWER function. The normal setting of this knob is on maximum (fully clockwise).

4) CHANNEL SELECTOR ROTARY KNOB:

Turning this knob allows you to choose a channel (1-40) for transmitting and receiving.

5) DISPLAY:

The display shows all the different functions. The bargraph shows the level of reception and the level of power emitted. The TX LED lights up when the set goes into transmission mode.

TX S/RF 1 2 3 4 40

The frequency bands must be chosen according to the country where you are going to operate. Do not use another configuration. Some countries require user's licence.

a) Radio set switched OFF.
b) Slide the F/OFF switch on F position.
c) Switch ON the radio.
d) Choose the request configuration with the channel rotary switch (see the chart p. 48).
e) Slide the F/OFF switch on OFF position.
f) And then, for final confirmation of the choice before operating in the configuration, switch OFF then ON the radio set.

7) HI-CUT:

Cuts out high frequency interference. Its use depends on reception conditions.

To activate this function, move the switch to HI-CUT position. Move the same switch to OFF position to deactivate.

8) CH 19:

Channel 19 is automatically selected when you activate this switch.

To activate this function, move the switch to CH19 position, and to return to the previous channel move the same switch to OFF position.

9) 6-PIN MICROPHONE PLUG:

This plug is situated on the front panel, thereby making it easier to set the equipment into the dashboard. See the cabling diagram on page 47.

10) PTT (push to talk):

Depress this knob to transmit a message and release to listen to an incoming communication.

A) DC-POWER TERMINAL (13,2 V)
B) ANTENNA CONNECTOR (SO-239)
C) EXTERNAL SPEAKER JACK (8 Ω, ∅ 3,5 mm)

C) TECHNICAL CHARACTERISTICS:

1) GENERAL:

• Channels
• Modulation modes
• Frequency ranges
• Antenna impedance
• Power supply
• Dimensions (in mm)
• Weight
• Accessories supplied
• Filter

2) TRANSMISSION:

• Frequency allowance
• Carrier power
• Transmission interference
• Audio response
• Emitted power in the adj. channel
• Microphone sensitivity
• Drain
• Modulated signal distortion

3) RECEPTION:

• Maxi. sensitivity at 20 dB sinad
• Frequency response
• Adjacent channel selectivity
• Maximum audio power
• Squelch sensitivity
• Frequency image rejection rate
• Intermediate frequency rej. rate
• Drain

: 40
: AM
: from 26.965 MHz to 27.405 MHz
: 50 ohms
: 13.2 V
: 115 (L) × 180 (H) × 35 (D)
: 0,8 kg
: Electret microphone with support, mounting cradle, screws.
: ANL (Automatic Noise Limiter) built-in

• Check that the antenna is correctly connected and that the SWR is properly adjusted.
• Check that the microphone is properly plugged in.
• With the «push-to-talk» switch activated, the display flashes. Release the «push-to-talk» switch, then re-press it to go into transmission.

2) YOUR CB RADIO WILL NOT RECEIVE OR RECEPTION IS POOR:

• Check that the squelch level is properly adjusted.
• Check that the volume is set to a comfortable listening level.
• Check that the microphone is properly plugged in.
• Check that the antenna is correctly connected and that the SWR is properly adjusted.
• Check that you are using the same modulation mode as your correspondent.

3) YOUR CB WILL NOT LIGHT UP:

• Check the power supply.
• Check the connection wiring.
• Check the fuse.

E) HOW TO TRANSMIT OR RECEIVE A MESSAGE:

Now that you have read the manual, make sure that your CB Radio is ready for use (i.e. check that your antenna is connected).

Choose your channel (19, 27).

Press the «push-to-talk» switch and announce your message «Attention stations, transmission testing» which will allow you to check the clearness and the power of your signal. Release the switch and wait for a reply. You should receive a reply like, «Strong and clear».

If you use a calling channel (19, 27) and you have established communication with someone, it is common practice to choose another available channel so as not to block the calling channel.

F) GLOSSARY:

Below you will find some of the most frequently used CB radio expressions. Remember this is meant for fun and that you are by no means obliged to use them. In an emergency, you should be as clear as possible.

INTERNATIONAL PHONETIC ALPHABET:

A	Alpha	H	Hotel	P	Papa	W	Whiskey
B	Bravo	I	India	Q	Quebec	Y	Yankee
C	Charlie	J	Juliett	R	Romeo	Z	Zulu
D	Delta	L	Lima	S	Sierra
E	Echo	M	Mike	T	Tango
F	Foxtrott	N	November	U	Uniform
G	Golf	O	Oscar	V	Victor

TECHNICAL VOCABULARY:

AM	: Amplitude Modulation
CB	: Citizen's Band
CH	: Channel
CW	: Continuous Wave
DX	: Long Distance Liaison
DW	: Dual Watch
FM	: Frequency Modulation
GMT	: Greenwich Meantime
HF	: High Frequency
LF	: Low Frequency
LSB	: Lower Side Band
RX	: Receiver
SSB	: Single Side Band
SWR	: Standing Wave Ratio
SWL	: Short Wave Listening
SW	: Short Wave
TX	: CB Transceiver
UHF	: Ultra High Frequency
USB	: Upper Side Band
VHF	: Very High Frequency

CB LANGUAGE:

Advertising	: Flashing lights of police car
Back off	: Slow down
Basement	: Channel 1

Base station	: A CB set in fixed location
Bear	: Policeman
Bear bite	: Speeding fine
Bear cage	: Police station
Big slab	: Motorway
Big 10-4	: Absolutely
Bleeding with the	: Signal from an adjacent channel interfering transmission
Blocking the channel	: Pressing the PTT switch without talking
Blue boys	: Police
Break	: Used to ask permission to join a conversation
Breaker	: A CBer wishing to join a channel
Clean and green	: Clear of police
Cleaner channel	: Channel with less interference
Coming in loud and proud	: Good reception
Doughnut	: Tyre
Down and gone	: Turning CB off
Down one	: Go to a lower channel
Do you copy?	: Understand?
DX	: Long distance
Eighty eights	: Love and kisses
Eye ball	: CBers meeting together
Good buddy	: Fellow CBer
Hammer	: Accelerator
Handle	: CBer's nickname

Harvey wall banger	: Dangerous driver
How am I hitting you?	: How are you receiving me?
Keying the mike	: Pressing the PTT switch without talking
Kojac with a kodak	: Police radar
Land line	: Telephone
Lunch box	: CB set
Man with a gun	: Police radar
Mayday	: SOS
Meat wagon	: Ambulance
Midnight shopper	: Thief
Modulation	: Conversation
Negative copy	: No reply
Over your shoulder	: Right behind you
Part your hair	: Behave yourself - police ahead
Pull your hammer back	: Slow down
Rat race	: Congested traffic
Rubberbander	: New CBer
Sail boat fuel	: Wind
Smokey dozing	: Parked police car
Smokey with a camera	: Police radar
Spaghetti bowl	: Interchange
Stinger	: Antenna
Turkey	: Dumb CBer
Up one	: Go up one channel
Wall to wall	: All over/everywhere
What am I putting to you?	: Please give me an S-meter reading

ACHTUNG!

Six identical line drawings of a car viewed from different angles, showing top-down and side-view perspectives (no text or symbols)

3) STROMVERSORGUNG:

TX S/RF 1 2 3 4 48

A Alpha
H Hotel
P Papa
W Whiskey
B Bravo
I India
Q Quebec
Y Yankee
C Charlie
J Juliett
R Romeo
Z Zulu
D Delta
L Lima
s Sierra
E Echo
M Mike
T Tango
F Foxtrott
N November
U Uniform
G Golf
Oscar
V Victor

R/S-Code:

R = Lesbarkeit

Declare, on our own responsibility that the CB radio-communication transceiver

Brand : PRESIDENT Model : JOHNNY II ASC Manufactured in PRC

is in conformity with the essential requirements of the Directive 1999/5/CE (Article 3) adapted to the national law, as well as with the following European Standards:

EN 300 433-2 :v1.1.2 (2000) EN 301 489-13 v 1.2.1 (2002) EN 60215 (1996)

Balaruc, the 2005-01-17
Jean-Gilbert MULLER
General Manager

TABLEAU DES FRÉQUENCES

Countries in which there are particular restrictions

Countries in which the national regulations authorize a transmission power superior to the limit fixed by the harmonised standard, notified in the 4th paragraph of the preface of the proper harmonised standard EN 300 433.
