USER MANUAL SEMI-ELECTRONIC 40715 MORPHY RICHARDS

40715-40-41 inc AUS:9225 47507 MEE pump - Jon 7/3/08 15:28 Page 1 Semi-electronic iron steam/spray shot Please read and keep these instructions

40715-40-41 inc AUS:9225 47507 MEE pump - Jon 7/3/08

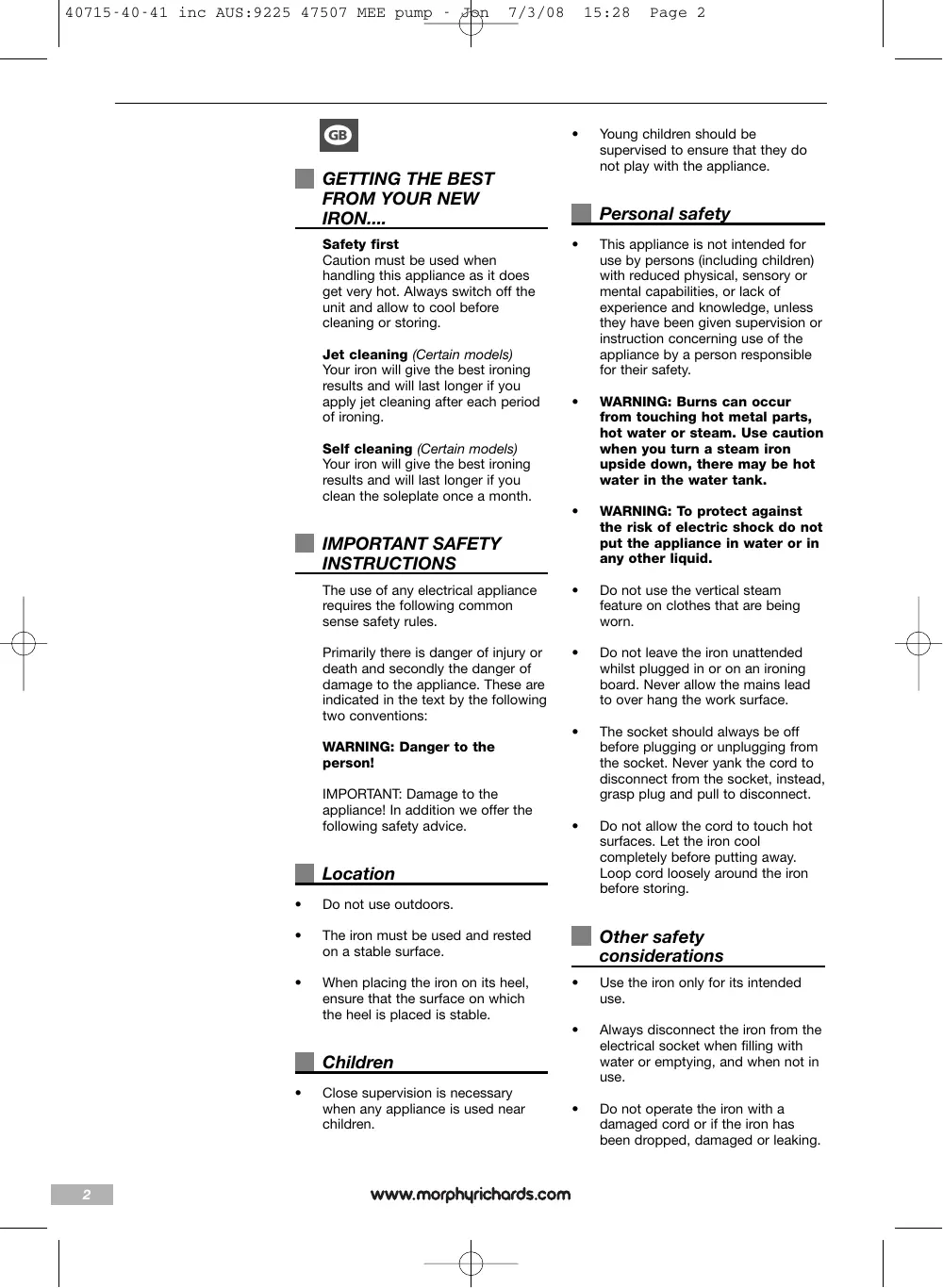

GETTING THE BEST

FROM YOUR NEW

IRON.... Safety first Caution must be used when handling this appliance as it does get very hot. Always switch off the unit and allow to cool before cleaning or storing. Personal safety This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

WARNING: Burns can occur

from touching hot metal parts, hot water or steam. Use caution when you turn a steam iron upside down, there may be hot water in the water tank.

WARNING: To protect against

the risk of electric shock do not put the appliance in water or in any other liquid. The use of any electrical appliance requires the following common sense safety rules.

Do not use the vertical steam feature on clothes that are being worn. Primarily there is danger of injury or death and secondly the danger of damage to the appliance. These are indicated in the text by the following two conventions:

Do not leave the iron unattended whilst plugged in or on an ironing board. Never allow the mains lead to over hang the work surface.

The socket should always be off before plugging or unplugging from the socket. Never yank the cord to disconnect from the socket, instead, grasp plug and pull to disconnect.

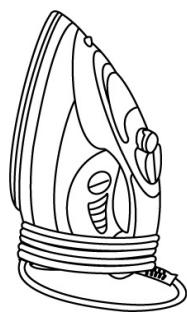

Do not allow the cord to touch hot surfaces. Let the iron cool completely before putting away. Loop cord loosely around the iron before storing. Self cleaning (Certain models) Your iron will give the best ironing results and will last longer if you clean the soleplate once a month. IMPORTANT SAFETY INSTRUCTIONS

WARNING: Danger to the

person! IMPORTANT: Damage to the appliance! In addition we offer the following safety advice. Location

Do not use outdoors.

The iron must be used and rested on a stable surface.

When placing the iron on its heel, ensure that the surface on which the heel is placed is stable. Other safety considerations

Use the iron only for its intended use.

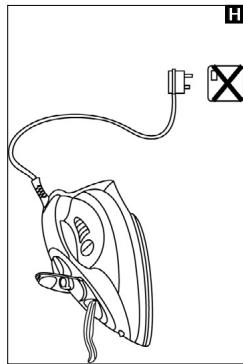

Always disconnect the iron from the electrical socket when filling with water or emptying, and when not in use.

Do not operate the iron with a damaged cord or if the iron has been dropped, damaged or leaking. Children

Young children should be supervised to ensure that they do not play with the appliance.

Jet cleaning (Certain models) Your iron will give the best ironing results and will last longer if you apply jet cleaning after each period of ironing.

Page 2 Close supervision is necessary when any appliance is used near children. 40715-40-41 inc AUS:9225 47507 MEE pump - Jon To avoid the risk of electric shock, do not disassemble the iron, but telephone Morphy Richards for advice. Incorrect reassembly can cause a risk of electric shock when the iron is used. If your iron does not work, check the following points: Has the temperature control been set to the required temperature? Is the plug in its socket? Is the plug itself or the socket faulty? (Check by plugging in another appliance).

To prevent damage to the textile being ironed, follow the temperature guide carefully. (Test the inside of the hem of the garment).

When ironing is complete, remove the plug from the socket, empty any remaining water from the tank, and allow to cool before storage.

If you drop or severely knock your iron this could cause internal damage even if the outside appears alright. Have it checked by a qualified electrician. Special instructions

WARNING: When not in use,

your iron should never be placed flat and left on an ironing board. Page 3

It is recommended that you use up one beaker of water by operating your iron’s steam and shot of steam functions before ironing any clothes as some dripping may occur while your irons steam system is activated.

INSTRUCTIONS FOR USE

Temperature guide Heat setting markings on the adjustable control dial of all Morphy Richards irons match those of the International Textile Care Labelling Code. Symbol (120°C Max) Cool Control knob positions (160°C Max) Warm (210°C Max) Hot Do not iron at all Fabric Nylon, Acetates e.g. Acrilan Courtelle, Orlon Triacetates, e.g. Tricel/Polyester Ironing Iron on wrong side if moisture required use damp cloth (Not Acetate) With water in tank Without water in tank Wool, Polyester mixtures e.g. Polyester/Cotton Cotton, Linen Rayon, Rayon mixtures, e.g. Rayon/Linen Fabrics requiring this setting usually require steam pressing for heavy cotton, denim etc. Dry and spray Steam/spray/shot of steam Jet clean Dry ironing

40715-40-41 inc AUS:9225 47507 MEE pump - Jon 7/3/08 15:28 Page 4

ELECTRICAL REQUIREMENTS Check that the voltage on the rating plate of your appliance corresponds with your house electricity supply which must be A.C. (Alternating current). If the socket outlets in your home are not suitable for the plug supplied with this appliance the plug should be removed and the appropriate one fitted.

WARNING : The plug removed

from the mains lead, if severed, must be destroyed as a plug with a bared flexible cord is hazardous if engaged into a live socket outlet. Where used, should the fuse in the 13 amp plug require changing, a 13 amp BS1362 fuse must be fitted.

WARNING: This appliance must

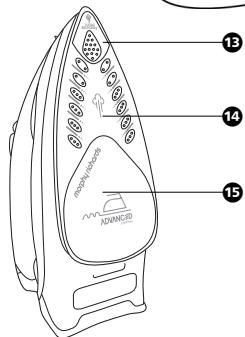

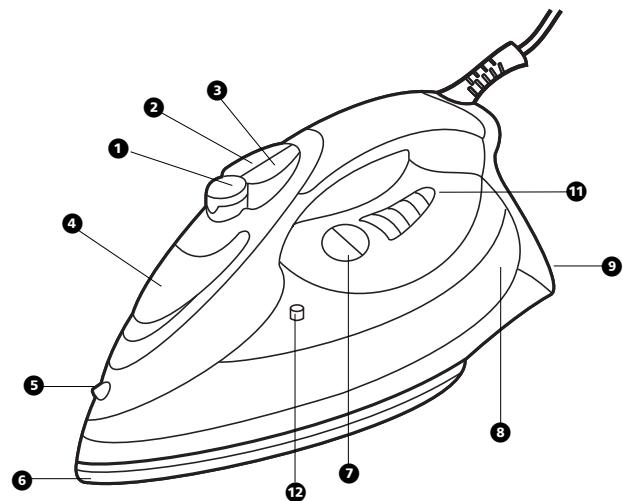

FINISH Variable steam button Shot of steam button Spray button Filling hole with cap Spray nozzle Soleplate Temperature console Water tank (illuminated on certain models) ‚ Life long anti-scale (certain models only) „ Filling beaker ‰ Auto shut-off indicator  Self clean button (certain models only) Soleplate (certain models only) Ê Turbo Tip Powerful shot of steam gets into the trickiest of places Á Constant Steam Remove all creases at a level you control Ë Press and Set Removes moisture to set a crease-free finish 40715-40-41 inc AUS:9225 47507 MEE pump - Jon Before use Sort out the items to be ironed according to the type of fabric. This will minimise the frequency of temperature adjustment for different garments. Note: The steam facility should only be used on garments which are suitable for ironing at the 2 and 3 dot settings. Textiles and clothes are supposed to carry ironing instructions. If they don’t you should follow the fabric guide on page 3, but be sure to test the temperature by ironing the hem of the garment or similar area first. 7/3/08 15:28 Temperature control Page 5

The light panel will flash to indicate that the iron has not yet reached the correct temperature.

Once the correct temperature has been reached , the light will stop flashing and there will be one ‘beep’ to signal that the iron is now ready for use.

If you turn the control dial down from a hot setting to a cooler setting, wait until the iron temperature has stabilised before you continue ironing.

Delicate fabrics such as silk, wool,velour, etc, are best ironed with an ironing cloth to prevent shine marks. Filling

Make sure that the iron is not plugged in, then set the steam to dry iron selector switch ⁄ to ‘0’ position before filling the iron with water.

Lift up the fill cap and fill the water through the filling hole › into the water tank ·, using the beaker provided. A 1 beaker fills the tank (400ml). On illuminated tank models, use 350ml of water. After filling replace the fill cap. In hard water areas the use of distilled or demineralised water is recommended.

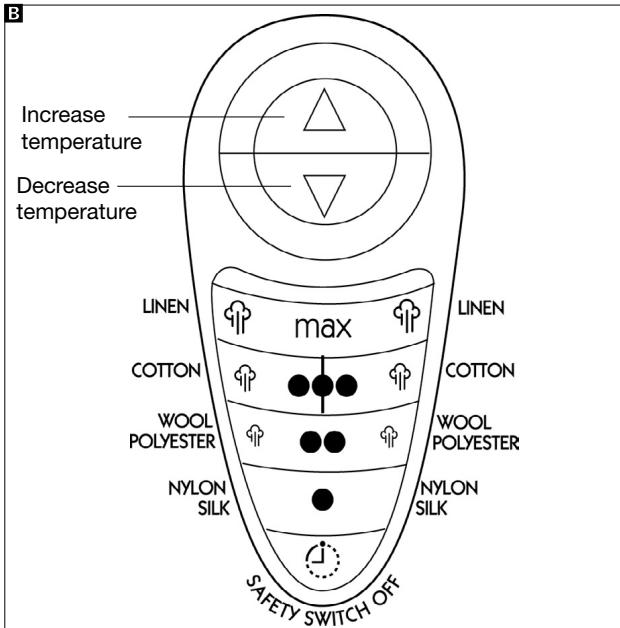

Increase temperature Decrease temperature

WARNING: Never use battery

topping up fluid or water containing any substances like starch, or sugar, or defrosted water from a refridgerator.

Always pour out the remaining water after use.

WARNING: When filling your iron

with tap water always use the beaker provided. Never fill directly under the tap.

40715-40-41 inc AUS:9225 47507 MEE pump - Jon

7/3/08 Do not use shot of steam at temperatures below the steam range shown on the control dial. Dry ironing You can use your iron as a dry iron only. Make sure the variable steam control ⁄ is set to the ‘0’ symbol.

Steam off Any temperature setting may be used depending on the garment. The spray feature may be used provided there is water in the tank (see filling section). You do not need to put any water in the tank when dry ironing only. Spray

Press the spray button ‹ and aim the spray of water at stubborn creases. You can do this whilst dry ironing providing there is water in the tank. When using the water spray it may be necessary to push the button a few times to get the spray pump primed. ‘MAX’ steam Variable steam Fill the iron with water as described in ‘Filling’, page 4 and insert the plug into the electrical socket.

The steam output can be varied from low to high by turning the variable steam control D. When using the iron at the bottom of the steam range, the steam output should be adjusted to the low setting. The steam facility should only be used on garments which are suitable for ironing at 2, 3 dot and MAX setting. Shot of steam

Press the shot of steam button ¤ to obtain a burst of extra steam for ironing out creases in heavy material such as denim etc. The shot of steam can be used whilst dry ironing, providing there is water in the tank, and the temperature control is set within the steam range.

Note: For optimum steam quality, do not operate the shot more than three times in succession. Vertical steam Hold the iron in a vertical position between 1cm and 2cm away from the item F. Press the shot of steam button ¤, this will create vertical steam. This feature is especially useful for removing creases from hanging clothes, curtains, wall hangings, etc. Note; For optimum steam quality, do not operate the shot more than three times in succession. No drip system Your iron is fitted with a no drip system which is designed to prevent water escaping from the soleplate when the iron is too cold. During use, the no drip system may emit a loud click, particularly during heat-up or whilst cooling down. This is perfectly normal and indicates that the system is functioning correctly. Auto shut-off Your iron is fitted with the auto shutoff function it will automatically shut down after a set period. The ‘safety switch off’ led will flash on the function panel. If the iron is left unattended in the horizontal position it will shut down after 30 seconds on certain models and after 1 minute on models with illuminated tanks. If it is left in the vertical position it will shut down after 8 minutes. To reactivate the iron gently shake it and wait for the iron to heat-up as normal. 40715-40-41 inc AUS:9225 47507 MEE pump - Jon 7/3/08 15:28

Life long anti- scale system

Set the temperature control to ‘MAX’. See ‘Temperature control’ on page 5. The life long anti-scale system reduces scale deposits and helps prolong the life of the iron.

The indicator light will flash until the required temperature is reached.

The indicator light remains ‘on’ when the selected temperature is attained.

Disconnect the iron from the mains supply outlet.

Hold the iron horizontally over a sink.

Press and hold down the Self-Cleaning button Â. MAINTENANCE Jet cleaning (Certain models) Your iron has a built in cleaning system designed to keep the water valve, steam chamber and steam vents clear of lint and loose mineral deposits. The ‘jet clean’ should be operated after each period of ironing. To operate, ensure that there is little water in the tank, place the iron on its heel and turn the temperature control dial to the maximum setting. Wait for the beep, then unplug the iron and hold it about 6’’ (150mm) above the sink in the ironing position. Press the shot of steam button about 10 times in succession. After this cleaning operation, empty out any remaining water.

WARNING: Do not attempt to

descale the soleplate with descaling products. Self cleaning

(Certain models only) Your iron has a built in cleaning system designed to keep the water valve, steam chamber and steam vents clear of lint and loose mineral deposits.

Half fill the iron with water.

Connect to a mains supply outlet. Page 7

10 Steam and boiling hot water will drain from the holes in the soleplate, washing away the scale and minerals that have built up inside the Steam Chamber. 11 Gently move the iron back and forth until the water tank is empty. 12 When cleaning is complete, release the Self-Cleaning button Â.

13 Rest your steam iron back on it’s heel and allow to fully cool down. 14 Wipe the soleplate with a cold, damp cloth. After this cleaning operation, empty out any remaining water.

WARNING: Keep hands and

body away from the hot water. To clean a stainless steel soleplate To keep the soleplate of your iron clean and free of limescale, we recommend that you use one of the gentle chrome, silver or stainless steel cleaners that are generally available. Always follow the manufacturers instructions. To clean off melted man-made fibres set the iron at 3 dot position and pass it over a clean piece of cotton which will draw the deposit off the surface.

40715-40-41 inc AUS:9225 47507 MEE pump - Jon 7/3/08 15:28 Page 8 To clean a coated soleplate

YOUR TWO YEAR

GUARANTEE In the unlikely event of any manmade fibre fusing to the soleplate, set the iron at the 3 dot position and pass it over a clean piece of cotton which will draw the deposit off the surface. It is important to retain the retailers receipt as proof of purchase. Staple your receipt to this back cover for future reference. Do not use scouring powder or solution as this could cause damage to the coating. Please quote the following information if the product develops a fault. These numbers can be found on the base of the product. Model no. To clean the exterior Serial no. Allow the iron to cool and wipe over with a damp cloth and mild detergent, then wipe with a dry cloth. All Morphy Richards products are individually tested before leaving the factory. In the unlikely event of any appliance proving to be faulty within 28 days of purchase it should be returned to the place of purchase for it to be replaced. Emptying and storing When you have finished ironing, unplug your iron. Ensure that the variable steam control is set at the ‘0’ position, lift up the fill cap and empty any remaining water out of the filling hole. Do not store in the box, but in an upright position, so that any drops of water remaining cannot leak out and discolour the soleplate H. Important: The flex can be damaged if wound too tightly around the iron after use. Make a loose loop with the flex and wrap it around the iron. The iron must be cool before winding the flex and storing on its heel I. If the fault develops after 28 days and within 24 months of original purchase, you should contact the Helpline number quoting Model number and Serial number on the product, or write to Morphy Richards at the address shown. You may be asked to return a copy of proof of purchase. Subject to the exclusions set out below (see Exclusions) the faulty appliance will then be repaired or replaced and dispatched usually within 7 working days of receipt. If for any reason this item is replaced during the 2 year guarantee period, the guarantee on the new item will be calculated from original purchase date. Therefore it is vital to retain your original till receipt or invoice to indicate the date of initial purchase. To qualify for the 2 year guarantee the appliance must have been used according to the manufacturers instructions. For example kettles should have been regularly descaled.

40715-40-41 inc AUS:9225 47507 MEE pump - Jon EXCLUSIONS Morphy Richards shall not be liable to replace or repair the goods under the terms of the guarantee where:

The fault has been caused or is attributable to accidental use, misuse, negligent use or used contrary to the manufacturers recommendations or where the fault has been caused by power surges or damage caused in transit.

The appliance has been used on a voltage supply other than that stamped on the products.

Repairs have been attempted by persons other than our service staff (or authorised dealer).

Where the appliance has been used for hire purposes or non domestic use.

Morphy Richards are not liable to carry out any type of servicing work, under the guarantee.

Plastic filters for all Morphy Richards kettles and coffee makers are not covered by the guarantee. This guarantee does not confer any rights other than those expressly set out above and does not cover any claims for consequential loss or damage. This guarantee is offered as an additional benefit and does not affect your statutory rights as a consumer. AUSTRALIAN WARRANTY This appliance is guaranteed for 2 years against faulty material, components and workmanship. This warranty is in addition and does not affect your statutory rights. Proof of purchase must be produced for any warranty benefit. 7/3/08 15:28 Page 9

NOT COVERED BY THIS

WARRANTY (Australian only)

If the appliance has not been used in accordance with the manufacturers’ recommendations or Instructions.

If the fault is deemed to be caused by abuse, misuse, neglect, modifications or in proper use and or care Eg: Kettles: Excessive build up of scale. Toasters: Excessive build up of crumbs or foreign matter etc.

Connection to incorrect voltage to that stamped on the product

Unauthorised repairs

Appliance used other than for domestic purposes.

Excluding bags, filters, glass, carafes, and cutting blades.

Freight and insurance costs.

If for any reason this item is replaced during the 2 year guarantee period, the guarantee on the new item will be calculated from original purchase date. Therefore it is vital to retain your original receipt or invoice to indicate the date of original purchase. Morphy Richards’s policy is to continually improve quality design and product quality. The company therefore reserves the right to change any specifications or to carry out modifications as deemed worthy at any time. The Australian supplier ASKO Appliances reserves the right to repair, modify, exchange or replace the faulty appliance with the same or similar model or product of equivalent value. In the unlikely event of any appliance proving to be faulty, securely pack and return the item to the place of purchase accompanied by the original receipt or invoice.
