ME7710 - Massage device SOLAC - Free user manual and instructions

Brand	SOLAC
Model	ME7710
Product type	Massage device, Professional lipo-modeller
Power supply	230-240 V ~ 50 Hz, 15 W
Main functions	Rotary and vibratory massage, infrared heat (IR), adjustable intensity
Included massage heads	Massage fingers, rollers, massage balls, wave shape, fabric protector
Number of heads	5
Application areas	Face, neck, shoulders, back, thighs, buttocks, belly, legs
Recommended use duration	15 minutes per session, maximum 5 minutes per area
Care and cleaning	Dry cloth, do not immerse, do not use solvents or detergents
Safety	Do not use near water, do not touch with wet hands, do not use for more than 15 minutes, protect eyes from IR rays
Spare parts and repairability	Replace only by an approved professional, do not repair yourself
Compliance	European directives 89/336/EEC and 73/23/EEC
Use	Domestic only, not industrial

Frequently Asked Questions - ME7710 SOLAC

What are the massage heads included with the SOLAC ME7710?

The SOLAC ME7710 comes with five heads: a massage fingers head (for painful cellulite and reflexology), a rollers head (for cellulite and flaccidity), a massage balls head (for delicate areas like face and neck), a wave shape head (for thighs and buttocks), and a fabric protector head for more comfort.

How to adjust the massage intensity?

The intensity is adjusted using the potentiometer (3) located on the device. Turn it manually to increase or decrease the speed. Use a slow speed for sensitive areas (face, neck) and a more intense speed for less sensitive areas.

Can I use creams or oils with the device?

Yes, the manual suggests using the device with firming or anti-cellulite creams for better results. Apply the cream before the massage.

What is the maximum continuous use time?

Do not exceed 15 minutes of continuous use. Prolonged use may generate excessive heat and reduce the device's lifespan. Let it cool down before reusing.

How to clean the device?

Unplug the device, then clean the exterior with a dry cloth. Never use solvents, detergents or abrasive products, and never immerse the device in water.

Is the device suitable for people with sensitive skin?

Yes, but use a slow speed and a suitable head (like the balls head or the fabric protector). Consult a doctor if in doubt, especially if you have a pacemaker.

Can I use the massager on my face?

Yes, use the massage balls head (head 9) for the face, neck and décolleté. Set the intensity to a slow speed to avoid any irritation.

Are infrared rays dangerous?

Prolonged exposure to infrared can be dangerous. Avoid looking directly at the emitter and do not exceed the recommended time. The device can be used without activating the IR (position B).

What to do if the device falls into water?

Do not attempt to catch it. Immediately unplug the device from the mains. Do not use it again and have it checked by a professional.

Is the device under warranty?

The manual does not explicitly state the warranty period, but SOLAC is a recognized brand. In case of a defect, contact your dealer or an approved technical service center. Never repair the device yourself.

USER MANUAL ME7710 SOLAC

Solac is a registered Trade Mark

12/07

5-10 · ESPANOL

11-15 • ENGLISH

16-21 • FRANÇAIS

22-27 DEUTSCH

28-33 • PORTUGUES

34-39 ITALIANO

40-45 NEDERLANDS

46-50 • CESKY

51-56 POLSKI

57-61 • SLOVENCINA

62-68 MAGYAR

69-74 6bIrpck

75-79 · HRVATSKA

80-85 ROMÁNA

es

en

fr

de

pt

it

nl

CS

pl

sk

hu

bg

hr

ro

Fig. 3
(FIG.3)

(7), (8), (9), (10)

(2)
(3)
VIII

ABC

V, VII

A B C

VI

ABC

IV

ABC

III

A B C

I,II

A B C

IV

ABC

V, VII

A B C

VIII

A B C

ESPANOL

es

Distinguido cliente

Congratulations on having chosen a SOLAC brand product. Our products are designed and manufactured to more than satisfy the expectations of our most demanding customers for a long time. SOLAC domestic appliances also provide the peace of mind of having passed the strictest quality and safety standards.

This product meets the requisites of European Electromagnetic Compatibility Directive 89/336/EEC and European Low Voltage Directive 73/23/EEC.

Electrodométricos SOLAC, considering its drive for continuous improvement, hereby reserves the right to make changes without prior notice.

1 Safety Instructions

• Read these instructions completely before using your appliance.
• This appliance is only for domestic use, not professional use. Using it in any way other than according to the instructions could be hazardous. Do not use this appliance as a substitute for appropriate medical care.
  Always keep the appliance and its packaging out of reach of children and the disabled. When you use it in their presence, be extremely cautious.
• This appliance is not designed to be used by people (including children) whose physical, sensory or mental capacities are impaired or who lack experience or knowledge, unless they are supervised or have received instructions on how to use the appliance by a person who is responsible for their safety.
• Children must be supervised to ensure that they do not play with the appliance.
• Do not modify or repair the appliance. In there is any problem with the cord or any other part of the appliance, do not use it and take it to an authorised service centre.
• If the power cord is damaged, it must be replaced by the manufacturer or the manufacturer's after-sales service or by similarly qualified personnel to prevent possible hazards.
• Do not use parts or accessories not supplied or recommended by SOLAC.

• Before plugging in the appliance to the mains, check that the indicated voltage matches the voltage in your home.

• Always unplug the appliance after use and before removing or installing parts and before performing any maintenance or cleaning task. Also unplug it in the event of a power outage. When you plug in or unplug the appliance, it must be turned off.

• Do not pull on the power cord or hang the appliance by the cord. Always unplug the appliance by pulling on the plug, never the cord.

Do not use near bathtubs, sinks, showers or other recipients containing water. If it falls into water, do NOT try to pick it up. Unplug it immediately.

• Never immerse the main body in water or any other liquid, or put it in the dishwasher. The appliance should not come into contact with water during cleaning.
• Never leave the appliance exposed to the elements.
• Do not touch the appliance with wet hands when in operation.
• Never immerse the appliance in water or use it while taking a bath or shower. Avoid splashing water on the appliance or the power cord.
• Never leave the appliance working on a wet surface or cloth.

IMPORTANT: When you want to dispose of the appliance, NEVER throw it in the rubbish bin. Take it to the CLEAN POINT or waste collection centre closest to your home for processing. You will thus be helping to care for the environment.

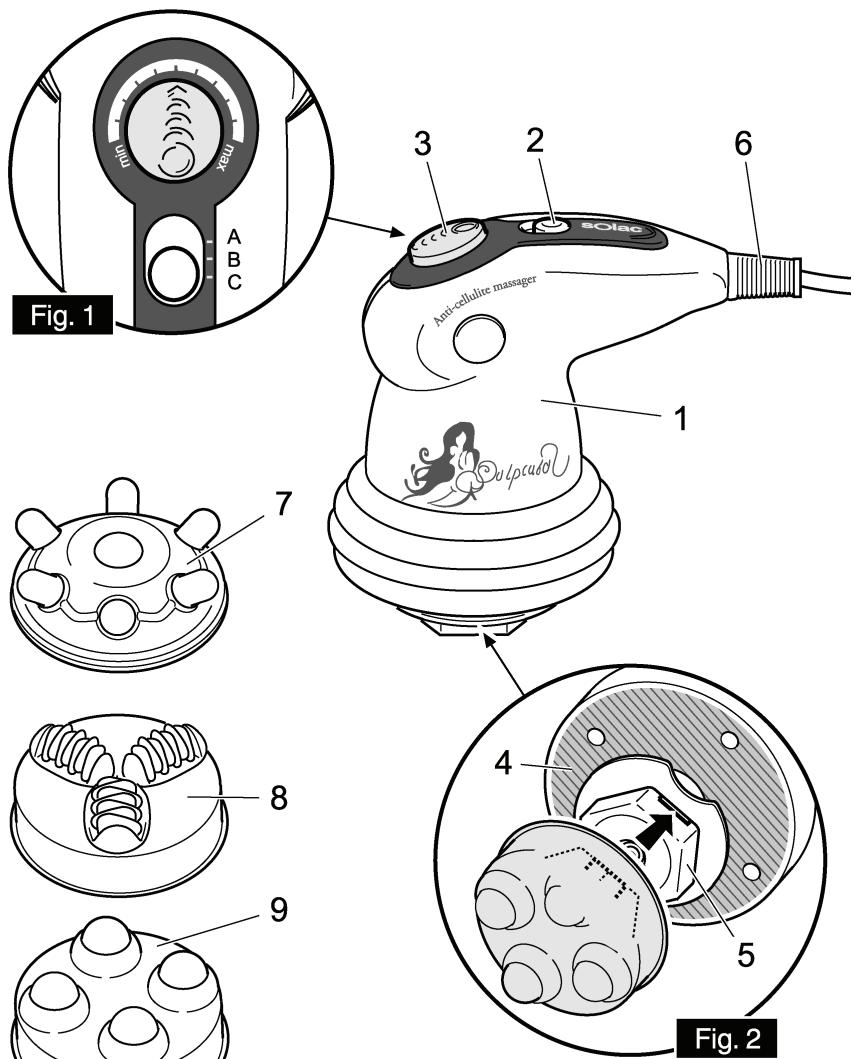

2 Description

Main parts

1 Main body of the appliance
2 Off/massage/massage + IR switch
3 Variable massage intensity control
4 Infrared radiation emitter
5 Massage head adaptor
6 Cord
7 Finger massage head
8 Roller massage head
9 Ball massage head
10 Wave-shaped head
11 Cloth head protector

Electrical characteristics

Charger power supply voltage: 230-240V, 50Hz, 15W

Professional Lipomodelling system. Fights cellulite and flaccidity efficiently at home

Inspired by professional massage techniques, this latest-generation massager provides an effective therapeutic massage at home and is especially suitable for those suffering from cellulite, fluid retention and flaccidity.

Its effectiveness lies in its powerful motor that produces simultaneous rotating and vibrating movements. This complex movement provides a subcutaneous massage, increasing blood flow, encouraging lymphatic drainage and blood circulation, improving skin elasticity.

Sculptural provides an effective massage intensified by the effects of its infrared heat, moves fat, heating and draining fat, as well as smoothing bumpy "orange peel skin".

Sculptural applies friction and kneading movements, copying the hand movements of an expert therapeutic massage.

Sculptural is ergonomically designed for convenient home use, allowing the user to give herself a massage anytime, anywhere.

For effective results, we recommend using Sculptural for 15 minutes every day. This massager can be used with specific treatment creams (firming or anticellulite).

3 General recommendations for use

1 Massage the area for a maximum of five minutes. Use your sensitivity as a guide for determining the duration of the massage.
2 Use the massage head indicated for your treatment.

-Finger massage"head (7)

This simulates a professional massage performed with the fingers. It is suitable for application to painful cellulite, foot reflexology (foot massage) and gentle muscle massage.
Use of the "roller" head (8)
This head gives immediate results. It eliminates cellulite, works against flaccidity, stimulates blood flow and return, tones the muscles, performs lymphatic drainage, reduces volume, relieves back ace, sciatica and lumbago, warms up the muscles, relaxes, relieves stress, etc.
Use of the "massage balls" head (9)

Suitable for delicate areas like the face, chest, neck and breasts. Activates and firms the muscles, helping to firm the skin, giving it a firmer, plumper appearance. It improves circulation in the abdominal area, eliminating localised toxins and improves the intestinal tract, preventing constipation.

Use of the "wave-form" head (10)

Simulates a professional massage performed with the palm of the hand, toning and improving blood flow. For use in the thigh and buttock areas.

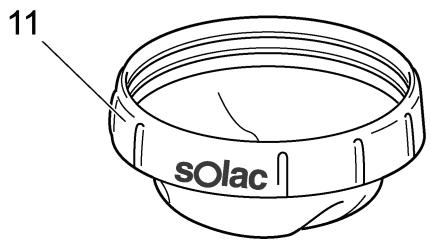

Use of the "head protector" cloth head (11)

For improved comfort, cover the appropriate treatment head with the cloth head.

This accessory cannot be used with creams.

The cloth accessory (11) can only be used with the wave-shaped head (10). Using it with the other heads could damage the cloth, and the massage would be less effective.

3 The intensity control allows you to regulate the intensity of the massage as required.

Use a low setting to treat delicate area (face, neck, breasts, legs with varicose veins) or pregnant women. Use the highest setting to treat the less sensitive areas of the body.

4 Use

This device has been created to give therapeutic massages against cellulite, fluid retention and flaccidity. Do not use it for other purposes.
Ask your doctor if you have any health problems, such as using a pacemaker.
A Do not use the massager directly if you are suffering from skin rashes or inflammation.
Do not use this product before you go to bed. The massage may have a stimulating effect and make it take longer for you fall asleep.
A Do not use the massager while lying in bed.
The massager has a heated surface. People insensitive to heat must be careful when they use the device.
Protect your eyes from exposure to infrared radiation.
Excessive infrared radiation can be harmful, so avoid prolonged exposure to infrared rays.

Do not use the appliance for more than 15 minutes. Using the appliance continuously for more than 15 minutes may cause it to overheat, reducing the life of the appliance. Let it cool down before you continue using it.

1 Plug in the appliance.
2 Put the switch (2) in the position (B/massage) or in the position (C/ massage + infrared (IR)) position, according to the treatment required (fig. 3).
3 Fit the corresponding head (7), (8), (9) or (10) for the treatment desired on the head adaptor (5) (fig. 2).
4 If you wish, put the head protector cloth over the treatment head (11).
5 Set the intensity of the massage using the control (3) according to the area you are going to work on and its sensitivity to massage. To do this, turn the control with your finger towards one side or another according to the intensity setting desired (fig. 3).
6 When you have finished using the massager, put the switch 82) in the position (A/off).
7 Unplug the appliance.

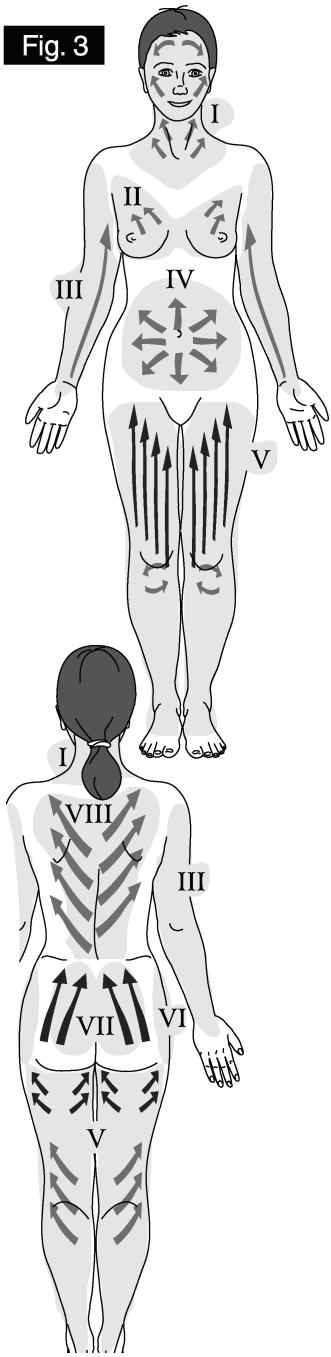

To perform a massage with the desired effect in each area and for each treatment, follow the instructions in fig. 3 with regard to which head to use, the direction in which to massage and the position of the switch (2) (B or C/massage or massage + IR).

5 Cleaning and upkeep

Do not use solvents, detergents or abrasive products.

1 Unplug the appliance.
2 Use a dry cloth to clean the outside.

Storage

• When the appliance is not being used, unplug it and store it in a cool, dry place.
• To prevent the cable from becoming damaged, do not twist it, pull it or wind it around the appliance. If it is damaged, have it replaced immediately by qualified personnel.
