USER MANUAL ME7112 SOLAC

White and black sculptural brush with a threaded handle, no visible text or symbols on the device itself.

White SOlac sculptural brush tool with black and gray body, no visible text or symbols on the device itself.

APARATO DE MASAJE CORPORAL

INSTRUCCIONES DE USO

BODY MASSAGER

INSTRUCTIONS FOR USE

MASSEUR CORPOREL

MODE D'EMPLOI

KÖRPER-MASSAGEGERÄT

GEBRAUCHSANLEITUNG

MASSAJADOR CORPORAL

INSTRUÇÕES DE USO

MASSAGGIATORE PER CORPO

ISTRUZIONI PER L'USO

MASSATJADOR CORPORAL

INSTRUCCIONS D'ÚS

MASSAGEAPPARAAT VOOR HET

LICHAAM

GEBRUIKSAANWIJZING

MASÁŽNÍ PŘÍSTROJ NA TĚLO

NÁVOD K POUZITÍ

MASAŻER CIAŁA

INSTRUKCJA OBSŁUGI

MASÁŽNY PRÍSTROJ NA TELO

NÁVOD NA POUŽITIE

MASSZÍROZÓ GÉP

HASZNÁLATI UTASÍTÁS

БЪЛГАРСКИ

ГЛАДЕНЕ

DISPOZITIV DE MASAJ CORPORAL

INSTRUCTIUNI DE UTILIZARE

3 2 6 1 7 8 9 5 4 11 10 14 13 12 • ME7711: 7, 8, 10, 11, 12, 13, 14 • ME7712: 7, 8, 9, 10, 11, 14 • ME7713: 8, 10, 14 Fig. 1 Fig. 2 A B C

Technical line drawing of a mechanical component with labeled part 13 (no text or symbols beyond label)

Simple line drawing of a dome-shaped object with five rounded spherical holes, labeled with the number 12 (no text or symbols on the object itself)

Illustration of a hand holding a water droplet above a mechanical device (no text or symbols)

Illustration of a plug inserted into a socket, labeled 'Fig. 1' (no other text or symbols)

· ME7711: 7, 8, 10, 11, 12, 13, 14

· ME7712: 7, 8, 9, 10, 11, 14

· ME7713: 8, 10, 14

Fig. 3

Fig. 3

Fig. 4

Illustration of a hand using a wrench to press a circular component (no text or symbols visible)

Fig. 5

5min

Illustration of a human hand holding a wrist with a shaded band and directional arrows indicating movement or pressure (no text or symbols)

Fig. 6

5min

Fig. 7

2-3min

Fig. 8

Illustration of a person performing a neck massage or acupressure technique (no text or symbols present)

Fig. 9

Illustration of human back with arrows indicating directional movement or pressure points, no text or symbols present

ESPAÑOL ES

DESCRIPCIÓN

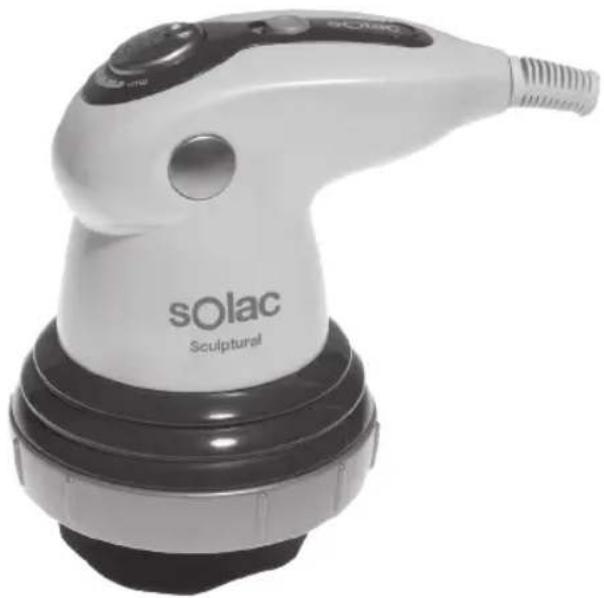

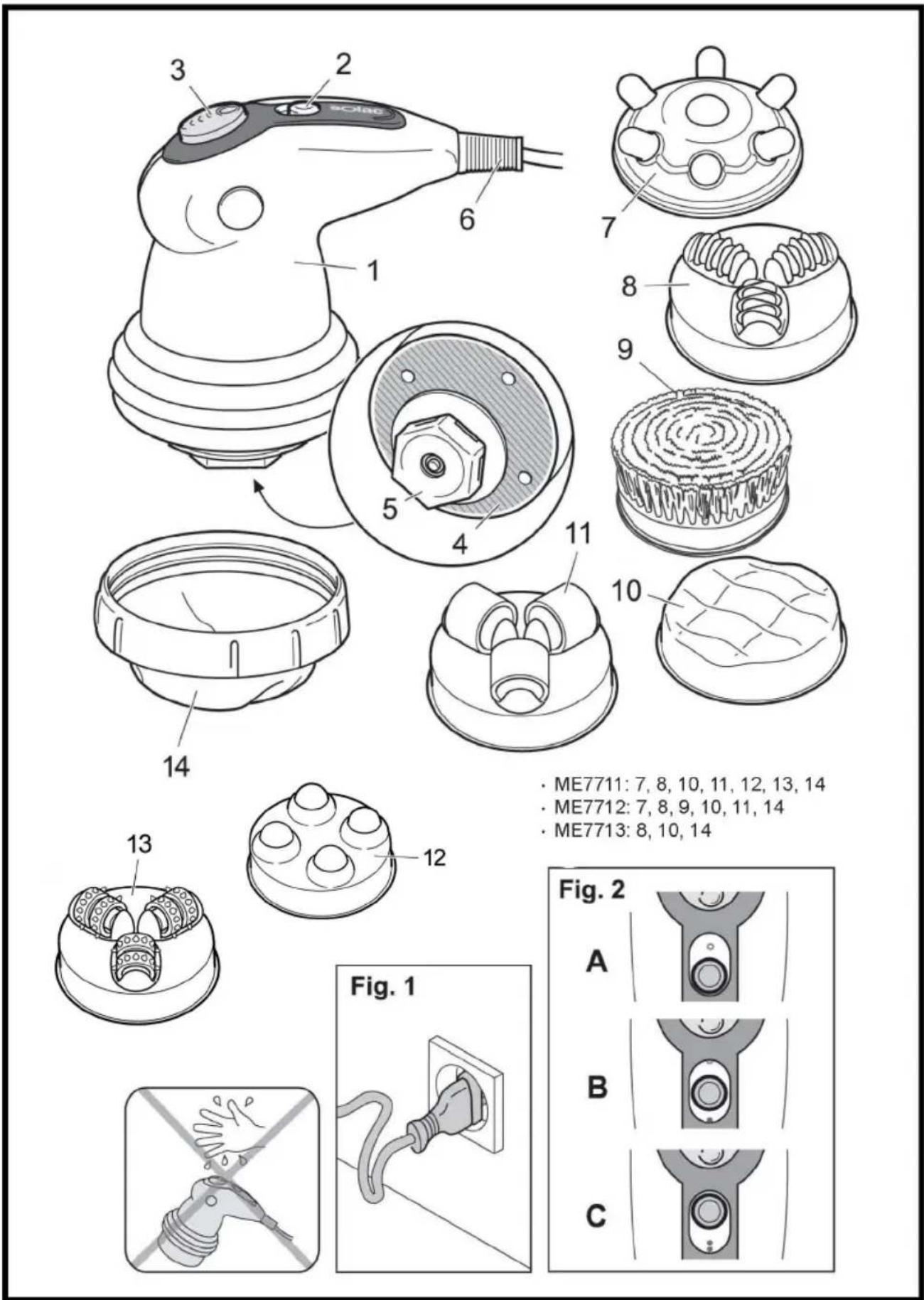

1 Main body
2 Massage / red LED on/off switch
3 Variable massage intensity control
4 Red LEDs
5 Massage head adaptor
6 Mains cable
7 Finger massage head (FINGER-PRINT)
8 Serrated roller head (MAX-FORCE)
9 Exfoliating head (DRY BRUSH)
10 Wave shaped head (PRO-WAVE)
11 Smooth roller head (ROLL-MASSAGE)
12 Ball massage head (BALL-MASSAGE)
13 Parallel spiky disk massage head (MAX-FORCE)
14 Fabric cover

USE AND CARE

• Do not use the massager on the abdomen area if you are pregnant or believe that you might be pregnant.
• Should you suffer from any health problems, e.g. pace maker fitted, consult your doctor.
• Do not use the massager directly on:
• Skin rashes or inflammation
• Burns, open wounds, infected skin
• Do not use it if you suffer from any of the following illnesses or ailments: varicose veins, poor circulation, bruising, inflammation of the veins, thrombosis, torn skin or diabetes
• Do not use the appliance if you are taking medication that may reduce sensory capacity.
• Fully extend the appliance's power cable before each use.
• Do not use the appliance if its accessories are not properly fitted.
• Do not use the appliance if the accessories attached to it are defective. Replace them immediately.
• Do not use the appliance if the on/off switch does not work.
• Use the handle/s to lift or move the appliance.
• If you use the appliance in a bathroom or similar place, unplug the appliance from the mains when it is not in use, even if it is only for a short while, as proximity to water poses a risk, even if the appliance is switched off.

• Disconnect the appliance from the mains when not in use, before cleaning, making any adjustment, battery charge or accessory change.

• Store this appliance out of the reach of children and/or those with reduced physical, sensory or mental abilities or those unfamiliar with its use.

• Do not store the appliance if it is still hot.
• Keep the appliance in good condition. Check that the moving parts are not misaligned or locked and make sure there are no broken parts or anomalies that may prevent the appliance from operating correctly.
• Use the appliance and its accessories and tools in accordance with these instructions, taking into account the working conditions and the work to be performed. Use the appliance for operations different from those intended could result in a hazardous situation.
• Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.
• Never rest the appliance on a surface while in use.
• Do not use the appliance for more than 20 minutes at any one time. Leave it standing to cool for one hour before reuse.
• Do not use the appliance on pets or animals.
• CAUTION: Do not fall asleep while using this appliance, as this could be harmful.

GENERAL RECOMMENDATIONS FOR USE

• The intensity control allows you to regulate the intensity of the massage as required. Start with a gentle speed and progressively increase depending on your sensitivity to the massage.
• The red light is an additional massage function. Use it to strengthen the effectiveness of the massage.
• Do not use the massage device for longer than 15 – 20 minutes
• The appliance is equipped with a motor protection system that switches the motor off if it overheats. If this occurs, leave the appliance to cool down before attempting to restart it.
• If you wish to continue using the appliance, allow it to cool down before proceeding.

BEFORE USE

- Make sure that all the product's packaging has been removed.

EN

USE

• Remove the protective fabric cover (14).

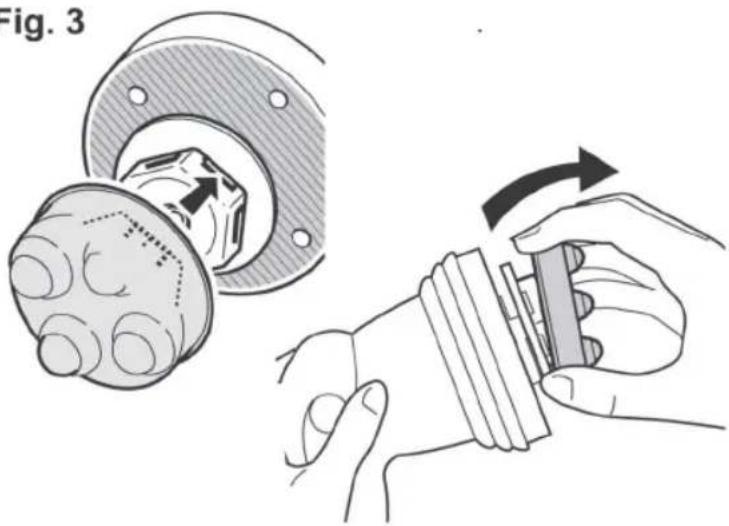

• Fit the head corresponding to the desired massage onto the head adaptor (Fig. 3)
• You may alternate the use of different heads during the same massage.
• Extend the cable completely before plugging it in.

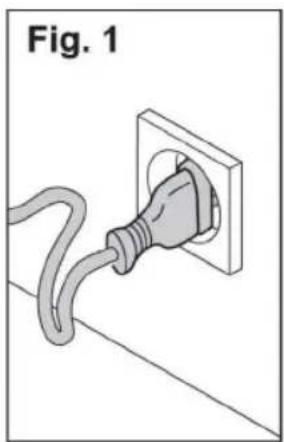

• Connect the appliance to the mains (Fig. 1).
• Move the switch (2) to the massage position (Fig.2 B) or to the “massage + infrared position (IR) position” (Fig.2 C) according to the desired massage.
• Set the intensity of the massage using the intensity control (3) and place the massager on the area on which you are going to work.
• Use the massage controller to set the intensity, using your finger to turn the controller (3) one way or the other depending on the desired setting (Fig. 4)
• Hold the appliance firmly with both hands and move it over the skin in the direction of the blood circulation (see "Massage Direction").
• Without pressing too hard, simply glide the massager over the area to be treated. Pressing the appliance too hard against the skin will prevent the motor from operating efficiently.

MASSAGE DIRECTION

• Always glide the appliance over the skin in the direction of the blood circulation. In an upward direction.
• NEVER directly massage the spine.

• NEVER directly massage a bone (knee, ankle, elbow). The protruding parts of the massage head could hit the bone, causing an injury.

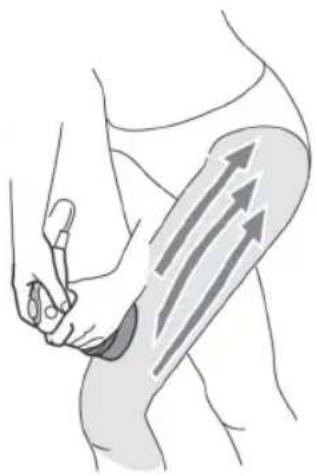

• Legs: Place the appliance on the thigh, close to the knee, and glide it gently upwards towards the hip (Fig. 5)

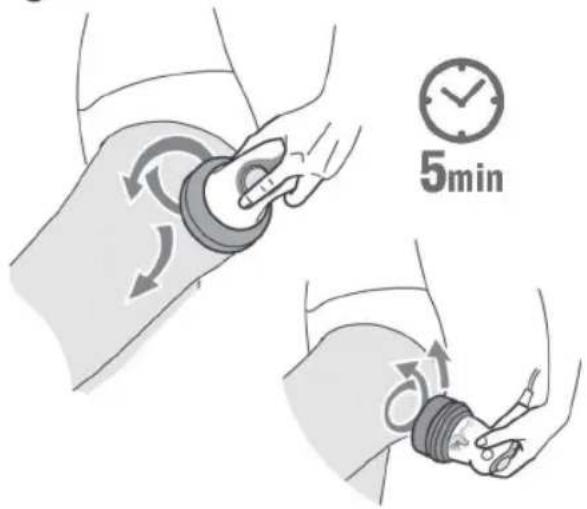

• Buttocks: Combine upward and circular movements. (Fig. 6)

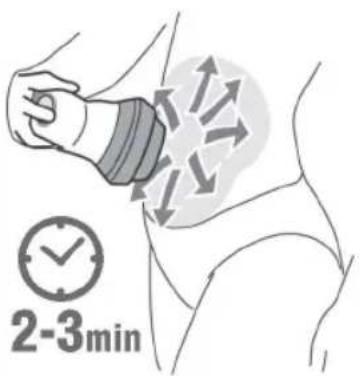

• Abdomen: Place the appliance on the navel and move it gently outwards (Fig 7). Never make circular movements around the navel.

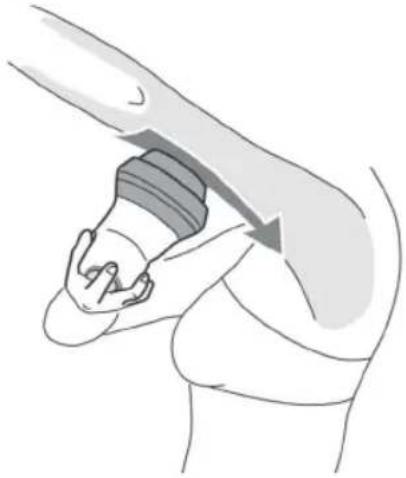

• Arms: Place the appliance close to the elbow and glide it gently towards the armpit. Repeat the massage from the armpit towards the elbow (Fig. 8)

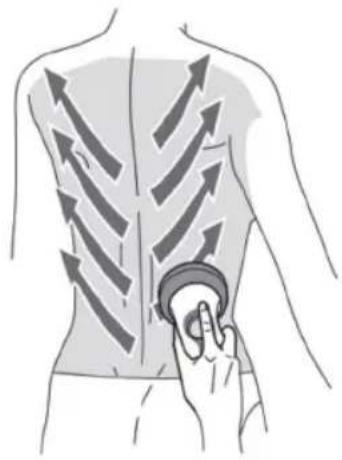

• Back: Place the appliance in the area of the spine and glide it gently upwards towards the shoulder blade (fig. 9)

CHOOSING A MASSAGE HEAD

• FINGER-PRINT (7): "finger massage". Moving pressure tips.
• MAX-FORCE (8 & 13): "Serrated roller" head. Moving, vibrating helices. This tones the muscles, reduces volume, warms up the muscles, relaxes and relieves stress, for example.
• PRO-WAVE (10): "Wave shaped" head, tones and improves blood circulation. For use on the thigh and buttock areas.
• Fabric cover (12): For exclusive use with the PRO-WAVE toning head. For greater comfort cover the head with the fabric cover. Never use it with creams.
• ROLL-MASSAGE (11): "Smooth roller" head.
• DRY BRUSH (9): Exfoliating brush, removes dead skin and stimulates blood flow.
• BALL MASSAGE HEAD (12): Stimulates and tones the muscles, helping to firm the skin.

SKIN PREPARATION

• It is essential to start by preparing the skin properly before performing the massage in the area where it is required, so we should exfoliate the skin using the natural bristle brush (DRY BRUSH), which will leave the area free of dead cells and make the skin softer. Avoid damaging the skin through excessive exfoliation (once per week is sufficient). Gently massage the entire area for 5 minutes. This step helps to stimulate your blood circulation and metabolism.
• The skin should always be brushed toward the heart, starting with the feet and moving up to the hips in the case of legs, and from wrist to shoulder for arms. Persist on rougher areas and be careful with sensitive areas. Adjust the intensity of exfoliation based on the condition of the skin, the body area and particular sensitivity.

ONCE YOU HAVE FINISHED USING THE APPLIANCE

• Move the switch (2) to the "off" position (fig.2 A).
• Unplug the appliance from the mains.
• Clean the appliance

EN

CLEANING

• Disconnect the appliance from the mains and let it cool before undertaking any cleaning task.
• Clean the equipment using a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Do not submerge the appliance in water or any other liquid, or place it under a running tap.

FRANÇAIS FR

DESCRIPTION

EXFOLIATION CORPORELLE

WYBÓR GŁOWICY MASAŻU

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

You can find the closest one by accessing the following web link: http://solac.com

You can also request related information by contacting us by phone.

You can download this instruction manual and its updates at http://solac.com
