Before using, be careful never to transmit without first having connected the antenna (connection "B" situated on the back panel of the equipment) or without having set the SWR (Standing Wave Ratio)! Failure to do so may result in destruction of the power amplifier, which is not covered by the guarantee.

The guarantee of this transceiver is valid only in the country of purchase .

Welcome to the world of the new generation of CB radios. The new PRESIDENT range gives you access to top performance CB equipment. With the use of up-to-date technology, which guarantees unprecedented quality, your PRESIDENT WILSON ASC is a new step in personal communication and is the surest choice for the most demanding of professional CB radio users. To ensure that you make the most of all its capacities, we advise you to read carefully this manual before installing and using your PRESIDENT WILSON ASC.

A) INSTALLATION:

1) WHERE AND HOW TO MOUNT YOUR MOBILE CB RADIO:

a) You should choose the most appropriate setting from a simple and practical point of view.
b) Your CB radio should not interfere with the driver or the passengers.

MOUNTING DIAGRAM

c) Remember to provide for the passing and protection of different wires (e.g. power, antenna, accessory cabling) so that they do not in any way interfere with the driving of the vehicle.

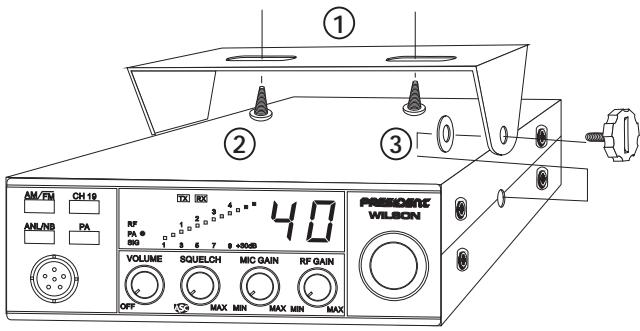

d) To install your equipment, use the cradle (1) and the self-tapping screws [2] provided (drilling diameter 3.2mm ). Take care not to damage the vehicle's electrical system while drilling the dash board.
e) Do not forget to insert the rubber joints [3] between the CB and its support as these have a shock-absorbing effect which permits gentle orientation and tightening of the set.
f) Choose where to place the microphone support and remember that the microphone cord must stretch to the driver without interfering with the controls of the vehicle.
- N.B.: As the transceiver has a frontal microphone socket, it can be set into the dash board. In this case, you will need to add an external loud speaker to improve the sound quality of communications (connector EXT.SP situated on the back panel: D). Ask your dealer for advice on mounting your CB radio.

2) ANTENNA INSTALLATION:

a) Choosing your antenna:

• For CB radios, the longer the antenna, the better its results. Your dealer will be able to help you with your choice of antenna.

b) Mobile antenna:

• Must be fixed to the vehicle where there is a maximum of metallic surface (ground plane), away from windscreen mountings.
• If you already have a radio-telephone antenna installed, the CB antenna should be higher than this.
• There are two types of antenna: pre-regulated which should be used on a good ground plane (e.g. car roof or lid of the boot), and
  adjustable which offer a much larger range and can be used on a smaller ground plane (see p 27 § 5, Adjustment of SWR).
• For an antenna which must be fixed by drilling, you will need a good contact between the antenna and the ground plane. To obtain this, you should lightly scratch the surface where the screw and tightening star are to be placed.
• Be careful not to pinch or flatten the coaxial cable (as this runs the risk of break down and/or short circuiting).

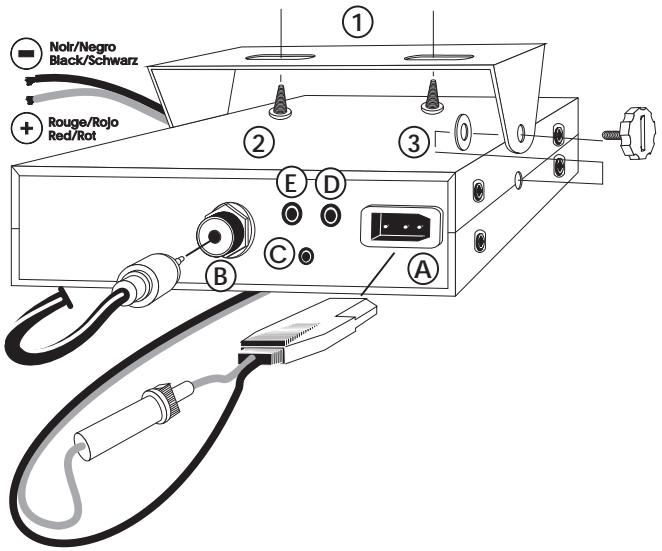

• Connect the antenna (B)

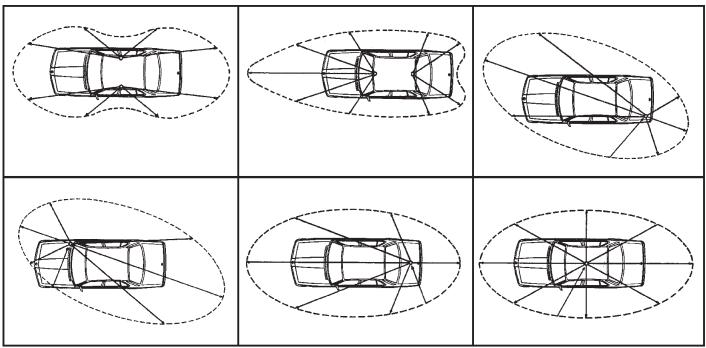

OUTPUT RADIUS PATTERNS

c) Fixed antenna:

• A fixed antenna should be installed in a clear a space as possible. If it is fixed to a mast, it will perhaps be necessary to stay it, according to the laws in force (you should seek professional advice). All PRESIDENT antennas and accessories are designed to give maximum efficiency to each CB radio within the range.

3) POWER CONNECTION:

Your PRESIDENT WILSON ASC is protected against an inversion of polarities. However, before switching it on, you are advised to check all the connections. Your equipment must be supplied with a continued current of 12 volts (A). Today, most cars and lorries are negative earth. You can check this by making sure that the negative terminal of the battery is connected either to the engine block or to the chassis. If this is not the case, you should consult your dealer.

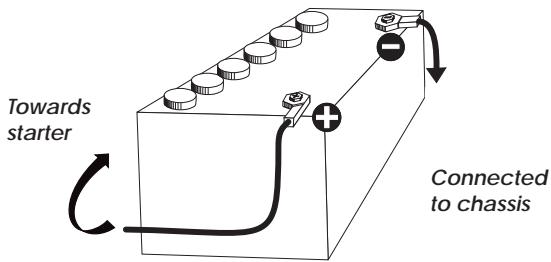

WARNING: Lorries generally have two batteries and an electrical installation of 24 volts, in which case it will be necessary to insert a 24/12 volt converter (type CV 24/12 PRESIDENT) into the electrical circuit. The following connection steps should be carried out with the power cable disconnected from the set.

a) Check that the battery is of 12 volts.
b) Locate the positive and negative terminals of the battery (+ is red and - is black). Should it be necessary to lengthen the power cable, you should use the same or a superior type of cable.
c) It is necessary to connect your CB to a permanent (+) and (-). We advise you to connect the power cable directly to the battery (as the connection of the

CB cable to the wiring of the car-radio or other parts of the electrical circuit may, in some cases, increase the likelihood of interference).

d) Connect the red wire (+) to the positive terminal of the battery and the black (-) wire to the negative terminal of the battery.
e) Connect the power cable to your CB radio.

WARNING: Never replace the original fuse (2 A) by one of a different value.

4) BASIC OPERATIONS TO BE CARRIED OUT BEFORE USING YOUR SET FOR THE FIRST TIME (without transmitting and without using the «push-to-talk» switch on the microphone):

a) Connect the microphone
b) Check the antenna connections
c) Turn the set on by turning the knob VOLUME clockwise.
d) Turn the SQUELCH knob to minimum (anti-clockwise). Adjust the volume to a comfortable level.
e) Go to Channel 20 using the rotary knob on the front panel.

5) ADJUSTMENT OF SWR (Standing wave ratio):

WARNING: This must be carried out when you use your CB radio for the first time (and whenever you re-position your antenna). The adjustment must be carried out in an obstacle-free area.

• Using an external SWR meter (e.g. SWR 1 or SWR 2):
  a) To connect the SWR meter :
• Connect the SWR meter between the CB radio and the antenna as close as possible to the CB (use a maximum of 40~cm cable, type President CA 2C).
  b) To adjust the SWR meter:
• Set the CB to channel 20.
• Put the switch on the SWR meter to position CAL ou FWD.
• Press the «push-to-talk» switch on the microphone to transmit.
• Bring the index needle to by using the calibration key.
• Change the switch to position SWR (reading of the SWR level). The reading on the V.U. meter should be as near as possible to 1. If this is not the case, re-adjust your antenna to obtain a reading as close as possible to 1. (An SWR reading between 1 and 1.8 is acceptable).
• It will be necessary to re-calibrate the SWR meter after each adjustment of the antenna.

Your CB is now ready for use.

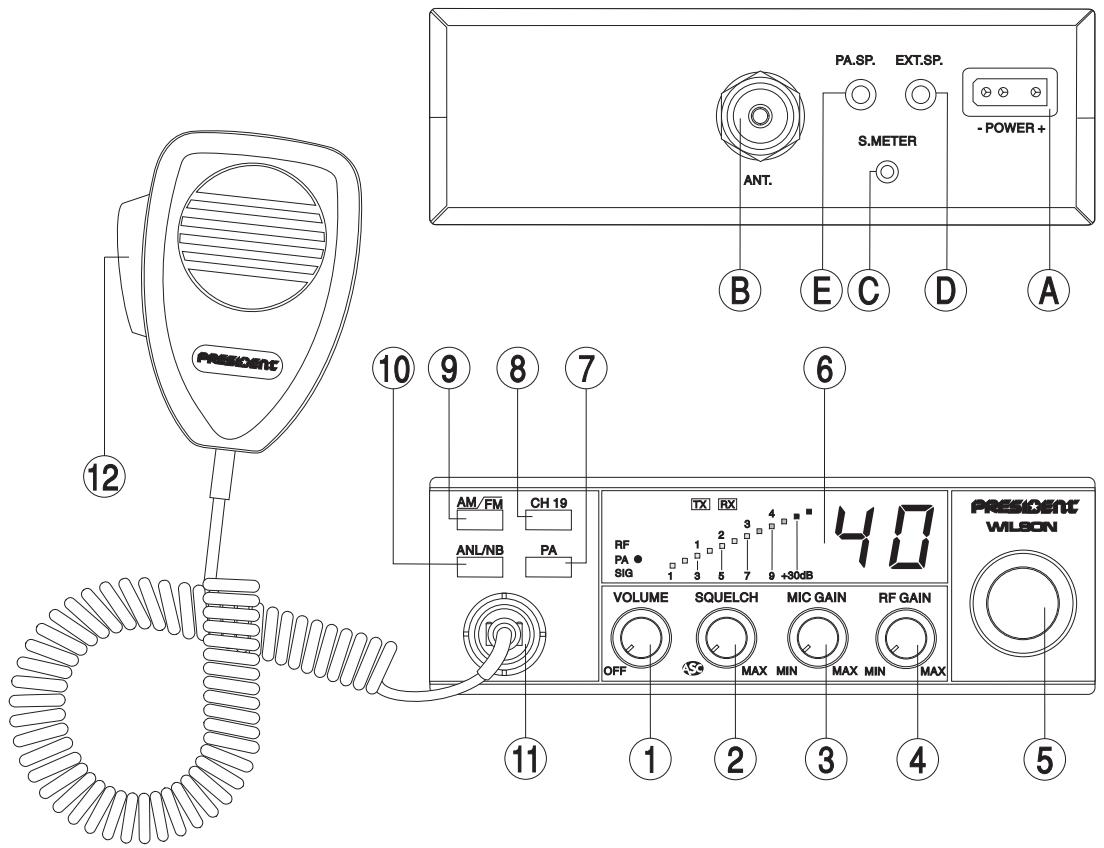

a) To turn the set on, turn the knob (1) clockwise
b) To increase the sound level, turn the same knob further clockwise.

2) ASC (Automatic Squelch Control)/SQUEELCH :

Suppresses undesirable background noises when there are no communication. Squelch does not effect neither sound nor transmission power, but allows a considerable improvement in listening comfort.

a) ASC: Automatic Squelch Control Worldwide patent, a PRESIDENT exclusivity

No repetitive manual adjustment and a permanent improvement in listening comfort when this function is active. It can be disconnected by turning the switch (2) clockwise, in this case the manual squelch control becomes active again.

b) Manual squelch

Turn the squelch knob clockwise to the exact point where all back-ground noise disappears. This adjustment should be done with precision as, if set to maximum, (i.e. fully clockwise) only the strongest signals will be received.

3) MIC GAIN:

Is for regulating microphone sensitivity, when using a microphone other than the one supplied with your PRESIDENT WILSON ASC. (pre-amplified).

The normal setting of this knob is fully clockwise.

4) RF GAIN:

This knob is for adjusting sensitivity during reception. For long distance communications RF GAIN should be set to maximum. RF GAIN can be reduced to avoid distortion, when your correspondent is close by and when he does not have RF POWER.

The normal setting of this knob is on maximum (fully clockwise).

5) CHANNEL SELECTOR ROTARY KNOB:

Turning this knob allows you to choose a channel (1-40) for transmitting and receiving.

6) DISPLAY:

The display shows all the different functions. The bargraph shows the level of reception and the level of power emitted.

7) PA (Public Address):

An external loud speaker can be connected to your PRESIDENT WILSON ASC by the jack plug situated on the back panel PA.SP (E). By pressing the PA key, the message transmitted into the microphone will be directed towards the external speaker and be amplified. Hold the microphone far enough away from this loud speaker so as to avoid the Larsen effect.

To activate this function, press once the PA key. The PA volume is regulated by the VOLUME knob. To cancel PA, press the «PA» key and the set returns to the previous configuration.

8) CH 19:

Channel 19 AM is automatically selected when you depress this key. This function is activated by depressing the key. To return to the previous configuration re-depress the same key.

9) MODE:

Use this key to select AM or FM. The modulation mode must correspond with that of the person with whom you communicate.

A/ Amplitude Modulation (AM) is for communications in areas where there are obstacles and over medium distances.
B/ Frequency Modulation (FM) is for nearby communications in flat, open areas. It gives better quality of communication (squelch adjustment needs more finesse).

10)ANL/NB:

Noise Blanker/ Automatic Noise Limiter. These filters allow the reduction of back ground noise, and some reception interference.

Press once for the ANL/NB filter, and press again to cancel them.

11) 6-PIN MICROPHONE PLUG:

This plug is situated on the front panel, thereby making it easier to set the equipment into the dashboard. See the cabling diagram on page 46.

12) PTT (push to talk):

Depress this knob to transmit a message and release to listen to an incoming communication.

A) DC-POWER TERMINAL (13,2 V)
B) ANTENNA CONNECTOR (SO-239)
C) EXTERNAL S-METER JACK (Ø 2,5 mm)
D) EXTERNAL SPEAKER JACK (8 Ω, 0 3,5 mm)
E) PA SPEAKER JACK (8 Ω, 0 3,5 mm)

C) TECHNICAL CHARACTERISTICS:

1) GENERAL:

• Channels
• Modulation modes
  Frequency ranges
• Antenna impedance
• Power supply
• Dimensions (in mm)
  Weight
• Accessories supplied

40
AM/FM
from 26.965 MHz to 27.405 MHz
50 ohms
13.2V
150(L)×210(H)×50(D)
1.4kg
: Microphone with support, mounting cradle, screws.

2) TRANSMISSION:

Frequency allowance
- Carrier power

+ / - 300Hz

4 watts FM CW

4 watts AM

Transmission interference
Audio response
- Emitted power in the adj. channel
- Microphone sensitivity
-Drain
- Modulated signal distortion

: inferior to 4 nW (- 54 dBm)
300 Hz à 3 KHz in AM/FM
: inferior to 20~ W
1,0mV
1,7 A (with modulation)
1,8%

3) RECEPTION:

Maxi. sensitivity at 20 dB sinad
Frequency response
- Adjacent channel selectivity
Maximum audio power
Squelch sensitivity

0.5 V - 113 dBm (AM/FM)

• Check that the PA function is not activated
• Check that the antenna is correctly connected and that the SWR is properly adjusted.
• Check that the microphone is properly plugged in.

2) YOUR CB RADIO WILL NOT RECEIVE OR RECEPTION IS POOR:

• Check that the PA function is not activated
• Check that the squelch level is properly adjusted.
• Check that the volume is set to a comfortable listening level.
• Check that the microphone is properly plugged in.
• Check that the antenna is correctly connected and that the SWR is properly adjusted.
• Check that you are using the same modulation mode as your correspondent.

3) YOUR CB WILL NOT LIGHT UP:

• Check the power supply.
• Check the connection wiring.
• Check the fuse.

E) HOW TO TRANSMIT OR RECEIVE AMESSAGE:

Now that you have read the manual, make sure that your CB Radio is ready for use (i.e. check that your antenna is connected).

Choose your channel (19, 27).

Choose your mode (AM/FM) which must be the same as that of your correspondent.

Press the «push-to-talk» switch and announce your message «Attention stations, transmission testing» which will allow you to check the clearness and the power of your signal. Release the switch and wait for a reply. You should receive a reply like, «Strong and clear».

If you use a calling channel (19, 27) and you have established communication with someone, it is common practice to choose another available channel so as not to block the calling channel.

F) GLOSSARY:

Below you will find some of the most frequently used CB radio expressions. Remember this is meant for fun and that you are by no means obliged to use them. In an emergency, you should be as clear as possible.

INTERNATIONAL PHONETIC ALPHABET:

A Alpha

BBravo

C Charlie

D Delta

E Echo

F Foxtrott

G Golf

H Hotel

I India

J Juliett

L Lima

M Mike

N November

O Oscar

P Papa

Q Quebec

R Romeo

S Sierra

T Tango

U Uniform

V Victor

W Whiskey

Y Yankee

Z Zulu

TECHNICAL VOCABULARY:

AM Amplitude Modulation

CB

CH

CW

DX

Citizen's Band

: Channel

Continuous Wave

Frequency Modulation

: Ultra High Frequency

Upper Side Band

: Very High Frequency

CB LANGUAGE:

Advertising

Back off

Basement

Base station

Bear

Bear bite

Bear cage

Big slab

Big 10-4

Bleeding

Blocking the channel

Blue boys

Break

Breaker

Clean and green

Cleaner channel

Coming in loud

and proud

Doughnut

Down and gone

Down one

Do you copy?

: Flashing lights of police car

: Slow down

: Channel 1

A CB set in fixed location

Policeman

: Speeding fine

Police station

Motorway

: Absolutely

Signal from an adjacent channel interfering with the transmission

: Pressing the PTT switch without talking : Police

Used to ask permission to join a conversation

: A CBer wishing to join a channel

Clear of police

: Channel with less interference

Good reception

: Tyre

: Turning CB off

: Go to a lower channel

: Understand?

DX	:	Long distance
Eighty eights	:	Love and kisses
Eye ball	:	CBers meeting together
Good buddy	:	Fellow CBer
Hammer	:	Accelerator
Handle	:	CBer's nickname
Harvey wall banger	:	Dangerous driver
How am I hitting you?	:	How are you receiving me?
Keying the mike	:	Pressing the PTT switch without talkin
Kojac with a kodak	:	Police radar
Land line	:	Telephone
Lunch box	:	CB set
Man with a gun	:	Police radar
Mayday	:	SOS
Meat wagon	:	Ambulance
Midnight shopper	:	Thief
Modulation	:	Conversation
Negative copy	:	No reply
Over your shoulder	:	Right behind you
Part your hair	:	Behave yourself - police ahead
Pull your hammer back	:	Slow down
Rat race	:	Congested traffic
Rubberbander	:	New CBer
Sail boat fuel	:	Wind
Smokey dozing	:	Parked police car
Smokey with a camera	:	Police radar
Spaghetti bowl	:	Interchange
Stinger	:	Antenna
Turkey	:	Dumb CBer
Up one	:	Go up one channel
Wall to wall	:	All over/everywhere
What am I putting to you?	:	Please give me an S-meter reading.

ACHTUNG!

A	Alpha	H	Hotel	P	Papa	W	Whiskey
B	Bravo	I	India	Q	Quebec	Y	Yankee
C	Charlie	J	Juliett	R	Romeo	Z	Zulu
D	Delta	L	Lima	S	Sierra
E	Echo	M	Mike	T	Tango
F	Foxtrott	N	November	U	Uniform
G	Golf	O	Oscar	V	Victor

R/S-Code:

R = Lesbarkeit

WX : Wetter, Temperature

Emisora CB President WILSON

Name and title of subscriber :

Addition to the service manual supplied

PAGE 28:

8) The function key CH 19 (8) activates only the CH 19 FM.
9) The function key MODE (9) doesn't function. Your transceiver is only functioning in FM mode.

PAGE 29:

D) TECHNICAL SPECIFICATIONS :

1) GENERAL:

• Channels 40
• Modulation modes : FM

2) TRANSMISSION:

• Carrier power : 4 W FM CW
• Frequency response : 300 Hz to 3 kHz in FM

3) RECEPTION:

• Maxi. sensitivity at 20 dB sinad 0.5 V -113 dBm (FM)
• Frequency response : 300 Hz to 3 kHz in FM

Modell WILSON FM
