Product type	Exercise bike
Brand	Cecotec
Model	Drumfit Indoor 7000 Magno
Recommended use	Home, indoor
Maximum user weight	120 kg
Resistance system	Continuously adjustable magnetic
Flywheel	7 kg
Transmission	Silent belt
Pedals	Adjustable with straps
Saddle	Adjustable in height and horizontally
Handlebar	Adjustable in height
Display	LCD showing time, distance, speed, calories, and heart rate
Heart rate sensors	Integrated into the handlebar
Dimensions (L × W × H)	Approximately 120 × 50 × 110 cm
Net weight	Approximately 40 kg
Power supply	2 AAA batteries (not included)
Transport wheels	2 at the front
Resistance levels	Continuous adjustment via dial
Maintenance	Clean with a damp cloth, regularly check screws and tightenings
Safety	Do not use outdoors, leave a clear space of 0.6 m around the device
Spare parts	Available from after-sales service
Warranty	Legal warranty, technical assistance

Frequently Asked Questions - Drumfit Indoor 7000 Magno CECOTEC

How to assemble the Cecotec Drumfit Indoor 7000 Magno exercise bike?

Follow the steps in the manual: attach the frame, handlebar, saddle, pedals, and display. Use the provided tools and tighten all screws before first use.

What is the maximum user weight?

The maximum weight is 120 kg. Do not exceed this limit to ensure the safety and durability of the equipment.

How to adjust the resistance?

Turn the resistance dial on the frame clockwise to increase the effort, and counterclockwise to decrease it. Pressing the dial also acts as an emergency brake.

The screen does not turn on, what should I do?

Check the AAA battery installation and polarity. Remove any protective film. If the problem persists, contact after-sales service.

How to clean the exercise bike?

Use a slightly damp soft cloth to wipe the frame, saddle, and handlebar. Avoid abrasive products. Retighten the screws as needed and check the condition of the parts regularly.

Can I use this bike if I have health issues?

It is strongly recommended to consult a doctor before any physical activity, especially in case of heart conditions, high blood pressure, or high cholesterol.

How to measure my heart rate?

Place your hands on the sensors built into the handlebar. The screen then displays your heart rate in real time. These measurements are indicative and do not constitute a medical device.

The bike makes noise during use, how to solve this problem?

Make sure all screws are properly tightened and that the bike is placed on a flat surface. Also check that the belt is correctly tensioned. If the noise persists, contact after-sales service.

What is the warranty for this product?

This product benefits from the legal warranty in accordance with the laws in force. For any claim, keep the proof of purchase and contact Cecotec customer service.

Can I move the bike effortlessly?

The bike is equipped with transport wheels at the front. To move it, slightly tilt the rear and push it. Beware of its weight of approximately 40 kg.

USER MANUAL Drumfit Indoor 7000 Magno CECOTEC

Bicicleta indoor/Indoorbicycle

Safety instructions 8

1. Parts and components 47

2. Product assembly 47

3.User guide 48

1. Technical specifications 51

2. Disposal of old electrical appliances 51

3. Technical support and warranty 51

4. Copyright 52

SOMMAIRE

Please, keep this instruction manual in a safe place for future reference or new users.

- Read the entire manual before assembling and using the equipment. Safe and efficient use can be only achieved if the product is properly assembled, maintained, and used. It is your responsibility to make sure every user is informed about the warnings and precautions stated in this instruction manual.

- Before starting a training session, it is recommended that you consult your doctor if you have any adverse health or physical condition that may pose a risk to your safety or make it difficult to use the bike properly. Your doctor advice is essential if you are taking medication because of your heart rate, blood pressure, or cholesterol level.

- Be aware of your body signals. Incorrect or excessive exercise can deteriorate your health. Stop exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular heartbeat, extreme shortness of breath, dizziness or nausea. If you experience any of these conditions, you should consult your doctor before continuing with your training.

- Keep children and pets away from the machine. Do not allow children to use it and/or play with the machine. It is designed for adults only.

- Use the equipment on a solid, even surface with a protective cover for your floor or carpet. It is advisable to leave some free space around the bike so that you can train in complete comfort and safety.

- Check that the bolts and nuts are securely fastened before using the equipment.

• The safety level of the device can be only maintained through regular examination for damage and/or wear and tear signals.
• Always use the equipment as indicated in this instruction manual. If you find any defective component while assembling or checking the product, or if you hear any unusual noise coming from the equipment during use, stop using it. Do not use the equipment until the problem has been solved.
• Make sure you have enough space to lay out the parts before starting. Leave at least a 0.6 m space free in the machine accessing areas for emergency cases. You can share accessing areas with other equipment nearby. Always ensure there are not any objects blocking the entrance and exit of the machine.

- Wear suitable clothing whilst using the device. Avoid wearing loose clothing which may get caught in the equipment or that may restrict or prevent movement.

• Not recommended for outdoor use.
• It is suitable for domestic use only. Maximum user weight: 120 kg.
• The bike is not suitable for therapeutic use.
• Care must be taken when lifting or moving the equipment so as not to injure your back.
• WARNING: the heart rate sensors may be inaccurate as it is not a medical device. Sensors can give you estimated heart rate information. If you feel any discomfort, stop exercising immediately. It may be dangerous for your health. If it persists, immediately go to the nearest medical centre.

Battery instructions

• Keep batteries away from children and animals, they could be harmful if swallowed. In case of ingestion, seek medical assistance immediately.
• Should a battery have leaked, do not allow your skin, eyes or mucous membranes to come into contact with the battery acid.
• WARNING: In case of contact with acid, rinse the affected areas with abundant fresh water immediately and seek medical help as soon as possible.
• Make sure the battery contacts in the device are clean before inserting batteries; if they are not, clean them.
• Use only the battery type specified in the technical specifications.
• Always change all batteries at the same time and do not use different batteries of different types or different capacity.
• When replacing batteries, note the correct polarity (+/-).

• Take the batteries out of the device when they are discharged or when the device is not going to be used in a long time.

• Batteries should not be recharged or reactivated, dismantled, thrown into fire, immersed in fluids or short-circuited.

• If the display stops working the batteries must be replaced.

Replacing batteries

• Open the battery compartment at the bottom of the control panel.
• Introduce the batteries. Pay attention to polarity.
• Close the battery compartment by sliding the cover. Make sure it fits properly.

INSTRUCTIONS DE SÉCURITÉ

Use 4 bolts (12) and 4 washers (13) to assemble the front anti-roll bar (5) and the rear anti-roll bar (6) to the main frame (1). Use the S6 Allen key (8) to tighten the screws.

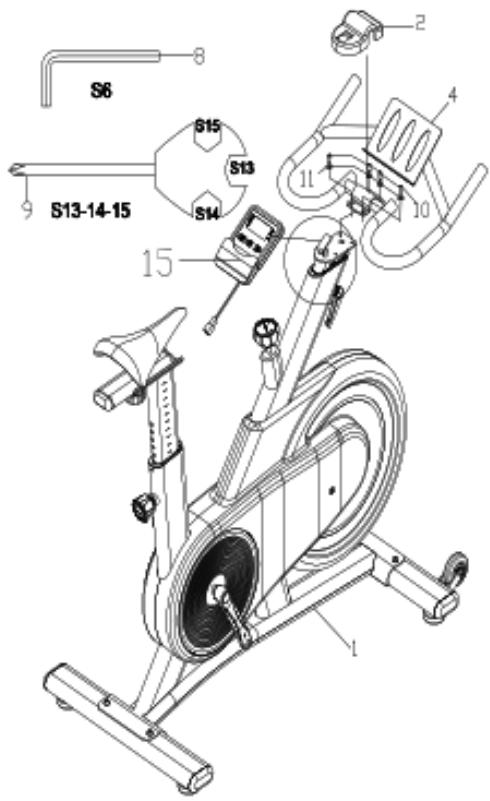

Step 2. Fig. 3

1. First, attach connector 2 (17) to the main frame (1) with connector 1 (16) above the main bar, and then insert the bar into the frame (1).
2. Remove 4 screws (10) and 4 washers (11) from the kit (7), and use the screws and washers to remove the handlebar (4). Use the Allen key S6 (8) to fix them to the main frame (1). Tighten the screws to secure it, fit the plastic trim (2).
3. Attach the connector (16) to the monitor (15). Then install the monitor (15) on the main frame (1).

Step 3. Fig. 4.

1. First, tighten the pedal on the crank with your hand.
2. To attach the pedal to the crank, use the S15 of the lug wrench (9) to install the pedals (3) on the left and right crank of the main frame (1), distinguish between left (L) and right (R),

ENGLISH

and follow the direction of the arrow in the figure. Use S19 of the wrench (14) to tighten the parallel nuts 3L and 3R backwards (according to the direction of the arrow in the figure), and then tighten them with the cross wrench (9).

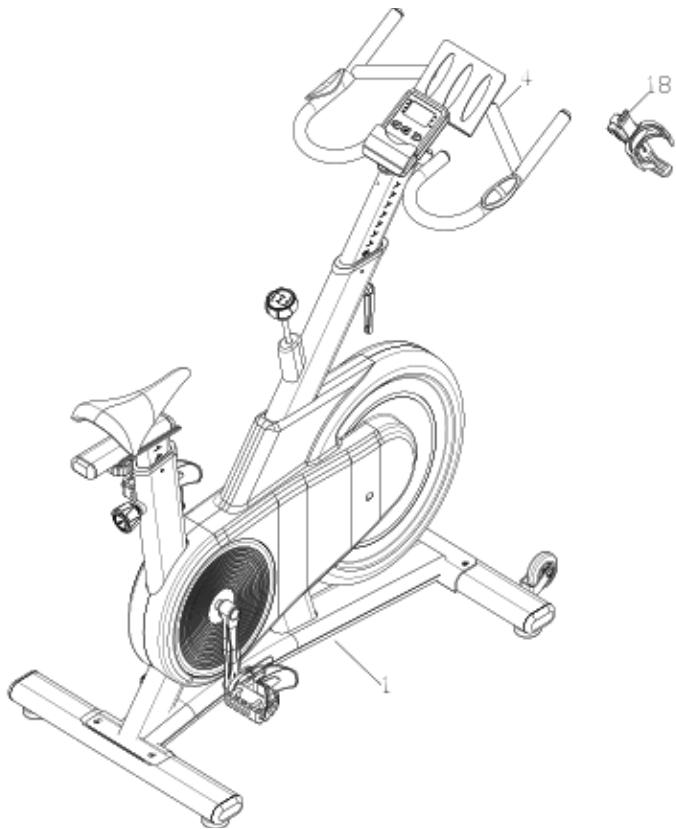

Step 4. Fig. 5

Fix the bottle holder (18) to the handlebar (4), as shown on the right.

3. USER GUIDE

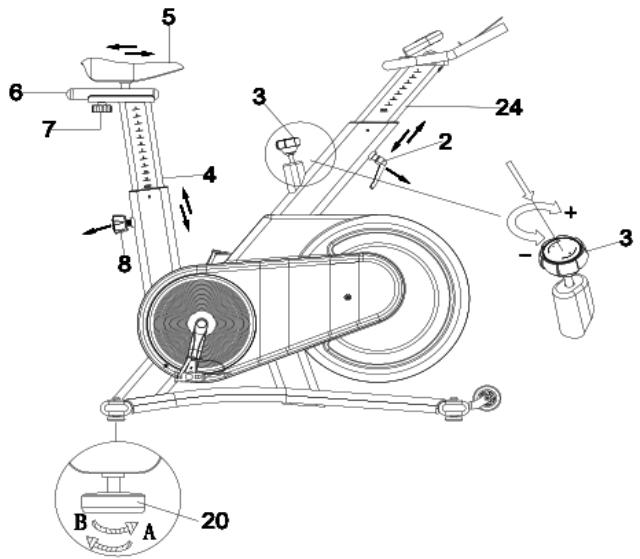

Adjusting the bicycle

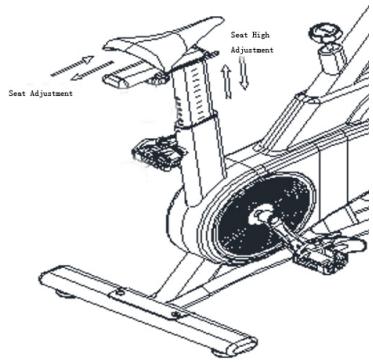

Adjusting the height and position of the saddle

• To adjust the height of the saddle, remember that the correct position is the one in which your waist is not tilted to the side when the pedal is in the lower position and the foot is perfectly inserted in the toe clips. (Fig. 13)
• For a correct use of the device and to avoid possible injuries in the knees, the horizontal adjustment of the saddle is extremely important. The correct position is the one in which, when the two pedal cranks are in the horizontal position, your front knee is right over the pedal centre. (Fig. 14)
• Use one hand to loosen the adjustment knob on the main frame and pull it outwards, while holding the centre part of the seat post with the other hand to lift it (or press it down) to adjust it to the desired position.
• Loosen the adjustment knob and move it gently up and down.
• Move the seat post so that the spring automatically readjusts (it clicks, indicating that the crank has slipped into the hole in the seat post), then tighten the crank until it is tight.
• Loosen the adjustment knob under the saddle, slide the saddle back and forth, adjust it to the desired position and turn the adjustment knob until it is tight. (Fig. 7)
• The adjustment cannot exceed the minimum insertion mark in the saddle (marked with the word STOP in the post).

Adjusting the handlebar height

• Make sure the handlebar height is approximately at the same height as the saddle, remember that this parameter will depend on the biomechanics and physiology of the user. If in this position you feel uncomfortable or your knees touch the handlebar, you should increase the height slightly. (Fig. 15)
• Use one hand to loosen the crank handle on the main frame and pull it outwards, while holding the centre part of the handlebar with the other hand to lift (or press down) to adjust it to the desired position.
• Loosen the crank and move it gently up and down.
• Move the handlebar post to allow it to readjust automatically (a click is heard, indicating

that it has slipped into the hole in the stem) and then turn the crank until it is tight. (Fig. 6)

- The adjustment cannot exceed the minimum insertion mark in the handlebar (marked with the word STOP in the post).

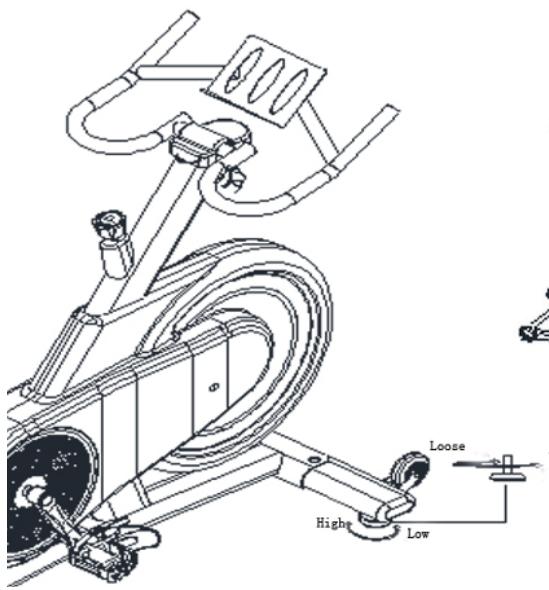

Adjusting the main body

There are four adjustment feet distributed under the front and rear anti-roll bars. Loosen the feet to bring it closer to the ground until there is no vibration. (Fig. 8)

Adjusting the resistance

Turn the resistance adjustment wheel clockwise to increase the resistance and counterclockwise to decrease the resistance. (Fig. 9)

Moving the bicycle

Hold the front anti-roll bar of the main frame with your feet first, grab the handlebar with both hands and press down firmly the front of the bike. After lifting the rear anti-roll bar, you can move the bike. (Fig. 10)

Information on exercising

A proper workout should consist of the following three activities:

• Warm-up: Consisting of 5 to 10 minutes of stretching and light exercise. A proper warm-up increases your body temperature, heart rate, and circulation in preparation for exercise. (Fig. 12)
• Training: exercise for 20 to 30 minutes (note: during the first weeks of exercise, do not keep your heart rate high for more than 20 minutes).
• Cool-down: 5 to 10 minutes of stretching exercises. This will increase the flexibility of your muscles and will help prevent injuries.

Workout routine

To maintain or improve your physical condition, exercise three times per week, with at least one day of rest between workouts. After a few months of regular exercise, you may exercise up to five times per week, if desired. For best results you must be consistent when exercising.

How to get on and off the bicycle

- To get on the bike, the first thing to do is to make sure that the bike is at a complete standstill. Stand next to the bike and pass the leg that is closer to it over the frame to sit on the saddle, then insert your feet in the toe clips in the pedals.

- To get off the bike, do the previous step in reverse order.

Use

The tension control knob allows you to alter the resistance level of the pedals. A high resistance makes it more difficult to pedal, while a low resistance makes it easier. For best

ENGLISH

results, set the tension while the bike is in use. Make sure your feet are correctly adjusted in the toe clips to prevent any undesired movement.

Emergency brake

In the event of an emergency requiring a complete braking of the bicycle, the resistance selector knob must be pushed inwards firmly until it stops and the machine completely stops.

Troubleshooting

• If no number appears on the monitor, make sure all connections are correct.
• If the problem persists, replace the batteries with new ones.

Recommendation

It is recommended to periodically lubricate the moving parts of the unit. To do so, apply some silicone spray or gel to those parts, including pedals and flywheel. Then, run the device normally for at least half a minute.

Control panel

Monitor operation (Fig. 11)

• Time: 00:00-99:59 (minutes:seconds)
• Speed: 00-99.9 km/h
• Distance: 0.00-99.99 km
• Calories: 0-999.9 kcal
• Pulse: 40-240 beats/minute

Buttons

• Mode button (9): press this button to select and view a certain function, press the mode button for 3-4 seconds, the monitor is reset to zero (total distance cannot be cleared).
• Setting button (10): press this button to set the count value of a currently displayed function (valid when Scan is not activated, not valid for total distance).
• Reset/clear button (8): press this button to reset or clear the current data (valid when Scan is not activated, invalid for full distance).

Operation

• Automatic switch (Monitor): When there is sensor signal input, it will turn on automatically.
• When there is no signal input (key and sensor signal), it will automatically switch off after four minutes.

Methods and steps of operation and adjustment (Fig. 11)

- (1) SCAN: displays all the measured values.

• (2) TIME: measures the time elapsed from the start of the exercise until the exercise stops.
• (3) SPEED (SPD): measures instantaneous speed, reflecting the speed of the movement.
• (4) DISTANCE (DST): measures the distance travelled from the start to the end of the movement.
• (5) CALORIES (CAL): measures the calories burned from the start of exercise to the end of exercise.
• (6) ODO: displays total accumulated distance.
• (7) PULSE: it shows your heart rate when your hands are on the sensors located on the handlebars. The heart rate is shown in beats per minute.

Battery

If the data on the display can't be seen clearly, replace the battery; this monitor uses two "AAA" batteries. When replacing batteries, replace them all at the same time.

4. TECHNICAL SPECIFICATIONS

Product name: DrumFit Indoor 7000 Magno

Product reference: 07086

Manufactured in China | Designed in Spain

5. DISPOSAL OF OLD ELECTRICAL APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for detailed information concerning the correct disposal of old electrical appliances

and/or their batteries.

Compliance with the above guidelines will help protect the environment.

6. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions and deadlines established by the applicable regulations.

ENGLISH

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec official Technical Support Service at [phone].

7. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC

INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Fig./Img./Abb./Afb./Rys./Obr. 1

Fig./Img./Abb./Afb./Rys./Obr. 2

Fig./Img./Abb./Afb./Rys./Obr. 3

Fig./Img./Abb./Afb./Rys./Obr. 4

Fig./Img./Abb./Afb./Rys./Obr. 5

Fig./Img./Abb./Afb./Rys./Obr. 6

Fig./Img./Abb./Afb./Rys./Obr. 7

Fig./Img./Abb./Afb./Rys./Obr. 10

Fig./Img./Abb./Afb./Rys./Obr. 8

Fig./Img./Abb./Afb./Rys./Obr. 9

DRUMFIT

RESET
8

MODE
9

SET
10

Fig./Img./Abb./Afb./Rys./Obr. 11

Fig./Img./Abb./Afb./Rys./Obr. 12
