URC 7556 - Universal remote ONE FOR ALL - Free user manual and instructions
Find the device manual for free URC 7556 ONE FOR ALL in PDF.
| Product type | Universal remote control |
| Brand | ONE FOR ALL |
| Model | URC 7556 |
| Number of controllable devices | 5 (TV, VCR, SAT, DVD, AMP) |
| Power supply | 4 AAA/LR03 alkaline batteries |
| Battery type | AAA (LR03) |
| Technology | Infrared, learning |
| Learning function | Yes, copies original keys (25-40 functions) |
| Range | Approximately 10 meters |
| Dimensions (approx.) | 20 x 5 x 2 cm |
| Weight (approx.) | 150 g (without batteries) |
| Color | Black |
| Compatibility | Most brands of TVs, VCRs, satellite receivers, DVD players, amplifiers |
| Teletext functions | Yes, dedicated keys and Fastext colors |
| Macros | Yes, up to 15 commands per macro |
| Key Magic | Yes, programming of missing functions |
| Lighting control | Compatible with ONE FOR ALL accessories (HC-8300, etc.) |
| Backlight | Yes, device keys |
| Memory | Retains codes and programs when changing batteries |
| Warranty | 1 year (material and labor defects) |
| Customer service | France: 0173036536, Belgium: 022750851, Switzerland: 0443420449 |
| Maintenance and cleaning | Clean with a soft, dry cloth, avoid liquids |
| Spare parts | Not applicable (no user-replaceable parts) |
Frequently Asked Questions - URC 7556 ONE FOR ALL
User questions about URC 7556 ONE FOR ALL
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Universal remote in PDF format for free! Find your manual URC 7556 - ONE FOR ALL and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. URC 7556 by ONE FOR ALL.
USER MANUAL URC 7556 ONE FOR ALL
(To find out which code is currently programmed) 8
QUICK CODE REFERENCE 8
THE LEARNING FEATURE 9
(How to copy functions from your original working remote onto the ONE FOR ALL 5)
Mode re-assignment (Changing a device mode) 12
Volume Punch-Through 13
- Macros (Sequence of commands) 14
Key Magic (How to program missing functions) 16
Colour and Brightness 17
- ONE FOR ALL Light Control 19
TROUBLE-SHOOTING 17
CUSTOMER SERVICE 18
About Your ONE FOR ALL 5
Your ONE FOR ALL 5 can operate five devices:
TV :Television
VCR : Video Recorder
SAT :Satellite Receiver or Cable Converter
DVD : DVD Player
AMP : Amplifier / Tuner
Also, what makes the ONE FOR ALL 5 even more unique is that
"Learning" feature, which allows you to customise any of the special functions of your original remote control onto the keypad of your new ONE FOR ALL 5.
The following pages explain in simple steps how to customise the ONE FOR ALL 5 to your devices.
You may need this guide again in the future, so please be sure to keep it.
Installing the Batteries
Your ONE FOR ALL 5 requires 4 new "AAA/LR03" alkaline batteries.
1 Push the battery door upwards and lift it up to remove it.
2 Match the batteries to the (+) and (-) marks inside the battery case, then insert the batteries.
3 Replace the battery cover by pushing downwards and allowing it to click back into position.
Important notes:
- On the inside of the battery compartment door you will find a label on which to write your Set-Up codes after your ONE FOR ALL 5 is set up for your device. Please write down your codes for easy, future reference.
- Do not use rechargeable batteries.
- Upon changing the batteries, your set-up codes and advanced programming will be retained.

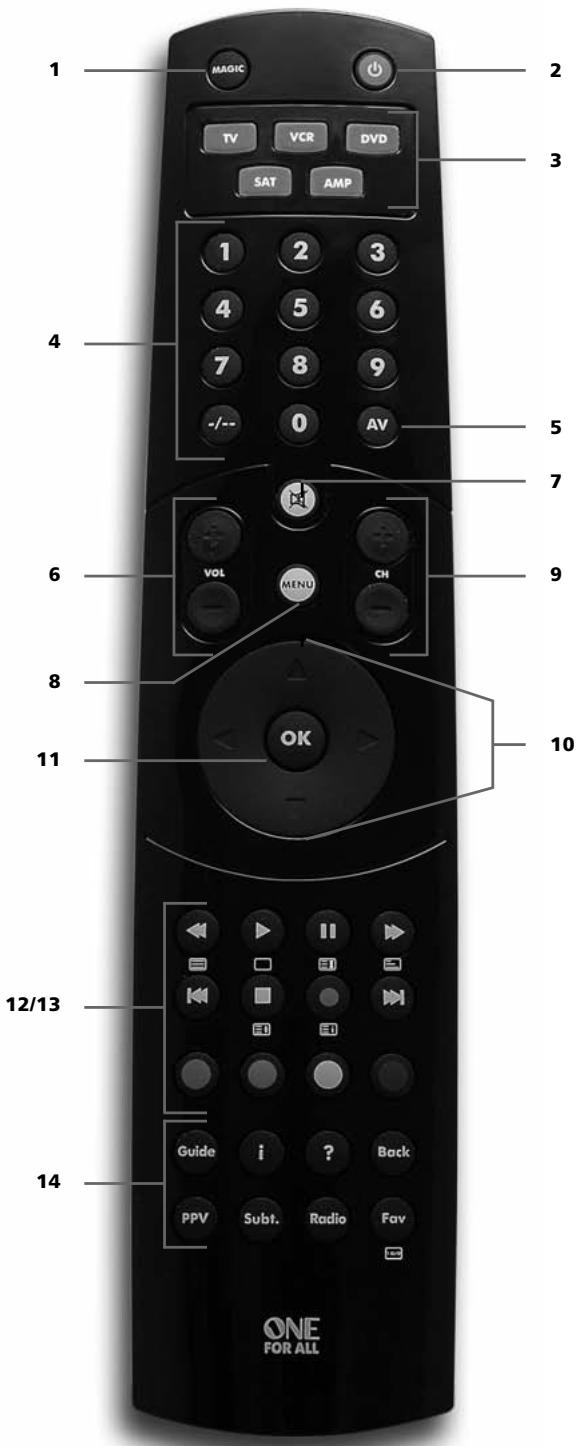

The Keypad
See picture of ONE FOR ALL 5 remote on page 2.
1 Magic Key
The MAGIC key is used to set up your ONE FOR ALL 5.
2 Power
The POWER key operates the same function it did on your original remote control.
3 Backlight Device Keys
The TV, VCR, SAT, DVD, and AMP keys select the home entertainment device to be controlled. For example pressing the TV key allows the remote to control the functions of your Television, after pressing VCR you can operate your Video Cassette Recorder etc.
For more detailed information, please refer to the chart on page 6. During operation of the ONE FOR ALL the red light (LED - Light Emitting Diode) underneath a device key will light up (every time a key is pressed) to indicate the device mode you are using.
4 Number Keys (0-9, -/-, AV)
The Number keys (0-9, -/--, AV) provide functions just like your original remote, such as direct access channel selection. If your original remote uses one/two digit input switching (-/- symbol), this function can be obtained by pressing the -/-- key. If your original remote has an 10 key, this function can also be found under the -/-- key. If your original remote has an 20 key, this function can also be found under the AV key. In AMP mode the Number keys may provide source (input) selection.
5 AV Key
In TV mode you will obtain the AV / Input function. In VCR mode you will obtain the "TV/VCR" function, if available on your original remote. In DVD mode you will obtain the "TV/DVD" function, if available on your original remote. In DVD mode you will obtain the "TV/SAT" or "TV/DTV" function, if available on your original remote.
6 Volume +/- Keys
These keys operate in the same way as the keys on your original remote.
The Keypad
7 Mute Key
The Mute key operates the same function it did on your original remote control.
8 Menu Key
The MENU key controls the same function as it did on your original remote.
9 Channel +/- Keys
These keys operate in the same way as the keys on your original remote.
10 Directional Keys
If available on your original remote, these keys will allow you to navigate through the menu mode of your device.
11 ok
The OK key will confirm your choice in menu operation.
12 Transport Keys (VCR / DVD)
These keys operate the transport functions (PLAY, FF, REW etc.) of your device. To prevent accidental recording, the RECORD key must be pressed twice to start recording.
13 Teletext Keys
After pressing the TV key, the transport keys (REW, PLAY, PAUSE, FF) are used to operate the main Teletext functions. The symbols below the keys are for Teletext. The text keys are used to access the Teletext functions of your television. Of course, your television must have Teletext capability.
TEXT ON: Puts the television in the Teletext mode.
TEXT OFF: Switches the television back to regular viewing mode. On some televisions, this may be done by pressing the TEXT ON key several times.
HOLD/STOP: Stops changing pages.
- MIX: Shows teletext and regular television simultaneously. You may also use this key for subtitling. On some televisions this function is accessed by pressing the text key twice.
EXPAND: Shows the top half of the Teletext page in larger letters. By pressing again, you can see the bottom half of the Teletext page enlarged. To return to regular Teletext viewing, press the EXPAND key again, or press the TEXT ON key, depending on your television.
INDEX: This key will give you access to the index function within the text mode.
After pressing the TV key and accessing the text mode, the keys marked red, green, yellow and blue, allow you to access the Fastext functions of your television. If on your original remote control these keys are used for Menu navigation, the ONE FOR ALL Fastext keys may operate in the same way.
Important note: For a more detailed explanation of Teletext and Fastext, please refer to the manual of your television. Remember, different televisions control Teletext and Fastext features in different ways. Not all of the Teletext functions may be available for your particular model.
14 Additional Function Keys
Guide
In TV and/or SAT mode you will obtain the "Guide" function, if available on your original remote.
In TV and/or SAT mode you may obtain the 'Display", "OSD" or "info" function, if available on your original remote.
In SAT mode you will obtain the "help" function, if available on your original remote.
Back
In TV, VCR and DVD mode you will obtain the "Menu Exit" function, if available on your original remote. In SAT menu mode you may use the "back" key to go to the previous menu screen.
PPV
In SAT mode you will obtain the Pay Per View (PPV) function, if available on your original remote.
Subt.
In TV, VCR, SAT and DVD mode you will obtain the "Subtitle" function, if available on your original remote.
Radio
In SAT mode you will obtain the "Radio" function, if available on your original remote.
Fav
In TV mode this key provides you the (16:9) wide screen view function, if available on your original remote). In SAT mode you will obtain the "Favorite" function, if available on your original remote.
Setting up the ONE FOR ALL 5
(How to set up the ONE FOR ALL 5 to control your devices)
Example: To set up the ONE FOR ALL 5 for your Television:
Find the code for your device in the Code list (page 201 - 221). Codes are listed by device type and brand name. The most popular code is listed first. Make sure your device is switched on (not on standby).
Press the TV key on the ONE FOR ALL 5 for the device you wish to Set-Up.
Press and hold down MAGIC until the ONE FOR ALL 5's TV key blinks twice (the red LED underneath the TV key will blink once and then twice).
4 Enter your four-digit device code using the number keys. The device key will blink twice.
5 Now, aim the ONE FOR ALL 5 at your device and press POWER. If your device switches off, the ONE FOR ALL 5 is ready to operate your device.
6 Turn your device back on and try all the remote's functions to ensure they are working properly. If the functions do not work properly, repeat steps 1-5 using another code listed under your brand.
If your device does not respond, follow steps 1 to 5 with each code listed for your brand. If none of the codes listed for your brand operate your device, or if your brand is not listed at all, try the Search Method described on page 7.
- Some codes are quite similar. If your device does not respond or is not functioning properly with one of the codes, try another code listed under your brand.
- If your device's original remote control does not have a POWER key, press PLAY instead of POWER when setting up your device.
- Remember to press the corresponding device key before operating your device.

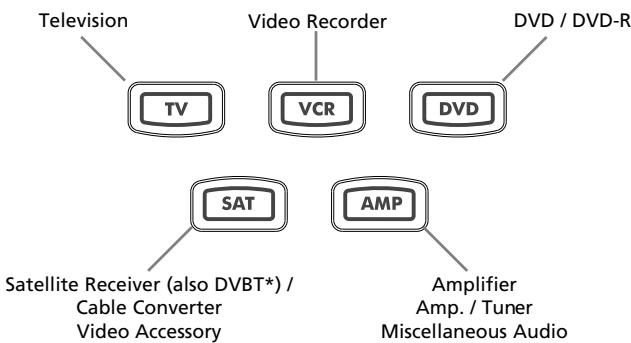

Devices can be found under the following keys:
- DVBT codes (Digital Terrestrial / Free View) can be found in the "Satellite Receiver" section.
To set up a second TV, VCR, SAT, DVD or AMP see page 12.
Setting up the ONE FOR ALL 5
Search Method
If your device does not respond to the ONE FOR ALL 5 after you have tried all the codes listed for your brand.
If your brand is not listed at all.
The Search Method allows you to scan through all the codes contained in the memory of the ONE FOR ALL 5.
Example: To search for your TV code:
1 Switch your television on (not on standby) and aim your ONE FOR ALL at your TV.
2 Press the TV key on your ONE FOR ALL 5.
3 Press and hold down MAGIC until the ONE FOR ALL 5's TV key blinks twice (the red LED underneath the TV key will blink once and then twice).
4 9 9 1 Press 9 9 1. The TV key will blink twice.
5 Next, press POWER.
6 Aim the ONE FOR ALL 5 at your Television. Now press CH + over and over, until your Television turns off (every time you press the CH + key the ONE FOR ALL 5 will send out a POWER signal from the next code contained in the memory). You may have to press this key many times (up to 150 times) so please be patient. If you skip past a code, you can go to the previous code(s) by pressing the CH- key. Remember to keep pointing the ONE FOR ALL 5 at your Television while pressing this key.
7 As soon as your television turns off, press MAGIC to store the code.
- Most TV's do not switch on pressing the POWER key. Please try pressing a "number" key or the "TV-text off" key to switch your TV back on.
- If you cannot control your Television properly, please continue the Search Method, you may be using the wrong Code.
- To search for the code for another device follow the instructions above only press the appropriate device key instead of TV during step 2.
- If the original remote control of your Video recorder or DVD player does not have a POWER key, press PLAY instead of POWER during step 5.
Code Blink out
(To find out which code is currently programmed)
Once you have Set-Up your ONE FOR ALL 5, you can blink back your SET-UP CODE for future reference.
Example: To blink out your Television code:
1 TV Press TV once.
2 Press and hold down MAGIC until the ONE FOR ALL 5's TV key blinks twice (the red LED underneath the TV key will blink once and then twice).
3 9 9 0 Press 9 9 0. The TV key will blink twice.
4 1 For the first digit of your four-digit code, press 1 and count all the red blinks. If there are no blinks, the digit is "0".
5 2 For the second digit, press 2 and count all the red blinks. If there are no blinks, the digit is "0".
6 3 For the third digit, press 3 and count all the red blinks. If there are no blinks, the digit is "0".
7 4 For the fourth digit, press 4 and count all the red blinks. If there are no blinks, the digit is "0". Now you have your four-digit code.
- To blink back the code for your other devices press the appropriat device key during step 1.
Quick Code Reference
Write down the codes for your devices in the boxes below and in the battery compartment for quick and easy reference.
The Learning Feature
(How to copy functions from your original working remote
onto the ONE FOR ALL5)
The ONE FOR ALL 5 comes with a complete library of pre-programmed codes. After you have set up the ONE FOR ALL 5 for your device, you may find that there are one or more keys that you had on your original remote, which do not have a place on the ONE FOR ALL keypad.
As a convenience, the ONE FOR ALL 5 offers a special Learning feature that allows you to copy any function from your original remote control onto the keypad of the ONE FOR ALL 5.
Before you start:
- Make sure your original remote control is working correctly.
- Make sure neither your ONE FOR ALL, nor your original remote control is pointing at your device.
- Learning (Direct)
Example: To copy the "mono/stereo" function from your original TV remote onto the "Radio"key of your ONE FOR ALL 5.
1 Place both remote controls (the ONE FOR ALL 5 and your original) on a flat surface. Make sure the ends which you normally point at your device are facing each other. Keep the remotes at a distance of 2 to 5 cm.
Press and hold the MAGIC key until one of the device keys will blink twice. The red LED underneath the corresponding device key (depending on the device mode that was selected) will blink once then twice.
Press 9 7 5 (the device key will blink twice).
Press the device key (on the ONE FOR ALL remote) to select the mode to which you want to copy the learned function (Example: TV key).
Press the key (on the ONE FOR ALL remote) where you want to place the learned function (Example: "Radio" key). The device key will flash rapidly.
Press and hold the key (on your original remote) that you want to copy until the device key on the ONE FOR ALL blinks twice (Example: "mono/stereo" key).
7 If you want to copy other functions within the same mode, simply repeat steps 5 and 6 pressing the next key you want to copy by learning.
8 To exit the learning mode, press and hold MAGIC until the device key blinks twice.
9 Learning is mode specific. To access your learned function, press the appropriate device key first.
The Learning Feature
Important notes:
- During steps 2 - 7 (page 9), you have approximately 10 seconds to conduct each step. If there is a gap of more than 10 seconds between two steps, you will have to start again from step number 2.
- If you learn a function on a key, the original ONE FOR ALL feature automatically becomes shifted. You can press MAGIC then the key to access it (this excludes the Channel and Volume keys).
- The Learning feature is mode specific. Therefore you can place one learned feature per mode on the same key.
- If a Shifted Learned function is placed on the Channel and Volume keys then Colour/Brightness will be sacrificed.
- The ONE FOR ALL 5 can learn approximately 25 - 40 functions.
- You can replace a learned function by placing another learned function on top.
- Learning should not be done in direct sunlight or under incandescent lights.
- Make sure you are using new batteries before following the instructions above.
- Upon changing the batteries, your learned functions will be retained.
- Shifted Learning
You can also learn a function on a key of the ONE FOR ALL without sacrificing the original ONE FOR ALL function. A Shifted Learning function can also be put on any key EXCEPT for the following: Device keys, MAGIC key,
Number keys. To install a Shifted Learning function, simply follow steps 1-8 on the previous page. During step 5, press MAGIC once before you press the key where you are placing the learned function.
To access the shifted function, press MAGIC and then the key you have learned on.
The Learning Feature
To delete a learned function:
1 Press and hold the MAGIC key until one of the device keys will blink twice. The red LED underneath the corresponding device key (depending on the device mode that was selected) will blink once then twice.
2 Press 976 (the device key will blink twice).
3 Press the device key in which the function will be deleted.
4 Press twice on the learned key which will be deleted (the device key will blink twice).*
5 If there is another key which you wish to delete, repeat steps 1-4.
6 The original functions of the ONE FOR ALL 5 will now be present.
- To delete a Shifted Learned feature, press MAGIC before you press the learned key to be deleted (during step 4).
To delete all learned functions within a specific mode:
1 Press and hold the MAGIC key until one of the device keys will blink twice. The red LED underneath the corresponding device key (depending on the device mode that was selected) will blink once then twice.
2 Press 976 (the device key will blink twice).
3 Press the appropriate device (mode).
Operational Reset
The Operational Reset will erase all learned functions across all modes and some other programmed functions like Key Magic and Macros.
1 Press and hold the MAGIC key until one of the device keys will blink twice. The red LED underneath the corresponding device key (depending on the device mode that was selected) will blink once then twice.
2 Press 980 (the device key will blink four times).
Mode re-assignment
(Changing a device mode)
It is possible to change the mode of any device key. This is useful if you want to set up two of the same devices on the ONE FOR ALL 5. The code can be set up using "Direct code set up" (p. 6) or "Search method" (p. 7). To change a device key, see the three examples below.
Example 1) if you want to program a second TV on the VCR key.
Example 2) if you want to program a second TV on the SAT key.
Example 3) if you want to program a second VCR on the SAT key.
Example 1:
To program a second Television on the VCR key (for example), you need to change the VCR key into a TV key, so press:
The VCR key has now become a second TV key.
Now enter the Set-Up code for your second TV by pressing:
Example 2:
To program a second Television on the SAT key (for example), you need to change the SAT key into a TV key, so press:
The SAT key has now become a second TV key.
Now enter the Set-Up code for your second TV by pressing:
Example 3:
To program a second Video Recorder on the SAT key (for example), you need to change the SAT key into a VCR key, so press:
The SAT key has now become a second VCR key.
Now enter the Set-Up code for your second VCR by pressing:
Resetting a Device key
Example: To reset the VCR key to its original mode, press:
Example: To reset the SAT key to its original mode, press:
() Press and hold down the MAGIC key until the red light (LED) blinks twice.
(^*) The red light (LED) will blink once then twice.
Volume Punch Through
You may be able to use some functions of your Television, Video recorder, DVD player, Amp./Tuner, Satellite receiver or Cable converter at the same time. For example: if you are watching a program on your video recorder, you can adjust the volume (a TV function) without pressing the TV mode key on your ONE FOR ALL 5.
To punch through to TV volume while in the VCR, DVD, AMP or SAT mode:
- MAGIC
Press and hold the MAGIC key until one of the device keys will blink twice. The red LED underneath the corresponding device key (depending on the device mode that was selected) will blink once then twice.
- 9 ⑨ 3 Press 9 93.
- Then press the TV key and the red light will blink twice.
To cancel the "Volume Punch Through" per mode:
(Example: to cancel the "Volume Punch Through" for the VCR mode)
- Press VCR once.
2 Press and hold down MAGIC until the ONE FOR ALL 5's VCR key blinks twice (the red LED underneath the VCR key will blink once and then twice). - ⑨⑨③ Press 9 93.
- Then press the Volume (-) key and the red light will blink four times.
Result: being in VCR mode, you will be able to control VOL+/- or MUTE functions of your VCR (provided it has volume control).
To cancel the „Volume Punch Through“:
1 Press and hold the MAGIC key until one of the device keys will blink twice. The red LED underneath the corresponding device key (depending on the device mode that was selected) will blink once then twice.
2. ⑨⑨③ Press 9 93.
3. Press the Volume (+) key and the red light will blink four times.
Macros (Sequence of commands)
Macros (Direct)
You can program your ONE FOR ALL 5 to issue a sequence of commands at the press of one button. Any sequence of commands you regularly use can be reduced to one key stroke for your convenience. For example, you may want to turn off your TV, VCR and Satellite at the same time.
Example: To set up the Macro mentioned above on the key labeled "Radio" on your ONE FOR ALL 5:
1 Press and hold the MAGIC key until one of the device keys will blink twice. The red LED underneath the corresponding device key (depending on the device mode that was selected) will blink once then twice.
2 Press 9 95.
3 Then press the Radio key to which the Macro will be assigned.
4 Next press TV, POWER, VCR, POWER, SAT, POWER.
5 To store the Macro, press and hold MAGIC until the device key blinks twice (the device key will blink once then twice).
6 Whenever you press the "Radio" key, the ONE FOR ALL 5 will turn off your TV, VCR and Satellite.
To erase the Macro from the Radio key, press:
MAGIC* 9 95 Radio key MAGIC*
*Here you must hold down MAGIC until the device key blinks twice.
Shifted Macros
You can install a Shifted Macro on any key, except for the device keys (TV, VCR, SAT, DVD and AMP), the MAGIC key, and the NUMBER keys.
If for example, you want to program a shifted Macro on the POWER key, simply press MAGIC once then the POWER key during step 3.
Now every time you press MAGIC, then the POWER key, the ONE FOR ALL will turn off your TV, VCR and Satellite.
- To erase the Shifted Macro from the POWER key press:
-
Here you must hold down MAGIC until the device key blinks twice.
-
Each MACRO can consist of a maximum of 15 key strokes.
- Make sure that you program a Macro on a spare key that you don't use in any mode.
- Once you program a Macro on a specific key, the sequence will work regardless of the mode (TV, VCR, SAT, DVD and AMP) you are using.
- To avoid accidental recordings with the ONE FOR ALL 5, you must press the Record key twice to begin recording. Because of this, you cannot assign a Macro or Shifted Macro to the Record key.
- If you had to hold down a key for a few seconds on the original remote control to get a function, this function may not work in a macro on your ONE FOR ALL remote.
- If you program a Macro on a key, the original function will become shifted (excluding CH+/- and VOL+/- keys). Press MAGIC then the key to access it. If you place a Macro shifted on a digit key, access the original function by pressing MAGIC twice and then the digit key.
- If a Shifted Macro is placed on the Channel and Volume keys then the Colour and Brightness feature will be sacrificed.
Key Magic
how to program missing functions
Key Magic is an exclusive ONE FOR ALL feature. The design of the ONE FOR ALL ensures that many functions of your original remote control can be operated - even those that do not have their own key on the ONE FOR ALL keypad. Frequently used functions can be assigned to a key of your choice using the Key Magic feature of your ONE FOR ALL.
In order to program a certain function with Key Magic you need to know the corresponding function code. As the function codes vary with different types of devices, they cannot be found in the manual. You can request your function codes through our consumer service help-line or by letter, fax or e-mail.
All we need to know is:
- The 5-digit set-up code your device is working with.
- How the function was labelled on your original remote control.
You can also visit our website (www.oneforall.com)
to find an answer to your questions.
Once you obtain(ed) your function code(s) from customer service, programming the code is easy:
1 Press the device key (TV, VCR, SAT, DVD and AMP).
2 Press and hold the MAGIC key until one of the device keys will blink twice. The red LED underneath the corresponding device key (depending on the device mode that was selected) will blink once then twice.
3 Press 9 9 4. The device key will blink twice.
4 Press the MAGIC key once.
5 Enter the 5-digit function code (provided by customer service).
6 Press the key to which the function will be assigned. The device key will blink twice.
EXTENDED FUNCTION REFERENCE (first entry is an example):
DEVICE SET-UP CODE FUNCTION FUNCTION CODE
TV 0556 16/9 format 00234
- To access the function you have programmed, press the corresponding device key first.
- Key Magic can be assigned to any key EXCEPT the Device keys and the MAGIC key.
- Please note all the extended function codes you obtain from customer service for easy future reference.
Extra Features
Colour and Brightness
Depending on the functions of your original remote control, the ONE FOR ALL may operate the colour and brightness settings of your television.
Colour (+) = Press and release MAGIC then hold Volume (+) Colour (-) = Press and release MAGIC then hold Volume (-)
Brightness (+) = Press and release MAGIC then hold Channel (+) Brightness (-) = Press and release MAGIC then hold Channel (-)
Trouble-Shooting
Problem:
Solution:
| Your brand is not listed in the code section? | Try the search method on page 7. |
| The ONE FOR ALL does not operate your device(s)? | A) Try all the codes listed for your brand. B) Try the search method on page 7. |
| The ONE FOR ALL is not performing commands properly? | You may be using the wrong code. Try repeating the Direct Set-Up using another code listed under your brand or start the search method over again to locate the proper code. |
| Problems changing channels? | Enter the channel number exactly as you would on your original remote. |
| Video not recording? | As a safety feature on your ONE FOR ALL, you must press the Record key twice. |
| The ONE FOR ALL does not respond after pressing a key? | Make sure you are using new batteries and are aiming the ONE FOR ALL at your device. |
| The device key does not blink when you press a key? | Replace batteries with 4 fresh, new AAA/LR03” alkaline batteries. |
Customer Service
In the UK
E-mail: ofahelp@uebv.com (*)
Fax : +31 53 432 9816
Tel. : 0901-5510010 (£ 0,50 per minute)
In Australia
E-mail: ofahelp@uebv.com (*)
Fax : 03 9672 2479
Tel. : 1300888298
In New Zealand
E-mail: ofahelp@uebv.com (*)
Fax : (06) 878 2760
Tel. : 0508 ONE 4 ALL (663 4 255)
Slovakia
E-mail: ofa@csi.sk
Fax : +421 55 611 8111
Tel. : +421 55 611 8131
Web. : www.dsi.sk
In Ireland
E-mail: ofahelp@uebv.com (*)
Fax : +31 53 432 9816
Tel. : 016015986
In South Africa
E-mail: support@oneforall.co.za
Fax : 011 298 2302
Tel. : 0860 100551
Tel. : 011 4173000
Ukraine
() Just send a blank message, you'll get auto-reply.
ONE FOR ALL Light Control
Your ONE FOR ALL 5 Remote Control is compatible with ONE FOR ALL Light Control accessories, allowing you to control one or more of the lights in your house using the remote. To begin, you will need to purchase the ONE FOR ALL Light Control Starters Kit (HC-8300). The next step is to set up a code on a spare device key, which will allow you to control up to 10 Light Control Receivers. The code should be set up on a key which is configured to accept a AMP code. If you are already using the AMP key, you will need to change a spare device key to accept a AMP code. To do this, follow the Mode Re-Assignment feature on page 12.
To set-up a code, simply follow the normal procedure on page 6. The following codes can be set up for Light Control:
OFA Light Control - 1000, 1001, 1002, 1003, 1004, 1005, 1006, 1007, 1008, 1009, 1010, 1011, 1012, 1013, 1014, 1015
It is recommended to use the first code listed. As the Light Control system works with Radio Frequency there is the possibility of interference. If your Light Control kit is not responding well, try one of the other codes listed.
Set up the HC Receiver
To set up your HC Receiver to work with your remote, you will need to assign a number to it. This is a one-time process that will allow you to control individual lights separately if you purchase additional HC Receivers in the future. To assign a number to the plug, follow these steps:
Plug the lamp into the HC Receiver, and plug the HC Receiver into the wall outlet. If your lamp has a power switch it should be in the "ON" position.
- Plug the Command Centre in as close as possible to the HC Receiver, so that they are only 10-20 cm apart (the Command Centre can be moved after the initial setup).
2 Press the Light Device key on your remote control so that it is in Light Mode.
- Press the number you wish to assign to the HC Receiver. If this is your first Plug, number 1 is recommended, number 2 for the second etc. The LED (underneath the Light Device key) should blink twice.
- Press and hold the button on the HC Receiver until the red light begins to blink.
3 Point your remote control towards the Command Centre and press the Channel Up (+) key. The red light should stop flashing.
The remote should now operate the HC Receiver. To test it, check if the Channel Up (+) and Channel Down (-) keys work to turn your light on and off respectively, or if you have the HC8010 Dimmer unit, see if the Volume up key begins to brighten or darken the light (press again to stop).
Once set up with the Starters Kit, the following keys will perform the following functions on your ONE FOR ALL 5 Remote:
| Key Name | Function |
| Digit 1 | Select Receiver 1 |
| Digit 2 | Select Receiver 2 |
| Digit 3 | Select Receiver 3 |
| Digit 4 | Select Receiver 4 |
| Digit 5 | Select Receiver 5 |
| Digit 6 | Select Receiver 6 |
| Digit 7 | Select Receiver 7 |
| Digit 8 | Select Receiver 8 |
| Digit 9 | Select Receiver 9 |
| Digit 0 | Select Receiver 10 |
| Channel Up | Turn Selected Receiver On |
| Channel Down | Turn Selected Receiver Off |
| Volume Up | Begin Dimming – Press Again To Stop* |
Dimming feature is only available with the Light Control Dimmer unit (HC-8010).
- Apprentissage/Copier (direct)
DESCOIBR O CÓDIGO PROGRAMADO
Punch-Through do Volume
Volume directbediening
STRUCNY PReHLED KODU
188
FUNKCE VYUKA
UNIVERSAL ELECTRONICS INC./ONE FOR ALL warrants to the original purchaser that this product will be free from defects in materials and workmanship under normal and correct use for a period of one (1) year from the date of original purchase. This product will be replaced free of charge if it has been proven to be defective within the one (1) year warranty period. This warranty does not cover cartons, carrying cases, batteries, broken or marred cabinets or any other item used in connection with the product. Any further obligation than listed above is excluded. To obtain warranty service during the warranty period, please call us at the number mentioned on the Customer Service page. Please notice that we need your purchase receipt so that we may establish your eligibility for service. If you have bought this product for purposes which are not related to your trade, business or profession, please remind that you may have legal rights under your national legislation governing the sale of consumer goods. This guarantee does not affect those rights.
