Conga Pooldroid Aquaskater - Vacuum Cleaner CECOTEC - Free user manual and instructions

Product type	Robotic pool cleaner
Brand	Cecotec
Model	Conga Pooldroid Aquaskater
Intended use	Automatic cleaning of the bottom and walls of private pools
Power supply	Built-in rechargeable battery
Charger	AC adapter supplied with the device
Operation	Only submerged in water (do not use out of water)
Filtration	Integrated filter, to be cleaned regularly (not simultaneously with the pool filtration)
Motor	Watertight, with oil bath for lubrication
Battery	Not user-replaceable; replacement only by qualified personnel
Charging	Recommended temperature: 18 °C to 25 °C; do not charge below 5 °C or above 40 °C
Safety	Do not use in the presence of people or animals in the water; do not cover during charging
Maintenance	Clean the filter and housing after each use; unplug before any handling
Power cable	Inspect regularly; in case of damage, contact the official Cecotec after-sales service
Use	Domestic use only (non-professional)
Compatibility	Private pools equipped with a standard filtration system
Storage	In a dry place, protected from frost
Installation	Plug in before use, unplug for any cleaning or maintenance

Frequently Asked Questions - Conga Pooldroid Aquaskater CECOTEC

Can I use the robot when people or animals are in the pool?

No, it is strictly recommended not to use the robot in the presence of people or animals in the water. Turn off the robot and wait for them to get out of the pool before starting it.

How do I charge the robot correctly?

Before charging the robot, make sure the charging port is completely dry. Only use the AC adapter supplied with the device. Do not cover the robot during charging to avoid overheating. Charge the battery in an environment with a temperature between 18 °C and 25 °C.

Can I operate the robot out of water?

No. The robot is designed to operate exclusively submerged in water. Use out of water can cause overheating of the components and damage the device.

Can I use the pool filter at the same time as the robot?

No, it is not recommended to use the robot and the pool filter simultaneously. This could disrupt the filtration system and damage the robot.

What should I do if the battery leaks?

In case of leakage, do not let the liquid come into contact with skin or eyes. If the liquid touches the skin, wash immediately with soap and water. If eyes are affected, rinse thoroughly with clean water for at least 10 minutes and consult a doctor. Handle the battery with gloves and dispose of it according to local regulations.

How do I clean and maintain the pool robot?

Before any cleaning or maintenance, unplug the device. Clean the filter and housing with a damp cloth. Never immerse the charger in water. Regularly check the condition of the cable and housing for any damage.

Can I replace the battery myself?

No, this device contains non-user-replaceable batteries. Any replacement operation must be carried out by qualified personnel, especially the official Cecotec Technical Assistance Service.

Is the robot suitable for professional use?

No, this device is designed for domestic use only. It should not be used in bars, restaurants, farms, hotels, motels, or offices.

What should I do if the power cable is damaged?

If the power cable, plug, or housing are damaged, do not use the device. Contact the official Cecotec Technical Assistance Service for replacement. Never use a non-approved cable.

Can the robot be left outside in winter?

No, if the robot is not marked as frost-protected, it should not be left outside during frost periods. Store it in a dry place, protected from frost after use.

USER MANUAL Conga Pooldroid Aquaskater CECOTEC

cecòtec

Safety instructions 9

1. Parts and components 73

2. Before use 73

3. Operation 74

4. Cleaning and maintenance 75

5. Troubleshooting 76

6. Technical specifications 76

7. Disposal of old electrical

and electronic appliances 77

1. Technical support and warranty 77

2. Copyright 77

3. Simplified EU Declaration of Conformity 78

Sommaire 79

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• Cecotec is not responsible for any damage caused by improper use of this robot.
• To reduce the risk of injury or damage, observe the following safety precautions when installing, operating and servicing the robot.
• If you wish to dispose of the robot, please take it to an appropriate waste collection point. For information on available collection systems, please contact your local authorities. If you dispose of this robot in a landfill or waste dump, harmful substances can leach into the groundwater and enter the food chain, damaging people's health and food.
• Do not use the robot while there are people or animals in the pool.

• Switch off the appliance when not in use.

• This appliance is not a toy. Do not sit or stand on it. Watch children and pets while the appliance is in operation.

• Only use approved power adapters.
• If the power cable or plug are damaged, contact the official Cecotec Technical Support Service.
• Before each use, check the battery for damage or leakage. If this is the case, do not charge the battery.
• Before charging the robot, make sure that the charging port is completely dry.
• Do not cover the appliance while it is charging, since this may cause the components to overheat.
• Do not switch on the appliance out of water, as it may overheat.
• Do not use the pool cleaner and the pool filter at the same time.
• The motor oil pan gasket contains grease and can cause significant water contamination if the motor is damaged. If you think there may be a leak, stop using the appliance immediately.
• Do not press or disassemble the battery. Do not heat the battery or place it near heat sources.
• Do not crush or disassemble the robot.
• Make sure that the appliance is not connected to the power supply before assembling, disassembling or cleaning it.
• This appliance can be used by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children must not play with the appliance.

• Pumps that are not marked as freeze-protected should not be left outside during freezing weather conditions.

• Contamination of the fluid may occur due to leakage of lubricants.

• The appliance must not be used by children. Cleaning and user maintenance must not be carried out by children.
• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels and offices.
• The appliance may only be used with the power supply unit provided with the appliance.
• Check the charging cable and casing regularly for visible damage. Do not use the appliance if the charging cable, socket, or structure are damaged, do not work properly, or have fallen, and contact the official Cecotec Technical Support Service immediately. If the power cable is damaged, it must be replaced with a special cable or set to be supplied by the official Cecotec Technical Support Service. The power cable is to be properly discarded.
• The battery in this appliance must only be replaced by qualified technicians
• The battery must not be replaced by the user.
• Always disconnect the appliance from the mains before installation, dismantling or cleaning. Children must not play with the appliance.
• Pumps which are not marked as frost-protected must not be left outside in case of frost.
• Avoid exposing the solar panels to strong impacts or scratches; any damage could affect their performance.
• Make sure the solar panels are clean and free of dirt for optimal performance, using a soft, damp cloth.

Battery instructions

- Before charging the appliance, read the instructions

carefully. Make sure that the charger is adapted to the local power supply.

• Batteries may leak under extreme conditions. In the event of a battery leak, keep your skin and eyes away from the liquid. If the liquid comes into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, rinse them immediately with clean water for at least 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.
• Ensure that the connection between the charger and the battery is correct, and that the correct models are being used.
• New and used batteries should not be mixed.
• Non-rechargeable batteries must not be recharged.
• The battery will last longer and perform better if you charge the battery when the temperature is between 18 °C and 25 °C. Do not charge the battery when the temperature is below 5 °C or above 40 °C. This is important, as failure to follow these instructions may result in damage to the battery.
• Do not disassemble, open, or break the battery.
• Do not tamper with the battery. Do not store the battery in an untidy manner in a box or drawer where they can short-circuit each other or be short-circuited by conductive materials. When the battery is not in use, keep it away from paper clips, coins, keys, nails, screws or other small metal objects that could create interference between terminals. Connecting the battery terminals may cause burns or fire.
• Do not expose the battery to heat or fire. Do not expose the battery to direct sunlight.
• Do not subject the battery to mechanical shock.

• In case of battery ingestion, please seek medical attention immediately.

• Only recharge the battery with the supplied charger. Do not use any charger other than the one provided. A charger is only suitable for a type of battery and could cause risk of fire if you use it with another battery.

• Do not use any battery that is not designed for use in this appliance.
• Keep the batteries out of the reach of children.
• Keep this instruction manual for future reference.
• Dispose of the battery correctly.
• Do not use a damaged or modified battery.
• WARNING: Failure to follow these instructions may result in electric shock, fire and/or serious injury.

INSTRUCTIONS DE SÉCURITÉ

1. Opening button
2. Solar panels
3. Basket detection port
4. Power switch
5. Indicator light
6. Wheels
7. Top cover
8. Filter basket
9. Impeller
10. Indicator light
11. Waste tank
12. Charging port cover (type C)
13. Ultrasonic obstacle avoidance sensor
14. Stops
15. Motor

NOTE:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Robot pool cleaner
• Instruction manual

- Do not remove the serial number of the appliance in order to keep a correct traceability of it in case of assistance.

3. OPERATION

1. Before using the robot, open the top cover to check that the filter basket is in place. Fig. 2

2. If the pool water level reaches the edge of the pool, you will need to remove the robot stops so that the robot does not get stuck. Fig. 3

Fig. 3 key:

1. Tool to remove the stops

2. Place the robot carefully in the pool. Do not throw or drop it, otherwise the solar panels may detach from the robot.

3. Switch on the robot. When doing so, the indicator lights will turn on green and after a few seconds, the pool cleaner will start.

Note:

• This robot has an ultrasonic obstacle avoidance sensor.
• If the pool is outdoors, when the robot's battery level drops below 20%, it will automatically search for an area where sunlight intensity is higher and stop cleaning to recharge. When the battery level exceeds 30%, it will resume cleaning.
• If the sunlight intensity is not strong enough for charging, the robot will stop working and enter Sleep mode. As soon as the sunlight intensity is strong enough again, it will automatically exit standby mode and resume cleaning.
• If you use the robot in an outdoor pool, 100% of its charge will come from solar power. In summer, you can use it all day long, as it converts solar power into electricity. On the other hand, in winter, the sunlight intensity is weaker, so it will need more time to charge.
• The robot can also operate in indoor pools; in this case, it must be charged with a 5V 2A power adapter.
• Before charging, make sure that the charging port is not wet. Once this has been checked, turn the cover counterclockwise and connect the cable (Fig. 4). During charging, the robot will stop working. Keep it switched on during the charging process.

Indicator lights

• When the robot is cleaning the pool, the indicator lights will turn on green and flash slowly.
• The indicator lights will turn on red and flash slowly when the basket is full.
• The indicator lights will turn on red and flash when the battery level is low.

• When the robot is charging, the indicator lights will turn on red and flash slowly. They will turn off when charging is complete.

• If the robot is faulty, the indicator lights will turn on red and remain steady.

• When the robot is in standby mode, the indicator lights will turn on green and remain steady. If the robot enters Sleep mode, the indicator lights will turn off.

Notes:

• If there is a foreign object obstructing the impeller or motor, the indicator lights will turn on red and remain steady. In this case, the robot will automatically turn off, so you will need to remove the obstruction and restart it.
• The indicator lights will turn on red and flash when the battery level is low. To be charged using the solar panels, the robot must be placed in a location where it will be exposed to strong sunlight intensity, otherwise it must be charged with a suitable charger.
• If the ultrasonic sensor is dirty, the robot will spin around itself. Clean the ultrasonic sensor with a cloth so that it can operate normally again.

4. CLEANING AND MAINTENANCE

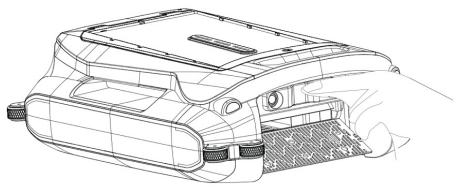

1. Press the opening button to remove the filter basket. Fig. 5
2. Empty the filter basket, rinse it with clean water and put it back in place. Fig. 6
3. To ensure the effectiveness of solar charging, clean the robot regularly. The solar panels can be rinsed with water and wiped with a cloth. Fig. 7
4. Clean the dust from the ultrasonic sensor with a cloth on a regular basis, otherwise the robot may bump into an obstacle. Fig. 8

Note: Avoid storing the robot or its accessories in direct sunlight for extended periods of time when not in use.

5. TROUBLESHOOTING

Problem	Causes	Solutions
The robot does not work.	The power switch is not in the on position.	Place the power switch in the on position.
	The battery level is too low.	Charge the robot using a suitable charger or place it in a location where it will be exposed to strong sunlight intensity
	The robot is faulty.	Observe the indicator lights and refer to the instruction manual.
	The indicator lights turn red and flash, indicating that the basket is full.	Switch off the robot and switch it on again after emptying and cleaning the basket.
The robot is not charging.	The power switch is not in the on position.	Place the power switch in the on position.
	The charging cable is not fully inserted.	Check if the charging cable is plugged in correctly.
	The sunlight intensity is not strong enough.	Charge the robot using a suitable charger.
The robot is spinning around itself.	The ultrasonic sensor is dirty.	Clean the ultrasonic sensor with a cloth.

6. TECHNICAL SPECIFICATIONS

Product reference: EU01_108474

Product: Conga Pooldroid AquaSkater

Voltage: 100-240 V\~

Frequency: 50/60 Hz

Rated power: 3 W

Battery: 7.2 V = 5100 Ah 36.72 Wh

Rated charger output: 5V = 2A

Dimensions: 663 x 453 x 193 mm

Net weight: 6 kg

Type C charging time: 5.5 hours

To recharge the battery, it is recommended to use a power adapter with the following characteristics:

características:

Input: 100-240 V\~, 50/60 Hz

Output: 5 V =, 2 A

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the appliance and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

For detailed information on how to properly dispose of electrical and electronic appliances and/or batteries, consumers should contact their local authorities.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions and deadlines established by the applicable regulations.

Repairs should be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic,

mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

10. SIMPLIFIED EU DECLARATION OF CONFORMITY

Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union.

This appliance has been designed, manufactured and tested to meet the required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

SOMMAIRE

1. PIÈCES ET COMPOSANTS

Image 1

5. PROBLEEMOPLOSSING

Akumulator: 7,2V = 5100 Ah 36,72 Wh

Batarya: 7,2V = 5100Ah 36,72Wh

Fig./Img./Abb./Afb./Rys.2

Fig./Img./Abb./Afb./ Rys. 3

Fig./Img./Abb./Afb./ Rys. 4

Fig./Img./Abb./Afb./Rys. 5

Fig./Img./Abb./Afb./ Rys. 6

Fig./Img./Abb./Afb./Rys. 7

Fig./Img./Abb./Afb./Rys. 8
