Product type	Ice maker
Brand	Cecotec
Model	Chillin Ice 2300
Power supply	220-240 V ~ 50 Hz
Power	100 W
Refrigerant	R290 (propane)
Production capacity	12 kg / 24 h
Tank capacity	2.2 L
Cycle duration	6 to 8 minutes
Dimensions (W × D × H)	24 × 34 × 33 cm
Net weight	6.5 kg
Control panel	Yes, with LED indicators
Automatic shut-off	Yes, when the tray is full
Noise level	Low
Climate class	SN, N, ST, T
Permissible ambient temperature	+10 °C to +43 °C
Maintenance and cleaning	Regular cleaning of surfaces and the tank
Safety	Do not damage the cooling circuit, avoid open flames
Spare parts	Official Cecotec After-Sales Service
General information	Multilingual instruction manual (FR, DE, ES, HU)
Box contents	Ice maker, ice scoop, instruction manual

Frequently Asked Questions - Chillin Ice 2300 CECOTEC

What refrigerant is used in the Cecotec Chillin Ice 2300?

The refrigerant used is propane (R290), a natural, environmentally friendly but flammable gas.

How to clean the appliance?

Clean the surfaces that come into contact with food and the drainage systems regularly. Use a soft cloth and lukewarm water. Never immerse the appliance in water.

What safety precautions should be taken in case of a damaged cooling circuit?

Avoid open flames and ignition sources, ventilate the room thoroughly and contact technical support immediately.

What is the permissible ambient temperature for the appliance?

According to the climate class (SN, N, ST, T), the admissible temperature ranges from +10 °C to +43 °C. Check the product label for the exact model.

How to install the ice maker?

Place the appliance on a flat and stable surface, ensuring that the ventilation openings are not blocked and the power cord is not pinched.

Can I use extension cords?

It is not recommended to use extension cords. Do not place multiple sockets at the rear of the appliance, as indicated in the safety instructions.

Why is ice production slow?

Ambient temperature, the frequency of opening the door, and the location can influence production. Ensure the appliance operates under the recommended climate conditions.

How to store the appliance for a long period?

Unplug the appliance, empty the water tank, clean and dry the interior thoroughly, then leave the door open to prevent mold formation.

Can children use this appliance?

Children aged 8 and above can use it under supervision. Children aged 3 to 8 can load and unload the appliance. Younger children must be kept out of reach.

Where can I find spare parts?

Contact the official Cecotec After-Sales Service to obtain original parts. Any repair must be carried out by qualified personnel.

USER MANUAL Chillin Ice 2300 CECOTEC

SAFETY INSTRUCTIONS....5

ESPAÑOL....60

ENGLISH....69

FRANÇAIS....77

DEUTSCH....86

ITALIANO....95

PORTUGUÊS....104

NEDERLANDS....113

POLSKI....122

ČEŠTINA....131

MAGYAR....139

ΕΛΛΗΝΙΚΑ....147

TÜRKÇE....156

العربية....164

CATALÀ....171

FIGURES....180

NOTA

EU01_117908 Chillin ' Ice 2300

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Please read these instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

• All safety instructions must be closely followed when using the appliance.
• Always disconnect the appliance from the power supply if it is left unattended and before assembly, disassembly, or cleaning.
• This appliance can be used by people with reduced physical, sensory, or mental capabilities or a lack of experience and/or knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
• Children must not play with the appliance.

• Strictly follow the instructions in this manual to avoid injury or damage to the appliance.

• Switch off and unplug the appliance before changing accessories or nearby parts that move during use.

• Unplug the appliance after use or before cleaning.
• This appliance can be used by children aged 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance should not be carried out by children, unless they are 8 years old or older and supervised. Keep this appliance and its power cord out of reach of children under the age of 8.
• WARNING: Do not store explosive substances such as aerosol cans with flammable propellant in this appliance.
• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Children from 3 to 8 years old are allowed to load and unload refrigeration appliances.
• To avoid food contamination, please follow the below instructions:
• The door openings for a long period of time may cause a significant increase in temperature in the appliance's compartments.
• Regularly clean the surfaces that might be in contact with food and accessible evacuation systems.
• Clean the water tank if it hasn't been used for 48 hours.
• If the refrigerator appliance remains empty for a long period of time, unplug it, defrost it, clean it, dry it, and leave the door open to prevent interior mould formation.
• WARNING: when positioning the appliance, make sure that the power cable does not get trapped or damaged.
• Do not tilt this appliance more than 45°.
  ● WARNING: Do not place multiple extension leads or portable

power supplies at the rear of the appliance.

• WARNING: use drinkable water only.
• WARNING: keep the ventilation openings in both the housing and the recessed structure clear of obstructions.
• WARNING: do not use mechanical devices or similar to accelerate the defrosting process other than those recommended by the manufacturer.

- WARNING: do not use electrical devices inside the food-preservation compartment unless they're of a type recommended by the manufacturer.

- WARNING: do not damage the refrigeration circuit.

- To protect against the risk of electric shock, do not pour water over the cord, plug and ventilation, or immerse the appliance in water or other liquids.

- Check the power cable regularly for visible damage. If the power cable is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid hazards.

- This symbol means: Warning: fire hazard / flammable materials. The refrigerant propane (R290) is contained within the appliance refrigeration circuit. This is a natural gas with high environmental compatibility, but it is flammable. During transportation and installation of the unit, make sure that none of the components of the cooling circuit are damaged.

• If the refrigeration circuit is damaged:
• Avoid naked flames and sources of ignition.
• Ensure adequate ventilation in the room where the appliance is located.

Temperature range

The appliance temperature range information can be found on its marking. Indicates the optimum room temperature for proper operation of the appliance.

Climate class	Optimal room temperature
SN	From +10 °C to +32 °C
N	From +16 °C to +32 °C
ST	From +16 °C to +38 °C
T	From +16 °C to +43 °C

Note:

Bearing in mind the limiting values of the room temperature range for the climates for which the appliance is designed and that internal temperatures may be affected by factors such as the location of the appliance, room temperature and frequency of door opening, it may be necessary to modify the setting of any temperature-control device according to these factors.

If the appliance is operated in an environment other than the specified climate type (i.e. beyond the rated room temperature range), it may not be able to maintain the desired compartment temperatures.

https://cecotec.es/es/information/declaration-of-conformity

Corriente nominal: 2,0 A

1. Parts and components

Fig. 1

1. Transparent lid
2. Ice collection tray
3. Water tank flip-down lid
4. Top lid
5. Rear housing
6. Front housing
7. Control panel

Note:

The graphics in this manual are schematic representations and may not exactly match the product.

2. Before use

• This appliance comes in a packaging designed to protect it during transport. Remove the appliance from its box. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content:

• Ice maker
• Ice scoop
• Instruction manual

- Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

3. Operation

WARNINGS

• During transport, do not tilt the machine more than 45°; do not invert the machine. This may damage the compressor and sealing system.
• The machine must be placed on a level surface. To ensure adequate ventilation, the distance from the rear of the machine to the wall must be at least 200 mm, and it must be kept away from ovens, radiators, or other heat sources.
• Before using the machine for the first time, place the machine, leave the transparent lid open, and remove the ice collection tray for at least 2 hours.

ENGLISH

- Keep the appliance 8 cm away from other objects to ensure proper heat dissipation.

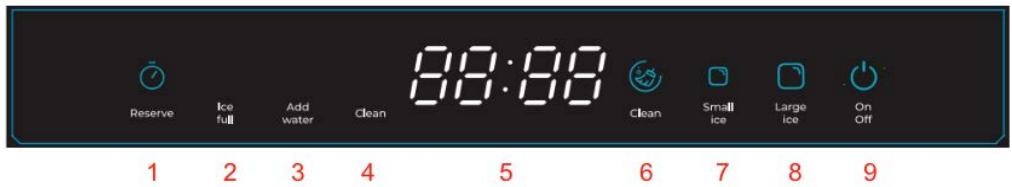

Control panel

Fig. 2

1. Timer touch icon
2. Ice full indicator light
3. Add water indicator light
4. Clean indicator light
5. Display
6. Clean touch icon
7. Small ice touch icon
8. Large ice touch icon
9. Power touch icon

Standby mode

• Connect the machine to the mains supply. The display will illuminate completely for 1 second, an acoustic signal will sound, and only the power indicator will flash at long intervals, indicating standby mode.
  ● During ice making, touch the power icon to enter standby mode after completing the cycle.

Power icon

- Press the power icon gently. An acoustic signal will sound, the power indicator light will remain steady, and other indicators will flash at long intervals, entering function selection mode.

Large Ice icon

- Press the large ice icon. An acoustic signal will sound, the large ice and power indicator lights will remain steady, and the other indicators will turn off to start ice making.

Small Ice icon

- Press the small ice icon. An acoustic signal will sound, the small ice and power indicator lights will remain steady, and the other indicators will turn off to start ice making.

Clean icon

• Press the clean icon. An acoustic signal will sound, the clean indicator light will flash at long intervals, and the LED display will show a countdown.
• The water pump will operate for 3 minutes (if water is insufficient, the add water indicator light will illuminate).
• Upon completion, or when pressing the power icon, the machine will enter standby mode.
  ● Press and hold the clean icon for 5 seconds. An acoustic signal will sound, the clean

ENGLISH

indicator light will turn on, and the LED display will show a countdown of 3 minutes and 30 seconds for drain valve operation.

• Upon completion, or when pressing the power icon, the machine will enter standby mode.
  ● This function facilitates water discharge from the upper tank.

Forced discharge

• Press and hold the power icon for 5 seconds in standby mode to activate forced discharge.
  ● This prevents power failures that could interrupt ice making.

Forced discharge failure

• If the compressor stops due to power failures, overload, or other reasons and enters three-minute protection mode, holding the power icon for 5 seconds in standby mode will not be effective.
  ● Wait three minutes before trying again.

Function selection interface

• If a function is not selected within 1 minute, the machine will return to the standby state.
• Press the preset icon, an acoustic signal will sound, the preset indicator light will flash, and the power indicator light will be steady.
  ● The LED display will show 00:00 (maximum presetting time is 24H).
• Adjust the time with the large and small ice icons. Repeatedly press the preset icon to change the digits, and press and hold it for 5 seconds to confirm.
  ● After selecting the type of ice, the machine will count down.
• Press the large or small ice icon to confirm. If no action is taken within 1 minute, small ice will be selected by default.
• During the countdown, press the power icon to exit the preset state and enter standby. Each operation will be confirmed with an acoustic signal, and ice production will begin when the countdown ends.

Indicator light guide

Switching on:

● Flashing: Indicates that the device is in standby.
● Steady: Indicates that the device is in operation.

Large ice:

● Steady: Indicates that large ice is being produced.

Small ice:

● Steady: Indicates that small ice is being produced.

Water shortage:

● Steady: Indicates lack of water in the tank.

Ice full:

● Steady: Indicates that the ice box is full.

Presetting:

● Steady: Indicates that the preset function is active.

Cleaning:

● Flashing: Indicates that the cleaning cycle is in progress.
● Steady: Indicates that the drainage process is active.

Usage instructions

1. Gently press the top of the machine so that the lid lifts automatically.
2. Open the lid completely and fill the water tank to the maximum line.
3. Plug in the machine. The display will light up, indicating that it is in standby mode.
4. Start ice making by touching the power icon.
5. Select the type of ice (large or small) and touch the power icon again to start.
6. The ideal ambient temperature conditions are between 12°C and 35°C.
7. The recommended water temperature is approximately 15° C to 20° C.

CAUTION

• During the ice making process, make sure that the ice collecting tray is placed inside the machine.
• Do not press the power button too often (wait at least 5 minutes between operations) to prevent compressor damage.
• Ensure that the water used in the ice maker is potable and clean; otherwise, limescale deposits may build up, which could cause the machine to malfunction.
• Correct procedure for removing the ice collecting tray: before removing the ice collecting tray, manually lift the transparent lid and then hold the tray handle to lift the tray upwards.
• Correct procedure for placing the ice collector tray: before placing it, manually lift the transparent lid and then hold the tray handle to adjust it from the edge of the machine from top to bottom.

- The add water alarm light comes on in the following situations: a. When the machine is turned on, the upper tank drain valve operates for 2

ENGLISH

minutes, but the lower tank float does not rise (water shortage).

b. The sound of the water pump suddenly increases (lower tank does not have enough water, pump is empty or running half-empty).
c. The water pump is damaged or the surface of the lower tank is covered with ice sand and cannot operate normally.

- When the ice collector tray is almost full, the last ice plate may become blocked due to ice on top, preventing the ice on the evaporator from shutting off properly. The ice full indicator light may not illuminate, but the appliance may also enter an extended discharge programme. In this case, switch to standby mode, manually remove the ice and then press the power button again to return to normal ice making.

- At the end of ice making or in the event of a shutdown due to water shortage, discard the ice cubes as soon as possible to prevent them from melting and causing an overflow of water over time.

4. Cleaning and maintenance

• Regularly clean the interior, collection tray, water tank, evaporator, float switch and temperature sensor.
• Before cleaning, unplug the appliance and remove the ice cubes. Use clean water to clean both the inside and outside of the machine. Avoid spraying chemicals or solvents such as acids, gasoline or oil. Rinse well before use. In the standby state, press the cleaning button to activate the cleaning mode. After 3 minutes, cleaning is complete. Drain the water from the tank, add drinking water and make ice cubes.
• If the water spray pipe is dirty or the small orifice is blocked, disassemble it for cleaning.
• Keep ventilation openings clear of obstructions. Do not use mechanical devices or other methods to accelerate defrosting, except those recommended by the manufacturer.
• To ensure the cleanliness of the ice, change the water in the reservoir at least once a day. If it is not used for a long time, drain the water and clean it.
• If the compressor stops due to lack of water, full tank, power failure, etc., it will take 3 minutes to restart when the compressor is restarted.
• Use potable water before starting ice making, during initial installation or when reusing after a long period of non-use.
  ● Do not exceed the maximum water level. Fig. 3

Cleaning the lower water tank components

Fig. 4

1. Drain plug: Before using the machine or with seasonal changes, drain dirty water by removing the plug downward for thorough cleaning.
2. Float switch: Controls the flow of water from the upper tank to the lower tank. Clean regularly to avoid dirt accumulation.
3. Temperature sensor: Monitors the water temperature in the lower tank. Keep clean for accurate operation.

ENGLISH

1. Filter cover: Filters out unwanted particles. Clean regularly to ensure efficient filtration.

5. Troubleshooting

Note that during ice making, if a power failure occurs due to disconnecting the power cord or turning off the power button, the formed ice may remain on the grate. If this happens, press the "Clean" button to start the cleaning program, wait for the ice cubes to fall out and then restart the ice maker.

Problem	Possible cause	Possible solution
Abnormal compressor noise.	Insufficient voltage.	Turn off the machine and wait for the voltage to stabilize before restarting.
Add water light "Add water", on.	Lack of water in the tanks.	Fill with water up to the maximum level. Reset the machine by selecting large or small ice.
The display does not switch on.	1. No battery power.2. Blown fuse.	1. Check the cable connection.2. Contact Cecotec's Official Technical Support Service.
Ice too big.	1. Incorrect size selection.2. Pre-ice.	1. Adjust to a smaller size.2. The next cycle should correct the size.
No ice comes out.	1. Lack of refrigerant.2. Compressor or fan damaged.	Contact Cecotec's Official Technical Support Service.
The water is hot.	Defective solenoid valve.	Contact Cecotec's Official Technical Support Service.
Full ice level not detected.	1. Damaged sensor.2. Sunlight interfering.	1. Reconnect the infrared sensor.2. Contact Cecotec's Official Technical Support Service.
Abnormal compressor noise.	Insufficient voltage.	Turn off the machine and wait for the voltage to stabilize before restarting.

Error codes

E1: Communication problem.
E2: Sensor 1 failure.
E3: Sensor 2 failure.
E4: Water pump problem.

Invalid touch: The acoustic signal sounds twice.

The display shows "-" " - - - " " - - - " " - - - " cyclically. If the ice does not fall correctly, you can either restart the process to resume making or wait for the ice to fall naturally before trying again.

No ice fall detected in 1 hour: - - - - - " is displayed.

Warnings!

• It is normal for the compressor and condenser surfaces to reach temperatures between 60°C and 90°C during operation; surrounding areas may become very hot.
• The ice may lack angles because the local metal surface is not in contact with the water. This will not affect the quality or taste of the ice, you can use it with confidence.
• During the ice melting process, sharp edges and corners may appear. Be careful not to hold the ice cubes in your mouth to avoid injury.
  ● Potable water should be used to make ice.

6. Disposal of old electrical and electronic appliances

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

For detailed information on how to properly dispose of electrical and electronic equipment and/or the corresponding batteries, consumers should contact their local authorities.

Compliance with the above guidelines will help protecting the environment.

Information regarding national packaging recycling systems and their marking can be found on our website.

7. Copyright

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

8. Simplified EU Declaration of Conformity

CE

Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union.

This appliance has been designed, manufactured and tested in compliance with required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following

website: https://cecotec.es/es/information/declaration-of-conformity

9. Technical specifications

Product: EU01_117908

Product reference: Chillin'Ice 2300

Rated power: 250 W

Voltage: 220-240 V\~

Frequency: 50 Hz

Climate class: N/SN/T/ST (*)

Refrigerant/Charge: R290/ 27 g

Insulation type: Cyclopentane/ C5 H10

Rated current: 2.0 A

(*) This refrigerator is intended for use at room temperatures between 10° C and 43° C.

The power consumption of the appliance in any off-mode condition is 0,5 W.

The period after which the appliance automatically switches to off mode is 10 minutes.

Technical specifications may change without prior notice to improve product quality.

Made in China | Designed in Spain

10. Technical support and warranty

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of product delivery under the terms, conditions and deadlines established by applicable regulations.

Repairs should be carried out by qualified personnel.

If you detect any problem with the product or have any queries, please contact Cecotec's Official

Technical Support Service at [phone].

FRANÇAIS

https://storececotec.de/de/information/declaration-of-conformity

Corrente nominal: 2,0 A

https://cecotec.es/es/information/declaration-of-conformity

9. Dane techniczne

https://cecotec.es/es/information/declaration-of-conformity

https://cecotec.es/es/information/declaration-of-conformity

Current nominal: 2,0 A

FIG 2

FIG 3

FIG 4

www.cecotec.es

Cecotec Innovaciones S.L. Av. Reyes Católicos, 60 46910, Alfafar, Valencia (Spain)
