Cecoraptor Perfect Drill 4020 Advance - Screwdriver CECOTEC - Free user manual and instructions

Product type	Cordless screwdriver/drill
Brand	Cecotec
Model	Cecoraptor Perfect Drill 4020 Advance
Power supply	Rechargeable lithium-ion battery
Battery voltage	20 V
Maximum torque	40 Nm
Chuck	Keyless, 10 mm
Variable speed	Yes
Reversible rotation	Yes (forward/reverse)
LED lighting	Yes

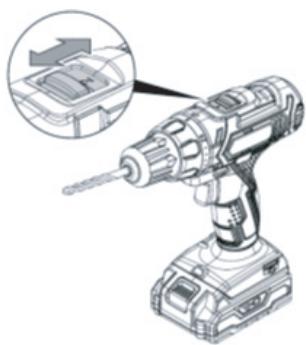

Number of speeds	2 mechanical speeds
Battery capacity	2.0 Ah
Charging time	Approximately 1 hour
Weight	1.2 kg
Dimensions (L × W × H)	20 × 20 × 7 cm
Maintenance	Clean with a dry, clean cloth
Spare parts	Available from Cecotec after-sales service
Safety	Double insulation and safety lock
Use	Drilling and screwing in wood, metal, and plastic
Charger	Included, indoor use only
Warranty	2 years

Frequently Asked Questions - Cecoraptor Perfect Drill 4020 Advance CECOTEC

How do I charge the battery of my Cecoraptor screwdriver?

Plug the supplied charger into a wall outlet and insert the battery into the charger. The charger is for indoor use only. The battery must be protected from heat (max. 50°C), fire, water, and humidity. Charging time is approximately 1 hour.

What safety precautions should be followed?

Wear safety goggles, hearing protection, gloves, and work clothing. Do not operate the tool in explosive atmospheres. Make sure the work area is clean and well lit. Keep children and bystanders at a distance.

How do I perform drilling and screwing?

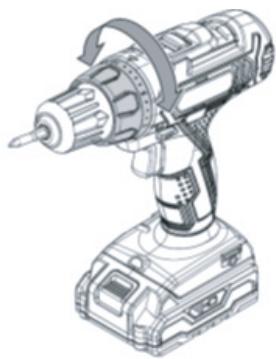

Select the appropriate speed and torque using the adjustment ring. Place the bit or drill bit in the keyless chuck. For screwing, use forward rotation; for unscrewing, reverse the rotation direction. The LED light makes it easier to work in dark areas.

What should I do if the screwdriver does not start?

Check that the battery is charged and correctly inserted. Make sure the safety lock is disengaged. Refer to the 'Troubleshooting' section of the manual. If the problem persists, contact Cecotec after-sales service.

How do I maintain the screwdriver?

Clean the screwdriver with a dry, clean cloth. Never immerse the device in water. Keep the ventilation slots clear to avoid overheating. Regularly check the connections and moving parts.

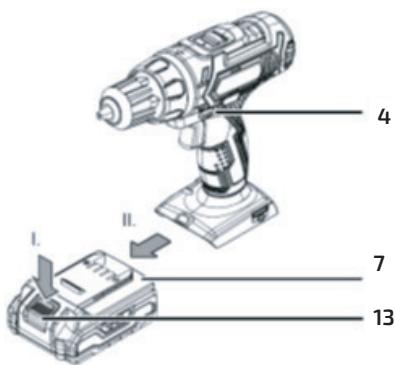

Can the battery be replaced?

Yes, the rechargeable battery is removable and replaceable. Only use the charger provided by Cecotec to charge it. For a new battery, contact Cecotec after-sales service.

What types of materials can I drill?

This screwdriver is designed for drilling and screwing in wood, metal, and plastic. Use the appropriate drill bit for each material and adjust the torque to avoid damaging the tool or the workpiece.

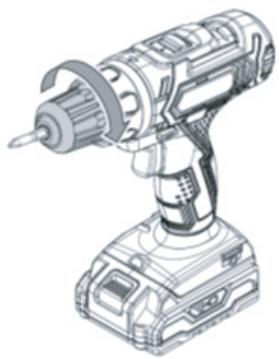

Is the chuck easy to change?

Yes, the keyless chuck allows quick change of drill bits and screwdriver bits. Turn the ring to open or close the chuck. Make sure the accessory is firmly tightened before use.

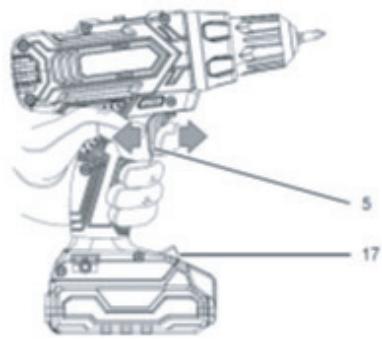

How do I reverse the rotation?

Use the forward/reverse control located above the trigger. Slide the switch to select forward rotation (tightening) or reverse (loosening). Avoid changing direction at full speed.

What is the warranty on the screwdriver?

The Cecotec warranty is 2 years. In case of manufacturing defects, contact Cecotec after-sales service. Keep your purchase receipt and instruction manual for any claim.

USER MANUAL Cecoraptor Perfect Drill 4020 Advance CECOTEC

Taladro/ Drilling machine

Safety instructions 21

1. Parts and components 63
2. Before use 63
3. Assembly 64
4. Operation 65
5. Troubleshooting 69
6. Technical specifications 70
7. Disposal of old electrical appliances 71
8. Technical support and warranty 72

SOMMAIRE

SAFETY INSTRUCTIONS Symbols

Warning due to electrical voltage

This symbol indicates that there is danger to human life and health due to electrical voltage.

Warning due to hot surface

This symbol indicates that there is danger to human life and health due to hot surfaces.

Warning

This word warns about a danger with a medium risk level that, if not avoided, can result in death or severe injuries.

Warning

This word warns about a danger with a low risk level that, if not avoided, can result in minor or moderate injuries.

Warning

This word refers to important information (e.g. material damage) but not risks.

Information

The indications with this symbol help you perform your job quickly and safely.

Take the instruction manual into account

The indications with this symbol indicate that you need to take the instruction manual into account.

Use protective eyewear

The indications with this symbol warn you to use protective eyewear.

Wear hearing protection

Indications with this symbol warn you to wear hearing protection.

Wear protective clothing

The instructions with this symbol warn you to wear appropriate working clothes.

Wear protective gloves

The instructions with this symbol warn you to wear protective gloves.

Wear respiratory protection

The instructions with this symbol warn you to wear dust masks.

The rechargeable battery must be protected from direct sunlight, heat (max. 50°C), fire, water and humidity.

The use of the charger is restricted to indoors.

SAFETY

General safety instructions for power tools.

Warning

- Read this instruction manual before plugging

or using the device and keep it always near the appliance.

• The non compliance with these safety indications or the instructions included in this manual may result in electric shock, fire and/or severe injuries.
• Keep this instruction and safety manual for future use.
• The concept used in these safety indications makes reference to both mains-operated power tools (with power cord) and battery-operated power tools (without power cord).
• This device can be used by children over the age of 8, as well as persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they do so under supervision or have been instructed in the safe use of the device and the resulting dangers.
• Children cannot play with the device nor the charger. Cleaning and maintenance should not be performed by children without adult supervision.
• If the supply cord is damaged, it must be replaced by the Technical Support Service of Cecotec or by a similarly qualified person in order to avoid a hazard.
• You must only use the charger provided by Cecotec to charge the battery.
• Place the device in a well-ventilated location during charging.

General safety information for power tools – Safety at the workplace

• Keep your workplace clean, tidy and properly lit. The untidiness or poor lighting in the workplace can cause accidents.
• You must keep children and other people away whenever

you are using a power tool. Distractions can cause accidents because of loss of control of the device.

- Do not manipulate or use power tools in potentially explosive atmospheres in the presence of flammable liquids, gases or dust. Power tools can cause sparks that set dust or gases on fire.

General safety information for power tools - Electrical safety

• The power tool plug or power supply must always fit properly in the socket base. The plug cannot be modified or substituted by the user.
• You must not use adapter plugs with safety grounded power tools.
• The unmodified and unsubstituted plugs and socket bases decrease the risk of electric shock.
• Power tools must not come into contact with rain and moisture. The contact with water increases the probability of electric shock.
• To use power tools outdoors, you must only use appropriate extensible cables for outdoor use, this way it will reduce the risk of a possible electric shock.
• If you cannot avoid the use of a power tool in a moist atmosphere, the electrical installation must have a circuit breaker.
• You must not use the supply cord with other purposes, like transporting or hanging the tool, etc. To unplug the tool pull the plug, not the cord.

• You must keep the supply cord away from heat sources, oil, sharp edges or moving parts of the device. Damaged or defective cords increase the danger of electric shock.

• You must avoid contact with any body part with grounded conductive parts, as well as with pipes, heaters, stoves and refrigerators. The probability of electric shock will increase if any of your body parts is grounded.

• The circuit breaker reduces consequences if there is an electric shock.

General safety information for power tools - Human safety

- Use extreme caution and do not lose attention during the handling of the power tool. Do not use power tools if you are tired or under the influence of drugs, alcohol or medication. Inattention can cause severe injuries.

- You must use appropriate personal protective equipment (PPE). Always use protective eyewear. Individual personal protective equipment includes: safety mask, safety shoes, headgear, hearing protection and/or tight protective clothing. Their use may reduce the risk of injuries.

• You must use appropriate clothes. Do not use loose clothes.
• You must keep hair, clothes and gloves away from moving parts that can cause entrapment. Loose clothing or flowing hair can cause entrapment accidents.
• You must avoid uncomfortable positions during the use of the device. Position must be sure and balanced to ensure the correct use of the device, especially with uncontrolled situations.
• You must avoid the accidental start-up of the device.

Make sure the power tool is off before you plug it in the socket base and/or turn the battery on, as well as before moving or handling it. Be especially careful not to operate the switch inadvertently while the equipment is switched on, as this may cause an accident.

• You must remove all types of wrenches or accessories before starting the tool to avoid possible accidents or injuries.
• You must follow at all times the safety instructions in this manual. Extreme caution when handling this tool.
• If you install any type of vacuuming or dust collector device you must connect it and use it properly.

General safety information for power tools – Use and handling of power tools

• You must not use power tools if the switch is defective. If you cannot turn it on or off do not use it, as it may cause an accident.
• You must use the appropriate tool for every determined job, this will increase safety. Do not ever force the tool.
• Remove always the plug from the base and the battery before: adjusting, changing accessories, cleaning or handling the device, this way accidents due to accidental start-ups are avoided.
• You must keep and take proper care of power tools. This includes the following: checking the moving parts move easily and without blockages, check there are no damaged pieces that may affect the correct operation of the power tool. If you detect any damaged or defective piece, it must be repaired or replaced by the Cecotec official Technical Support Service or qualified technicians. Lack

of maintenance can cause accidents.

• You must use power tools and accessories following this instruction manual. You must keep your workplace conditions and the job to perform present. Do not use the device with purposes different that the ones exposed in this manual, so that you will avoid dangerous situations.
• You must keep unused power tools out of the reach of children. Do not allow unqualified persons, with lack of experience or that have not read the instructions to use the device, as they can cause accidents due to lack of knowledge.
• It is very advisable to regularly carry out a clean-up and maintenance of the tool.
• With cutting tools it is really important to keep the parts or cutting edges sharp and clean.
• To avoid possible accidents and potentially dangerous situations, it is advisable to keep gripping surfaces clean, dry and free of any kind of dirt, grease, oil, etc.

General safety information for power tools - Authorized Support Service

- The repairing of your power tool must only be carried out by the Cecotec official Technical Support Service or qualified personnel and only with original spare parts. This way you will guarantee the power tool is safe.

Safety instructions specific to drilling

Safety instructions for all operations.

- Hold the tool firmly by the gripping surface when performing work where the cutting accessory or fasteners may come into contact with exposed or concealed electrical wiring. The contact of a part of the tool with a live wire can cause an electric shock.

Safety instructions for the use of long drill bits.

• Never work at a speed that exceeds the maximum speed of the drill bit. The drill bit may bend or break, causing injuries to the user.
• Always start drilling at low speed and with the tip of the drill bit in contact with the workpiece. With high speed, the drill bit may bend or break, causing injuries to the user.
• You must apply pressure in a straight line with the drill bit, do not over apply pressure. The drill bit may bend or break, causing injuries to the user.

Additional safety instructions for the cordless drilling machine

• Secure the workpiece to be drilled correctly using suitable devices.
• Always hold the drilling machine firmly to avoid losing control if a high reaction torque occurs.
• If the drill is blocked, it must be switched off immediately, as this could lead to kickback.
• When handling, cleaning, transporting or storing the equipment, the switch must be set to the central locking position to prevent accidental starting.
• Always wait for the drilling machine to come to a complete stop before handling it.

Specific safety indications for rechargeable batteries and chargers

- You must only use the original rechargeable batteries provided by Cecotec. The use of other types of rechargeable batteries can cause fires or injuries.

• You must charge the batteries only with chargers recommended or provided by Cecotec. A charger for a particular type of battery may cause a fire if used on a different battery to the recommended.
• You must keep rechargeable batteries away from paperclips, coins, keys, nails, screws and any other small metal object that can link the battery contacts. A short-circuit between the rechargeable contacts can cause fires or injuries.
• Do not charge batteries from other products different to Cecotec with the charger supplied. The charger is designed to charge the rechargeable batteries provided by Cecotec with their technical specifications. An improper use can cause a fire or explosion.
• An improper use of the rechargeable battery can cause a liquid spill. If this takes place, avoid contact with liquid. In case of accidental contact, rinse the affected part with water.
• Spilled liquid can cause skin irritation or burns.
• If the liquid comes into contact with your eyes, seek medical assistance immediately.
• If the battery is damaged or misused it can release toxic fumes. Air the room by letting fresh air enter and seek medical assistance in case of discomfort.
• Fumes can produce irritation to the breathing system.
• Be careful electrical connections do not come into touch

with moisture. Do not immerse in water or other liquids when cleaning it or when it is working as it may produce a short-circuit. Do not immerse the charger in water or any other liquid.

• Carry out the instructions for cleaning and maintenance.
• Do not open the rechargeable battery. You can produce a short-circuit.
• Do not short contact the rechargeable battery. You may produce an explosion.
• Do not hit the battery. It cannot be hit.
• The charger is only suitable for indoor use. Do not use it outdoors.
• Keep the charger clean. Dust can cause electric shock.
• You must not leave the charger operating on easily flammable surfaces (paper, textile products, etc) nor flammable atmospheres.
• The charger can reach high temperatures while charging, there is a risk of fire.
• You must use the charger only to charge the battery. It cannot be used directly as power for the power tool.
• The recommended room temperature range during charging is between 4°C and 40°C.
• The recommended room temperature range for the battery and tool storage is between 0 to 50°C.
• The recommended room temperature range during charging is between -5 and 50°C.
• Remove the battery from the device before storing it.
• Do not expose the battery to shocks, it may cause a risk of fire and explosion.

Sound level and vibration reduction

• You must not exceed the work time.
• Use recommended PPE.
• You must use the operating mode appropriate to the work to be performed.
• The device must always be used in accordance with these operating instructions.
• The product must be in good maintenance conditions.
• Always use the original accessories supplied by Cecotec, make sure they are in optimal conditions of use.
• The tool must be held firmly in place during use.

Proper use

• The device is intended for screwing and unscrewing as well as for drilling holes (drilling machine) in wood, plastic, ceramic or metal parts.
• The tool must not be used for any other purpose as this may result in serious physical injury.
• Cecotec accepts no liability for any damage attributable to improper use or modification of the product.
• The product is exclusive for household use, it cannot be used for industrial, commercial or professional purposes.
• The equipment is designed to be used by adults.
• We recommend to use this power tool with original accessories from Cecotec.

Misuse

- Any other use different to the ones described in this section will be considered a misuse.

User qualifications

- The device users must have read and understood this instruction manual and specially the chapter about Safety.

Accessories safety signs

- Warning: You must not remove any safety sign, sticker or tool label. Keep every safety sign, sticker and label in legibility conditions.

Warning due to fumes hazardous to health

This symbol indicates that during the device use fumes harmful to health are produced. Make sure the work space is properly ventilated.

Personal protective equipment

- You must use protective eyewear. Goggles will protect your eyes from possible injuries produced by objects projection.

Residual hazards

- Warning due to electrical voltage

Work on electrical components may only be carried out by an authorized specialist company or by Cecotec Technical Service.

Warning due to electrical voltage

Electric shock due to inadequate insulation. You must check the device is not damaged and works properly before using it. If you detect damage or malfunction do not use it.

- Do not use the device if it is wet.

- Do not use the device if your hands are wet.

Warning due to electrical voltage

- Before carrying out any work, cleaning or maintenance in the device, you must disconnect the power plug from the socket.

- Remove the power cord from the power socket by pulling the socket, not the cord.

Warning due to electrical voltage

- A short-circuit can occur if liquids enter the casing.

- Do not immerse the appliance or accessories in water or other liquid.

- Be careful water or other liquids do not access the casing.

Warning due to electrical voltage

Never use the device if damage in the handle, power cord or plug is observed. Never open the device.

Warning due to hot surface

Never touch the insertion tool, tips or drill bits after use to avoid risk of burns. You must leave the tool to cool down before handling it. Use protective

gloves.

Warning due to hot surfaces

Some parts can reach high temperatures and cause burns. You must take special care with children and vulnerable persons.

Warning

- Presence of toxic fumes. During the operation of

the device fumes and gases that may be harmful to health are produced.

Warning

- It is recommended to use protective eyewear. You must ensure proper ventilation. It is also recommended the use of breathing protection (antidust mask).

Warning

- Risk of fire. You must not leave the tool on and unsupervised under any circumstance.

Warning

- This device can produce risk and severe incidents if it is handled incorrectly by unqualified or uninstructed users, or if used for purposes other than those described in this manual. Take the users qualifications into account.

Warning

- The device is not a toy and it cannot be handled by children. Choking hazard!

- Do not let the packaging material within the reach of children. It can be dangerous.

Warning

- Keep the device sufficiently far away from heat sources.

Warning

- The electromagnetic field generated by the drilling machine can, under certain circumstances,

affect medical implants such as pacemakers. It is recommended that you consult with your physician and/or the implant manufacturer before using the device.

Note

• Improper transport or storage may damage the product.
• Check the sections related to transport and storage of the device.

Procedure in case of emergency

1. You must always turn off the device.
2. You must unplug it from the electric circuit by pulling the plug, not the cord.
3. You must never turn on a defective or malfunctioning device.

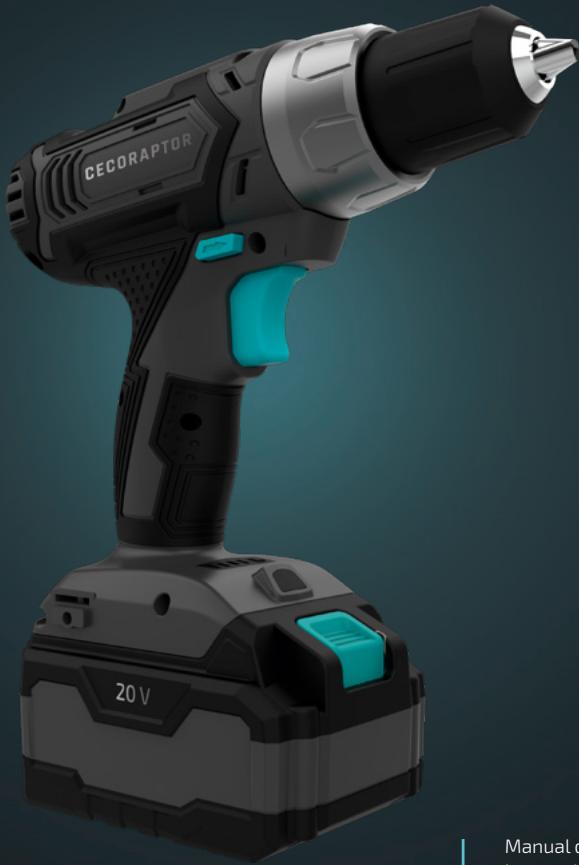

Device description

• 20 V DC drilling machine with rechargeable and removable battery and 2 speed levels, the first level is optimum to screw, while the second level is suitable for drilling holes.
• The Torque selection allows the use of the appropriate power for each type of application.
• It has a keyless chuck with automatic spindle locking, which facilitates the quick exchange of tips and drill bits.
• It has a built-in LED light for easy work, belt clip and battery with charge indicator.

INSTRUCTIONS DE SÉCURITÉ Symboles

1. Keyless chuck
2. Torque adjustment knob
3. Speed level knob (2 levels)
4. Clockwise rotary switch, locking
5. On/Off switch
6. Handle sleeve
7. Removable battery
8. Battery charging level button (LED)
9. Battery charger
10. Red LED light: charge control
11. Tips and drill bits
12. Green LED light: charge control
13. Battery release buttons
14. Battery holder
15. LED working light
16. Battery charging level indicator
17. Belt clip attachment
18. Belt clip

2. BEFORE USE

1. Take the device and accessories out of the box.

Warning: choking hazard. Do not let the packaging material within the reach of children, as it may be dangerous.

1. Check the content is complete and if there is any damage:

- CecoRaptor Perfect Drill 4020 advance drilling machine

• 20 V and 2000 mAh battery
• Charging base, fast charger and power adapter
• 20 screwdriver bits set, with different sizes and uses
• 20 drill bits set, with different sizes and uses
• Magnetic connector
• Transport case (BMC Box)
• Belt clip
• Instruction manual in different languages

ENGLISH

Note

Dispose of packaging materials according to national regulations.

To avoid damages, handle the device properly.

3.ASEMBLY

Battery charging (Fig. B)

Warning

Battery may damage due to improper charging.

• Always remove the plug from the charger socket before inserting or removing the battery.
• The battery comes partially charged. Before the first use and when the battery is at a low level, it must be charged.
• To charge the battery (7), first slide it upside down over the charger (9) until it is firmly assembled.
• Then introduce the charger plug into a power socket. The red LED (10) will light up. A full charge lasts approximately 60 minutes.
• Once the red LED (10) is off and the green LED (12) is on, the battery is fully charged.
• The plug must be removed from the socket. Both the battery (7) and the charger (9) may become warm during charging, this is normal, you should allow both to cool down to room temperature.
• Once cooled, remove the battery (7) from the charger (9) by holding down the battery release button (13) and gently pulling on the battery (7).

Removing and inserting the battery (Fig. C and D)

• You must first set the rotating direction switch (4) to its central locking position.
• Insert the battery (7) by placing it on the guide rail and gently push it into the battery holder (14) until you hear a "click".
• To remove the battery (7) from the tool itself, press the battery release button (13) and remove the battery.

Checking the charging level

• The charge level indicator is integrated in the battery itself.
• With the following colour coding shown by the LED lights (16) you can check the battery level:
  Green-orange-red: maximum charge/power
  Orange-red: half charge/power
  Red: minimum charge/battery recharging
• Press the battery charge level button (8) and the charge level (16) will be displayed.

Tips and drill bits substitution (Fig. E, F and G)

- The spindle lock is automatic, so when the tool is not running, the motor drive is locked and the chuck can be opened without the use of a spanner. To place and remove insertion

tools, proceed as follows:

1. You must set the rotating direction switch (4) to its central locking position.
2. You must turn the chuck (11) counterclockwise to open it. Fig. E
3. You must remove the drill bit from the chuck if necessary.
4. You can place the drill bit suitable for the work to be carried out in the drill chuck (1).
5. Tighten the chuck (1) by turning it clockwise.

Torque selection (Fig. H and I)

1. With the Torque selection (2) the optimum torque can be selected for each type of work.
2. A high torque must be selected when dealing with tight screws, hard materials or for unscrewing.
3. If you want to drill, you must select the drill setting, marked with the following symbol: Fig. 2.

Warning

You should never select the drilling setting for screwdriving.

Speed level knob (Fig. J)

Warning

You should only select the speed level when the device is off. Otherwise, the device may be damaged.

1. Slide the knob (3) to the desired position.
2. Speed 1 up to 400/min: optimal for screwdriving work.
3. Speed 2 up to 1550/min: optimal for drilling work.

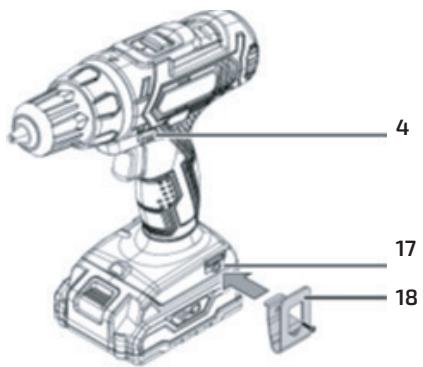

Belt clip (Fig. 0)

1. If necessary, you can attach a belt clip to the device.
2. To do so, you must set the rotating direction switch (4) to its central locking position.
3. Loosen the fixing screw (17) of the clip.
4. Attach the clip (18) to the belt attachment (17) using the screw.

4. OPERATION

Handling the device

• It is very important to always check that the tip or drill bit is correctly fixed and centred in the chuck before using the device.
• Every tip and drill bit is marked by size and shape. When fixing them in the chuck, you must check there is no play.

ENGLISH

- Use the central locking position of the rotating direction switch for breaks in work or for changing insertion tools.

Screwing

• If you use materials such as softwood, you can screw without pre-drilling.
• Otherwise, if you are going to work with harder wood, it is advisable to use a drilling machine to drill a hole before screwing.
• "Countersunk" holes must be drilled if "countersunk" screws are to be used.
• Be especially careful when using small screws and drill bits, as they may be damaged if a high torque or speed has been selected.

Drilling

• During drilling, it is advisable to take breaks and remove the drill bit from the device to allow it to cool down.
• It is strongly recommended that the workpiece be firmly clamped using suitable clamping devices.

• You must select the speed level depending on the type of material used and the size of the drill bit:

• For small drilling diameters / soft materials > high speed

• For large drilling diameters / hard materials > low speed

– Mark the point to be drilled properly before drilling.
- To work on metal materials it is advisable to select a low speed and use suitable drills (speed steel HSS).
- Drill bits used for drilling metal can also be used for drilling plastic materials.
– After use, it is advisable to cool the drill bits with a suitable lubricant.
- For drilling wood, it is advisable to use specific drill bits.
- In order to avoid breaking the piece of wood to be worked on, you can place another block of wood under the piece of wood or you can drill on both sides.
- If the drilling on wood is going to be very deep, you can use an auger bit (not included). For large drilling you can use a Forstner type drill bit (not included). For other uses, you can use a wood drill bit with a centred tip.

Rotating direction (Fig. K)

Warning

The rotating direction must only be changed when the device is off to avoid damage to the device.

– Select the appropriate rotating direction with the switch (4).

- You must press the switch clockwise or counterclockwise (4) to change the rotation (Fig. K and L).

iii. Screwing
iv. Unscrewing

• You can carry out a test run before starting work, as an incorrect rotating direction can cause damage to both the workpiece and the insertion tool.
• If you set the rotating direction switch to its central locking position, you also lock the ON/OFF switch.

Switching on and off (Fig. M)

– Depending on how firmly you press the on/off switch (5), the speed will be higher or lower.
- You must check that the tip or drill bit is firmly fixed and that the tightening torque is appropriate for the work to be carried out.
- You must check that the workpiece is correctly fixed.
- You must hold down the on/off switch (5) during the screwing/drilling process.
– During these processes, the LED light (15) will be on.
– If you want the tool to stop, release the switch (5).

Warning

Danger of burns. Do not remove the tip or drill bit unless the device is off and has completely cooled down.

Turning the device on

Use appropriate personal protective equipment when operating this tool.

5. Cleaning and Maintenance

- Risk of injury, always switch off the device and remove the battery before handling the device.

Maintenance

Warning

• Do not touch the plug with wet hands.

• Maintenance that requires opening the casing must only be carried out by authorised specialist companies or by Cecotec.

• Turn the device off.

• Unplug the power cord from the power socket by pulling the plug.
• Allow the device to completely cool down.

ENGLISH

Cleaning

The device must be cleaned before and after every use.

Warning due to electrical voltage

• There is a short circuit risk due to liquids entering the casing.
• Do not immerse the device nor the accessories into water. Be careful water or other liquids do not enter the casing.
• Clean the device with a soft, moist and lint-free cloth. Make sure there is

no moisture entering the casing.

• Protect electrical components from moisture.
• Do not use aggressive cleaning agents like cleaning sprays, solvents, alcohol-based cleaners or abrasives to dampen the cloth.
• Clean the device with a soft and lint-free cloth.
• It is not necessary to lubricate the device after cleaning.
• Clean and dry the drill bits with a soft, lint-free cloth.
• Remove any dust or drilling debris, shavings, sawdust, etc. Pay particular attention to the drill chuck.
• Clean the connection terminals.
• Clean the ventilation openings properly to prevent the engine from overheating.

Warning

You must specifically use the accessories and additional equipment specified in these operating instructions. Any other accessories may cause damage to the equipment. You can contact the Cecotec Customer Service Department.

Transport and storage

• The device can be damaged if you store or transport it inappropriately.
• Take into account the information related to transport and storage.

Take into account the following instructions before transporting or storing the device:

Storage

Take into account the following instructions before storing the device:

• Turn the device off.
• You must set the rotating direction switch (4) to its central locking position.
• Unplug the power cord from the power socket by pulling the plug.
• Allow the device to cool down.
• Remove the battery.
• Remove the tip or drill bit.
• Clean the device as described in the maintenance section.
• To store it use the transport case provided to protect it from dust, moisture, etc.

- Do not store the battery completely discharged, it may damage the battery.

Transport

- Use the transport case provided to protect the device from external agents.

Take into account the following instructions before transporting the device:

- Turn the device off.

- You must set the rotating direction switch (4) to its central locking position.

• Unplug the power cord from the power socket by pulling the plug.
• Allow the device to cool down.
• Remove the battery.
• Remove the tip or drill bit.

• Clean the device as described in the maintenance section.

• The device must be protected against any possible fall, impact, vibration, etc., that may occur during transport.

• To transport lithium ion batteries you must take into account the provisions of the transport of dangerous goods.
• You must take into account the following instructions to transport lithium ion batteries.
• The user can transport batteries by road without further requirements.
• To ship them through third parties (e.g. air transport or forwarding) you must take into account the requirements you must meet regarding packaging and signaling. The packaging must be made by an expert in dangerous goods.
• Before shipping the rechargeable battery, make sure the casing is in perfect conditions.
• You must also take into account additional national dispositions regarding shipping.

6. TROUBLESHOOTING

• During production, the device has been checked several times for proper functioning. If faults still occur, check the device according to the following list.
• Troubleshooting that requires opening the casing must only be carried out by authorised specialist companies or by Cecotec.

Problem	Solution
The device emits a slight smoke or odour during the first use	This is not an error. These phenomena disappear after a short period of operation.
The device does not turn on	Assemble the battery properly, clean the connection terminals or recharge the battery if necessary. If you notice any damage, do not attempt to restart the appliance. To avoid safety hazards, do not carry out any repairs. Send the appliance to a specialised electrical company or to Cecotec to change the battery.
	If the problem is caused by the on/off switch, you should contact the Cecotec Technical Support Service.
The drill bit does not drill deep enough into materials	Select the appropriate torque for the material to be drilled.
	Increase the speed to its maximum level.
	Use a more suitable drill bit for the material to be worked on.
	Check that the rotating direction is appropriate for the work to be carried out.
	Check the drill bit is suitable for the material in question.
The on/off switch is locked	You must set the rotating direction switch to its central locking position.
	If the problem remains, contact the official Technical Support Service of Cecotec.
Your device is still not working properly after these checks	Contact the official Technical Support Service of Cecotec. If necessary, take the appliance to an authorised specialist company or to Cecotec for repair.

7. TECHNICAL SPECIFICATIONS

Product: CecoRaptor Perfect Drill 4020 advance drilling machine

Reference: 70007

Mains connection: 230-240 V AC \~, /50 Hz

Rated power: 65 W

Nominal voltage: 20 V DC

Diameter: 13 mm

Maximum drilling diameter: wood 30 mm, metal 13 mm

Nominal no-load speed: 0-400 / 0-1550 min-1

Lithium-ion battery capacity: 4000 mAh, 80 Wh

Maximum torque: 46 Nm

Torque setting 25+1

Sound level measurement value norm EN 62841-2-1

Lpa: 72.2 dB(A)

K uncertainty: 5 dB

Lwa: 83.2 dB(A)

K uncertainty: 5 dB

Sound level measurement value norm EN 62841-2-1

Ah, D: 1.643 m/s2

K uncertainty: 1.5 m/s2

Protection class: II

Made in China | Designed in Spain

*noise and vibration emission values may vary due to many factors.

8. DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU and 2006/66/CE on Waste Electrical and Electronic Equipment (WEEE) specifies that old household electrical appliances must not be disposed of with the normal unsorted municipal waste. Old appliances must be collected separately, in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation to dispose of the appliance correctly.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

The drilling machine, accessories, packaging and waste generated during the working process must be recycled in an environmentally friendly manner.

ENGLISH

9. TECHNICAL SUPPORT AND WARRANTY

This product is under warranty for 2 years from the date of purchase, as long as the proof of purchase is submitted, the product is in perfect physical condition, and it has been given proper use, as explained in this instruction manual.

The warranty will not cover the following situations:

• The product has been used for purposes other than those intended for it, misused, beaten, exposed to moisture, immersed in liquid or corrosive substances, as well as any other fault attributable to the customer.
• The product has been disassembled, modified, or repaired by persons, not authorised by the Cecotec official Technical Support Service.
• Faults deriving from the normal wear and tear of its parts, due to use.

The warranty service covers every manufacturing defect of your appliance for 2 years, based on current legislation, except consumable parts. In the event of misuse, the warranty will not apply.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec official Technical Support Service at [phone].

1. PIÈCES ET COMPOSANTS

Img. A

Fig./Img./Abb./Afb./Rys./Obr. C

Fig./Img./Abb./Afb./Rys./Obr. D

Fig./Img./Abb./Afb./Rys./Obr. E

Fig./Img./Abb./Afb./Rys./Obr. F

Fig./Img./Abb./Afb./Rys./Obr. G

Fig./Img./Abb./Afb./Rys./Obr. H

Fig./Img./Abb./Afb./Rys./Obr. I

Fig./Img./Abb./Afb./Rys./Obr. 2

Fig./Img./Abb./Afb./Rys./Obr. J

Fig./Img./Abb./Afb./Rys./Obr. 0

Fig./Img./Abb./Afb./Rys./Obr.K

Fig./Img./Abb./Afb./Rys./Obr. L

Fig./Img./Abb./Afb./Rys./Obr. M

www.cecotec.es

Quart de Poblet, Valencia (Spain)

YV_01210813

[NO TEXT]

CECORAPTOR

PERFECT DRILL 4020 ADVANCE

Taladro/ Drilling machine

- Taladro CecoRaptor Perfect Drill 4020 advance.

6. PROBLEEMOPLOSSING

Product: CecoRaptor Perfect Drill 4020 advance

Referentie: 70007

Fig./Img./Abb./Afb./Rys./Obr. C

Fig./Img./Abb./Afb./Rys./Obr. D

Fig./Img./Abb./Afb./Rys./Obr. E

Fig./Img./Abb./Afb./Rys./Obr. F

Fig./Img./Abb./Afb./Rys./Obr. G

Fig./Img./Abb./Afb./Rys./Obr. H

Fig./Img./Abb./Afb./Rys./Obr. I

Fig./Img./Abb./Afb./Rys./Obr.2

Fig./Img./Abb./Afb./Rys./Obr. J

Fig./Img./Abb./Afb./Rys./Obr. 0

Fig./Img./Abb./Afb./Rys./Obr.K

Fig./Img./Abb./Afb./Rys./Obr. L

Fig./Img./Abb./Afb./Rys./Obr. M

www.cecotec.es

Quart de Poblet, Valencia (Spain)

YV_01210813
