USER MANUAL Cecoraptor Perfect Staplesnails 2020 Advance CECOTEC

Grapadora / Staple gun

Safety instructions 20

1. Parts and components 59
2. Before use 59
3. Assembly 60
4. Operating and handling the tool 61
5. Cleaning and Maintenance 62
6. Transport and storage 63
7. Troubleshooting 64
8. Technical specifications 65
9. Disposal of old electrical appliances 66
10. Technical support and warranty 66

SOMMAIRE

Warning due to electrical voltage

This symbol indicates that there is danger to human life and health due to electrical voltage.

Warning due to sharp objects

This symbol indicates there is risk to human life and health due to sharp objects.

Warning due to explosive substances

This symbol indicates that there is a danger to human life and health due to explosive substances.

Warning

This word warns about a danger with a medium risk level that, if not avoided, can result in death or severe injuries.

Warning

This word refers to important information (e.g. material damage) but not risks.

Careful

This word warns about a danger with a low risk level that, if not avoided, can result in minor or moderate injuries.

Information

The indications with this symbol help you perform your job quickly and safely.

Take the instruction manual into account

The indications with this symbol indicate that you need to take the instruction manual into account.

Use protective eyewear

The indications with this symbol warn you to use protective eyewear.

Use protective clothing

The instructions with this symbol warn you to wear appropriate working clothes.

Use hearing protection

The indications with this symbol warn you to wear hearing protection.

Use protective gloves

The indications with this symbol warn you to wear protective gloves.

The rechargeable battery must be protected from direct sunlight, heat (max. 50°C), fire, water and humidity.

The use of the charger is restricted to indoors.

SAFETY

General safety instructions for power tools

Warning

- Read this instruction manual before plugging or using the device and keep it always near the appliance.

• The non compliance with these safety indications or the instructions included in this manual may result in electric shock, fire and/or severe injuries.
• Keep this instruction and safety manual for future use.
• The concept used in these safety indications makes reference to both mains-operated power tools (with power cord) and battery-operated power tools (without power cord).
• This device can be used by children over the age of 8, as well as persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they do so under supervision or have been instructed in the safe use of the device and the resulting dangers.
• Children cannot play with the device nor the charger. Cleaning and maintenance should not be performed by children without supervision.
• If the supply cord is damaged, it can only be replaced or substituted by the Technical Support Service of Cecotec or by a similarly qualified person in order to avoid a hazard.
• You must only use the charger provided by Cecotec to charge the battery,
• Place the device in a well-ventilated location during charging.

General safety information for power tools – Safety at the workplace

• Keep your workplace clean, tidy and properly lit. Untidiness or poor lighting in the workplace can cause accidents.
• You must keep children and other people away whenever you are using a power tool. Distractions can cause accidents because of loss of control of the device.
• Do not manipulate or use power tools in potentially explosive atmospheres in the presence of flammable liquids, gases or dust. Power tools can cause sparks that set dust or gases on fire.

General safety information for power tools – Electrical safety

• The power tools plugs must match the outlet. Do not ever modify the plug in any way. Do not use adapters on grounded power tools.
• Do not use plug adapters on grounded power tools.
• The unmodified plugs and the corresponding outlets will reduce the risk of electric shock.
• Power tools must not come into contact with rain and moisture. Contact with water increases the probability of electric shock.
• If you cannot avoid the use of a power tool in a moist atmosphere, the electrical installation must have a circuit breaker.
• You must not use the supply cord with other purposes, like

ENGLISH

transporting or hanging the tool, etc. To unplug the tool pull the plug, not the cord.

• You must keep the supply cord away from heat sources, oil, sharp edges or moving parts of the device. Damaged or defective cords increase the danger of electric shock.
• You must avoid contact with any body part with grounded conductive parts, as well as with pipes, heaters, stoves and refrigerators. The probability of electric shock will increase if any of your body parts is grounded.
• The circuit breaker reduces consequences if there is an electric shock.

General safety information for power tools – Human safety

• Use extreme caution and do not lose attention during the handling of the power tool. Do not use power tools if you are tired or under the influence of drugs, alcohol or medication. Inattention can cause severe injuries.
• You must use appropriate personal protective equipment (PPE). Always use protective eyewear. Individual personal protective equipment includes: safety mask, safety shoes, headgear, hearing protection and/or tight protective clothing. Their use may reduce the risk of injuries.

- You must use appropriate clothes. Do not use loose clothes.

• You must keep hair, clothes and gloves away from moving parts that can cause entrapment. Loose clothing or flowing hair can cause entrapment accidents.
• You must avoid uncomfortable positions during the use of the device. Position must be sure and balanced to ensure the correct use of the device, especially with uncontrolled situations.
• You must avoid the accidental start-up of the device. Make sure the power tool is off before you plug it in the socket base and/or connect the battery, as well as before moving or handling it. Be especially careful not to operate the switch inadvertently while the equipment is switched on, as this may cause an accident.
• You must remove all types of wrenches or accessories before starting the tool to avoid possible accidents or injuries.
• You must follow at all times the safety instructions in this manual. Extreme caution when handling this tool.
• If you install any type of vacuuming or dust collector device you must connect it and use it properly.

General safety information for power tools – Use and handling of power tools

• You must not use power tools if the switch is defective. If you cannot turn it on or off do not use it, as it may cause an accident.
• You must use the appropriate tool for every determined job, this will increase safety. Do not ever force the tool.
• Always remove the plug from the base or the battery

ENGLISH

before: adjusting, changing accessories, cleaning or handling the device, this way accidents due to accidental start-ups are avoided.

• You must keep and take proper care of power tools.
  This includes the following: checking the moving parts move easily and without blockages, check there are no damaged pieces that may affect the correct operation of the power tool. If you detect any damaged or defective piece, it must be repaired or replaced by the Cecotec official Technical Support Service or qualified technicians. Lack of maintenance can cause accidents.
• You must use power tools and accessories following this instruction manual. You must keep your workplace conditions and the job to perform present. Do not use the device with purposes different to the ones exposed in this manual, so that you will avoid dangerous situations.
• You must keep unused power tools out of the reach of children. Do not allow unqualified persons, with lack of experience or that have not read the instructions to use the device, as they can cause accidents due to lack of knowledge.
• It is very advisable to regularly carry out a clean-up and maintenance of the tool.
• To avoid possible accidents and potentially dangerous situations, it is advisable to keep gripping surfaces clean, dry and free of any kind of dirt, grease, oil, etc.

General safety information for power tools – Use and handling of chargers and batteries

• You must only use the original rechargeable batteries provided by Cecotec. The use of other types of rechargeable batteries can cause fires or injuries.
• You must charge the batteries only with recommended or provided chargers by Cecotec. A charger for a particular type of battery may cause a fire if used on a different battery to the recommended.
• You must keep rechargeable batteries away from paperclips, coins, keys, nails, screws and any other small metal object that can link the battery contacts. A short circuit between the rechargeable contacts can cause fire or injuries.
• Do not charge batteries from other products different to Cecotec with the charger supplied. The charger is designed to charge the rechargeable batteries provided by Cecotec with their technical specifications. An improper use can cause a fire or explosion.
• An improper use of the rechargeable battery can cause a liquid spill inside it. If this takes place, avoid contact with liquid. In case of accidental contact, rinse the affected part with water.
• Spilled liquid can cause skin irritation or burns.
• If liquid comes into contact with your eyes, seek medical assistance immediately.
• If the battery is damaged or misused it can release toxic fumes. Air the room by letting fresh air enter and seek medical assistance in case of discomfort.
• Fumes can produce irritation to the breathing system.
• Be careful electrical connections do not come into touch with moisture. Do not immerse in water or other liquids when cleaning it or when it is working as it may produce a short circuit. Do not immerse the charger in water or any other liquid.

ENGLISH

• Always follow the instructions given for the device cleaning and maintenance.
• Do not open the rechargeable battery. You can produce a short circuit.
• Do not short contact the rechargeable battery. You may produce an explosion.
• Do not hit the battery. It cannot be hit.
• The charger is only suitable for indoor use. Do not use it outdoors.
• Keep the charger clean. Dust can cause electric shock.
• You must not leave the charger operating on easily flammable surfaces (paper, textile products, etc.) nor flammable atmospheres.
• The charger can reach high temperatures while charging, there is a risk of fire.
• You must use the charger only to charge the battery. It cannot be used directly as power for the power tool.
• The recommended room temperature range during charging is between 4 and 40°C.
• The recommended room temperature range for the battery and tool storage is between 0 to 50°C.
• The recommended room temperature range during charging is between -5 and 50°C.
• Remove the battery from the device before storing it.
• Do not expose the battery to shocks, it may cause a risk of fire and explosion.
• Never charge the battery or the tool with battery out of the indicated temperature range.
• Do not expose batteries to high temperatures or fire. Exposition to fire and high temperatures over 130° C could cause an explosion.

General safety information for power tools – Authorized Support Service

- The repairing of your power tool must only be carried out by the Cecotec official Technical Support Service or qualified personnel and only with original spare parts. This way you will guarantee the power tool is safe.

Safety instructions specific to electric stapling guns

• Be aware that this power tool is for placing staples or nails. Never point the stapling gun to anyone, nor yourself. Careless handling of this tool could result in accidental discharge and injury.
• Never activate the stapling gun without fixing it facing the workpiece. If the tool is not in contact with the workpiece before pressing the trigger, the staple or nail could bounce off.
• If a staple or nail is stuck, before removing it, first you need to disconnect the battery from the staple gun. Be extremely careful when removing the stuck
• staple or nail. The tool could still be under tension and the staple or nail could be ejected during unblocking.
• Never use the stapling gun to fix electric cables. This tool is not suitable for this purpose, as it will damage the insulation of the conductors and may cause an electric shock with the risk of fire.
• If you need to work near electric cables or gas pipelines, use appropriate detectors to locate where the hidden

ENGLISH

lines pass through in order to avoid contact with them. The breakage of a conductor can cause an explosion. The perforation of a water pipe can cause material damage. Contact with electric cables can cause an electric shock.

• Always fix and secure the workpiece to a stable surface, using clamps or other devices. Do not simply trust on holding the tool and the workpiece only with your hand or against your body. They will not be totally stable and may cause you to lose control of the tool.
• Always hold the tool firmly by the gripping surface.

Sound level and vibration reduction

• You must not exceed the work time.
• Use the recommended PPE.
• You must use the operating mode appropriate to the work to be performed.
• The device must always be used in accordance with these operating instructions.
• The product must be in good maintenance conditions.
• Always use the original accessories supplied by Cecotec, and make sure they are in optimal conditions of use.
• The tool must be held firmly in place during use.

Proper use

• The device is intended exclusively for stapling cardboard, leather, insulating material, textile and natural fibre fabrics, plastic foils and similar materials to a soft base such as soft wood or wood-like materials.
• This battery-powered electric tool can only be used with original batteries by Cecotec.

Misuse

• The tool is not suitable for stapling metal, stone, glass or hard plastics.
• Any other use different to the ones described in this section will be considered a misuse.

User qualifications

- The device users must have read and understood this instruction manual and specially the section about Safety.

Personal protective equipment

Use hearing protection

The noise effect can cause hearing loss.

Use protective eyewear

Protect yourself against flying parts.

Use protective gloves

Protect your hands from burns, crushing, skinning or other injuries caused by staples or nails.

Residual hazards

Warning due to electrical voltage

- Work on electrical components may only be carried out by an authorized specialist company or by Cecotec Technical Service.

ENGLISH

• Electric shock due to inadequate insulation. You must check the device is not damaged and works properly before using it. If you detect damage or malfunction do not use it.
• Do not use the device if it is wet.
• Do not use the device if your hands are wet.
• Do not immerse the appliance or accessories in water or other liquid.
• Be careful water or other liquids do not access the casing. A short circuit can occur if liquids enter the casing.
• Before carrying out any work, cleaning or maintenance on the device, you must disconnect the device plug from the electric circuit.
• Remove the power cord from the power socket by pulling the socket, not the cord.

Warning

Make sure that when working with a power tool you will not hit electric, gas or water lines. Check this with a line detector before working on a wall.

• Risk of injuries due to detached parts or broken tool accessories.
• This device can produce risk and severe incidents if it is handled incorrectly by unqualified or uninstructed users, or if used for purposes other than those described in this manual. Take the users qualifications into account.
• The device is not a toy and it cannot be handled by children.
• Choking hazard! Do not let the packaging material within the reach of children. It can be dangerous.

- If you store or transport the tool improperly, it may be damaged. Take into account the information related to transport and storage.

Careful

- The emission of vibrations can cause damage to health if the appliance is used for a long time or if it is not operated or maintained properly.

- Keep it sufficiently away from heat sources.

Device description

• Powerful electric stapling gun with 20 V rechargeable and removable battery, compatible with the tools in the CecoRaptor Perfect series, of the 2000 mAh range.
• Specially designed for do-it-yourselfers.
• It can be used to nail and staple cardboard, textile and natural fibres and similar materials to soft wood or wood-like materials.
• The stapling gun has a magazine level indicator to control the existing staples and nails.
• The chamber holds 100 staples type 55 or 50 nails type 47.
• Includes a built-in LED worklight to better illuminate the workspace.
• The battery has a charge indicator with which you can view the charging status without inserting the battery into the tool.

INSTRUCTIONS DE SÉCURITÉ

Symboles

1. Battery holder
2. Trigger
3. Magazine level indicator for staples and nails
4. Magazine for staples and nails
5. Nail and staple exit
6. LED worklight
7. Fast charger
8. Red LED indicator light for battery charge level
9. Battery
10. Staples
11. Nails
12. Battery charge indicator
13. Battery release button
14. Green LED indicator light for battery charge level
15. On/off switch for the LED worklight
16. Impact force knob
17. Button to check the battery charge level
18. Magazine unlock button
19. Staples compartment

2. BEFORE USE

1. Take the device and accessories out of the box.

Warning: choking hazard.

Do not let the packaging material within the reach of children, as it may be dangerous.

1. Check the content is complete and if there is any damage:
2. CecoRaptor Perfect Staples&Nails 2020 staple gun.
3. 20 V and 2000 mAh battery.
4. Charging base, fast charger and power adapter.
5. Set with 500 staples (20 mm long and 6 mm wide).
6. Set with 500 nails (type T, 20 mm long and 0.8 mm wide).
7. Transport case.
8. Instruction manual in different languages.

3. ASSEMBLY

Charging the battery (Fig. 2)

Warning

Battery may damage due to improper charging.

The battery comes partially charged to avoid damage to the battery due to complete discharge. Before using the tool for the first time or when the battery is low, you must completely charge it. To do so, follow these steps:

1. Slide the battery (9) into the charger (7) upside down until it fits properly.
2. Insert the charger plug into a power outlet. The red charging LED indicator (8) will light up. The charge will require approx. 60 minutes.
3. Wait until the red LED indicator (8) is off and the green LED indicator (14) is on. Battery is discharged.
4. Hold the mains plug while disconnecting the charger power cord from the power socket. The battery (9) and the charger (7) can heat up during charge. Allow it to cool down to room temperature.
5. Remove the battery (9) from the charger (7) by holding down the battery release button (13) and removing the battery (9) from the charger (7).

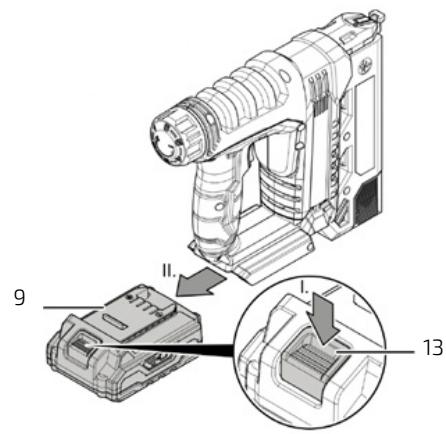

Removing and inserting the battery (Fig. 3)

• Do not press the trigger (2) while replacing the battery (9).
• To insert the battery (9), introduce it in the device until it fits.
• To remove the battery (9) from the tool itself, press the battery release button (13) and remove it.
• Charge the battery (9) if necessary.

Checking the charge level (Fig. 4)

• The battery comes with a built-in battery charge level indicator.
• You can check it without inserting the battery in the tool.
• Press the battery level button (17) on the battery (9).
• The battery level shows three battery level LED indicators (12).

LED colour	Meaning
Green-orange-red	Maximum charge/power
Orange-red	Half charge/power
Red	Low charge - Recharge the battery

4. OPERATING AND HANDLING THE TOOL

Warning due to electrical voltage

To load the stapling gun with staples and nails, do so without the battery in place.

Warning

If a staple or nail is stuck, do not pick up the stapler by holding the trigger. When removing the stuck staple or nail, the trigger may be inadvertently triggered.

Use personal protective equipment (PPE)

Use appropriate personal protective equipment when operating this tool.

Information

In the magazine level indicator you can check the staples or nails inside the tool. Do not apply force when opening or closing the magazine or when filling the magazine.

The trigger (2) is connected to the staples and nails exit (5) so it only releases them if the exit is placed against the workpiece. This prevents unwanted release if the trigger is pressed inadvertently.

Warning due to sharp objects

Staples and nails are sharp. There is a risk of injury if you do not handle the tool carefully enough.

General information

• Always face the device in a right angle to the workpiece and fix the piece properly in the workspace. Otherwise, the staple or nail could divert.
• Be especially careful when working on soft pieces not to damage them in the process.

- Use only the staples and nails size admissible, indicated in the technical specifications.

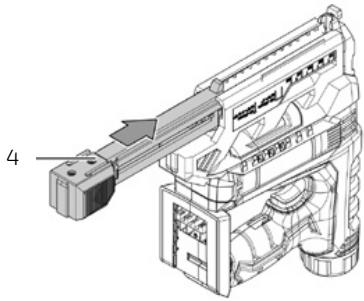

Loading nails and staples (Fig. 5)

To reload the magazine:

1. Remove the battery from the device.
2. Turn the battery so the trigger is upside down.

ENGLISH

1. Press the magazine unlock button (18) and pull the magazine (4) all the way out.

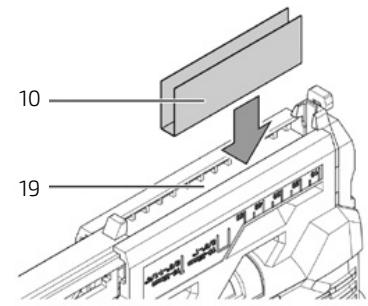

2. If you are going to place staples (10) in the compartment (19), introduce them with the tips upwards.
3. If you are going to place nails (11), take into account nails must be placed with their head down.
4. To close the magazine (4), slide it again on the slot until it is fixed.

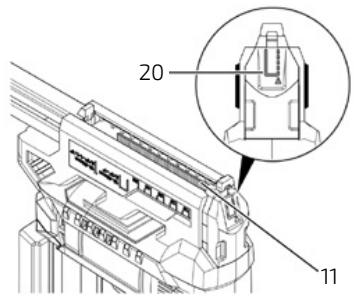

Look at the mark (20) on the front side of the device which indicates the correct way to place nails and staples.

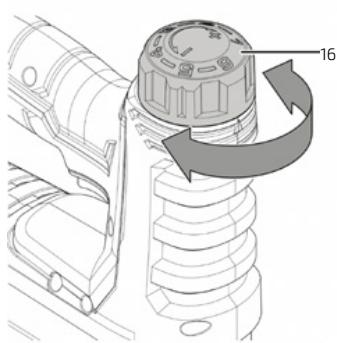

Preselecting the impact force (Fig. 6)

The tool has an impact force knob (16) to set it according to the workpiece material. If the impact force is set higher than it should be, there may be a risk of penetrating the material to be nailed. Otherwise, if the impact force is lower that it should be, staples or nails could not penetrate sufficiently the material.

The necessary impact force will depend on the material and can be determined by practical tests. Ideally, it is best to test on the waste material first to check the required strength. Try always using the lowest impact force necessary to completely place the staple.

You can choose between 6 levels, level 1 being the lowest impact force and level 6 being the highest impact force.

To change the impact force, do so without pressing the trigger, by turning the impact force knob (16) to the desired level.

Turning the tool on and off (Fig. 7)

To turn on the tool, press the exit (5) against the workpiece you want to staple and press the trigger (2). The staple or nail will be released towards the piece. Raise the tool from the workpiece once the staple or nail is placed.

The tool has a LED worklight that is only active if you press the corresponding button (15).

5. CLEANING AND MAINTENANCE

Warning due to electrical voltage

Risk of injury, always switch off the device and remove the battery before carrying out any change on the device.

Maintenance that requires opening the casing must only be carried out by authorised specialist companies or by Cecotec.

Cleaning and Maintenance

The device must be cleaned before and after every use.

The device does not need to be lubricated after cleaning.

• There is short circuit risk if liquids enter the casing.
• Do not immerse the device nor the accessories into water.
• Clean the device with a soft, slightly moist and lint-free cloth. Make sure there is no moisture entering the casing.

• Protect electrical components from moisture.

• Do not use aggressive cleaning agents like cleaning sprays, solvents, alcohol-based or abrasive cleaners to dampen the cloth.

• Clean the device with a soft and lint-free cloth.
• Keep the connection contacts from the device, battery and charger clean.
• Clean the ventilation openings properly to prevent the engine from overheating.
• Remove the battery when it is not being used.

6. TRANSPORT AND STORAGE

Warning

The device can be damaged if you store or transport it inappropriately. Take into account the information related to transport and storage.

Transport

Use the transport case provided to transport the tool.

• Turn the device off.
• Unplug the power cord from the power socket by pulling the plug.
• Allow the device to cool down.
• Remove the battery.
• Clean the device as described in the maintenance section.
• The device must be protected against any possible fall, impact, vibration, etc., that may occur during transport.
• To transport lithium ion batteries you must take into account the provisions for the transport of dangerous goods.
• You must take into account the following instructions to transport lithium ion batteries.
• The user can transport batteries by road without further requirements.
• To ship them through third parties (e.g. air transport or forwarding) you must take into account the requirements you must meet regarding packaging and signalling. The packaging must be made by an expert in dangerous goods.
• Before shipping the rechargeable battery, make sure the casing is in perfect conditions.
• You must also take into account additional national dispositions regarding shipping.

Storage

Use the transport case provided to store the tool.

• Turn the device off.
• Unplug the power cord from the power socket by pulling the plug.
• Allow the device to cool down.
• Remove the battery.
• Clean the device as described in the maintenance section.
• Protect the tool against dust, humidity, etc.
• Do not store the battery completely discharged, it may damage the battery.

7. TROUBLESHOOTING

• During production, the device has been checked several times for proper functioning. If faults still occur, check the device according to the following list.
• Troubleshooting that requires opening the casing must only be carried out by authorised specialist companies or by Cecotec.

Problem	Solution
The device emits a slight smoke or odour during the first use	This is not an error. These phenomena disappear after a short period of operation.
Battery does not charge	Check the battery is correctly placed in the fast charger. Insert the battery in the fast charger so all battery contacts connect on the fast charger. Battery must fit in the fast charger.
	Check the mains connection. Check both the cord and the power plug are not damaged. Check the condition of the mains fuses at the installation site.
	Check the fast charger is not damaged. If the fast charger is damaged, stop using it. Contact the Technical Support Service of Cecotec.
	Check the battery contacts are not dirty. Clean the dirt is necessary.
	If the battery still does not charge, it can be damaged and must be replaced. Use exclusively the same type batteries provided by Cecotec.
The device does not turn on	Assemble the battery properly, clean the connection terminals or recharge the battery if necessary. If you notice any damage, do not attempt to restart the appliance. To avoid safety hazards, do not carry out any repairs. Send the appliance to a specialised electrical company or to Cecotec to change the battery.
	The battery power may be too low. Charge the battery.
	The exit is not correctly pressed against the workpiece. The trigger (2) is connected to the moving exit (5) and it only releases when the exit is pressed against the workpiece.
	If the problem is caused by the On/Off switch, you should contact the Cecotec Technical Support Service.
The trigger is blocked.	Check the rotating direction switch is not in its central locking position.
	If the problem remains, contact the official Technical Support Service of Cecotec.
A staple or nail is blocking the device	Make sure you have removed the battery!Do not hold the device by the trigger if a staple or nail is blocking the device!When removing the stuck staple or nail, the trigger may be inadvertently triggered.Open the magazine unlock and remove the staple or nail.
There are no staples or nails exiting the device	Check the nails have been placed according to the mark 20 of the figure 5.Check the magazine level indicator.Place, if necessary, new staples or nails in the magazine.
The staple or nail penetrate too much or do not penetrate enough on the material.	Check the force knob and select a lower or higher impact force if necessary.
The device heats up	Keep the vent slots free to avoid motor overheating.Wait for at least 10 minutes before you restart the device.
Your device is still not working properly after these checks	Contact the official Technical Support Service of Cecotec. If necessary, take the appliance to an authorised specialist company or to Cecotec for repair.

8. TECHNICAL SPECIFICATIONS

Product: CecoRaptor Perfect Staples&Nails 2020 Advance staple gun

Reference: 70014

Nominal voltage: 20 V DC

Impact frequency: 30 min ^-1

Compatible staples: Type 55. Length 15-25 mm. Width 6 mm. Thickness 1.2 mm

Compatible nails: Type 47. Length 15, 20, 25, 32 mm. Width 0.8 mm.

Maximum magazine capacity: 100 staples or 50 nails.

Weight: 2.5 kg

Battery:

Ion-Lithium: 20 V, 2000 mAh, 40 Wh

Charger:

Voltage 230-240 V AC / 50 Hz

Rated power: 65 W

Protection class: II

Made in China | Designed in Spain

9. DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU and 2006/66/CE on Waste Electrical and Electronic Equipment (WEEE) specifies that old household electrical appliances must not be disposed of with the normal unsorted municipal waste. Old appliances must be collected separately, in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation to dispose of the appliance correctly.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

The stapling gun, accessories, packaging and waste generated during the working process must be recycled in an environmentally friendly manner.

10. TECHNICAL SUPPORT AND WARRANTY

This product is under warranty for 2 years from the date of purchase, as long as the proof of purchase is submitted, the product is in perfect physical condition, and it has been given proper use, as explained in this instruction manual.

The warranty will not cover the following situations:

• The product has been used for purposes other than those intended for it, misused, beaten, exposed to moisture, immersed in liquid or corrosive substances, as well as any other fault attributable to the customer.
• If the product has been disassembled, modified, or repaired by persons not authorised by the Cecotec official Technical Support Service.
• Faults deriving from the normal wear and tear of its parts, due to use.

The warranty service covers every manufacturing defect of your appliance for 2 years, based on current legislation, except consumable parts. In the event of misuse, the warranty will not apply.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec official Technical Support Service at [phone].

1. PIÈCES ET COMPOSANTS

Img. 1 et 5

Fig./Img./Abb./Afb./ Rys. 3

Fig./Img./Abb./Afb./Rys. 4

Fig./Img./Abb./Afb./Rys. 5

Fig./Img./Abb./Afb./ Rys. 6

Fig./Img./Abb./Afb./ Rys. 7

www.cecotec.es

R

CECORAPTOR

PERFECT STAPLES&NAILS 2020 ADVANCE

Grapadora / Staple gun

Bedienungsanleitung

7. PROBLEEMOPLOSSING

Fig./Img./Abb./Afb./ Rys. 3

Fig./Img./Abb./Afb./Rys. 4

Fig./Img./Abb./Afb./Rys. 5

Fig./Img./Abb./Afb./ Rys. 6

Fig./Img./Abb./Afb./Rys. 7

www.cecotec.es
