Cecoraptor Perfect Work 360 Advance - Screwdriver CECOTEC - Free user manual and instructions

Product type	Cordless electric screwdriver
Brand	Cecotec
Model	Cecoraptor Perfect Work 360 Advance
Power supply	Rechargeable lithium-ion battery
Nominal voltage	3.6 V
Battery capacity	2000 mAh
Charging time	3 to 5 hours
No-load rotation speed	0-400 rpm
Maximum torque	3 Nm
Chuck	6.35 mm hexagonal
Rotation direction	Reversible (forward / reverse)
LED lighting	Yes, integrated
Pivoting head	360° for easy access overhead or at an angle
Dimensions (L x W x H)	24 x 5.5 x 5.5 cm
Weight	0.65 kg (with battery)
Box contents	Screwdriver, 20 bits, charger, instruction manual
Noise level	60 dB (A)
Electrical safety	Double insulation, overload protection
Maintenance and cleaning	Clean with a dry cloth, do not immerse in water
Storage	Store in a dry place, away from humidity and frost
Spare parts	Available from Cecotec after-sales service
Warranty	2 years (legal warranty)

Frequently Asked Questions - Cecoraptor Perfect Work 360 Advance CECOTEC

How to recharge the screwdriver?

Connect the charging cable to the screwdriver's port, then plug the charger into an electrical outlet. The indicator light shows the charge status: red while charging, green when the battery is full. A full charge takes approximately 3 to 5 hours.

What is the battery life?

Battery life depends on usage. With a 2000 mAh battery, you can drive approximately 80 to 100 screws into soft materials. For intensive work, keep a charger within reach.

How to change the bits?

The screwdriver uses a 6.35 mm hexagonal chuck. Pull the chuck sleeve forward, insert the bit, then release the sleeve to lock it automatically.

What to do if the screwdriver does not start?

Check that the battery is charged and correctly inserted. Make sure the switch lock is not activated. If the problem persists, contact after-sales service.

How to clean the screwdriver?

Use a soft, dry cloth to wipe the exterior. Never use water or solvents, as they could damage the electrical components.

Can the screwdriver be used for drilling?

This screwdriver is designed for screwing and unscrewing. For drilling, it is recommended to use a drill with a suitable chuck. Prolonged use for drilling may overheat the device.

How to reverse the direction of rotation?

Slide the rotation selector located above the trigger to the left or right to choose forward or reverse.

What safety precautions should be taken?

Wear safety glasses. Do not work near explosive or flammable substances. Always unplug the screwdriver before changing an accessory or cleaning it.

What to do if a bit gets stuck?

Turn off the device immediately, then remove the battery. Use pliers to free the bit. Check that the chuck is clean and works correctly.

How to store the screwdriver?

Store the screwdriver in a dry place and away from frost. Remove the battery if it will not be used for a long period. Keep the accessories in the original box.

USER MANUAL Cecoraptor Perfect Work 360 Advance CECOTEC

Instrucciones de seguridad 4
Safety instructions 17
Instructions de sécurité 28
Sicherheitshinweise 41
Istruzioni di sicurezza 54
Instruções de segurança 66
Veiligheidsvoorschriften 79
Instrukcje bezpieczeństwa 92
Bezpečnostní pokyny 105

ÍNDICE

1. Parts and components 126
2. Before use 126
3. Operation 127
4. Cleaning and Maintenance 129
5. Transport and storage 130
6. Troubleshooting 131
7. Technical specifications 132
8. Disposal of old electrical appliances 133
9. Technical support and warranty 133

SOMMAIRE

Warning due to electrical voltage

This symbol indicates that there is danger to human life and health due to electrical voltage.

Warning due to hot surface

This symbol indicates that there is danger to human life and health due to hot surfaces.

Warning due to explosive substances

This symbol indicates that there is a danger to human life and health due to explosive substances.

Warning

This word warns about a danger with a medium risk level that, if not avoided, can result in death or severe injuries.

Warning

This word warns about a danger with a low risk level that, if not avoided, can result in minor or moderate injuries.

Information

The indications with this symbol help you perform your job quickly and safely.

Note

This word refers to important information (e.g. material damage) but not risks.

Take the instruction manual into account

The indications with this symbol indicate that you need to take the instruction manual into account.

Use protective gloves

The indications with this symbol warn you to wear protective gloves.

Use protective eyewear

The indications with this symbol warn you to use protective eyewear.

Warning

- Read this instruction manual before plugging or using the device and keep it always near the appliance.

- The non compliance with these safety

indications or the instructions included in this manual may result in electric shock, fire and/or severe injuries.

• Keep this instruction and safety manual for future use.
• The concept used in these safety indications makes reference to both mains-operated power tools (with power cord) and battery-operated power tools (without power cord).
• This device can be used by children over the age of 8, as well as persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they do so under supervision or have been instructed in the safe use of the device and the resulting dangers.
• Children must not play with the appliance. Cleaning and maintenance should not be performed by children without adult supervision.

General safety information for power tools – Safety at the workplace

• Keep your workplace clean, tidy and properly lit. Untidiness or poor lighting in the workplace can cause accidents.
• You must keep children and other people away whenever you are using a power tool. Distractions can cause accidents because of loss of control of the device.
• Do not manipulate or use power tools in potentially explosive atmospheres in the presence of flammable liquids, gases or dust. Power tools can cause sparks that set dust or gases on fire.

General safety information for power tools – Electrical safety

• The USB supply cord must always fit properly in the charging plug.
• You must not use adapter plugs with safety grounded power tools.
• The unmodified and unsubstituted plugs and socket bases decrease the risk of electric shock.
• Power tools must not come into contact with rain and moisture. The contact with water increases the probability of electric shock.
• You must not use the USB supply cord with other purposes, like transporting or hanging the tool, etc. To unplug the tool pull the plug, not the cord.
• You must keep the supply cord away from heat sources, oil, sharp edges or moving parts of the device. Damaged or defective cords increase the danger of electric shock.
• You must avoid contact with any body part with grounded

ENGLISH

conductive parts, as well as with pipes, heaters, stoves and refrigerators. The probability of electric shock will increase if any of your body parts is grounded.

- The circuit breaker reduces consequences if there is an electric shock.

General safety information for power tools – Human safety

• Use extreme caution and do not lose attention during the handling of the power tool. Do not use power tools if you are tired or under the influence of drugs, alcohol or medication. Inattention can cause severe injuries.
• You must use appropriate personal protective equipment (PPE). Always use protective eyewear. Individual personal protective equipment includes: safety mask, safety shoes, headgear, hearing protection and/or tight protective clothing. Their use may reduce the risk of injuries.

• You must use appropriate clothes. Do not use loose clothing.
• You must keep hair, clothes and gloves away from moving parts that can cause entrapment. Loose clothing or flowing hair can cause entrapment accidents.
• You must avoid uncomfortable positions during the use of the device. Position must be sure and balanced to ensure the correct use of the device, especially with uncontrolled situations.
• You must avoid the accidental start-up of the device. Make

sure the power tool is off before you plug it in the socket base, as well as before moving or handling it. Be especially careful not to operate the switch inadvertently while the equipment is switched on, as this may cause an accident.

General safety information for power tools – Use and handling of power tools

• You must not use power tools if the switch is defective. If you cannot turn it on or off do not use it, as it may cause an accident.
• You must use the appropriate tool for every determined job, this will increase safety.
• Always remove the plug from the tool before: adjusting, changing accessories, cleaning or handling the device, this way accidents due to accidental start-ups are avoided.
• You must keep and take proper care of power tools. This includes the following: checking the moving parts move easily and without blockages, check there are no damaged pieces that may affect the correct operation of the power tool. If you detect any damaged or defective piece, it must be repaired or replaced by the Cecotec official Technical Support Service or qualified technicians. Lack of maintenance can cause accidents.
• You must use power tools and accessories following this instruction manual. You must keep your workplace conditions and the job to perform present. Do not use the device with purposes different to the ones exposed in this manual, so that you will avoid dangerous situations.
• You must keep unused power tools out of the reach of children. Do not allow unqualified persons, with lack of experience or that have not read the instructions to use

the device, as they can cause accidents due to lack of knowledge.

General safety information for power tools – Authorized Support Service

The repairing of your power tool must only be carried out by the Cecotec official Technical Support Service or qualified personnel and only with original spare parts. This way you will guarantee the power tool is safe.

Specific safety indications for electric screwdrivers

• Only the Cecotec official Technical Support Service or specialized or authorised technicians can carry out maintenance jobs and repairs that involve opening the casing.
• Do not use the device if you feel abnormal vibrations during use.
• Hold the device firmly to decrease the vibration level.
• If the vibration and/or noise level is excessively high, contact the Cecotec Technical Support Service.
• Do not use the device if you feel abnormal noises during use.
• Do not force the electric tool. Use the electric tool properly for every type of use. The proper electric tool will make your work better and safer using the speed for which it was designed.
• Use only accessories with an rpm rating at least equal to the maximum no-load rpm rating of the tool.
• Never cover the device with fabrics or other materials to

reduce the noise level. If you do so, the appliance will not ventilate properly. The heat generated by the appliance can create a risk of fire and body injuries.

- When the use of the tool produces harmful, flammable or explosive dust, take all necessary precautions. Dust can be carcinogenic. Use a dust mask and remove dust and shavings after use.

- Set the direction selector switch to the centre position (tool locked) before handling, storing or adjusting the tool or before replacing an accessory.

Proper use

- The use of this appliance is exclusive to screw and unscrew.

- We recommend using this power tool with original accessories from Cecotec.

- Do not use the unit while the battery is charging.

- The equipment is intended for use in the domestic do-it-yourself field.

Misuse

- This device is not suitable for other purposes different to the ones exposed in this manual.

- It is not designed for commercial, industrial or professional use.

User qualifications

The users of the battery-operated screwdriver must have read and understood this instruction manual and specially the chapter about Safety.

Personal protective equipment (PPE)

Use protective gloves

This way you will protect your hands against possible burns, smashing, scratching or cuts.

Residual hazards

Warning due to electrical voltage

Work on electrical components may only be carried out by an authorized specialist company or by Cecotec Technical Service.

Warning due to electrical voltage

Electric shock due to inadequate insulation. You must check the device is not damaged and works properly before using it. If you detect damage or malfunction do not use it.

• Do not use the device if it is wet.
• Do not use the device if your hands are wet.

Warning due to electrical voltage

- Before carrying out any work, cleaning or maintenance in the device, you must

disconnect the supply cord from the socket.

- Remove the power cord from the power socket by pulling the socket, not the cord.

Warning due to electrical voltage

• A short circuit can occur if liquids enter the casing.
• Do not immerse the appliance or

accessories in water or other liquid.

- Be careful water or other liquids do not enter the casing.

Warning due to hot surface

- Screwdriver tips or accessories may be hot after use. Use extreme caution or you may suffer burns if you get into contact with them.

- Never touch a screwdriver tip directly with your hand. Use protective gloves!

Warning due to explosive substances

- Do not expose the rechargeable battery to temperatures over 45°C. The rechargeable battery cannot come into contact with water

or fire!

- You must avoid direct sunlight as well as moisture. You may produce an explosion.

Warning

Do not handle objects containing asbestos. Asbestos is considered a carcinogenic material.

Warning

• The device is not a toy and it cannot be handled by children. Choking hazard!
• Do not let the packaging material within

the reach of children. It can be dangerous.

Warning

Keep the device sufficiently far away from heat sources.

Warning

This device can produce risk and severe incidents if it is handled incorrectly by unqualified or uninstructed users, or if used for purposes other than those described in this manual. Take the users qualifications into account.

Note

• Improper transport or storage may damage the product.
• Check the sections related to transport and storage of the device.

Specific safety indications for rechargeable batteries and chargers

• You must only use the original rechargeable batteries provided by Cecotec. The use of other types of rechargeable batteries can cause fires or injuries.
• You must charge the batteries only with recommended or provided chargers/cords by Cecotec. A charger/cord for a particular type of battery may cause a fire if used on a different battery.
• You must keep rechargeable batteries away from paperclips, coins, keys, nails, screws and any other small metal object that can link the battery contacts. A short circuit between contacts can cause fires or injuries.
• Do not charge batteries from other products different to Cecotec. The charger/cord is designed to charge the rechargeable batteries provided by Cecotec with their technical specifications. An improper use can cause a fire or explosion.
• An improper use of the rechargeable battery can cause a liquid spill. If this takes place, avoid contact with it. In case of accidental contact, rinse the affected part with water.

• Spilled liquid can cause skin irritation or burns.

• If liquid comes into contact with your eyes, seek medical assistance immediately.

• If the battery is damaged or misused it can release toxic fumes. Air the room by letting fresh air enter and seek medical assistance in case of discomfort.
• Fumes can produce irritation to the breathing system.
• Be careful electrical connections do not come into touch with moisture. Do not immerse in water or other liquids when cleaning it or when it is working as it may produce a short circuit.
• Carry out the instructions for cleaning and maintenance.
• Do not open the rechargeable battery. You can produce a short circuit.
• Do not short contact the rechargeable battery. You may produce an explosion.
• Do not hit the battery. It cannot be hit.
• Keep the USB cord clean. Dirt can cause electric shock.
• You must use the USB cord only to charge the battery. It cannot be used as power for the power tool.

Device description

- The device is a screwdriver with rechargeable battery for repairing and DIY jobs. The product is exclusive for household use, it cannot be used for industrial or commercial purposes.

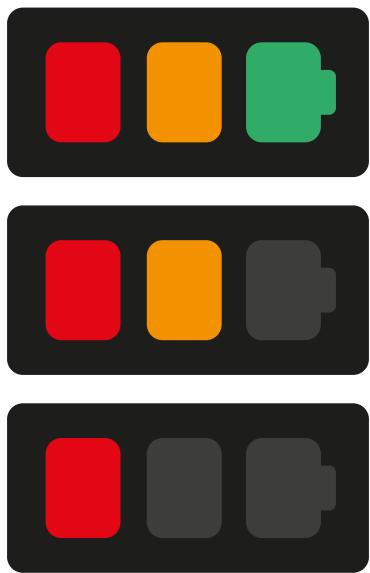

- The battery level is shown with an indicator.

INSTRUCTIONS DE SÉCURITÉ

Symboles

1. Bit holder
2. Torque adjustment knob
3. Battery charge indicator
4. Twist grip lock
5. ON/OFF button
6. Direction knob
7. Twist grip
8. LED worklight
9. LED flashlight
10. On/off flashlight knob (press to turn on/off)
11. Charging socket (mini USB connector)
12. 60 mm magnetic extension bar
13. Micro USB-USB cord

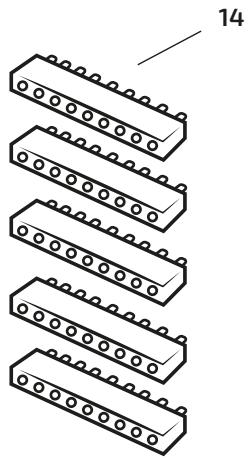

14. 49 screwdriver bits set

Box contents

• 4 V 1500 mAh CecoRaptor Perfect Work 360 Advance screwdriver
• 49 25 mm CRV screwdriver bits
• Magnetic connector
  – Instruction manual in different languages
• USB cord

2. BEFORE USE

• Take the product out of the box.
• Remove all packaging material. Save the original box.
• Make sure all parts and components are included and in good conditions. If any visible signs of damage are observed, contact the Cecotec official Technical Support Service immediately.
• Do not leave the packaging unattended. It could be dangerous for children. Dispose the packaging according to national legislation.

Warning due to electrical voltage

Electric shock due to inadequate or insufficient insulation. Check, before using it, that the device and its accessories are not damaged and work properly. If you detect any damage do not turn it on. Do not use the device if this or your hands are wet!

3. OPERATION

3.1 Battery charging

Warning

During the charging process the handle may heat up, it is normal.

Note

If the battery charges improperly, it could get damaged. Do not ever charge the battery in a room temperature below 10° C or over 40° C.

- The battery is supplied half-charged to prevent damage due to total discharge.

- The battery must be fully charged before using the device for the first time and whenever the battery level is low. The red light in the battery indicator informs of a low battery level.

- Do not use the appliance while the battery is charging.

- A new battery will develop its full ampere-hour capacity after 5 complete charge/discharge cycles.

Battery charging:

- Insert the plug of the micro USB - USB cord into the charging socket (11). Connect the other end of the micro USB - USB cable (13) to a USB power adapter - the LED indicators (3) will turn on.

- After charging (approx. 80 minutes), when all LEDs (3) are lit, unplug the micro USB - USB cord from the electric power supply and from the battery charging socket (11).

3.2 Setting the working direction

Use the direction selector (6) to set the rotation direction clockwise or counterclockwise, or place it in the centre to lock the tool.

Note

Do not change the direction (6) while the shaft is turning.

3.3 Bits assembling / substitution

- The screwdriver comes with a bit holder (1). Place the direction selector (6) in the centre (locked tool). Pull the clamping sleeve of the bit holder (1), overcoming the resistance of the spring.

- Place a bit in the bit holder. Check the bit assembling.

- To remove the bit, pull the clamping sleeve (1), overcoming the resistance of the spring and remove the bit from the bit holder (1).

Note

Do not substitute bits without placing the direction knob (6) in the centre position (blocked).

ENGLISH

3.4 Plugging and unplugging the device

It is recommended to use personal protective equipment during the screwdriver use.

- To turn on the tool:

1. Charge the battery.
2. Assemble the bit.
3. Press the on/off button (5).
4. To turn off the tool, release the on/off button (5).

Warning due to electrical voltage

Do not ever touch the plug with your hands wet.

1. Unplug the appliance.
2. Unplug the USB cord by pulling the connector, not the cord.

3. You must leave the device to cool down (if necessary).

4. Clean the device. Read the "Cleaning and Maintenance" section.

5. You must store the device following the "Storage" section.

3.5 Torque setting

• When turning the torque knob (2) to the selected position, the gear ratio (torque) is adjusted.
• The recommended torque depends on the type of bit and material used. The higher the setting number, the higher the torque.
  – Turn the torque adjustment knob (2) to the selected value.
• Start with a lower torque value.
• The device can be used as a soft drilling machine in wood or MDF boards if the torque knob (2) is set to this symbol.

3.6 Setting the twist grip

To set the twist grip (7):

1. Turn the direction selector (6) to the centre position (blocked).
2. Press the twist grip lock (4).
3. Turn the twist grip to the desired position until it is blocked.

3.7 Battery charge indicator Fig. 2

The screwdriver has a battery level indicator (3). The other 3 LEDs, with different colors, indicate the battery charge level. To check the level:

– Turn the direction selector (6) clockwise or counterclockwise.
- Press the on/off button. The LEDs will turn on, indicating the charge level.
– Fully charged battery: three lights on.
– Low battery: two lights on.
– Discharge battery: one light on.

3.8 LED worklight

When pressing the on/off button (5), the LED front worklight (8) will turn on.

3.9 Turning on the flashlight

To turn on and off the flashlight, press the on/off button placed in the central part of the LED diodes protector.

Note

To save energy, check the flashlight is off after working with it.

3.10 Recommendations for use

• Always choose the proper bit for the screw you are using. To avoid damaging the screw, use the largest possible bit size to fit the screw head.
• When screwing, press the switch (6) that turns the bit holder clockwise.
• When unscrewing, press the switch (6) that turns the bit holder counterclockwise.
• The screwdriver has a flashlight (9). If the workplace lighting is low, turn on the flashlight to better light up the workplace.
• Drill bits are not included in the kit. Use only hexagonal drill bits.
• The drilling function is only suitable to soft drill in wood and MDF boards.

4. CLEANING AND MAINTENANCE

Maintenance.

• You must store lithium ion batteries completely discharged. You may cause a total discharge and, as a result, it may break.
• While the device is not being used, you must store it following these instructions:
• The room temperature must be lower than 40° C.
• It must be dry, moisture-free and protected from cold and heat.
• You must store it in a place protected from dust and direct sunlight.

Pre-maintenance works

Warning due to electrical voltage

Only the Cecotec official Technical Support Service or specialized or authorised companies can carry out maintenance jobs and repairs that involve opening the casing.

Warning due to electrical voltage

1. Unplug the appliance.

2. Unplug the USB cord by pulling the connector, not

ENGLISH

the cord.

1. Allow the device to completely cool down.

Maintenance indications

Inside the device there are not any pieces the user must maintain or lubricate.

Cleaning

It is necessary to clean the device before and after using it.

Note

It is not necessary to lubricate it after the clean-up.

Warning due to electrical voltage

Liquids entering the casing may cause short circuits! Do not immerse the device in water or any other liquid. Make sure any type of liquid does not enter the casing.

• To clean the external parts of the device, use a clean, soft, lint-free cloth, it may be slightly moistened. Make sure moisture does not enter the casing or come into contact with any electric component.
• Do not use detergents, aggressive cleaning agents or solvents, like cleaning sprays, paint thinners, detergents containing alcohol or abrasive cleaners to moisten the cloth.
• To dry the device, use a clean, soft, lint-free cloth. And completely dry.
• Carefully clean the connection contacts.
• Protective devices, ventilation openings and the motor casing must always be kept free of dust and other contamination.

5. TRANSPORT AND STORAGE

Warning

You must transport and store the device properly, following the instructions in this manual.

Transport

Follow at all times the following transport instructions:

• First, unplug the device.
• Unplug the USB cord by pulling the connector, not the cord.
• Allow the appliance to cool down completely.
• To transport lithium ion batteries you must take into account the provisions for the transport of dangerous goods.

• You must take into account the following instructions to transport lithium ion batteries.

• The user can transport batteries by road without further requirements.

• To ship them through third parties (e.g. air transport or forwarding) you must take into account the requirements you must meet regarding packaging and signaling. The packaging must be made by an expert in dangerous goods.
• Before shipping the rechargeable battery, make sure the casing is in perfect conditions.
• You must also take into account additional national dispositions regarding shipping.

Storage

• First, unplug the device.
• Unplug the USB cord by pulling the connector, not the cord.
• Allow the appliance to cool down completely.
• Clean the device as explained in the "Cleaning" section.

6. TROUBLESHOOTING

• Only the Cecotec official Technical Support Service or a specialised company authorised by Cecotec can carry out maintenance jobs and repairs that involve handling or opening the casing.
• Cecotec has checked the correct operation of the device. Yet, if there is an issue, check as it follows:

The first time you start the machine there is smoke and a slight smell:

It is not a fault. Shortly after we start the machine, both the smoke and the smell will disappear.

The battery does not charge:

• You must check the USB cord connection.
• You must check there is electric power in the socket base.
• You must check both the cord and the power plug are not damaged.
• You must check the power supply (fuses, thermal-magnetic circuit breakers, RCDs, etc.).
• You must check the USB cord is not damaged. If you notice any damage, stop using it. Contact the official Technical Support Service of Cecotec.
• You must check there is no dirt in the USB cord connections. If there is, clean the dirt.
• The battery may be defective or suffer any damage. Contact the official Technical Support Service of Cecotec.

The device does not work:

• The battery level may be too low. Charge the battery.
• The USB cord connectors can be dirty. Clean them by removing the dirt remains.
• The USB cord is not connected. Check the connections.

Information

Wait for at least 10 minutes before you restart the device.

ENGLISH

Unusual noise

Torque value exceeded (protection against tool overload or damage to the bolt/bolt head). Screw and unscrew the bolt/bolt head with a manual screwdriver.

Note

After every maintenance and repairing work, wait for at least 3 minutes to restart the device.

If the device is not working properly, contact the Cecotec official Customer Service.

7. TECHNICAL SPECIFICATIONS

Product: 70017

Reference: CecoRaptor Perfect Work 360 Advance screwdriver

Nominal voltage: 4 V DC

Nominal speed: 200/min

Maximum torque: 4 Nm

Noise level (pressure) Lpa: 54.6 dB(A)

Kpa uncertainty: 3 dB(A)

Noise level (power) Lwa: 65.6 dB(A)

Kwa uncertainty: 3 dB(A)

Vibration emission Ah: 0.4 m/s ² (*)

K uncertainty: 1.5 m/s ⁴

Rechargeable battery

Type: lithium ion

Capacity: 4 V DC, 1500 mAh

* this value may vary depending on multiple factors and in exceptional situations it may exceed the specified value.

The vibrations generated by the device during prolonged works can cause numbness in the hands. To avoid vibrations during prolonged works:

• Use gloves made of soft materials.
• Stop working when you feel a sense of discomfort due to vibrations.
• Hold the device firmly to reduce vibrations.
• If the vibration level is excessively high, contact the Cecotec Technical Support Service.

The noise generated by the device during prolonged works can cause hearing disability. To prevent it:

• Use hearing protection equipment.
• Stop working when you feel a sense of discomfort due to noise.

- If the noise level is excessively high, contact the Cecotec Technical Support Service.

8. DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU and 2006/66/CE on Waste Electrical and Electronic Equipment (WEEE) specifies that old household electrical appliances must not be disposed of with the normal unsorted municipal waste. Old appliances must be collected separately, in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of

your obligation to dispose of the appliance correctly.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

The screwdriver, accessories, packaging and waste generated during the working process must be recycled in an environmentally friendly manner.

9. TECHNICAL SUPPORT AND WARRANTY

This product is under warranty for 2 years from the date of purchase, as long as the proof of purchase is submitted, the product is in perfect physical condition, and it has been given proper use, as explained in this instruction manual.

The warranty will not cover the following situations:

• The product has been used for purposes other than those intended for it, misused, beaten, exposed to moisture, immersed in liquid or corrosive substances, as well as any other fault attributable to the customer.
• If the product has been disassembled, modified, or repaired by persons not authorised by the Cecotec official Technical Support Service.
• Faults deriving from the normal wear and tear of its parts, due to use.

The warranty service covers every manufacturing defect of your appliance for 2 years, based on current legislation, except consumable parts. In the event of misuse, the warranty will not apply.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec official Technical Support Service at [phone].

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Img. 1

6. PROBLEEMOPLOSSING

Fig./Img./Abb./Afb./Rys./Obr.1

Fig./Img./Abb./Afb./Rys./Obr.1

Fig./Img./Abb./Afb./ Rys./Obr. 1

Fig./Img./Abb./Afb./Rys./Obr.2

www.cecotec.es

Cecotec Innovaciones S.L. C/ de la Pinadeta s/n, 46930 Quart de Poblet, Valencia (Spain)

PE01210920
