Product type	Steam iron
Brand	CLATRONIC
Model	DB 2731
Power supply	230 V ~ 50 Hz
Power	Not specified (estimated 1500-2000 W)
Dimensions (L x W x H)	Approximately 30 x 15 x 20 cm
Weight	Approximately 1.2 kg
Water tank	Removable, capacity not specified (estimated 200-300 ml)
Main functions	Dry ironing, steam ironing, steam jet, spray, vertical steam
Settings	Adjustable thermostat, steam control
Temperatures	Synthetic/silk (low), wool/artificial silk (medium), cotton/linen (high)
Safety	Hot soleplate, do not touch; unplug before filling; auto shut-off not specified
Maintenance and cleaning	Unplug, wipe exterior with dry cloth, clean soleplate with slightly damp cloth
Spare parts and repairability	24-month warranty, paid repair after warranty, wear parts not covered
Supplied accessories	Not specified (removable tank only)
Recommended water type	Pure or distilled water if hard water
Special instructions	Set steam control to 0 after use to prevent leakage
Standards	Compliant with European directives (electromagnetic compatibility, low voltage)

Frequently Asked Questions - DB 2731 CLATRONIC

How to fill the water tank of the CLATRONIC DB 2731 iron?

Press the unlock button (9) and pull the tank backward. Fill it with pure water up to the MAX level (or level 2), then push it until it clicks into place.

Can I use tap water in my DB 2731 iron?

Yes, but if your water is very hard, it is recommended to use distilled water to avoid limescale buildup.

How to adjust the ironing temperature?

Turn the adjustable thermostat (1) according to the fabric type: synthetic/silk (low), wool/artificial silk (medium), cotton/linen (high). The indicator light (2) turns off when the temperature is reached.

How to use the steam function?

Set the steam control (5) to the desired amount. For an extra steam jet, press the button (4). The steam function requires a high temperature (cotton/linen).

What to do if the iron does not produce steam?

Check that the water tank is full and the steam control is not set to 0. Also ensure the selected temperature is high enough (cotton/linen position).

How to clean the iron soleplate?

Unplug the appliance and let it cool down. Wipe the soleplate with a slightly damp cloth. Do not use abrasive products.

What safety precautions should be taken?

Do not touch the hot soleplate. Always unplug the iron before filling the tank or cleaning it. Do not leave the appliance unattended. Use a 230 V~50 Hz outlet.

Can the iron be used in a vertical position?

Yes, the steam jet function can be used vertically to de-wrinkle hanging clothes. Be careful of the hot soleplate.

What does the warranty of the DB 2731 iron cover?

The warranty is 24 months from the date of purchase. It covers material or manufacturing defects. Wear parts (such as soleplates) and damage due to incorrect use are not covered.

How to store the iron after use?

Unplug it, empty the water tank, turn the steam control to 0 to avoid leaks, and place it on its heel rest in a dry and safe place.

USER MANUAL DB 2731 CLATRONIC

Zelfreiniging (Self-Cleaning)

Autonettoyant (Self-Cleaning)

Autolimpieza (Self-Cleaning)

Autolimpeza (Self-Cleaning)

Autopolizia (Self-Cleaning)

Selvrensing (Self-Cleaning)

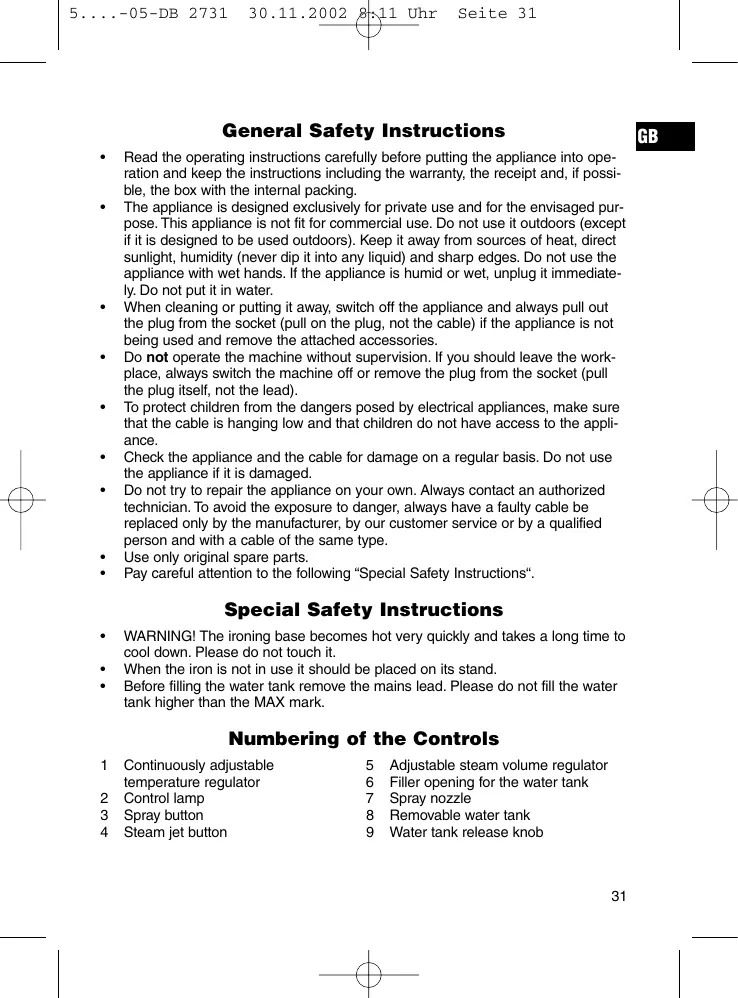

General Safety Instructions

GB

• Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).
• To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Special Safety Instructions

WARNING! The ironing base becomes hot very quickly and takes a long time to cool down. Please do not touch it.
- When the iron is not in use it should be placed on its stand.
- Before filling the water tank remove the mains lead. Please do not fill the water tank higher than the MAX mark.

Numbering of the Controls

1 Continuously adjustable temperature regulator
5 Adjustable steam volume regulator
2 Control lamp
6 Filler opening for the water tank
3 Spray button
7 Spray nozzle
4 Steam jet button
8 Removable water tank
9 Water tank release knob

GB

First Use of the Machine

• Clean the ironing base with a slightly damp cloth.
• Fill the water tank through the filler aperture with pure water (up to degree of hardness 2). If the tap water is harder please use distilled water.

Using the Machine

NOTE: Only clothes should to be ironed with this machine.

Removable Water Tank

• Press the release knob (9) and pull the water tank backwards. After the water tank has been filled, push it into the guide mechanism until it locks in place.

Ironing without steam (steam jet regulator on 0).

1. Place the iron on its stand.
2. Electrical connection

Make sure that the iron voltage (see name plate) and the line voltage match.

1. Sort out the garments according to their ironing temperatures. Start with the lower temperatures. It is set with the thermostat (1):

Synthetics, silk (low temperature)
Wool, artificial silk (medium temperature)
Cotton, linen (high temperature)

1. Only connect the machine to a properly installed safety socket, 230V / 50Hz
2. The control lamp (2) lights up. As soon as it shuts off, the set temperature is reached. Now you can start to iron.
3. Always pull the plug out of the socket after using the iron.

Steam Ironing ()

For this a high temperature is needed (cotton, linen). The quantity of steam can be regulated using the steam quantity regulator (5). Extra steam can be added with the steam jet function (4).

Spray Function (

In order to moisten a section to be ironed press the spray button (3).

When ironing at low temperatures please ensure that you reduce the amount of steam.

Vertical Steam

This can be used to produce a jet of steam in a vertical direction.

Self-Cleaning (Self-Cleaning)

Any lime residues which form in the sole plate are automatically removed due to the heat and steam pressure.

Cleaning and Storage

Always remove the mains lead before cleaning!
Clean the casing with a slightly damp cloth.
Clean the iron with a slightly humid cloth.
- After use, always turn the steam quantity regulator to the 0 position in order to prevent the contents of the tank from leaking out.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories *) ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

*) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.

Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

GB

PL

Öntisztlatas (Self-Cleaning)

Pexmm camoochnk (Self-Cleaning)

O6pa3OBaBuaaRcByTIORe hAKINb ydAJIeTcRc CamOCToTeIbH0, 6laOdaPra BbICOKo TEMpePaTyE nDaBLeHIO npa.

Yxo3a np6opom xpaheHne

• Пара чьков Всегда Вынимаite Вилку ИЗ розетки!
  -ПрotираітЕКорпусСлігкВьжноТгяпков.
• PódoowBy npotnpaite TaKke CnErKa BnJaxHoN TpIaNkoi.
  To6bI npedTbpaNTb bItKeHne BObI 36aKa, He 3abBaIe Bo3BpaauTe peryuPobky noaunnapa B noLoJeHne r0.

3To n3JeHHe npOJIO BCE Heo6xOdMbIe I aKTyAJIbHbIe IpoBepKn,
npEJIncaHbIe DnpeKTnBO CE, K npIM. Ha 3NeKtPOMarHHTyIO
COBMCTNMOCTb I COOTBeTcTBne Tpe6OBAHNM K Hn3KOBoJIbTHO JTexNHKe, OHO
6BJIo TAKke CCKOHCTpypOBOHaIO N NOCTPOeHO C yYeToM NOcIeDNHX Tpe6OBAHN
no TEXNHKe 6e3OnaCHOtn.

Mbl octablaem 3a c6oB npaBO Ha TexHnueckne n3MeHeHnI!

TapaHTnHoe o63aTeJIbCTBO

TapaHTmHbCpOK Ha TeppuTOpM PoCCmCKoΦeepaUyCTaHaBnBaETcIPOJIHOMOHyIMN PpeDCTaBUTeJIaMn.

Kaccobby uek yBJIeTcra rapaHTnHbIM TaIOHOM. Be3 HeRo HeBO3MOxeh 6ecIpaTHb peMOHT IIN 3aMeHa N3dEInr.

B cnlyae B03NKHOBXHn pnpTeHN3nO npaHTm, npdeJbARTE n3dJIeN B noJIHOKOMPJIeKTaUN, C npunHahJbHOY naKOBKO IN KACCObIM YekOM TROPORTOUKe, npdoabWse 3TO n3dJIeN.

RUS

*) DepekTbI npHaadJeXHcTeI He clyKAT pnpHIOH IJIa ABToMaTHeCKo3 aMeHbI bCeRo 13aeIaBn. B ToSTM cYuae no3bOHNHe HAM, NoxajyIcTa, no TograeIiNHH! Pa36bIte CTeKJHbIe nIoMAhBe I NaCTMaccBoIe DetAJIb BO3MeuAOTcI TOJbKO 3a DOnOpJHInTeJbHyIO ONlATy!

DepeKbI N3HaUNBaembIX npHnAInLeXHOCTe NIN TpyuNXCg DeTaei (HaPmep KOHTbIe TeKMOPTOB, CMEcTIeBbHBe KIOKN, PpNBOHbIe peMHNI, 3aNaChbIe NylbIe ynpabHeN, 3aNaChbIe 3y6bHe IeTKN, PInbHbIe NoIOTHa n T.D.I., a TAKKE cHCTKa, TEXoClykNABAHne INI N3aMeHa TpyuNXcQdTeaJIe H nonaiaot noI rapaHTnIO, INoGTOMy pOBoODaTcRA O TOndehnyO onlATy!

TapaHTnTepaTeTcPnBCKpbITINN3dEInNIOCTOpOHnIMNIuCaAMN.

Pocje rapaHTn

Iocne OKOHuaHncrepKa rapaHTm,peMOHT n3dJIeI ppon3BODITcra 3a onJIaTy, COOTBETCTBYUOUMM MaCTepCKHMn IINyHKTaMn CepBNCHO O6CnyKbHaHn.

Technische Daten

Modell: DB 2731
