USER MANUAL BT325S JABRA

© 2006 Jabra, GN Mobile A/S (GN Netcom A/S). All rights reserved. Jabra® is a registered trademark of GN Mobile A/S (GN Netcom A/S). All other trademarks included herein are the property of their respective owners. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by GN Mobile A/S (GN Netcom A/S) is under license. (Design and specifications subject to change without notice)

www.jabra.com

Bluetooth

Jabra BT325s

Bluetooth headset

User manual

Jabra

TOLL FREE Customer Contact Details:

Phone Numbers:

Belgique/Belgie 0080072252272

Danmark 70252272

1. Charge your Jabra BT325s.. 5
2. Turn on your Jabra BT325s 5
3. Pairing with a mobile phone 5
4. Wearing your Jabra BT325s.. 6
5. Listening to your music from your stand-alone music player.. 6
6. How to 6
7. Exchanging the Jabra headphones 7
8. What the lights mean 8
9. Troubleshooting and FAQ 8
10. Need more help? 9
11. Taking care of your headset 9
12. Warranty 10
13. Certification and safety approvals 11
14. Glossary 11

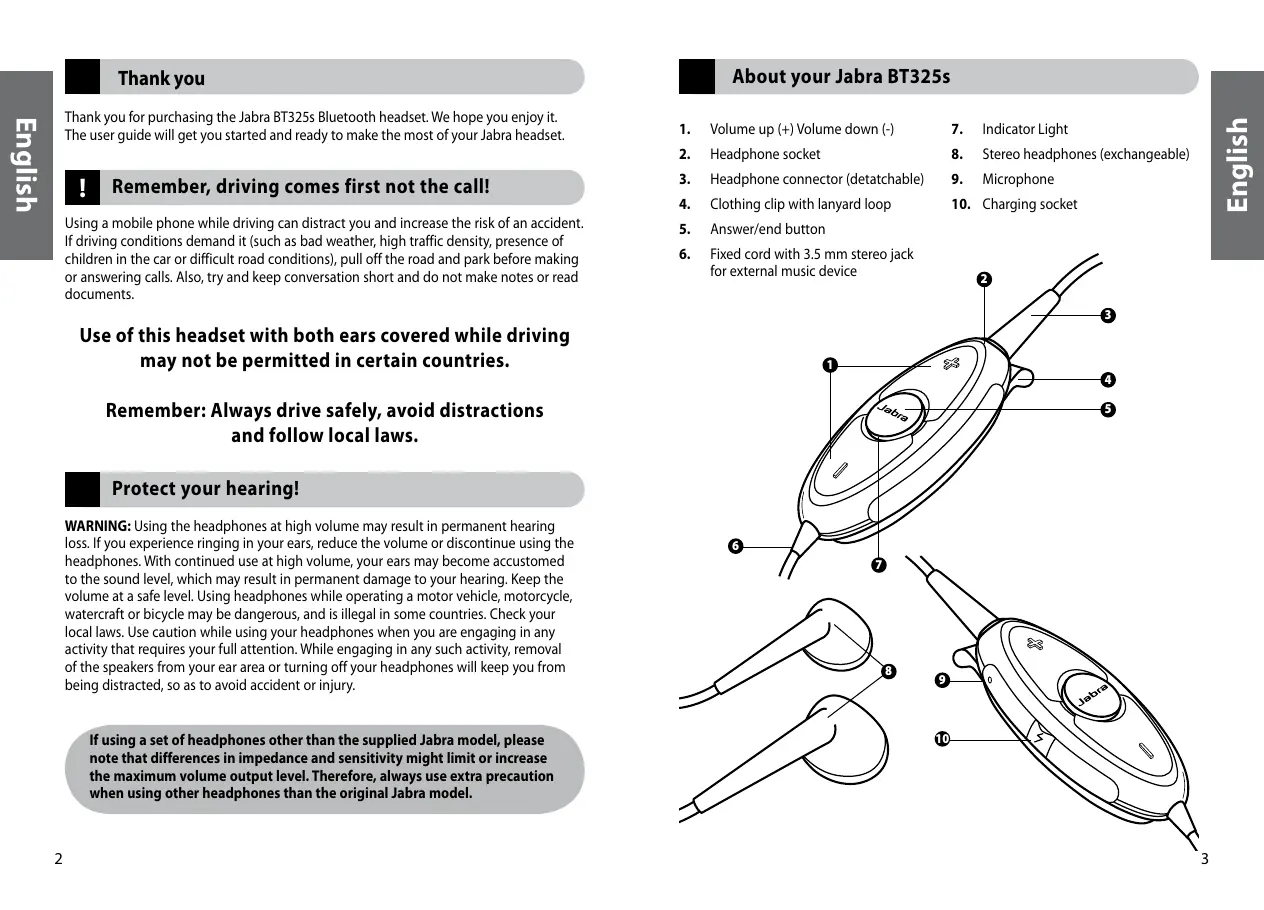

Thank you

Thank you for purchasing the Jabra BT325s Bluetooth headset. We hope you enjoy it. The user guide will get you started and ready to make the most of your Jabra headset.

Remember, driving comes first not the call!

Using a mobile phone while driving can distract you and increase the risk of an accident. If driving conditions demand it (such as bad weather, high traffic density, presence of children in the car or difficult road conditions), pull off the road and park before making or answering calls. Also, try and keep conversation short and do not make notes or read documents.

Use of this headset with both ears covered while driving may not be permitted in certain countries.

Remember: Always drive safely, avoid distractions and follow local laws.

Protect your hearing!

WARNING: Using the headphones at high volume may result in permanent hearing loss. If you experience ringing in your ears, reduce the volume or discontinue using the headphones. With continued use at high volume, your ears may become accustomed to the sound level, which may result in permanent damage to your hearing. Keep the volume at a safe level. Using headphones while operating a motor vehicle, motorcycle, watercraft or bicycle may be dangerous, and is illegal in some countries. Check your local laws. Use caution while using your headphones when you are engaging in any activity that requires your full attention. While engaging in any such activity, removal of the speakers from your ear area or turning off your headphones will keep you from being distracted, so as to avoid accident or injury.

If using a set of headphones other than the supplied Jabra model, please note that differences in impedance and sensitivity might limit or increase the maximum volume output level. Therefore, always use extra precaution when using other headphones than the original Jabra model.

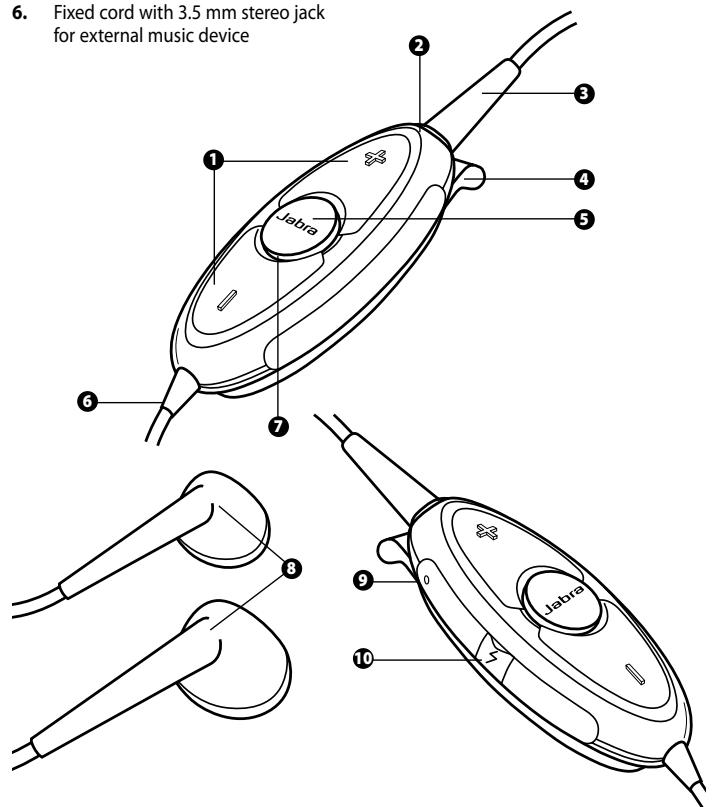

About your Jabra BT325s

1. Volume up (+) Volume down (-)
2. Headphone socket
3. Headphone connector (detachable)
4. Clothing clip with lanyard loop
5. Answer/end button

6. Fixed cord with 3.5mm stereo jack for external music device

7. Indicator Light

8. Stereo headphones (exchangeable)
9. Microphone
10. Charging socket

What your new headset can do

The Jabra BT325s lets you listen to your favorite stand-alone music player, while ensuring that you never miss a call from your Bluetooth enabled mobile phone.

Your Jabra BT325s lets you do all this, when acting as a Bluetooth headset:

• Pair with up to 8 devices
  Answer calls
  End calls
  Reject calls*
  Voice dialing*
  Last number redialing*
  Call waiting*
• Place call on hold*

* Phone dependent

Please note that all buttons on the Bluetooth device are dedicated to controlling the above functionality.

Specifications:

• Talk time up to 8 hours/standby time up to 240 hours
• Rechargeable battery with charging option from AC power supply
• Weighs less than 40 grams incl. the original Jabra headphones
• Operating range up to 33 feet (approx. 10 meters)
• Handsfree (default) and Headset Bluetooth profiles
• Bluetooth specification 1.2 (See glossary page 11)
• IPx2 (The Jabra BT325s can withstand a short rain shower)

Please note that your Jabra BT325s can withstand a short rain shower but is not waterproof and cannot be submerged. If your device gets wet, it should be wiped clean of any traces of water in order to protect it from potential damage.

GETTING STARTED

The Jabra BT325s is easy to operate. All buttons are dedicated to control your mobile phone calls, and the buttons perform different functions depending on how long you press them:

Instruction:	Duration of press:
Tap	Press briefly and let go
Press	Approx: 1 second
Press and hold	Approx: 5 seconds

1 Charge your Jabra BT325s

Fully charge your Jabra BT325s, before you start using it. Use only the chargers provided in the box - do not use chargers from any other devices as this might damage your Jabra BT325s.

Connect the Jabra BT325s as shown in fig. 2. to the AC power supply to charge from a power socket. When the indicator lights are solid red, your headset is charging. When the lights turn to green, the headset is fully charged.

2 Turn on your Jabra BT325s

• Press the answer/end button to turn on the Jabra BT325s - when the device is on the LED indicator light will flash four times.
• Press and hold the answer/end button to turn the device off

Note that the Jabra BT325s can still play music from the stand-alone music player even though the Jabra BT325s is turned off.

3 Pairing with a mobile phone

Before using the Jabra BT325s with a mobile phone, you must first pair it.

1. Put the Jabra BT325s into pairing mode:

Make sure the headset is turned off.
- Press and hold the answer/end button until the indicator light is solid blue.

1. Set your mobile phone to 'discover' the Jabra BT325s

Follow your phone's instruction guide. This usually involves going to a 'set up' 'connect' or 'Bluetooth' menu on your phone and selecting the option to discover or add a Bluetooth device. (See example from typical mobile phone in fig. 4)

1. Your phone will find the Jabra BT325s

Your phone will ask if you want to pair with it, accept this with 'yes' or 'ok' and confirm with the passkey or PIN=0000 (4 zero's)

Your phone will confirm when pairing is complete. In case of unsuccessful pairing repeat steps 1 to 3.

4

Wearing your Jabra BT325s

Your Jabra BT325s is designed to be comfortably worn using the integrated clothing clip or lanyard loop (lanyard not included). The microphone is integrated on the top left side of the device (when viewing the Jabra BT325s as shown in figure 3. A). Please take this into account when positioning the main device to ensure a clear pickup of your voice. (See fig. 3. B)

5

Listening to your music from your stand-alone music player

The Jabra BT325s realizes its full potential when used in conjunction with a stand-alone music player. This could be an MP3-player, a portable media center or any other external music device, featuring a standard 3.5mm stereo connector.

To use the Jabra BT325s with your music player, plug the 3.5 ~mm jack into the headphone socket on your music player. You are now able to listen to your favorite tunes whilst ensuring that you will never miss a call from your Bluetooth enabled mobile phone.

Please note that all controls on the Jabra BT325s are dedicated for controlling your mobile phone calls. Controlling your music, ex. start/stop, skip track forward/backward, volume etc., must be done from your music device.

The Jabra BT325s is compatible with most stand-alone music players.

6

How to....

Listen to music

Plug in the 3.5mm fixed cord into your stand-alone music device. The Jabra BT325s does not need to be turned on for listening to music.

You can also unplug the headphones and insert them directly into the music device as regular headphones.

Answer a call

Tap the answer/end button on your Jabra BT325s to answer a call when phone is ringing. Music will fade automatically when an incoming call comes in.

End a call

Tap the answer/end button to end an active call. Music will continue automatically after the call.

Reject a call*

Press the answer/end button when the phone rings to reject an incoming call.

Depending on your phone settings, the person who called you will either be forwarded to voice mail or hear the busy signal.

Make a call*

When you make a call from your mobile phone, music will fade and the call will (subject to phone settings) automatically be transferred to the Jabra BT325s when connected.

Activate voice dialing*

Tap the answer end button and speak the name. For best results, please record the voice-dialing tag when you are wearing the Jabra BT325s. Please consult your phone's user manual for more info on using this feature.

Redial last number*

Press the answer end button.

Call waiting and placing a call on hold*

This lets you put a call on hold during conversation to answer an incoming call.

• Press the answer/end button once to put the active call on hold and answer the incoming call
  Press the answer/end button to switch between the two calls
• Tap the answer/end button to end the active conversation

Adjust sound and volume

Press the volume up or down (+ or -) to adjust the volume. (See fig. 1)

*Phone dependent

7

Exchanging the Jabra headphones

In order to exchange your supplied Jabra headphones with your favourite set, simply plug your headphone jack into the headphone socket on the Jabra BT325s.

If using another set of headphones than the supplied Jabra model, please note that differences in impedance and sensitivity might limit or increase the maximum volume output level. An impedance level of 16 Ohm is recommended for the best performance. However, always use extra precaution when using another set of headphones than the original Jabra model.

8 What the lights mean

What you see

What is the mean about your headset

Flashing blue light

Flashing every second: active on a call

Flashing blue light

Flashing every three seconds: in standby mode

Flashing red light

Running low on battery

Solid red light

Charging

Solid green light

Fully charged

Solid blue light

In pairing mode - see section 3

9 Troubleshooting and FAQ

I hear crackling noises

Bluetooth is a radio technology which means it is sensitive to objects between the headset and the device it is connected to. You should be able to have a bout 10 meters (33 feet) of distance between the headset and the connected device when there are no major objects in the way (Walls etc.).

I cannot hear the phone call in the headset

Increase the volume on the BT325s.

Ensure that the headset is paired to your phone.

Make sure your phone is connected to the headset in the phone's menu or by tapping the answer/end button on the BT325s.

I have pairing problems

You may have deleted your pairing connection in your mobile phone - follow the pairing instructions in section 3.

I cannot use Reject call, call on hold, redial or voice dialing

These features are dependent on your phone supporting Bluetooth handsfree profile, please consult your phone's manual for details.

I cannot hear music in the headset

Increase the volume on your music device.

Ensure that the headphones are connected properly to the BT325s

Make sure the BT325s are connected to the 3.5mm port on the music device

Make sure that the BT325s is charged (it does not need to be turned on, but should be charged)

If the BT325s has run out of batteries and you are not able to charge, you can connect the headphones directly to the music device.

I cannot control the music volume through the volume control on the BT325s

The volume control and answer/end button are dedicated to phone call controlling.

I want music to pause when I am on a call

Music will continue playing when you are on a phone call. If you want it to pause, please use pause/stop on your music device.

10 Need more help?

Jabra offers Customer support online at www.jabra.com or you can see the inside cover for the support details for your country.

11 Taking care of your headset

Always store the Jabra BT325s with the power off and safely protected.
- Avoid storage at extreme temperatures (above 45^ / 113^ - including direct sunlight or below -10^ / 14^ ). This can shorten battery life and may affect operation. High temperatures may also degrade performance.
- If exposed to water or other liquids, the device should be wiped clean from any traces of water.

12 Warranty

Jabra (GN Netcom) warrants this product against all defects in material and workmanship for a period of two years from the date of original purchase. The conditions of this warranty and our responsibilities under this warranty are as follows:

• The warranty is limited to the original purchaser
• A copy of your receipt or other proof of purchase is required
• The warranty is void if the serial number, date code label or product label is removed, or if the product has been subject to physical abuse, improper installation, modification, or repair by unauthorized third parties
• The responsibility of Jabra (GN Netcom) products shall be limited to the repair or replacement of the product at its sole discretion
• Any implied warranty on Jabra (GN Netcom) products is limited to two years from the date of purchase on all parts, including any cords and connectors
• Specifically exempt from any warranty are limited-life consumable components subject to normal wear and tear, such as microphone windscreens, ear cushions, decorative finishes, batteries, and other accessories
• Jabra (GN Netcom) is not liable for any incidental or consequential damages arising from the use or misuse of any Jabra (GN Netcom) product
• This warranty gives you specific rights and you may have other rights which vary from area to area
• Unless otherwise instructed in the User Manual, the user may not, under any circumstances, attempt to perform service, adjustments or repairs on this unit, whether in or out of warranty. It must be returned to the purchase point, factory or authorized service agency for all such work
• Jabra (GN Netcom) will not assume any responsibility for any loss or damage incurred in shipping. Any repair work on Jabra (GN Netcom) products by unauthorized third parties voids any warranty

13 Certification and safety approvals

CE

This product is CE marked according to the provisions of the R & TTE Directive (99/5/EC). Hereby, GN Netcom, declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

For further information please consult http://www.jabra.com

Within the EU this device is intended to be used in Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, The Netherlands, United Kingdom, and within EFTA in Iceland, Norway and Switzerland.

Bluetooth

The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by GN Netcom is under license. Other trademarks and trade names are those of their respective owners.

14 Glossary

1 Bluetooth is a radio technology that connects devices, such as mobile phones and headsets, without wires or cords over a short distance (approx. 30 feet). Get more information at www/bluetooth.com.
2 Bluetooth profiles are the different ways that Bluetooth devices communicate with other devices. Bluetooth phones support either the headset profile, the hands-free profile or both. In order to support a certain profile, a phone manufacturer must implement certain mandatory features within the phone's software.
3 Pairing creates a unique and encrypted link between two Bluetooth devices and lets them communicate with each other. Bluetooth devices will not work if the devices have not been paired.
4 Passkey or PIN is a code that you enter on your mobile phone to pair it with your Jabra BT325s. This makes your phone and the Jabra BT325s recognize each other and automatically work together.
5 Standby mode is when the Jabra BT325s is passively waiting for a call. When you 'end' a call on your mobile phone, the headset goes into standby mode.
