GO 660 - Wireless Earbuds JABRA - Free user manual and instructions

USER MANUAL GO 660 JABRA

© 2010 GN Netcom A/S (North America: GN Netcom US, Inc.). All rights reserved. Jabra® is a registered trademark of GN Netcom A/S. All other trademarks included herein are the property of their respective owners. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by GN Netcom A/S is under license. (Design and specifications subject to change without notice).

MADE IN CHINA TYPE: BTS530 and END001W

Bluetooth

www.jabra.com

Jabra GO™ 660 Bluetooth® Headset System

Quick Start Manual

www.jabra.com

NEED MORE HELP?

Why wait? Go to our support page and find all the answers you're looking for 24-hours a day. www.jabra.com

TOLL FREE Customer Contact Details:

EMEA CUSTOMER CONTACT INFORMATION

Country:

United Kingdom

Telephone:

[phone]

Email:

[e-mail]

France

[phone]

[e-mail]

Deutschland

[phone]

[e-mail]

Espana

[phone]

italia

[phone]

Denmark

[phone]

[e-mail]

Sverige

[phone]

[e-mail]

Norge

[phone]

[e-mail]

Suomi

[phone]

[e-mail]

Russia

1. 实验原理

[e-mail]

Poland

[phone]/0801800550

[e-mail]

Czech Republic

[phone]

[e-mail]

Nederland

[phone]

[e-mail]

Belgique/Belgium

[phone]

[e-mail]

Luxemborg

[phone]

[e-mail]

Österreich

[phone]

[e-mail]

Middle East/Africa

1. 实验原理

[e-mail]

USA AND CANADA CUSTOMER CONTACT INFORMATION

Country:

Telephone:

USA

1-800-826-4656

Canada

1-800-489-4199

E-mail:

Technical support: [e-mail]

Information: [e-mail]

Web:

www.jabra.com (for the latest support info and online User Manuals)

Asia Pacific customer contact information

Country:

Telephone:

Australia

1-800-636-086 (local distributor)

China

[phone]

Hong Kong

800-968-265 (Toll free)

Indonesia

001-803-852-7664

Japan

[phone]

Malaysia

1800-812-160 (Toll free)

New Zealand

0800-447-982 (Toll free)

Singapore

800-860-0019 (Toll free)

Taiwar

0080-186-3013 (Toll free)

India

000-800-852-1185 (Toll free)

Philippine

[phone]

Email:

[e-mail]

Web:

www.jabra.com (for the latest support info and online User Manuals)

GN Netcom A/S · Lautrupbjerg 7 · 2750 Ballerup · Denmark

For more information please visit

www.jabra.com

2

3

4

5

6

6a

6b

7

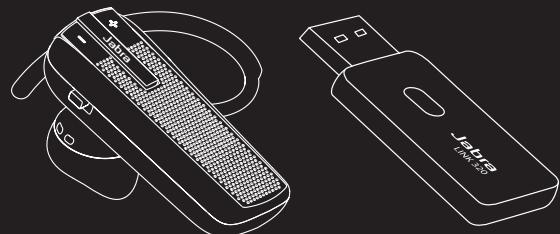

EN Jabra GO™ 660 consist of Jabra EXTREME Headset and Jabra LINK™ 320 BT USB Adapter. NB: Chapter headings and illustrations share the same number to aid understanding.
FR Jabra GO™ 660 comprehend l'Oreillette
Jabra EXTREME et l'Adaptateur
Jabra LINK™ 320 BT USB.
Remarque: Les mêmes numeros pour les têtes de chapitre et les illustrations sont utilisés pour raison de compréhension.
DE Jabra GO^TM 660 umfasst das Jabra EXTREME Headset und den Jabra LINKTM 320 Bluetooth-USB -Adapter. Anmerkung: Kapitelüberschriften und Abbildungen verfügen über die gleiche Nummer, um das Verständnis zu erleihern.
ES Jabra GO™ 660 se compone del auricular Jabra EXTREY e del adaptorato Jabra LINK™ 320 BT USB. NB:Los encabezados de los capitulos y las ilustraciones comparen la mesma numeroacion para poderla comprension.

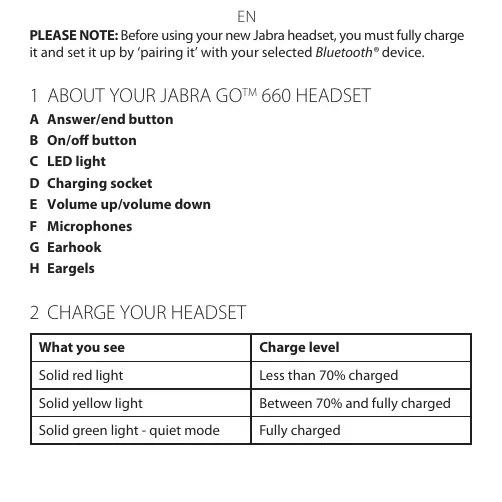

PLEASE NOTE: Before using your new Jabra headset, you must fully charge it and set it up by 'pairing it' with your selected Bluetooth® device.

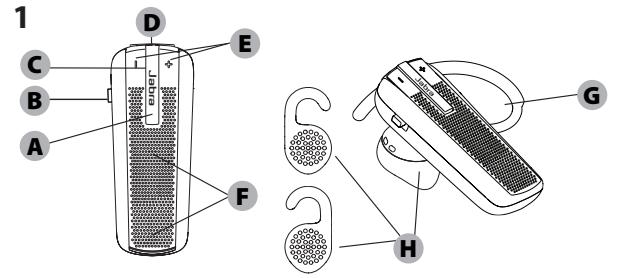

1 ABOUT YOUR JABRA GO™ 660 HEADSET

A Answer/end button
B On/off button
C LED light
D Charging socket
E Volume up/volume down
F Microphones
G Earhook
H Eargels

What you see	Charge level
Solid red light	Less than 70% charged
Solid yellow light	Between 70% and fully charged
Solid green light - quiet mode	Fully charged

EN

3 TURNING YOUR HEADSET ON AND OFF

Slide on/off button to turn the headset on or off. The LED light will turn green when the headset is on.

4 PAIRING THE HEADSET WITH YOUR PHONE

1. Pairing:

Jabra GO™ 660 Headset can be paired with up to 8 different Bluetooth® devices and connected to two of them at the same time. This gives you the freedom to operate e.g. both of your mobile phones with the same headset.

Turn headset on. Press and hold answer/end button until solid blue light comes on.

1. Activate Bluetooth® on your phone.
2. Search for Bluetooth® devices and select Jabra EXTREME.
3. Press 'OK' on the phone and confirm with PIN code 0000 (4 zeros).

EN

5 USING YOUR HEADSET

Answer a call

• Tap (less than 1 sec) the answer/end button on your headset to answer a call.

End a call

• Tap the answer/end button to end an active call.

Make a call

• The call will automatically transfer to your headset*. If it does not, please tap the answer/end button on your headset.

Reject a call *

• Press (1-3 sec) the answer/end button.

Activate voice dialing *

• Press the answer/end button. For best results, record the voice-dialing tag through your headset.

Redial last number \*

• Double tap the answer/end button when the headset is on and not used.

Adjust sound and volume *

• Tap the volume up or down to adjust the volume.

EN

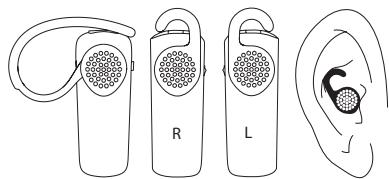

6 WEARING STYLE

Wear the Jabra GOTM 660 Headset with or without an earhook.

6a. To wear with earhook, please attach for right or left ear wearing.
6b. To wear without earhook please use the Ultimate-fit Eargels™.

7 JABRA LINK 320 ADAPTER

In order to use the advanced EHS functions (pick up a call on the headset, last number redial etc for the many Jabra supported softphones) please install Jabra PC Suite on your PC.

PC Suite can be found at www.jabra.com/pcsuite

A. Multifunction Button
B. LED Indicator Blue/Green/Red

EN

8 PAIRING THE HEADSET WITH YOUR ADAPTER

The headset and adapter come pre-paired at the factory. Should this not work please follow the steps below:

1. Insert the adapter to the PC.
2. Press the Multifunction Button on the adapter until the solid blue light appears.
3. Turn headset on - press and hold answer/end button until the solid blue light appears.
4. Both adapter and headset flash to indicate successful pairing.

Visit www.jabra.com/GO660 for full user manual

FR
