Product type	Air-to-water heat pump
Brand	PANASONIC
Model	WHSQC16H9E8
Heating capacity	16 kW
Power supply	230 V / 50 Hz
Refrigerant	R32
Dimensions (L x H x D)	approximately 900 x 600 x 800 mm
Weight	approximately 80 kg
Remote control type	Wired remote control with LCD screen
Main functions	Heating, cooling, domestic hot water (DHW) production
Backup heater	Yes, for DHW and heating
Silent mode	Yes, with level adjustment (1-6)
Turbo heating	Yes, to reach the setpoint faster
Weekly programming	Yes, up to 6 programs per day
Forced defrost	Yes, manual to defrost the pipes
Remote lock	Yes, by PIN code (4 digits)
Error code management	Yes, with initialization function
Maintenance	Clean the filter regularly; call a professional for annual maintenance
Repairability	Spare parts available through Panasonic authorized network
Manual	Available for free download at notice-facile.com

Frequently Asked Questions - WHSQC16H9E8 PANASONIC

How to use the quick menu on the remote control?

Press the Menu key, then use the ▲▼◀▶ keys to navigate. Press ▼ to enable/disable the selected option. To return to the main screen, press the Back key.

How to activate the Force DHW backup mode?

In the quick menu, select the Forced DHW backup icon. Press ▼ to activate it. The icon indicates the status (activated/deactivated). Note: this mode is deactivated if Forced heating is activated.

How to set the silent mode?

From the quick menu, select Silent mode. Choose Yes, then select the silence program (1 to 6) and set the hour and minutes. Confirm with ▼. The silence level can be adjusted.

How to program the weekly heating?

In the quick menu, select Weekly prog. Choose Clock programming. Select the day, then the program (1-6). Set the start time, mode (On/Off) and temperature for each zone. Confirm with ▼.

How to lock the remote control?

In the quick menu, select Remote lock. Press ▼, then choose Yes. The remote control is locked. To unlock, press any key and enter the 4-digit PIN code (default 0000).

What to do if an error code is displayed?

Use the Error code initialization function in the quick menu. Make sure all units are stopped, then select this option to restore previous settings. If the error persists, contact a professional.

How to activate turbo heating?

From the quick menu, select Turbo heating. Press ▼ to activate it. The system will operate at full power to reach the set temperature faster. It deactivates automatically after a certain time.

How to force defrost of the pipes?

In the quick menu, choose Forced defrost. Press ▼ to confirm. A message 'Request accepted' is displayed. The defrost is started manually to prevent pipe freezing.

How to reset the remote control password?

On the OFF screen, hold down the ▲, ▼ and Back keys for 5 seconds. The screen displays 'Reset'. Select 'Reset' to reset the code to 0000 and unlock the remote control.

Where to download the full manual?

The full manual in PDF format is available for free on notice-facile.com. You can download it directly or request a translation by email.

USER MANUAL WHSQC16H9E8 PANASONIC

Air-to-Water Heatpump

Model No.

Indoor Unit

WH-SQC09H3E8

WH-SQC12H9E8

WH-SQC16H9E8

Outdoor Unit

WH-UQ09HE8

WH-UQ12HE8

WH-UQ16HE8

Panasonic

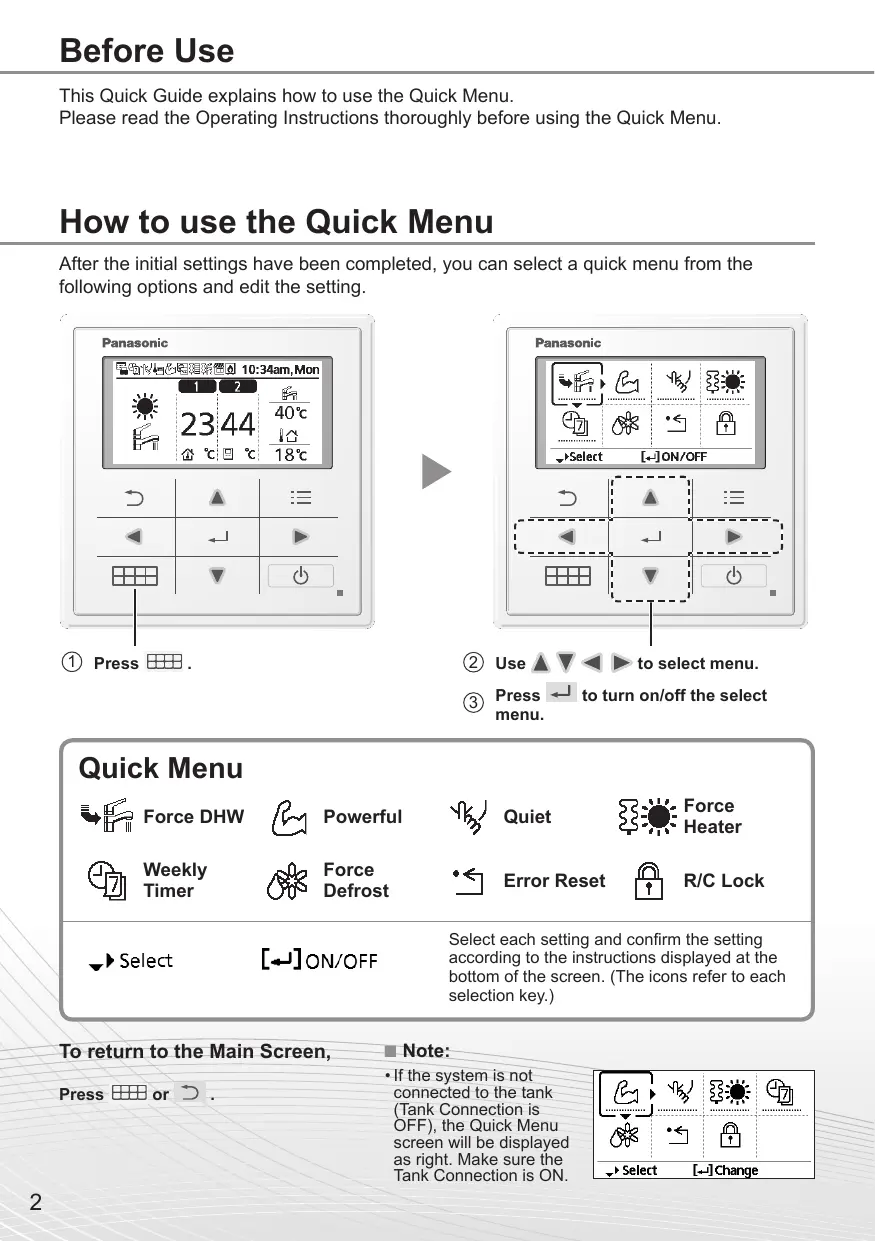

Quick Menu Guide

Air-to-Water Heatpump

2-7

English

Please read the Operating Instructions thoroughly before using the Quick Menu.

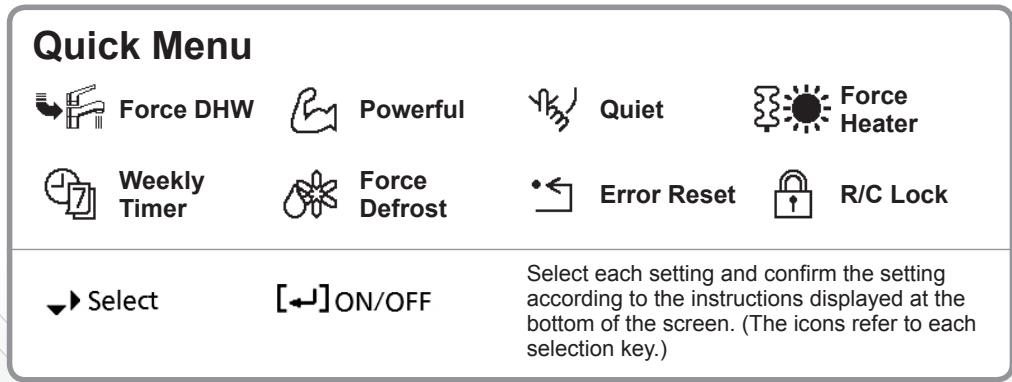

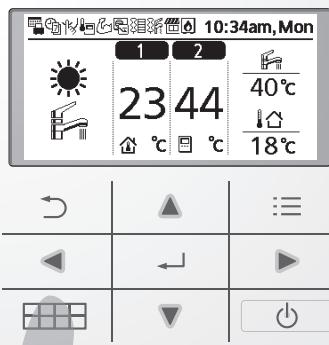

How to use the Quick Menu

After the initial settings have been completed, you can select a quick menu from the following options and edit the setting.

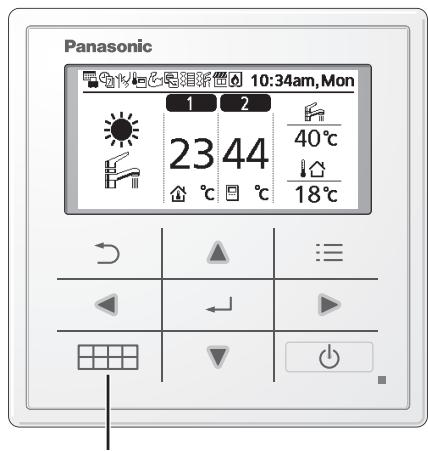

① Press .

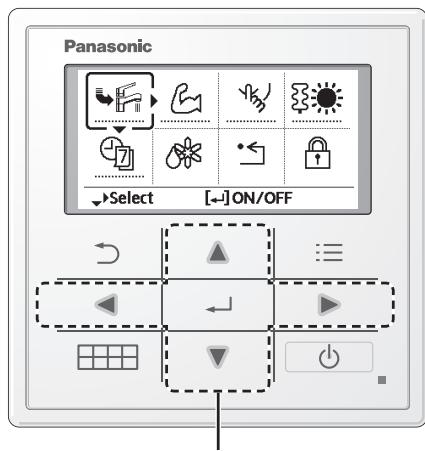

② Use ▲ ▼ ▶ ▷ to select menu.
③ Press to turn on/off the select menu.

To return to the Main Screen,

Press or

Note:

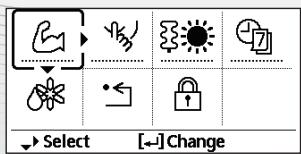

• If the system is not connected to the tank (Tank Connection is OFF), the Quick Menu screen will be displayed as right. Make sure the Tank Connection is ON.

Notes on operation icon

Example:

Operation icon indicate with "..........." = OFF

Operation icon indicate with "——" = ON

Force DHW

Select this icon to turn the Tank DHW on or off.

Press to confirm your selection.

• Force DHW is turned off.
• Force DHW is turned on.

Note:

• Force DHW is disabled when Force Heater is turned on.
• When Force DHW is turned off, operation & mode should change back to the previous memorized status.

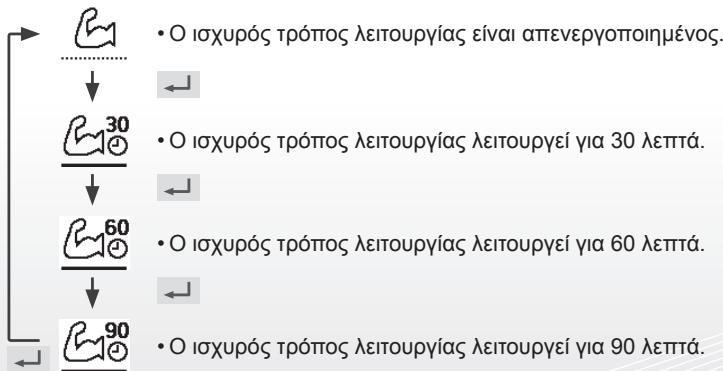

Powerful

Select this icon to operate the heating/cooling system powerfully.

Press to confirm your selection.

(The powerful operation starts approximately 1 minute after is pressed.)

Note:

• Powerful is disabled when operation is turned OFF.

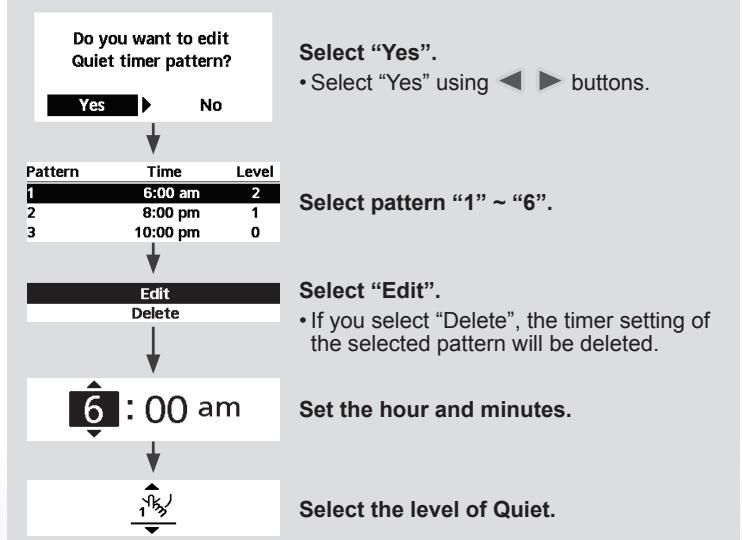

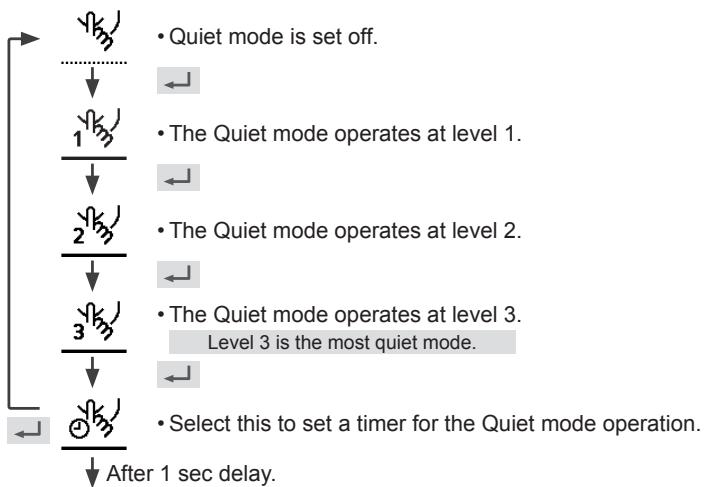

Quiet

Select this icon to operate quietly.

Press to confirm your selection.

(The quiet operation starts approximately 1 minute after is pressed.)

Note:

• If the time overlaps with another pattern, "Set time is overlapped!" will appear on the screen.

Force Heater

Select to force the Heater on.

Press to confirm your selection.

(The Force Heater mode starts approximately 1 minute after is pressed.)

• Force Heater is turned off.

• Force Heater is turned on.

Note:

• Force Heater is disabled whenever operation is already on and 'Disabled due to operation ON!' will be displayed.

Disabled due to operation ON!

[Close

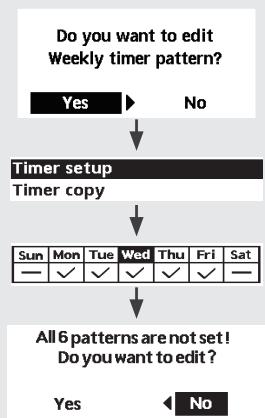

Weekly Timer

Select this icon to delete (cancel) or change the pre-set Weekly Timer.

Press to confirm your selection.

Select "Yes".

• If you select "No", the screen will return to the Main Screen.

• Timer setup: Select Timer setup to edit the Weekly Timer.
• Timer copy: Select to copy a timer setting.

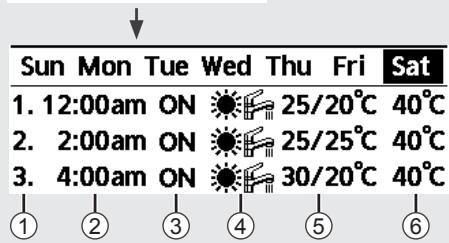

[Example of a Timer setup]

Select the day(s) which you wish to edit using buttons.

If all 6 patterns are not preset, this screen will be displayed.

① Select pattern “1” ~ “6”.
② Set the hour and minutes of the Timer.
③ Select ON/OFF of the Timer.
④ Select the operation mode.

A/A/ // // //

• Select mode using buttons.

⑤ Set the temperature for both Zone 1 and 2 (if your system has the 2-Zone setting).

Saturday: Pattern 1: Set Temp
Zone1		Zone2
ON	25°C	ON	25°C

⑥ Set the Tank temperature.

Note:

• Timer is disabled when Force Heater is turned on or Heat-Cool SW is enabled.
  If you have preset the Weekly Timer on 2 zones, you must repeat the same procedure with Zone 2.

Force Defrost

Select to defrost the frozen pipes.

Press to confirm your selection.

(When the mode is accepted, below screen will be displayed.)

Request accepted!

[ ] Close

Error Reset

Select to restore the previous settings when error has occurred.

Press to confirm your selection.

(When the mode has been accepted, below screen will be displayed.)

Request accepted!

[3] Close

• Make sure all units are turned off before selecting this mode which restores the whole system to the previous settings.

R/C Lock

Select to lock the Remote Controller.

Press to confirm your selection.

(When the mode has been accepted, below screen will be displayed.)

Do you want to lock remote control?

Yes No

Select "Yes".

(The Main Screen will be locked.)

• If "No" is selected, the screen will return to the Main Screen.

To unlock the Remote Controller

Press any key.

(When the mode has been accepted, below screen will be displayed.)

Enter any 4 digits of number (if the number is correct, the screen will be unlocked).

To reset forgotten password (under operation OFF screen)

Press , and continuously for 5 seconds.

(When the mode has been accepted, below screen will be displayed.)

Select "Reset".

1 Password is reset to 0000

2.Remote control is unlocked

(The screen will be off after 3 seconds.)

Set time is overlapped!

[Close

Selecteer "Yes".

Disabled due to operation ON!

[Close

Week-timer

Sun Mon Tue Wed Thu Fri Sat

1. 12:00am ON 25/20°C 40°C
2. 2:00am ON 25/25°C 40°C
3. 4:00am ON 30/20°C 40°C

① Selecteer schema "1" ~ "6".
② Stel de uren en Minutes van de timer in.
③ Selecteer AAN/UIT van de timer.
④ Selecteer de gewenste stand.

Do you want to lock remote control?

Yes

No

1. Password is reset to 0000
2. Remote control is unlocked

(HIOxUpH 5EIToupyia EKIVa TEPiTou 1 AOToPnOeIto

nueiomega:

• O ioxupoc troptos eitoupyiaac attevepyoioi etai otav n eitoupyia evai ANENEPTOIOIHMENH.

Aθόρuβο

EπIεξTe auroTo Eikovidio yia αθópuβn λειToupyia.

PntnoTe yia va eTaebaioe Tnv Etnioyn oC.

Disabled due to operation ON!

[Close

Saturday: Pattern 1: Set Temp
Zone1		Zone2
ON	25°C	ON	25°C	45°C

Do you want to lock remote control?

Yes No

ETIIAEETE "Yes".

1 Password is reset to 0000

2.Remote control is unlocked

Disabled due to operation ON!

[Close

Saturday: Pattern 1: Set Temp
Zone1		Zone2
ON	25°C	ON	25°C

⑥ Tank sicutligini ayarlayin.

Not:

Kraftfull inaktiveras nar driften stangs AV.

Tystläge

Väljennaikonforattdravystyst.

Disabled due to operation ON!

[Close

Viikkoajastin

Sun Mon Tue Wed Thu Fri Sat

1. 12:00am ON 25/20°C 40°C
2. 2:00am ON 25/25°C 40°C
3. 4:00am ON 30/20°C 40°C

Saturday: Pattern 1: Set Temp
Zone1		Zone2
ON	25°C	ON	25°C

⑥ Aseta sällön lämpötila.

Huomautus:

Do you want to lock remote control?

Yes No

Vaelg dette ikon for at stille drift.
