WHSDC16H6E5 - Heat pump PANASONIC - Free user manual and instructions

Product type	Air-to-water heat pump
Brand	PANASONIC
Model	WHSDC16H6E5
Nominal heating capacity	16 kW
Power supply	230 V ~ 50 Hz
Refrigerant	R32
Outdoor unit dimensions (W x H x D)	900 x 750 x 350 mm
Outdoor unit weight	80 kg
Sound level (outdoor unit)	~45 dB(A)
Control panel	Remote control with LCD display
Main functions	Quick menu, weekly programming, DHW boost, turbo heating, silent mode, defrost forcing, remote control lock
Safety	PIN code lock, error code initialization
Maintenance and cleaning	Periodic filter cleaning (recommended)
Spare parts and repairability	Available upon request
Energy class (heating)	A+

Frequently Asked Questions - WHSDC16H6E5 PANASONIC

How to use the quick menu?

Press the menu button, use the ▲▼▲▷ arrows to select an option, then press ↓ to enable/disable. To return to the main screen, press the Back button.

How to program weekly heating?

In the quick menu, select 'Weekly prog', then choose 'Clock programming'. Select the day, program (1 to 6), time, on/off mode, zone 1 and zone 2 temperature if applicable. Confirm with ↓.

How to activate DHW boost (domestic hot water)?

In the quick menu, select the 'Force DHW backup' icon. Press ↓ to activate. DHW will operate in priority until manual deactivation.

How to start turbo heating?

Select the 'Turbo Heating' icon in the quick menu and press ↓. The system will reach the setpoint faster. Active mode is displayed on the screen.

How to activate silent mode?

Select the 'Silent mode' icon in the quick menu and press ↓. Choose the silence level (1 to 6) and confirm. Operation becomes quieter.

How to lock the remote control?

In the quick menu, select 'Remote lock' and press ↓. Choose 'Yes' to lock. To unlock, press any key, enter the 4-digit PIN code. By default, the code is 0000.

Forgotten password, how to reset it?

On the stop screen, press simultaneously the ▲, ▼ and ▷ buttons for 5 seconds. Select 'Reset'. The code is reset to 0000 and the remote control is unlocked.

How to force pipe defrosting?

In the quick menu, select 'Force defrost' and press ↓. A request 'Accepted' is displayed. Defrost starts automatically.

How to initialize error codes?

Make sure all units are stopped. In the quick menu, select 'Error codes initialization' and press ↓. The system restores previous settings.

What to do if the screen displays 'Set time overlaps'?

This means that two weekly programs have overlapping schedules. Modify the times of the programs concerned to avoid conflict, then validate again.

USER MANUAL WHSDC16H6E5 PANASONIC

Air-to-Water Heatpump

Model No.

Indoor Unit

WH-SDC12H6E5

WH-SDC16H6E5

Outdoor Unit

WH-UD12HE5

WH-UD16HE5

Panasonic

Quick Menu Guide

Air-to-Water Heatpump

2-7

English

Please read the Operating Instructions thoroughly before using the Quick Menu.

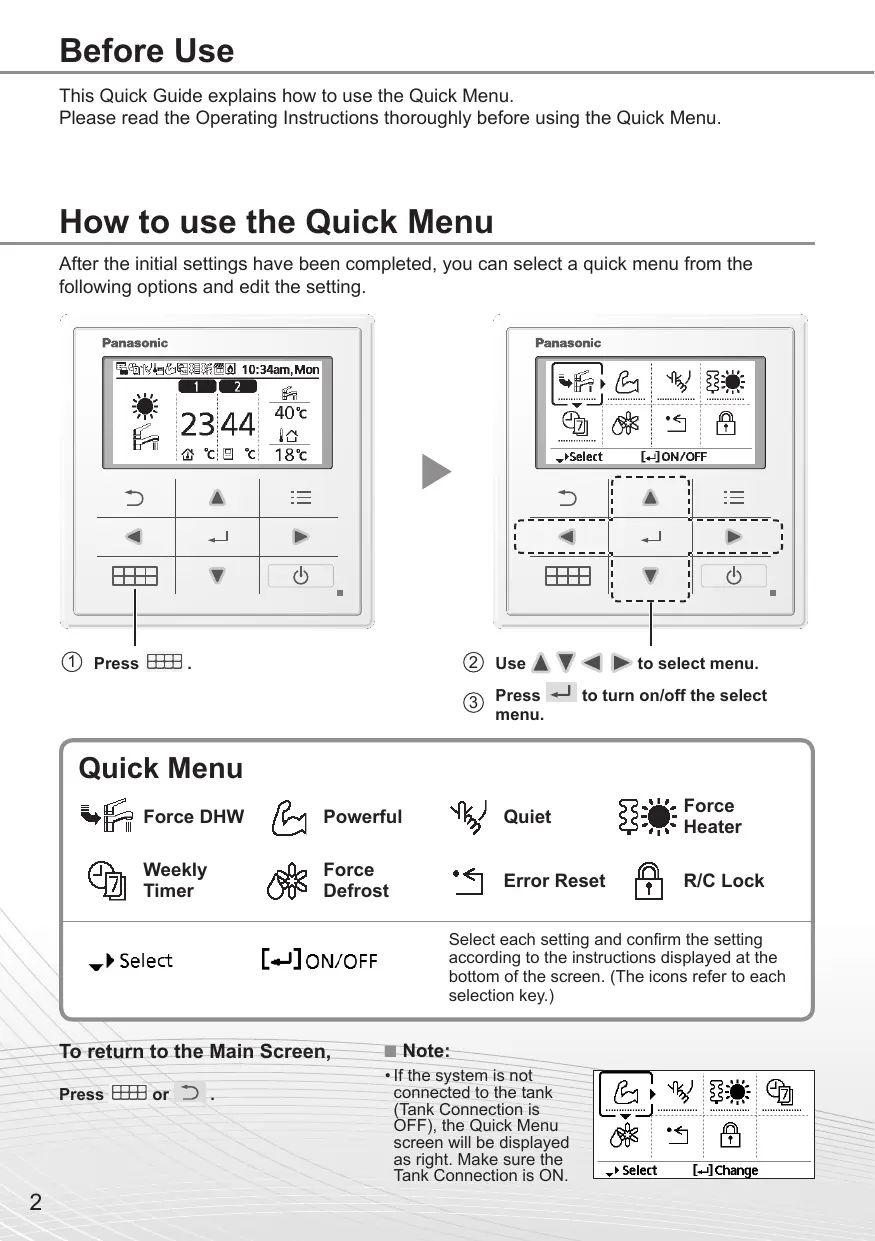

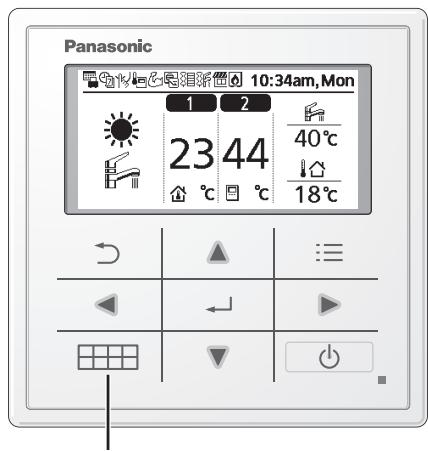

How to use the Quick Menu

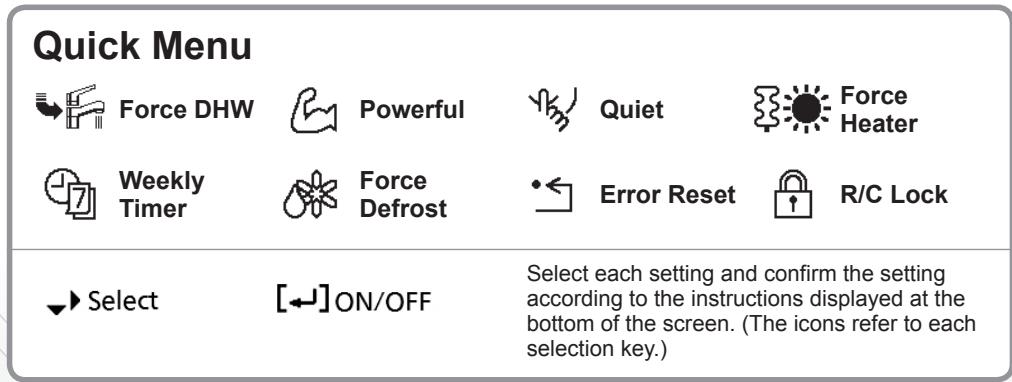

After the initial settings have been completed, you can select a quick menu from the following options and edit the setting.

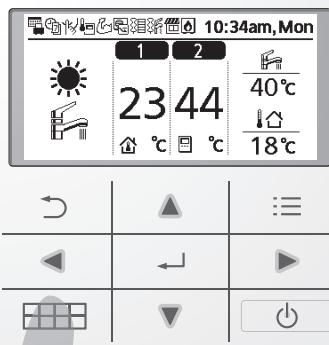

① Press .

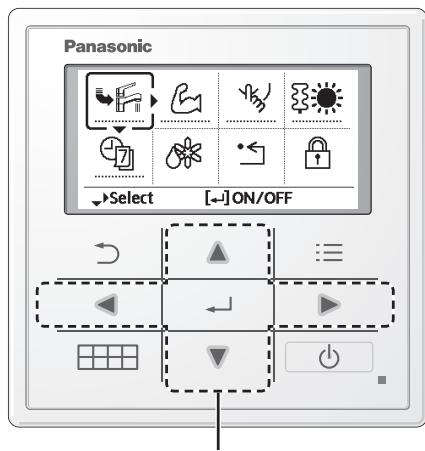

② Use ▲ ▼ ▶ ▷ to select menu. ③ Press ← to turn on/off the select menu.

To return to the Main Screen,

Press or

Note:

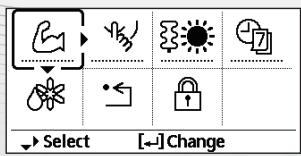

• If the system is not connected to the tank (Tank Connection is OFF), the Quick Menu screen will be displayed as right. Make sure the Tank Connection is ON.

Notes on operation icon

Example:

Operation icon indicate with "..........." = OFF

Operation icon indicate with "——" = ON

Force DHW

Select this icon to turn the Tank DHW on or off.

Press ↓ to confirm your selection.

• Force DHW is turned off.
• Force DHW is turned on.

Note:

• Force DHW is disabled when Force Heater is turned on.
• When Force DHW is turned off, operation and mode should change back to the previous memorized status.

Powerful

Select this icon to operate the heating/cooling system powerfully.

Press ↓ to confirm your selection.

(The powerful operation starts approximately 1 minute after ← is pressed.)

Note:

• Powerful is disabled when operation is turned OFF.

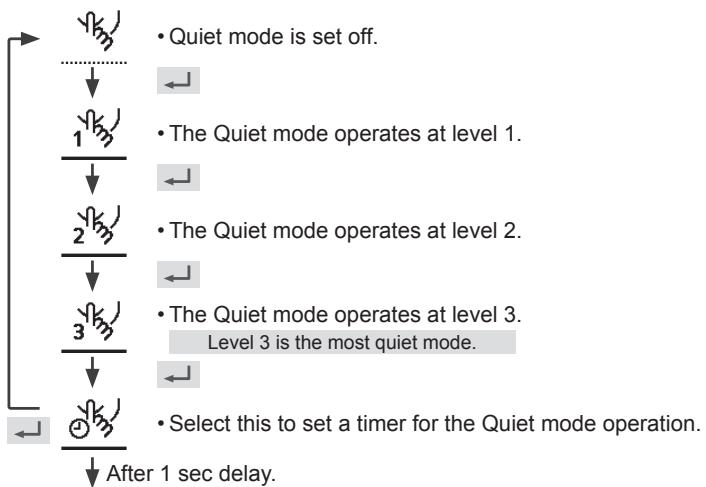

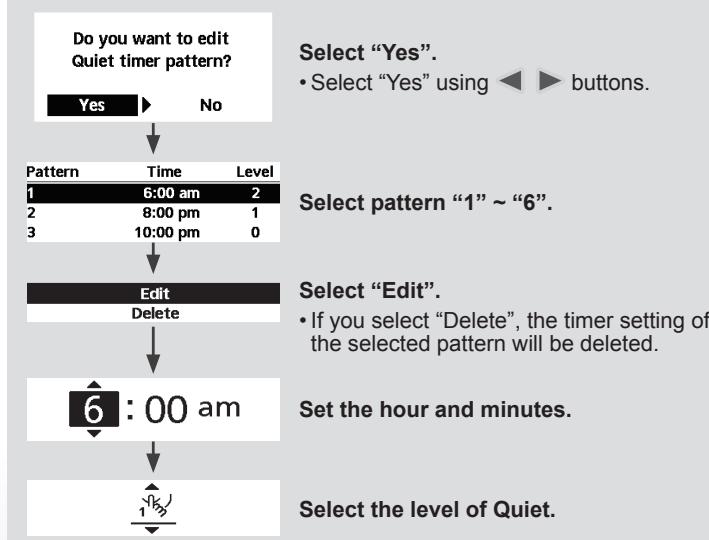

Quiet

Select this icon to operate quietly.

Press ← to confirm your selection.

(The quiet operation starts approximately 1 minute after ← is pressed.)

Force Heater

Select to force the Heater on.

Press ← to confirm your selection.

(The Force Heater mode starts approximately 1 minute after ← is pressed.)

• Force Heater is turned off.
• Force Heater is turned on.

Note:

• Force Heater is disabled whenever operation is already on and 'Disabled due to operation ON!' will be displayed.

Disabled due to operation ON!

[Close

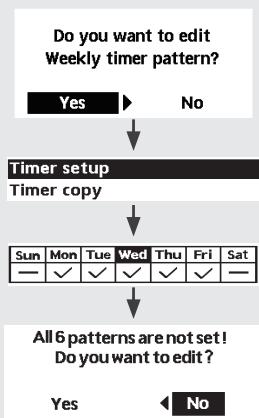

Weekly Timer

Select this icon to delete (cancel) or change the pre-set Weekly Timer.

Press ↓ to confirm your selection.

Select "Yes".

• If you select "No", the screen will return to the Main Screen.

• Timer setup: Select Timer setup to edit the Weekly Timer.
• Timer copy: Select to copy a timer setting.

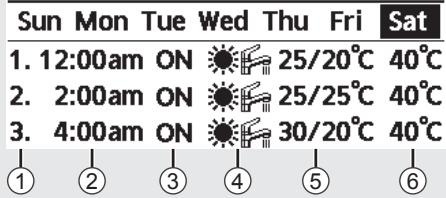

[Example of a Timer setup]

Select the day(s) which you wish to edit using the ▲ and ▼ buttons.

If all 6 patterns are not preset, this screen will be displayed.

① Select pattern "1" to "6". ② Set the hour and minutes of the Timer. ③ Select ON/OFF of the Timer. ④ Select the operation mode.

A/AB/

• Select mode using the ▲ and ▼ buttons.

⑤ Set the temperature for both Zone 1 and 2 (if your system has the 2-Zone setting).

Saturday: Pattern 1: Set Temp
Zone1		Zone2
ON	25°C	ON	25°C

⑥ Set the Tank temperature.

Note:

• Timer is disabled when Force Heater is turned on or Heat-Cool SW is enabled. If you have preset the Weekly Timer on 2 zones, you must repeat the same procedure with Zone 2.

Force Defrost

Select to defrost the frozen pipes.

Press ↓ to confirm your selection.

(When the mode is accepted, the following screen will be displayed.)

Request accepted!

[ ] Close

Error Reset

Select to restore the previous settings when an error has occurred.

Press ↓ to confirm your selection.

(When the mode has been accepted, the following screen will be displayed.)

Request accepted!

[ ] Close

• Make sure all units are turned off before selecting this mode, which restores the whole system to the previous settings.

R/C Lock

Select to lock the Remote Controller.

Press ↓ to confirm your selection.

(When the mode has been accepted, the following screen will be displayed.)

Do you want to lock remote control?

Yes No

Select "Yes".

(The Main Screen will be locked.)

• If "No" is selected, the screen will return to the Main Screen.

To unlock the Remote Controller

Press any key.

(When the mode has been accepted, below screen will be displayed.)

Enter any 4 digits of number (if the number is correct, the screen will be unlocked).

To reset forgotten password (under operation OFF screen)

Press , and continuously for 5 seconds.

(When the mode has been accepted, below screen will be displayed.)

Select "Reset".

1 Password is reset to 0000

2.Remote control is unlocked

(The screen will be off after 3 seconds.)

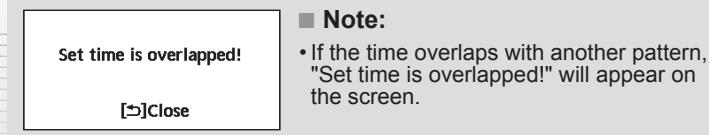

Set time is overlapped!

[Close

Select "Yes".

Disabled due to operation ON!

[Close

Week-timer

Sun Mon Tue Wed Thu Fri Sat

1. 12:00am ON 25/20°C 40°C
2. 2:00am ON 25/25°C 40°C
3. 4:00am ON 30/20°C 40°C

① Select schedule "1" ~ "6". ② Set the hours and minutes of the timer. ③ Select ON/OFF of the timer. ④ Select the desired mode.

Saturday: Pattern 1: Set Temp
Zone1		Zone2
ON	25°C	ON	25°C

Do you want to lock remote control?

Yes

No

Disable operation ON! = OFF

Enable operation ON! = ON

Disabled due to operation ON!

[Close]

Saturday: Pattern 1: Set Temp
Zone1		Zone2
ON	25°C	ON	25°C	45°C

Do you want to lock remote control?

Yes No

PRESS "Yes".

1. Password is reset to 0000

2. Remote control is unlocked

Disabled due to operation ON!

[Close]

Saturday: Pattern 1: Set Temp
Zone1		Zone2
ON	25°C	ON	25°C

⑥ Adjust the tank sicutligini.

Note:

Powerful mode is disabled when the operation is turned OFF.

Silent mode

Select this icon to set operation.

Disabled due to operation ON!

[Close

Weekly timer

Saturday: Pattern 1: Set Temp
Zone1		Zone2
ON	25°C	ON	25°C

⑥ Set the sauna temperature.

Note:

Do you want to lock remote control?

Yes No

Select this icon to set operation.

1006 Kadoma, Kadoma City,

Osaka, Japan

Website: http://www.panasonic.com

© Panasonic Corporation 2017
