USER MANUAL KH 3189 SABRE SAW PARKSIDE

D-44867 Bochum (Germany)

Last Information Update - Tietojen tila - Informationsstatus

Tilstand af information - Opplysningenes gyldighet

Proper use . Page 6
Features and equipment.. Page 6
Included items.. 6
Technical information.. 7

General safety advice

Your working area. Page 7
Electrical safety.. Page 7
Personal safety.. 8
Careful handling and use of electrical power tools.. Page 8
Safety advice relating specifically to this device.. Page 9
Original accessories/attachments.. Page 9
Information about saw blades.. Page 9

Before use

Inserting/replacing saw blades.. Page 10
Setting the blade speed.. Page 10
Pendulum-action settings.. Page 10

Preparing for use

Switching on and off. Page 10
Guiding the sabre saw safely and accurately.. Page 11
Advice about ways of working when sawing............ Page 11

Maintenance and cleaning

Disposal

Information

Servicing.. Page 12
Declaration of conformity/Manufacturer. Page 12

The following icons / symbols are used in this instruction manual:
	Read instruction manual!		Safety class II
	Observe caution and safety notes!		Wear hearing protection, dust protection mask, protective glasses and protective gloves.
	Caution - electric shock! Dangerous electric current - danger to life!		Keep children and other unauthorised personnel at a safe distance when using electrical tools.
	Explosive material!		Keep the device away from rain or moisture. Water entering an electrical device increases the risk of electric shock.
V~	Voltage		Damaged appliances, power cables and power plugs mean potentially fatal risks from electric shock. Regularly check the condition of the appliance, the power cables and the power plugs.
W	Watts (Effective power)		Dispose packaging and appliance in an environmentally-friendly way!

Sabre saw PFS 710 A

All-purpose electric saw for house and garden

Introduction

Please make sure you familiarise yourself fully with the way the device works before you use it for the first time and that you

understand how to handle electrical power tools correctly. Further details can be found in the operating instructions. Keep these instructions in a safe place. If you pass the device on to anyone else, please ensure that you also pass on all the documentation.

- Proper use

The device is intended for sawing, cutting to length or trimming of securely supported objects made of wood, plastic and building materials. The sabre saw is suitable for rough sawing work, straight and curved cuts and sawing flush. Please heed the information on saw blades and the advice on working with your saw. The device is not intended for commercial use. Any other use or modification to the device shall be considered as improper use and could give rise to considerable dangers. The manufacturer will not accept liability for loss or damage arising from improper use.

- Features and equipment

Oscillation speed setting wheel
2 Lock button
3 On/Off switch
4 Pendulum-action rotary switch
5 Allen key for saw blade replacement
6 Hexagonal socket head screw for saw blade replacement
7 Shoe
8 Sawblade
9 Plunger
10 Locating pin
11 Clamping plate

12 Saw blade for wood (finer cuts)

- Included items

1 Sabre saw PFS 710 A
1 Allen key
1 Saw blade
1 Operating instructions
1 "Warranty and service" booklet

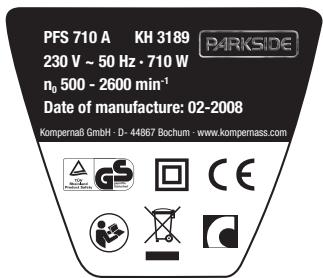

- Technical information

Rated voltage: 230V 50Hz

Nom. power input: 710W

Nom. no-load speed: n_0 500 - 2600 min^-1

Blade stroke: 28 mm

Max. cutting width: Wood 195 mm

Protection class: II/回

Noise and vibration data:

Values determined in accordance with EN 60745 The sound pressure level (A-weighted) of the device is typically 86dB(A) Uncertainty K = 3dB The sound level while working can exceed 99 dB (A).

Wear ear protection!

Evaluated acceleration, typical:

Hand/arm vibration a_h = 6,303 ~m / s^2

Uncertainty K = 1,5m / s^2

WARNING! The vibration level given in these instructions has been measured in accordance with a standardised measurement procedure specified in EN60745 and can be used to compare devices.

Different uses of the device give rise to different vibration levels and in many cases they may exceed the values given in these instructions. It is easy to underestimate the vibration load if the electrical power tool is used regularly in particular circumstances.

Note: If you wish to make an accurate assessment of the vibration loads experienced during a particular period of working, you should also take into account the intervening periods of time when the device is switched off or is running but is not actually in use. This can result in a much lower vibration load over the whole of the period of working.

- General safety advice

ATTENTION! Please read all the instructions and advice. Failure to observe the instructions and advice given below may result in electric shock, fire and/or serious injury.

MAKE SURE THAT YOU KEEP THESE INSTRUCTIONS AND SAFETY ADVICE IN A SAFE PLACE.

1. Your working area

a) Keep your working area clean and clutter-free. Untidy or poorly lit working areas can lead to accidents.

b) Do not work with the device in potentially explosive environments in which there are inflammable liquids, gases or dusts. Electrical power tools create sparks, which can ignite dusts or fumes.

c) Keep children and other people away while you are operating the electrical tool. Distractions can

cause you to lose control of the device.

2. Electrical safety

a) The mains plug on the device must match the mains socket. The plug must not be modified in any way. Do not use an adapter plug with devices fitted with a protective earth. Unmodified plugs and matching sockets reduce the risk of electric shock.

b) Avoid touching earthed surfaces such as pipes, radiators, ovens and refrigerators with any part of your body. There is an increased risk of electric shock if your body is earthed.
c) Keep the device away from rain or moisture. Water entering an electrical device increases the risk of electric shock.
d) Do not use the mains lead for any purpose for which it was not intended, e.g. to carry the device, to hang up the device or to pull the mains plug out of the mains socket. Keep the mains lead away from heat, oil, sharp edges or moving parts of the device. Damaged or tangled mains leads increase the risk of electric shock.
e) When working outdoors with an electrical power tool always use extension cables that are also approved for use outdoors. The use of an extension cable suitable for outdoor use reduces the risk of electric shock.

3. Personal safety

a) Remain alert at all times, watch what you are doing and always proceed with caution. Do not use the device if you are tired or under the influence of drugs, alcohol or medication. One moment of carelessness when using the device can lead to serious injury.
b) Wear personal protective equipment and always wear safety glasses. The wearing of personal protective equipment such as dust masks, non-slip safety shoes, safety helmets or ear protectors, appropriate to the type of electrical power tool used and work undertaken, reduces the risk of injury.
c) Avoid unintentional operation of the device. Make sure that the switch is in the "OFF" position before you insert the mains plug into the mains socket. Accidents can happen if you carry the device with your finger on the switch or you have already switched the device on before you connect it to the mains.

d) Remove any setting tools or spanners before you switch the device on. A tool or spanner left attached to a rotating part of a device can lead to injury.
e) Do not overestimate your own abilities. Keep proper footing and balance at all times. By doing this you will be in a better position to control the device, especially in unforeseen circumstances.
f) Wear suitable clothing. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves clear of moving parts. Loose clothing, jewellery or long hair can become trapped in moving parts.
g) If vacuum dust extraction and collection devices are fitted do not forget to check that they are properly connected and correctly used. The use of these devices reduces the hazard presented by dust.

4. Careful handling and use of electrical power tools

a) Do not overload the device. Always use an electrical power tool that is intended for the task you are undertaking. By using the right electrical power tool for the job you will work more safely and achieve a better result.
b) Do not use an electrical power tool if its switch is defective. An electrical power tool that can no longer be switched on and off is dangerous and must be repaired.
c) Pull the mains plug from the socket before you make any adjustments to the device, change accessories or when the device is put away. This precaution is intended to prevent you from unintentionally starting the device.
d) When not in use always ensure that electrical power tools are kept out of reach of children. Do not let anyone use the device if he or she is not familiar with it or has not read the instructions and advice. Electrical power tools are dangerous when they are used by inexperienced people.
e) Look after the device carefully. Check that moving parts are working properly and

move freely. Check for any parts that are broken or damaged enough to detrimentally affect the functioning of the device. Have damaged parts repaired before you use the device. Many accidents have their origins in poorly maintained electrical power tools.

f) Keep cutting tools clean and sharp. Carefully maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control.
g) Use the electrical power tool, accessories, inserted tools etc. in accordance with these instructions and advice, and the stipulations drawn up for this particular type of device. In doing this, take into account the working conditions and the task in hand. The use of electrical power tools for purposes other than those intended can lead to dangerous situations.

Safety advice relating specifically to this device

To avoid the danger of injury, fire and damage to your health:

If you use the device outdoors, always connect it through a residual current device (RCD) with a maximum trip current of 30mA .
- Securely support the workpiece. Use clamps or a vice to grip the workpiece firmly. This is much safer than holding it in your hand.
- Never support yourself by placing your hands near or in front of the device or the workpiece surface. A slip can result in injury.
If a dangerous situation arises, pull the mains plug immediately out of the mains socket.
Always work with the mains lead leading away from the rear of the device.
DANGER OF FIRE FROM FLYING SPARKS! Sawing metal creates flying sparks. For this reason, always make sure that nobody is placed in any danger and that there are no inflammable materials near the working area.

WARNING! NOXIOUS FUMES! Working with harmful/ noxious dusts represents a risk to the health of the person operating the device and to anyone near the work area.

Wear protective glasses and a dust mask!

• Do not saw materials containing asbestos. Asbestos is a known carcinogen.
• When sawing building materials, observe the statutory requirements and the manufacturer's recommendations.
  Do not work on moist materials or damp surfaces.
• Switch the device on before you bring it into contact with the workpiece.

CAUTION! Do not allow the blade to come into contact with a solid object or the floor when the device is operating - danger of kickback!

The shoe must always lie against the workpiece when the device is sawing.
- Do not put the device down before it has been switched off and has reached a standstill.
Use only sharp, defect-free blades. Replace cracked, bent or blunt saw blades immediately.
Always keep the device clean, dry and free of oil or grease.

- Original accessories/ attachments

Use only the accessories detailed in the operating instructions. The use of inserted tools or accessories other than those recommended in the operating instructions could lead to you suffering an injury.

Information about saw blades

You can use any saw blade as long as it has the correct shank fitting -1/2 universal shaft. There are different saw blades available in various lengths designed to ensure optimum performance of every sawing task with your sabre saw.

Note: TPI = teeth per inch / (i.e. per 2.54 cm) Blade (wood) [12]:

Dimensions: 150 × 1.25 ~mm, 6 TI Most suitable for: Sawing construction timber, chipboard, processed wood boards, plywood. Also suitable for plunge cuts.

Before use

- Inserting/replacing saw blades

Wear appropriate protective gloves when inserting and testing the blade.

Before replacing the blade, make sure that the saw blade mount is free of any cutting residue (e.g. wood splinters).

If necessary clean the saw blade mount with a narrow

paintbrush or blow it out with compressed air.

1. Release the hexagonal socket head screw using the Allen key 5
2. Insert the saw blade between the plunger 9 and the clamping plate 11. Make sure that the locating pin 10 engages in the locating hole of the saw blade.
3. Retighten the hexagonal socket head screw 6 Check before you use the saw that the saw blade is safely and firmly seated.

- Setting the blade speed

The desired blade oscillation speed can be preselected by using the setting wheel [1] (MIN. = lowest oscillation speed, MAX. = highest oscillation speed). The blade speed can also be selected whilst you are using the device.

Pendulum-action settings

You can set the pendulum action using the pendulum-action rotary switch 4 to adjust the effectiveness

of the sawing action of the blade to suit the material to be cut.

Setting 0 (pendulum action is switched off):

This setting is suitable for sawing thin or hard materials. This setting can also be used to produce clean-cut edges.

Setting l:

Suitable for materials of medium strength, e.g. hardwood, plastic.

Setting II:

Use this setting when you are sawing soft materials such as lightweight building or insulation materials.

Setting III:

Set the rotary switch in this position if you are cutting softwood/pruning trees or soft materials.

Preparing for use

The voltage at the mains socket must match that shown on the rating plate on the device. Devices marked with 230V can also be operated at 220V

- Switching on and off

When operating the device you can select between intermittent or continuous operation mode.

To switch on intermittent operation mode:

Press the On/Off switch 3.

To switch off intermittent operation mode:

Release the On/Off switch 3

To switch on continuous operation mode:

Press the On/Off switch 3 and fix it in the pressed position with the lock button 2.

To switch off continuous operation mode:

Press the On/Off switch 3 and release it again.

Guiding the sabre saw safely and accurately

The shoe 7 pivots to adjust to the workpiece and provides safe support to the device. It must always lie against the workpiece when the device is in use.

- Advice about ways of working when sawing

Before sawing, check the workpiece for foreign bodies such as nails, screws etc. and remove them.
- Do not allow the ventilation slots to become covered.
- Switch the device on first and only then bring it into contact with the workpiece.
If the saw blade jams, switch off the device immediately.

Open the sawn gap in the workpiece slightly using a suitable tool and extract the saw blade.

Always make sure the saw blade type, blade oscillation speed and pendulum-action settings are suitable for the workpiece.
There are different saw blades available in various lengths designed to ensure optimum performance of every sawing task with your sabre saw.
Saw the material using a steady forward rate of progress.

Flush sawing:

Using flexible saw blades of adequate length you can trim off projecting workpieces, such as pipes, directly at the face of a wall (see Fig. D).

Follow these steps:

1. Place the saw blade directly on the wall surface.
2. Bend the blade by applying sideways pressure so that the shoe 7 comes up against the wall.
3. Switch on the device as described above and trim the workpiece using constant pressure.

Plunge sawing:

CAUTION! DANGER OF KICKBACK!

Plunge sawing can be used only in soft materials (such as wood etc.).

Follow these steps:

1. Place the sabre saw with the underside of the shoe against the workpiece. Switch on the device.
2. Tilt the sabre saw forward and plunge the saw blade into the workpiece.
3. Bring the sabre saw vertical and continue sawing along the cutting line.

Note: The saw blade used for this should not be longer than 150~mm

- Maintenance and cleaning

Pull the mains lead out of the mains socket before you clean the device.

• Replace the saw blade as soon as its teeth become blunt and it starts to produce defective saw cuts.
  Always keep the device and the ventilation slots clean.
  Clean the device after you have finished using it.
• Do not allow any liquids to enter the device. Use a cloth to clean the housing. Never use petrol, solvents or cleaning agents that might attack plastic.
  □ If necessary, clean out the saw blade mounting recess with a thin paintbrush or compressed air.

- Disposal

The packaging is wholly composed of environmentally-friendly materials that can be disposed of at a local recycling centre.

Do not dispose of electrical appliances in household waste.

In accordance with European Directive 2002/96/EC on used electrical and electronic appliances and its implementation in national law, used power tools must be collected separately and recycled in an ecologically compatible manner. Please return the tool via the available collection facilities.

Information on options for disposing of electrical appliances after their useful life can be obtained from your local or city council.

Information

Servicing

The service centre for your country is shown in the guarantee documentation.

Have your device repaired only by qualified specialist personnel using original manufacturer parts only. This will ensure that your device remains safe to use.
If the plug or mains lead needs to be replaced, always have the replacement carried out by the manufacturer or its service centre. This will ensure that your device remains safe to use.

Declaration of conformity/ Manufacturer CE

We, Kompernaß GmbH, Burgstr. 21, D-44867 Bochum, Germany, hereby declare that this product conforms to the following EU Directives:

Machinery Directive (98/37/EC)

EC Low-Voltage Directive (2006/95/EC)

Electromagnetic Compatibility (2004/108/EC)

Product designatio

Parkside Sabre saw PFS 710 A

Bochum, 30.09.2007

Hans Kompernaβ

• Managing Director -

We reserve the right to make technical modifications in the course of product development.

Johdanto

A ADVARSEL! GIFTIG DAMP! Bearbeiding

Ynoeigeic epyaiac yia npioia

EeYcTe to nPoC eTcEepyia uAiko yia cEv aOmuata otwC kapitoeC, BiEc K.T.L. kai ano- pakpuveTe ta.
Φpovtriote wote va mny kaalutrovtai oitc aepioou.
EevpyoToinote Tn oukeun kai mvo tote Eioa-yete Tn oukeun oTo pOc ETTEepyaia uAiko.
Atevepyoioane aoeosn ouokeun e npiittwnioulovoiae npioivoe toe aKaataaIoo epaaieoi ktpaigntv piovoia.
PpOaPooTe TnV pIIOvOlaMa, Tov apIoo kai TnV taAvtwn OTo PPOC ETEePyaia uIko.
Στο εμπόριο κυλοφορύνοι κατάληλες πρισονλάμες σέ δίαφορετιὰ μήκην γία καθε σκότητο χρήσς του προνιόνο ας.

PiioviTe To uIko oepoioopopn duvamn c

Pnipovioqa:

Me eukapntec, npioovlaquec, kataaannlou nKouc, mtopeite va npioviarete teuaxia eteepyaaicnou npoeixouv oTWC. x. waivec aeaonw toiXo (betae Kai Eik. D).

p d e i

1. TOnoTeHnOte Tnv npiovolapaakipicnavw OTOV ToXo.
2. AuyioTe EgaokwVtac nEupikn iieon oTo mKoc Tpiiovou Etoi wote n Iaaka otpiicns va ePhiTTETai OTov ToxO.
3. EvpyoioiOte Tn oukeun ToTpOIO TPOU TEPiypaefetai KAI TpiovioTe TO EpuXIO ETEcEpyaiaC Ouvexn Tneon.

Piovioa oε βαθος:

p o o o x n ! Kivduvoacavkpuooc!

To npioviqa o aOoc eITpETeTai mOo se laaka uikac ETEEepyaaic (Luo n aa).
