USER MANUAL PFS 710 A1 SABRE SAW PARKSIDE

oo) Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

Table of contents Introduction Proper use. Page 6 Features and equipment Page 6 Included items … Page 6 Technical informatior Page 6 General safety advice for electrical power tools

1. Workplace safety Page 7

2. Electrical safety Page 7

3. Personal safety... Page 8

4. Carelul handling and use of electrical power tools Page 8

Safety advice relating specifically to sabre saws Page 9 Original accessories / attachments Page 9 Information about saw blades Page 9 Before use Mounting/ replacing saw blades Page 10 Rotating the hand grip Page 10 Adiusting the shoe Page 10 Setting the blade speed. Page 10 Preparing for use Switching on and off... …Page 10 Guiding the sabre saw safely and accurately Page 10 Advice about ways of working when sawing Page 10 Maintenance and cleaning. …Page 11 Service centre … …Page 11 Warranty... …Page 11 Disposal Page 12 Declaration of Conformity / Manufacturer. Page 12

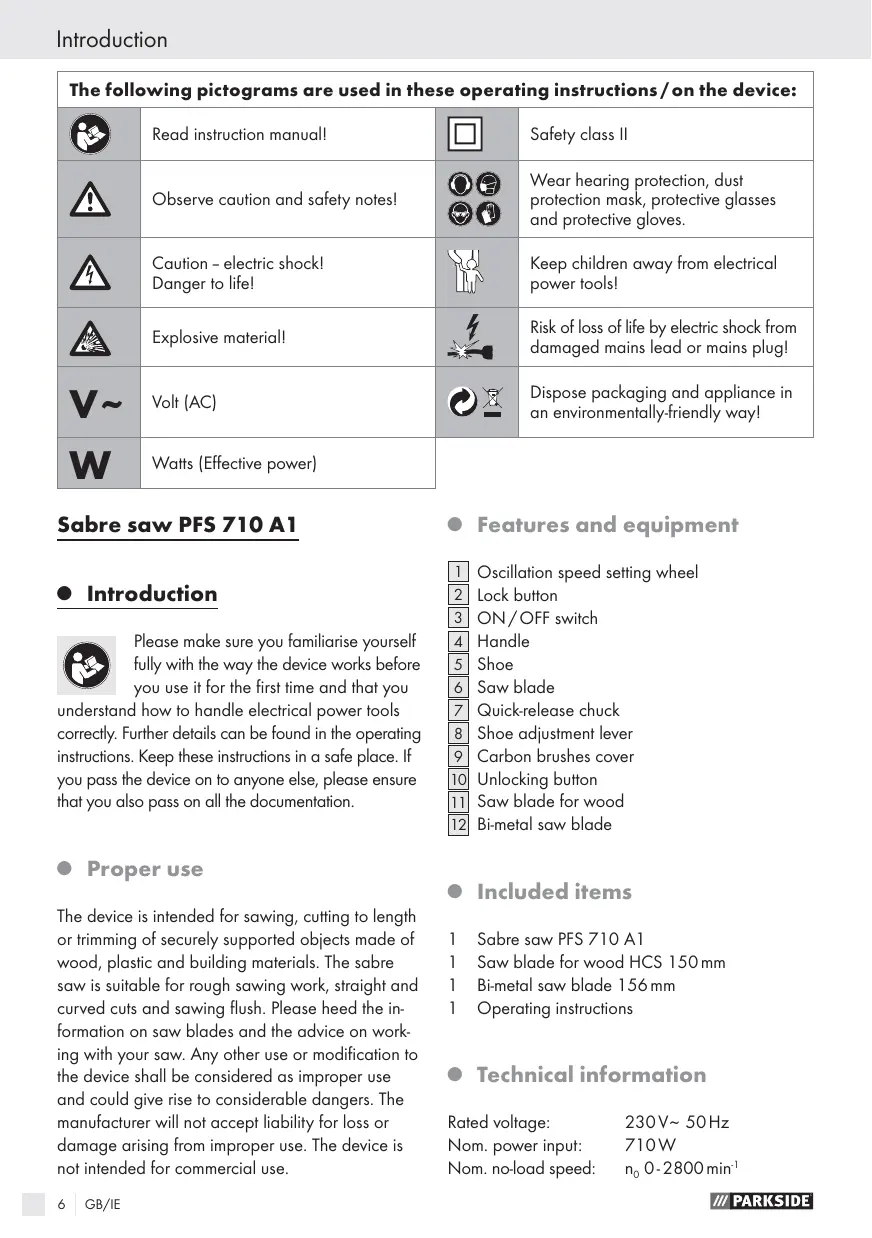

Introduction The following pictograms are used in these operating instructions / on the device: Read instruction manuall

Observe caution and safety notes! Wear hearing protection, dust protection mask, protective glasses and protective gloves. Caution - electric shock! Danger to lifel

Keep children away from electrical power tools! Explosive material!

4 Risk of loss of life by electric shock from damaged mains lead or mains plug! Volt (AC)

ÔOE Dispose packaging and appliance in | an ernvironmentally-friendly way! Watts (Effective power]

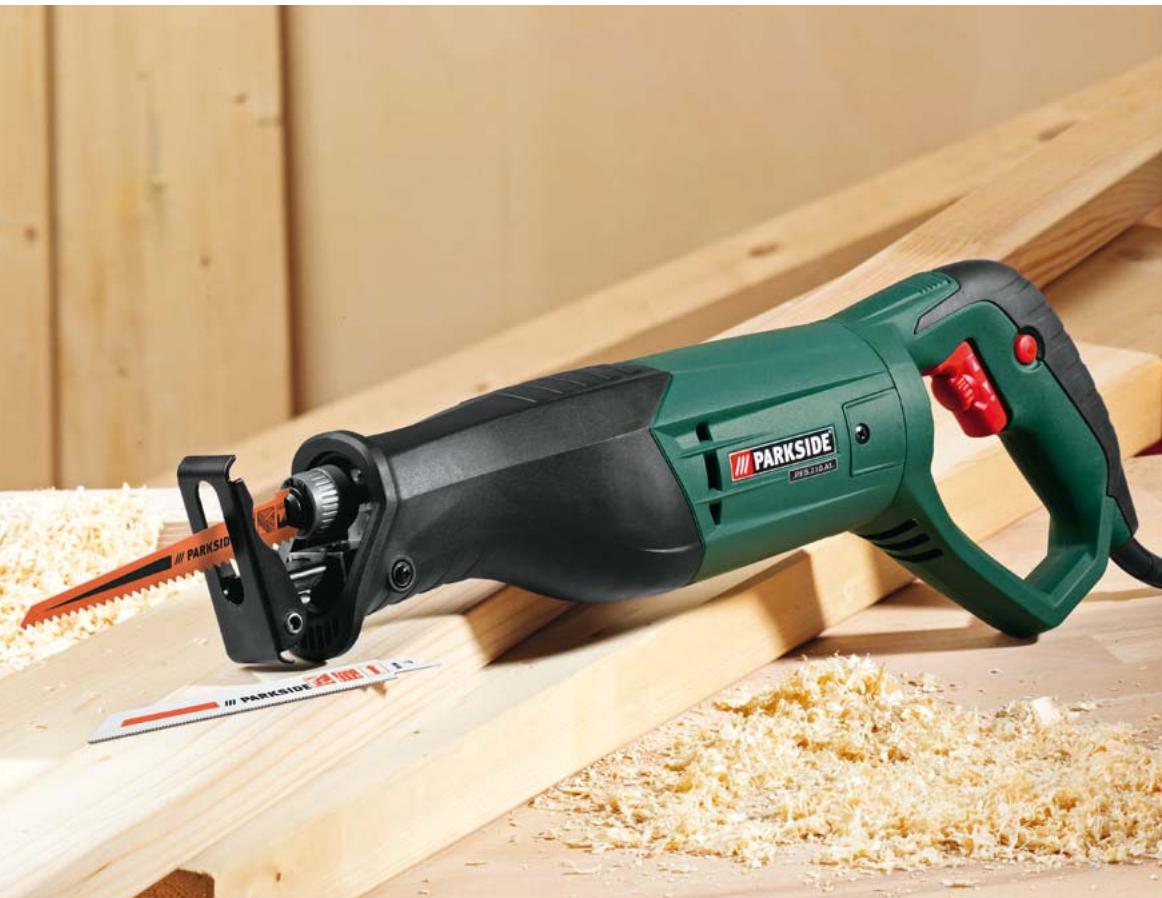

Sabre saw PFS 710 A1 © Introduction Please make sure you familiarise yourself lès] fully with the way the device works before you use it for the first time and that you understand how to handle electrical power tools correctiy. Further details can be found in the operating instructions. Keep these instructions in a safe place. If you pass the device on to anyone else, please ensure that you also pass on all the documentation. © Proper use The device is intended for sawing, cutting to length or trimming of securely supported objects made of wood, plastic and building materials. The sabre saw is suitable for rough sawing work, straight and curved cuis and sawing flush. Please heed the in- formation on saw blades and the advice on work- ing with your saw. Any other use or modification to the device shall be considered as improper use and could give rise to considerable dangers. The manufacturer will not accept liability for loss or damage arising from improper use. The device is not intended for commercial use. 6 GB/E © Features and equipment Oscillation speed setting wheel Lock button ON/OFF switch Quickrelease chuck Shoe adjustment lever [] Carbon brushes cover Unlocking button Saw blade for wood metal saw blade © Included items Sabre saw PFS 710 A1 Saw blade for wood HCS 150 mm Bimetal saw blade 156mm Operating instructions © Technical information Rated voltage: 230V- 50Hz Nom. power input: 710W Nom. noload speed: n, 0-2800 min!

Introduction / General safety advice for electrical power tools Blade stroke: Max. cutting width: 20mm Wood 160 mm Aluminium 18 mm Steel 8mm Saw blade mount size: !/," Protection class: el) Noise and vibration data: Measured value for sound determined in accord- ance with EN 60745. The A-weighted sound level ofthe electric power tool is typically: Sound pressure level: 86dB[A) Sound power level: 99 dB{A) Uncertainty K 3dB © Wear ear protection! Evaluated acceleration, typical: Hand / arm vibration a, = 6.303 m/s? Uncertainty K=1.5m/s? EN LATINE 1e vibration level given in these instructions has been measured in accordance with a standardised measurement procedure specified in EN60745 and can be used to compare devices. Different uses of the device give rise to different vibra- fion levels and in many cases they may exceed the values given in these instructions. lt is easy to underes- timate the vibration load if the electrical power tool is used regularly in particular circumstances. Note: If you wish to make an accurate assessment ofthe vibration loads experienced during a particu- lar period of working, you should also take into ac- count the intervening periods of time when the de- vice is switched off or is running but is not actually in use. This can result in a much lower vibration load over the whole of the period of working. General safety advice for À electrical power tools EN LAINE Read all the safety advice and instructions! Failure to observe the safety advice and instructions may result in electric shock, fire and/or serious injury. PA PARKSIDE Keep all the safety advice and instructions in a safe place for future reference! The term “electrical tool” used in the safety advice refers to electrical tools powered by mains electricity (by means of a mains lead) and electrical tools pow- ered by rechargeable batteries (without a mains lead

a) Keep your working area clean and well lit, Untidy or poorly lit working areas can lead to accidents. b) Do not work with the device in potentially explosive envi- ronments in which there are inflammable liquids, gases or dusts. Electrical power tools create sparks, which can ignite dusts or fumes. d) ÿ Keep children and other people away while you are operating the electrical tool. Distractions can cause you to lose control of the device.

2. Electrical safety

The mains plug on the device must match the mains socket. The plug must not be modi in any way. Do not use an adapter plug with devices fitted with a protective earth. Unmodified plugs and matching sockets reduce the risk of electric shock. Avoid touching earthed surfaces such as pipes, radiators, ovens and refri erators with any part of your body. There is an increased risk of electric shock if your body is earthed. c) Keep the device away from rain or moisture. Waier entering an electrical device increases the risk of electric shock. d) 4 Do not use the mains lead for 3Le 979 purpose for which it was La not intended, e.g. to carry the device, to hang up the device or to pull

General safety advice for electrical power tools the mains plug out of the mains socket. and balance at all times. By doing this Keep the mains lead away from heat, you will be in a better position to control the oil, sharp edges or moving parts ofthe device in unforeseen circumstances. device. Damaged or tangled mains leads f Wear suitable clothing. Do not wear increase the risk of electric shock loose clothing or jewellery. Keep your e] When working outdoors with an hair, clothing and gloves clear of mov- electrical power tool always use ex- ing parts. Loose clothing, jewellery or long tension cables that are also approved hair can become trapped in moving parts. for use outdoors. The use of an extension g) If vacuum dust extraction and collection cable suitable for outdoor use reduces the risk devices are fitted do not forget to check of electric shock. that they are properly connected and | Use a residual current device (RCD) correctly used. The use of these devices for protection if operating the electri- reduces the hazard presented by dust. cal power tool in a moist environment is unavoidable. The use of an RCD reduces the risk of electric shock 4. Careful handling and use of electrical power tools

3. Personal safety a) Do not overload the device. Always

use an electrical power tool that is a) Remain alert at all times, watch what intended for the task you are under- you are doing and always proceed taking. By using the right electrical power with caution. Do not use the device if tool for the job you will work more safely and you are tired or under the influence of achieve a better result. drugs, alcohol or medication. One moment b] Do not use an electrical power tool if of carelessness when using the device can lead its switch is defective. An electrical power lo serious injury. tool that can no longer be switched on and off b) Wear personal protective is dangerous and must be repaired equipment and always wear c) Pull the mains plug from the socket O® safety glasses. The wearing of before you make any adjustments to personal protective equipment such as dust the device, change accessories or when masks, non-slip safety shoes, safety helmets or the device is put away. This precaution is ear protectors, appropriate to the type of elec- intended to prevent you from unintentionally frical power tool used and work undertaken, starting the device. reduces the risk of injury. d) When not in use always ensure that c) Avoid unintentional operation of the electrical power tools are kept out of device. Check that the electrical power reach of children. Do not let anyone use tool is switched off before you connect the device if he or she is not familiar it to the mains, pick it up or carry it. with it or has not read the instructions Accidenis can happen if you carry the device and advice. Electrical power tools are dan- with your finger on the ON/OFF switch or with gerous when they are used by inexperienced the device switched on. people. d) Remove any setting tools or spanners e) Look after the device carefully. Check before you switch the device on. A tool that moving parts are working prop- or spanner left attached to a rotating part of a erly and move freely. Check for any device can lead to injury. parts that are broken or damaged e) Avoid placing your body in an unnat- enough to detrimentally affect the ural position. Keep proper footing functioning of the device. Have dam-

General safety advice for electrical power tools aged parts repaired before you use the device. Many accidents have their origins in poorly maintained electrical power tools. fl Keep cutting tools clean and sharp. Carefully maintained cutting tools with sharp cufting edges are less likely to jam and are easier to control. Use the electrical power tool, accesso- ries, inserted tools etc. in accordance with these instructions and advice, and the stipulations drawn up for this par- ticular type of device. In doing this, take into account the working conditions and the task in hand. The use of electrical power tools for purposes other than those in- tended can lead to dangerous situations.

To avoid the danger of injury, fire and damage to your health: m lfyou use the device outdoors, always connect it through a residual current device (RCD) with a maximum trip current of 30 mA. m Securely support the workpiece. Use clamps or a vice to grip the workpiece firmly. This is much safer than holding it in your hand. = Never support yourself by placing your hands near or in front of the device or the workpiece surface. À slip can result in injury. m lfa dangerous situation arises, pull the mains plug immediately out of the mains socket. = Always work with the mains lead leading away from the rear of the device. = DANGER OF FIRE FROM FLYING SPARKS! Sawing metal creates flying sparks. For this reason, always make sure that nobody is placed in any danger and that there are no inflammable materials near the working area. FN CZXINEI NOXIOUS FUMES! Working with harmful / noxious dusts represents a risk to the health of the person operating the device and to anyone near the work area. ee Wear protective glasses and a dust mask!

Safety advice relating specifically to sabre saws PA PARKSIDE # Do not saw materials containing asbestos. Asbestos is a known carcinogen. = When sawing building materials, observe the statutory requirements and the manufacturer's recommendations. m Do not work on moist materials or damp surfaces. = Switch the device on before you bring it into contact with the workpiece. À CAUTION!I Do not allow the blade to come into contact with a solid object or the floor when the device is operating - danger of kickbackl must always lie against the work- piece when the device is sawing. # Do not put the device down before it has been switched off and has reached a standstill. = Use only sharp, defectfree blades. Replace cracked, bent or blunt saw blades immediately. = Always keep the device clean, dry and free of oil or grease. © Original accessories / attachments = Use only the accessories detailed in the operating instructions. The use of in- serted tools or accessories other than those recommended in the operating instructions could lead to you suffering an injury. © Information about saw blades You can use any saw blade as long as it has the correct shank fitting - !/," universal shaft. There are different saw blades available in various lengihs designed to ensure optimum performance of every sawing task with your sabre saw. Note: TP — teeth per inch/ (i.e. per 2.54 cm) Blade (wood) Dimensions: 150 x 1.25 mm, 6 TPI Most suitable for: Sawing construction timber, chipboard, processed wood boards, plywood. Also suitable for plunge cuts. Bi-metal saw blade Dimensions: 156mm, 18 TPI Most suitable for: Sawing sheets, profiles and tubes - flexible and fracture resistant. GB/E 9

Before use / Preparing for use © Before use © Mounting/replacing saw blades FN CIE Poll the mains plug out of the mains socket before you carry out any task on the device. Failure to observe this advice may lead to injury. Turn the quickrelease chuck [7] and hold it in the turned position. Press the selected saw blade into the quickrelease chucl should engage. Release the quickrelease chuc must then return to its original pos blade is now locked in place. © Rotating the hand grip EN CINE DANGER OF INJURY! Pull the mains plug out of the socket before you carry out any task on the device, The hand grip [4] can be rotated by 90° to the right or left. This allows to be brought into the most comfortable position for any working conditions. Press the unlocking button [10] and rotate the hand grip [4]to the right or left. Make sure the hand gri © Adjusting the shoe EN CINE DANGER OF INJURY! Pull the mains plug out of the socket before you carry out any task on the device, Adjust the shoe [5 ]to suit the cutting depth. To do this release the shoe adjusiment lever [8] and place the shoe | 5 ] in appropriate position. Lock the shoe in this position by pulling the shoe adjustment lever [8]tight. 10 GB/IE © Setting the blade speed The desired blade oscillation speed can be prese- lected by using the setting wheel [1 ] (MIN. = lowest oscillation speed, MAX, = highest oscillation speed). The blade speed can also be selected whilst you are using the device. © Preparing for use © Switching on and off When operating the device you can select between intermittent or continuous operation mode. To switch on intermittent ration mode: Press the ON/ OFF switcl To switch off intermittent operation mode: Release the ON/OFF switch pressed position with the lock button To switch off continuous operation mode: Press the ON/ OFF switcl again. © Guiding the sabre saw safely and accurately The shoe [5 | pivois to adjust to the workpiece and provides safe support to the device. lt must always lie against the workpiece when the device is in use. © Advice about ways of working when sawing = Before sawing, check the workpiece for foreign bodies such as nai, screws ec. and remove them. PA PARKSIDE

Preparing for use / Maintenance and cleaning / Service centre / Warranty m Do not allow the ventilation slots to become covered. m Switch the device on first and only then bring it into contact with the workpiece. = lfthe saw blade jams, switch off the device im- mediately. Open the sawn gap in the workpiece slighily using a suitable tool and extract the saw blade. Always make sure the saw blade type and the blade oscillation speed are suitable for the workpiece material. There are different saw blades available in var- ious lengths designed to ensure optimum perfor- mance of every sawing task with your sabre saw. Saw the material using a steady forward rate of progress. Flush sawing: Using flexible saw blades of adequate length you can trim off projecting workpieces, such as pipes, direcily at the face of a wall. Follow these steps:

1. Place the saw blade direcily on the wall surface.

2. Bend the blade by applying sideways pressure

so that the shoe | 5 | comes up against the wall

3. Switch on the device as described above and

trim the workpiece using constant pressure. Plunge sawing: À CAUTION! DANGER OF KICKBACK! Plunge sawing can be used only in soft materials (such as wood etc.]. Follow these steps:

1. Place the sabre saw with the underside of the

shoe [5 | against the workpiece. Switch on the device.

2. Tilthe sabre saw forward and plunge the saw

blade into the workpiece

3. Bring the sabre saw vertical and continue saw-

ing along the cutting line. Note: The saw blade used for this should not be longer than 150 mm PA PARKSIDE © Maintenance and cleaning = Pullthe mains lead out of the mains socket before you clean the device. = Replace the saw blade as soon as its teeth be- come blunt and it starts to produce defective saw cuis. = Always keep the device and the ventilation slots clean. Clean the device after you have finished using it. Do not allow any liquids to enter the device. Use a cloth to clean the housing. Never use petrol, solvents or cleaning agents that might attack plastic. lFnecessary, clean out the saw blade mounting recess With a thin paintbrush or compressed air. © Service centre = FN DAME Have your device repaired only by qualified specialist personnel using original manufacturer parts only. This will ensure that your device remains safe to use. = END ff the plug or mains lead needs to be replaced, always have the replacement carried out by the manufacturer or its service centre. This will ensure that your device remains safe to use. © Warranty The warranty for this appliance is for 3 years from the date of purchase. The ap- pliance has been manufactured with care and meticulously examined before deliv- ery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone With our Service Department. Only in this way can a post-free despatch for your goods be assured. GB/E 11

Warranty / Disposal / Declaration of Conformity / Manufacturer The warranty covers only claims for material and maufacturing defects, but not for transport damage, for wearing parts or or damage to fragile compo- nents, e.g. buttons or batteries. This product is for pri- vate use only and is not intended for commercial use. The warranty is void in the case of abusive and im- proper handling, use of force and internal tamper- ing not carried out by our authorized service branch. Your statutory rights are not restricted in any way by this warranty. The warranty period will not be extended by repairs made unter warranty. This applies also to replaced and repaired parts. Any damage and defects extant on purchase must be reported immediately after unpacking the appliance, at the latest, two days after the purchase date. Repairs made after the expiration ofthe warranty period are subject to payment.

Kompernass Service Ireland Tel: 1850 930 412 (0,082 EUR/Min.) Standard call rates apply. Mobile operators may vary. e-mail: support.ie@kompernass.com © Disposal The packaging is wholly composed of (D) environmentall-frendiy materials Hhat can be disposed of at a local recycling cenire. Do not dispose of electrical power tools with the household rubbish! In accordance with European Directive 2002/96/ EC (covering waste electrical and elec- tronic equipment) and its transposition into national legislation, worn out electrical power tools must be collected separately and taken for environmentally compatible recycling 12 GB/E Contact your local refuse disposal authority for more details of how to dispose of your worn out electrical devices. © Declaration of Conformity/ Manufacturer C€ We, KompernaB GmbH, the person responsible for documents: Mr Felix Becker, Burgstr. 21, D-44867 Bochum, Germany, hereby declare that this product complies with the following standards, normative documents and EU directives: Machinery Directive (2006/42/EC) EU Low Voltage Directive (2006/95 /EC) Electromagnetic Compatibility (2004 /108/EC) Applicable harmonized standards EN 55014-2:1997+A1 EN 55014-1:2006 EN 60745-1:2009 EN 60745-2-11:2003+A11+A1+A12 EN 61000-3-2:2006 EN 61000-3-3:1995+A1+A2 Type/Device descrip Sabre saw PFS 710 A1 Date of manufacture (DOM): 12-2010 Serial number: IAN 61099 Bochum, 31.12.2010 boys Hans Kompernaf - Managing Director - We reserve the right to make technical modifica- tions in the course of further development. PA PARKSIDE
