USER MANUAL RDS CAR RADIO MD 7328 MEDION
EON-TA ("Enhanced Other Network Information")
- EQ: Equalizer
- Volume louder
- OPEN/CLOSE: Open control panel
- TUNE/ TRACK/ SKIP +: Search forwards through channels/CD tracks
- TUNE/ TRACK/ SKIP +: Search backwards through channels/CD tracks
- RESET: Return to factory settings
- Display
- TA:Traffic alarm
- EJECT: Eject CD when control panel is folded out
- AF/ REG: Set RDS mode
- SEL: Sound settings volume, bass, treble, balance, fader; EON reception setting menu
- Volume lower
- DSP: Open display information
- MUT: Mute
- AMS: Automatic channel saving
- PAU: Pause (CD)
- SCN: Scan CD track
- RPT: Repeat function
- Station buttons (M1-M6)
- SHF: Shuffle CD tracks
- M5:Track back
- M6: Track forwards
- MOD: Choose either radio or CD mode
- BND: Select waveband LOUD: Strengthen bass ENTER: Enter; playback; "GOTO" menu
- POWER: Switch device on and off
- PTY: Display PTY information
Behind the control panel
- CD compartment
- RELEASE: Remove control panel
CONTENTS
SAFETY INSTRUCTIONS 4
INSTALLATION 6
Installation instructions 6
Connection options 7
Inserting the radio into the ISO slot 8
The ISO adapter plug 9
Removing the unit 10
Control panel 11
OPERATION 12
Basic operation 12
Radio functions 14
Playing CDs 18
Playing MP3 CDs 19
TROUBLESHOOTING 21
DISPOSAL INFORMATION 22
TECHNICAL DATA 23
SAFETY INSTRUCTIONS
About these instructions
Please read these instructions carefully before using the device.
Note the warnings on the device and in the operating instructions
Store the operating instructions in the car. If you sell or give the car
radio away, please ensure that you also pass on these instructions.
Keep electrical equipment out of reach of children
Never allow children to use electrical devices unattended.
If swallowed, batteries may endanger life. For this reason, keep the device and batteries out of the reach of children. If a battery is swallowed, please obtain immediate medical assistance.
Keep plastic packaging out of the reach of children. There is a risk of suffocation.
Road safety
Road safety should be your top priority. Use your car radio only in suitable traffic conditions. Please ensure that you are familiar with the radio before setting off.
You should always be able to hear police, fire and other emergency service sirens in good time while in your vehicle. For these reasons, please play your radio at an appropriate volume while driving.
Never undertake your own repairs
Never try to open and/or repair the device yourself. There is a risk of electric shock. If there is a defect contact our Service Centre or other suitable specialist workshop.
CD player
The CD player is a class 1 laser product. The device has a safety system that prevents dangerous laser rays escaping from the device during normal use. In order to avoid injury to the eyes, never manipulate or damage the unit's security system.
GB
Handle the disc mechanism with care
Never place any objects other than CDs into the disc mechanism. These can damage the precision-engineered closing mechanism.
Cleaning the device
Use a dry soft cloth to clean the device. Avoid the use of chemical solutions and cleaning products because these may damage the unit's surface and/or inscriptions.
Installation
If you wish to install your car radio yourself, please refer to the installation and connection instructions in this manual.
MD 7328
GB-5
INSTALLATION
Installation instructions
- Insert the unit into the proper shaft or select a location to install the unit that will not affect the driver's ability to drive.
- Connect the cable shortly before finally installing the device. Ensure that this has been inserted correctly and that the system works properly.
- If changes have to be made to the vehicle, consult your vehicle dealer/specialist workshop.
- Install the unit in such a manner that no injury can be caused during heavy braking.
- If the unit is installed out of balance by over 30^ to the horizontal it may affect the output.
- Avoid installing the unit near strong heat sources (e.g. direct sunlight or heating air), dust, pollution or excessive shocks.
Connection options
Important information
Ensure that the pink memory back-up cable is connected to the permanent plus. Otherwise channel saving will not work.
You can connect an external amplifier to the RCA cable (red and white cinch socket). Please refer to your instructions for the external amplifier.

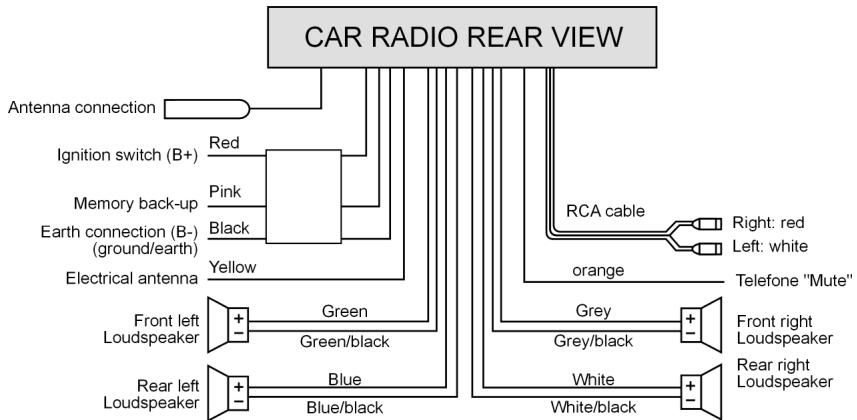

Four loudspeakers (quad system)

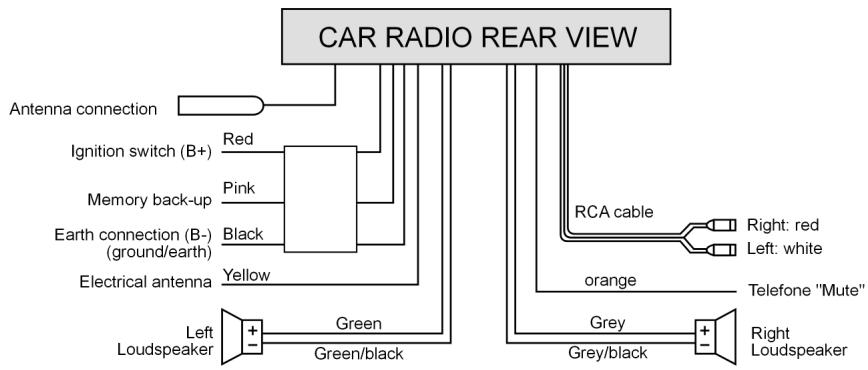

Two loudspeakers (dual system)
Installation
Inserting the radio into the ISO slot

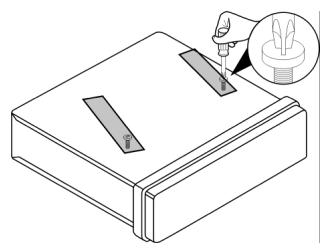

- Before installation always remove the two transportation safety screws in the top radio casing (recognizable because of their red flags)!

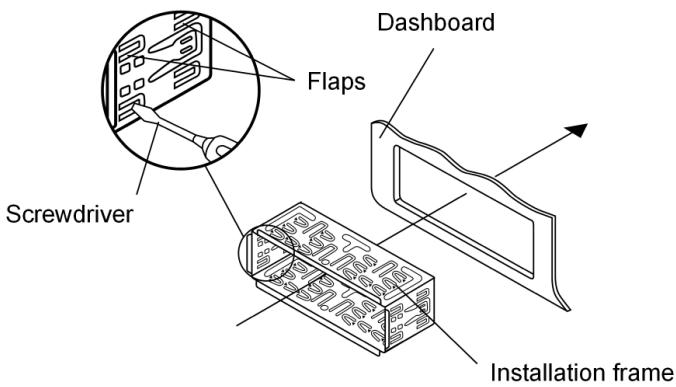

Assembly
The car radio can be fitted in any standard ISO slot for car radios. If your vehicle has no ISO slot, please consult a specialist workshop, dealer, or the specialist department of a car equipment warehouse.
- Now remove the mounting frame from the casing of the car radio.
- Insert the mounting frame in the ISO installation slot.
- Bend the flaps in the mounting frame with a screwdriver so that it is fixed firmly in place in the installation slot (see diagram).
- Check that the frame is held securely.
- Now connect the car radio's ISO block to the vehicle's two ISO plugs.
- Connect the vehicle's antenna cable to the radio antenna socket.
- Push the car radio carefully into the slot until it fits securely.
Please use the car radio's ISO block for installation. These adapters can be obtained from specialist workshops, dealers, or specialist departments of car equipment warehouses.
If the ISO block is separated from the radio the warranty will become null and void!
GB
While pushing the radio, take care to ensure that the cables are not damaged during the process.
- Press the RESET button (6) using the tip of a pen or another pointed object.
- Insert the control panel as described below.
The ISO adapter plug
Use the car's ISO adapter plug for the car radio's ISO socket block to produce a secure electrical connection.
Back-up cable
Ensure that the pink backup cable is pointed towards the permanent plus.
After making all the connections, press the RESET button (6).
Antenna relay cable
The yellow cable is available for a relay-controlled antenna. The relay extends the antenna automatically when the radio is switched on. When it is switched off the antenna is retracted.
This relay cable can also be used to control an external amplifier. Please refer to the amplifier's operating instructions for the correct connections.
Never connect the yellow cable to the engine cable; this could damage the radio!
Installation
Arrangement of the ISO block
| BLOCK B – Speakers | BLOCK A – Electricity supply | ||||
| B | 1|3|5|7|2|4|6|8| | 1 | rear right + | 1 | |
| 2 | rear right - | 2 | |||
| 3 | front right + | 3 | |||
| A | 1|3|5|7|2|4|6|8| | 4 | front right - | 4 | Switched plus (permanent 12V supply from main elec-trical system) |
| 5 | front left + | 5 | Car antenna (also for exter-nal amplifiers, etc.) | ||
| 6 | front left - | 6 | |||
| 7 | rear left+ | 7 | Alternating plus (alternating 12V voltage, via ignition) | ||
| 8 | rear left - | 8 | Earth | ||
Problems due to incorrect cable connections
In some vehicle models, the standard arrangement of the cables [4] and [7] in the ISO block A (see above) is exchanged at the factory.
If this is the case in your vehicle, certain functions may be impaired: stations may not be stored properly, for example.
To solve this, the red cable (switched plus) and the pink cable (permanent plus) will need to be reversed in the ISO block.

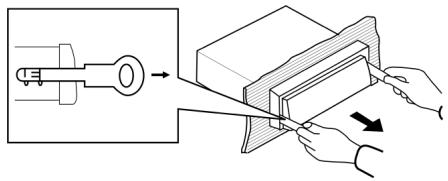

Removing the unit
To remove the unit, first remove the blind frame and introduce the left and right key into the corresponding slit on the side of the unit. The flaps will be bent back and you can remove the unit.
Control panel
Inserting the control panel
- Insert the control panel into the frame. If the headphones are correctly mounted you will hear a "click".
- Verify that the control unit is properly located. If the control unit is not installed properly, error messages appear in the display and/or several keys will not function properly.
GB
Removing the control panel
- Press the OPEN/CLOSE button (3). The control panel will fold down.
- Press the RELEASE button (28) to the left. Now you can remove the control panel.
For protection, always keep the control panel in its case.
OPERATION
Basic operation
Switching on/off
- Press the POWER button (25) to switch the radio on or off.
When you switch the radio off, the control panel will turn round its horizontally and the back of the control panel will show.
To turn the control panel round again and at the same time switch on the radio, press slightly on the left upper corner of the back of the control panel.
Volume control
- Use the volume buttons (2, 12) to raise or lower the volume.
Always set the volume such that you can still clearly hear the sirens from emergency vehicles!
Basses/Treble/Balance/Fader
- Press the button SEL (11) to display the consecutively the settings for basses, treble, balance and fader.
- Change the settings with the VOL buttons (2, 12).
Mute
- Press the MUTE (14) button to turn the sound off.
- You can switch the mute setting off by pressing any button. The mute setting is also cancelled if you receive a PTY or TA (traffic alarm) station.
Loudness
- Hold down the BND/LOUD/ENTER button (24) to strengthen the bass.
Equalizer
- By pressing the EQ button (1) you can switch on the equalizer and select between FLAT, CLASSIC, POP M, ROCK M or DSP OFF. In the FLAT setting all equalizer settings are set to zero; in the DSP OFF setting "Digital Sound Processing" (DSP) is switched off.
GB-12
Display
- By pressing the DSP button (13) you can change the screen display as follows:
- When receiving radio:
Station name
Time (set automatically for RDS reception)
Frequency
PTY settings (these RDS functions are transmitted by the radio stations to various extents; also refer to the "Radio functions" on page 14" chapter).
- For CD operation:
CD/MP3 information
Time
Radio information
Frequency
PTY settings
If no RDS or PTY information is received "NO CLOCK" or "NO PTY" is displayed on the screen.
It is displayed for a few seconds and then disappears again.
MODE
- Press the MOD button (23) to switch between radio reception and CD/MP3 operation.
RESET
- To reset the car radio to the factory settings press the RESET button (6) with a pointed object, e.g. a pen.
-
Confirm the RESET
-
when you connect the cable for the first time,
- if not all function buttons work properly,
- if an error message is displayed.
MD 7328
GB-13
Operation
Radio functions
Selecting the waveband
- Press the BAND/LOUD/ENTER button (24) to switch between FM (F1, F2, F3), medium wave (MW) and long wave (LW). You can store up to 6 stations in each band.
Searching for a station
- Press the TUN/TRK/SKIP-(4) or TUN/TRK/SKIP+ (5) buttons briefly to activate the automatic station search. The device will find the next station.
- Switch to manual station search by pressing one of the two buttons for two seconds. The display shows MANUAL.
Saving stations
- After the search function has found a station press one of the M1-M6 (19) buttons for around three seconds. An acoustic signal indicates the station has been saved.
After a few seconds the device switches to the automatic station search.
Calling up stations
- Select the waveband by pressing BND/LOUD/ENTER (24).
- You can open one of the saved stations by pressing one of the M1-M6 (19) station buttons.
Automatic saving
- Press the AMS button (15) until you hear a signal tone. The six strongest stations in the current frequency are located and saved to locations 1 - 6.
- Press one of the buttons M1-M6 (19) to stop the search.
Running through saved stations
You can open the saved stations for the current transmission areas.
- Select the waveband by pressing BND/LOUD/ENTER (24).
- Press the AMS button (15) briefly. All stations are now briefly selected. If the radio locates a stronger signal for a station it saves the signal.
- When you hear the station you require press the AMS button (15) briefly.
GB-14
RDS (RADIO DATA SYSTEM)
RDS is a service provided by radio stations. In addition to traditional music and voice services they also broadcast additional information in the form of encrypted digital signals and these are analysed and displayed by the car radio.
- Briefly press the AF button (10) to switch the RDS mode on or off. The display shows RF . On the display you can now see the programme name and other information (traffic information, the track of the track currently being played, etc.).
GB
Regional program mode
Some stations transmit regional programmes at particular times.
- To switch the regional programme mode on or off hold down the AF button (10).
Other RDS services
The following different kinds of RDS services may be available:
- PI (Programme Identification Code): The PI code is used by the radio to identify the station being received.
PS (Programme Service Name): This service allows the station's name to be displayed.
□ AF (Alternative Frequencies): The car radio automatically searches for an alternative frequency for the current station with the strongest signal. - TP/TA (Traffic Programme / Traffic Announcement): Traffic information
EON (Enhanced Other Network Information): If there is a traffic announcement, then this enables the radio to switch to the radio station broadcasting it even if you are currently listening to another station. - PTY (Programme Type Code): This code enables you to search for your selected type of programme, for example a sports broadcast (see the table on page page 16).
Please note that the information displayed will depend on the region, the broadcaster and the station.
Operation
PTY (Program Type Code)
To activate the menu, press the PTY button (26).
You can now search for or select your preset stations by the following categories:
| Key | Type of music | Type of speech programmes |
| M1 | POP M | NEWS, AFFAIRS, INFO |
| M2 | EASY M, LIGHT M | SPORT, EDUCATE, DRAMA |
| M3 | CLASSICS; OTHER M (other music) | CULTURE, SCIENCE, VARIED |
| M4 | JAZZ, COUNTRY | WEATHER, FINANCE, CHILDREN |
| M5 | NATION M; OLDIES | SOCIAL, RELIGION |
| M6 | FOLK M | TRAVEL, LEISURE, DOCUMENT |
Please note that this information will depend on the region, the broadcaster and the station.
TA ("Traffic Announcement")
- Briefly press the TA button (8) to switch this mode on or off.
If the device is in TA mode and a CD is playing the radio is switched on immediately if a traffic announcement is transmitted. If EON cannot find any radio traffic service in another program, it occasionally switches to the EON relay station. The volume is increased if it is below the threshold.
This can be interrupted by pressing the TA button again without switching off the TA function.
EON (Enhanced Other Network Information)
The extended other network information (EON) provides additional functions for locating a traffic announcement station. In particular the device also switches to traffic announcements if you are listening to a station that does not provide travel announcements. After the announcement it switches back to the previous station.
- Hold down the TA button (8) for longer to choose between the EON TA LOCAL/EON TA DISTANCE modes.
EON-TA - Local mode: In this mode a search is made for traffic announcement stations in the local area. EON TR L0 flashes in the display.
EON-TA - Long-distance mode: This mode searches for traffic announcement stations for a wider area. EON TR DXflashes in the display.
EON reception setting menu
- Hold down the SEL button (11) in the radio mode. The EON reception setting menu opens.
- Press the SEL button (11) repeatedly to open the following options:
TA SEEK: If you leave a transmission area a search is started for the strongest TA station; (Press VOL:) TA ALARM: If you leave the transmission area an alarm signal sounds;
PI SOUND: The radio continues during the search; (Press VOL:) PI MUTE: The sound is switched off during searching;
RETUNE L ("long"): The search for a station with the correct PI code lasts for 90 seconds. (Press VOL.:) RETUNE S ("short"): The search for a station with the correct PI code lasts for 30 seconds.
- MASK DPI: Hides the AF stations that have a different PI code; (Press VOL:) MASK ALL: Hides the AF stations that have a different PI code and all stations that do not have a PI but have the same transmission frequency;
- BEEP 2ND: A signal sounds if a button is pressed for a long time; (Press VOL:) BEEP ALL: A signal sounds whenever a button is pressed, (Press VOL:) BEEP OFF: Signal off.
Playing CDs
Information on playing CDs
Moisture and high humidity may cause the CD player to malfunction. If this occurs switch the vehicle's heater on to evaporate the humidity before use.
Never expose the CD player to extremely high or low temperatures.
Inserting and removing CDs
- Fold down the control panel (Button 3).
- Insert the CD into the slot with the labelled side upwards (27).
- Then close the control panel again. The CD will start to play.
- To remove the CD open the control panel again. Press the EJECT (9) button. The CD will be ejected. The car radio will change back to radio mode.
Do not drive with a CD projecting from the device. Remove the CD first.
Skipping tracks
- By pressing the TUNE/TRACK/SKIP+ (4) or TUNE/TRACK/SKIP- (5) buttons, you can select the previous or next track on the CD. The track number is shown on the display.
Pausing the CD
- You can pause the CD by pressing the PAU button (16). Pressing the button again will restart CD playback.
Fast forward/rewind
- Hold down the TUNE/TRACK/SKIP+ (4) or TUNE/TRACK/SKIP+ buttons (5) for longer to start fast forward or backwards.
Preview track
- Press the SCN button (17). All tracks are played for around 10 seconds each. Further pressing of the button will change the playback mode back to normal.
Repeat a track
- Press the RPT button (18) to repeat the current track. Further pressing of the button will change the playback mode back to normal.
Random track playback
- Press the SHF button (20). The player will "shuffle" through the tracks, playing them in random order. Pressing the button again will change the playback mode back to normal.
GB
Playing MP3 CDs
The basic functions are the same as those for audio CDs (refer to previous chapter). However, for MP3 CDs you can select the track and artist directly. The use of this function and other MP3-specific functions will depend to some degree on the MP3 CD itself. Please bear this in mind when producing this type of CD (refer to next chapter).
All common codes can be played back.
Producing MP3 CDs; ID3 tags
As with data CDs, MP3 CD-ROMs may contain individual tracks or folders. When producing an MP3 CD please ensure that you only save the tracks in folders and that none are saved on the same level as the folders. Mixing tracks and folders at the same level may produce playback problems.
When producing an MP3 CD you can also save so-called "ID3 tags" (we recommend using an ID3 tag editor for entries). This is a block of information stored on an MP3 CD lying "behind" the actual music information on the MP3. This may include such items as the artist, track, album name, year of publication and a short comment. The car radio can read this block of information and show it on the display.
- To display the ID3 tags press DSP (13). The category changes each time you press the button: > TITLE > ARTIST > ALBUM NAME > YEAR OF PUBLICATION > COMMENT.
Searching for tracks (numbers)
Search for track numbers
- Press the AMS button (15). Now enter the number using the number keys.
- Confirm by pressing BND/LOUD/ENTER (24).
Search for track name (letters)
Press AMS (15) twice.
- Now you can search for the start of a track by entering a letter via the number buttons as per the table below. Confirm the entry of a character with SEL (11).
- Press LOU/ENT/BND (24) to start the track search.
Operation
- If you find a folder with the selected character you can open the directory by pressing TUNE/TRACK/SKIP+ (4) or TUNE/TRACK/SKIP+ (5) and select a track.
- Start playback again by pressing LOU/ENT/BND (24).
- Search inside the directory by pressing TUNE/TRACK/SKIP+ (4) or TUNE/ TRACK/SKIP+ (5).
Searching for directories
Searching from root directory
- Press AMS (15) three times. The top directory appears for a few seconds; then the first directory or track.
- You open a directory by pressing BND/LOUD/ENTER (24) and search by pressing TUNE/TRACK/SKIP+ (4) or TUNE/TRACK/SKIP+ (5).
Searching from current directory
- Press AMS (24) four times. The current directory is displayed.
- You open a directory by pressing BND/LOUD/ENTER (24) and search by pressing TUNE/TRACK/SKIP+ (4) or TUNE/TRACK/SKIP+ (5).
Table for MP3 searching
| Key | Action |
| AMS | Select search setting |
| BND/LOUD/ENTER | Confirm |
| M1 | A, B, C, 1 |
| M2 | D, E, F, 2 |
| M3 | G, H, I, 3 |
| M4 | J, K, L, 4 |
| M5 | M, N, O, 5 / 10 Next track down |
| M6 | P, Q, R, 6 / 10 Next track up |
| MOD (10) | S, T, U, 7 |
| TUNE/TRK/SKIP- | V, W, X, 8 |
| TUNE/TRK/SKIP- | Y, Z, space, 9 |
| SEL | Shift character 1 |
| DSP | 0, -, -, + |
| Volume up/down | Scroll through all available letters and numbers |
TROUBLESHOOTING
| PROBLEM | POSSIBLE CAUSE | SUGGESTIONS |
| The device cannot be switched on. | The ignition is not switched on. | Switch on ignition by turning the key. |
| One of the fuses is defective. | Replace the fuse. | |
| The CD is not loaded or ejected. | There is already a CD in the car radio. | Remove the CD. |
| The CD has been put in the wrong way round. | Insert the CD with the label upwards. | |
| The disc is contaminated or damaged. | Clean the CD or insert another CD. | |
| The temperature in the car is too high. | Wait until the environmental temperature has normalised. | |
| Condensation! | Switch the player off for a few hours and then retry. | |
| No sound! | The volume has been set to minimum. | Increase the volume. |
| Cables are not properly connected. | Check the cable connections. | |
| Function buttons do not work. | The integrated micro-computer cannot work because of interference. | Press the RESET (8) button. |
| The control unit is not properly fitted. | Check the correct fitting of the control unit. | |
| The CD skips. | The installation angle is more than 30°. | Correct the installation angle. |
| The disc is contaminated or damaged. | Clean the CD or insert another CD. | |
| Errors on CDs you have created yourself. | Check the CD in another playback device. | |
| Radio and/or automatic search do not work. | The antenna cable is not connected properly. | Check the correct location of the antenna cable. |
| The transmission signals are too weak. | Set the station manually. | |
| Station memory does not work. | The cable for the permanent plus (pink) is not connected properly. | Check the cable connections For this, refer to the “Installation” on page 6 chapter. |
DISPOSAL INFORMATION
Packaging
All packaging and packaging materials that are no longer required can and should be recycled.
Device
At the end of its life, the radio should not be disposed of in household rubbish. Seek the advice of your local authority on correct, environmentally-friendly disposal.
TECHNICAL DATA
GENERAL
Operating voltage: DC 12V, negative earth connection
Casing dimensions: 178 × 160 × 50 ~mm(W × D × H)
Output power: 4 × 25 Watt (top music output)
Fuses: 0.5 amp (red); 15 amp (pink)
GB
RADIO
| FM waveband | MW waveband | LW waveband | |
| Frequency range | 87.5 – 108MHz | 522 – 1620kHz | 144 – 288kHz |
CD/MP3 PLAYER
Laser output: Class 1 laser product
Frequency range 40Hz - 18kHz
MPEG rate 64 - 320kbps
MP3 playback ISO 9660 & Joliet MP3 format
SUPPORTED CD FORMATS
Audio CDs, CD-Rs and CD-RWs can all be played.
Please note:
These days there are many non-standard CD recording and copy protection procedures in use and a wide range of CD-R and CD-RW discs on the market. This can occasionally lead to read errors or delays. This does not mean the device is faulty.
This device has been approved in accordance with Directive 72/245/
EEC (last amended by Directive 95/54/EC) on "Electromagnetic
compatibility" (so-called E approval).
Subject to technical changes.
MD 7328
GB-23
