USER MANUAL ECOGENIC SOLAC

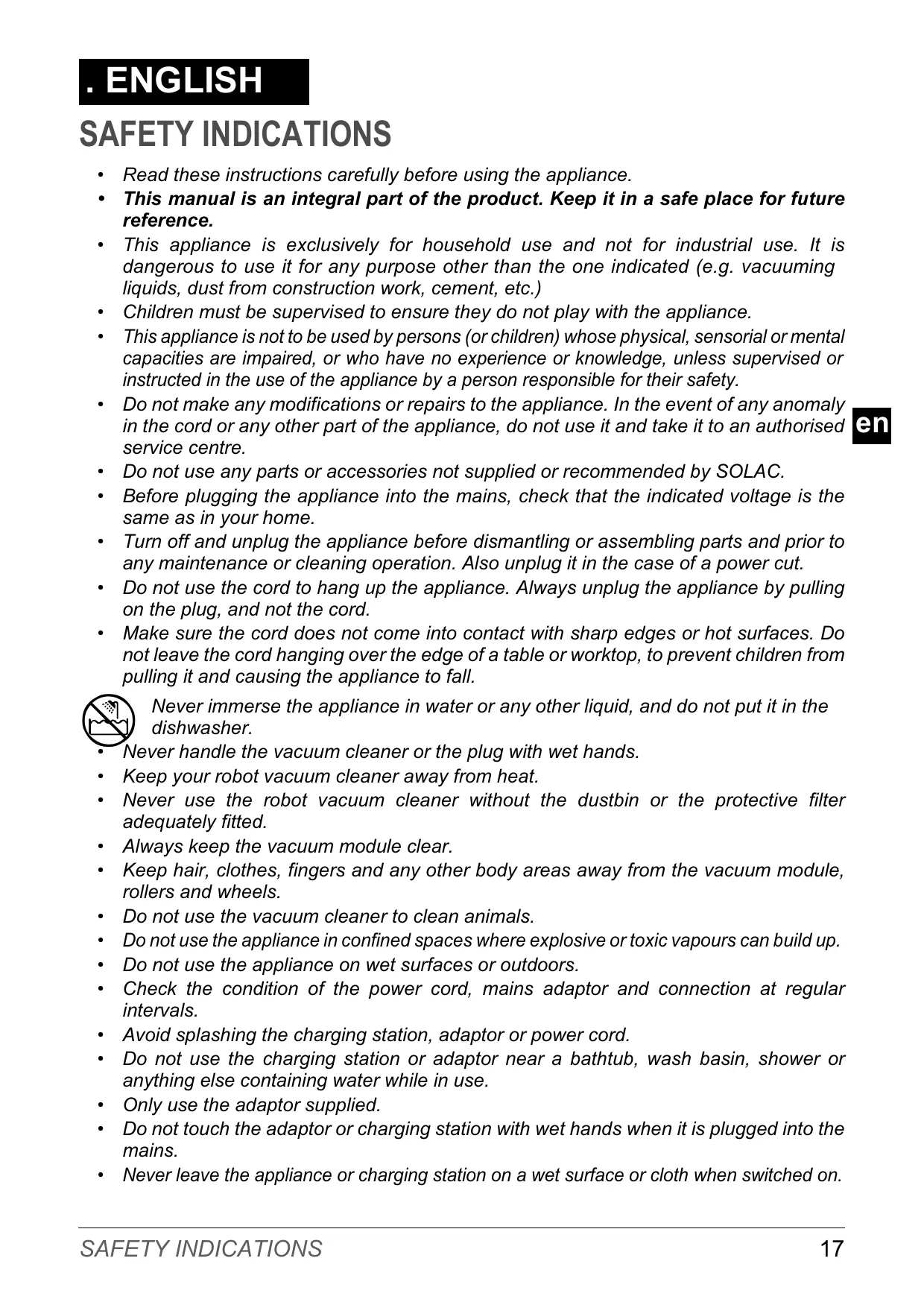

• Read these instructions carefully before using the appliance.
  This manual is an integral part of the product. Keep it in a safe place for future reference.
• This appliance is exclusively for household use and not for industrial use. It is dangerous to use it for any purpose other than the one indicated (e.g. vacuuming liquids, dust from construction work, cement, etc.)
  Children must be supervised to ensure they do not play with the appliance.
• This appliance is not to be used by persons (or children) whose physical, sensorial or mental capacities are impaired, or who have no experience or knowledge, unless supervised or instructed in the use of the appliance by a person responsible for their safety.
• Do not make any modifications or repairs to the appliance. In the event of any anomaly in the cord or any other part of the appliance, do not use it and take it to an authorised service centre.
• Do not use any parts or accessories not supplied or recommended by SOLAC.
• Before plugging the appliance into the mains, check that the indicated voltage is the same as in your home.
• Turn off and unplug the appliance before dismantling or assembling parts and prior to any maintenance or cleaning operation. Also unplug it in the case of a power cut.
• Do not use the cord to hang up the appliance. Always unplug the appliance by pulling on the plug, and not the cord.
• Make sure the cord does not come into contact with sharp edges or hot surfaces. Do not leave the cord hanging over the edge of a table or worktop, to prevent children from pulling it and causing the appliance to fall.

Never immerse the appliance in water or any other liquid, and do not put it in the dishwasher.

• Never handle the vacuum cleaner or the plug with wet hands.
• Keep your robot vacuum cleaner away from heat.
• Never use the robot vacuum cleaner without the dustbin or the protective filter adequately fitted.
  Always keep the vacuum module clear.
• Keep hair, clothes, fingers and any other body areas away from the vacuum module, rollers and wheels.
• Do not use the vacuum cleaner to clean animals.
• Do not use the appliance in confined spaces where explosive or toxic vapours can build up.
• Do not use the appliance on wet surfaces or outdoors.
• Check the condition of the power cord, mains adaptor and connection at regular intervals.
• Avoid splashing the charging station, adaptor or power cord.
• Do not use the charging station or adaptor near a bathtub, wash basin, shower or anything else containing water while in use.
• Only use the adaptor supplied.
• Do not touch the adaptor or charging station with wet hands when it is plugged into the mains.
• Never leave the appliance or charging station on a wet surface or cloth when switched on.

• Do not sit on the appliance or stand in front of it, as this could cause material damage to the appliance.
• Make sure that there are no wires, cables or other objects longer than 150 ~mm on the floor, as they could entangle the rollers.

CAUTION! When you want to dispose of the appliance, NEVER throw it in the rubbish bin. Take it to the CLEAN POINT or waste collection centre closest to your home for processing. You will thus be helping to take care of the environment.

MAIN COMPONENTS

1 Main body

16 Infrared sensor

2 Remote control

17 Handle

3 Automatic charging station

18 Front bumper

4 Virtual barrier

19 Battery adaptor connector

5 Adaptor

20 Operating switch

6 Cleaning brush

21 Control button panel

7 Filter (two units)

22 Rubber roller

8 Side brush (two units)

23 Central roller

9 Mop

24 Side wheels

10 Mob accessory

25 Collision sensors

11 Dustbin

26 Charging station contact connectors

12 Dustbin release button

27 Stair detector sensors

13 Vacuum module release button

28 Front wheel

14 Filter tab

29 UV lamp

15 Vacuum module

PREPARING THE APPLIANCE CHARGING THE ROBOT VACUUM

Only use the adaptor and charging station supplied. Do not use any others.

The charging time is approximately 5 hours for 60-90 min of operation. The first time you charge the battery, leave it to charge overnight.

MAIN COMPONENTS OF CHARGING STATION (A)

1A Decorative LED

5A Charge indicator

2A Decorative LED switch

6A Contact connectors

3A Transmission signal

7A Adaptor connector

4A LED ON light

CHARGING USING THE CHARGING STATION (Fig. 1)

Do not place any objects near the charging station and ensure that the surrounding area is free from items of furniture or obstacles (see recommended distances in the diagram).
The robot will not find the charging station if there are obstacles. Place the charging station in a clear, unobstructed area.
The robot will not find the charging station if the infrared signal transmitter (3A) is covered.

1 Place the charging station on a clean floor and against a vertical wall.

2 Connect the adaptor (7A) to the charging station connector.

3 Plug the adaptor into the mains.

The LED ON light (4A) will light up red.

Run the charging station's power cord alongside the wall, otherwise the robot could get entangled in it.

4 Press the control button of the remote control or the button on the robot's control panel. The robot vacuum will search for the charging station, if it is within a suitable distance, and connect to it.
5 If you want to cancel the charging command during the search, press the control button or remote control button MO stop again. The robot vacuum will stop.
Check that the robot connectors (26) connect properly with the charging station's connectors (6A).
Whilst charging, the charging indicator lights of the charging station (5A) and control panel will flash. Once charging is complete, the charging indicator lights of the charging station (5A) and the control panel will stop flashing and remain lit. The appliance is ready for use.
1 Do not turn off the charging station while vacuuming, as the robot vacuum will return to it for charging, if its battery charge level drops too low.

If you like, you may put a small amount of the scent of your choice in the centre of the decorative LED (1A).

6 Press the switch (2A).
The LED (1A) will light up. When it heats up, the fragrance of the scent inside the LED will spread.
Some scents can damage the plastic surface. Check that the scent will not damage the surface before use.

CHARGING WITHOUT THE CHARGING STATION (Fig. 2)

1 Connect the adaptor cable directly to the connector (19) of the robot vacuum's body (11).
2 Plug the adaptor into the mains.

The LED indicator light on the robot's control panel will flash while charging and will stop flashing when charging is complete.
The robot cannot be started up while it is being directly charged using the power cord.
3 After charging, unplug the adaptor from the mains and then disconnect the cable from the connector (19). The appliance is ready for use.
The adaptor heats up slightly while charging. This is normal, unless it becomes very hot.

AUTOMATIC CHARGING

During cleaning, the robot will always automatically seek the charging station when its battery charge is low.
After cleaning, the battery temperature may be high and therefore the charge time may be longer.

Tips to Extend Battery Life

• Do not leave the adaptor connected for long periods of time. Disconnect it when it has finished charging.
• Do not store or charge the appliance near radiators or other heat sources, or exposed to direct sunlight.
• Do not charge the appliance in dirty or damp places. The room temperature should be between 15^ and 35^ .

• Every few months, allow the batteries to drain completely and then recharge them. To discharge them, use the appliance in cordless mode until it stops, with the charging station switched off. Then, recharge the batteries as explained above.

• When storing the appliance for a long period of time, we recommend you fully charge the battery and then remove it for storage in a cool, dry place.

USING THE APPLIANCE

This appliance has been specially designed to vacuum floors and carpeted floors.
This appliance is intended for daily floor maintenance, avoiding the accumulation of dirt and appearance of fluff.
Never vacuum live ash, splinters or other sharp objects, or liquids.
Never vacuum lit matches or cigarette butts. Do not vacuum toxic material (e.g. ammonia).
Completely remove all the elements used for transportation and packaging.
Do not use the robot vacuum cleaner between small tables, chairs or very small spaces, as this could damage the appliance.
The robot vacuum cleaner uses cleaning settings to effectively clean the whole floor: Spiral movement for more intense cleaning where dirt has been detected, wall following for cleaning the perimeter of the room and room-crossing to ensure a full clean.
The robot vacuum cleaner will take approximately 45 minutes to clean an average-sized room, passing over the same area several times to ensure the whole surface is cleaned.

ROBOT VACUUM CONTROL PANEL

Start/Stop robot vacuum

Charge button:

Lights up when pressed, turns off when the robot connects to the charging station.

Charge indicator:

Flashes during charging. It remains lit when charging is complete.

Ultra-violet lamp:

Lights up when pressed, the disinfection lamp will operate while the robot is cleaning.

1 Remove all objects that could break or damage the robot vacuum from the floor (e.g. lamps, bottles).
2 Check that the dustbin (11) is adequately fitted. See the section ("CLEANING AND STORAGE").
3 Place the virtual barrier (4) where you like to prevent the robot entering a specific area. See the section ("VIRTUAL BARRIER").
4 Start up the robot vacuum cleaner. To do so, set the operating switch (20) to the ON position.
5 Ensure that cleaning robot is charged.
If the LED indicator light on the robot's control panel flashes, set up the robot vacuum to charge. See the section ("PREPARING THE APPLIANCE. CHARGING THE ROBOT VACUUM")
6 If you want to use the robot vacuum in automatic mode, programme its operation using the remote control. See the section ("REMOTE CONTROL").
7 Press the START button on the robot's panel. The robot vacuum will then start to operate, following its cleaning patterns.

If you wish, you can control its movements or functions using the remote control buttons (please refer to the “REMOTE CONTROL” section), or using the buttons of the control panel on the robot vacuum's body.
Press the UV key, if you want to sterilise the front area.

This function is particularly recommended for people suffering from allergies and for homes with pets, as it sterilises the floor against viruses and bacteria.

8 Press the START button again to pause the cleaning process.
9 If you do not want a programmed weekly clean, turn off the appliance after cleaning. To do so, set the operating switch (20) to the OFF position or press the ON/OFF button on the remote control.

10 Unplug the charging station from the mains.

VIRTUAL BARRIER

MAIN COMPONENTS (B)

1B	ON switch & Length of virtual barrier	2B	LED ON light
		3B	Proximity sensor head
	Off	4B	Virtual barrier sensor head
	Short range = 4 m	5B	Battery compartment cover
	Medium range = 6 m	6B	Battery cover clip
	Long range = 8 m

OPERATION

Use the virtual barrier to define the desired cleaning area, preventing the robot from entering unnecessary or unwanted areas. Use this to prevent the robot entering areas with cables or a particular room.
Place the virtual barrier at the same level on the surface where you are going to use the robot vacuum.
Place the virtual barrier and the charging station at a distance of more than 3m apart, to prevent interferences.
Do not place the charging station within range of the virtual barrier's signal.
The proximity sensor head (3B) prevents impact between the robot vacuum and the virtual barrier, preventing it from coming within a distance of less than 0.5-1 m from it.

1 Make sure that the batteries are not discharged.
2 Position the virtual barrier so that it blocks the area you do not want the robot vacuum to enter. (fig. 3).
3 Remove any objects that may be in front of the virtual barrier, to prevent its inadequate operation.
4 Choose the desired length of the virtual barrier. To do so, set the switch (B) to choose short , medium or long range.

Use the appropriate barrier length. The battery's duration depends on the selected sensor distance.
The LED ON light (2B) will flash every 8 seconds until the battery runs out.
5 Check that the robot vacuum cannot cross the boundary created by the virtual barrier.
6 Set switch (B) to the OFF position , when the virtual barrier is not required.
Some differences may occur in the direction of the virtual barrier's infrared signal and the robot's reception range, due to the movement of the robot during while in use. This difference may vary depending on the work environment and the charging level of the robot and the virtual barrier.

COMPONENTS (C)

OK	1	Robot vacuum ON/OFF	5	Display (fig. 4)
	2	Direction buttons		a Transmitting signal" icon
	3	Confirmation button		b Programmed days of the week
	4	Control keys		c Programmed days of the week
		SU Start/Sunday		d Time
		START		e Error icon
		MO Provisional stop/Monday		f Function icon
		STOP
		TU Time setting/Tuesday
		TIME WE Charge/Wednesday
		CHARGE
		TH Timer/Thursday
		TIMER FR Fast clean/Friday
		FAST SA Clean after charging/Saturday
		FULL GO
		ALL Slow clean/every day
		SLOW

TIMER

Synchronisation of the Remote Control and the Robot Vacuum (fig. 5)

Synchronise the remote control and the robot vacuum before first use and following maintenance operations. To do so:

1 Check that the batteries of the robot vacuum and the remote control are sufficiently charged.
2 Turn the robot off. To do so, set the operating switch (20) to the OFF position.
3 Press the OK button for more than 4 seconds. Return the operating switch (20) to the ON position, without releasing the OK button.

When the synchronisation has been properly performed, the robot will emit two beeps.

Setting Day and Time (fig. 6)

To ensure that the robot starts operating at the expected time, the current day of the week and time must be saved.
1 Press the TU button. This opens the day setting function.
2 Press the button of the day corresponding to the current day of the week ( SU = Sunday, MO = Monday, TU = Tuesday, WE = Wednesday, TH = Thursday, FR = Friday, SA = Saturday).
3 Press the arrows to move through the "hour" and "minutes" fields.

Press the arrows to select the current "hour" and "minutes".

4 Press OK to confirm the selection.

Press if you want to cancel the setting.

Scheduling Automatic Weekly Cleaning (fig. 7)

With the robot turned off.

1 Press the TH button of the remote control.
2 Press the button of the day corresponding to the day of the week you want to programme. Select one, several or all the days of the week. The selected days will flash.
3 Press the arrows to set the exact cleaning time. Press the "up" and "down" arrows to select the hour and minutes.

4 Press OK to confirm the selection.

Press the ON/OFF button if you want to cancel the setting.
For the robot vacuum to start up at the planned time, it must be switched on. The operating switch (20) in the ON position and START STOP lit.

ADDITIONAL FUNCTIONS

FULL GO Function

If this function is selected, the robot vacuum is programmed to continue cleaning once it is fully charged.

1 Press the button. The robot vacuum must be switched on.

i FULL GO will light up in the remote control display. The robot vacuum will search for the charging station before the battery runs out and will automatically start cleaning when it is fully charged.

SPEED Function

1 Press the FR button to choose fast clean.
FAST will light up in the remote control display.
2 Press the ALL button to choose slow clean.
SLOW will light up in the remote control display.

ERROR CODES

If the robot is not functioning properly due to one of the following circumstances, all of the robot's control panel buttons will flash simultaneously.

1 Press the SU button of the remote control. Ensure that the remote control signal is within the active range of the appliance.
The error icon will appear in the remote control display beside one of the error codes described below.
2 Perform the actions described below depending on the error displayed.

ERROR CODE CAUSE OF THE FAILURE SOLUTION

E01 Stair detector sensors Clean the sensors (27).

E02 Central roller Remove any dirt and hair trapped in the roller (23).

E03 Low battery Charge the battery.

E04 Side wheels Remove any dirt and hair trapped in the wheels.

E05 Dustbin Fit adequately the dustbin (11).

If the failure persists after fulfilling these actions, do not use it and take it to an authorised assistance service. Do not modify or repair the appliance.

STORAGE AND STORAGE

Prior to any cleaning or maintenance operation, ensure that the operating switch (20) is in the OFF position and that the appliance is not connected to the mains.

Make sure that all washed elements are completely dry prior to assembly.

Never immerse the vacuum module (15) in water or any other liquid, or place it in the dishwasher. Do not use abrasive products or solvents.

For best performance of the robot vacuum, we recommend that you clean the dustbin and clean the filter after every 3 uses.

EMPTYING THE DUSTBIN (11)

1 Keep the release button (12) pressed down. Remove the dustbin (11). (fig. 8)
2 Place the dustbin over a rubbish bin, pull the tab (14) to open the filter holder and empty the contents into the rubbish bin. (fig. 9)

FILTER CLEANING AND REPLACEMENT (7)

It is advisable to inspect the filter regularly, to check that it is working properly. Clean the filter thoroughly if you detect a reduction in the appliance's vacuuming capacity.
It is advisable to replace the filter once or twice a year, depending on how often the appliance is used.

1 Empty the dustbin as shown in the "EMPTYING THE DUSTBIN (11)" section.
2 Remove the filter (7). Press the semi-circular holder with one hand to remove the used filter from the holder (fig. 10)
3 Gently shake the removed filter against the side of the rubbish bin to dislodge excess dust and dirt.

Never use the robot vacuum without the filter (7).
4 Clean the filter using the cleaning brush (6) (fig. 11).
5 Return the clean filter, or new filter if necessary, to its holder.

CLEANING THE DUSTBIN (11)

1 Press the button (13). This releases the vacuum module (15) (fig. 12).
2 Turn the vacuum module round, release the two tabs and remove the lid.
3 Clean the interior of the bin using the cleaning brush (6) (fig. 13).
4 Use the cleaning brush to clean the vacuum module (15) and the air intake and outlet unit (fig. 13).

Do not clean the vacuum module with water.

5 Fit the dustbin into the body of the appliance. Press on the bin until you hear a click, which indicates that it is properly fitted to the body.

MOP CLEANING AND REPLACEMENT (9)

Do not use the mop on rugs, carpets or floors that are not completely smooth.

1 In such cases, remove the mop attachment (10). Turn the mop attachment and undo the left and right tabs (fig. 14).
2 To replace the mop (9), pull it out and put a new one in its place (fig.14).

REMOVAL AND CLEANING OF BRUSHES

For best performance of the robot vacuum, we recommend that you clean the rollers and brushes after every 3 uses.

Rollers (22) and (23)

1 Push the tab back and lift and fastening bar (fig.15).
The rollers will be released.
2 Remove the rollers (22) and (23).
3 Clean the rollers using the cleaning brush (6) (fig.16).
4 Re-insert the rollers and replace the fastening bar, pressing it until you hear a click, which indicates that it is fitted properly

Side Brush (8)

Clean the side brush regularly to prevent malfunctioning of the robot vacuum.
1 Use your hands to remove any hair and dust trapped in the side brush.
2 If the dirt is very tangled around the brush, cut it using scissors.
If necessary, unscrew the screw and remove the side brush (8) from the body for more effective cleaning (fig.17).
3 Return the side brush to its housing.

REMOVAL AND CLEANING OF WHEELS

Side Wheels

1 Unscrew the screws of the wheels (fig.18).
2 Remove the wheels from their housing and clean them.

Do not clean the wheels with water, oil or grease.
Return the wheels to their housing and screw down the screws using a screwdriver.

Front Wheel

If the front wheel is jammed or does not rotate freely, remove it for cleaning (fig.18).

1 Remove the wheel with the help of a tool that serves as a lever.
2 To replace it after cleaning, press the wheel into its housing.

CLEAN THE COLLISION SENSORS (25) AND STAIR SENSORS (27)

Keep the infrareds clean so that the robot vacuum can operate correctly.
1 Clean the sensors with a piece of cotton or a soft cloth (fig.19).

CLEANING THE APPLIANCE

Check that no water enters the appliance.
Clean the appliance after using it for the first time, immediately after each use and after a long period without use. You will thus ensure the correct operation of the appliance and prolong its useful life.

1 Clean the outside of the appliance with a damp cloth. Do not use abrasive products or solvents.

REPLACING THE BATTERIES

REPLACING THE BATTERIES OF THE VIRTUAL BARRIER (Fig. 20)

1 Turn battery cover lock (6B) until the cover is released (5B).
2 Place the batteries in the compartment intended for this purpose. Check that the positive and negative electrodes are in the proper positions.

Remove the batteries if you are not going to use the robot vacuum for a long period of time.

REPLACING THE BATTERIES OF THE REMOTE CONTROL (Fig. 21)

1 Open the battery compartment cover.
2 Place the batteries in the compartment intended for this purpose. Check that the positive and negative electrodes are in the proper positions.

Remove the batteries if you are not going to use the robot vacuum for a long period of time.

. FRANÇAIS

INSTRUCTIONS DE SECURITÉ

REplacement DES PILES

REEMPLACEMENT DES PILES DE L'ISOLATEUR D'ESPACES (fig. 20)

FOUTCODE OORZAAK OPLOSSING

E01 Trapsensoren Maak de sensoren schoon (27)

CISTENI SNIMACU NARAZU (25) A SNIMACU SCHODU (27)

KEFÉK ELTÁVOLITÁSA ÉS CSERÉJE

ABTOMATUHO 3APEXDAHE

I Iopo epe Me Ha noucmbaHe pobomb m aemamuHNo ue nombpcu 3apejdaumama cmaHcua, Kozamo 3apdmb Ha bamepuma My nahe.
CleD noucmeaHe, mempeamypama Ha bamepuma Moxe da e bucoka u 3amoBaBpemmo 3a 3apejdahe Moxe da e no-0bIzo.

CtBBeTN 3a yDJIkaBaHe XKIBOTa Ha 6aTepeYTa

He octabraye aandaTepa BkIIOueH 3a DbIbI nepnoD OT BpeMe. Pa3kaute ro, koraTo npNKIOUy 3apeJdaHeTO.
He cxbxpaHraBaIte n He 3apeKdaIte ypea B 6bn3OCT do paHaTOpn IIn npytn N3TOUHNi Ha TOPNIHa IIN I3JIOXeH Ha CJIbHueBa CBETNIHa.
He 3apejdaTe ypeHa Mpbchn nIIN BnaJHn MeCTa. TemepaTypaHa NOMEeHneTo 6n Tp8BaNo Da 6bJe MeJy 15^ n 35^
Ha BCEKN HЯKOJIKO Mececa OCTaBeTe 6aTePnIte Da Ce N3TOUrT HAnbJHNO I CJIeD TOBa Tn 3apeDeTe OTHOBO. 3a Da rN pa3peIte, n3NoJ3BaIte UpeDa 6e3 Ka6eJ, DOKaTO Toi CnPpe, KATO 3apexJaTa TaHcunr Tp8Ba Da e N3KlOuYeHa. CJIeD TOBa 3apeDeTe OTHOBO 6aTePnIte, KaKTo e O6aCHeHo No-rope.
Korato ypeDbT Hama da ce n3no3Ba Dbnro Bpeme, npenopbYBaMe BN da 3apeHnTe HnblHo batepya n cIeD TOBa Da r n3BaDnTe n CbXpaHnBaTe Ha XJaHO, cyxo MxCTO.

PABOTA C YPERDA

To3u yped e cneuaJHo npoeKmupaH 3a noUcmeaHe Ha nodoe u kuJumu. To3u yped e npedHa3NaueH 3a exeDHe6Ho nodbpxKeH He noda, kamo He n036OJI8a HampyIbAHe Ha Mbx U 3aMbpc8aHe.

Hukozha He u3noJ3BaIme npaxocmykaKama 3a noUcmbaHe Ha opeuHa neen, mpecku, ocmpu npedMemu unu meuHocmu.
Hukozha He noucmbaume 3anaheHu KupmeHu Kneku uu uzaapeHu yapku. He 3acmykaume mokcuHu MamepuaNu (amohrk u dp.).
OmcpaHeme u3yno 8cuKu eJeMeHmu, KoMo ca 6bUu u3noJ3eaHu 3a mpaHcnpm u nakemupaHe.
He u3noJ3BaUme npaxocmykaykama po6om mexdy manku macu, cmoloe unu 8 ozaHnueHu npocmpaHcMba, mbu kamo moa ue nopedu ypeda.
I Ipnaxocmykaqkama pobom u3noJ38a hacmpoukume 3a noucmbaHe, 3a da noucmu epekmueho ueuia nod:

CnupaHNO deUxHe 3a no-UHMeh3uBHO NOUCmbaHe Ha 3aMbpcHume Mecma, cIeDbAne Ha luHuraMa Ha cMeHama 3a NOUCmbaHe Ha nepumembpa Ha cmaMa u npcecUaHe Ha cMaMa 3a zapaHmupaHe Ha PbLnHO NOUCmbaHe.

I Okono 45 Muhymu ca Heobxodumu Ha npaxocmykaykama po6om da noucmu cma CbC cpeDeH pa3Mep, npeMuHaBaUku HkoNko PbMu bpxy eoHO u CbUO McMo, 3a da ZapaHmupa, ye zJaIama cma e HapblHo NoucmeHa.

KOHTPOJEN IANHEJI HA IPAXOCMYKAUKATA POBOT

PnyckaHe/cnupaHe Ha npaxocMykaqkama po6om

Бутон за заразец:

Ceemba, kozamo e Hamucham; u3zacba, kozamo poobomb m ce eklioucu KbM 3apejdaaama cmaHcua.

ИнDUkamop 3a 3apeXdaHe:

Преемраза по браиме на захдаи. Сөмүнөрөдамо, кozamо захдаhamo e 3аьршөн.

Ylmpaunolemoa lamna:

CbeMa, Kozamo ce Hamuche; lamnama 3a de3uHfekuja pa6omu, Dokamo pobomb m noucmea.

1 OtctpaheTe ot noDa BCnUKN ppeMEn, KOINTO MOKe Da CUYN T NIN NOBpeJrT npaxocMykaKaTa po6oT (HaNPmEp Iamn, 6yTNkN).
2 Побере Te Дали Контейнера 3a npax (11) e моntиран правлино. Вж. разда ("ПОЧИCTBAHE И СьхPAHEHNE").
3 Пocstавete виртуална барпера (4) на място,aco He nckate po6otbТда Вииза В конкгетна облacr.Вж.pa3дени ("ВИРТУАЛHAБAPINEPA").
4 BkIouhe Te npaxocmykaKaTa pOboT. 3a Ta3n ceI npemeTe Te npeBknIOvBaTeJHa pa6oTeH peXIM (20)В noIoXeHne BKI.
5 PpOBepeTe daJIIN noUncTbaUcnIaT po6Ot e 3apeJeH.
Ako cbeomoduohama uhdukamopha lamna Ha KOhmponnnaheHa poboma npemueba, hacmpoime npaxocmykaqkama po6om 3a 3apejdahe. Bx. pa3de ("IODΓOTOBKA HA YPDA. 3APEXDAHE HA PPAXOCMYKAUKATA POBOT"
6 Ako JxelaTe Da n3noJ3BaTe npaxocmykauchkata po6OT B aBTOMaTnueH peKIM, nporpaMnpaTe DeiCTBnETo Ha ypeDa C NOMOuTa Ha NICTaHNoHHOTO ynpabJIeHne. Bx. pa3deJa ("INCTAHUHOHH OYPABJIEHNE").
7 HaTnucHeTe 6yToHa STaH a naneHa ha po6ota.

Taka npaxocmykaKaTa po60T 3aNoUba pa60Ta, cIeDbaiKn yCTaHOBeHnte MoJeN Ha NOuInCTBaHe.

Ako jenaeme, moxe da ynpaebnae ame dbuxehnma unu paobomama ha ypeda c nomouma Ha bymohme Ha ducmahuoHomo ynpaebneHue (hanpaabe me cnpaeka e pa3deena "INCTAHUIOHHO YNPABJEHNE") unu kamo u3noJ3ame bymohume Ha KOHmpoHHra naHeI ebpxy kopnyca Ha npaxocmykauchkama po6om.
i Hamusceme knaeua UV, ako kejaeme da cmepuu3upame obnacmna nped ypeda. Ta3u 0ocboho nodxodra 3a xopa, cmpadau om anepuu, kaKmo u 3a domoBe, Kbdemo ce omalekdam domaunu IIObumu, mB' Kamo no mo3u HauH noDbm ce cmepuu3upa cpeuy bupycu u 6akmereuu.
8 Hatachete 6ytoHa oTHOBO,3a da cnpTe Ha nay3a npoceca no nouchTbaHe.
9 Ako He JxepaTe nporpaMpaHO cEmuHNO NOUCTBaHe, N3KIOUeTe ypeDa CneI NOUCTBAHe. 3a Ta3n ZeJ, HAcTPOte IpeBKnIOUcBaTeJHa pa6OTeH peJIM (20) B IIOLOXeHne N3KJI INJN HaTNCHeTe 6yToHa BKJI/N3KJI O Ha DInCTaHcUNOHOTO ynpaBJIeHne.
10 N3KJIIOUeTe 3apeJdaaTaCTaHcIy OTo 3axpaHbAHeTO.

BNUPTYAJIHA BAPNEPA

OCHOBH N KOMNHOHTN (B)

1B IpeKIOUaMeI BKIu IbJxHa Ha eupmyaHama 6apuepa

U3KII.
O MaJIbK O6xbam = 4 M
CpeedeH o6xem = 6 M
- ΦόπαM oxbam = 8 M

2B Csemooduodeh uhdukamop BKI.
3B IImepumeneHnakpauHukHa damuka 3a npubuaaHe
4B I3MepumeneHnakpauHukHa damuka 3a bupmyaHa bapuepa
5B Kanak Ha omdeJeHuemo 3a 6amepuyma
6B Ckoba Ha Kaapa Ha bamepuyma

EKCПLOATAЦЯ

Iocmae me bupmyaHama bapuepa Ha cBzomo HUo Ha noebpxHocmma, Kbdemo ue u3noJ3bame npaxocMykaqkama po6om.
Iocmae me eupmyaHama 6apuepa u 3apejdaaama cmaHua Ha pa3cmOHa neoe om 3 M, 3a da u36e2heme 6b3HuKbaHemo Ha CMyuEHa.
He nocmaeime 3apekdaaama cmanu8 oxbama Ha cuhaHa ha bupmyaHa ma 6apuepa.
I 3mepumelnue m hakpaunuk Ha damuuka 3a npubuxabahe (3B) npedomepamra c6bck Mejdy npaxocmykaqkama po6om u eupmyalhama bapuepa, kamo He no360na ha ypeda da npubuxku Ha pa3cmohue no-Maikko om 0,5-1 M om Heia.

I 3noJ3eAume bupmyaHama bapuepa, 3a da onpeDeIume Jekanama obIacm 3a noUcmbaHe, kAmo He nO360IumE Ha poBoma da HaeJe3e 6 HeHyxHu uNu HeJceJaHu oBnacmu.
I3noJ3BaUme ma3u yHkUa, 3a da npedna3ume po6oma om HaeIu3aHe oobIacm, Kbdemo uma Ka6enu, unu E KOHKpemHu cmau.
1 YBepTe ce, Ye 6aTepeHnTe He ca pa3peDeHn.
2Позицонпай Te BnrtTuajHaTa 6apHepa Taka, Ye da 6Ioknpa MeCTaT, KbTeTo He Jxelaete npaxocMyKauchkata po60T da HABIn3a. (Фиг.3).
3 OTePaHeTe BCnKn IpeDMeTn IpeD BnPTyAHaTa 6apnepa, 3a Da IpeDoTbPaTnte He npabNlHToI yHKcNoHnpaHe.
4 I36epeTe JekHaTa DbJxHnHa Ha BnptyAnHaTa 6apnepa. 3a Da HnPaBnTe TOBa, NaCTpOte npEbkIouBaTeJIa (B) KaTo I36epeTe MaIbK O, cpeJeH nIIN rOJAM oxbBat.
I 13noJ3BaUme noOxOraHa dBJxHa Ha bapuepama. IpoJbJxumelHocmma Ha deUcmbue Ha bamepuMa 3aBucu om u3bpaHomo pa3cmOHNue Ha damuka.
Cebemoduohm uHukamop BKJ. (2B) 3aNo8a da npemu8a Ha 8 ceku 8 cekyHdu, dokamo bamepuma ce u3xa6u.
5 Пювере Тдлпрахocmykaчkaраз робот He може Да пеминграниста, сьдада на С вртуална за барега.
6 HactpoIte npEeBkIIOUbATEJIa(B) B noJIoXeHne N3KJI O, KOraTo He e HuyxHO n3PON3BaHeTO Ha BnptyAJaHaTa 6apnepa.
Bb3MOxH0 e 6b3HuKeaHe Ha HJKOU pa3NkU NO omHOweHue Ha NocOKama Ha UHΦpauepeEHHa CUHa Na bupmyaHama bapuepa u obXbama Ha npueMaHe Ha poboma, bJkau ce Ha deuxeHuemo Ha poboma no epeMe Ha pa6oma. Ta3u pa3nka Moke da bapupa 3abucumocm om pa6omhama cpea u Husbomo Ha 3apd Ha poboma u bupmyaHama bapuepa.

ДиCTAHцINOHHOУпРавЛЕHNE

KOMNOHEHTN (C))

1 BKJI/IV3KJI Ha npaxocmykaqukama po6om
2Бутонуза посока
3Буmon 3a nomьржdeHue
4 KoHmpoJIHu KnaBuWu

Su Hauano/Heodejra
