RCD160BB - Radio LEXIBOOK - Free user manual and instructions

Product type	Portable CD radio player
Brand	LEXIBOOK
Model	RCD160BB
Category	Radio with CD player
Power supply	6 'C' batteries (not included) or 230V AC 50Hz mains adapter
Approximate dimensions	Approx. 30 x 20 x 15 cm
Approximate weight	Approx. 1.5 kg
Radio bands	AM, FM, FM stereo
FM antenna	Telescopic
AM antenna	Built-in ferrite
CD player	CD, CD-R, CD-RW (3 inch without adapter)
CD functions	Play, pause, skip, search, repeat (1 track or all), programming (20 tracks)
Auxiliary input	3.5 mm AUX jack (cable not included)
Headphone output	3.5 mm headphone jack
Speakers	Built-in stereo
Magic Button	Makes the LCD screen lights flash
Display	LCD with on/off and FM stereo indicators
Included accessories	AC power cord
Warranty	2 years
Maintenance	Clean with a soft, dry cloth; do not use abrasive detergents
Safety	Do not open the casing (laser and electric shock risk); protect from moisture
Environmental information	Recyclable device; do not dispose of with household waste
Origin	Designed in Europe, made in China

Frequently Asked Questions - RCD160BB LEXIBOOK

How to change the batteries of the Lexibook RCD160BB radio?

Remove the battery compartment door located on the back of the unit by sliding the cover downward. Insert six 'C' batteries (not included) following the indicated polarity. Replace the cover. Preferably use alkaline batteries for maximum operating time.

Why is my CD not playing?

Check that the function switch is set to CD, the disc is inserted correctly (label facing up) and the CD compartment door is fully closed. If the problem persists, try another disc. Make sure the power cord is plugged in or the batteries are in good condition.

How to improve FM reception?

Extend the telescopic FM antenna fully and orient it for best reception. If the station is weak, switch from FM ST. to FM (mono) to reduce noise.

Can I use rechargeable batteries?

No, the manual advises against using rechargeable batteries. Use only non-rechargeable 'C' type batteries (preferably alkaline).
Warning: do not mix different types of batteries.

How to program the CD track playback order?

In CD stop mode, press the PROG button. 'PROG' and '1' flash. Use the SKIP/SEARCH buttons to select the desired track, then press PROG to confirm. Repeat up to 20 tracks. Then press PLAY/PAUSE to start programmed playback.

How to repeat a track or the whole CD?

In play or stop mode, press REPEAT once to repeat a single track ('REP 1' displayed). Press twice to repeat all tracks ('REP ALL'). To cancel, press REPEAT repeatedly until the indicator disappears.

What to do if the sound is low or absent in radio mode?

Check that the function switch is set to RADIO and the volume is high enough. Make sure the selected band (AM, FM, FM ST.) is correct. For FM, extend the antenna; for AM, rotate the unit.

How to connect an external device like a smartphone?

Use an audio cable with 3.5 mm jack (not included). Connect it to the AUX IN jack of the radio and to the headphone or line output of your device. Set the function switch to AUX. The sound will be played through the radio's speakers.

What are the risks related to the laser in this product?

The device contains a Class 1 laser. Never open the casing: exposure to the laser beam may cause eye injury. Any repairs should be carried out by qualified personnel.

How to clean the radio casing?

Use a soft, dry cloth to wipe the casing. Do not use abrasive products, waxes, or sprays. Avoid water entering the interior.

USER MANUAL RCD160BB LEXIBOOK

RISQUE D'ÉLECTROCUTION NE PAS OUVRIR

MISE EN GARDE : AFIN DE RÉDUIRE LES RISQUES D'ÉLECTROCUTION, NE PAS ENLEVER LE COUVERCLE (NI L'ARRÊRE). NE CONTIENT AUCUNE PIECE POUVANT ÉTRE RÉPARÉE NI REMPLACÉE PAR L'UTILISATEUR. CONFIER TOUTE RÉPARATION À UN TECHNICIEN QUALIFIÉ.

TENSION DANGEREUSE :

FONCTIONNEMENT SUR LA TENSION CA

©2009 Barbie, Inc. All rights Reserved.

©2009 LEXIBOOK®

LEXIBOOK S.A, 2, avenue de Scandinavie, 91953 Courtaboeuf Cedex France
Assistance technique: 0892 23 27 26 (0,34 € TTC/Min), www.lexibook.com

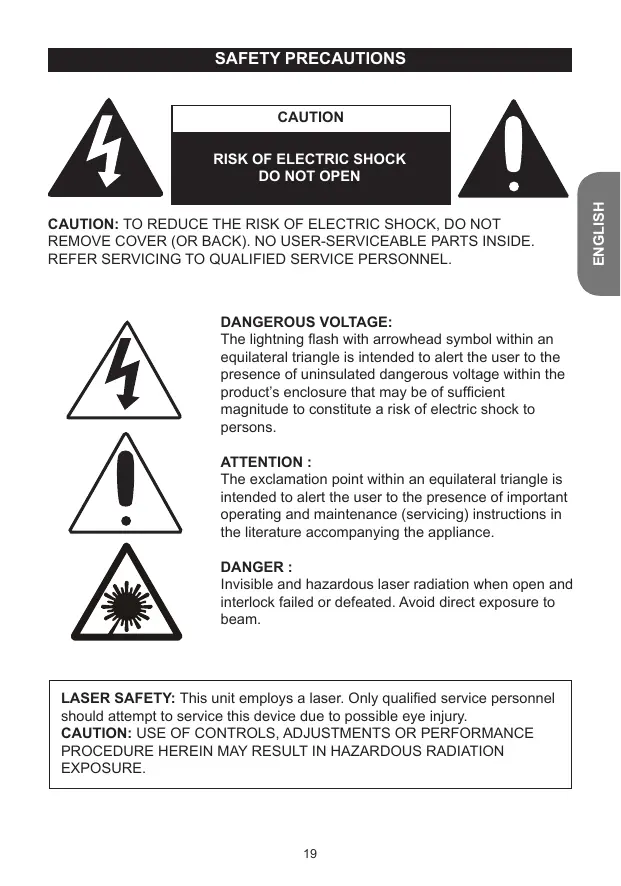

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

ATTENTION :

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

DANGER :

Invisible and hazardous laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

LASER SAFETY: This unit employs a laser. Only qualified service personnel should attempt to service this device due to possible eye injury.

CAUTION: USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE PROCEDURE HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this unit near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the unit.

11. Only use attachments/accessories specified by the manufacturer.

12. Unplug this unit during lightning storms or when unused for long periods of time.

13. Refer all servicing to qualified service personnel. Servicing is required when the unit has been damaged in any way, such as the following: the power-supply cord or plug has been damaged; liquid has been spilled or objects have fallen into the unit; and/or the unit has been exposed to rain or moisture, does not operate normally, has changed its performance or has been dropped.
14. This unit should not be exposed to dripping or splashing water and no object filled with liquids such as vases should be placed on the unit.
15. Do not overload wall outlet. Use only power source as indicated.
16. Use replacement parts as specified by the manufacturer.
17. The product may be mounted to a wall only if recommended by the manufacturer.
18. Upon completion of any service or repairs to this product, ask the service technician to perform safety checks.

PROTECT YOUR FURNITURE

This model is equipped with non-skid rubber "feet" to prevent the product from moving when you operate the controls. These "feet" are made from non-migrating rubber material specially formulated to avoid leaving any marks or stains on your furniture. However certain types of oil based furniture polishes, wood preservatives or cleaning sprays may cause the rubber "feet" to soften and leave marks or a rubber residue on your furniture.

To prevent any damage to your furniture, we strongly recommend that you purchase small self-adhesive felt pads, available at hardware stores and home improvement centers everywhere, and apply these pads to the bottom of the rubber "feet" before you place the product on fine wooden furniture.

NOTES:

• Please avoid using this unit in places of high temperature or humidity over prolonged periods of time as damage may occur.
• Exposure to direct sunlight in places such as car interiors may cause the unit to become warped and/or lead to malfunctioning.
• Avoid using or storing this unit in dusty or sandy locations.

PREPARATION FOR USE

GETTING STARTED

• Operate controls and switches as described in the manual.
• Before turning on the power, make certain that the AC Power cord is properly installed.
• Store your CDs in a cool area to avoid damage from heat.
• When moving the unit, be sure to first disconnect the AC Power cord.

UNPACKING AND SET UP

• Carefully remove the main unit and the AC Power cords from the display carton. Remove all the packing material from the unit. Remove any decorative or descriptive labels from the front or top of the cabinet. Do not remove any labels from the back or bottom of the cabinet.
• Carefully remove any small strips of tape that may have been used to prevent the CD door from opening in transit.
• Unwind the AC Power cord and extend it to its full length.
  This unit was shipped with a dummy CD transit card in the CD player.

This dummy CD prevents the laser pick up from moving during shipment.

This card must be removed before you can insert your own CDs. Lift the CD Door OPEN Tab to open the CD door. Carefully remove the dummy CD from the player and discard it. Close the CD door.

• Place the unit on a flat, level surface such as a table, desk, counter, shelf, etc, convenient to a 230V 50Hz AC outlet, out of direct sunlight, and away from sources of excess heat, dust, moisture, or strong magnetic fields.

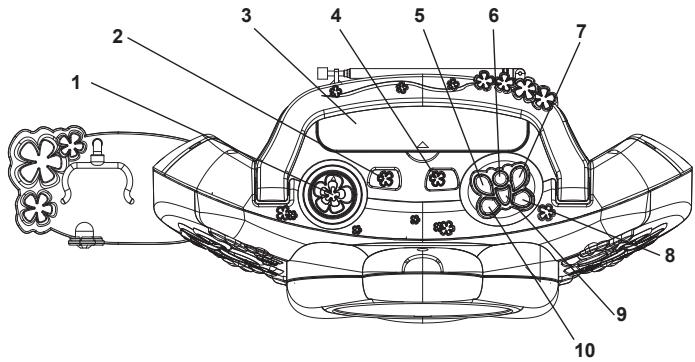

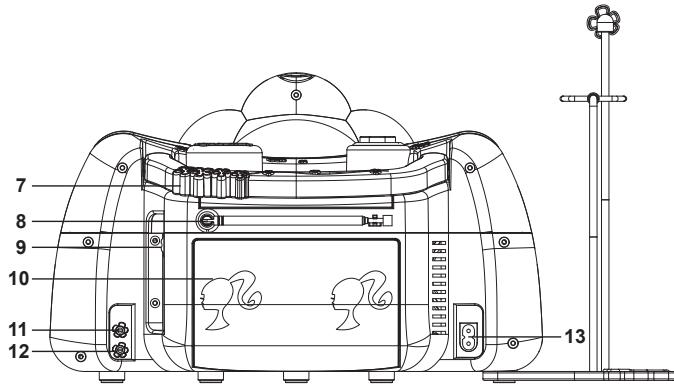

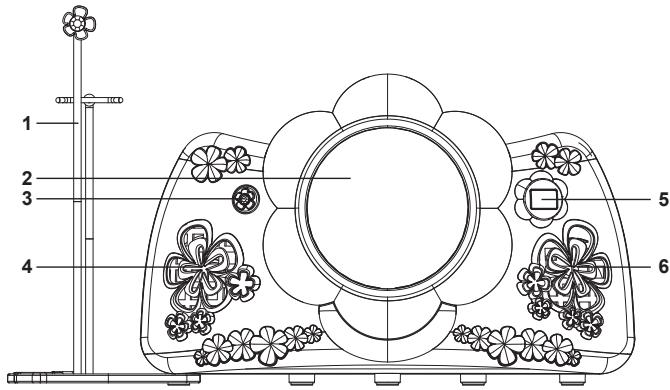

Front and back views

1. Stage for Barbie
2. CD compartment
3. Magic button
4. Left speakers
5. LCD display with POWER and FM ST. (FM stereo) indicators

6. Right speakers

7. Carrying handle

8. FM telescopic antenna
9. VOLUME control
10. Battery compartment
11. AUX IN jack
12. HEADPHONE jack
13. AC power jack

1. TUNING control
2. BAND (AM/FM/FM ST.) switch
3. Secret compartment
4. FUNCTION (AUX/RADIO/ CD/OFF) switch
5. STOP (■) button
6. REPEAT button
7. PLAY/PAUSE button
8. SKIP/SEARCH button
9. PROG. button
10. SKIP/SEARCH按钮

This Radio/CD player requires either six (6) "C" size batteries --- (not included) or an AC power cord (included).

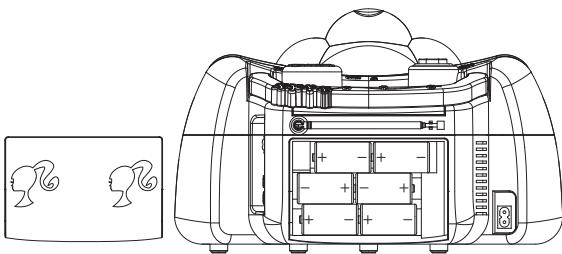

BATTERY INSTALLATION

1. Remove the Battery Compartment door on the back of the unit by sliding it open.
2. Insert six (6) "C" size batteries (not included) according to the polarity diagram inside the Battery Compartment (as shown below). Alkaline batteries are recommended for the longest playing time.
3. Replace the Battery Compartment door

• Replacement of batteries must be done by an adult.
• Do not mix old and new batteries.
• Do not mix allcaine, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries.
• The supply terminals are not to be short-circuited.
• Non-rechargeable batteries are not to be recharged.
• Exhausted batteries are to be removed.
• Only batteries of the equivalent type are to be used.
• Batteries are to be inserted with the correct polarity.
• Dispose of batteries properly.
• Do not dispose of batteries in fire; batteries may explode of leak.
• Do not use rechargeable batteries.
• Rechargeable batteries are to be removed before being charged.
• WARNING: Mal-function or loss of memory may be caused by strong frequency interference or electrostatic discharge. Should any abnormal function occurs, remove and reconnect the batteries, or unplug the AC/DC adapter from the mains socket and re-plug it again.

AC OPERATION

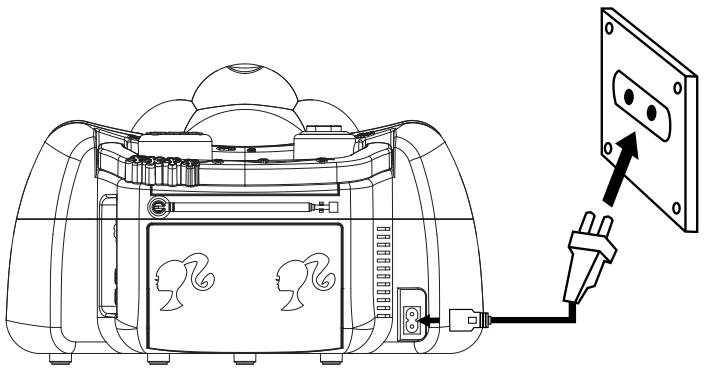

To operate the unit using AC power, connect the small end of the AC power cord to the AC power jack on the rear of the unit and insert the plug into an AC outlet having 230V AC, 50Hz only. The batteries are automatically disconnected when the AC adapter is used.

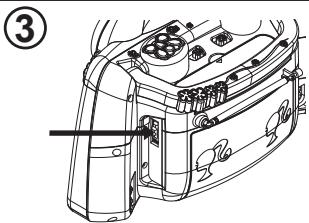

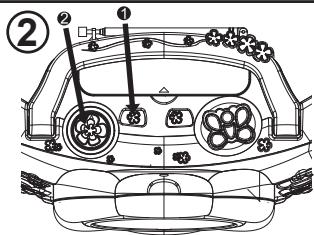

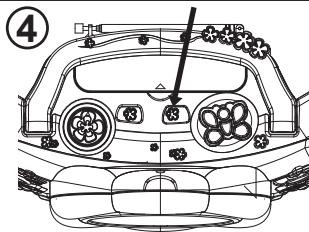

CAUTION:

• When not using AC power, disconnect the AC power cord from the wall outlet and from the unit by pulling the plug (not the cord).
• Do not touch the AC power cord with wet hands.
• Fully insert the plug without exposing any part of the blade.
• The socket-outlet shall be installed near the equipment and shall be easily accessible.

Slide the FUNCTION switch to the RADIO position to turn the unit on and select Radio mode; the POWER indicator will light.

Slide the BAND switch 1 to select AM, FM or FM ST. (Stereo). Tune a desired station by turning the TUNING control 2. NOTES:

• If you select FM ST. and you tune to a FM Stereo station, the FM ST. indicator will light.
• If you are listening to a weak FM Stereo station, you can usually improve the reception by sliding the BAND switch from FM ST. to FM (the sound will now be in mono).

Adjust the VOLUME control as desired.

To turn the radio off, slide the FUNCTION switch to the OFF position; the POWER indicator will turn off.

ANTENNAS

AM-AM-This unit has a built-in ferrite rod antenna, which provides adequate reception in most areas. If reception is weak, turn the unit to improve reception.

FM-The FM Telescopic Antenna is for FM reception only. If reception is weak, adjust the length and the angle of the antenna.

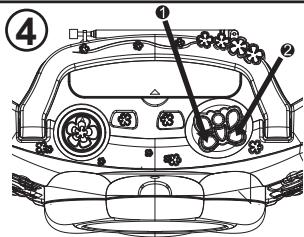

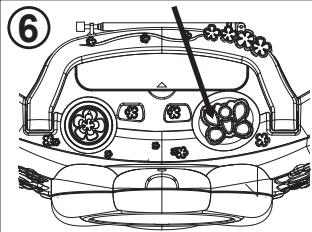

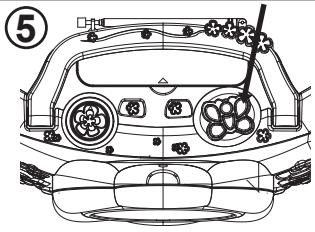

TO INSERT AND PLAY A CD

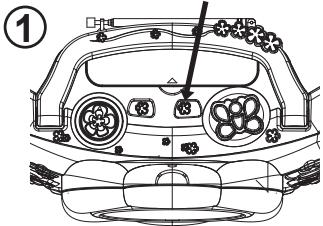

Slide the FUNCTION switch to the CD position to turn the unit on and select CD mode; the POWER indicator will light.

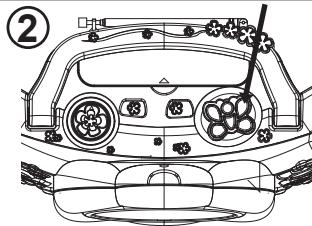

Open the CD compartment lid by gently pulling down the door. Insert a disc onto the center spindle (label side up) and push down gently to make sure it is securely on the spindle. Close the CD compartment lid.

Insert the headphones (not included) into the HEADPHONE jack or just listen through the speakers.

The player will read the Table of Contents and the display will show the total number of tracks on the disc. Press the PLAY/PAUSE button to begin playback on Track 1.

Adjust the VOLUME control as desired.

To skip forward or backward through the tracks on the disc, press and release the SKIP/SEARCH 1 or 2 button. To search forward or backward through the disc, press and hold the SKIP/SEARCH 1 or 2 button.

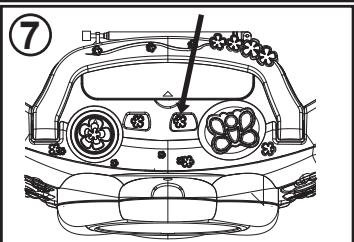

Press the PLAY/PAUSE button to pause playback. Press the PLAY/PAUSE button to continue playback.

When the disc is through playing, it will stop. Press the STOP (■) button to stop the disc before it is finished.

To turn the unit off, slide the FUNCTION switch to the OFF position; the POWER indicator will turn off.

OPERATION (CONTINUED)

CD PLAYBACK NOTES:

• This unit is capable of playing standard CDs or 3" singles; no adapter is required.
• If a disc is inserted incorrectly, dirty, damaged or not present at all, "no" will appear in the display.
• Although this unit can read CD-R and CD-RW discs, in addition to normal CDs, the playability of those discs may be affected by the type of software that was used to create the discs, as well as the blank media you are using. 100% playability cannot be guaranteed. This is not an indication of a problem with this unit.

AUX IN Jack

By using a home audio connection cable (not included), you can listen to an external audio unit through this unit's speakers. Before making any connections, turn off the power to all equipment.

Slide the FUNCTION switch to AUX to turn the unit on and select AUX mode. Plug a connection cable (not included) between the AUX or LINE OUT jack on the external audio unit and this unit's AUX IN jack (side of the unit). (Do not connect it to this unit's HEADPHONE jack.) Turn on the external audio unit and start playback; the external unit's output sound will be heard through this unit's speakers. Rotate the VOLUME control to adjust the volume level as desired.

To turn the unit off, remove the plug from the AUX IN jack, then slide the Function switch to OFF.

OPERATION (CONTINUED)

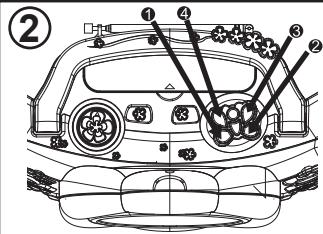

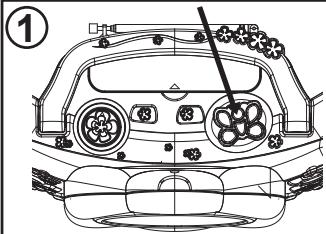

TO REPEATEDLY PLAY BACK ONE TRACK

While either in CD Stop orPlayback mode, press the REPEAT button once; "REP 1" is displayed on the LCD display.

Press the SKIP/SEARCH 1 or 12 button to select a track and press the PLAY/ PAUSE 8 button to start playback and the unit will play the selected track over and over until the STOP (■) 4 button is pressed.

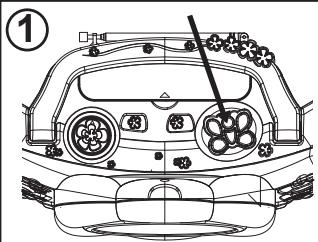

TO REPEATEDLY PLAY BACK ALL TRACKS

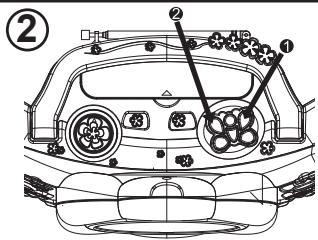

While either in CD Stop or Playback mode, press the REPEAT button twice; "REP ALL" is displayed steadily on the LCD screen.

Press the PLAY/PAUSE 串 button to start playback and the unit will then play all the tracks on the CD over and over until the STOP ② button 2 is pressed.

TO CANCEL OR STOP REPEAT PLAYBACK:

• TO STOP REPEAT PLAYBACK, press the STOP (■) button once.
• TO CANCEL REPEAT PLAYBACK, press the REPEAT button several times until "REP 1/REP ALL" disappears from the LCD display.

OPERATION (CONTINUED)

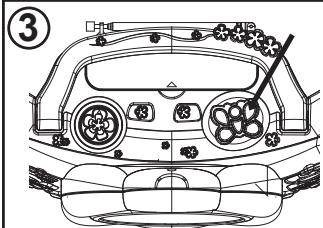

TO PROGRAM THE MEMORY (UP TO 20 TRACKS)

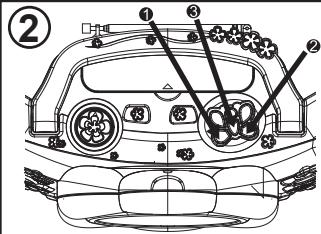

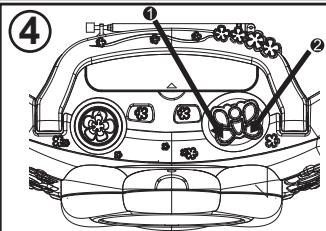

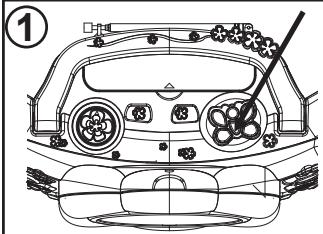

While in CD Stop mode, press the PROG. button; "PROG" and "1" (the program number) will blink on the LCD display and "01" (the program number) will blink.

Select the first track to be played back using the SKIP/SEARCH or button, then press the PROG. button again. Repeat this step to program additional tracks (up to 20 tracks).

Press the PLAY/PAUSE button to begin Programmed playback. Adjust the VOLUME control as desired.

To skip forward or backward through the programs, press the SKIP/SEARCH 1 or 2 button. When the disc is through playing, it will stop.

NOTES:

• Programming is the ability to preselect the order in which a series of tracks will be played.
• Press the REPEAT button twice during Programmed playback to activate Repeat All (all the tracks in the program will repeat continuously); "REP ALL" is displayed steadily on the LCD screen.
• Press the STOP (■) button to stop the disc before it is finished.
• Press the STOP (■) button while in the Stop mode to clear the program.

OPERATION (CONTINUED)

Barbie has a surprise just for you!
Just follow the instructions below and see what you can do with your Magic button!

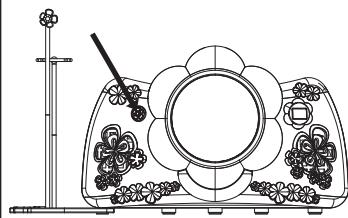

Press the Magic button on the front of your radio CD player.

SURPRISE! The LED lights around the LCD screen start to blink!

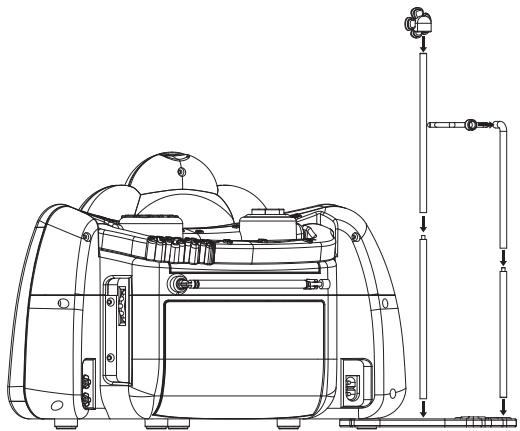

STAGE FOR BARBIE : ASSEMBLY INSTRUCTIONS

CARING FOR COMPACT DISCS

• Treat the compact disc carefully. Handle the compact disc only by its edges. Never allow your fingers to come in contact with the shiny, unprinted side of the compact disc.
• Do not attach adhesive tape, stickers, etc. to the compact disc label.
• Clean the compact disc periodically with a soft, lint-free, dry cloth. Never use detergents or abrasive cleaners to clean the compact disc. If necessary, use a CD cleaning kit.
• If a disc skips or gets stuck on a section of the compact disc, it is probably

dirty or damaged (scratched).
- When cleaning the compact disc, wipe in straight lines from the center of the compact disc to the outer edge of the compact disc. Never wipe in circular motions.
This unit is designed to play

only compact discs bearing the identification logo as shown here. Other discs may not conform to the CD standard and may not play properly.
- Compact Discs should be stored in their cases after each use to avoid damage.
- Do not expose compact discs to direct sunlight, high humidity, high temperatures or dust, etc. Prolonged exposure or extreme temperatures can warp the compact disc.
- Do not stick or write anything on either side of the compact disc. Sharp writing instruments, or the ink, may damage the surface.

DIGITAL AUDIO

CARE OF THE CABINET

If the cabinet becomes dusty, wipe it with a soft, dry dust cloth. Do not use any wax, polish sprays or abrasive cleaners on the cabinet.

CAUTION

Never allow any water or other liquids to get inside the unit while cleaning.

TROUBLESHOOTING GUIDE

If you experience a problem with this unit, check the chart below before calling for service.

SYMPTOM	CAUSE	SOLUTION
CD will not play.	FUNCTION switch not set to CD.	Set FUNCTION switch to CD.
	Disc inserted incorrectly.	Reinsert disc correctly.
	AC power cord not connected.	Check AC power cord connection.
CD skips while playing and/or erratic playback.	CD compartment not closed.	Close CD compartment.
	Disc inserted incorrectly.	Reinsert disc correctly.
	Dirty or defective disc.	Try another disc.
	Moisture condensation on disc.	Wipe disc with soft cloth.
AM or FM, poor or no sound.	Station is not tuned properly.	Retune the AM or FM broadcast station.
	FM: Antenna is not properly adjusted.	Reorient FM antenna.
	AM: Unit is not positioned correctly.	Rotate unit until best reception is obtained.
	FUNCTION switch not set to RADIO.	Set FUNCTION switch to RADIO.
	Volume at minimum.	Increase volume.

WARRANTY

NOTE: Please keep this instruction manual, it contains important information. This product is covered by our two-year warranty. To make use of the warranty or the after-sales service, please contact your retailer and supply proof of purchase. Our warranty covers material or installation-related defects attributable to the manufacturer, with the exception of wear caused by failure to respect the instructions for use or any unauthorised work on the equipment (such as dismantling, exposure to heat or damp, etc.).

Reference: RCD160BB

Designed and developed in Europe - Made in China

LEXIBOOK UK Ltd, Unit 10 Petersfield Industrial Estate, Bedford Road, Petersfield, Hampshire, GU32 3QA, United Kingdom, Helpline: 0808 100 3015, http://www.lexibook.com

©2009 Barbie, Inc. All rights Reserved.

©2009 LEXIBOOK®

Environmental Protection

Unwanted electrical appliances can be recycled and should not be discarded along with regular household waste! Please actively support the conservation of resources and help protect the environment by returning this appliance to a collection centre (if available).

CAUTION

RIESGO DE DESCARGA ELECTRICA NO ABRIR

PRECAUCION:

PARA REDUCIR EL RIESGO DE DESCARGA ELECTRICA, NO RETIRE LA CUBIERTA (O PARTE TRASERA). NO HAY PIEZAS EN EL INTERIOR SUSCEPTIBLES DE SER MANIPULADAS POR EL USUARIO. EN CASO DE AVERIA, SOLICITE ASISTENCIA TECNICA DE PERSONAL CUALIFICADO.

TENSION PELIGROSA:

©2009 Barbie, Inc. All rights Reserved.

©2009 LEXIBOOK®

©2009 Barbie, Inc. All rights Reserved.

©2009 LEXIBOOK®

LEXIBOOK Electronica Lda, Quinta dos Loios, Praceta Jose Domingos dos Santos, 6B-8 ^a , 2835-343 Lavradio-Barreiro, Portugal,

http://www.lexibook.com

CURA DEI COMPACT DISC

©2009 Barbie, Inc. All rights Reserved.

©2009 LEXIBOOK®

SCHUTZEN SIE IHRE MOBEL

©2009 Barbie, Inc. All rights Reserved.

©2009 LEXIBOOK®

©2009 Barbie, Inc. All rights Reserved.

©2009 LEXIBOOK®

Milieubescherming

Very satisfactory/Très satisfaisant
Disappointing/Decevant

Find all our new products / Retrouvez toute notreactualite: http://www.lexibook.com
