RL985DES - Radio LEXIBOOK - Free user manual and instructions
Find the device manual for free RL985DES LEXIBOOK in PDF.
| Product type | Radio alarm clock with Minion figure |
| Brand | Lexibook |
| Model | RL985DES |
| Dimensions (L x W x H) | 145 x 140 x 125 mm |
| Power supply | 4 AA/LR6 1.5V batteries (not included) |
| FM frequency range | 87 - 108 MHz |
| Main functions | Clock, alarm, FM radio, jumper function (ejects figure) |
| Display | LCD screen |
| Clock setting | 12H or 24H mode, hour and minute setting |
| Alarm setting | Activation/deactivation, hour and minute setting, radio or buzzer selection |
| Alarm duration | 1 minute |
| Snooze function | 5 minutes (press RADIO) |
| Volume | Adjustable via VOL. button and UP/DOWN keys |
| Material | Plastic |
| Color | Yellow (Minions theme) |
| Maintenance and cleaning | Soft cloth slightly moistened with warm non-soapy water |
| Safety | Not suitable for children under 3 years (choking hazard due to small parts) |
| Warranty | 2 years |
| Designed in | Europe |
| Manufactured in | China |
| Reference | RL985DES |
Frequently Asked Questions - RL985DES LEXIBOOK
User questions about RL985DES LEXIBOOK
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Radio in PDF format for free! Find your manual RL985DES - LEXIBOOK and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. RL985DES by LEXIBOOK.
USER MANUAL RL985DES LEXIBOOK
Radio réveil jumper Moi Moche et Méchant Despicable Me Jumper Alarm Clock
- LCD screen
- Battery compartment (at the bottom of the unit)
- Minion figurine
- MODE button: selects the setting mode.
- VOL. button: press this button to control the volume. Press once, and then press on UP or DOWN to change the volume.
- RADIO button: press this button to turn the radio on or off and to snooze the alarm
- UP button: press this button to change the radio frequency or to turn the volume up.
- DOWN button: press this button to change the radio frequency or to turn the volume down.
- Base
- Jumper demo button
- Speaker
Battery information
Your Jumper Alarm Clock works with 4 x 1.5V=AA / LR6 type batteries (not included).
When you use the RL985DES for the first time:
- Using a screwdriver, open the battery compartment cover located at the bottom of the unit.

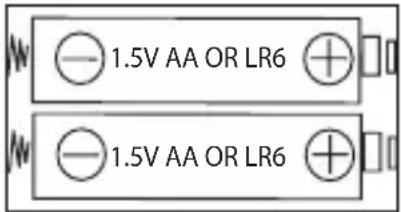

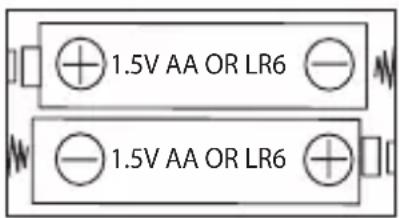

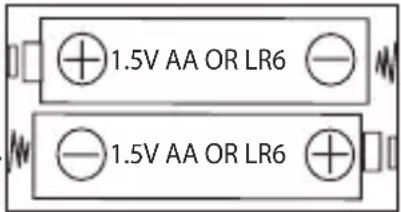

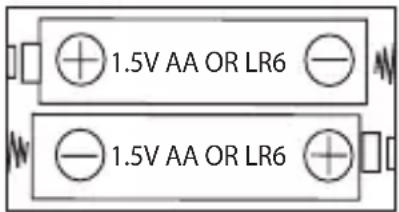

- Install the 4 x AA/LR6 1.5V—batteries (not included) observing the polarity markings inside the battery compartment.
- Close the battery compartment and tighten the screw.
IMPORTANT NOTE: For better performance, it is recommended to use alkaline batteries with this product.
Non-rechargeable batteries are not to be recharged. Rechargeable batteries are to be removed from the product before being charged. Rechargeable batteries are only to be charged under adult supervision. Different types of batteries or new and used batteries are not to be mixed. Only batteries of the same or equivalent type as recommended are to be used. Batteries are to be inserted with the correct polarity. Exhausted batteries are to be removed from the product. The supply terminals are not to be short circuited. Do not throw batteries into a fire. Remove the batteries if you are not going to use the product for a long period of time.
WARNING: Malfunction or loss of memory may be caused by strong frequency interference or electrostatic discharge. Should any abnormal function occur, remove the batteries and insert them again.
Installation
Unpacking the device
When unpacking, ensure that the following elements are included:
1 x Despicable Me Jumper Alarm Clock
1 x Instruction manual
WARNING: All packaging materials, such as tape, plastic sheets, wire ties and tags are not part of this product and should be discarded.
Settings
CLOCK
- To set the clock, press and hold the MODE key.
- Press UP/DOWN to set 12H/24H.
- Press MODE key again.
- Press UP/DOWN to set hour.
- Press MODE key again.
- Press UP/DOWN to set minutes.
- Press MODE key to come back to the Clock Mode.
ALARM
- To set the alarm, press MODE once. " 🔍 " appears on the screen, then press and hold MODE button, press UP/DOWN button to choose ON.
- Press UP/DOWN to set hour.
- Press MODE key again.
- Press UP/DOWN to set minutes.
- Press MODE key again.
- Press UP/DOWN to set if you want to hear the radio (RAD) or the alarm (VOI).
- If you choose the Radio, press UP/DOWN to choose the radio frequency.
- Press MODE key to finish.
Note: The alarm lasts 1 minute.
When the alarm sounds, press RADIO key to snooze the alarm for 5 minutes (the bell icon will flash), or press any other keys to turn it off.
RADIO
- Press RADIO key to turn on/off the Radio.
- Press UP/DOWN to choose the radio frequency.
- If you want to change the volume, press VOL. key, and then press UP/DOWN to monitor the volume.
- Under the radio mode, press MODE to have the clock back on the screen.
JUMPER FUNCTION
Press the demo button to eject Minion from the base. To make the figurine jump again, push it in its base until it stands straight and then press the demo button.
Specifications
| FM tuner 87 – 108MHZ |
| Dimensions 145(L) x 140(W) x 125(H) mm |
| Batteries 4 x AA/LR6 1.5V |
Maintenance
The finish on your unit may be cleaned with a dust cloth and cared for as other furniture. Use a soft, clean cloth moistened with plain, lukewarm water to clean the exterior of the unit. Use caution when cleaning and wiping the plastic parts. Mild soap and a damp cloth may be used on the front panel.
Warranty
This product is covered by our 2-years warranty.
For any claim under the warranty or after sale service, please contact your distributor and present a valid proof of purchase. Our warranty covers any manufacturing material and workmanship defect, with the exception of any deterioration arising from the non-observance of the instruction manual or from any careless action implemented on this item (such as dismantling, exposition to heat and humidity, etc.). It is recommended to keep the packaging for any further reference.
WARNING!
Not suitable for children under 3 years. Choking Hazard – Small parts.
In a bid to keep improving our services, we could implement modification on the colours and the details of the product shown on the packaging.
NOTE: Please keep this instruction manual, it contains important information.
Reference: RL985DES
Designed and developed in Europe – Made in China
©Lexibook®
^TM & © Universal Studios
United Kingdom & Ireland
For any further information, please call Helpline: 0808 1003015
Environmental Protection
Unwanted electrical appliances can be recycled and should not be discarded along with regular household waste! Please actively support the conservation of resources and help protect the environment by returning this appliance to a collection centre (if available).
IM code: RL985DESIM1025
