USER MANUAL RP510AV LEXIBOOK

Illustration of a digital LexiBook game clock displaying a character with dynamic poses, no readable text or symbols on the main image.

Size: 105 x 150mmFormat: Bookl

Color bar with grayscale gradient and a crosshair symbol at the bottom (no text or labels)

1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 MOSO RADIO VOL UP DOWN

10 11 12 AVENGAR PROJECT

http://www.lexibook.com/doc/rp510av/rp510av_1.pdf

FRANCIALS

Yiu Wai Man

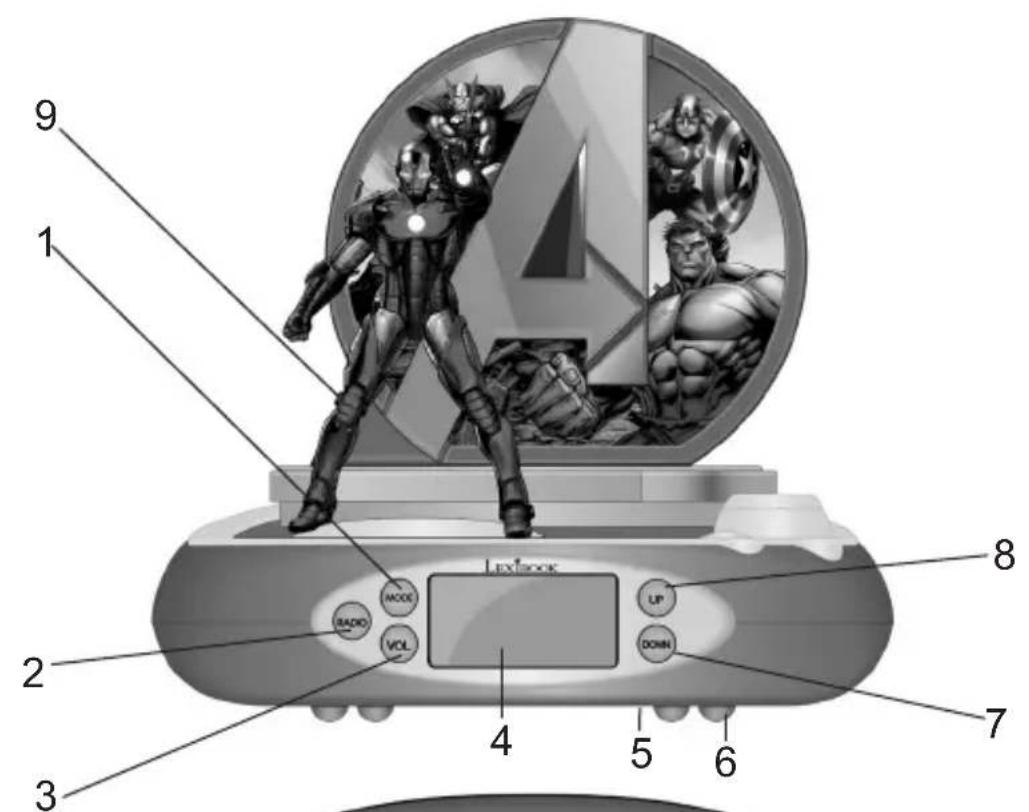

1. MODE button: selects the setting mode.
2. RADIO button: press this button to turn the radio on or off and to snooze the alarm
3. VOL. button: press this button to control the volume. Press once, and then press on UP or DOWN to change the volume.
4. LCD screen
5. Battery compartment (at the bottom of the unit)
6. Night-light rubber feet
7. DOWN button: press this button to change the radio frequency or to turn the volume down.
8. UP button: press this button to change the radio frequency or to turn the volume up.
9. Iron Man button

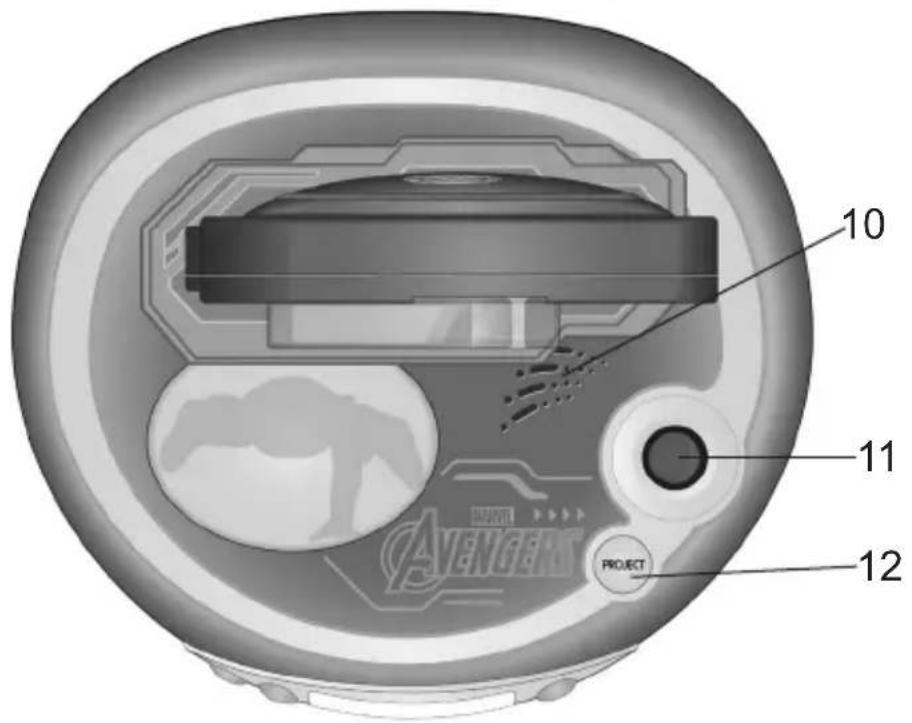

10. Speaker
11. Projector
12. PROJECT button: projects the time onto the ceiling.

Battery information

Your Avengers Radio Alarm Clock Projector works with 4 x 1.5V—AA / LR6 type batteries (not included).

When you use the RP510AV for the first time:

1. Using a screwdriver, open the battery compartment cover located at the bottom of the unit.
2. Install the 4 x AA/LR6 1.5V—batteries (not included) observing the polarity markings inside the battery compartment.
3. Close the battery compartment and tighten the screw.

1.5V AA OR LR6 1.5V AA OR LR6 1.5V AA OR LR6 1.5V AA OR LR6

IMPORTANT NOTE: For better performance, it is recommended to use alkaline batteries with this product.

Non-rechargeable batteries are not to be recharged. Rechargeable batteries are to be removed from the product before being charged. Rechargeable batteries are only to be charged under adult supervision. Different types of batteries or new and used batteries are not to be mixed. Only batteries of the same or equivalent type as recommended are to be used. Batteries are to be inserted with the correct polarity. Exhausted batteries are to be removed from the product. The supply terminals are not to be short circuited. Do not throw batteries into a fire. Remove the batteries if you are not going to use the product for a long period of time. Battery shall not be exposed to excessive heat such as sunshine, fire or the like.

WARNING: Malfunction or loss of memory may be caused by strong frequency interference or electrostatic discharge. Should any abnormal function occur, remove the batteries and insert them again.

• Keep a minimum distance around the device for sufficient ventilation;
• The openings should never be blocked by newspapers, curtains, tablecloths, etc.;
• Do not place the device on open flames such as lighted candles;
• Batteries should be disposed properly. Take them to the collection container in order to protect the environment;
• Device for use in a temperate and/or tropical climate.

Installation

ENGLISH

Unpacking the device

When unpacking, ensure that the following elements are included:

1 x Avengers Radio Alarm Clock Projector
1 x instruction manual

WARNING: All packaging materials, such as tape, plastic sheets, wire ties and tags are not part of this product and should be discarded.

Settings

CLOCK

1. To set the clock, press and hold the MODE key.
2. Press UP/DOWN to set 12H/24H.
3. Press MODE key again.
4. Press UP/DOWN to set hour.
5. Press MODE key again.
6. Press UP/DOWN to set minutes.
7. Press MODE key to come back to the Clock Mode.

ALARM

1. To set the alarm, press MODE once. "☐ appears on the screen, then press and hold MODE button, press UP/DOWN button to choose ON/OFF
2. Press UP/DOWN to set hour.
3. Press MODE key again.
4. Press UP/DOWN to set minutes.
5. Press MODE key again.
6. Press UP/DOWN to set if you want to hear the radio (RAD) or the alarm (VOI).
7. If you choose the Radio, press UP/DOWN to choose the radio frequency.
8. Press MODE key to finish.

Note: The alarm lasts 1 minute.

When the alarm sounds, press RADIO key to snooze the alarm for 5 minutes (the bell icon will flash), or press any other keys to turn it off.

RADIO

1. Press RADIO key to turn on/off the Radio.
2. Press UP/DOWN to choose the radio frequency.
3. Press and hold UP / DOWN for 2 seconds, it will jump to the next channel.
4. If you want to change the volume, press VOL. key, and then press UP/DOWN to monitor the volume.
5. Under the radio mode, press MODE to have the clock back on the screen.

MELODIES

Press Iron Man to play one of the 4 preloaded melodies.

NIGHTLIGHT

Press once on the base of the clock to switch on the nightlight. Press again to stop it.

Note: when activated, the nightlight will stay on for 15 minutes.

PROJECTOR

Press PROJECT to project the time onto the ceiling. The projection will gradually fade out after a few seconds.

Specifications

FM tuner 87 – 108MHZ

Dimensions (W)180 x (L)160 x (H)170mm

Batteries 4 x AA/LR6 1.5V

Maintenance

The finish on your unit may be cleaned with a dust cloth and cared for as other furniture. Use a soft, clean cloth moistened with plain, lukewarm water to clean the exterior of the unit. Use caution when cleaning and wiping the plastic parts. Mild soap and a damp cloth may be used on the front panel.

Simplified EU Declaration of Conformity

We, Lexibook® S.A.

6 avenue des Andes

91940 Les Ulis

France

Kind of product: Projector Alarm Clock Avengers

Type designation: RP510AV

Hereby, Lexibook Limited declares that the radio equipment type RP510AV is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address:

http://www.lexibook.com/doc/rp510av/rp510av_1.pdf

Yiu Wai Man

Product Development Manager

(Hong Kong)

Warranty

ENGLISH

This product is covered by our 2-years warranty.

For any claim under the warranty or after sale service, please contact your distributor and present a valid proof of purchase. Our warranty covers any manufacturing material and workmanship defect, with the exception of any deterioration arising from the non-observance of the instruction manual or from any careless action implemented on this item (such as dismantling, exposition to heat and humidity, etc.). It is recommended to keep the packaging for any further reference.

In a bid to keep improving our services, we could implement modifications on the colors and the details of the product shown on the packaging.

NOTE: Please keep this instruction manual, it contains important information.

Reference: RP510AV

Designed and developed in Europe – Made in China

©Lexibook®

©MARVEL

United Kingdom & Ireland

For after-sales service, please contact us at [e-mail] or [phone].

This product is not a toy.

Environmental Protection

Unwanted electrical appliances can be recycled and should not be discarded along with regular household waste! Please actively support the conservation of resources and help protect the environment by returning this appliance to a collection centre (if available).
