Ultimate Spider-Man Jumper RL985SP - Radio LEXIBOOK - Free user manual and instructions

Product type	Alarm clock radio with interactive Ultimate Spider-Man figure
Brand	Lexibook
Model	Ultimate Spider-Man Jumper RL985SP
Dimensions	147 (L) x 134 (W) x 127 (H) mm
Power supply	4 AA/LR6 1.5 V batteries (not included)
FM frequency range	87.5 - 108 MHz
Main functions	FM radio, alarm with jumping figure, stopwatch, clock, 'Jumper' function
Clock setting	Press MODE 3 times, adjust with ADJUST then SET
Alarm setting	Press MODE 2 times, set hour/minute, confirm with MODE
Activating/deactivating the alarm	Press SET and ADJUST simultaneously in clock mode
Radio station search	Press SCAN; use RESET to restart the search
Stopwatch	Press MODE once, ADJUST to start/stop, SET to reset
Volume and power on	RADIO OFF/ON/VOLUME dial
'Jumper' function	Press the demo button to eject the figure; replace it to reuse
Screen type	LCD screen
Antenna	Telescopic antenna for better FM reception
Maintenance	Clean with a clean, soft, slightly damp cloth (non-soapy water)
Warranty	2 years
Manufacturer reference	RL985SP
Recommended age	From 3 years (caution: small parts)

Frequently Asked Questions - Ultimate Spider-Man Jumper RL985SP LEXIBOOK

How to set the clock on the Ultimate Spider-Man radio?

Press 3 times on the MODE button. Use ADJUST to set the minutes, then SET to go to the next setting. The order is: minutes, hours, date, month, day of the week. Confirm by pressing MODE.

How to set the alarm?

Press 2 times on MODE. Use ADJUST to set the hour, then SET to go to minutes. Set the minutes with ADJUST and confirm with MODE.

How to activate or deactivate the alarm?

In clock mode, press SET and ADJUST simultaneously. The bell symbol appears on the screen when the alarm is activated.

How to stop the alarm when it goes off?

The Spider-Man figure jumps when the alarm sounds. Press ADJUST for snooze (5 minutes) or replace Spider-Man on his base to turn off the alarm. It will ring again the next day at the same time.

How to use the radio?

Turn the RADIO OFF/ON/VOLUME dial clockwise to turn on. Press SCAN to search for stations. Use RESET to restart the search from the beginning. For better reception, extend the antenna and orient it.

How does the stopwatch work?

Press once on MODE to access the stopwatch. Press ADJUST to start or stop, and SET to reset. Return to clock mode by pressing MODE again.

How to make Spider-Man jump?

Press the demo button to eject the figure. For reuse, place Spider-Man back in his base until he stands upright, then press the button again.

What type of batteries to use?

Use 4 AA/LR6 1.5 V batteries (not included). For best performance, it is recommended to use alkaline batteries. Respect polarity when inserting.

What to do if the device does not work properly?

Electromagnetic interference may disrupt operation. Press the RESET button or remove and reinsert the batteries to reset the device.

How to clean the radio?

Use a clean, soft cloth slightly dampened with warm non-soapy water for the exterior. Avoid chemical products. Dry plastic parts thoroughly.

USER MANUAL Ultimate Spider-Man Jumper RL985SP LEXIBOOK

Radio réveil jumper Ultimate Spider-Man Ultimate Spider-Man Jumper Alarm Clock

TM & © 2014 Marvel & © 2014 Adelaide

Lexibook S.A

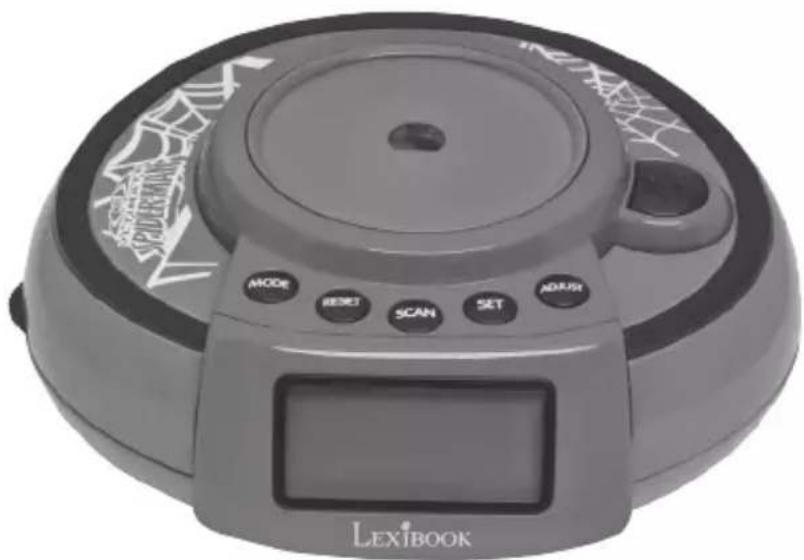

1. LCD screen
2. RADIO OFF / ON / VOLUME knob: Roll the knob to turn the radio on or off and increase or decrease the volume.
3. Battery compartment (at the bottom of the unit)

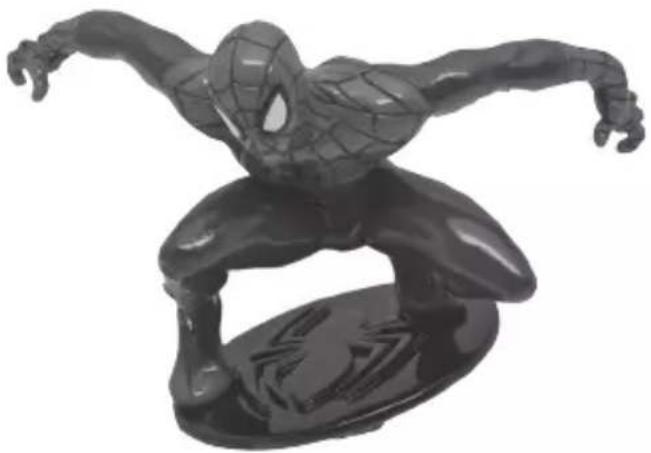

4. Spider-Man figurine
5. MODE button: Selects the setting mode.
6. RESET button: Resets the radio frequency so you can start scanning for channels from the beginning.
7. SCAN button: Search the radio frequency to find radio channels.
8. SET button: Selects a setting.
9. ADJUST button: Changes the number and activates the snooze function.
10. Base
11. Jumper demo button
12. Speaker

Battery information

Your Jumper Alarm Clock works with 4 × 1.5V = AA / LR6 type batteries (not included).

When you use the RL985SP for the first time:

1. Using a screwdriver, open the battery compartment cover located at the bottom of the unit.
2. Install the 4 × AA / LR6 1.5 ~V batteries (not included) observing the polarity markings inside the battery compartment.
3. Close the battery compartment and tighten the screw.

IMPORTANT NOTE: For better performance, it is recommended to use alkaline batteries with this product.

Non-rechargeable batteries are not to be recharged. Rechargeable batteries are to be removed from the product before being charged. Rechargeable batteries are only to be charged under adult supervision. Different types of batteries or new and used batteries are not to be mixed. Only batteries of the same or equivalent type as recommended are to be used. Batteries are to be inserted with the correct polarity. Exhausted batteries are to be removed from the product. The supply terminals are not to be short circuited. Do not throw batteries into a fire. Remove the batteries if you are not going to use the product for a long period of time.

WARNING: Malfunction or loss of memory may be caused by strong frequency interference or electrostatic discharge. Should any abnormal function occur, press the RESET button or remove the batteries and insert them again.

Installation

Unpacking the device

When unpacking, ensure that the following elements are included:

1 x Ultimate Spider-Man Jumper Alarm Clock
1 x Instruction manual

WARNING: All packaging materials, such as tape, plastic sheets, wire ties and tags are not part of this product and should be discarded.

Settings

CLOCK

1. To set the clock, press MODE 3 times.
2. Press ADJUST to change the setting value. Then press SET to move to the next setting.

The setting sequence is displayed in the following order:

Minutes -Hours Date Month Day-of the week.

1. Press and hold ADJUST to quickly scroll through the values.

To view the date and alarm time:

In clock mode, press and hold ADJUST to check the date or press and hold SET to check the alarm time.

ALARM

1. To set the alarm, press MODE twice.
2. Press ADJUST to change the hour value. Then press SET to move to the next setting.
3. Press ADJUST to change the minute value. Then press MODE to confirm.
4. When the alarm sounds, Spider-Man jumps. Press ADJUST to snooze the alarm for 5 minutes or return Spider-Man to the base to turn it off. The alarm will ring at the same time the next day.

To activate or deactivate the alarm:

In clock mode, press SET and ADJUST at the same time. appears when the alarm is activated.

STOPWATCH

1. Press MODE once.
2. Press ADJUST to start or stop the stopwatch.
3. Press SET to restart the stopwatch from zero.
4. Press MODE to go back to the clock mode.

RADIO

1. Roll the RADIO OFF / ON / VOLUME knob to the right to turn it on and increase the volume.
2. Press SCAN to search for radio channels.
3. Press RESET if you want to search for channels from the start of the frequency range.
4. To get the best reception, fully extend the radio antenna and move it about to find where the reception is clearest.
5. Roll the RADIO OFF / ON / VOLUME knob to the left to decrease the volume and turn it off.

JUMPER FUNCTION

Press the demo button to eject Spider-Man from the base. To make the figurine jump again, push it in its base until it stands straight and then press the demo button.

Specifications

FM tuner 87.5 - 108MHZ

Dimensions 147 (L) x 134 (W) x 127 (H) mm

Batteries 4 x AA/LR6 1.5V

Maintenance

The finish on your unit may be cleaned with a dust cloth and cared for as other furniture. Use a soft, clean cloth moistened with plain, lukewarm water to clean the exterior of the unit. Use caution when cleaning and wiping the plastic parts. Mild soap and a damp cloth may be used on the front panel.

Warranty

This product is covered by our 2-years warranty.

For any claim under the warranty or after sale service, please contact your distributor and present a valid proof of purchase. Our warranty covers any manufacturing material and workmanship defect, with the exception of any deterioration arising from the non-observation of the instruction manual or from any careless action implemented on this item (such as dismantling, exposition to heat and humidity, etc.). It is recommended to keep the packaging for any further reference.

WARNING!

Not suitable for children under 3 years. Choking Hazard - Small parts.

In a bid to keep improving our services, we could implement modification on the colours and the details of the product shown on the packaging.

NOTE: Please keep this instruction manual, it contains important information.

Reference: RL985SP

Designed and developed in Europe - Made in China

© 2014 Lexibook®

TM & © 2014 Marvel & © 2014 Adelaide

United Kingdom & Ireland

For any further information, please call Helpline: 0808 1003015

Environmental Protection

Unwanted electrical appliances can be recycled and should not be discarded along with regular household waste! Please actively support the conservation of resources and help protect the environment by returning this appliance to a collection centre (if available).
