USER MANUAL DJ025 LEXIBOOK

9. Playback mode/Camera mode button 10. Up button 11. Down button 12. Battery compartment 13. LCD display 14. USB connector port

INSERTING NEW BATTERIES Please refer to image C.

1. Make sure the camera is off. 2. Open the battery compartment located at the back of the unit. 3. Note the polarity of the batteries (+/- signs) inside the battery compartment. 4. Insert 3 new AAA 1,5 V batteries (not included). Replace and close the battery cover. Warning: Mal-function or loss of memory may be caused by strong frequency interference or electrostatic discharge. Should any abnormal function occur, remove the batteries and insert them again. Important note: All files will be lost when replacing the batteries. Make sure you transfer the files to your PC before changing the batteries.

INSTALLING THE SOFTWARE AND THE CAMERA DRIVER Follow these instructions to install the “PhoTags Express” and “Webcam

Express” software and the camera driver on your computer system. 1. Insert the CD Software (included) in your CD-ROM drive. The CD will auto run, and the installation menu will appear.

Click “Install AP” on the “Digital Camera

Install Menu” window and select a language from the drop down list.

Click “Install PhoTags Express” and follow the instructions to install “PhoTags

Express” and “WebCam Express”. “PhoTags Express” and “WebCam Express” software offer many applications for photo editing and printing. When the installation is completed, a confirmation window will be displayed. Untick the “Start the application” option and click the “Finish” button to close 9

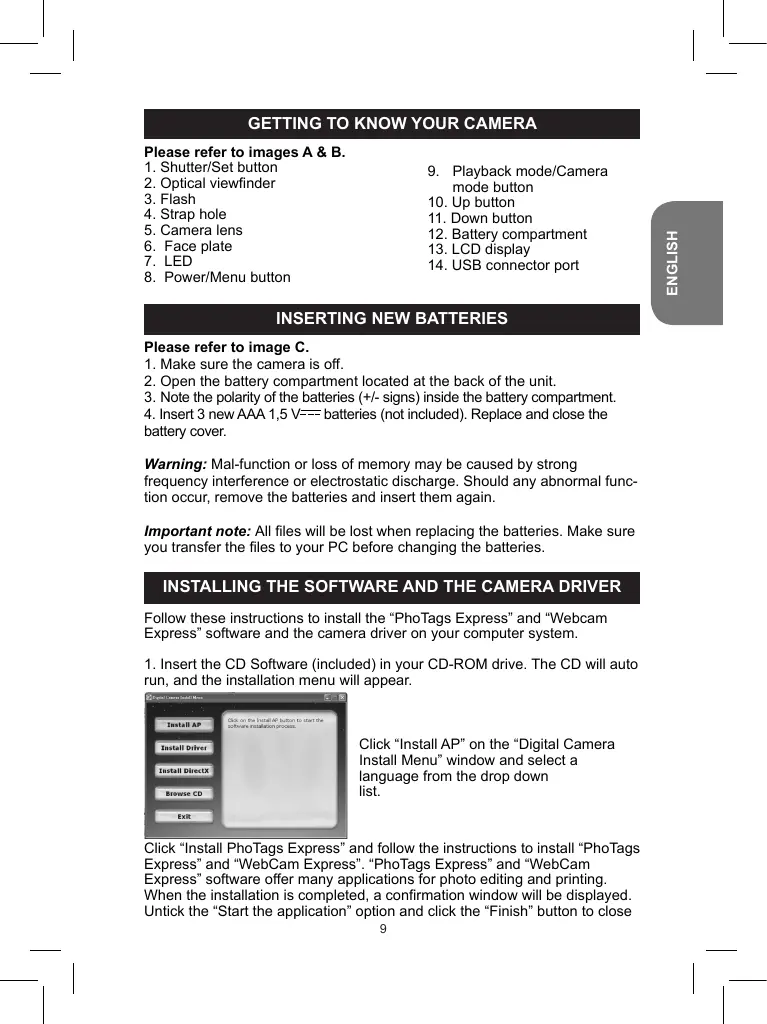

ENGLISH GETTING TO KNOW YOUR CAMERA Please refer to images A & B.

1. Shutter/Set button 2. Optical viewfinder 3. Flash 4. Strap hole 5. Camera lens 6. Face plate 7. LED 8. Power/Menu button

the window and go back to the installation menu. Now you can install the camera driver.

2. Click “Install Driver”, and then follow the instructions to install the camera driver. 3. You will need to reboot your computer after the driver installation. The “Dual Mode Camera” driver allows you to use your digital camera as a webcam. Note: • If the CD does not auto run, click “Start”, “Run”, then type in “D:\autorun. exe” in the Run dialog text box (where D:\ is your CD-ROM drive) and press Enter. • You must install the driver before downloading pictures/videos from the camera or using it as a webcam. • Make sure the camera is not connected to your computer before installing the driver and the software. • When launching the “PhoTags Express” software for the first time, a registration dialog box is displayed on-screen. You can choose to register the program, skip the registration process or to stop displaying this dialog box again.

TURNING THE CAMERA ON AND OFF Press the Power button (8) for about 3 seconds to turn the camera on. The camera will sound a beep to confirm that it is ready for use. Press and hold

Power button (8) for about 3 seconds again to turn it off. Note: The camera will auto power off after 60 seconds of inactivity.

SELECTING THE PHOTO RESOLUTION There are 2 resolution modes:

High resolution: the camera can store about 48 pictures in this mode. Low resolution: the camera can store about 186 pictures in this mode. 1. Press the Menu button (8) three times to see what kind of resolution setting is selected on your camera. 2. Press the Shutter button (1) once within 3 seconds to change the resolution. 3. Repeat steps 1 and 2 to modify the resolution again.

FLASH FUNCTION Switch on the camera.

A Auto Flash 1. Press the Menu button (8) until the

A icon appears on the lower left

corner of the LCD screen. Press the Shutter button (1) within 3 seconds to confirm and activate the auto flash.

3. Press the Menu button (8) until the icon appears on the lower left corner of the LCD screen. Press the Shutter button (1) within 3 seconds to confirm and switch off the flash.

TAKING PHOTOS Switch on the unit. In Camera mode, press the Shutter button (1) to take a photo. The camera will beep once to confirm that a picture is taken. The number of pictures you can still take in memory is shown on the LCD screen.

Note: When the camera’s memory is full, if you try to take a photo the LCD screen will display “00” and the camera will beep two times.

1. Switch on the camera. Press the playback button (9) to enter playback mode. 2. The camera will automatically show the photos currently stored in memory in a slide show format. Press the up button (10) or the down button (11) to exit the slide show. Note: the camera will launch the slide show only if there are 2 photos, or more, stored in your camera’s memory. 3. Press the up button (10) or the down button (11) to browse manually through your photos.

1. Switch on the camera. 2. In Camera mode: Delete the last picture taken Press the Menu button (8) two times; the icon will appear on the LCD display. Press the Shutter button (1) within 3 seconds to delete the last picture taken. Deleting all files Press the Menu button (8) one time; the icon will appear on the LCD display. Press the Shutter button (1), the number of pictures you can still take in memory will flash on the LCD. Press the Shutter button (1) again within 3 seconds to delete all the pictures stored in the camera. 11

2. Press the Menu button (8) until the icon appears on the lower left corner of the LCD screen. Press the Shutter button (1) within 3 seconds to confirm and switch on the flash.

3. In playback mode:

Delete the last picture taken Press the up button (10) or the down button (11) to exit the slide show. Press the Shutter button (1); you will hear a continuous « beep » sound. Press the Shutter button (1) again to delete the last picture taken.

1. Connect the camera to your computer via the USB cable provided. You will hear a small beep sound and the LCD screen will turn on when the camera is connected to your PC.

2. Double-click on the PhoTags Express icon that appears on your desktop to launch the PhoTags Express program. 3. Click on the “Get Photos” button on the Main Menu. 4. Select the “ Dual Mode Camera ” driver from the list of devices and follow the instructions to download your photos.

PC CAM MODE Connected to your PC, your camera can be used as a webcam.

Webcam mode 1. Connect the camera to your computer via the USB cable. 2. In “My Computer”, double click on a new drive called “Dual Mode Camera”. You will be in webcam mode. Instant messaging (chat) You can use your camera as a webcam with your instant messaging client (Yahoo Messenger, MSN Messenger, Skype…). Ex: Using Yahoo Messenger 1. Connect the camera to your computer via the USB cable. 2. Start Yahoo messenger. 3. Select the « Tools » listing on the top of the toolbar. Go to the drop down menu and select the listing for « Start my Webcam ». 4. You will see a window appearing with your image. Now people who have your Yahoo login name will be able to see you.

INTERCHANGEABLE COVERS Please refer to image D.

Your digital camera comes with 2 interchangeable covers. To remove and insert a cover, use a sharp instrument to unsnap the cover on each corner of the camera. Snap in a new cover.

MAINTENANCE WARRANTY NOTE: Please keep this instruction manual, it contains important information. This product is covered by our two-year warranty. To make use of the warranty or the after-sales service, please contact your retailer and supply proof of purchase. Our warranty covers material or installation-related defects attributable to the manufacturer, with the exception of wear caused by failure to respect the instructions for use or any unauthorised work on the equipment (such as dismantling, exposure to heat or damp, etc).

Reference: DJ025series LEXIBOOK UK ltd, Unit 10 Petersfield Industrial Estate, Bedford Road, Petersfield, Hampshire, GU32 3QA, United Kingdom, Helpline: 0808 100 3015, http://www.lexibook.com ©2009 LEXIBOOK®

This product is not a toy.

Environmental Protection Unwanted electrical appliances can be recycled and should not be discarded along with regular household waste! Please actively support the conservation of resources and help protect the environment by returning this appliance to a collection centre (if available).

Designed in Europe – Made in China

ENGLISH Only use a soft, slightly damp cloth to clean the unit. Do not use detergent.

Do not expose the unit to direct sunlight or any other heat source. Do not immerse the unit in water. Do not dismantle or drop the unit. Do not try to twist or bend the unit.
