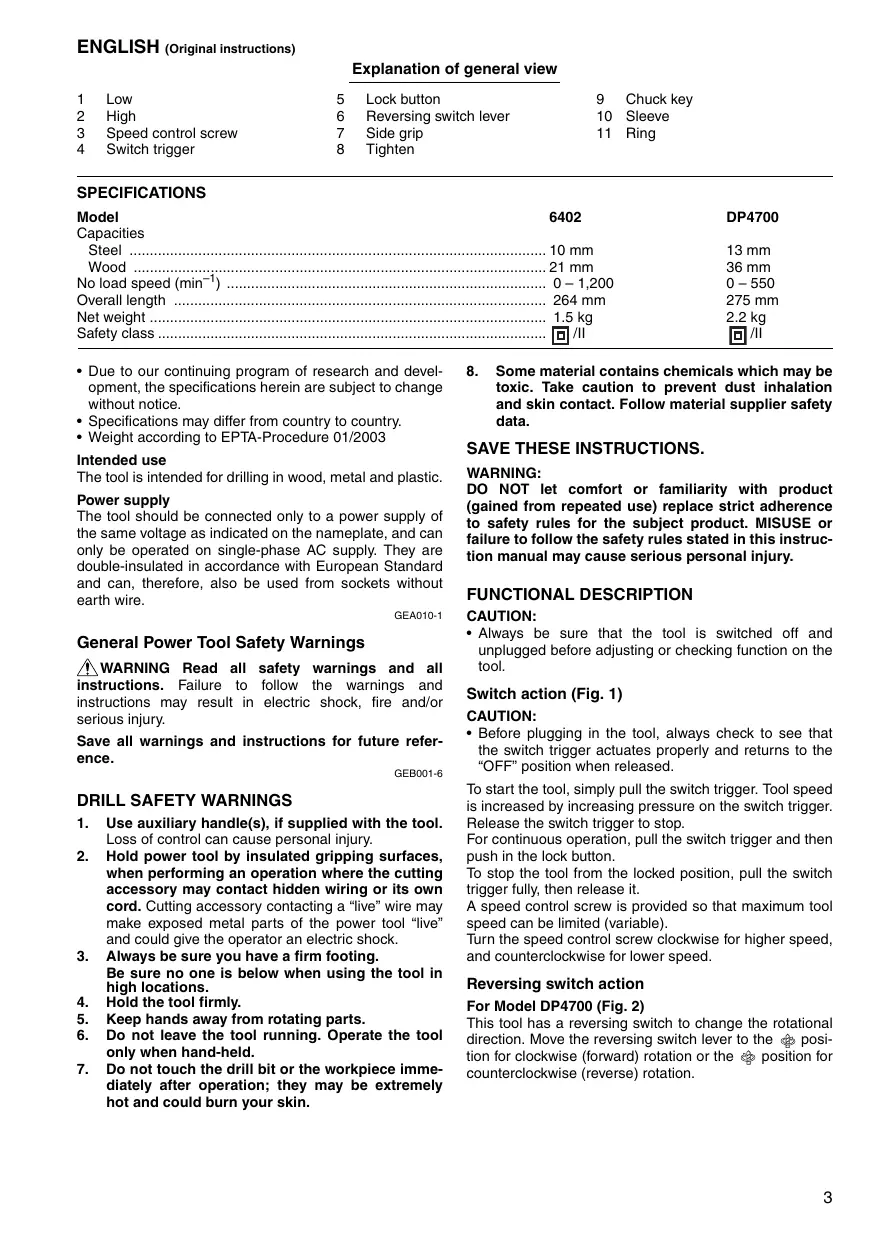

ENGLISH (original instructions) Explanation of general view 1 Low 5 Lock button 9 Chuckkey 2 High 6 Reversing switch lever 10 Sleeve 3 Speed control screw 7 Side grip 11 Ring 4 Switch trigger 8 Tighten SPECIFICATIONS Model 6402 DP4700 Capacities Steel 10 mm 13mm Wood 21 mm 36 mm No load speed (min” 01,200 0-550 Overall length 264 mm 275 mm Net weight 1.5 kg 22kg Safety class [Li CL + Due to our continuing program of research and devel- opment, the specifications herein are subject to change without notice. + Specifications may differ from country to country. + Weight according to EPTA-Procedure 01/2003 intended use The tool is intended for drilling in wood, metal and plastic. Power supply The tool should be connected only to a power supply of the same voltage as indicated on the nameplate, and can only be operated on single-phase AC supply. They are double-insulated in accordance with European Standard and can, therefore, also be used from sockets without earth wire. GEAoto4 General Power Tool Safety Warnings A\WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future refer- ence. GEBoo.s

DRILL SAFETY WARNINGS

1. Use auxiliary handle(s), if supplied with the tool.

Loss of control can cause personal injury.

2. Hold power tool by insulated gripping surfaces,

when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.

3. Always be sure you have a firm footing.

Be sure no one is below when using the tool in high locations. Hold the tool firmly. Keep hands away from rotating parts. Do not leave the tool running. Operate the tool only when hand-held. 7... Do not touch the drill bit or the workpiece imme- diately after operation: they may be extremely hot and could burn your skin. PES

8. Some material contains chemicals which may be

toxic. Take caution to prevent dust inhalation and skin contact. Follow material supplier safety data. SAVE THESE INSTRUCTIONS.

DO NOT let comfort or familiarity with product {gained from repeated use) replace strict adherence to safety rules for the subject product. MISUSE or ilure to follow the safety rules stated in this instruc- tion manual may cause serious personal h FUNCTIONAL DESCRIPTION CAUTION: + Always be sure that the tool is switched off and unplugged before adjusting or checking function on the tool. Switch action (Fig. 1) CAUTION: + Before plugging in the tool, always check to see that the switch trigger actuates properly and returns to the “OFF” position when released. To start the tool, simply pull the switch trigger. Tool speed is increased by increasing pressure on the switch trigger. Release the switch trigger to stop. For continuous operation, pull the switch trigger and then push in the lock button. To stop the tool from the locked position, pull the switch tiger fully, then release it. À speed control screw is provided so that maximum tool speed can be limited (variable). Turn the speed control screw clockwise for higher speed, and counterclockwise for lower speed. Reversing switch action For Model DP4700 (Fig. 2) This tool has a reversing switch to change the rotational direction. Move the reversing switch lever to the & posi- tion for clockwise (forward) rotation or the < position for counterclockwise (reverse) rotation.

For Model 6402 (Fig. 3) This tool has a reversing switch to change the rotational direction. Move the reversing switch lever to the *FWD” position for clockwise (forward) rotation or the *REV* position for counterclockwise (reverse) rotation. CAUTION: + Always check the rotational direction before drilling. + Use the reversing switch only after the tool comes to a complete stop. It will damage the tool to change the rotational direction before the tool stops. ASSEMBLY CAUTION: + Always be sure that the tool is switched off and unplugged before carrying out any work on the tool. Installing side grip (auxiliary handle) For Model DP4700 (Fig. 4) CAUTION: + Always be sure that the side grip is installed securely before operation. Screw the side grip on the tool securely. Installing or removing drill bit For tool with standard keyed chuck (Fig. 5) To install the bit, place it in the chuck as far as it will go. Tighten the chuck by hand. Place the chuck key in each of the three holes and tighten clockwise. Be sure to tighten all three chuck holes evenly. To remove the bit, turn the chuck key counterclockwise in just one hole, then loosen the chuck by hand. After using the chuck key, be sure to return to the original position For tool with keyless chuck (Fig. 6) Hold the ring and turn the sleeve counterclockwise to open the chuck jaws. Place the bit in the chuck as far as it will go. Hold the ring firmly and turn the sleeve clock- wise to tighten the chuck. To remove the bit, hold the ring and turn the sleeve coun- terclockwise. OPERATION Holding too! For Model DP4700 Hold the tool firmly with one hand on the gripping part of the tool and the other hand on the side grip when per- forming the tool. Drilling operation Drilling in wood When driling in wood, the best results are obtained with wood drills equipped with a guide screw. The guide screw makes driling easier by pulling the bit into the workpiece. Drilling in metal To prevent the bit from slipping when starting a hole, make an indentation with a center-punch and hammer at the point to be drilled. Place the point of the bit in the indentation and start driling. Use a cutting lubricant when drilling metals. The excep- tions are iron and brass which should be driled dry. CAUTION: + Pressing excessively on the tool will not speed up the drilling. In fact, this excessive pressure will only serve to damage the tip of your bit, decrease the tool perfor- mance and shorten the service life of the tool. + There is a tremendous twisting force exerted on the toolbit at the time of hole breakthrough. Hold the tool firmly and exert care when the bit begins to break through the workpiece. + A stuck bit can be removed simply by setting the reversing switch to reverse rotation in order to back out. However, the tool may back out abruptly if you do not hold it firmly. + Always secure small workpieces in a vise or similar hold-down device. + Avoid driling in material that you suspect contains hid- den nails or other things that may cause the bit to bind or break. MAINTENANCE CAUTION: + Always be sure that the tool is switched off and unplugged before attempting to periorm inspection or maintenance. + Never use gasoline, benzine, hinner, alcohol or the like. Discoloration, deformation or cracks may result. To maintain product SAFETY and RELIABILITY, repairs, carbon brush inspection and replacement, any other maintenance or adjustment should be performed by Makita Authorized Service Centers, always using Makita replacement parts. ACCESSORIES CAUTION: + These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. If you need any assistance for more details regarding these accessories, ask your local Makita Service Center. + Drill bits + Keyless dril chuck + Chuck key + Grip 36 For Model DP4700 ENG1023 Noise The typical A-weighted noise level determined according to EN60745: Sound pressure level (L,a): 86 dB (A) Sound power level (L,,af: 97 dB (A) Uncertainty (K): 8 dB (A) Wear ear protection ENG2023 Vibration The vibration total value (tri-axial vector sum) determined according to EN60745: Work mode: driling into metal Vibration emission (a, D): 2.5 m/s? or less Uncertainty (K): 1.5 m/s?

ENGoot-t + The declared vibration emission value has been mea- sured in accordance with the standard test method and may be used for comparing one tool with another. + The declared vibration emission value may also be used in a preliminary assessment of exposure.

+ The vibration emission during actual use of the power tool can differ from the declared emission value depending on the ways in which the too) is used. + Be sure to identify safety measures to protect the oper- ator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the too is switched off and when it is running ide in addition to the trigger time). ENHioï-14 For European countries only EC Declaration of Conformity We Makita Corporation as the responsible manufac- turer declare that the following Makita machine(s): Designation of Machine: Dill Model No. Type: DP4700 are of series production and Conforms to the following European Directives: 2006/42/EC And are manufactured in accordance with the following standards or standardised documents: EN60745 The technical documentation is kept by our authorized representative in Europe who is: Makita International Europe Ltd. Michigan Drive, Tongwell, Milton Keynes, MK15 8JD, England 30th January 2009 Tomoyasu Kato Director Makita Corporation 3-11-8, Sumiyoshi-cho, Anjo, Aichi, JAPAN
