USER MANUAL 6563H MAKITA

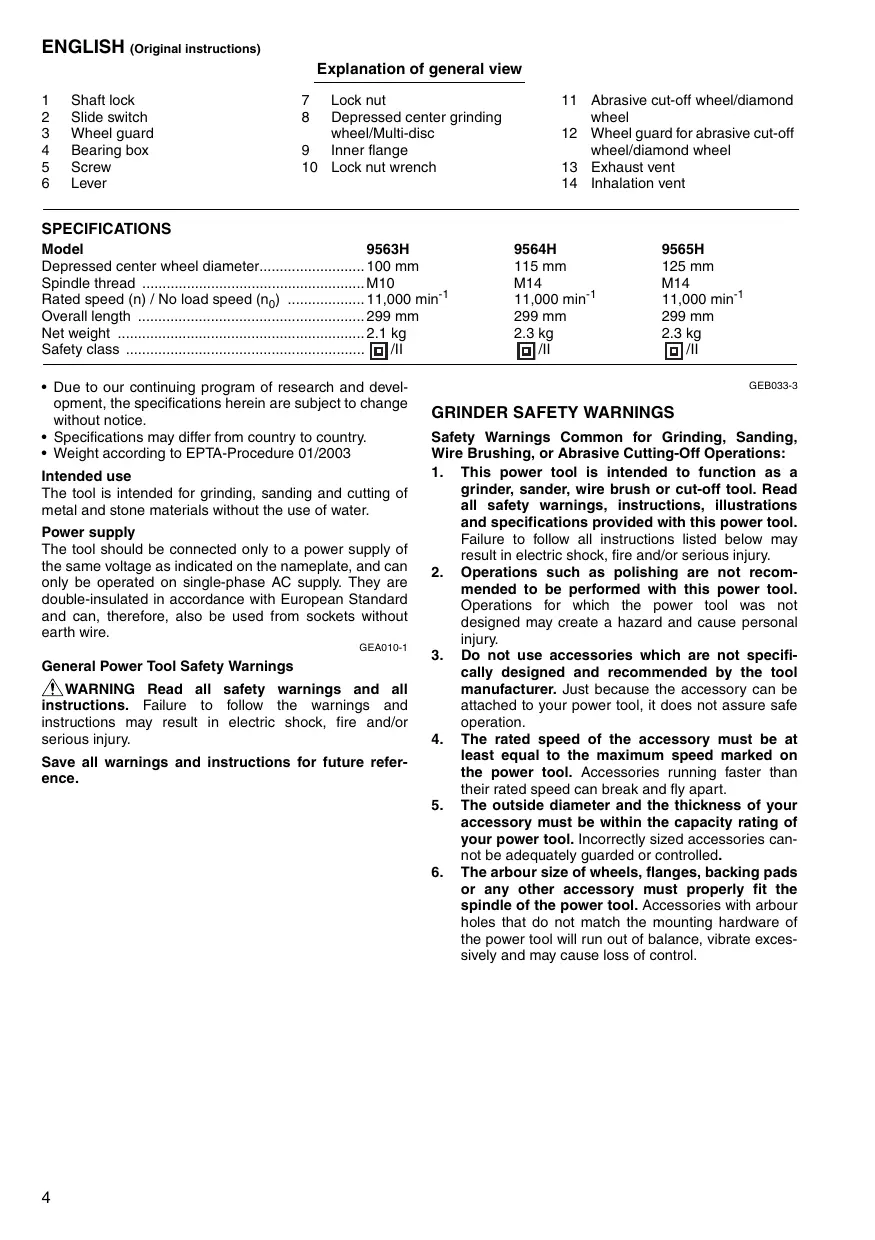

ENGLISH (Original instructions) Explanation of general view

Shaft lock Slide switch Wheel guard Bearing box Screw Lever

Lock nut Depressed center grinding wheel/Multi-disc 9 Inner flange 10 Lock nut wrench 11 Abrasive cut-off wheel/diamond wheel 12 Wheel guard for abrasive cut-off wheel/diamond wheel 13 Exhaust vent 14 Inhalation vent SPECIFICATIONS Model 9563H Depressed center wheel diameter.......................... 100 mm Spindle thread ....................................................... M10 Rated speed (n) / No load speed (n0) ................... 11,000 min-1 Overall length ........................................................ 299 mm Net weight ............................................................. 2.1 kg Safety class ........................................................... /II

• Due to our continuing program of research and development, the specifications herein are subject to change without notice.
• Specifications may differ from country to country.
• Weight according to EPTA-Procedure 01/2003 Intended use The tool is intended for grinding, sanding and cutting of metal and stone materials without the use of water. Power supply The tool should be connected only to a power supply of the same voltage as indicated on the nameplate, and can only be operated on single-phase AC supply. They are double-insulated in accordance with European Standard and can, therefore, also be used from sockets without earth wire. GEA010-1 General Power Tool Safety Warnings WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

GRINDER SAFETY WARNINGS

Safety Warnings Common for Grinding, Sanding, Wire Brushing, or Abrasive Cutting-Off Operations:

1. This power tool is intended to function as a

grinder, sander, wire brush or cut-off tool. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

2. Operations such as polishing are not recommended to be performed with this power tool.

Operations for which the power tool was not designed may create a hazard and cause personal injury.

3. Do not use accessories which are not specifically designed and recommended by the tool

manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation.

4. The rated speed of the accessory must be at

least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart.

5. The outside diameter and the thickness of your

accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.

6. The arbour size of wheels, flanges, backing pads

or any other accessory must properly fit the spindle of the power tool. Accessories with arbour holes that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control.

Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, backing pad for cracks, tear or excess wear, wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no-load speed for one minute. Damaged accessories will normally break apart during this test time. Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss. Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation. Hold power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool "live" and shock the operator. Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory. Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control. Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body. Regularly clean the power tool’s air vents. The motor’s fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards. Do not operate the power tool near flammable materials. Sparks could ignite these materials. Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock. Kickback and Related Warnings: Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory’s rotation at the point of the binding. For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel’s movement at the point of pinching. Abrasive wheels may also break under these conditions. Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below. a) Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up. The operator can control torque reactions or kickback forces, if proper precautions are taken. b) Never place your hand near the rotating accessory. Accessory may kickback over your hand. c) Do not position your body in the area where power tool will move if kickback occurs. Kickback will propel the tool in direction opposite to the wheel’s movement at the point of snagging. d) Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback. e) Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent kickback and loss of control. Safety Warnings Specific for Grinding and Abrasive Cutting-Off Operations: a) Use only wheel types that are recommended for your power tool and the specific guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe. b) The guard must be securely attached to the power tool and positioned for maximum safety, so the least amount of wheel is exposed towards the operator. The guard helps to protect operator from broken wheel fragments and accidental contact with wheel. c) Wheels must be used only for recommended applications. For example: do not grind with the side of cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these wheels may cause them to shatter. d) Always use undamaged wheel flanges that are of correct size and shape for your selected wheel. Proper wheel flanges support the wheel thus reducing the possibility of wheel breakage. Flanges for cutoff wheels may be different from grinding wheel flanges.

e) Do not use worn down wheels from larger power tools. Wheel intended for larger power tool is not suitable for the higher speed of a smaller tool and may burst. Additional Safety Warnings Specific for Abrasive Cutting-Off Operations: a) Do not “jam” the cut-off wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage. b) Do not position your body in line with and behind the rotating wheel. When the wheel, at the point of operation, is moving away from your body, the possible kickback may propel the spinning wheel and the power tool directly at you. c) When wheel is binding or when interrupting a cut for any reason, switch off the power tool and hold the power tool motionless until the wheel comes to a complete stop. Never attempt to remove the cut-off wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take corrective action to eliminate the cause of wheel binding. d) Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully reenter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece. e) Support panels or any oversized workpiece to minimize the risk of wheel pinching and kickback. Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel. f) Use extra caution when making a “pocket cut” into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback. Safety Warnings Specific for Sanding Operations: a) Do not use excessively oversized sanding disc paper. Follow manufacturers recommendations, when selecting sanding paper. Larger sanding paper extending beyond the sanding pad presents a laceration hazard and may cause snagging, tearing of the disc or kickback. Safety Warnings Specific for Wire Brushing Operations: a) Be aware that wire bristles are thrown by the brush even during ordinary operation. Do not overstress the wires by applying excessive load to the brush. The wire bristles can easily penetrate light clothing and/or skin. b) If the use of a guard is recommended for wire brushing, do not allow interference of the wire wheel or brush with the guard. Wire wheel or brush may expand in diameter due to work load and centrifugal forces.

Additional Safety Warnings:

17. When using depressed center grinding wheels,

be sure to use only fiberglass-reinforced wheels.

18. Be careful not to damage the spindle, the flange

(especially the installing surface) or the lock nut. Damage to these parts could result in wheel breakage.

19. Make sure the wheel is not contacting the workpiece before the switch is turned on.

20. Before using the tool on an actual workpiece, let

it run for a while. Watch for vibration or wobbling that could indicate poor installation or a poorly balanced wheel.

21. Use the specified surface of the wheel to perform the grinding.

22. Watch out for flying sparks. Hold the tool so that

sparks fly away from you and other persons or flammable materials.

23. Do not leave the tool running. Operate the tool

only when hand-held.

24. Do not touch the workpiece immediately after

operation; it may be extremely hot and could burn your skin.

25. Always be sure that the tool is switched off and

unplugged or that the battery cartridge is removed before carrying out any work on the tool.

26. Observe the instructions of the manufacturer for

correct mounting and use of wheels. Handle and store wheels with care.

27. Do not use separate reducing bushings or adaptors to adapt large hole abrasive wheels.

28. Use only flanges specified for this tool.

29. For tools intended to be fitted with threaded hole

wheel, ensure that the thread in the wheel is long enough to accept the spindle length.

30. Check that the workpiece is properly supported.

31. Pay attention that the wheel continues to rotate

after the tool is switched off.

32. If working place is extremely hot and humid, or

badly polluted by conductive dust, use a shortcircuit breaker (30 mA) to assure operator safety.

33. Do not use the tool on any materials containing

34. Do not use water or grinding lubricant.

35. Ensure that ventilation openings are kept clear

when working in dusty conditions. If it should become necessary to clear dust, first disconnect the tool from the mains supply (use non metallic objects) and avoid damaging internal parts.

36. When use cut-off wheel, always work with the

dust collecting wheel guard required by domestic regulation.

37. Cutting discs must not be subjected to any lateral pressure.

SAVE THESE INSTRUCTIONS.

WARNING:

DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to safety rules for the subject product. MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury. FUNCTIONAL DESCRIPTION CAUTION:

• Always be sure that the tool is switched off and unplugged before adjusting or checking function on the tool. Shaft lock (Fig. 1) CAUTION:
• Never actuate the shaft lock when the spindle is moving. The tool may be damaged. Press the shaft lock to prevent spindle rotation when installing or removing accessories. Switch action (Fig. 2) CAUTION:
• Before plugging in the tool, always check to see that the slide switch actuates properly and returns to the “OFF” position when the rear of the slide switch is depressed. To start the tool, slide the slide switch toward the “I (ON)” position. For continuous operation, press the front of the slide switch to lock it. To stop the tool, press the rear of the slide switch, then slide it toward the “O (OFF)” position. ASSEMBLY CAUTION:
• Always be sure that the tool is switched off and unplugged before carrying out any work on the tool. Installing side grip (handle) (Fig. 3) CAUTION:
• Always be sure that the side grip is installed securely before operation. Screw the side grip securely on the position of the tool as shown in the figure. Installing or removing wheel guard (For depressed center wheel, multi disc / abrasive cut-off wheel, diamond wheel) For tool with locking screw type wheel guard (Fig. 4 & 5) Installing or removing depressed center grinding wheel/Multi-disc (accessory) Mount the inner flange onto the spindle. Fit the wheel/ disc on the inner flange and screw the lock nut onto the spindle. (Fig. 8) To tighten the lock nut, press the shaft lock firmly so that the spindle cannot revolve, then use the lock nut wrench and securely tighten clockwise. To remove the wheel, follow the installation procedure in reverse. (Fig. 9) OPERATION

WARNING:

• It should never be necessary to force the tool. The weight of the tool applies adequate pressure. Forcing and excessive pressure could cause dangerous wheel breakage.
• ALWAYS replace wheel if tool is dropped while grinding.
• NEVER bang or hit grinding disc or wheel onto work.
• Avoid bouncing and snagging the wheel, especially when working corners, sharp edges etc. This can cause loss of control and kickback.
• NEVER use tool with wood cutting blades and other sawblades. Such blades when used on a grinder frequently kick and cause loss of control leading to personal injury. CAUTION:
• After operation, always switch off the tool and wait until the wheel has come to a complete stop before putting the tool down. Grinding and sanding operation (Fig. 10) ALWAYS hold the tool firmly with one hand on housing and the other on the side handle. Turn the tool on and then apply the wheel or disc to the workpiece. In general, keep the edge of the wheel or disc at an angle of about 15 degrees to the workpiece surface. During the break-in period with a new wheel, do not work the grinder in the B direction or it will cut into the workpiece. Once the edge of the wheel has been rounded off by use, the wheel may be worked in both A and B direction. CAUTION:
• The wheel guard must be fitted on the tool so that the closed side of the guard always points toward the operator. Mount the wheel guard with the protrusion on the wheel guard band aligned with the notch on the bearing box. Then rotate the wheel guard around 180 degrees. Be sure to tighten the screw securely. To remove wheel guard, follow the installation procedure in reverse. For tool with clamp lever type wheel guard (Fig. 6 & 7) Pull the lever in the direction of the arrow after loosening the screw. Mount the wheel guard with the protrusion on the wheel guard band aligned with the notch on the bearing box. Then rotate the wheel guard around 180°. Fasten it with the screw after pulling lever in the direction of the arrow for the working purpose. The setting angle of the wheel guard can be adjusted with the lever. To remove wheel guard, follow the installation procedure in reverse.

Operation with abrasive cut-off / diamond wheel (optional accessory) (Fig. 11) The direction for mounting the lock nut and the inner flange varies by wheel thickness. Refer to the table below. 100 mm (4") Abrasive cut-off wheel Thickness: Less than 4 mm (5/32") Thickness: 4 mm (5/32") or more Diamond wheel Thickness: Less than 4 mm (5/32") Thickness: 4 mm (5/32") or more

2. Abrasive cut-off wheel

3. Inner flange

4. Diamond wheel

115 mm (4 - 1/2") / 125 mm (5") Abrasive cut-off wheel Thickness: Less than 4 mm (5/32") Thickness: 4 mm (5/32") or more Diamond wheel Thickness: Less than 4 mm (5/32") Thickness: 4 mm (5/32") or more

22.23 mm (7/8")

22.23 mm (7/8")

22.23 mm (7/8")

1. Lock nut

2. Abrasive cut-off wheel

WARNING:

• When using an abrasive cut-off / diamond wheel, be sure to use only the special wheel guard designed for use with cut-off wheels.
• NEVER use cut-off wheel for side grinding.
• Do not “jam” the wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback, wheel breakage and overheating of the motor may occur.
• Do not start the cutting operation in the workpiece. Let the wheel reach full speed and carefully enter into the cut moving the tool forward over the workpiece surface. The wheel may bind, walk up or kickback if the power tool is started in the workpiece.
• During cutting operations, never change the angle of the wheel. Placing side pressure on the cut-off wheel (as in grinding) will cause the wheel to crack and break, causing serious personal injury.
• A diamond wheel shall be operated perpendicular to the material being cut.

22.23 mm (7/8")

3. Inner flange

4. Diamond wheel

MAINTENANCE CAUTION:

• Always be sure that the tool is switched off and unplugged before attempting to perform inspection or maintenance.
• Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result. The tool and its air vents have to be kept clean. Regularly clean the tool’s air vents or whenever the vents start to become obstructed. (Fig. 12) To maintain product SAFETY and RELIABILITY, repairs, carbon brush inspection and replacement, any other maintenance or adjustment should be performed by Makita Authorized Service Centers, always using Makita replacement parts. ACCESSORIES CAUTION:
• These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. If you need any assistance for more details regarding these accessories, ask your local Makita service center.
• Wheel guard (Wheel cover) For depressed center wheel / Multi disc
• Wheel guard (Wheel cover) For abrasive cut-off wheel / diamond wheel
• Depressed center wheels
• Abrasive cut-off wheels
• Lock nut For depressed center wheel / abrasive cut-off wheel / multi disc / diamond wheel
• Lock nut For abrasive disc

3. Brida interior

3. Brida interior

For European countries only EC Declaration of Conformity EG-Übereinstimmungserklärung We Makita Corporation as the responsible manufacturer declare that the following Makita machine(s): Designation of Machine: Angle Grinder Model No./ Type: 9563H, 9564H, 9565H are of series production and Conforms to the following European Directives: 2006/42/EC And are manufactured in accordance with the following standards or standardised documents: EN60745 The technical documentation is kept by our authorized representative in Europe who is: Makita International Europe Ltd, Michigan, Drive, Tongwell, Milton Keynes, MK15 8JD, England Noise The typical A-weighted noise level determined according to EN60745: Model 9563H Sound pressure level (LpA): 85 dB (A) Sound power level (LWA): 96 dB (A) Uncertainty (K): 3 dB (A) Model 9564H, 9565H Sound pressure level (LpA): 84 dB (A) Sound power level (LWA): 95 dB (A) Uncertainty (K): 3 dB (A) Wear ear protection Vibration The vibration total value (tri-axial vector sum) determined according to EN60745: Model 9563H Work mode: surface grinding Vibration emission (ah, AG): 5.5 m/s2 Uncertainty (K): 1.5 m/s2 If the tool is used for other applications, the vibration values may be different. Model 9564H Work mode: surface grinding Vibration emission (ah, AG): 8.5 m/s2 Uncertainty (K): 1.5 m/s2 If the tool is used for other applications, the vibration values may be different. Work mode: surface grinding with vibration proof grip Vibration emission (ah, AG): 8.0 m/s2 Uncertainty (K): 1.5 m/s2 Model 9565H Work mode: surface grinding Vibration emission (ah, AG): 9.0 m/s2 Uncertainty (K): 1.5 m/s2 If the tool is used for other applications, the vibration values may be different. Work mode: surface grinding with vibration proof grip Vibration emission (ah, AG): 7.5 m/s2 Uncertainty (K): 1.5 m/s2 ENG902-1

• The declared vibration emission value has been measured in accordance with the standard test method and may be used for comparing one tool with another.
• The declared vibration emission value may also be used in a preliminary assessment of exposure.
• The declared vibration emission value is used for main applications of the power tool. However if the power tool is used for other applications, the vibration emission value may be different.

WARNING:

• The vibration emission during actual use of the power tool can differ from the declared emission value depending on the ways in which the tool is used.
• Be sure to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).
