CRUZER 4 FACE - Electric mower BRAUN - Free user manual and instructions

USER MANUAL CRUZER 4 FACE BRAUN

HK 852-25249377 (Audio Supplies Company Ltd.)

www.service.braun.com

Braun GmbH

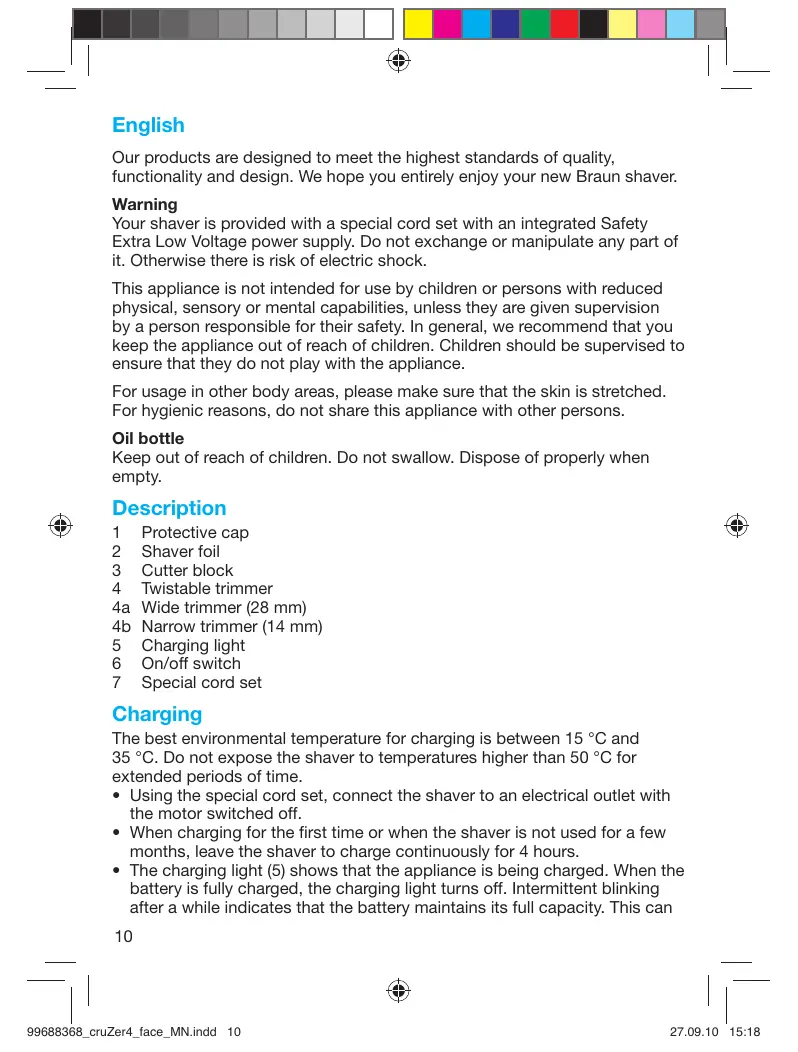

Our products are designed to meet the highest standards of quality, functionality and design. We hope you entirely enjoy your new Braun shaver.

Warning

Your shaver is provided with a special cord set with an integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it. Otherwise there is risk of electric shock.

This appliance is not intended for use by children or persons with reduced physical, sensory or mental capabilities, unless they are given supervision by a person responsible for their safety. In general, we recommend that you keep the appliance out of reach of children. Children should be supervised to ensure that they do not play with the appliance.

For usage in other body areas, please make sure that the skin is stretched. For hygienic reasons, do not share this appliance with other persons.

Oil bottle

Keep out of reach of children. Do not swallow. Dispose of properly when empty.

Description

1 Protective cap
2 Shaver foil
3 Cutter block
4 Twistable trimmer
4a Wide trimmer (28 mm)
4b Narrow trimmer (14 mm)
5 Charging light
6 On/off switch
7 Special cord set

Charging

The best environmental temperature for charging is between 15^ and 35^ . Do not expose the shaver to temperatures higher than 50^ for extended periods of time.

• Using the special cord set, connect the shaver to an electrical outlet with the motor switched off.
• When charging for the first time or when the shaver is not used for a few months, leave the shaver to charge continuously for 4 hours.
• The charging light (5) shows that the appliance is being charged. When the battery is fully charged, the charging light turns off. Intermittent blinking after a while indicates that the battery maintains its full capacity. This can

also happen short term when charging after the battery was completely discharged.

• A full charge provides 30 minutes of cordless shaving time depending on your beard growth.
• Once the shaver is completely charged, discharge the shaver through normal use. Then recharge to full capacity. Subsequent charges will take about 1 hour.
• Maximum battery capacity will only be reached after several charging/ discharging cycles.
• 5-minute quick charge is sufficient for a shave.

Shaving

First, remove the protective cap (1). Activate the on/off switch (6). The floating foil frame automatically adapts to your skin surface for a close, smooth shave.

For best results:

Always shave before washing your face.
- At all times, hold the shaver at right angles (90^) to the skin (b).
- Stretch the skin and shave against the direction of beard growth.
- For pre-shaving after a few days of not having shaved, use the wide trimmer (4a) to pre-cut long hairs. For a close, smooth shave, finish with the foil.
- To maintain 100% shaving performance, replace your foil and cutter block at least every 18 months or when worn.

Style

Using the twistable trimmer

The wide trimmer (4a) evenly cuts and trims large areas (c). It is ideal for shaping sideburns, moustaches and partial short beards. The wide trimmer is provided with safety rips and a gliding strip for less irritation and easy gliding. Press the blue stripes to push up the twistable trimmer (4). While stretching the skin, guide the wide trimmer against the direction of hair growth.

The narrow trimmer (4b) precisely defines lines and edges (d), being ideal for precise contouring.

To use the narrow trimmer, push up the twistable trimmer and turn it 180^ .

Frequent use of the twistable trimmer will reduce the battery capacity.

Cleaning

The shaver head is suitable for cleaning under running tap water. Warning: Detach the shaver from the power supply before cleaning the shaver head in water.

Regular cleaning ensures better shaving performance. Rinsing the shaving head after each shave under running water is an easy and fast way to keep it clean:

• Switch the shaver on (cordless) and rinse the shaving head under hot running water (e). You may use liquid soap without abrasive substances. Rinse off all foam and let the shaver run for a few more seconds.
• Next, switch off the shaver, remove the shaver foil and the cutter block. Then leave the disassembled shaving parts to dry.
• If you regularly clean the shaver under water, then once a week apply a drop of light machine oil onto the trimmers (4a, 4b) and shaver foil (f).

Alternatively, you may clean the shaver using the brush provided (g):

• Switch off the shaver. Remove the shaver foil.
• Using the brush, clean the cutter block and the inner area of the shaver head. However, do not clean the shaver foil with the brush as this may damage the foil.

Keeping your shaver in top shape

Replacing the shaving parts

To maintain 100% shaving performance, replace your foil and cutter block at least every 18 months or when worn. Change both parts at the same time for a closer shave with less skin irritation. (Shaver foil and cutter block: 10B)

Preserving the batteries

In order to maintain the optimum capacity of the rechargeable batteries, the shaver has to be fully discharged (by shaving) every 6 months approximately. Then recharge the shaver to full capacity.

Environmental notice

This product contains rechargeable batteries. In the interest of protecting the environment, please do not dispose of the product in the household waste at the end of its useful life. Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country.

Subject to change without notice.

For electric specifications, see printing on the special cord set.

Guarantee

We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion. This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the appliance.

The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only:

This guarantee in no way affects your rights under statutory law.

For Australia only:

Warranty

We grant a 24 Month Replacement Warranty on this appliance commencing on the date of purchase.

This warranty applies in all States and Territories of Australia and in New Zealand and is in addition to any mandatory statutory obligations imposed on Procter & Gamble Australia Pty. Ltd., its distributors and its manufacturer. This express warranty does not purport to exclude, restrict or modify any such mandatory statutory obligations.

This warranty only covers defects in the appliance resulting from faults in workmanship or materials. Therefore, if your appliance becomes faulty as a result of faults in workmanship or materials, it will be exchanged by your retailer, on presentation of proof of purchase.

This warranty only applies to domestic or household use of this appliance and the warranty will only apply if the correct operating instructions included with this product have been followed. The warranty on any appliance replaced under this warranty ends on the expiry of the warranty period that applied to the original appliance.

This warranty does not cover:

A. Damage arising from improper use or operation on incorrect voltages.
B. Breakages to shaver foils, glass jars, etc.
C. Normal wear due to moving parts.
D. Repairs undertaken by unauthorised service personnel or use of non genuine parts.
E. Appliances that are outside the warranty period or are not faulty.

This appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance.

If the appliance is powered by a cord extension set or electrical portable outlet device these should be positioned so they are not subject to splashing or ingress of moisture.

To the extent permitted by the laws of the Commonwealth of Australia and New Zealand and applicable laws of a State or Territory of Australia, and subject to the second paragraph of this warranty above, this warranty is given in exchange for any other rights you may have against Procter & Gamble Australia Pty. Ltd. or its distributors or manufacturer, whether at law, in tort (including negligence), in equity or under statute.

Please retain proof of purchase of this appliance. If you have any questions in relation to this warranty, please call our Consumer Service line (see below for numbers).

Repairs and service

If you are sending your appliance for repair, please pack the appliance adequately and send it to your nearest Service Agent. For service or replacement parts refer to the authorised Service Agents listed overleaf. Local Service Agents may change from time to time – in that event please contact the Consumer Service free call number below for updated local service agent details.

Australian Consumer Service (free call): 1800641820

New Zealand Consumer Service (free call): 0 800 108 909

N2820

Australian & New Zealand Service Agents

VICTORIA & TASMANIA

Statewide Services Pty Ltd

trading as J A Appliances

17-19 Hossack Avenue

Coburg North, VIC 3058

Tel. [phone]

Fax. [phone]

Email: jaappliances@

statewideservices.com.au

QUEENSLAND

Walters Import trading as

Brisbane Appliance Service Centre

449 Beaudesert Road

Moorooka

QLD 4105

Tel. [phone]

Fax. [phone]

Email: [e-mail]

WESTERN AUSTRALIA

Mark 1 Appliances

Unit 1, 46 Abernethy Road

Belmont, WA 6104

Tel. [phone]

Fax. [phone]

Email: [e-mail]

NEW SOUTH WALES & ACT

Faulder Appliance Services Pty Ltd
Shop 4, 9 Evans Road,
Rooty Hill, NSW 2766
Tel. [phone]
Fax. [phone]
Email: [e-mail]

SOUTH AUSTRALIA & NT

Adelaide Service Centre
Shop B2,
Parkholme Shopping Centre
319 Oaklands Road, Parkholme
Adelaide, SA 5043
Tel. [phone]
Fax. [phone]
Email: [e-mail]

NEW ZEALAND

Key Service Ltd
7D Echelon Place
East Tamaki
Manukau City
Auckland
New Zealand
(PO Box 38569, Howick, Auckland, New Zealand)
Tel. [phone]
Fax. [phone]
Email: [e-mail]
