USER MANUAL NUTRIBABY CREAM BABYMOOV

Designed and engineered by Babymoov in France

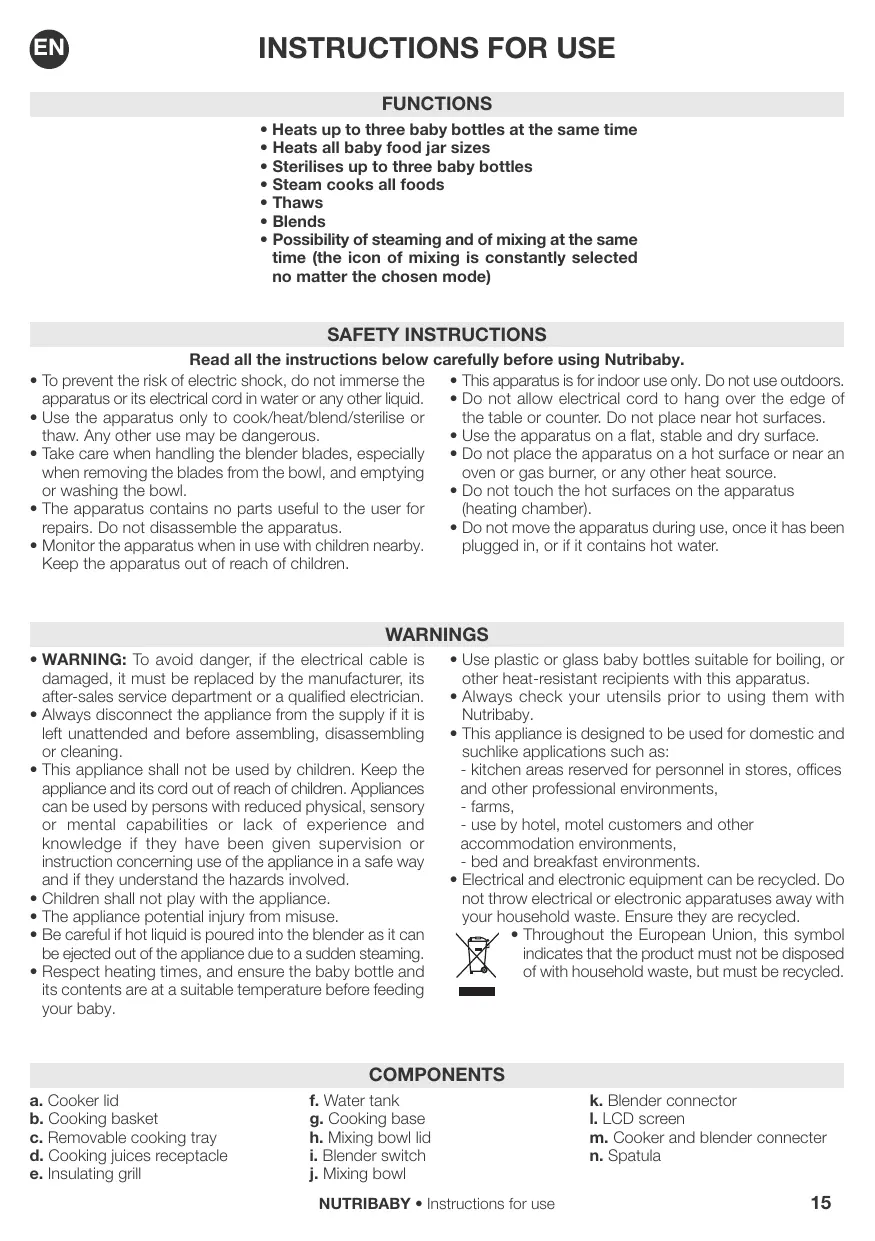

INSTRUCTIONS FOR USE FUNCTIONS

• Heats up to three baby bottles at the same time • Heats all baby food jar sizes • Sterilises up to three baby bottles • Steam cooks all foods • Thaws • Blends • Possibility of steaming and of mixing at the same time (the icon of mixing is constantly selected no matter the chosen mode)

SAFETY INSTRUCTIONS Read all the instructions below carefully before using Nutribaby.

• This apparatus is for indoor use only. Do not use outdoors. • To prevent the risk of electric shock, do not immerse the • Do not allow electrical cord to hang over the edge of apparatus or its electrical cord in water or any other liquid. the table or counter. Do not place near hot surfaces. • Use the apparatus only to cook/heat/blend/sterilise or • Use the apparatus on a flat, stable and dry surface. thaw. Any other use may be dangerous. • Do not place the apparatus on a hot surface or near an • Take care when handling the blender blades, especially oven or gas burner, or any other heat source. when removing the blades from the bowl, and emptying • Do not touch the hot surfaces on the apparatus or washing the bowl. (heating chamber). • The apparatus contains no parts useful to the user for • Do not move the apparatus during use, once it has been repairs. Do not disassemble the apparatus. plugged in, or if it contains hot water. • Monitor the apparatus when in use with children nearby. Keep the apparatus out of reach of children.

• WARNING: To avoid danger, if the electrical cable is damaged, it must be replaced by the manufacturer, its after-sales service department or a qualified electrician. • Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning. • This appliance shall not be used by children. Keep the appliance and its cord out of reach of children. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. • Children shall not play with the appliance. • The appliance potential injury from misuse. • Be careful if hot liquid is poured into the blender as it can be ejected out of the appliance due to a sudden steaming. • Respect heating times, and ensure the baby bottle and its contents are at a suitable temperature before feeding your baby.

• Use plastic or glass baby bottles suitable for boiling, or other heat-resistant recipients with this apparatus.

• Always check your utensils prior to using them with Nutribaby. • This appliance is designed to be used for domestic and suchlike applications such as: - kitchen areas reserved for personnel in stores, offices and other professional environments, - farms, - use by hotel, motel customers and other accommodation environments, - bed and breakfast environments. • Electrical and electronic equipment can be recycled. Do not throw electrical or electronic apparatuses away with your household waste. Ensure they are recycled. • Throughout the European Union, this symbol indicates that the product must not be disposed of with household waste, but must be recycled.

COMPONENTS a. Cooker lid b. Cooking basket c. Removable cooking tray d. Cooking juices receptacle e. Insulating grill

f. Water tank g. Cooking base h. Mixing bowl lid i. Blender switch j. Mixing bowl

NUTRIBABY • Instructions for use

Cycle start and stop

Heating time or baby bottle capacity selector

Meaning of the function icons

Heat a cold baby bottle

Heat a lukewarm baby bottle

Heat a cold baby food jar

Heat a lukewarm baby food jar

The icon of mixing is constantly selected no matter the chosen mode. Indeed, it is possible to use the steaming function at the same time as the chopping function

A. HEATING A BABY BOTTLE A1. Connect the cooker to the blender.

A2. Remove the cooking juices receptacle. A3. Pour 60 ml of water into the tank using the measuring marks on the mixing bowl (level C). A4. Remove the trays from each steam basket. A5. Stack the trays, and place them on the base of the apparatus. A6. Place the baby bottles on the insulating grill above the water tank. A7. Place the lid on the cooker. A8. Turn on using the On/Off switch on the back of the blender. The LCD screen on the front of the apparatus lights up. A9. Press the “Mode” button one or more times to choose the desired function. - If cold water is to be heated, select the baby bottle + refrigerator icon . - If lukewarm water is to be heated, select the baby bottle + house icon . A10. Press the + or – buttons to select the quantity of water to be heated. A11. Press OK to start. A12. At the end of the cycle, an alarm will sound to inform you that the baby bottle is ready. Press OK to turn off the alarm.

B. HEATING A BABY FOOD JAR Follow steps 1 to 5 of the baby bottle heating function.

B6. Place the baby food jar to be heated on the insulating grill. B7. Place the lid on the cooker. B8. Turn on using the On/Off switch on the back of the blender. The LCD screen on the front of the apparatus lights up. B9. Press the “Mode” button one or more times to choose the desired function. - If cold baby food is to be heated, select the baby food jar + refrigerator icon . - If lukewarm baby food is to be heated, select the baby food jar + house icon . B10. Press OK to start.

CAUTION: To prevent the risk of burns, always check the temperature of the food before feeding your baby. Shake baby bottles well to mix, then pour a drop of milk on the inside of your wrist to check the temperature.

CAUTION: The pre-programmed cycles are based on the average heating time of a baby bottle or baby food jar. The material and thickness of the baby bottle, a removable bottom and the size of the baby food jar may affect the temperature of the food. Heating more than one bottle at once may also affect heating times. If the food is too hot or too cold, reduce or increase the heating time, using the “steam cooking” function.

NUTRIBABY • Instructions for use

Pre-programmed times for baby bottles

Quantity of water/milk in the baby bottle

Time for a baby bottle prepared with

2 min 35 2 min 45 lukewarm water

Time for a baby bottle prepared with

3 min 40 3 min 50 4 min 30 4 min 40 cold water

C. STERILISING C1. Connect the cooker to the blender.

C2. Remove the cooking juices receptacle. C3. Pour 150 ml of water into the tank using the marks on the mixing bowl (level B). C4. Remove the trays from each steam basket. C5.Stack the trays, and place them on the base of the apparatus. C6. Place the baby bottles upside down on the tray above the water tank. Add any accessories you also wish to sterilise. C7. Place the lid on the cooker. C8. Turn on using the On/Off switch on the back of the blender. The LCD screen on the front of the apparatus lights up. C9. Press the “Mode” button one or more times to choose the desired function. Select the “sterilisation” icon . C10. Press OK to start. C11. At the end of the cycle, an alarm will sound to inform you that the baby bottles are ready. Press OK to turn off the alarm.

D. STEAM COOKING D1. Connect the cooker to the blender.

D2. Remove the cooking juices receptacle. D3. Pour 350 ml of water into the tank using the marks on the mixing bowl (level A). D4. Replace the cooking juices receptacle: it will collect the juices from the food, allowing you to preserve its nutritional value. D5. Place the trays in the basket as desired. D6. Cut the ingredients into small cubes measuring approx. 15 mm X 15 mm and place them in the cooking baskets. - Ingredients can be separated by type (vegetables/meat), or cooking time. For example, place potatoes, which require a relatively long cooking time in the bottom basket, and courgettes, which cook more quickly, in the upper basket, which you will add during the cooking cycle: no more overcooked vegetables! - Place no more than 400 g of food in each basket. - Thanks to the removable trays, you can adjust the capacity according to need: one small basket (a), two baskets (b), or one large basket (c) by removing the tray for the upper basket Once the baskets are in place, place the lid on top. D7. Turn on using the On/Off switch on the back of the blender. The LCD screen on the front of the apparatus lights up. D8. Press the “Mode” button one or more times to choose the desired function. Select the “steam cooking” icon . D9. Select the desired cooking time using the + and - buttons. The time will depend on the type and amount of food you wish to cook. Refer to the cooking-time table. D10. Press OK to start cooking. D11. At the end of the cycle, an alarm will sound to inform you that cooking is complete. Press OK to turn off the alarm. If you wish to continue cooking, press + or – to add minutes, then press OK to start. D12. Use the handle to remove the lid. Take care not to burn yourself. D13. Use the handles to remove the steam baskets. D14. You can also cook eggs. Place the eggs in the egg supports built into the trays. NUTRIBABY • Instructions for use

COOKING TIMES see page 9

Cooking times are based on cooking in the bottom basket. These times may vary according to the size of the pieces of food, their quantity, the amount of empty space left in the basket, and the initial temperature of the food. You must increase the cooking time if you use the second cooking basket. To cook ingredients requiring different cooking times, place the foods that need to cook the longest in the bottom basket. During cooking, add the second basket with the foods requiring a shorter cooking time.

E. DEFROSTING Proceed in the same way, choosing the “defrosting” icon

F. BLENDING The icon of mixing is constantly selected no matter the chosen mode. Indeed, it is possible to use the steaming function at the same time as the chopping function.

F1. Once your ingredients are cooked, open the lid of the cooking bowl and let the food cool for a few minutes. F2. Transfer the cooked food to the mixing bowl, using the spatula provided. For best results, do not blend more than 400 g of cooked fruit or vegetables, or a total of 300 g of meat/vegetables, mix at a time. F3. Hold the receptacle using the side opposite the spatula, which you will use as a pincer. F4. Pour the cooking juices into the mixing bowl, dosing them according to the desired texture. Do not add more than 200 ml of cooking juices. F5. Place the lid on the mixing bowl and lock. F6. Lock the mixing bowl onto the base. For your safety, the apparatus will not operate if the bowl is not locked on the base. F7. Blend the preparation, pressing on the button for 5 seconds, then waiting 5 seconds, then blending again for 5 seconds. Do not blend for more than 30 seconds to prevent overheating. Repeat this operation up to three times. We recommend you then allow the apparatus to cool for 30 minutes prior to blending again.

- An alarm will sound if, during the cooking cycle, the apparatus tank runs out of water: remove the steamer baskets and add water. Press OK to shut off the alarm, ensuring you reconnect the cooker to the blender, and restart the heating cycle to finish cooking. - An alarm will sound if, during the cooking cycle, the blender and the cooker are not correctly connected: Press OK to shut off the alarm, reconnect the blender and cooker and restart the cooking cycle. - An alarm will sound at the end of the cycle to notify you that cooking is complete.

H. CLEANING NUTRIBABY H1. Unplug Nutribaby and ensure it is cool before cleaning.

CAUTION: The bases of the cooker and blender must not be washed in a dishwasher. - Wipe off the cooking dome inside the tank, and the base of the mixing bowl with a damp cloth or sponge. Do not use detergents or cleaners. Allow to dry. Do not immerse Nutribaby in water or any other liquid. Do not wash Nutribaby under running water. Do not allow water to enter parts containing electrical components. - Do not use abrasive or scouring cleansers for cleaning as they may damage the apparatus and its surfaces. - The cooking baskets, removable trays, cooking juices receptacles, lids, spatula and mixing bowl may be washed using a sponge, hot water and dish detergent. Rinse well and allow to dry. These elements are also dishwasher safe. Descaling the cooking tank After Nutribaby has been used for a certain time, mineral deposits may form on the cooking dome and damage it. You should descale the cooking tank regularly (after five cycles), pouring 100 ml of hot water and 100 ml of white vinegar on the resistance. Let it sit for one to two hours (or more if necessary), without plugging in the apparatus. Pour off the mixture and wipe off the cooking dome with a wet cloth. H2. Removing the blades

NUTRIBABY • Instruction manual

DE Designed and engineered by Babymoov in France
