Find the device manual for free HD 6 15 C PLUS KARCHER in PDF.
| Product type | High-pressure cleaner |
| Brand | KARCHER |
| Model | HD 6/15 C PLUS |
| Dimensions (L x l x h) | 360 x 375 x 925 mm |
| Weight (without accessories) | 27 kg |
| Supply voltage | 230 V / 50 Hz |
| Connected power | 3.1 kW |
| Operating pressure | 15 MPa (max 21.5 MPa) |
| Water flow rate | 9.5 l/min |
| Max. supply temperature | 60 °C |
| Min. supply flow rate | 12 l/min |
| Detergent suction | 0 to 0.6 l/min |
| Oil type | SAE 15W40 |
| Oil quantity | 0.35 l |
| Protection class | IPX5 |
| Sound pressure level LpA | 72 dB(A) |
| Sound power level LWA | 86 dB(A) |
| Vibration value (handle-gun) | <2.5 m/s² |
| Functions | High-pressure jet, low-pressure jet with detergent, pressure/flow regulation |
| Safety | Safety lever, automatic shut-off via pressure switch, safety valve |
| Maintenance | Annual oil change or after 500 hours of service |
| Warranty | According to country conditions (see manual) |
Frequently Asked Questions - HD 6 15 C PLUS KARCHER
User questions about HD 6 15 C PLUS KARCHER
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Pressure washer in PDF format for free! Find your manual HD 6 15 C PLUS - KARCHER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HD 6 15 C PLUS by KARCHER.
USER MANUAL HD 6 15 C PLUS KARCHER
English 18
Français 30
Italiano 43
Nederlands 56
Español 68
Português 81
Dansk 94
Norsk 106
Svenska 118
Suomi 130
Ελληνικά 142
Türkçe 155
Русский 167
Magyar 181
Čeština 193
Slovenščina 205
Polski 217
Românește 230
Slovenčina 243
Hrvatski 255
Srpski 267
Български 279
Eesti 292
Latviešu 304
Lietuviškai 316
Українська 328
中文 341
Indonesia 351
Register and win! www.kaercher.com
HD 5/11 C
HD 6/12-4 CX
HD 6/15 CX, HD 6/15 CX Plus
HD 7/10 CXF
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2012/09/01
Technische Daten
to the initial operation of your appliance and store them for later use or subsequent owners.
Contents
Device elements..... EN ...1
Safety instructions ..... EN ...2
Proper use .... EN ...2
Safety Devices.... EN ...2
Environmental protection .. EN ...2
Before Startup ..... EN ...3
Start up..... EN ...3
Operation.... EN ...4
Transport .... EN ...5
Storage..... EN ...6
Maintenance and care .... EN ...6
Troubleshooting ..... EN ...6
Spare parts..... EN ...7
Warranty.... EN ...7
EC Declaration of Conformity EN ...8
Technical specifications ... EN ...9
Device elements
Please unfold the front picture side
1 Storage compartment for nozzles
2 Handle
3 High pressure connection
4 Manometer
5 Pressure/ volume regulations HD 6/15
6 Water connection
7 Oil level indicator
8 Oil tank
9 Cover
10 Power switch
11 Fastening screw for device hood
12 Storage compartment for hoses
13 Trigger gun storage clip
14 Hose hook
15 Nozzle
16 Marking of the nozzle
17 Spray lance
18 Pressure/ volume regulations HD 7/18
19 Hand blowing gun
20 Safety lever
21 Lever for hand spray gun
22 High pressure hose
23 Push handle
24 Cable clamp
25 Clamping screw for pushing handle
26 Detergent suction hose with filter
27 Dosage valve for detergent
28 Accessory compartment
29 Hose drum
30 Crank
31 Adapter
Colour coding
- The operating elements for the cleaning process are yellow.
- The controls for the maintenance and service are light gray.
Safety instructions
- Before first start-up it is definitely necessary to read the operating instructions and safety indications Nr. 5.951-949!
- Please follow the national rules and regulations for fuel spray jets of the respective country.
- Please follow the national rules and regulations for accident prevention of the respective country. Fuel spray jets must be tested regularly and the results of these tests must be documented in writing.
Symbols in the operating instructions
⚠️ Danger
Immediate danger that can cause severe injury or even death.
⚠ Warning
Possible hazardous situation that could lead to severe injury or even death.
Caution
Possible hazardous situation that could lead to mild injury to persons or damage to property.
Symbols on the machine
High-pressure jets can be dangerous if improperly used. The jet may not be directed at persons, animals, live electrical equipment or at the appliance itself.
According to the applicable regulations, the appliance must never be used on the drinking water net without a system separator. Use a suitable system separator manufactured by Kärcher; or, as an alternative, a system separator as per EN 12729 Type BA.
Water flowing through a system separator is considered non-drinkable.
Proper use
Use this high pressure cleaner exclusively for
- Cleaning using low pressure jet and detergent (for e.g. for cleaning machines, cars, buildings, tools),
- For cleaning using high pressure jet without detergent (for e.g. for cleaning facades, terraces, garden appliances).
For stubborn dirt, we recommend the use of the dirt blaster as a special accessory.
Safety Devices
Overflow valve with pressure switch
While reducing the water supply/quantity regulation at the pump head, the overflow valve opens and part of the water flows back to the pump suck side.
If the lever on the trigger gun is released the pressure switch turns off the pump, the high-pressure jet is stopped. If the lever is pulled the pump is turned on again.
Safety valve (only HD 7/18)
The safety valve opens when the permissible operating pressure is exceeded; water flows back to the suction side of the pump. The overflow valve, pressure switch and safety valve are set and sealed at the factory.
Setting only by customer service.
Environmental protection
 | The packaging material can be recycled. Please do not throw the packaging material into household waste; please send it for recycling. |
 | Old appliances contain valuable materials that can be recycled; these should be sent for recycling. Batteries, oil, and similar substances must not enter the environment. Please dispose of your old appliances using appropriate collection systems. |
Notes about the ingredients (REACH)
You will find current information about the ingredients at:
www.kaercher.com/REACH
Before Startup
Unpacking
- Check the contents of the pack before unpacking.
– In case of transport damage inform vendor immediately
Check oil level
→ Read the oil level display when the device is not running. The oil level must be above the two pointers.
Activate deaeration of oil container
→ Unscrew the fastening screws of the device hood; remove the device hood.
→ Cut off tip of oil container cover
→ Fasten the device hood.
Attaching the Accessories
→ Mount the nozzle on the spray pipe (markings on the adjustment ring at the top).
→ Connect ray tube to hand spray gun
Note
Only with HD 7/10 CXF:
When space is limited, the enclosed adapter with nozzle can be mounted directly to the hand spray gun.
In devices without hose drum:
→ Loosen the clamps of the pushing handle.
→ Adjust the handle to the desired height.
→ Tighten the clamps of the pushing handle.
→ Fasten the high pressure hose to the high pressure connection.
In devices without hose drum:
→ Insert the crank in the hose drum shaft and lock it in.
→ Before rolling up, stretch out the high pressure hose.
→ Wind the high pressure hose in uniform layers on the hose drum by rotating the crank. Select the rotation direction in
such a way that the high pressure hose does not get bent.
Start up
Electrical connection
⚠️ Danger
Danger of injury by electric shock.
The appliance may only be connected to alternating current.
The appliance may only be connected to an electrical supply which has been installed in accordance with IEC 60364.
The voltage indicated on the type plate must correspond to the voltage of the electrical source.
The minimum fuse rating required at the socket outlet is (see technical specifications). The highest allowed net impedance at the electrical connection point (refer to technical data) is not to be exceeded. In case of confusion regarding the power impedance present on your connection, please contact your utilities provider.
The appliance should always be connected to the electrical mains using a plug. It is forbidden to permanently connect the appliance to the power supply. The plug is only for mains separation.
Check the power cord with mains plug for damage before every use. If the power cord is damaged, please arrange immediately for the exchange by an authorized customer service or a skilled electrician.
The plug and coupling of the extension cable used must be watertight.
Use the extension cord that has an adequate cross-section (see "Technical Data") and unwind it fully from the cable drum.
Unsuitable extension cables can be hazardous. Only use extension cables outdoors which have been approved for this purpose and labelled with a sufficient cable cross section:
For connection values, see type plate/technical data.
Water connection
Connection to the water supply
⚠ Warning
Observe regulations of water supplier.
According to the applicable regulations, the appliance must never be used on the drinking water supply without a system separator. Use a
suitable system separator manufactured by KÄRCHER; or, as an alternative, a system separator as per EN 12729 Type BA. Water flowing through a system separator is considered non-drinkable.
Caution
Always connect the system separator to the water supply, never directly to the appliance!
For connection values refer to technical specifications
→ Connect the supply hose (max length 7.5 m, minimum diameter 1/2") to the water connection point of the machine and at the water supply point (for e.g. a tap).
Note
The supply hose is not included.
→ Open the water supply.
Drawing in water from open reservoirs
→ Screw the suction hose with filter (order no. 4.440-238.0) to the water connection.
→ Deaerate the appliance:
Unscrew the nozzle.
Switch on the appliance and let it run until the water exiting is bubble-free.
At the end let the appliance run for approx. 10 seconds - then switch off. Repeat the procedure for a couple of times.
→ Switch off the appliance and fit the nozzle again.
Operation
⚠️ Danger
Risk of explosion!
Do not spray flammable liquids.
If the appliance is used in hazardous areas (e.g. filling stations) the corresponding safety provisions must be observed.
Caution
Clean engines only at places with corresponding oil separators (environmental safety).
Risk of blocking. Place the nozzles in the accessory compartment with their joint pointing upward.
High pressure operation
Note
The appliance is equipped with a pressure switch. The motor starts up only when the lever of the pistol is pulled.
→ Roll off the high pressure hose totally from the hose drum.
→ Set the appliance switch to "I".
→ Unlock the hand-spray gun and pull the lever of the gun.
→ Set working pressure and flow rate through turning (runless) at the pressure- and amount regulation (B) (+/-).
Select spray type
→ Close the hand spray gun.
→ Turn the casing of the nozzle till the desired symbol matches the marking.
| CHEM | Flat low pressure spray (CHEM) for operating using detergents or cleaning at low pressure. |
| High pressure flat spray (25°) for large dirt areas |
Operation with detergent
⚠ Warning
Unsuitable detergents can cause damage to the appliance and to the object to be cleaned. Use only those detergents that have been approved by Kärcher. Observe the dosage and other instructions provided with these detergents. For considerate treatment of the environment use detergent economically.
Follow the safety instructions for using detergents.
Kärcher detergents ensure smooth functioning. Please consult us or ask for our catalogue or our detergent information sheets.
→ Take out detergent suck hose.
→ Suspend end of suction hose in a container filled with detergent.
→ Set nozzle to "CHEM".
→ Set dosing value for detergent to the desired concentration.
Recommended cleaning method
→ Spray the detergent sparingly on the dry surface and allow it to react, but not to dry.
→ Spray off loosened dirt with the high-pressure ray.
→ After operations, dip the filter in clear water. Turn the dosing valve to the highest detergent concentration. Start the appliance and rinse for one minute.
Interrupting operation
→ Release the lever of the hand-spray gun; the device will switch off.
→ Release again the lever of the hand-spray gun; the device will switch on again.
Turn off the appliance
→ Set the appliance switch to "0".
→ Disconnect the mains plug from the socket.
→ Shut off water supply.
→ Activate hand spray gun until device is pressure-less.
→ Press the safety lever of the hand-spray gun to secure the lever of the pistol against being released accidentally.
Storing the Appliance
→ Insert the hand-spray gun in the holder.
→ Wind up the high-pressure hose and hang it over the hose storage.
or
Wind up the high-pressure hose on the hose drum. Push in the handle of the crank to block the hose drum.
→ Wind the connection cable around the cable holder.
→ Fasten the plug with the mounted clip.
Frost protection
⚠ Warning
Frost will destroy the not completely water drained device.
Store the appliance in a frost free area.
If you cannot store it in a frost-free place:
→ Drain water.
→ Pump in conventional frost protection agents through the appliance.
Note
Use normal glycol-based anti-freezing agents for automobiles.
Observe handling instructions of the anti-freeze agent manufacturer.
→ Operate device for max. 1 minute until the pump and conduits are empty.
Transport
⚠️ Danger
Risk of injury and damage! Observe the weight of the appliance when you transport it.
→ Pull the device behind you at the handle for transporting it over longer distances.
→ For devices without hose drum, push the handle downward to carry the appliance. To carry, hold the appliance at the handles and not at the pushing handle.
→ When transporting in vehicles, secure the appliance according to the guidelines from slipping and tipping over.
Storage
⚠️ Danger
Risk of injury and damage! Note the weight of the appliance in case of storage.
Maintenance and care
⚠️ Danger
Risk of injury by inadvertent startup of appliance and electrical shock.
First pull out the plug from the mains before carrying out any tasks on the machine.
Note
Please dispose off used oil only in the collection points provided for them. Please hand over old oil, if any, only at such places. Polluting the environment with used oil is a punishable offence.
Safety inspection/ maintenance contract
You can sign with your dealer a contract for regular safety inspection or even sign a maintenance contract. Please take advice on this matter.
Before each use
→ Check connection cable for damages (risk of electrical shock); get the damaged connection cable replaced immediately by an authorised customer service person/ electrician.
→ Check the high pressure hose for damages (risk of bursting).
Please arrange for the immediate exchange of a damaged high-pressure hose.
→ Check appliance (pump) for leaks.
3 drops per minute are permitted and can come out from the lower side of the appliance. Call Customer Service if there is heavy leakage.
Weekly
→ Check oil level Please contact Customer Service immediately if the oil is milky (water in oil).
→ Clean the sieve in the water connection.
→ Clean filter at the detergent suck hose.
monthly or after 500 operating hours
→ Oil change.
Oil change
Note
See "Technical Details" for details of oil quantity and type.
→ Unscrew the fastening screws of the device hood; remove the device hood.
→ Remove the lid of the oil container.
→ Tilt the appliance forward.
→ Drain the oil in a collection basin.
→ Fill in new oil slowly; air bubbles should go out.
→ Attach the lid of the oil container.
→ Fasten the device hood.
Troubleshooting
⚠️ Danger
Risk of injury by inadvertent startup of appliance and electrical shock.
First pull out the plug from the mains before carrying out any tasks on the machine.
Get the electrical components checked and repaired only by authorised customer service persons.
Contact an authorised customer service person in case of problems not mentioned in this chapter or if you are in doubt or when you have been explicitly asked to do so.
Appliance is not running
→ Check connection cable for damages.
→ Check the supply voltage.
→ Call Customer Service in case of electrical defects.
Pressure does not build up in the appliance
→ Set nozzle to "High pressure".
→ Clean the nozzle.
→ Replace the nozzle.
→ Deaerate the appliance (see "Start-up")
→ Check water supply level (refer to technical data).
→ Clean the sieve in the water connection.
→ Check all inlet pipes to the pump.
→ Contact Customer Service if needed.
Pump leaky
3 drops per minute are permitted and can come out from the lower side of the appliance. Call Customer Service if there is heavy leakage.
→ With stronger leak, have device checked by customer service.
Pump is vibrating
→ Check suction pipes for water and detergent and ensure that they are leak-proof.
→ Close dosing valve for detergent to operate the machine without detergent.
→ Deaerate the appliance (see "Start-up")
→ Contact Customer Service if needed.
Detergent is not getting sucked in
→ Set nozzle to "CHEM".
→ Check/ clean detergent suction hose with filter.
→ Open or check/clean detergent dosing valve.
→ Contact Customer Service if needed.

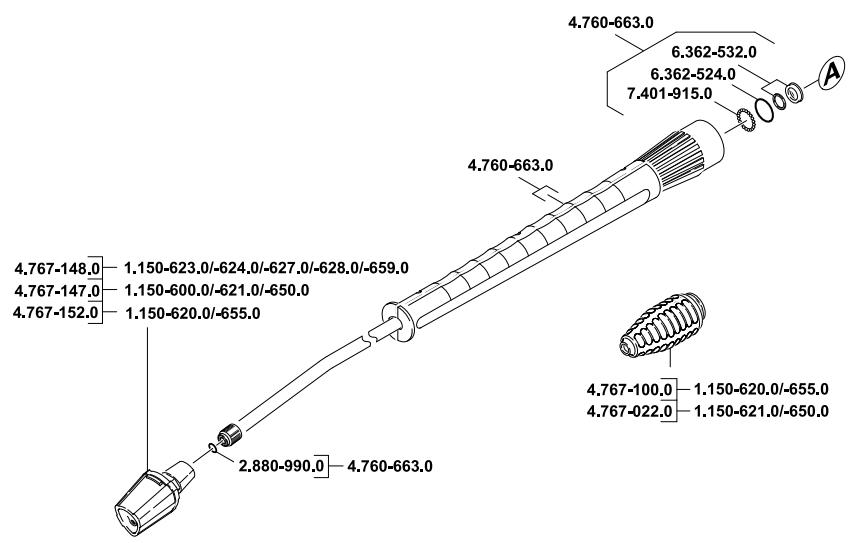

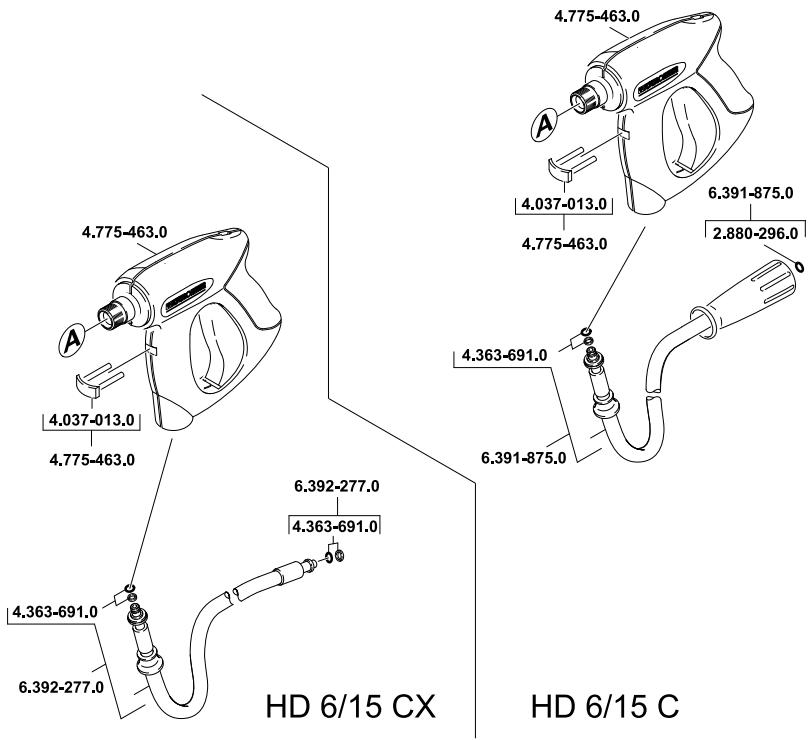

Spare parts
- Only use accessories and spare parts which have been approved by the manufacturer. The exclusive use of original accessories and original spare parts ensures that the appliance can be operated safely and trouble free.
- At the end of the operating instructions you will find a selected list of spare parts that are often required.
- For additional information about spare parts, please go to the Service section at www.kaercher.com.
Warranty
The warranty terms published by the relevant sales company are applicable in each country. We will repair potential failures of your appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in manufacturing. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service centre. Please submit the proof of purchase.
EC Declaration of Conformity
We hereby declare that the machine described below complies with the relevant basic safety and health requirements of the EU Directives, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the machine is modified without our prior approval.
Product: High-pressure cleaner
Type: 1.150-xxx
Type: 1.151-xxx
Type: 1.214-xxx
Relevant EU Directives
2006/42/EC (+2009/127/EC)
2004/108/EC
2000/14/EC
Applied harmonized standards
EN 60335-1
EN 60335-2-79
EN 55014-1: 2006 + A1: 2009
EN 55014-2: 1997 + A2: 2008
EN 61000-3-2: 2006 + A2: 2009
HD 7/10, HD 7/16, HD 7/18
EN 61000-3-3: 2006
HD 5/17, HD 6/12, HD 6/15:
EN 61000-3-11:2000
EN 62233: 2008
Applied conformity evaluation method
2000/14/EC: Appendix V
Sound power level dB(A)
HD 5/17
Measured: 85
Guaranteed: 86
HD 6/12
Measured: 83
Guaranteed: 85
HD 6/15
Measured: 85
Guaranteed: 86
HD 7/10
Measured: 90
Guaranteed: 91
HD 7/18
Measured: 90
Guaranteed: 91
The undersigned act on behalf and under the power of attorney of the company management.
Authorised Documentation Representative S. Reiser
71364 Winnenden (Germany)
Phone: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2012/09/01
Technical specifications
| Type | HD 5/17 C1.214-111.01.214-113.0 | HD 5/17 C1.214-110.01.214-112.0 | HD 6/12-4C1.150-160.01.150-161.0 | |
| HD 6/12-4CX1.150-162.0 | ||||
| BR | EU | EU | ||
| Main Supply | ||||
| Voltage | V | 220 | 230 | |
| Current type | Hz | 1~60 | 1~50 | |
| Connected load | kW | 3,2 | 2,8 | |
| Protection (slow, char. C) | A | 16 | ||
| Type of protection | IPX5 | |||
| Maximum allowed net impedance | Ohm | (0.302+j0.189) | 0.386+j0.241 | |
| Extension cord 30 m | mm2 | 2,5 | ||
| Water connection | ||||
| Max. feed temperature | °C | 60 | ||
| Min. feed volume | l/min | 12 | ||
| Suck height from open container (20 °C) | m | 0,5 | ||
| Max. feed pressure | MPa | 1 | ||
| Performance data | ||||
| Working pressure | MPa | 16 | 17 | 12 |
| Max. operating over-pressure | MPa | 21,5 | 18 | |
| Nozzle size | 028 | 043 | ||
| Flow rate | l/min | 8,3 | 10 | |
| Detergent suck in | l/min | 0...0,6 | ||
| Max. recoil force of hand spray gun | N | 21 | 26 | |
| Values determined as per EN 60355-2-79 | ||||
| Hand-arm vibration value | ||||
| Hand spraygun | m/s2 | <2,5 | ||
| Spray lance | m/s2 | <2,5 | ||
| Uncertainty K | m/s2 | 1 | ||
| Sound pressure level LpA | dB(A) | 72 | 70 | |
| Uncertainty KpA | dB(A) | 1 | 2 | |
| Sound power level LWA + Uncertainty KWA | dB(A) | 86 | 85 | |
| Fuel | ||||
| Amount of oil | l | 0,35 | ||
| Oil grade | SAE 15W40 | |||
| Dimensions and weights | ||||
| Length | mm | 360 | ||
| Width (CX) | mm | 375 (400) | ||
| Height | mm | 925 | ||
| Weight without accessories | kg | 29 | 27 | * |
| * 1.150-160.0: 26 kg; 1.150-161.0 26,5 kg; 1.150-162.0: 31 kg | ||||
| Type | HD 6/15 C1.150-600.01.150-621.0 | HD 6/15 C1.150-620.0 | HD 6/15 C1.150-624.0 | |
| HD 6/15 CX1.150-650.0 | HD 6/15 CX1.550-655.0 | HD 6/15 CX1.150-659.0 | ||
| EU | CH | KAP | ||
| Voltage | V | 230 | 220 | |
| Current type | Hz | 1~50 | 1~60 | |
| Connected load | kW | 3,1 | 2,2 | 3,2 |
| Protection (slow, char. C) | A | 16 | 10 | 16 |
| Type of protection | IPX5 | |||
| Maximum allowed net impedance | Ohm | 0.302+j0.189 | ||
| Extension cord 30 m | mm2 | 2,5 | ||
| Water connection | ||||
| Max. feed temperature | °C | 60 | ||
| Min. feed volume | l/min | 12 | ||
| Suck height from open container (20 °C) | m | 0,5 | ||
| Max. feed pressure | MPa | 1 | ||
| Performance data | ||||
| Working pressure | MPa | 15 | 11 | 14 |
| Max. operating over-pressure | MPa | 21,5 | 15 | 21,5 |
| Nozzle size | 034 | 043 | 036 | |
| Flow rate | l/min | 9,5 | ||
| Detergent suck in | l/min | 0...0,6 | ||
| Max. recoil force of hand spray gun | N | 21 | ||
| Values determined as per EN 60355-2-79 | ||||
| Hand-arm vibration value | ||||
| Hand spraygun | m/s2 | <2,5 | ||
| Spray lance | m/s2 | <2,5 | ||
| Uncertainty K | m/s2 | 1 | ||
| Sound pressure level LpA | dB(A) | 72 | ||
| Uncertainty KpA | dB(A) | 1 | ||
| Sound power level LWA + Uncertainty KWA | dB(A) | 86 | ||
| Fuel | ||||
| Amount of oil | l | 0,35 | ||
| Oil grade | SAE 15W40 | |||
| Dimensions and weights | ||||
| Length | mm | 360 | ||
| Width (CX) | mm | 375 (400) | ||
| Height | mm | 925 | ||
| Weight without accessories (CX) | kg | * | 34,5 (32,5) | 27 (32,5) |
| 1.150-600.0: 27 kg; 1.150-621.0: 32,5 kg; 1.150-650.0: 32,5 kg | ||||
| Type | HD 6/15 C1.150-623.0 | HD 6/15 C1.150-628.0 | HD 6/15 C1.150-627.0 | |
| KAP | GB/AU | AR | ||
| Main Supply | ||||
| Voltage | V | 220 | 240 | 220 |
| Current type | Hz | 1~50 | ||
| Connected load | kW | 3,0 | 3,1 | |
| Protection (slow, char. C) | A | 16 | 13 | 16 |
| Type of protection | IPX5 | |||
| Maximum allowed net impedance | Ohm | 0.302+j0.189 | ||
| Extension cord 30 m | mm2 | 2,5 | ||
| Water connection | ||||
| Max. feed temperature | °C | 60 | ||
| Min. feed volume | l/min | 12 | ||
| Suck height from open container (20 °C) | m | 0,5 | ||
| Max. feed pressure | MPa | 1 | ||
| Performance data | ||||
| Working pressure | MPa | 13 | 15 | |
| Max. operating over-pressure | MPa | 21,5 | ||
| Nozzle size | 036 | 034 | ||
| Flow rate | l/min | 9,5 | 9,3 | |
| Detergent suck in | l/min | 0...0,6 | ||
| Max. recoil force of hand spray gun | N | 21 | ||
| Values determined as per EN 60355-2-79 | ||||
| Hand-arm vibration value | ||||
| Hand spraygun | m/s2 | <2,5 | ||
| Spray lance | m/s2 | <2,5 | ||
| Uncertainty K | m/s2 | 1 | ||
| Sound pressure level LpA | dB(A) | 72 | ||
| Uncertainty KpA | dB(A) | 1 | ||
| Sound power level LWA + Uncertainty KWA | dB(A) | 86 | ||
| Fuel | ||||
| Amount of oil | l | 0,35 | ||
| Oil grade | SAE 15W40 | |||
| Dimensions and weights | ||||
| Length | mm | 360 | ||
| Width (CX) | mm | 375 (400) | ||
| Height | mm | 925 | ||
| Weight without accessories (CX) | kg | 25 | 27 | |
| Type | HD 7/10 CXF1.151-619.0 | HD 7/18 C1.151-600.01.151-614.0 | HD 7/18 C1.151-613.0 | |
| HD 7/18 CX1.151-657.0 | HD 7/18 CX1.151-650.0 | |||
| EU | EU | EU II | ||
| Main Supply | ||||
| Voltage | V | 400 | 230 | |
| Current type | Hz | 3~50 | ||
| Connected load | kW | 3,0 | 4,7 | |
| Protection (slow, char. C) | A | 16 | ||
| Type of protection | IPX5 | |||
| Maximum allowed net impedance | Ohm | - | ||
| Extension cord 30 m | mm2 | 2,5 | ||
| Water connection | ||||
| Max. feed temperature | °C | 80 | 60 | |
| Min. feed volume | l/min | 13 | ||
| Suck height from open container (20 °C) | m | 0,5 | ||
| Max. feed pressure | MPa | 1 | ||
| Performance data | ||||
| Working pressure | MPa | 10 | 17,5 | |
| Max. operating over-pressure | MPa | 12 | 21,5 | |
| Nozzle size (CX) | 060 | 040 (042) | ||
| Flow rate | l/min | 11,5 | ||
| Detergent suck in | l/min | 0...0,6 | ||
| Max. recoil force of hand spray gun | N | 21 | ||
| Values determined as per EN 60355-2-79 | ||||
| Hand-arm vibration value | ||||
| Hand spraygun | m/s2 | <2,5 | ||
| Spray lance | m/s2 | <2,5 | ||
| Uncertainty K | m/s2 | 1 | ||
| Sound pressure level LpA | dB(A) | 77 | ||
| Uncertainty KpA | dB(A) | 1 | ||
| Sound power level LWA + Uncertainty KWA | dB(A) | 91 | ||
| Fuel | ||||
| Amount of oil | l | 0,35 | ||
| Oil grade | SAE 90 Hypoid | |||
| Dimensions and weights | ||||
| Length | mm | 360 | ||
| Width (CX) | mm | 375 (400) | ||
| Height | mm | 925 | ||
| Weight without accessories (CX) | kg | 33 | * | 31,8 (32,5) |
| * 1.151-600: 30,8 kg; 1.151--614.0: 34,5 kg; 1.151-657.0: 32,5 kg | ||||
Table des matières
Éléments de l'appareil .... FR ...1
Transport .... FR ...6
Entreposage.... FR ...6
Entretien et maintenance .. FR ...6
www.kaercher.com/REACH
2006/42/CE (+2009/127/CE)
2004/108/CE
2000/14/CE
S. Reiser
Head of Approbation
Responsable de la documentation: S. Reiser
71364 Winnenden (Germany)
Winnenden, 2012/09/01
www.kaercher.com/REACH
2006/42/CE (+2009/127/CE)
2004/108/CE
2000/14/CE
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2012/09/01
Dati tecnici
www.kaercher.com/REACH
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2012/09/01
Technische gegevens
www.kaercher.com/REACH
2006/42/CE (+2009/127/CE)
2004/108/CE
2000/14/CE
71364 Winnenden (Germany)
Tfno.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2012/09/01
Datos técnicos
2006/42/CE (+2009/127/CE)
2004/108/CE
2000/14/CE
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2012/09/01
Dados técnicos
www.kaercher.com/REACH
Inden ibrugtagning
Udpakning
- Kontroller emballagens indhold.
- Ved transportskader skal forhandleren informeres omgående.
Kontroller oliestanden
2006/42/EF (+2009/127/EF)
2004/108/EF
2000/14/EF
71364 Winnenden (Germany)
Tlf.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2012/09/01
Tekniske data
www.kaercher.com/REACH
Før den tas i bruk
Utpakking
- Kontroller ved utpakking at ingen ting mangler.
- Informer straks forhandleren ved transportskader.
Kun for HD 7/10 CXF:
2006/42/EF (+2009/127/EF)
2004/108/EF
2000/14/EF
2000/14/EF: Vedlegg V
Lydeffektnivå dB(A)
HD 5/17
Målt: 85
Garantert: 86
HD 6/12
Målt: 83
Garantert: 85
HD 6/15
Målt: 85
Garantert: 86
HD 7/10
Målt: 90
Garantert: 91
HD 7/18
Målt: 90
Garantert: 91
71364 Winnenden (Germany)
Tlf: +49 7195 14-0
Winnenden, 2012/09/01
Tekniske data
www.kaercher.com/REACH
Före ibruktagande
Uppackning
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2012/09/01
Tekniska data
www.kaercher.com/REACH
Ennen käyttöönottoa
71364 Winnenden (Germany)
Puh.: +49 7195 14-0
Winnenden, 2012/09/01
Tekniset tiedot
www.kaercher.com/REACH
71364 Winnenden (Germany)
Tηλ.: +49 7195 14-0
Φαξ: +49 7195 14-2212
Winnenden, 2012/09/01
www.kaercher.com/REACH
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Winnenden, 2012/09/01
Teknik Bilgiler
www.kaercher.com/REACH
71364 Winnenden (Germany)
Тел.: +49 7195 14-0
Факс: +49 7195 14-2212
Winnenden, 2012/09/01
Технические данные
Transport ....HU ...6
Tárolás....HU...6
www.kaercher.com/REACH
Üzembevétel előtt
Kicsomagolás
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2012/09/01
Műszaki adatok
www.kaercher.com/REACH
2006/42/ES (+2009/127/ES)
2004/108/ES
2000/14/ES
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2012/09/01
Technické údaje
www.kaercher.com/REACH
Pred zagonom
Razpakiranje
2006/42/ES (+2009/127/ES)
2004/108/ES
2000/14/ES
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Winnenden, 2012/09/01
Tehnični podatki
| Tip | HD 5/17 C1.214-111.01.214-113.0 | HD 5/17 C1.214-110.01.214-112.0 | HD 6/12-4C1.150-160.01.150-161.0 | |
| HD 6/12-4CX1.150-162.0 | ||||
| BR | EU | EU | ||
| Omrežni priključek | ||||
| Napetost | V | 220 | 230 | |
| Vrsta toka | Hz | 1~60 | 1~50 | |
| Priključna moč | kW | 3,2 | 2,8 | |
| Zaščita (inertna, kar. C) | A | 16 | ||
| Vrsta zaščite | IPX5 | |||
| Maksimalno dopustna omrežna impedanca | Ohm | (0.302+j0.189) | 0.386+j0.241 | |
| Podaljševalni kabel 30 m | mm2 | 2,5 | ||
| Vodni priključek | ||||
| Temperatura dotoka (maks.) | °C | 60 | ||
| Količina dotoka (min.) | l/min | 12 | ||
| Sesalna višina iz odprte posode (20 °C) | m | 0,5 | ||
| Pritisk dotoka (maks.) | MPa | 1 | ||
| Podatki o zmogljivosti | ||||
| Delovni tlak | MPa | 16 | 17 | 12 |
| Max. obratovalni nadtlak | MPa | 21,5 | 18 | |
| Velikost šobe | 028 | 043 | ||
| Pretok | l/min | 8,3 | 10 | |
| Sesanje čistila | l/min | 0...0,6 | ||
| Povratna udarna sila ročne brizgalne pištole (maks.) | N | 21 | 26 | |
| Ugotovljene vrednosti v skladu z EN 60355-2-79 | ||||
| Vrednost vibracij dlan-roka | ||||
| Ročna brizgalna pištola | m/s2 | <2,5 | ||
| Brizgalna cev | m/s2 | <2,5 | ||
| Negotovost K | m/s2 | 1 | ||
| Nivo hrupa LpA | dB(A) | 72 | 70 | |
| Negotovost KpA | dB(A) | 1 | 2 | |
| Nivo hrupa ob obremenitviLWA+negotovost KWA | dB(A) | 86 | 85 | |
| Goriva | ||||
| Količina olja | I | 0,35 | ||
| Vrsta olja | SAE 15W40 | |||
| Mere in teža | ||||
| Dolžina | mm | 360 | ||
| Širina (CX) | mm | 375 (400) | ||
| Višina | mm | 925 | ||
| Teža brez pribora | kg | 29 | 27 | * |
| * 1.150-160.0: 26 kg; 1.150-161.0 26,5 kg; 1.150-162.0: 31 kg | ||||
| Tip | HD 6/15 C1.150-600.01.150-621.0 | HD 6/15 C1.150-620.0 | HD 6/15 C1.150-624.0 | |
| HD 6/15 CX1.150-650.0 | HD 6/15 CX1.550-655.0 | HD 6/15 CX1.150-659.0 | ||
| EU | CH | KAP | ||
| Napetost | V | 230 | 220 | |
| Vrsta toka | Hz | 1~50 | 1~60 | |
| Priključna moč | kW | 3,1 | 2,2 | 3,2 |
| Zaščita (inertna, kar. C) | A | 16 | 10 | 16 |
| Vrsta zaščite | IPX5 | |||
| Maksimalno dopustna omrežna impedanca | Ohm | 0.302+j0.189 | ||
| Podaljševalni kabel 30 m | mm2 | 2,5 | ||
| Vodni priključek | ||||
| Temperatura dotoka (maks.) | °C | 60 | ||
| Količina dotoka (min.) | l/min | 12 | ||
| Sesalna višina iz odprte posode (20 °C) | m | 0,5 | ||
| Pritisk dotoka (maks.) | MPa | 1 | ||
| Podatki o zmogljivosti | ||||
| Delovni tlak | MPa | 15 | 11 | 14 |
| Max. obratovalni nadtlak | MPa | 21,5 | 15 | 21,5 |
| Velikost šobe | 034 | 043 | 036 | |
| Pretok | l/min | 9,5 | ||
| Sesanje čistila | l/min | 0...0,6 | ||
| Povratna udarna sila ročne brizgalne pištole (maks.) | N | 21 | ||
| Ugotovljene vrednosti v skladu z EN 60355-2-79 | ||||
| Vrednost vibracij dlan-roka | ||||
| Ročna brizgalna pištola | m/s2 | <2,5 | ||
| Brizgalna cev | m/s2 | <2,5 | ||
| Negotovost K | m/s2 | 1 | ||
| Nivo hrupa LpA | dB(A) | 72 | ||
| Negotovost KpA | dB(A) | 1 | ||
| Nivo hrupa ob obremenitviLWA+negotovost KWA | dB(A) | 86 | ||
| Goriva | ||||
| Količina olja | I | 0,35 | ||
| Vrsta olja | SAE 15W40 | |||
| Mere in teža | ||||
| Dolžina | mm | 360 | ||
| Širina (CX) | mm | 375 (400) | ||
| Višina | mm | 925 | ||
| Teža brez pribora (CX) | kg | * | 34,5 (32,5) | 27 (32,5) |
| 1.150-600.0: 27 kg; 1.150-621.0: 32,5 kg; 1.150-650.0: 32,5 kg | ||||
| Tip | HD 6/15 C1.150-623.0 | HD 6/15 C1.150-628.0 | HD 6/15 C1.150-627.0 | |
| KAP | GB/AU | AR | ||
| Omrežni priključek | ||||
| Napetost | V | 220 | 240 | 220 |
| Vrsta toka | Hz | 1~50 | ||
| Priključna moč | kW | 3,0 | 3,1 | |
| Zaščita (inertna, kar. C) | A | 16 | 13 | 16 |
| Vrsta zaščite | IPX5 | |||
| Maksimalno dopustna omrežna impedanca | Ohm | 0.302+j0.189 | ||
| Podaljševalni kabel 30 m | mm2 | 2,5 | ||
| Vodni priključek | ||||
| Temperatura dotoka (maks.) | °C | 60 | ||
| Količina dotoka (min.) | l/min | 12 | ||
| Sesalna višina iz odprte posode (20 °C) | m | 0,5 | ||
| Pritisk dotoka (maks.) | MPa | 1 | ||
| Podatki o zmogljivosti | ||||
| Delovni tlak | MPa | 13 | 15 | |
| Max. obratovalni nadtlak | MPa | 21,5 | ||
| Velikost šobe | 036 | 034 | ||
| Pretok | l/min | 9,5 | 9,3 | |
| Sesanje čistila | l/min | 0...0,6 | ||
| Povratna udarna sila ročne brizgalne pištole (maks.) | N | 21 | ||
| Ugotovljene vrednosti v skladu z EN 60355-2-79 | ||||
| Vrednost vibracij dlan-roka | ||||
| Ročna brizgalna pištola | m/s2 | <2,5 | ||
| Brizgalna cev | m/s2 | <2,5 | ||
| Negotovost K | m/s2 | 1 | ||
| Nivo hrupa LpA | dB(A) | 72 | ||
| Negotovost KpA | dB(A) | 1 | ||
| Nivo hrupa ob obremenitviLWA+negotovost KWA | dB(A) | 86 | ||
| Goriva | ||||
| Količina olja | I | 0,35 | ||
| Vrsta olja | SAE 15W40 | |||
| Mere in teža | ||||
| Dolžina | mm | 360 | ||
| Širina (CX) | mm | 375 (400) | ||
| Višina | mm | 925 | ||
| Teža brez pribora (CX) | kg | 25 | 27 | |
| Tip | HD 7/10 CXF1.151-619.0 | HD 7/18 C1.151-600.01.151-614.0 | HD 7/18 C1.151-613.0 | |
| HD 7/18 CX1.151-657.0 | HD 7/18 CX1.151-650.0 | |||
| EU | EU | EU II | ||
| Omrežni priključek | ||||
| Napetost | V | 400 | 230 | |
| Vrsta toka | Hz | 3~50 | ||
| Priključna moč | kW | 3,0 | 4,7 | |
| Zaščita (inertna, kar. C) | A | 16 | ||
| Vrsta zaščite | IPX5 | |||
| Maksimalno dopustna omrežna impedanca | Ohm | - | ||
| Podaljševalni kabel 30 m | mm2 | 2,5 | ||
| Vodni priključek | ||||
| Temperatura dotoka (maks.) | °C | 80 | 60 | |
| Količina dotoka (min.) | l/min | 13 | ||
| Sesalna višina iz odprte posode (20 °C) | m | 0,5 | ||
| Pritisk dotoka (maks.) | MPa | 1 | ||
| Podatki o zmogljivosti | ||||
| Delovni tlak | MPa | 10 | 17,5 | |
| Max. obratovalni nadtlak | MPa | 12 | 21,5 | |
| Velikost dobe (CX) | 060 | 040 (042) | ||
| Pretok | l/min | 11,5 | ||
| Sesanje čistila | l/min | 0...0,6 | ||
| Povratna udarna sila ročne brizgalne pištole (maks.) | N | 21 | ||
| Ugotovljene vrednosti v skladu z EN 60355-2-79 | ||||
| Vrednost vibracij dlan-roka | ||||
| Ročna brizgalna pištola | m/s2 | <2,5 | ||
| Brizgalna cev | m/s2 | <2,5 | ||
| Negotovost K | m/s2 | 1 | ||
| Nivo hrupa LpA | dB(A) | 77 | ||
| Negotovost KpA | dB(A) | 1 | ||
| Nivo hrupa ob obremenitviLWA+negotovost KWA | dB(A) | 91 | ||
| Goriva | ||||
| Količina olja | I | 0,35 | ||
| Vrsta olja | SAE 90 Hypoid | |||
| Mere in teža | ||||
| Dolžina | mm | 360 | ||
| Širina (CX) | mm | 375 (400) | ||
| Višina | mm | 925 | ||
| Teža brez pribora (CX) | kg | 33 | * | 31,8 (32,5) |
| * 1.151-600: 30,8 kg; 1.151--614.0: 34,5 kg; 1.151-657.0: 32,5 kg | ||||
www.kaercher.com/REACH
2006/42/WE (+2009/127/WE)
2004/108/WE
2000/14/WE
71364 Winnenden (Germany)
tel.: +49 7195 14-0
faks: +49 7195 14-2212
Winnenden, 2012/09/01
Dane techniczne
Transport ..... RO ...6
www.kaercher.com/REACH
Directive EG respectate:
2006/42/CE (+2009/127/CE)
2004/108/CE
2000/14/CE
Norme armonizate utilize:
EN 60335-1
EN 60335-2-79
EN 55014-1: 2006 + A1: 2009
EN 55014-2: 1997 + A2: 2008
EN 61000-3-2: 2006 + A2: 2009
HD 7/10, HD 7/16, HD 7/18
EN 61000-3-3: 2006
HD 5/17, HD 6/12, HD 6/15:
EN 61000-3-11:2000
EN 62233: 2008
S. Reiser
Head of Approbation
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2012/09/01
Date tehnice
Transport .... SK ...6
Uskladnenie .... SK ...6
2006/42/ES (+2009/127/ES)
2004/108/ES
2000/14/ES
Uplatňované harmonizované normy:
EN 60335-1
EN 60335-2-79
EN 55014-1: 2006 + A1: 2009
EN 55014-2: 1997 + A2: 2008
EN 61000-3-2: 2006 + A2: 2009
HD 7/10, HD 7/16, HD 7/18
EN 61000-3-3: 2006
HD 5/17, HD 6/12, HD 6/15:
EN 61000-3-11: 2000
EN 62233: 2008
S. Reiser
Head of Approbation
71364 Winnenden (Germany)
Tel: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2012/09/01
Technické údaje
Transport .... HR ...6
www.kaercher.com/REACH
Prije prve uporabe
Raspakiravanje
2006/42/EZ (+2009/127/EZ)
2004/108/EZ
2000/14/EZ
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Winnenden, 2012/09/01
Tehnički podaci
| Tip | HD 5/17 C1.214-111.01.214-113.0 | HD 5/17 C1.214-110.01.214-112.0 | HD 6/12-4C1.150-160.01.150-161.0 | |
| HD 6/12-4CX1.150-162.0 | ||||
| BR | EU | EU | ||
| Priključak na električnu mrežu | ||||
| Napon | V | 220 | 230 | |
| Vrsta struje | Hz | 1~60 | 1~50 | |
| Priključna snaga | kW | 3,2 | 2,8 | |
| Osigurač (inertni, karakt. C) | A | 16 | ||
| Zaštita | IPX5 | |||
| Maksimalno dozvoljena impedancija | Ohm | (0.302+j0.189) | 0.386+j0.241 | |
| Produžni kabel 30 m | mm2 | 2,5 | ||
| Priključak za vodu | ||||
| Dovodna temperatura (maks.) | °C | 60 | ||
| Dovodni protok (min.) | l/min | 12 | ||
| Visina usisavanja iz otvorenih posuda (20°C) | m | 0,5 | ||
| Dovodni tlak (maks.) | MPa | 1 | ||
| Podaci o snazi | ||||
| Radni tlak | MPa | 16 | 17 | 12 |
| Maks. radni pretlak | MPa | 21,5 | 18 | |
| Veličina mlaznice | 028 | 043 | ||
| Protočna količina | l/min | 8,3 | 10 | |
| Usisavanje sredstva za pranje | l/min | 0...0,6 | ||
| Povratna udarna sila ručne prskalice (maks.) | N | 21 | 26 | |
| Utvrdene vrijednosti prema EN 60355-2-79 | ||||
| Vrijednost vibracije na ruci | ||||
| Ručna prskalica | m/s2 | <2,5 | ||
| Cijev za prskanje | m/s2 | <2,5 | ||
| Nepouzdanost K | m/s2 | 1 | ||
| Razina zvučnog tlaka LpA | dB(A) | 72 | 70 | |
| Nepouzdanost KpA | dB(A) | 1 | 2 | |
| Razina zvučne snage LWA + nepouzdanost KWA | dB(A) | 86 | 85 | |
| Radni mediji | ||||
| Količina ulja | I | 0,35 | ||
| Vrsta ulja | SAE 15W40 | |||
| Dimenzije i težine | ||||
| Duljina | mm | 360 | ||
| Širina (CX) | mm | 375 (400) | ||
| Visina | mm | 925 | ||
| Težina bez pribora | kg | 29 | 27 | * |
| * 1.150-160.0: 26 kg; 1.150-161.0 26,5 kg; 1.150-162.0: 31 kg | ||||
| Tip | HD 6/15 C1.150-600.01.150-621.0 | HD 6/15 C1.150-620.0 | HD 6/15 C1.150-624.0 | |
| HD 6/15 CX1.150-650.0 | HD 6/15 CX1.550-655.0 | HD 6/15 CX1.150-659.0 | ||
| EU | CH | KAP | ||
| Napon | V | 230 | 220 | |
| Vrsta struje | Hz | 1~50 | 1~60 | |
| Priključna snaga | kW | 3,1 | 2,2 | 3,2 |
| Osigurač (inertni, karakt. C) | A | 16 | 10 | 16 |
| Zaštita | IPX5 | |||
| Maksimalno dozvoljena impedancija | Ohm | 0.302+j0.189 | ||
| Produžni kabel 30 m | mm2 | 2,5 | ||
| Priključak za vodu | ||||
| Dovodna temperatura (maks.) | °C | 60 | ||
| Dovodni protok (min.) | l/min | 12 | ||
| Visina usisavanja iz otvorenih posuda (20°C) | m | 0,5 | ||
| Dovodni tlak (maks.) | MPa | 1 | ||
| Podaci o snazi | ||||
| Radni tlak | MPa | 15 | 11 | 14 |
| Maks. radni pretlak | MPa | 21,5 | 15 | 21,5 |
| Veličina mlaznice | 034 | 043 | 036 | |
| Protočna količina | l/min | 9,5 | ||
| Usisavanje sredstva za pranje | l/min | 0...0,6 | ||
| Povratna udarna sila ručne prskalice (maks.) | N | 21 | ||
| Utvrdene vrijednosti prema EN 60355-2-79 | ||||
| Vrijednost vibracije na ruci | ||||
| Ručna prskalica | m/s2 | <2,5 | ||
| Cijev za prskanje | m/s2 | <2,5 | ||
| Nepouzdanost K | m/s2 | 1 | ||
| Razina zvučnog tlaka LpA | dB(A) | 72 | ||
| Nepouzdanost KpA | dB(A) | 1 | ||
| Razina zvučne snage LWA + nepouzdanost KWA | dB(A) | 86 | ||
| Radni mediji | ||||
| Količina ulja | I | 0,35 | ||
| Vrsta ulja | SAE 15W40 | |||
| Dimenzije i težine | ||||
| Duljina | mm | 360 | ||
| Širina (CX) | mm | 375 (400) | ||
| Visina | mm | 925 | ||
| Težina bez pribora (CX) | kg | * | 34,5 (32,5) | 27 (32,5) |
| 1.150-600.0: 27 kg; 1.150-621.0: 32,5 kg; 1.150-650.0: 32,5 kg | ||||
| Tip | HD 6/15 C1.150-623.0 | HD 6/15 C1.150-628.0 | HD 6/15 C1.150-627.0 | |
| KAP | GB/AU | AR | ||
| Priključak na električnu mrežu | ||||
| Napon | V | 220 | 240 | 220 |
| Vrsta struje | Hz | 1~50 | ||
| Priključna snaga | kW | 3,0 | 3,1 | |
| Osigurač (inertni, karakt. C) | A | 16 | 13 | 16 |
| Zaštita | IPX5 | |||
| Maksimalno dozvoljena impedancija | Ohm | 0.302+j0.189 | ||
| Produžni kabel 30 m | mm2 | 2,5 | ||
| Priključak za vodu | ||||
| Dovodna temperatura (maks.) | °C | 60 | ||
| Dovodni protok (min.) | l/min | 12 | ||
| Visina usisavanja iz otvorenih posuda (20°C) | m | 0,5 | ||
| Dovodni tlak (maks.) | MPa | 1 | ||
| Podaci o snazi | ||||
| Radni tlak | MPa | 13 | 15 | |
| Maks. radni pretlak | MPa | 21,5 | ||
| Veličina mlaznice | 036 | 034 | ||
| Protočna količina | l/min | 9,5 | 9,3 | |
| Usisavanje sredstva za pranje | l/min | 0...0,6 | ||
| Povratna udarna sila ručne prskalice (maks.) | N | 21 | ||
| Utvrđene vrijednosti prema EN 60355-2-79 | ||||
| Vrijednost vibracije na ruci | ||||
| Ručna prskalica | m/s2 | <2,5 | ||
| Cijev za prskanje | m/s2 | <2,5 | ||
| Nepouzdanost K | m/s2 | 1 | ||
| Razina zvučnog tlaka LpA | dB(A) | 72 | ||
| Nepouzdanost KpA | dB(A) | 1 | ||
| Razina zvučne snage LWA + nepouzdanost KWA | dB(A) | 86 | ||
| Radni mediji | ||||
| Količina ulja | I | 0,35 | ||
| Vrsta ulja | SAE 15W40 | |||
| Dimenzije i težine | ||||
| Duljina | mm | 360 | ||
| Širina (CX) | mm | 375 (400) | ||
| Visina | mm | 925 | ||
| Težina bez pribora (CX) | kg | 25 | 27 | |
| Tip | HD 7/10 CXF1.151-619.0 | HD 7/18 C1.151-600.01.151-614.0 | HD 7/18 C1.151-613.0 | |
| HD 7/18 CX1.151-657.0 | HD 7/18 CX1.151-650.0 | |||
| EU | EU | EU II | ||
| Priključak na električnu mrežu | ||||
| Napon | V | 400 | 230 | |
| Vrsta struje | Hz | 3~50 | ||
| Priključna snaga | kW | 3,0 | 4,7 | |
| Osigurač (inertni, karakt. C) | A | 16 | ||
| Zaštita | IPX5 | |||
| Maksimalno dozvoljena impedancija | Ohm | - | ||
| Produžni kabel 30 m | mm2 | 2,5 | ||
| Priključak za vodu | ||||
| Dovodna temperatura (maks.) | °C | 80 | 60 | |
| Dovodni protok (min.) | l/min | 13 | ||
| Visina usisavanja iz otvorenih posuda (20°C) | m | 0,5 | ||
| Dovodni tlak (maks.) | MPa | 1 | ||
| Podaci o snazi | ||||
| Radni tlak | MPa | 10 | 17,5 | |
| Maks. radni pretlak | MPa | 12 | 21,5 | |
| Veličina mlaznice (CX) | 060 | 040 (042) | ||
| Protočna količina | l/min | 11,5 | ||
| Usisavanje sredstva za pranje | l/min | 0...0,6 | ||
| Povratna udarna sila ručne prskalice (maks.) | N | 21 | ||
| Utvrdene vrijednosti prema EN 60355-2-79 | ||||
| Vrijednost vibracije na ruci | ||||
| Ručna prskalica | m/s2 | <2,5 | ||
| Cijev za prskanje | m/s2 | <2,5 | ||
| Nepouzdanost K | m/s2 | 1 | ||
| Razina zvučnog tlaka LpA | dB(A) | 77 | ||
| Nepouzdanost KpA | dB(A) | 1 | ||
| Razina zvučne snage LWA + nepouzdanost KWA | dB(A) | 91 | ||
| Radni mediji | ||||
| Količina ulja | I | 0,35 | ||
| Vrsta ulja | SAE 90 hipoidno | |||
| Dimenzije i težine | ||||
| Duljina | mm | 360 | ||
| Širina (CX) | mm | 375 (400) | ||
| Visina | mm | 925 | ||
| Težina bez pribora (CX) | kg | 33 | * | 31,8 (32,5) |
| * 1.151-600: 30,8 kg; 1.151--614.0: 34,5 kg; 1.151-657.0: 32,5 kg | ||||
Pregled sadržaja
Sastavni delovi uređaja ... SR ...1
Sigurnosne napomene.... SR ...2
Namensko korišćenje..... SR ...2
Sigurnosni elementi ..... SR ...2
Zaštita životne sredine .... SR ...3
Pre upotrebe .... SR ...3
Stavljanje u pogon ..... SR ...3
Rukovanje .... SR ...4
Transport .... SR ...6
www.kaercher.com/REACH
Pre upotrebe
Raspakovavanje
- Prilikom raspakovavanja proverite sadržaj pakovanja.
- U slučaju oštećenja pri transportu odmah obavestite prodavca.
Provera nivoa ulja
→ Nivo ulja očitajte dok uređaj stoji. Nivo ulja mora da se nalazi iznad oba pokazivača.
Aktiviranje ispuštanja vazduha rezervoara za ulje
→ Odvijte pričvrsni zavrtanj poklopca uređaja i skinite poklopac.
→ Odsecite vrh poklopca rezervoara za ulje.
→ Pričvrstite poklopac motora.
Montaža pribora
→ Montirajte mlaznicu na cev za prskanje (oznake na prstenu moraju biti gore).
→ Cev za prskanje spojite sa ručnom prskalicom.
Napomena
Samo kod HD 7/10 CXF:
Kod skučenog prostora priloženi adapter može zajedno sa mlaznicom da se montira i direktno na ručnu prskalicu.
Kod uređaja bez doboša za namotavanje creva:
2006/42/EZ (+2009/127/EZ)
2004/108/EZ
2000/14/EZ
Primenjene uskladene norme:
EN 60335-1
EN 60335-2-79
EN 55014-1: 2006 + A1: 2009
EN 55014-2: 1997 + A2: 2008
EN 61000-3-2: 2006 + A2: 2009
HD 7/10, HD 7/16, HD 7/18
EN 61000-3-3: 2006
HD 5/17, HD 6/12, HD 6/15:
EN 61000-3-11: 2000
EN 62233: 2008
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Winnenden, 2012/09/01
Tehnički podaci
| Tip | HD 5/17 C1.214-111.01.214-113.0 | HD 5/17 C1.214-110.01.214-112.0 | HD 6/12-4C1.150-160.01.150-161.0 | |
| HD 6/12-4CX1.150-162.0 | ||||
| BR | EU | EU | ||
| Priključak na električnu mrežu | ||||
| Napon | V | 220 | 230 | |
| Vrsta struje | Hz | 1~60 | 1~50 | |
| Priključna snaga | kW | 3,2 | 2,8 | |
| Osigurač (inertni, karakt. C) | A | 16 | ||
| Stepen zaštite | IPX5 | |||
| Maksimalno dozvoljena impedancija | Ohm | (0.302+j0.189) | 0.386+j0.241 | |
| Produžni kabl 30 m | mm2 | 2,5 | ||
| Priključak za vodu | ||||
| Dovodna temperatura (maks.) | °C | 60 | ||
| Dovodni protok (min.) | l/min | 12 | ||
| Visina usisavanja iz otvorenih posuda (20°C) | m | 0,5 | ||
| Dovodni pritisak (maks.) | MPa | 1 | ||
| Podaci o snazi | ||||
| Radni pritisak | MPa | 16 | 17 | 12 |
| Maks. radni nadpritisak | MPa | 21,5 | 18 | |
| Veličina mlaznice | 028 | 043 | ||
| Protočna količina | l/min | 8,3 | 10 | |
| Usisavanje deterdženta | l/min | 0...0,6 | ||
| Povratna udarna sila ručne prskalice (maks.) | N | 21 | 26 | |
| Izračunate vrednosti prema EN 60355-2-79 | ||||
| Vrednost vibracije na ruci | ||||
| Ručna prskalica | m/s2 | <2,5 | ||
| Cev za prskanje | m/s2 | <2,5 | ||
| Nepouzdanost K | m/s2 | 1 | ||
| Nivo zvučnog pritiska LpA | dB(A) | 72 | 70 | |
| Nepouzdanost KpA | dB(A) | 1 | 2 | |
| Nivo zvučne snage LWA + nepouzdanost KWA | dB(A) | 86 | 85 | |
| Radni mediji | ||||
| Količina ulja | I | 0,35 | ||
| Vrsta ulja | SAE 15W40 | |||
| Dimenzije i težine | ||||
| Dužina | mm | 360 | ||
| Širina (CX) | mm | 375 (400) | ||
| Visina | mm | 925 | ||
| Težina bez pribora | kg | 29 | 27 | * |
| * 1.150-160.0: 26 kg; 1.150-161.0 26,5 kg; 1.150-162.0: 31 kg | ||||
| Tip | HD 6/15 C1.150-600.01.150-621.0 | HD 6/15 C1.150-620.0 | HD 6/15 C1.150-624.0 | |
| HD 6/15 CX1.150-650.0 | HD 6/15 CX1.550-655.0 | HD 6/15 CX1.150-659.0 | ||
| EU | CH | KAP | ||
| Napon | V | 230 | 220 | |
| Vrsta struje | Hz | 1~50 | 1~60 | |
| Priključna snaga | kW | 3,1 | 2,2 | 3,2 |
| Osigurač (inertni, karakt. C) | A | 16 | 10 | 16 |
| Stepen zaštite | IPX5 | |||
| Maksimalno dozvoljena impedancija | Ohm | 0.302+j0.189 | ||
| Produžni kabl 30 m | mm2 | 2,5 | ||
| Priključak za vodu | ||||
| Dovodna temperatura (maks.) | °C | 60 | ||
| Dovodni protok (min.) | l/min | 12 | ||
| Visina usisavanja iz otvorenih posuda (20°C) | m | 0,5 | ||
| Dovodni pritisak (maks.) | MPa | 1 | ||
| Podaci o snazi | ||||
| Radni pritisak | MPa | 15 | 11 | 14 |
| Maks. radni nadpritisak | MPa | 21,5 | 15 | 21,5 |
| Veličina mlaznice | 034 | 043 | 036 | |
| Protočna količina | l/min | 9,5 | ||
| Usisavanje deterdženta | l/min | 0...0,6 | ||
| Povratna udarna sila ručne prskalice (maks.) | N | 21 | ||
| Izračunate vrednosti prema EN 60355-2-79 | ||||
| Vrednost vibracije na ruci | ||||
| Ručna prskalica | m/s2 | <2,5 | ||
| Cev za prskanje | m/s2 | <2,5 | ||
| Nepouzdanost K | m/s2 | 1 | ||
| Nivo zvučnog pritiska LpA | dB(A) | 72 | ||
| Nepouzdanost KpA | dB(A) | 1 | ||
| Nivo zvučne snage LWA + nepouzdanost KWA | dB(A) | 86 | ||
| Radni mediji | ||||
| Količina ulja | I | 0,35 | ||
| Vrsta ulja | SAE 15W40 | |||
| Dimenzije i težine | ||||
| Dužina | mm | 360 | ||
| Širina (CX) | mm | 375 (400) | ||
| Visina | mm | 925 | ||
| Težina bez pribora (CX) | kg | * | 34,5 (32,5) | 27 (32,5) |
| 1.150-600.0: 27 kg; 1.150-621.0: 32,5 kg; 1.150-650.0: 32,5 kg | ||||
| Tip | HD 6/15 C1.150-623.0 | HD 6/15 C1.150-628.0 | HD 6/15 C1.150-627.0 | |
| KAP | GB/AU | AR | ||
| Priključak na električnu mrežu | ||||
| Napon | V | 220 | 240 | 220 |
| Vrsta struje | Hz | 1~50 | ||
| Priključna snaga | kW | 3,0 | 3,1 | |
| Osigurač (inertni, karakt. C) | A | 16 | 13 | 16 |
| Stepen zaštite | IPX5 | |||
| Maksimalno dozvoljena impedancija | Ohm | 0.302+j0.189 | ||
| Produžni kabl 30 m | mm2 | 2,5 | ||
| Priključak za vodu | ||||
| Dovodna temperatura (maks.) | °C | 60 | ||
| Dovodni protok (min.) | l/min | 12 | ||
| Visina usisavanja iz otvorenih posuda (20°C) | m | 0,5 | ||
| Dovodni pritisak (maks.) | MPa | 1 | ||
| Podaci o snazi | ||||
| Radni pritisak | MPa | 13 | 15 | |
| Maks. radni nadpritisak | MPa | 21,5 | ||
| Veličina mlaznice | 036 | 034 | ||
| Protočna količina | l/min | 9,5 | 9,3 | |
| Usisavanje deterdženta | l/min | 0...0,6 | ||
| Povratna udarna sila ručne prskalice (maks.) | N | 21 | ||
| Izračunate vrednosti prema EN 60355-2-79 | ||||
| Vrednost vibracije na ruci | ||||
| Ručna prskalica | m/s2 | <2,5 | ||
| Cev za prskanje | m/s2 | <2,5 | ||
| Nepouzdanost K | m/s2 | 1 | ||
| Nivo zvučnog pritiska LpA | dB(A) | 72 | ||
| Nepouzdanost KpA | dB(A) | 1 | ||
| Nivo zvučne snage LWA + nepouzdanost KWA | dB(A) | 86 | ||
| Radni mediji | ||||
| Količina ulja | I | 0,35 | ||
| Vrsta ulja | SAE 15W40 | |||
| Dimenzije i težine | ||||
| Dužina | mm | 360 | ||
| Širina (CX) | mm | 375 (400) | ||
| Visina | mm | 925 | ||
| Težina bez pribora (CX) | kg | 25 | 27 | |
| Tip | HD 7/10 CXF1.151-619.0 | HD 7/18 C1.151-600.01.151-614.0 | HD 7/18 C1.151-613.0 | |
| HD 7/18 CX1.151-657.0 | HD 7/18 CX1.151-650.0 | |||
| EU | EU | EU II | ||
| Priključak na električnu mrežu | ||||
| Napon | V | 400 | 230 | |
| Vrsta struje | Hz | 3~50 | ||
| Priključna snaga | kW | 3,0 | 4,7 | |
| Osigurač (inertni, karakt. C) | A | 16 | ||
| Stepen zaštite | IPX5 | |||
| Maksimalno dozvoljena impedancija | Ohm | - | ||
| Produžni kabl 30 m | mm2 | 2,5 | ||
| Priključak za vodu | ||||
| Dovodna temperatura (maks.) | °C | 80 | 60 | |
| Dovodni protok (min.) | l/min | 13 | ||
| Visina usisavanja iz otvorenih posuda (20°C) | m | 0,5 | ||
| Dovodni pritisak (maks.) | MPa | 1 | ||
| Podaci o snazi | ||||
| Radni pritisak | MPa | 10 | 17,5 | |
| Maks. radni nadpritisak | MPa | 12 | 21,5 | |
| Veličina mlaznice (CX) | 060 | 040 (042) | ||
| Protočna količina | l/min | 11,5 | ||
| Usisavanje deterdženta | l/min | 0...0,6 | ||
| Povratna udarna sila ručne prskalice (maks.) | N | 21 | ||
| Izračunate vrednosti prema EN 60355-2-79 | ||||
| Vrednost vibracije na ruci | ||||
| Ručna prskalica | m/s2 | <2,5 | ||
| Cev za prskanje | m/s2 | <2,5 | ||
| Nepouzdanost K | m/s2 | 1 | ||
| Nivo zvučnog pritiska LpA | dB(A) | 77 | ||
| Nepouzdanost KpA | dB(A) | 1 | ||
| Nivo zvučne snage LWA + nepouzdanost KWA | dB(A) | 91 | ||
| Radni mediji | ||||
| Količina ulja | I | 0,35 | ||
| Vrsta ulja | SAE 90 hipoidno | |||
| Dimenzije i težine | ||||
| Dužina | mm | 360 | ||
| Širina (CX) | mm | 375 (400) | ||
| Visina | mm | 925 | ||
| Težina bez pribora (CX) | kg | 33 | * | 31,8 (32,5) |
| * 1.151-600: 30,8 kg; 1.151--614.0: 34,5 kg; 1.151-657.0: 32,5 kg | ||||
www.kaercher.com/REACH
71364 Winnenden (Germany)
Тел.: +49 7195 14-0
Факс: +49 7195 14-2212
Winnenden, 2012/09/01
Технически данни
www.kaercher.com/REACH
Toode: Körgsurvepesur
Tüüp: 1.150-xxx
Tüüp: 1.151-xxx
Tüüp: 1.214-xxx
71364 Winnenden (Germany)
Tel: +49 7195 14-0
Winnenden, 2012/09/01
Tehnilised andmed
www.kaercher.com/REACH
71364 Winnenden (Germany)
Tālr.: +49 7195 14-0
Fakss: +49 7195 14-2212
Winnenden, 2012/09/01
Tehniskie dati
www.kaercher.com/REACH
Prieš pradedant naudoti
Išpakavimas
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Faksas: +49 7195 14-2212
Winnenden, 2012/09/01
Techniniai duomenys
www.kaercher.com/REACH
71364 Winnenden (Germany)
Тел.: +49 7195 14-0
Факс: +49 7195 14-2212
Winnenden, 2012/09/01
www.kaercher.com/REACH
设备运作前
打开包装
Pengoperasian awal..... ID ...3
Layanan.... ID ...4
Pengiriman.... ID ...6
Penyimpanan.... ID ...6
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Winnenden, 2012/09/01
Data Teknis
| Jenis | HD 5/17 C1.214-111.01.214-113.0 | HD 5/17 C1.214-110.01.214-112.0 | HD 6/12-4C1.150-160.01.150-161.0 | |
| HD 6/12-4CX1.150-162.0 | ||||
| BR | EU | EU | ||
| Catu daya | ||||
| Tegangan | V | 220 | 230 | |
| Tipe arus listrik | Hz | 1~60 | 1~50 | |
| Daya sambungan | kW | 3,2 | 2,8 | |
| Perlindungan (inersia, Char. C) | A | 16 | ||
| Jenis pelindung | IPX5 | |||
| Daya maksimal yang diizinkan | Ohm | (0.302+j0.189) | 0.386+j0.241 | |
| Kabel ekstensi 30 m | mm2 | 2,5 | ||
| Sambungan air | ||||
| Temperatur masuk (maks.) | °C | 60 | ||
| Jumlah masuk (min.) | l/min | 12 | ||
| Ketinggian penyedotan air dari tangki air yang terbuka (20 °C) | m | 0,5 | ||
| Tekanan masuk (maks.) | MPa | 1 | ||
| Data kinerja | ||||
| Tekanan pengoperasian | MPa | 16 | 17 | 12 |
| Tekanan lebih pengoperasian maks. | MPa | 21,5 | 18 | |
| Ukuran nosel | 028 | 043 | ||
| Volume pengiriman | l/min | 8,3 | 10 | |
| Penyedotan bahan pembersih | l/min | 0...0,6 | ||
| Kekuatan pantulan balik pistol penyemprot (maks.) | N | 21 | 26 | |
| Penentuan nilai menurut EN 60335-2-79 | ||||
| Nilai getaran tangan-lengan | ||||
| Pistol penyemprot | m/s2 | <2,5 | ||
| Pipa penyemprot | m/s2 | <2,5 | ||
| Ketidakstabilan K | m/s2 | 1 | ||
| Tingkat tekanan suara LpA | dB(A) | 72 | 70 | |
| Ketidakstabilan KpA | dB(A) | 1 | 2 | |
| Tingkat kekuatan suara LWA+ Ketidakstabilan KWA | dB(A) | 86 | 85 | |
| Cairan pengoperasian | ||||
| Jumlah oli | I | 0,35 | ||
| Tipe oli | SAE 15W40 | |||
| Berat dan Ukuran | ||||
| Panjang | mm | 360 | ||
| Lebar (CX) | mm | 375 (400) | ||
| Tinggi | mm | 925 | ||
| Berat tanpa aksesori | kg | 29 | 27 | * |
| * 1.150-160.0: 26 kg; 1.150-161.0 26,5 kg; 1.150-162.0: 31 kg | ||||
| Jenis | HD 6/15 C1.150-600.01.150-621.0 | HD 6/15 C1.150-620.0 | HD 6/15 C1.150-624.0 | |
| HD 6/15 CX1.150-650.0 | HD 6/15 CX1.550-655.0 | HD 6/15 CX1.150-659.0 | ||
| EU | CH | KAP | ||
| Tegangan | V | 230 | 220 | |
| Tipe arus listrik | Hz | 1~50 | 1~60 | |
| Daya sambungan | kW | 3,1 | 2,2 | 3,2 |
| Perlindungan (inersia, Char. C) | A | 16 | 10 | 16 |
| Jenis pelindung | IPX5 | |||
| Daya maksimal yang diizinkan | Ohm | 0.302+j0.189 | ||
| Kabel ekstensi 30 m | mm2 | 2,5 | ||
| Sambungan air | ||||
| Temperatur masuk (maks.) | °C | 60 | ||
| Jumlah masuk (min.) | l/min | 12 | ||
| Ketinggian penyedotan air dari tangki air yang terbuka (20 °C) | m | 0,5 | ||
| Tekanan masuk (maks.) | MPa | 1 | ||
| Data kinerja | ||||
| Tekanan pengoperasian | MPa | 15 | 11 | 14 |
| Tekanan lebih pengoperasian maks. | MPa | 21,5 | 15 | 21,5 |
| Ukuran nosel | 034 | 043 | 036 | |
| Volume pengiriman | l/min | 9,5 | ||
| Penyedotan bahan pembersih | l/min | 0...0,6 | ||
| Kekuatan pantulan balik pistol penyemprot (maks.) | N | 21 | ||
| Penentuan nilai menurut EN 60335-2-79 | ||||
| Nilai getaran tangan-lengan | ||||
| Pistol penyemprot | m/s2 | <2,5 | ||
| Pipa penyemprot | m/s2 | <2,5 | ||
| Ketidakstabilan K | m/s2 | 1 | ||
| Tingkat tekanan suara LpA | dB(A) | 72 | ||
| Ketidakstabilan KpA | dB(A) | 1 | ||
| Tingkat kekuatan suara LWA+ Ketidakstabilan KWA | dB(A) | 86 | ||
| Cairan pengoperasian | ||||
| Jumlah oli | I | 0,35 | ||
| Tipe oli | SAE 15W40 | |||
| Berat dan Ukuran | ||||
| Panjang | mm | 360 | ||
| Lebar (CX) | mm | 375 (400) | ||
| Tinggi | mm | 925 | ||
| Bobot tanpa aksesori (CX) | kg | * | 34,5 (32,5) | 27 (32,5) |
| 1.150-600.0: 27 kg; 1.150-621.0: 32,5 kg; 1.150-650.0: 32,5 kg | ||||
| Jenis | HD 6/15 C1.150-623.0 | HD 6/15 C1.150-628.0 | HD 6/15 C1.150-627.0 | |
| KAP | GB/AU | AR | ||
| Catu daya | ||||
| Tegangan | V | 220 | 240 | 220 |
| Tipe arus listrik | Hz | 1~50 | ||
| Daya sambungan | kW | 3,0 | 3,1 | |
| Perlindungan (inersia, Char. C) | A | 16 | 13 | 16 |
| Jenis pelindung | IPX5 | |||
| Daya maksimal yang diizinkan | Ohm | 0.302+j0.189 | ||
| Kabel ekstensi 30 m | mm2 | 2,5 | ||
| Sambungan air | ||||
| Temperatur masuk (maks.) | °C | 60 | ||
| Jumlah masuk (min.) | l/min | 12 | ||
| Ketinggian penyedotan air dari tangki air yang terbuka (20 °C) | m | 0,5 | ||
| Tekanan masuk (maks.) | MPa | 1 | ||
| Data kinerja | ||||
| Tekanan pengoperasian | MPa | 13 | 15 | |
| Tekanan lebih pengoperasian maks. | MPa | 21,5 | ||
| Ukuran nosel | 036 | 034 | ||
| Volume pengiriman | l/min | 9,5 | 9,3 | |
| Penyedotan bahan pembersih | l/min | 0...0,6 | ||
| Kekuatan pantulan balik pistol penyemprot (maks.) | N | 21 | ||
| Penentuan nilai menurut EN 60335-2-79 | ||||
| Nilai getaran tangan-lengan | ||||
| Pistol penyemprot | m/s2 | <2,5 | ||
| Pipa penyemprot | m/s2 | <2,5 | ||
| Ketidakstabilan K | m/s2 | 1 | ||
| Tingkat tekanan suara LpA | dB(A) | 72 | ||
| Ketidakstabilan KpA | dB(A) | 1 | ||
| Tingkat kekuatan suara LWA+ Ketidakstabilan KWA | dB(A) | 86 | ||
| Cairan pengoperasian | ||||
| Jumlah oli | I | 0,35 | ||
| Tipe oli | SAE 15W40 | |||
| Berat dan Ukuran | ||||
| Panjang | mm | 360 | ||
| Lebar (CX) | mm | 375 (400) | ||
| Tinggi | mm | 925 | ||
| Bobot tanpa aksesori (CX) | kg | 25 | 27 | |
| Jenis | HD 7/10 CXF1.151-619.0 | HD 7/18 C1.151-600.01.151-614.0 | HD 7/18 C1.151-613.0 | |
| HD 7/18 CX1.151-657.0 | HD 7/18 CX1.151-650.0 | |||
| EU | EU | EU II | ||
| Catu daya | ||||
| Tegangan | V | 400 | 230 | |
| Tipe arus listrik | Hz | 3~50 | ||
| Daya sambungan | kW | 3,0 | 4,7 | |
| Perlindungan (inersia, Char. C) | A | 16 | ||
| Jenis pelindung | IPX5 | |||
| Daya maksimal yang diizinkan | Ohm | - | ||
| Kabel ekstensi 30 m | mm2 | 2,5 | ||
| Sambungan air | ||||
| Temperatur masuk (maks.) | °C | 80 | 60 | |
| Jumlah masuk (min.) | l/min | 13 | ||
| Ketinggian penyedotan air dari tangki air yang terbuka (20 °C) | m | 0,5 | ||
| Tekanan masuk (maks.) | MPa | 1 | ||
| Data kinerja | ||||
| Tekanan pengoperasian | MPa | 10 | 17,5 | |
| Tekanan lebih pengoperasian maks. | MPa | 12 | 21,5 | |
| Ukuran nosel (CX) | 060 | 040 (042) | ||
| Volume pengiriman | l/min | 11,5 | ||
| Penyedotan bahan pembersih | l/min | 0...0,6 | ||
| Kekuatan pantulan balik pistol penyemprot (maks.) | N | 21 | ||
| Penentuan nilai menurut EN 60335-2-79 | ||||
| Nilai getaran tangan-lengan | ||||
| Pistol penyemprot | m/s2 | <2,5 | ||
| Pipa penyemprot | m/s2 | <2,5 | ||
| Ketidakstabilan K | m/s2 | 1 | ||
| Tingkat tekanan suara LpA | dB(A) | 77 | ||
| Ketidakstabilan KpA | dB(A) | 1 | ||
| Tingkat kekuatan suara LWA+ Ketidakstabilan KWA | dB(A) | 91 | ||
| Cairan pengoperasian | ||||
| Jumlah oli | I | 0,35 | ||
| Tipe oli | SAE 90 Hypoid | |||
| Berat dan Ukuran | ||||
| Panjang | mm | 360 | ||
| Lebar (CX) | mm | 375 (400) | ||
| Tinggi | mm | 925 | ||
| Bobot tanpa aksesori (CX) | kg | 33 | * | 31,8 (32,5) |
| * 1.151-600: 30,8 kg; 1.151--614.0: 34,5 kg; 1.151-657.0: 32,5 kg | ||||
AE Karcher FZE, P.O. Box 17416, Jebel Ali Free Zone (South), Dubai, United Arab Emirates,
+971 4 886-1177, www.kaercher.com
AR Kärcher S.A., Urugguay 2887 (1646) San Fernando, Pcia. de Buenos Aires
+54-11 4506 3343, www.karcher.com.ar
AT Alfred Kärcher Ges.m.b.H., Lichtblaustraße 7, 1220 Wien,
+43-1-25060-0, www.kaercher.at
AU Kärcher Pty. Ltd., 40 Koornang Road, Scoresby VIC 3179, Victoria,
+61-3-9765-2300, www.karcher.com.au
BE Kärcher N.V., Industrieweg 12, 2320 Hoogstraten,
+32-3-340 07 11, www.karcher.be
CA Kärcher Canada Inc., 6535 Millcreek Road, Unit 67, Mississauga, ON, L5N 2M2,
+1-905-672-8233, www.karcher.ca
CH Kärcher AG, Industriestrasse, 8108 Dällikon, Kärcher SA, Croix du Péage, 1029 Villars-Ste-Croix,
0844 850 864, www.kaercher.ch
CN Kärcher (Shanghai) Cleaning Systems, Co., Ltd., Part F, 2nd Floor, Building 17, No. 33, XI YA Road, Waigaogiao Free Trade, Pudong, Shanghai, 200131
+86-21 5076 8018, www.karcher.cn
CZ Kärcher spol. s r.o., Modletice c.p. 141, CZ-251 01 Ricany,
+420/323/606 014, www.kaercher.cz
GB Kärcher (U.K.) Ltd., Kärcher House, Beaumont Road, Banbury, Oxon OX16 1TB,
+44-1295-752-000, www.karcher.co.uk
GR Kärcher Cleaning Systems A.E., 31-33, Nikitara str. & Konstantinoupoleos str., 136 71 Aharnes,
+30-210-2316-153, www.karcher.gr
HK Kärcher Limited, Unit 10, 17/F., Apec Plaza, 49 Hoi Yuen Road, Kwun Tong, Kowloon,
++(852)-2357-5863, www.karcher.com.hk
HU Kärcher Hungaria KFT, Tormásrét ut 2., (Vendelpark), 2051 Biatorbagy,
+36-23-530-64-0, www.kaercher.hu
I Kärcher S.p.A., Via A. Vespucci 19, 21013 Gallarate (VA),
+39-848-998877, www.karcher.it
IE Kärcher Limited (Ireland), C1 Centrepoint Business Park, Oak Road, Dublin 12,
📞(01) 409 7777, www.kaercher.ie
JP Kärcher (Japan) Co., Ltd., Irene Kärcher Building, No. 2, Matsusaka-Daira 3-chome, Taiwa-cho, Kurokawa-gun, Miyagi 981-3408,
+81-22-344-3140, www.karcher.co.jp
KR Karcher (Korea) Co. Ltd., 162 Gukhoe-daero, (872-2 Sinjeong-Dong), Seoul, Korea
02-322 6588, A/S. 1544-6577, www.karcher.co.kr
LV Karcher SIA, Mārupes nov., Mārupe, Kārļa Ulmaṇa gatve 101, Rīga, LV-1046
+371-67 80 87 07
MX Karcher México, SA de CV, Av. Gustavo Baz No. 29-C, Col. Naucalpan Centro, Naucalpan, Edo. de México, C.P. 53000 México,
+52-55-5357-04-28, www.karcher.com.mx
MY Karcher Cleaning Systems Sdn. Bhd., 71 & 73 Jalan TPK 2/8, Taman Perindustrian Kinrara, Seksyen 2, 47100 Puchong, Selangor Darul Ehsan, Malaysia,
+603 8073 3000, www.karcher.com.my
NL Kärcher B.V., Postbus 474, 4870 AL Etten-Leur,
0900-33 666 33, www.karcher.nl
NO Kärcher AS, Stanseveien 31, 0976 Oslo, Norway,
+47 815 20 600, www.karcher.no
NZ Karcher Limited, 12 Ron Driver Place, East Tamaki, Auckland, New Zealand,
+64 (9) 274-4603, www.karcher.co.nz
PL Kärcher Sp. z o.o., Ul. Stawowa 140, 31-346 Kraków,
+48-12-6397-222, www.karcher.pl
RO Karcher Romania srl, Sos. Odaii 439, Sector 1, RO-013606 BUKAREST,
+40 37 2709001, www.kaercher.ro
SGP Karcher South East Asia Pte. Ltd., 5 Toh Guan Road East, #01-00 Freight Links Express Distripark, Singapore 608831,
+65-6897-1811, www.karcher.com.sg
SK Kärcher Slovakia, s.r.o., Beniakova 2, SK-94901 NITRA,
+421 37 6555 798, www.kaercher.sk
TR Kärcher Servis Ticaret A.S., Mahmutbey Mahallesi İstoç, Petrol Plaza C-Blok Kat: 2-3, Bağcılar, 34218 Istanbul
+90-212-659-43 69, www.karcher.com.tr
TW Karcher Limited, 7/F, No. 66, Jhongijheng Rd., Sinjhuang City, Taipei County 24243, Taiwan,
USA To locate your local dealer please visit our web site at http://www.karchercommercial.com or call us at 888.805.9852
ZA Kärcher (Pty) Ltd., 144 Kuschke Street, Meadowdale, Edenvale, 1614,
+27-11-574-5360, www.karcher.co.za
