USER MANUAL CAA 55, CAA 55 NX, CAA55, CAA55, CAA55, CAA55NX INDESIT

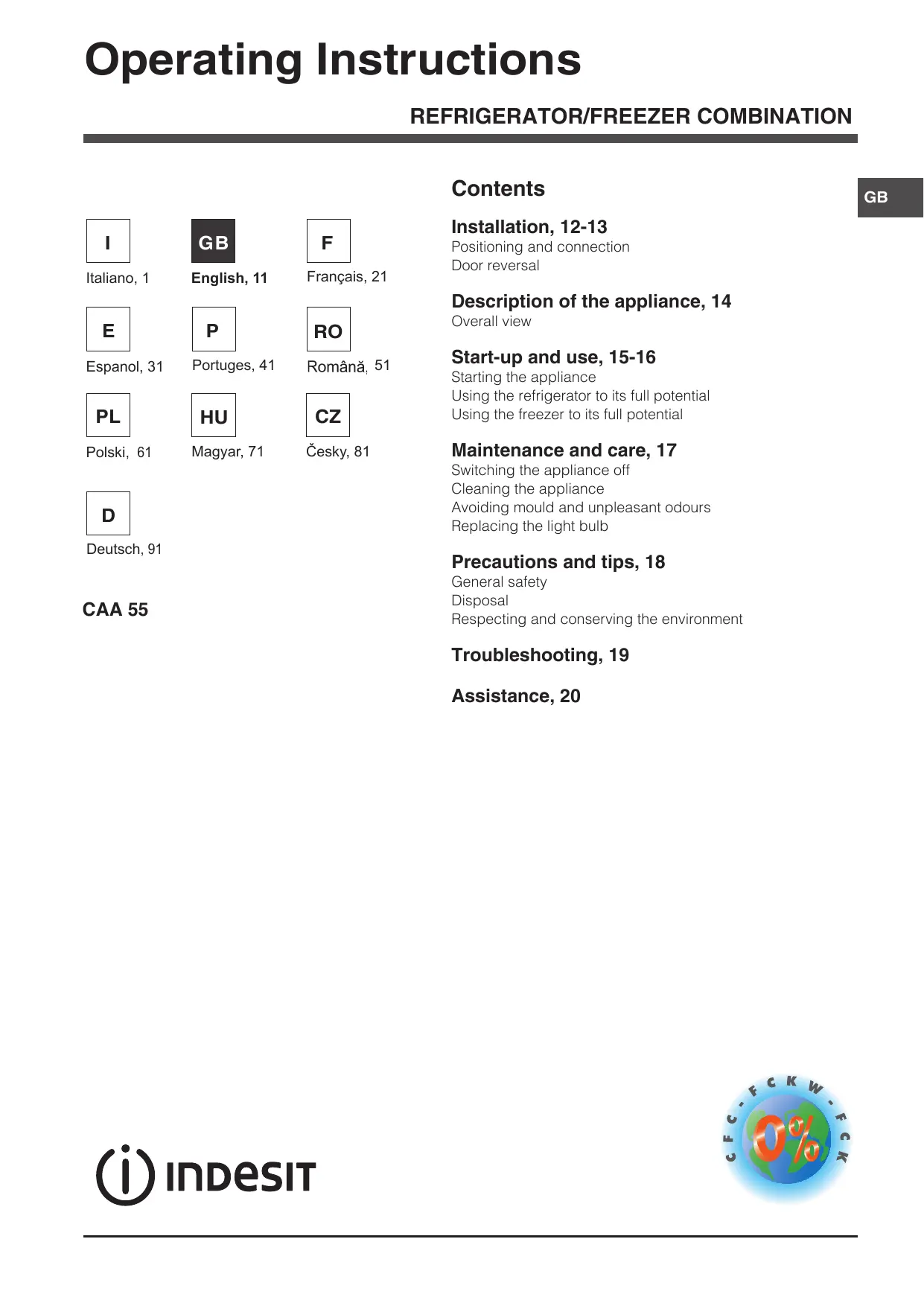

Operating Instructions

REFRIGERATOR/FREEZER COMBINATION

Contents CR Installation, 12-13 l F Positioning and connection Door reversal Italiano, 1 English, 11 Français, 21 Description of the appliance, 14 Overall view E P RO Espanol, 31 Portuges, 41 Romäânä, 51 Start-up and use, 15-16 Starting the appliance Using the refrigerator to its full potential PL HU CZ Using the freezer to its full potential Polski, 61 Magyar, 71 Cesky, 81 Maintenance and care, 17 Switching the appliance off Cleaning the appliance Avoiding mould and unpleasant odours D Replacing the light bulb Deutsch, 91 h . Precautions and tips, 18 General safety CAA 55 Disposal Respecting and conserving the environment Troubleshooting, 19 Assistance, 20 (i)inpesir

Installation ! Before placing your new appliance into operation please read these operating instructions carefully. They contain important information for safe use, for installation and for care of the appliance. ! Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance. Positioning and connection Positioning . Place the appliance in a well-ventilated humidity-free room . Do not obstruct the rear fan grills. The compressor and condenser give off heat and require good ventilation to operate correctly and save energy. . Leave a space of at least 10 cm between the top part of the appliance and any furniture above it, and at least 5 cm between the sides and any furniture/side walls. . Ensure the appliance is away from any sources of heat (direct sunlight, electric stove, etc.). - In order to maintain the correct distance between the appliance and the wall behind it, fit the spacers supplied in the installation kit, following the instructions provided.

1. Install the appliance on a level and rigid floor

2. If the floor is not perfectly horizontal, make the

necessary adjustments by tightening or loosening the single foot at the front of the appliance Electrical connections After the appliance has been transported, carefully place it vertically and wait at least 3 hours before connecting it to the electricity mains. Before inserting the plug into the electrical socket ensure the following + The appliance is earthed and the plug is compliant with the law. + The socket can withstand the maximum power of the appliance, which is indicated on the data plate located on the bottom left side of the fridge (e.g. 150 W). + The voltage must be in the range between the values indicated on the data plate located on the bottom left side (e.g. 220-240V). + The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it (see Assistance). Do not use extension cords or multiple sockets. ? Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible {The cable must not be bent or compressed !The cable must be checked regularly and replaced by authorised technicians only (see Assistance). ! The manufacturer declines any liability should these safety measures not be observed.

Warning: Before attempting to remove the doors, switch off the electrical supply and pull out the mains plug.

It is recommended that you remove any loose items/fittings from inside the appliance and place food into insulated containers whilst carrying out this operation. You may require assistance to carefully lay the appliance onto its back onto suitable protective materials (i.e. original packaging). Remove the doors

1. Lay down the appliance on its back.

2. Unscrew, remove and retain

3. Slightly open the bottom door

and slide downward remove and carefully place to one side

4. Remove centre hinge and

spacer if fitted. Slightly open the top door and slide downwards, remove and (5) carefully place to one side. [S 5.The pin will be removed and fixed to the opposite side.

6. Use a thin blunt instrument to

remove the top and bottom hinge bushes and blanking plugs from the doors, take care not to mark the door handle. Reposition the blanking plugs and bushes on the opposite side.

7. Fitthe blanking plugs provided into the right hand two centre hinge holes

8. Before changing hinge place from right side to left side, screw on left side panel should be disassemblied and

after changing hinge place, screw should be assemblied on right side panel. Replacing the doors

1. Slide the top door upwards and locate the top hinge pin into the door bush. Reposition the centre hinge on the

upward into the centre hinge pin

8. Unscrew the bottom hinge pin and

refit it on the opposite side.

4. Fitthe bottom hinge making sure

that the door is aligned to the cabinet.

5. Carefully stand the appliance

upright in it's required location and make sure it is sitting level on the floor. Open and close the doors checking that the gasket makes a good seal without any gaps when the doors are closed Note: Replace loose items/fittings back into the appliance and leave for at least 15 minutes before switching back on

Description of the appliance ssl Overall view The instructions contained in this manual are applicable to different model refrigerators. The diagrams may not directly represent the appliance purchased. For more complex features, consult the following pages. TEMPERATURE REGULATING Knob SHELVES* FRUIT and VEGETABLE bin FREEZER and STORAGE compartment STORAGE compartment Leveling FOOT = = There is only one adjustable foot. ° Varies by number and/or position.

Start-up and use (b)'invesir Starting the appliance ! Before starting the appliance, follow the installation instructions (see Installation). ! Before connecting the appliance, clean the compartments and accessories well with lukewarm water and bicarbonate.

1. Insert the plug into the socket and ensure that the internal

2. Turn the TEMPERATURE ADJUSTMENT knob to an average

value. After a few hours you will be able to put food in the refrigerator. Using the refrigerator to its full potential The temperature inside the refrigerator compartment automatically adjusts itself according to the position of the thermostat knob. 1 = warmest 5 = coldest We recommend, however, a medium position. The cooling section of the refrigerator is located inside the back wall of the refrigerator compartment for increased space and improved aesthetics. During operation, the back wall will be covered in frost or water droplets depending on whether the compressor is operating or paused. Do not worry, the refrigerator is functioning normally. Ifthe TEMPERATURE ADJUSTMENT knob has been set on high values with large quantities of food and with a high ambient temperature, the appliance can operate continuously, resulting in excessive frost formation and excessive energy consumption: compensate for this by shifting the knob towards lower values (defrosting will occur automatically). In static appliances, the air circulates in a natural way: the colder air tends to move downwards as it is heavier. The food should be stored as follows: Arrangement inside the Food refrigerator Fresh fish and meat Above the fruit and vegetable bins Fresh cheese Above the fruit and vegetable bins Cooked food On any shelf Salami, loaves of bread, (On any sheif chocolate In the fruit and vegetable Fruit and vegetables compartment bins Eggs On the shelf provided Butter and margarine |On the shelf provided Bottles, drinks, milk On the shelves provided + Place only cold or lukewarm foods in the compartment, not hot foods (see Precautions and tips). + Remember that cooked foods do not last longer than raw foods. + Do not store liquids in open containers. They will increase humidity in the refrigerator and cause condensation to form. SHELVES: with or without grill Due to the special guides the shelves are removable and the height is adjustable (see diagram), allowing easy storage of large containers and food. Height can be adjusted without complete removal of the shelf. TEMPERATURE Indicator light: to identify the coldest area in the refrigerator.

1. Check that OK appears clearly on the indicator light (see

2. Ifthe word “OK” does not appear it means that the

temperature is too high: adjust the REFRIGERATOR OPERATION knob to a higher position (colder) and wait approximately 10 hours until the temperature has been stabilise. Check the indicator light again: if necessary, readijust it following the initial process. If large quantities of food have been added or if the refrigerator door has been opened fréquent, it is normal for the indicator not to show OK Wait at least 10 hours before adjusting the REFRIGERATOR OPERATION knob to a higher setting

1. Once you have bought your food, remove all external

packaging made of paper/cardboard or other wrappers, which could introduce bacteria or dirt inside your refrigerator.

2. Protect the food, (especially easily perishable items

and those that have a strong smell), in order to avoid contact between them, thereby removing both the possibility of germ/bacteria contamination as well as the diffusion of strong odours inside the fridge.

3. Store all food in such a way as to ensure air can

circulate freely between different items.

4. Keep the inside of your fridge clean, taking care not

to use oxidiser or abrasive products.

5. Remove all food past its expiry date from the

6. For the correct preservation of food, all easily

perishable items (soft cheeses, raw fish, meat, etc.) should be stored in the coldest zone of the fridge compartment, i.e. just above the salad crisper where the temperature indicator is situated. Using the freezer to its full potential + Do not re-freeze food that is defrosting or that has already been defrosted. These foods must be cooked and eaten (within 24 hours). + Fresh food that needs to be frozen must not come into contact with food that has already been defrosted. Fresh food must be stored above the grill in the freezer compartment and if possible be in direct contact with the walls (side and rear), where the temperature drops below -18°C and guarantees rapid freezing. + Do not place glass bottles which contain liquids, and which are corked or hermetically sealed in the freezer because they could break. + _The maximum quantity of food that may be frozen daily is indicated on the plate containing the technical properties located on the bottom left side of the refrigerator compartment (for example: Kg/24h: 4) +_In order to obtain a greater amount of space in the freezer compartment, you may remove the bins (except the lowest bin and the special COOL CARE ZONE bin, which has an adjustable temperature) and place the food directly onto the evaporator plates. ! Do not open the door during freezing. ! If there is a power cut or malfunction, do not open the freezer door. This will help maintain the temperature inside the freezer, ensuring that foods are conserved for at least 9 -14 hours. ! Ifthe room temperature drops below 14°C for an extended period of time, the ideal temperature will not be reached in the freezer compartment and food preservation will be reduced. Ice tray The fact that they are situated on the top part of the freezer drawers ensures greater cleanliness: the ice no longer comes into contact with the food placed inside the freezer compartment; furthermore, the dripping of the water during filling is avoided (a lid to cover up the hole ae filling with water is also provided). Pull out the tray by pushing it up Check that the tray is ompletely empty and fill it with water through the opening provided

2. Take care not to exceed the level indicated (MAX WATER

LEVEL). Excess water prevents the ice cubes from dispensing (if this happens, wait for the ice to melt and empty the tray).

3. Turn the tray 90°: due to the connected compartments each

mould fills with water (see diagram). Close the opening with the lid provided and put the tray back.

5. When the ice has formed (minimum time approximately

8 hours) knock the tray against a hard surface and wet the outside so that the ice cubes come loose and take them out through the opening.

Maintenance and care Switching the appliance off During cleaning and maintenance it is necessary to disconnect the appliance from the electricity supply: Itis not sufficient to set the temperature adjustment knobs on @ (appliance off) to eliminate all electrical contact. Cleaning the appliance + The external and internal parts, as well as the rubber seals may be cleaned using a sponge that has been soaked in lukewarm water and bicarbonate of soda or neutral soap. Do not use solvents, abrasive products, bleach or ammonia. + The removable accessories may be soaked in warm water and soap or dishwashing liquid. Rinse and dry them carefully. + The back of the appliance may collect dust which can be removed by delicately using the hose of a vacuum cleaner set on medium power. The appliance must be switched off and the plug must be pulled out before cleaning the appliance. Avoiding mould and unpleasant odours ° The appliance is manufactured with hygienic materials which are odour free. In order to maintain an odour free refrigerator and to prevent the formation of stains, food must always be covered or sealed properly. If you want to switch the appliance off for an extended period of time, clean the inside and leave the doors open. Defrosting the appliance !Follow the instructions below. Do not use objects with sharp or pointed edges to defrost the appliance as these may damage the refrigeration circuit beyond repair. Defrosting the refrigerator compartment The refrigerator has an automatic defrosting function: water is ducted to the back of the appliance by a special discharge outlet (see diagram) where the heat produced by the compressor causes it to evaporate. It is necessary to clean the discharge hole regularly so that the water can flow out easily. Defrosting the freezer compartment If the frost layer is greater than 5 mm, it is necessary to defrost manually:

1. Set the TEMPERATURE ADJUSTMENT knob to the position @

Wrap frozen foods in newspaper and place them in another freezer or in a cool place.

Leave the door open until the frost has melted completely. This can be made easier by placing containers with lukewarm water in the freezer compartment.

Clean and dry the freezer compartment carefully before switching the appliance on again

5. Certain appliances are fitted with the DRAIN SYSTEM

to lead the water outside: let the water flow into a container (see diagram).

6. Wait for approximately

2 hours, i.e. until the ideal storage conditions have been restored, before placing food in the freezer compartment Replacing the light bulb To replace the light bulb in the refrigerator compartment, pull out the plug from the electrical socket. Follow the instructions below. Access the light bulb by removing the cover as indicated in the diagram. Replace it with a similar light bulb within the power range indicated on the cover (15W or 25W).

Precautions and tips {The appliance was designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully. [é This appliance complies with the following Community Directives: - 73/23JEEC of 19/02/73 (Low Voltage) and subsequent amendments; -89/336/EEC of 03.05.89 (Electromagnetic == Compatibility) and subsequent amendments; - 2002/96/CE.. General safety + _ The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use. + _ The appliance must be used to store and freeze food products by adults only and according to the instructions in this manual + The appliance must not be installed outdoors, even in covered areas. Ît is extremely dangerous to leave the appliance exposed to rain and storms. + Do not touch the appliance with bare feet or with wet or moist hands and feet. + Do not touch the internal cooling elements: this could cause skin abrasions or frost/freezer burns. When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable. + Before cleaning and maintenance, always switch off the appliance and disconnect it from the electrical supply. It is not sufficient to set the temperature adjustment knobs on @ (appliance off) to eliminate all electrical contact. +_Inthe case of a malfunction, under no circumstances should you attempt to repair the appliance yourself Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance + Do not use any sharp or pointed utensils or electrical equipment - other than the type recommended by the manufacturer - inside the frozen food storage compartments. + Do not put ice cubes taken directly from the freezer into your mouth. + This appliance is not intended for use by persons (including children) with reduced physical, sensory or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Keep packaging material out of the reach of children! It can become a choking or suffocation hazard: Disposal + Observe local environmental standards when disposing packaging material for recycling purposes. + The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers may take their old appliance to public waste collection areas, other communal collection areas, or if national legislation allows return it to a retailer when purchasing a similar new product. All major household appliance manufacturers are active in the creation of systems to manage the collection and disposal of old appliances. Respecting and conserving the environment +_ Install the appliance in a fresh and well-ventilated room. Ensure that it is protected from direct sunlight and do not place it near heat sources. + Try to avoid keeping the door open for long periods or opening the door too frequently in order to conserve energy. + Do not fill the appliance with too much food: cold air must circulate freely for food to be preserved properly. If circulation is impeded, the compressor will work continuously. + _Do not place hot food directly into the refrigerator. The internal temperature will increase and force the compressor to work harder and will consume more energy. + _Defrost the appliance if ice forms (see Maintenance) Athick layer of ice makes cold transference to food products more difficult and results in increased energy consumption + Regularly check the door seals and wipe clean to ensure they are free of debris and to prevent cold air from escaping (see Maintenance).

Troubleshooting (Dinvesir Ifthe appliance does not work, before calling for Assistance (see Assistance), check for a solution from the following list. CR Malfunctions: Possible causes / Solutions: *_The plug has not been inserted into the electrical socket, or not far The internal light does not illuminate. enough to make contact, or there is no power in the house. + The doors do not close properly or the seals are damaged The refrigerator and the freezer do not cool , 7h doors are opened too frequently. well. +_The TEMPERATURE ADJUSTMENT knob is not in the correct position + The refrigerator or the freezer have been over-filled + _The atmospheric temperature of the area surrounding the appliance is lower than 14°C. The food inside the refrigerator is +_The TEMPERATURE ADJUSTMENT knob is not in the correct position. beginning to freeze. + _ The food is in contact with the back inside wall of the refrigerator. + The dooris not closed properly or is continuously opened. + The outside ambient temperature is very high. The motor runs continuously. + The thickness of the frost exceeds 2-3 mm (see Maintenance). + The appliance has not been installed on a level surface (see Installation) The appliance makes a lot of noise. + The appliance has been installed between cabinets that vibrate and make noise. *_ The internal refrigerant makes a slight noise even when the compressor is off. This is not a defect, it is normal. Some of the external parts of the + These raised temperatures are necessary in order to avoid the formation refrigerator become hot. of condensation on certain parts of the product. + This shows the appliance is operating normally. The back wall of the refrigerator unit is covered in frost or droplets of water. + The water discharge hole is blocked (see Maintenance). There is water at the bottom of the refrigerator. Excess moisture / Ice at rear ofthe Fridge + Excess moisture / Ice will occur if the Larder door is opened for prolonged periods. This will disappear once the door is closed and the Larder allowed to defrost and drain the moisture away. This is normal for cooling function of the Larder compartment, especially in summer period Warm Fridge +_lfroom temperature is 16 C or lower, (for example the product is located in a garage or out building), for the refrigerator to operate correctly the “Fast Freeze switch” must be in the ‘ON' position (see pag 16 for details)

02/2013 Before calling for Assistance: + Check if the malfunction can be solved on your own (see Troubleshooting). + _Ifafter all the checks, the appliance still does not operate or the problem persists, call the nearest Service Centre | model | serial number Communicating: «_type of malfunction £ 2 + _appliance model (Mod.) Mod RG 2330 [M cod 53139180000 | SIN 704211807 *_ serial number (S/N) Su Le [150 WT = W [Fu Non 4 Fresz. Copac Os This information can be found on the data ze 340 = LI L pe N os ross | [Gross] Poder de Cong | Clase plate located on the bottom left side of the po pol [Ue Er kg2th 4,0 [classe refrigerator compartment. Gore [ie |res on Kompr. | kg 0,090 |P-S1 Low 140 Had In Raly_ 13978 Never call on unauthorized technicians and always refuse spare parts which are not originals.

2. Desparafuse, extraia e

5. The pin will be removed and

fixed to the opposite side.”
