USER MANUAL I55TM 4110 W 1 INDESIT
Instructions for use
FRIGORÍFICO DE PUERTA DOBLE
Congelador - Nevera
ENGLISH Instructions for use Page 26
IMPORTANT: Read the user instructions carefully before using the appliance. Keep them for future reference.
Keep them in a convenient place for reference and information.
These instructions contain important safety warnings that must be read and followed carefully. The manufacturer declines any responsibility for failure to comply with these safety instructions, in connection with improper use of the appliance or incorrect adjustment of the controls.
Children aged 0-3 years should be kept away from the appliance. Children aged 3-8 years should be kept away from the appliance unless they are under constant supervision. This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
WARNING: Risk of fire / flammable materials.
INTENDED USE
WARNING: The appliance is not intended to be used with an external timer or separate remote control system.
This appliance is intended for use in household and similar applications, such as: staff kitchen areas in shops, offices and other working environments; farm houses;
by clients in hotels, motels and other residential type environments;
This appliance is not intended for professional use. Do not use this appliance outdoors.
The lamp used in the appliance is specially designed for domestic appliances and is not suitable for room illumination (EU Regulation 244/2009).
The appliance is intended for use in places where the temperature is within the ranges specified in the climate class table with nominal data. The appliance may not function properly if it is left for a long period at temperatures outside the specified range.
The ambient temperature for normal operation of the appliance according to the climate class:
SN: 10°C to 32°C
ST: 16°C to 38°C;
N: 16°C to 32°C
T: 16°C to 43°C
The appliance does not contain chlorofluorocarbons (CFCs). The cooling system contains R600a (HC). Devices with isobutane (R600a): isobutane is a natural gas without impact on the environment, but it is flammable. Therefore, ensure that the cooling system pipes are not damaged, especially during transport and installation.
WARNING: Be careful not to damage the pipes of the cooling system of the appliance. WARNING: Do not block the ventilation
openings in the appliance housing or in the built-in structure.
WARNING:
Do not use mechanical, electrical, or chemical means, other than those recommended by the manufacturer, to speed up the defrosting process.
WARNING: Do not use or place electrical devices inside the compartments of the appliance, unless they are of the type expressly approved by the manufacturer.
WARNING:
Devices for connection and/or disconnection from the power supply, which are not directly connected to the mains, must be installed with a plug.
WARNING:
Automatic water heaters must be connected to the water supply network, which supplies drinking water with pressure between 0.17 and 0.81 MPa (1.7 and 8.1 bar).
Do not store flammable substances such as aerosols, and do not place or use gasoline or other flammable materials near the appliance.
Do not use the welding (non-toxic) on the packaging (on some models). Do not consume ice and ice cubes immediately after removing them from the freezer, as this may cause frostbite.
For products designed for use with an external filter, refer to the installation instructions. The filter must be installed when the appliance is operating.
Do not store glass containers, carbonated drinks, in the freezer compartment, as they may burst. Do not block the ventilator (if any) with food.
After placing food, check that the compartment doors close properly, especially those of the freezer.
Replace the door gaskets as soon as possible.
Use the refrigerator compartment only for storing fresh food, and the freezer compartment only for storing frozen food, freezing fresh food, and making ice cubes.
Avoid storing unpackaged food in direct contact with the internal surfaces of the refrigerator or freezer. The appliance may have special compartments (for fresh food, for zero-degree zone, etc.). Unless otherwise specified in the product brochure, they can be removed with equivalent characteristics.
The appliance is intended for use as a refrigerant, agent in the insulation foam, and is not flammable gas.
The most suitable compartments of the appliance for storing specific types of food are those with the most appropriate temperature distribution:
- Refrigerator compartment:
1) Upper zone of the refrigerator compartment near the door - moderate zone: for storing tropical fruits, preserves, drinks, rice, stews, oil, jams.
2) Middle zone of the refrigerator compartment - cold zone: for storing cheese, milk, dairy products, delicatessen, yogurt. 3) Lower zone of the refrigerator compartment - coldest zone: for storing sausages, desserts, meat and fish, pickles, fish paste, sour cream, dough/sauce, homemade cooked food, cakes, cream, and cheese. 4) Drawers for fruits and vegetables at the bottom of the refrigerator compartment: for storing fruits and vegetables (except tropical fruits). 5) Freezer compartment: in it, the coldest areas are for storing only meat and fish.
- Freezer compartment:
The freezer compartment, marked with 4 stars, is suitable for storing frozen food at the storage temperature indicated on the label and for freezing fresh food. The temperature is distributed evenly in the compartment. The shelf life of frozen foods is indicated on the packaging and is the same as the storage temperature. This date is determined by the type of food stored in the freezer, so it must be respected. Fresh food should be stored for the following periods: 1-3 months for sausages, vegetables, meat, fish, milk, fresh pasta; 4 months for glass or plastic containers (beef, lamb, pork); 6 months for butter or margarine and poultry (chicken, turkey); 8-12 months for fruits (except citrus), cooked meat (beef, pork, lamb), vegetables. For foods stored
In the zone with 2 stars, follow the packaging instructions for the shelf life.
To prevent food spoilage, follow these instructions:
- Leaving the door open for an extended period can lead to a significant increase in temperature in the appliance's compartments. Clean regularly surfaces that may come into contact with food and accessible drainage systems. Clean water tanks if they have not been used for 48 hours; flush the water system connected to a water supply if water has not been drawn for 5 days.
- Store raw meat in suitable containers in the refrigerator, so that it does not come into contact with other foods or drip onto them. The freezer compartment, marked with two stars, is suitable for storing pre-frozen food, storing and making ice cream, and making ice cubes. Do not freeze fresh food in the compartment marked with one, two, or three stars. If the refrigerator is left empty for an extended period, turn it off, defrost, clean, dry, and leave the door open to prevent mold from forming inside.
INSTALLATION
The installation of the appliance must be carried out by two or more people - there is a risk of injury. Use protective
gloves when unpacking and installing the appliance - there is a risk of cuts.
IMPORTANT: Before connecting the appliance to the water supply (if applicable) and to the electrical connection, repairs must be carried out by a qualified technician. Do not repair or replace any parts of the appliance unless this is explicitly stated in the user manual. Keep children away from the installation site. After unpacking the appliance, check that it has not been damaged during transport. In case of problems, contact the dealer or the nearest after-sales service. After the appliance has been installed, dispose of the packaging (plastic, polystyrene, etc.) keeping it away from children - there is a danger of suffocation. The appliance must be disconnected from the power supply before installation - there is a danger of electric shock. During installation, be careful not to damage the power cable - there is a danger of electric shock. Connect the appliance only after installation is complete.
Be careful not to damage the floor coverings (e.g., parquet) when moving the appliance. Install the appliance on a floor that is sufficiently stable to support its weight, and in a place suitable for the size and use of the appliance. During installation, make sure that the appliance is not close to heat sources or that the side edges rest firmly on the floor, adjusting if necessary, and then check that the appliance is level using a spirit level. Wait at least two hours before connecting the appliance to ensure that the refrigeration system is properly
functional.
WARNING: When placing the appliance in its final position, make sure that the power cable is not pinched or damaged.
WARNING: To avoid danger due to instability, the placement and fixing of the appliance must be carried out in accordance with the manufacturer's instructions. It is forbidden to install the refrigerator in such a way that the metal gas pipe, metal pipes for gas or water, or electrical cables come into contact with the rear wall of the refrigerator (the condenser coil).
To ensure proper ventilation, leave space on both sides of the appliance. The distance between the rear part of the appliance and the wall behind it must be 50 mm to avoid contact with hot surfaces. Reducing this space will increase the energy consumption of the product.
During installation of the appliance and before connecting it to the electrical grid, remove the power cable from the back of the condenser.
WARNING: ELECTRICAL CONNECTION
It must be possible to disconnect the appliance from the power supply by unplugging it, if it is fitted with a plug, or through a multi-pole switch installed with a contact gap, and the appliance must be earthed in accordance with national electrical safety standards.
Do not use extension cords, multiple sockets, or adapters. After installation
Electrical components do not need to be accessible for use. Do not use the device when your hands are wet or when the device is wet. Do not use the device if the power cord or plug is damaged, if it does not work properly, or if it has been damaged.
If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid a hazard, such as an electric shock.
WARNING: Do not place the plug or the power cord of the device in a wet area.
CLEANING AND MAINTENANCE
WARNING: Before cleaning or performing maintenance on the device, make sure it is unplugged from the power source; never use the device for cleaning when there is a risk of electric shock.
Do not use abrasive or harsh cleaning agents, such as solvents, scouring pads, abrasive cleaners, concentrated preparations, bleach, or cleaning agents containing petroleum products, or use them on plastic parts, the surface of the device, or the insulation of the cord. Do not use sharp objects, scouring pads, or other rough cleaning agents.
DISPOSAL OF PACKAGING MATERIAL
The packaging material is 100% recyclable and is marked with the recycling symbol.
Different packaging materials must be disposed of responsibly and in accordance with local regulations for waste disposal.
DISPOSAL OF HOUSEHOLD ELECTRICAL APPLIANCES
This device is made of materials that are suitable for recycling or for reuse. When disposing of it, follow local regulations for waste disposal. For more information on the treatment, recovery, and recycling of household electrical appliances, contact your local authorities, the waste collection service, or the store where you purchased the device. This device is marked in accordance with Directive 2012/19/EC on waste electrical and electronic equipment (WEEE). By ensuring that this device is disposed of correctly, you will help prevent potential negative consequences for the environment
and human health. The symbol placed on the product or its accompanying documents indicates that this device should not be treated as household waste, but must be taken to a specialized collection point for recycling of electrical and electronic equipment.
TIPS FOR ENERGY SAVING
Install the appliance in a dry, well-ventilated room, away from heat sources (e.g., radiators, cookers, etc.) and not exposed to direct sunlight. If necessary, use an insulating plate. To ensure proper ventilation, follow the installation instructions. Insufficient ventilation in the rear part of the appliance increases energy consumption and reduces cooling efficiency. Frequent opening of the door can increase energy consumption. The internal temperature of the appliance and energy consumption may be affected by the ambient temperature, as well as the location of the appliance. When setting the temperature, these factors should be taken into account. Keep door openings to a minimum. When freezing fresh food, place it in the freezer.
The low temperature of frozen products cools the food stored in the freezer. Leave hot food and drinks to cool before placing them in the appliance.
Arranging the shelves in the freezer does not affect the efficient use of energy. Food should be placed on the shelves in such a way that proper air circulation is ensured (food should not touch each other and there should be space between the food and the rear wall).
You can increase the storage capacity of frozen food by removing the drawers and the Frost Free shelf (if applicable).
The noises made by the compressor during operation are normal and should not cause concern.
DIFFERENT FUNCTIONS AND POSSIBILITIES OF THE APPLIANCE
Information about Less Frost technology
Thanks to the controlled evaporator, Less Frost technology provides more efficient cooling, less need for defrosting, and more usable storage space.
Setting the thermostat
The thermostat of the refrigerator-freezer automatically regulates the temperature in the compartments. By turning the knob from position 1 to 5, lower temperatures are set.
Important note: Do not turn the knob to position 1, as this will switch off the appliance.
1-2: For short-term storage of food in the freezer compartment, you can set the knob between minimum and medium. 3-4: For long-term storage of food in the freezer compartment, you can set the knob to the medium position. 5: For freezing fresh food. The appliance will operate for a longer time. After reaching the desired state, turn the knob to the appropriate setting.
Warning regarding temperature adjustment
- The ambient temperature, the temperature of freshly stored food, and the frequency of door opening affect the temperature in the refrigerator compartment. If necessary, change the temperature setting.
- The appliance is designed to operate in a room with an ambient temperature lower than 10°C, but this will reduce its efficiency. The thermostat setting must be adjusted, taking into account how often the refrigerator or freezer doors are opened, how much food is stored in the refrigerator, the working environment, and the placement of the appliance. When first starting the refrigerator, it should run for 24 hours without interruption, adjusted to the ambient temperature, to ensure it is cooled properly. During this period, do not open the refrigerator door frequently and do not put too much food in it. The refrigerator has a 5-minute delay function to prevent compressor damage when you turn it off and on, for example, to perform a defrosting operation or during a power outage. The refrigerator will resume normal operation after 5 minutes. The refrigerator is designed to operate in an environment with an ambient temperature as specified in the standard according to the climate class, which is indicated on the information label. It is not recommended to operate the refrigerator in an environment with an ambient temperature outside the specified range, so as not to impair the cooling efficiency.
- The appliance is designed for use in an environment with an ambient temperature in the range of 16°C to 32°C.
| Климатчени
Клас | OK. Temn. (°C) |
| SN: 0T 10 do 32°C |
| ST: 0T 16 do 38°C; |
| N: 0T 16 do 32°C |
| T: 0T 16 do 43°C |
Accessories
Ice cube tray
Fill the ice cube tray with water up to the indicated level. After the water has completely frozen, you can twist the tray as shown below to remove the ice cubes.
Plastic scraper
After a certain period of time, frost may form in some areas of the freezer compartment. The frost in the freezer must be removed periodically. If necessary, use the provided plastic scraper. Do not use sharp metal objects to remove the frost.
They could puncture the cooling circuit and cause irreparable damage.
All descriptions and illustrations of the accessories may vary depending on the model of the appliance.
Storing food in the coldest zone of the refrigerator
For the best preservation of food, place it in the most suitable cooling zone. The coldest zone
is just above the crisper drawer.
To ensure that the temperature in this zone is sufficiently low, make sure that the shelves are positioned at the level of the symbol shown in the illustration.
Refrigerator compartment
- To limit humidity and the subsequent formation of frost, do not place liquids in unsealed containers in the refrigerator. Frost usually forms in the coldest parts of the evaporator and over time it may be necessary to defrost more frequently.
- Store the food in the refrigerator. The food must be stored at a low temperature and must be arranged so that the incoming air can circulate freely in the refrigerator compartment.
- Food in the refrigerator should not touch the back wall, as this may cause frost to form, and the packaging may stick to the wall. Do not open the refrigerator door too often.
- Place the meat and fresh fish (wrapped in plastic wrap or foil) that you will consume within 1-2 days in the coldest part of the refrigerator compartment (just above the crisper drawer), which is the coldest and will guarantee the best storage conditions.
- You can place the shelves in the crisper drawer without packaging them.
Freezer compartment
Freezer compartment for long-term storage of deeply frozen and frozen foods, for long periods of time, and for making ice cubes. - To freeze fresh food, make sure that the largest possible part of the food surface is in contact with the cooling surface. - Fresh food should not touch already frozen food, as it may thaw it. When freezing fresh food (meat, fish, and minced meat), divide it into portions so that you can use them as needed. Refreezing thawed food is not recommended; make sure to consume it as soon as possible. - Never place warm food in the freezer compartment. This will raise the temperature of the frozen food. When storing frozen food, follow the instructions on the packaging carefully, and if no information is given, the food should not be stored for more than 3 months from the date of purchase. When buying frozen food, make sure it has been stored at the appropriate temperature and that the packaging is intact. Frozen food should be transported in suitable conditions to maintain quality, and should be placed in the freezer as soon as possible. - If the packaging of frozen food shows signs of moisture or unusual odor, the food may have been stored at an inappropriate temperature and its quality may have deteriorated. The shelf life of frozen food depends on the temperature in the room, the thermostat setting, how often the door is opened, the type of food, and the time it was out of the store before being brought home. Follow the instructions on the food packaging and do not exceed the maximum recommended storage time.
Note: If you try to open the freezer door immediately after closing it, it may be difficult to open. This is completely normal! After the pressure equalizes, the door will open easily.
Replacing the LED lighting
If your refrigerator has LED lighting, contact the customer service center, as the replacement can only be performed by qualified personnel.
TRANSPORTATION AND REPOSITIONING OF THE APPLIANCE
Transportation and repositioning of the appliance
- The appliance is packed in original packaging for safe transport (if necessary). - Make sure the refrigerator is properly packed, and follow the transport instructions given on the packaging. Remove all loose parts (shelves, accessories, door bins, etc.) and pack them in the refrigerator with protective material to prevent damage during transport and installation.
Before installation, the refrigerator must be upright.
Reversing the door opening direction
It is possible to change the door opening direction of the appliance. If you wish to do this, contact the nearest authorized service center.
BEFORE CONTACTING THE AFTER-SALES SERVICE
If your refrigerator is not working properly, it may be due to a minor problem; therefore, check the following before calling an electrician to save time and money.
What to do if the refrigerator does not work:
Check if:
- There is a power failure,
- The main fuse or the plug is not disconnected, the thermostat is not set to position *
- The contact is functioning. To check this, plug in another appliance to the same outlet, for which you are sure it works.
What to do if the refrigerator is not cold enough:
Check if:
- You have not set the thermostat too low, turn it to a colder setting,
- There is dust accumulation on the condenser,
- The appliance is designed for indoor use only.
If you hear:
The refrigerant that circulates in the cooling circuit may produce a slight noise (bubbling sound) even when the compressor is not running. Do not worry, this is quite normal. If the sounds are different, check the following:
- The appliance is properly leveled, but the occupied part of the device is not in contact with the wall, and there is an object on top of it that can vibrate.
If there is water at the bottom of the refrigerator:
Check the following:
- The drain hole for water from defrosting is not clogged (use the drain plug to clean the drain hole).
Recommendations
- When switching off the appliance, unplug it from the power supply to prevent damage to the compressor. After switching off the appliance, wait 5-10 minutes before plugging it back in. If you unplug the refrigerator for any reason, wait at least 5 minutes before plugging it back in. This is important to avoid damage to the refrigerator components.
- The cooling plate of your refrigerator is located in its rear wall. Therefore, during certain periods of time, the rear surface of the refrigerator may be covered with water drops or condensation due to the operation of the compressor. This is normal. It is not necessary to unplug the appliance unless there is excessive accumulation of condensation. If you intend not to use the refrigerator for an extended period of time (e.g., during winter holidays), set the thermostat to position "". After unplugging, clean the refrigerator and leave the door open to prevent the formation of mold and unpleasant odors. If the problem is not resolved, despite following all the instructions above, contact the nearest authorized service center.
- The appliance you have purchased is designed for household use and can only be used in the home and for similar purposes. It is not intended for commercial or industrial use. If the consumer uses the appliance in a way that does not comply with these instructions, they must be aware that the manufacturer and the retailer are not responsible for repairs or damages arising during the warranty period.
Energy saving tips
1. Install the appliance in a dry, well-ventilated place, but not exposed to direct sunlight and not near heat sources (radiator, cooker, etc.). In the opposite case, use an insulating panel. 2. Let the hot food and drinks cool before placing them in the appliance. 3. When defrosting frozen food, place it in the refrigerator compartment. The low temperature of the frozen food will help cool the refrigerator compartment during defrosting. This is energy efficient. If you simply take out the frozen food, it will be a waste of energy. 4. Cover drinks and other liquids when placing them in the appliance. Otherwise, the humidity inside the appliance will increase. This, in turn, will increase the operating time. Also, covering drinks and other liquids preserves their aroma and taste. 5. When placing food and drinks, open the appliance door as briefly as possible. 6. Keep the drawers of the compartments with different temperatures closed (e.g., crisper, chiller, etc.). 7. The door gaskets must be clean and flexible. Replace the gaskets if they are worn. 8. It is possible to store a larger quantity of food by removing the freezer drawers. The energy consumption for a maximally loaded appliance without freezer drawers is similar.

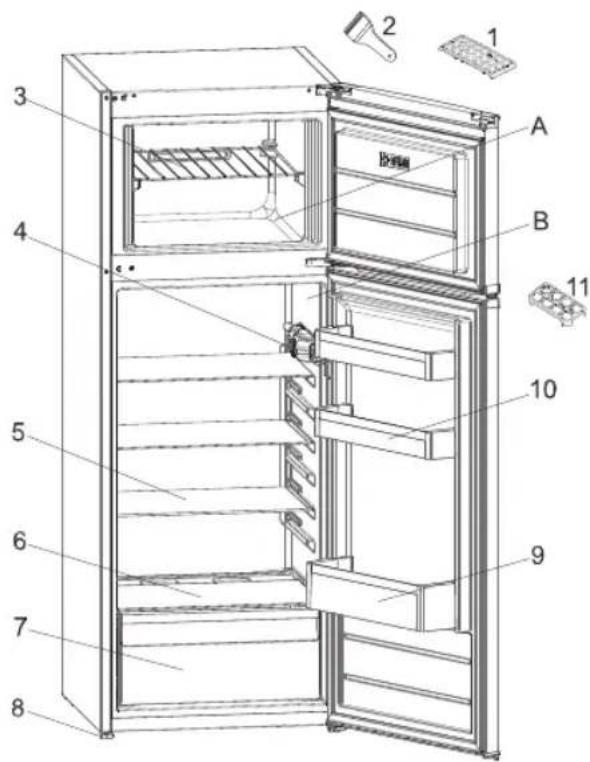

PARTS OF THE APPLIANCE AND COMPARTMENTS
(TM 55 cm / 140 cm)
This description serves only for information regarding the parts of the appliance. Parts may vary depending on the model of the appliance.
A. REFRIGERATOR COMPARTMENT B. FREEZER COMPARTMENT
1. Freezer drawers 2. Plastic scraper for ice 3. Freezer shelf 4. Thermostat knob 5. Refrigerator shelves 6. Crisper drawer
- Crisper drawer
- Leveling feet
- Bottle rack
- Racks for oil / cheese
- Egg tray

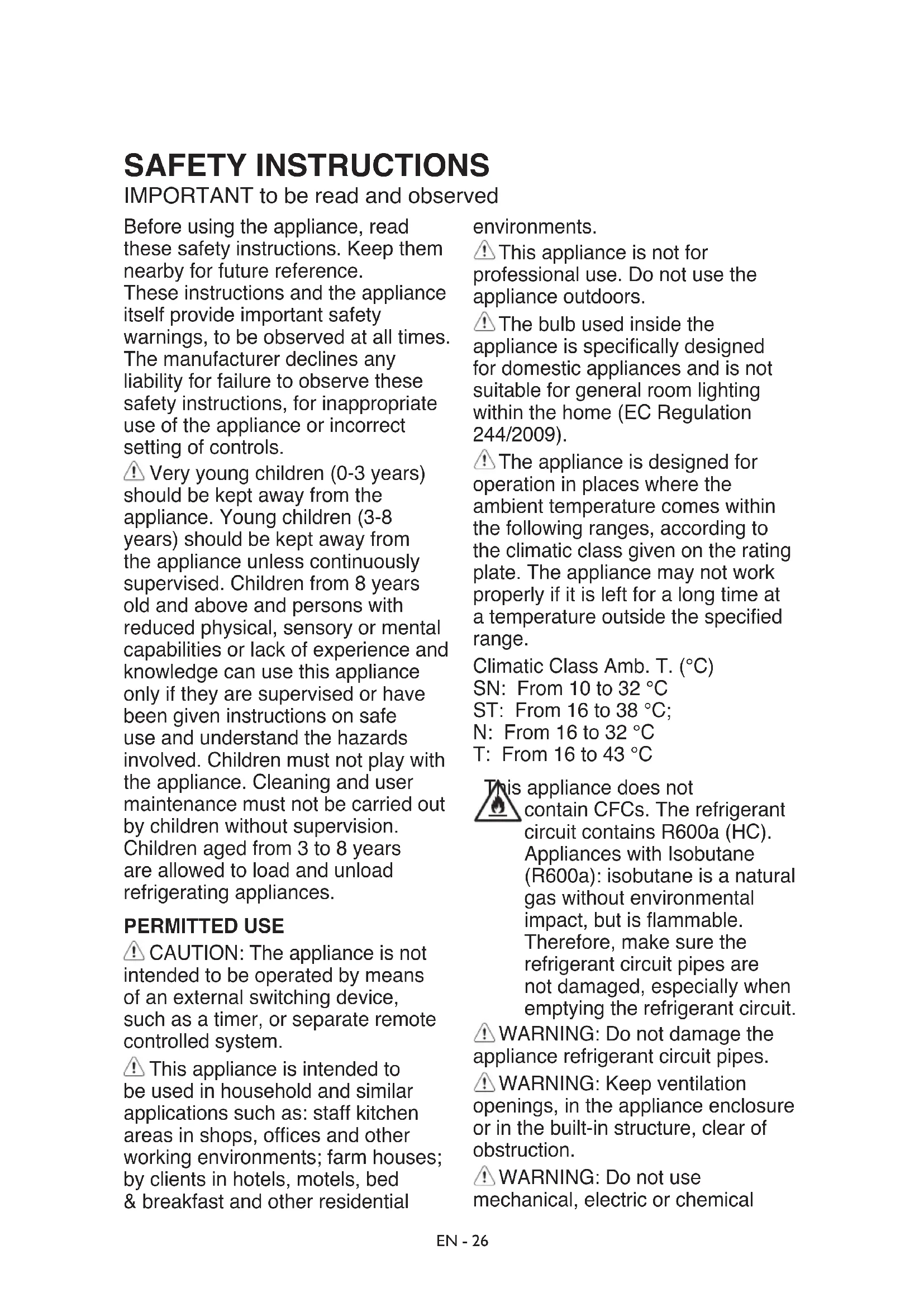

SAFETY INSTRUCTIONS
A. REFRIGERATOR COMPARTMENT B. FREEZER COMPARTMENT
IMPORTANT to be read and observed
Before using the appliance, read these safety instructions. Keep them nearby for future reference.
These instructions and the appliance itself provide important safety warnings, to be observed at all times. The manufacturer declines any liability for failure to observe these safety instructions, for inappropriate use of the appliance or incorrect setting of controls.
Very young children (0-3 years) should be kept away from the appliance. Young children (3-8 years) should be kept away from the appliance unless continuously supervised. Children from 8 years old and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge can use this appliance only if they are supervised or have been given instructions on safe use and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
PERMITTED USE
CAUTION: The appliance is not intended to be operated by means of an external switching device, such as a timer, or separate remote controlled system. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels, bed & breakfast and other residential
environments.
This appliance is not for professional use. Do not use the appliance outdoors. The bulb used inside the appliance is specifically designed for domestic appliances and is not suitable for general room lighting within the home (EC Regulation 244/2009). The appliance is designed for operation in places where the ambient temperature comes within the following ranges, according to the climatic class given on the rating plate. The appliance may not work properly if it is left for a long time at a temperature outside the specified range.
Climatic Class Amb. T. (°C)
SN: From 10 to 32°C
ST: From 16 to 38°C
N: From 16 to 32°C
T: From 16 to 43°C
This appliance does not contain CFCs. The refrigerant circuit contains R600a (HC). Appliances with Isobutane (R600a): isobutane is a natural gas without environmental impact, but is flammable. Therefore, make sure the refrigerant circuit pipes are not damaged, especially when emptying the refrigerant circuit.
WARNING: Do not damage the appliance refrigerant circuit pipes. WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. WARNING: Do not use mechanical, electric or chemical
means other than those recommended by the Manufacturer to speed up the defrost process.
WARNING: Do not use or place electrical devices inside the appliance compartments if they are not of the type expressly authorized by the Manufacturer. WARNING: Ice makers and/or water dispensers not directly connected to the water supply must be filled with potable water only. WARNING: Automatic ice-makers and/or water dispensers must be connected to a water supply that delivers potable water only, with mains water pressure between 0.17 and 0.81 MPa (1.7 and 8.1 bar). Do not store explosive substances such as aerosol cans and do not place or use gasoline or other flammable materials in or near the appliance. Do not swallow the contents (nontoxic) of the ice packs (provided with some models). Do not eat ice cubes or ice lollies immediately after taking them out of the freezer since they may cause cold burns. For products designed to use an air filter inside an accessible fan cover, the filter must always be in position when the refrigerator is in function. Do not store glass containers with liquids in the freezer compartment since they may break. Do not obstruct the fan (if included) with food items. After placing the food check that the door of compartments closes properly, especially the freezer door. Damaged gaskets must be replaced as soon as possible. Use the refrigerator compartment
only for storing fresh food and the freezer compartment only for storing frozen food, freezing fresh food and making ice cubes.
Avoid storing unwrapped food in direct contact with internal surfaces of the refrigerator or freezer compartments. Appliances could have special compartments (Fresh Food Compartment, Zero Degree Box,...). Unless differently specified in the specific booklet of product, they can be removed, maintaining equivalent performances.
Pentane is used as blowing agent in the insulation foam and it is a flammable gas.
The most appropriate compartments of the appliance where specific types of food are to be stored, taking into account different temperature distribution in different compartments in the appliance, are as follows:
- Refrigerator compartment:
1) Upper area of the refrigerator compartment & door - temperature zone: Store tropical fruit, cans, drinks, eggs, sauces, pickles, butter, jam 2) Middle area of the refrigerator compartment - cool zone: Store cheese, milk, dairy food, deli food, yoghurt 3) Lower area of the refrigerator compartment - coldest zone: Store cold cuts, desserts, meat and fish, cheesecake, fresh pasta, sour cream, pesto/salsa, home-cooked food, pastry cream, pudding and cream cheese 4) Fruit & vegetable drawer at the bottom of the refrigerator compartment: Store vegetables and fruits (excluding tropical fruits) 5) Chiller compartment: Only store
meat and fish in the coldest drawer
4 star zone (****) compartment is suitable for freezing foodstuffs from ambient temperature and for storing frozen food as the temperature is evenly distributed throughout the entire compartment.
Purchased frozen food has the storage expiration date stated on the packaging. This date takes into account the type of food being stored and therefore this date should be respected. Fresh food should be stored for the following time periods: 1-3 months for cheese, shellfish, ice cream, ham/sausage, milk, fresh liquids; 4 months for steak or chops (beef, lamb, pork); 6 months for butter or margarine, poultry (chicken, turkey); 8-12 months for fruits (except citrus), roast meat (beef, pork, lamb), vegetables. Expiration dates on the packaging of foods in the 2-star zone must be respected.
To avoid food contamination, please observe the following:
- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
- Regularly clean surfaces that may come into contact with food and accessible drainage systems.
- Clean water tanks if they have not been used for 48 hours; flush the water system connected to a water supply if water has not been drawn for 5 days.
- Store raw meat and fish in suitable containers in the refrigerator, so that it does not come into contact with or drip onto other food.
- Two-star frozen food compartments are suitable for storing pre-frozen food, storing or making ice cream and ice cubes.
- Do not freeze fresh food in one, two or three-star compartments.
- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing inside the appliance.
INSTALLATION
The appliance must be handled and installed by two or more persons - risk of injury. Use protective gloves to unpack and install - risk of cuts. Installation, including water supply (if any), electrical connections and repairs must be carried out by a qualified technician. Do not repair or replace any part of the appliance unless specifically stated in the user manual. Keep children away from the installation site. After unpacking the appliance, make sure that it has not been damaged during transport. In the event of problems, contact the dealer or your nearest Aftersales Service. Once installed, packaging waste (plastic, styrofoam parts etc.) must be stored out of reach of children - risk of suffocation. The appliance must be disconnected from the power supply before any installation operation - risk of electric shock.
During installation, make sure the appliance does not damage the power cable - risk of fire or electric shock. Only activate the appliance when the installation has been completed.
Be careful not to damage the floors (e.g., parquet) when moving the appliance. Install the appliance on a floor or support strong enough to take its weight and in a place suitable for its size and use. Make sure the appliance is not near a heat source and that the four feet are stable and
resting on the floor, adjusting them as required, and check that the appliance is perfectly level using a spirit level. Wait at least two hours before switching the appliance on, to ensure that the refrigerant circuit is fully efficient.
WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged. WARNING: To avoid a hazard due to instability, positioning or fixing of the appliance must be done in accordance with the manufacturer instructions.
It is forbidden to place the refrigerator in such a way that the metal hose of a gas stove, metal gas or water pipes, or electrical wires are in contact with the refrigerator back wall (condenser coil).
To guarantee adequate ventilation, leave a space on both sides and above the appliance. The distance between the rear of the appliance and the wall behind the appliance should be 50 mm to avoid access to hot surfaces. A reduction of this space will increase the energy consumption of the product.
Please remove the power cord from the condenser hook during installation before connecting the product to the power supply.
ELECTRICAL WARNINGS
It must be possible to disconnect the appliance from the power supply by unplugging it if the plug is accessible, or by a multi-pole switch installed upstream of the socket in accordance with the wiring rules, and the appliance must be earthed in conformity with national electrical safety standards.
Do not use extension leads, multiple sockets, or adapters. The electrical components must not be accessible to the user after installation. Do not use the appliance when you are wet or barefoot. Do not operate this appliance if it has a damaged power cable or plug, if it is not working properly, or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced with an identical one by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard - risk of electric shock. WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
CLEANING AND MAINTENANCE
WARNING: Ensure that the appliance is switched off and disconnected from the power supply before performing any maintenance operation; never use steam cleaning equipment - risk of electric shock. Do not use abrasive or harsh cleaners such as window sprays, scouring cleansers, flammable fluids, cleaning waxes, concentrated detergents, bleaches, or cleansers containing petroleum products on plastic parts, interior and door liners, or gaskets. Do not use paper towels, scouring pads, or other harsh cleaning tools.
DISPOSAL OF PACKAGING MATERIALS
The packaging material is 100% recyclable and is marked with the recycle symbol.
The various parts of the packaging must therefore be disposed of responsibly and in full compliance with local authority regulations governing waste disposal.
DISPOSAL OF HOUSEHOLD APPLIANCES
This appliance is manufactured with recyclable or reusable materials.
Dispose of it in accordance with local waste disposal regulations. For further information on the treatment, recovery and recycling of household electrical appliances, contact your local authority, the collection service for household waste or the store where you purchased the appliance. This appliance is marked in compliance with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent negative consequences for the environment and human health.
The symbol on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection centre for the recycling of electrical and electronic equipment.
ENERGY SAVING TIPS
Install the appliance in a dry, well ventilated room far away from any heat source (e.g. radiator, cooker, etc.) and in a place not exposed directly to the sun. If required, use an insulating plate.
To guarantee adequate ventilation follow installation instructions.
Insufficient ventilation at the back of the product increases energy consumption and decreases cooling efficiency.
Frequent door opening might cause an increase in energy consumption.
The internal temperature of the appliance and the energy consumption may be affected also by the ambient temperature, as well as location of the appliance. Temperature setting should take into
consideration these factors. Reduce door opening to minimum.
When thawing frozen food, place it in the refrigerator. The low temperature of the frozen products cools the food in the refrigerator.
Allow warm food and drinks to cool down before placing in the appliance.
Positioning of the shelves in the refrigerator has no impact on the efficient usage of energy. Food should be placed on the shelves in such way to ensure proper air circulation (food should not touch each other and distance between food and rear wall should be kept).
You can increase the storage capacity for frozen food by removing the baskets and, if present, the Stop Frost shelf.
Do not worry about noises coming from the compressor; they are normal operating noises.
THE VARIOUS FUNCTIONS AND POSSIBILITIES
Thanks to the wrap-around evaporator, LessFrost technology offers more efficient cooling, requires less manual defrosting, and provides more flexible storage space.
Thermostat setting
The fridge freezer thermostat automatically regulates the internal temperature of the compartments. By rotating the knob from position 1 to 5, colder temperatures can be obtained.
Important note: Do not try to rotate the knob beyond position 1; it will stop your appliance.
1-2: For short-term storage of food in the freezer compartment, you can set the knob between the minimum and medium position. 3-4: For long-term storage of food in the freezer compartment, you can set the knob to the medium position. 5: For freezing fresh food. The appliance will work for longer. So, after the desired condition is reached, return the knob to the previous setting.
Warnings about Temperature Adjustments
- The ambient temperature, the temperature of freshly stored food, and how often the door is opened affect the temperature in the refrigerator compartment. If required, change the temperature setting.
- It is not recommended that you operate your fridge in environments colder than 10°C in terms of its efficiency.
- The thermostat setting should be made by taking into consideration how often the fresh food and freezer doors are opened and closed, how much food is stored in the refrigerator, and the environment in which the refrigerator is located.
- Your fridge should be operated up to 24 hours according to the ambient temperature without interruption after being plugged in to be completely cooled. Do not open the doors of your fridge frequently and do not place much food inside it during this period.
- A 5-minute delaying function is applied to prevent damage to the compressor of your fridge when you take the plug off and then plug it on again to operate it, or when an energy breakdown occurs. Your fridge will start to operate normally after 5 minutes.
- Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated on the information label. It is not recommended that your fridge be operated in environments that are outside the stated temperature intervals, as this may affect cooling efficiency.
- This appliance is designed for use at an ambient temperature within the range of 16°C to 32°C.
| Climatic Class Amb. T. (℃) |
| SN: From 10 to 32 ℃ |
| ST: From 16 to 38 ℃; |
| N: From 16 to 32 ℃ |
| T: From 16 to 43 ℃ |
Accessories
Ice tray
- Fill the ice tray with water and place it in the freezer compartment. After the water has completely turned into ice, you can twist the tray as shown below to remove the ice cubes.
Plastic scraper
After a period of time, frost will build up in certain areas of the freezer compartment. The frost accumulated in the freezer should be removed periodically. Use the plastic scraper provided if necessary. Do not use sharp metal objects for this operation.
They could puncture the refrigerator circuit and cause irreparable damage to the unit.
All written and visual descriptions in the accessories may vary according to the appliance model.
Putting food in the coldest area of the refrigerator
Your foods will be better stored if you put them in the most appropriate cooling area. The coldest area is just above the crisper.
To ensure a low temperature in this area, make sure the shelf is located at the level of this symbol, as shown in the illustration.
Temperature indicator (In some models)
In order to help you better set your refrigerator, we have equipped it with a temperature indicator located in the coldest area.
You can easily check that the temperature of the coldest area is appropriate: when the indicator shows "OK", it means the thermostat is set properly and the inside temperature is correct.
Since "OK" appears in black, it will be difficult to see this indication if the temperature indicator is badly lit. To be able to see this indication properly, there should be enough light.
If the "OK" symbol does not appear, it means that the temperature is too high: you will then have to modify the thermostat setting, and wait 12 hours before visually checking the temperature again.
NOTE: Following repeated openings (or prolonged opening) of the door or after putting fresh food into the appliance, it is normal for the indication "OK" not to appear in the temperature setting indicator. If there is an abnormal ice crystals build up (bottom wall of the appliance) on the refrigerator compartment evaporator (overloaded appliance, high room temperature, frequent door openings), put the temperature setting device on a lower position until compressor off periods are obtained again.
The upper limit of the coldest area is indicated by the lower side of the sticker (head of the arrow). The coldest area upper shelf must be at the same level with the arrow head. The coldest area is below this level.
As these shelves are removable, make sure they are always at the same level with these zone limits described on the stickers, in order to guarantee temperatures in this area.
Each type of food has an ideal conservation temperature and consequently a particular location to follow.
| Locations Products |
| Upper shelves Cooked foods, desserts and all foods to be eaten fast enough |
| Coldest area Meat, poultry, game and raw fish Maximum conservation tim e : 1 to 2 days. Fresh fruits, cooked pork meat. |
| Crisper Fresh vegetables and fruits. |
| Door-liner Door tays shall contain bottles at the bottom side and, in their upper parts, low volume and currently used products like yoghurt, fresh cream, etc. |
| Butter, cooked cheese and eggs shall be introduced in appropriate holders. |
ARRANGING FOOD IN THE APPLIANCE
Refrigerator Compartment
- To reduce humidity and consequent increase of frost never place liquids in unsealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporator and in time will require more frequent defrosting.
- Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the refrigerator compartment.
- Nothing should touch on the back wall as it will cause frost and the packages can stick on the back wall. Do not open the refrigerator door too frequently.
- Arrange the meat and cleaned fish wrapped in packages or sheets of plastic which you will use in 1-2 days, in the bottom section of the refrigerator compartment (that is above the risper) as this is the coldest section and will ensure the best storing conditions.
- You can put the fruits and vegetables into crisper without packing.
Freezer Compartment
- The use of freezer is, storing of deep-frozen or frozen foods for long periods of time and making ice cubes.
- To freeze fresh food, ensure that as much of the surface as possible of the food to be frozen is in contact with the cooling surface.
- Do not place fresh food next to frozen food, as this can thaw the frozen food.
- When freezing fresh foods (e.g., meat, fish, and mincemeat), divide them into portions that you will use at one time.
- Once the unit has been defrosted, replace the foods in the freezer and remember to consume them within a short period of time.
- Never place warm food in the freezer compartment, as it will disturb the frozen foods.
- For storing frozen foods, always follow the instructions shown on the frozen food packages carefully. If no information is provided, food should not be stored for more than 3 months from the purchase date.
- When buying frozen foods, ensure that they have been frozen at suitable temperatures and that the packaging is intact.
- Frozen foods should be transported in appropriate containers to maintain their quality and should be returned to the freezing surfaces of the unit in the shortest possible time.
- If a package of frozen food shows signs of humidity and abnormal swelling, it is probable that it has been previously stored at an unsuitable temperature and that the contents have deteriorated.
- The storage life of frozen foods depends on the room temperature, thermostat setting, how often the door is opened, the type of food, and the length of time required to transport the product from the shop to your home. Always follow the instructions printed on the package and never exceed the maximum storage life indicated.
Note that if you want to open the freezer door again immediately after closing it, it will not open easily. This is quite normal! After reaching equilibrium conditions, the door will open easily.
CLEANING AND MAINTENANCE
- Disconnect the unit from the power supply before cleaning.
- Do not clean the appliance by pouring water on it.
- Make sure that no water enters the lamp housing and other electrical components.
- The appliance should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.
- Clean the accessories separately with soap and water. Do not clean them in the dishwasher.
- Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When you have finished cleaning, reconnect the plug to the mains supply with dry hands.
- Never use flammable, explosive or corrosive material like thinner, gas, acid for cleaning.
- The condenser (black part with black wings at the rear of the appliance) should be cleaned using a vacuum cleaner or a dry brush at least once a year. This will help your appliance to operate more efficiently and will enable you to save energy.
- Make sure that no water contacts the electrical connections of the thermostat or internal lighting. Regularly check the door seal and clean it whenever necessary.
Defrosting
Refrigerator Compartment;
- Defrosting occurs automatically in refrigerator compartment during operation; the defrost water is collected by the evaporating tray and evaporates automatically.
- The evaporating tray and the defrost water drain hole should be cleaned periodically with defrost drain plug to prevent the water from collecting on the bottom of the refrigerator instead of flowing out.
- You can also pour 1/2 glass of the water to drain hole to clean inside.
Freezer Compartment;
- The frost, accumulated in the freezer compartment, should be removed periodically. (Use the plastic scraper provided) The freezer compartment should be cleaned in the way as the refrigerator compartment, with the defrost operations of the compartment at least twice a year.
For this;
- The day before you defrost, set the thermostat dial to "5" position to freeze the foods completely.
- During defrosting, frozen foods should be wrapped in several layers of paper and kept in a cool place. The inevitable rise in temperature will shorten their storage life. Remember to use these foods within a relatively short period of time.
- Set thermostat knob to position “·” or unplug the unit; leave the door open until completely defrosted.
- To accelerate the defrosting process one or more basins of warm water can be placed in the freezer compartment.
- Dry the inside of the unit carefully and set the thermostat knob to MAX position.
Replacing The Light Bulb
To replace the bulb in freezer and fridge departments:
- Unplug your fridge.
- Remove the cover of the box from the claws using a screwdriver.
- Replace with a bulb of maximum 15 Watts. 4. Install the cover.
- Wait for 5 minutes before re-plugging and bring the thermostat to its original position.
Replacing LED Lighting
If your refrigerator has LED lighting contact the help desk as this should be changed by authorized personnel only.
SHIPMENT AND REPOSITIONING
Transportation and changing of Installation position
- Original package and foam may be kept for re-transportation (optionally).
- You should fasten your fridge with thick packaging, bands, or strong cords and follow the instructions for transportation on the package for re-transportation.
- Remove movable parts (shelves, accessories, vegetable bins, etc.) or fix them into the fridge against shocks using bands during re-positioning and transportation.
Carry your fridge in the upright position.
Reversing the door opening direction
- It is possible to change the opening direction of your appliance's doors. If you want to do this, please contact your nearest authorized service.
BEFORE CALLING YOUR AFTER SALES SERVICE
If your refrigerator is not working properly, it may be a minor problem, therefore check the following, before calling an electrician to save time and money.
What to do if your refrigerator does not operate;
Check that;
There is no power, - The general switch in your home is disconnected, - The thermostat setting is on "." position, - The socket is not sufficient. To check this, plug in another appliance that you know which is working into the same socket.
Check that:
- You have not overloaded the appliance,
- The doors are closed perfectly,
- There is no dust on the condenser.
- There is enough space at the rear and side walls.
If there is noise:
The cooling gas which circulates in the refrigerator circuit may make a slight noise (bubbling sound) even when the compressor is not running. Do not worry, this is quite normal. If these sounds are different, check that:
The appliance is well leveled, - Nothing is touching the rear. - The items on the appliance are vibrating.
If there is water in the lower part of the refrigerator:
Check that:
- The drain hole for defrost water is not clogged (use the defrost drain plug to clean the drain hole).
Recommendations
- While power cut, to prevent any compressor problem you should unplug the refrigerator. You should delay plugging in 5-10 minutes after power supply. If you unplug the refrigerator for a reason, you should wait at least 5 minutes to replug. It is important for avoiding damage to the refrigerator's components.
- The cooling unit of your refrigerator is hidden in the rear wall. Therefore, water droplets or icing may occur on the rear surface of your fridge due to the operation of the compressor at specified intervals. This is normal. There is no need to perform a defrosting operation unless the icing is excessive.
- If you will not use your fridge for a long time (e.g., in summer holidays), put the thermostat to "·" position. After defrosting, clean your fridge and leave the door open to prevent humidity and smell. If the problem persists after you have followed all the instructions above, please consult the nearest Authorised Service.
- The appliance you have purchased is designed for home type use and can be used only at home and for the stated purposes. It is not suitable for commercial or common use. If the consumer uses the appliance in a way that does not comply with these features, we emphasise that the producer and the dealer shall not be responsible for any repair and failure within the guarantee period.
Tips For Saving Energy
- Install the appliance in a cool, well ventilated room, but not in direct sunlight and not near heat source (radiator, cooker, etc.). Otherwise use an insulating plate.
- Allow warm food and drinks to cool down outside the appliance.
- When thawing frozen food, place it in the refrigerator compartment. The low temperature of the frozen food will help to cool the refrigerator compartment when it is thawing. So it causes energy saving. If the frozen food is put out, it causes wastage of energy.
- When placing, drinks and slips they must be covered. Otherwise humidity increases at the appliance. Therefore the working time gets longer. Also covering drinks and slips helps to save smell and taste.
- When placing food and drinks, open the appliance door as briefly as possible.
- Keep close the covers of any different temperature compartment in the appliance (crisper, chiller ...etc).
- Door gasket must be clean and pliable. Replace gaskets if worn.
- It is possible to store more food by removing freezer shelf. Energy consumption is declared with maximum load and without freezer shelf.
THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS (TM 55 cm / 140cm)
This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.
A. FRIDGE COMPARTMENT B. FREEZER COMPARTMENT
- Ice tray
- Plastic ice blade
- Freezer shelf
- Thermostat box
- Refrigerator shelves
- Crisper cover
- Crisper
- Levelling feet
- Bottle shelf
- Butter / Cheese shelves
- Egg holder
| Climatic Class Amb. T. (℃) |
| SN: From 10 to 32 ℃ |
| ST: From 16 to 38 ℃; |
| N: From 16 to 32 ℃ |
| T: From 16 to 43 ℃ |
Accessories
Ice cube tray
Freezer compartment
Note that if you want to open the freezer door again immediately after closing it, it will not open easily. This is quite normal! After reaching equilibrium condition, the door will open easily.
CLEANING AND MAINTENANCE
TRANSPORT AND MOVING
If your refrigerator is not working properly, it may be a minor problem. Therefore, check the following before calling an electrician to save time and money.
| Climatic Class Amb. T. (℃) |
| SN: From 10 to 32 ℃ |
| ST: From 16 to 38 ℃; |
| N: From 16 to 32 ℃ |
| T: From 16 to 43 ℃ |
Accessories
- Refrigerator compartment:
ARRANGING FOOD IN THE APPLIANCE
Refrigerator compartment
Freezer compartment
Refrigerator compartment:
Freezer compartment:
CLEANING AND MAINTENANCE
SAFETY INSTRUCTIONS
