Product type	Digital terrestrial receiver (DVB-T)
Brand	Konig
Model	DVB-T FTA22
Video standards	MPEG-2 (SD) / H.264 (HD)
Broadcasting standard	DVB-T
Number of channels	Up to 1000 TV/Radio channels
Favorite channel groups	8 groups
Program guide (EPG)	7 days
Channel search	Automatic and manual
Editing functions	Move, lock, rename, sort
Parental control	Yes, by age (4-18 years)
Software update	Via USB and OTA
USB port	Yes (FAT16/32, NTFS) for multimedia and recording
PVR recording	Yes, with playback, pause, fast forward/rewind
Video resolutions	1080i/p, 720p, 576i/p, 480i
Video format	PAL/NTSC
Video outputs	CVBS, RGB via SCART
Audio output	Digital (PCM/RAW), analog stereo
Teletext and subtitling	Yes (DVB)
Timer	Standby, scheduled on/off
Remote control	Yes, with AAA batteries included
Power supply	Power adapter (estimated 5 V DC)
Weight	Approx. 300 g (estimated)
Dimensions	Approx. 140 x 80 x 40 mm (estimated)
Maintenance	Clean with a dry cloth

Frequently Asked Questions - DVB-T FTA22 KONIG

How to perform a channel search?

To perform a channel search, go to the main menu, select Channel Search. Choose Auto Search for an automatic search or Manual Search for a manual search by setting the frequency. Press OK to start the search. The found channels will be listed automatically.

How to lock a channel?

In the Program > Program edit menu, select the desired channel with the PR+/PR- keys, then press the yellow button on the remote. A lock icon will appear to the right of the program. To unlock, press the yellow button again.

How to record a program?

In normal mode, press the RECORD button on the remote. The recording symbol (00:00:21) will appear on the screen. To stop, press the ■ button and confirm with OK. The recording will be saved in the PVR RECORD folder accessible via the USB menu.

How to update the software?

You can update the software via USB or OTA. For a USB update, download the update file to a USB stick, insert it into the USB port of the receiver, then go to System > Software upgrade > USB upgrade and press OK. For OTA, enable the option in System > Software upgrade > OTA upgrade and set the start time.

What to do if the remote control does not work?

First check the batteries: if they are worn, replace them with two new AAA batteries. Make sure the remote is pointed at the receiver and no obstacle blocks the front panel. If the problem persists, try restarting the receiver.

How to set the time?

Go to the Time menu. You can choose automatic (Auto) or manual (Manual) setting. If you select Auto, the time zone will be disabled. If you choose Manual, you can set the time zone from GMT-12 to GMT+12. You can also configure the region and country for automatic synchronization.

How to display subtitles?

While watching a program, press the Subtitle button (☐ symbol) on the remote. A subtitle window will appear. You can choose the subtitle language in the Option > Subtitle language menu.

How to use the Timeshift function?

The Timeshift function allows you to pause live TV. Press the SHIFT button on the remote to activate the mode. Then use the play/pause buttons (▶/||) to control the shift. To resume live, press ■ (stop).

How to restore factory settings?

Go to the System > Restore Factory Default menu. Press OK to confirm. All settings will be reset, including the channel list. Note: this action is irreversible.

How to connect the device to a TV?

Use a SCART cable to connect the TV output of the receiver to the SCART input of the TV. You can also use an RCA (composite) cable if your TV allows it. For better quality, use an HDMI cable if available (this model does not have an HDMI output, prefer SCART or RCA).

USER MANUAL DVB-T FTA22 KONIG

DVB-T FTA22

MANUAL (p. 9)

FULL HD FTA RECEIVER

MANUAL DE USO (p. 95)

RECEPTOR FTA FULL HD

HASZNÁLATI ÚTMUTATÓ (o. 129.)

TELJES HD FTA VEVÖKÉSZÜLÉK

General information: 10

General Operation: 10

Remote control: 11

INSTALLATION 12

INSTALLATION GUIDE....13

MAIN MENU 14

1. Program: 14
2. Picture 16
3. Channel search 16
4. Time....17
5. Option 18
6. System....18
7. USB 20
8. Hotkey 21

TROUBLESHOOTING 23

DEUTSCH 25

ALLGEMEINE INFORMATIONEN 25

PROBLEMAS Y SOLUCIONES....110

PORTUGUÊS....112

INFORMAÇÕES GERAIS....112

ALLMÄNNA UPPGIFTER 163

Huvudegenskaper 163

This Digital Terrestrial Receiver (DTR) will bring you into the new and exciting world of digital television world of crystal clear widescreen pictures, digital sound, more information and new services. All this and more is on "Free to Air" digital television.

To make full use of your new DTR, please take the time to familiarise yourself with the extensive features of the unit detailed in this User's Guide.

If you need help in setting up please call your retailer or a customer service adviser.

Main Features

• SD MPEG-2/HD H.264 & fully DVB-T compliant
• Automatic PAL/NTSC conversion
• 1000 channels TV and Radio programmable
• 8 different favourite group selections
• Multi-lingual On Screen Display
• Fully supports 7 days Electronic Program Guide (EPG)
• Picture in Graphics (PIG) support
• 256 colours On Screen Display
• Channel search in automatic and manual search
- Various channel editing functions (favourite, move, lock, rename and sort)
• Parental control for channels
- Easy to use Menu System
- Software upgrades through USB port
• Time set by GMT offset automatically and manually, summer time support
• Automatic turn on/off by Timer setting (multiple options)
- Subtitle support DVB EN300743 and EBU
• Teletext support DVB ETS300472 by VBI and OSD
• Automatic save for the last channel
• Support Logic Channel Number (LCN)
• Support FAT16/FAT32/FAT12,NTFS (Option)
• MP3/ JPEG/ BMP/ OGG files
- Lock/Delete/Rename, Preview playback, Browse record files information
- Play/Pause/Stop
• Fast Forward/Fast Backward 2/4/8/16/32

- Default 2 hours, user can setting the end time (Support subtitle), record scramble program and descramble program

For your safety:

To avoid the risk of electric shock, do not open the cabinet, refer to qualified personnel only.

Keep the receiver away from flower vases, tubs, sinks etc. in order to avoid damaging the equipment.

Do not expose the receiver to sunlight and keep it away from any heat source.

Do not block the ventilation holes of the receiver so that air can circulate freely.

When this occurs you must cut off the power immediately.

Do not touch the receiver during thunderstorms, since that may create electric shock hazards.

Switch the receiver off whenever it will be out of service for an extended period.

Be sure to turn the receiver off and disconnect the power before cleaning. Only use mild soapy water and wring out the cloth thoroughly.

General information:

1 Remote control 2x AAA batteries 1 user manual

General Operation:

Throughout this manual you will notice that the everyday operation of the receiver is based on a series of user friendly on screen displays and menus. These menus will help you get the most from your receiver, guiding you through installation, channel organising, viewing and many other functions.

All functions can be carried out using the buttons on the RCU, and some of the functions can also be carried out using the buttons on the front panel.

The receiver is easy to use, always at your command and adaptable for future upgrades.

Please be aware that new software may change the functionality of the receiver.

Should you experience any difficulties with the operation of your receiver, please consult the relevant section of this manual, including the Trouble Shooting section. If this does not have the desired effect, please call your dealer or a customer service adviser.

Remote control:

Key: Function:

	Turns power ON/OFF
	Mute sound
0~9	To select the number of the menu or the channel to watch
TV/RADIO	Switch between TV and radio
SHIFT	Time shift function key
FAV	Displays the favourite group list
FIND	Displays the “FIND” window
INFO	Show information
MENU	Press once to run MENU on screen
	Moves up/down a page in the list
	Switch back to the previous channel
OK/LIST	Executes the selected item in the menu screen or enters the desired value in any input mode.
PR+, PR-	Channel up/down or move up/down in a menu.
	To adjust the volume or move left/right in the menu.
EXIT	Return to the previous menu or escape from the menu.
EPG	Call the Electronic Program Guide (EPG)
	Displays the audio window
V-MODE	Switch the video between current video mode and YUV 576i
V-FORMAT	Change the HD format
TXT	Switch to teletext mode
	Switch to subtitle mode
SLEEP	Enter sleep mode
RECORD	Record the program
	Play
	Stop
	Pause and resume play
	Fast forward or rewind
	Previous and next

INSTALLATION

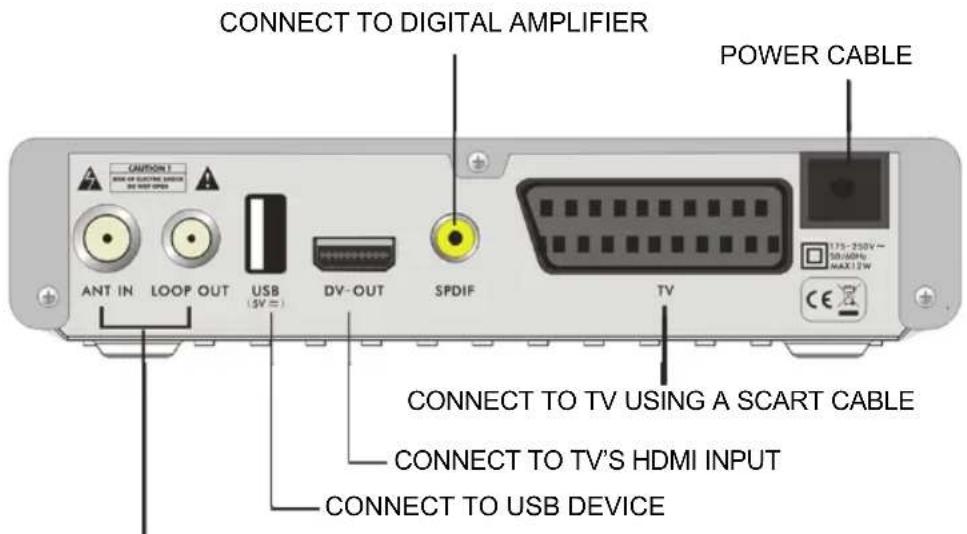

Rear panel:

ANT IN: CONNECT TO ANTENNA
LOOP OUT: CONNECT TO ANOTHER RECEIVER

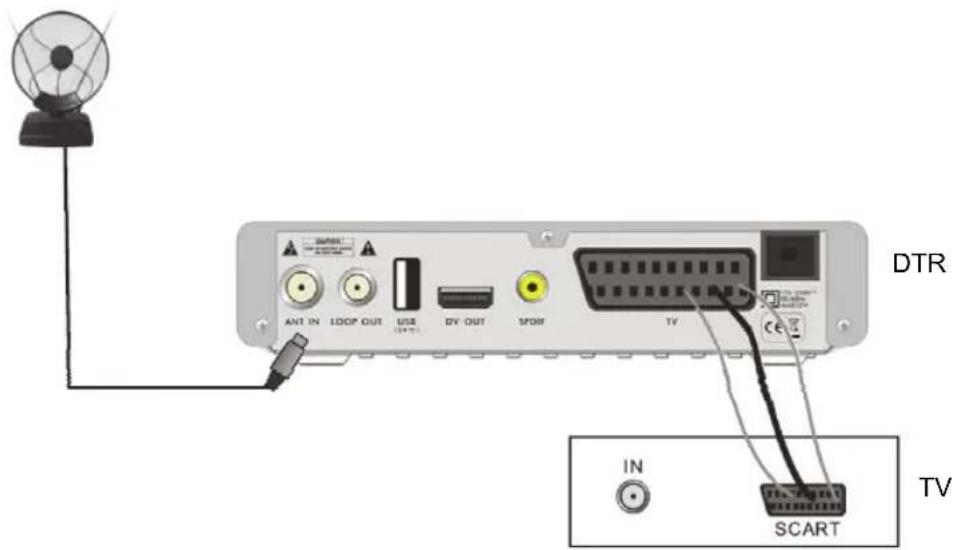

Connecting to TV using SCART support:
Antenna

Connecting to digital amplifier

INSTALLATION GUIDE

When powering on for the first time, the Installation Guide will display as below.

Press PR+ and PR- to move the highlighted bar to select OSD language, Country and Channel Search.

Press ⁺ to move the cursor to choose your choice.

Move the highlighter to the Channel Search option and press OK to search channels

Press [EXIT] to exit this menu.

MAIN MENU

When you press [MENU], you enter the Main Menu. This menu consists of 7 major sub-menus as follows.

• Program
• Picture
• Channel Search
• Time
• Option
• System
• USB

1. Program:

This menu consists of 4 major sub-menus as follow:

• Program edit
• EPG
• Sort
• LCN

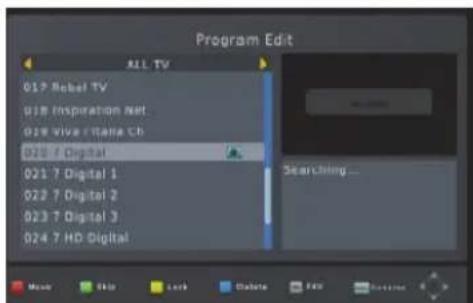

1.1 Program edit

Press OK to pop up the "Input Password" dialogue box. You cannot open into the menu unless the correct password is input. The default password is "000000".

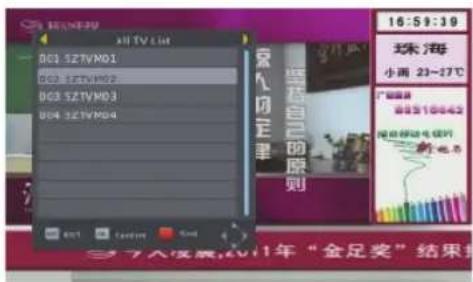

1. Press PR+, PR- keys to select the programme that you want to play, and then press OK to view the programme in the small window. If you move the yellow cursor to select up or down, you will see a gray line which indicates the playing program in the small window.
2. Select the program and press FAV to pop up the favourite type list. In the list, select the favourite type that you want and press OK, and then you will find the favourite icon is displayed to the right of the selected program.

Select Disable in favourite type list to remove all the favourite types you selected, and the favourite icon will disappear behind the programme.

1. Select the program and press the yellow key to mark this program with the Lock icon. You can cancel this icon by pressing the yellow key once more.

1. Select the programme and press the green key to mark this program with the skip icon. You can cancel this mark by pressing the green key once more.

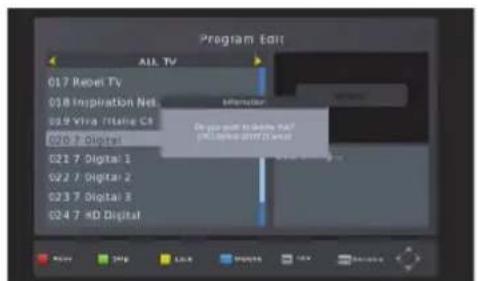

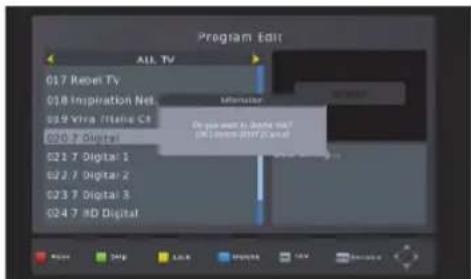

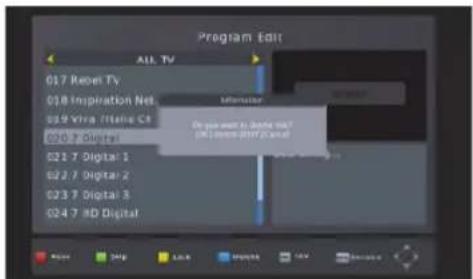

2. Select the program and press the blue key to pop up a warning dialogue box: "Do you want to delete this?" Press OK to delete it and press EXIT to cancel.

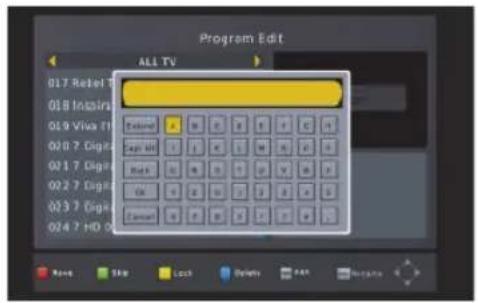

3. Press ← PR to pop up the rename window. Press → △ + to move the cursor left or right to select the characters.

1.2 EPG

You can find information for a programme in the EPG window. Programmes are in the left side list and details of the program are shown on the right side. At the bottom of the window you can see the function keys.

Press the blue key to page up in the program list. Press the yellow key to page down in the program list. Press the green key to page up in the detail list and press the red key to page down in the detail list.

Press OK to select the program. You can see the programme you selected in the book list.

In EPG mode you can press INFO to enter the booking list. All the programmes you booked will be in the schedule.

Press the red key to add a programme to the booking list, and press the green key to edit the programme. Press the blue key to delete the programme.

Press EXIT to exit the booking list window.

1.3 SORT

Select by service ID, LCN, ONID or service name.

1.4 LCN

Select between On and Off.

2. Picture

This menu consists of 4 major sub-menus as follows:

• Aspect Ratio
• Resolution
• TV Format
• Video Output

2.1 Aspect Ratio

Select between 16:9 Pillar Box, 16:9 Pan&Scan, 4:3 Letter Box, 4:3 Pan&Scan, 4:3 Full, 16:9 Wide Screen and Auto.

2.2 Resolution

Select between 1080i, 1080p, 576i, 576p, 480i and 720p.

2.3 TV Format

Select between PAL and NTSC.

2.4 Video Output

Select between CVBS and RGB.

3. Channel search

This menu consists of 4 major sub-menus as follows:

• Auto Search
• Manual Search
• Country
• Antenna Power

3.1 Auto search

Press OK on Auto Search to search channels. For the first searching, all searched TV channels and radio channels will be displayed on the list in order. Through one colour bar at the bottom of the search window, users can know the searching progress of the current channel. The TV and Radio Channels you searched will be shown in the list, you can know the number of programmes at the top of the window. During the search, you can press EXIT to cancel. After searching, press EXIT to return to the normal mode.

3.2 Manual search

Frequency channel: Press →Δ⁺ to select the channel.

Frequency: Press the number key to input.

Bandwidth: Press ⁺ to select between 6, 7 and 8M.

Through two colour bars at the bottom of the search window, users can see the signal quality and strength of the current channel.

After setting, press OK to enter the searching window.

3.3 Country

Press ⁺ to select the country.

3.4 Antenna power

Select On or Off.

4. Time

There are 5 sub-menus in this menu

• Time Offset
• Country region
• Time zone
• Sleep
• Power On/Off

Select between Auto and Manual. If you select Auto, the time zone item will turn grey. If you select Manual, you can edit the time zone item, but the country region item will turn grey.

4.2 Country Region

Press △ to select.

4.3 Time zone

Press △ to select from GMT-12 to GMT+12

4.4 Sleep

Press ΔΔ⁺ to select among Off, 1 hour or 12 hours.

4.5 Power On/Off

Power On/Off: Select Disable or Enable. When selecting Enable you can edit Power On/Off Time by pressing the number keys.

Power On/Off Time: Press the number key to input.

5. Option

There are 5 sub-menus in this menu

• OSD Language
• Subtitle Language
• Audio Language
• Digital Audio
• Audio Description

5.1 OSD language

Press ⁺ to select the language in the circle.

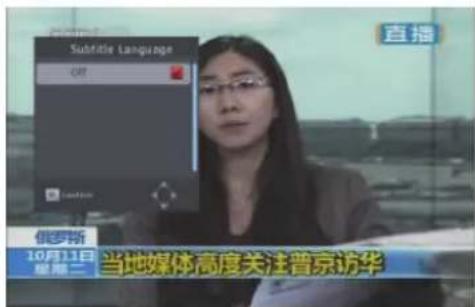

5.2 Subtitle language

Press ⁺ to select the language in the circle.

5.3 Audio language

Press ⁺ to select the language in the circle.

5.4 Digital audio

Press △ △+ to select between PCM/, RAW/HDMI RAW, RAW/HDMI PCM and Off.

5.5 Audio description

Select from 1-31 and Off.

6. System

There are 5 sub-menus in this menu.

• Parental Guidance
• Set Password
• Restore Factory Default
• Information
• Software update

6.1 Parental guidance

The consumer can select an age from 4-18 or Off.

6.2 Set password

Input the old password: Input the password by pressing the number keys 0-9.

Input the new password: Input the password by pressing the number keys 0-9.

Confirm the new password: Press the number keys 0-9 to input the new password again.

Note: The default password is: 000000. Please record your new password. If your new password is lost, please contact your service provider.

6.3 Restore factory default

Choose the option of Restore Factory Default and press [OK] to restore.

Press [OK] to start and press [EXIT] to quit.

Note: Please use this function carefully.

6.4 Information

When you enter the Information menu, the screen displays the receiver information, such as model, SW version and so on.

Press [EXIT] to leave this menu.

6.5 Software upgrade

There are 2 Update modes: OTA update and USB update.

6.5.1 OTA upgrade

1. Status: Select between On and Off. If you select Off, the Start Time turns grey.

2. Start Time: Select between 00:00 to 23:00.

6.5.2 USB upgrade

Press OK to upgrade through a USB Device.

7. USB

This menu has 5 sub-menus such as: Multimedia, Photo Configuration, Movie Configuration, PVR configuration and Record.

7.1 Multimedia

There are 4 sub-menus in this menu.

• Music
• Photo

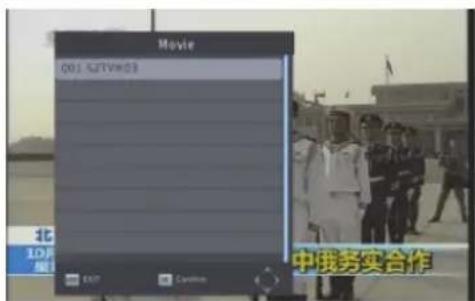

• Movie
• PVR

These menus will be disabled when no USB device is plugged in.

7.1.1 Music

Press OK to enter the Music window. Press PR+, PR- to move the cursor up and down. Press △ △+ to go back to the folder. Select the music and press OK to play it. Press ▶ and || to play or pause and press □ stop playing.

7.1.2 Photo

Select the picture and press ▶ to enter the slide show mode.

Press the blue key to enter grid show mode. In this mode, select the picture and press the OK to see it in full screen.

7.1.3 Movie

Select the movie you want to watch and press the red key to enter full screen mode.

7.1.4 PVR

In normal mode, press the RECORD on RCU, then

will appear on the screen. It means you are program now.

Press "■" and a dialogue box will pop up: "Do you want to stop recording?" Press OK to stop recording and save it or press EXIT to continue recording.

If you choose to stop recording, the program you recorded will be added to the PVR RECORD folder in PVR submenu.

In PVR menu you can see the programme you recorded.

Press the red key to switch to full screen mode and press the exit key to go back to preview mode. Press the yellow key to delete the program. Press the green key to rename the program. Press OK or ▶ to play the programme. Press ■ to stop playing.

Press ◀▶ to fast forward or rewind.

7.2 Photo configuration

1. Slide time: select between 1 s - 8 s.
2. Slide mode: Select between 0 - 59 or random.
3. Aspect ratio: Select between keep and discard.

7.3 Movie configuration:

1. Subtitle specific: Select normal, big or small.
2. Subtitle background: Select transparent, grey, white, and yellow green.
3. Subtitle font color: Select red, white, black, blue or green.

7.4 PVR configuration

1. Record device: Here you see the information of the USB device
2. Format: Press OK to format the disk.

8. Hotkey

8.1 Number

Use the numeric keys (0-9) to input the number of the desired channel. If the input number is beyond the valid channel number, the system will read "Invalid number", press OK to close this message.

8.2 TV/Radio

In normal mode, press TV/RADIO to switch between TV mode and Radio mode.

8.3 Up/down

Press PR+, PR- to change the channel up or down.

8.4 Left/Right (VOL +/-)

Press Δ + or VOL+, VOL- to change the volume. Press Δ to decrease the volume, or press Δ⁺ to increase the volume.

8.5 Mute

Press ✗ to mute the volume. You can press ✗ once again to restore the volume, or press to restore the volume.

8.6 Teletext

Press the Text to open teletext on the screen.

8.7 Find

Press the red (find) key to pop up the Find window.

Press △ △+ to enter into the character.

8.8 OK

1. During the viewing or listening, press OK to pop up the TV programme list or the radio programme list.
2. Press PR+, PR- to select the channel up or down and then press the OK to play this channel in Full-screen.
3. Press MENU or EXIT to close this window.

1. Press AUDIO to enter the Audio window.
2. Press △ △ to select between Left-Left, Right-Right and Left-Right.
3. Changing the audio mode is only connected with the current channel, not all the channels.
4. Press EXIT to close this window.

Press ← PR to switch the current channel to the previous channel.

8.11 Info

Press INFO to enter the information window.

8.12 FAV

1. Press the FAV to pop up the favourite group window.
2. Press ☑ to select the desired favourite group. Press PR+, PR- to select the channel up or down. Press OK at the selected channel to view it in full screen. Press EXIT to exit.
3. If there is no favourite channel, the system will advise you "No Favourite Programme!" when you press FAV.

Please refer to 1.2 EPG for explanation.

Press ☐ to open the subtitle window on the screen.

TROUBLESHOOTING

Problem Possible causes What to do
The display on the front panel does not light up.	Main cable is not connected.	Check that the main cable is plugged into the power socket.
No sound or picture, but the front panel shows red light.	The receiver is in standby mode.	Press the standby button.
No sound or picture. No signal or	weak signal.	Check the cable connections, antenna and other equipment connected between the antenna and the receiver.
Problem Possible causes What to do
Bad picture/blocking error.	Signal is too strong.	Connect a signal attenuator to the antenna input.
	Antenna noise factor too high.	Change to an antenna with lower noise factor.
	The antenna is faulty. Change the antenna.	antenna.
The picture is not displayed on the screen, when switched on.	The system is connected by RF leads.	Check the UHF channel fixed in your system and tune the UHF channel properly.
There is interference on your terrestrial programme or video signal.	The system is connected by RF leads and the output programme of the receiver interferes with an existing terrestrial programme or Video signal.	Change the receiver output program to a more suitable program, or connect the system by SCART leads.
The RCU is not working.	Battery exhausted. Change the batteries.	Batteries.
	RCU is incorrectly aimed.	Aim RCU at the receiver, or check that nothing blocks the front panel.

Note:

If you have tried all of the actions suggested above, without solving the problem, please contact your retailer.

Safety precautions:

To reduce risk of electric shock, this product should ONLY be opened by an authorised technician when service is required. Disconnect the product from mains and other equipment if a problem should occur. Do not expose the product to water or moisture.

Maintenance:

Clean only with a dry cloth. Do not use cleaning solvents or abrasives.

Warranty:

No guarantee or liability can be accepted for any changes and modifications of the product or damage caused due to incorrect use of this product.

General:

• Designs and specifications are subject to change without notice.
• All logos, brands or brand logos and product names are trademarks or registered trademarks of their respective holders and are hereby recognised as such.
• This manual was produced with care. However, no rights can be derived. König Electronic can not accept liability for any errors in this manual or their consequences.
• Keep this manual and packaging for future reference.

Attention:

This product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collections system for these products.

This product has been manufactured and supplied in compliance with all relevant regulations and directives, valid for all member states of the European Union. It also complies with all applicable specifications and regulations in the country of sales.

Formal documentation is available upon request. This includes, but is not limited to: Declaration of Conformity (and product identity), Material Safety Data Sheet and product test report.

Please contact our customer service desk for support:

via website: http://www.nedis.com/en-us/contact/contact-form.htm

via e-mail: [e-mail]

via telephone: [phone] (during office hours)

NEDIS B.V., De Tweeling 28, 5215 MC 's-Hertogenbosch, THE NETHERLANDS

DEUTSCH

ALLGEMEINE INFORMATIONEN

1. Programme:

1.2 EPG

2. Bild

5.1 OSD Sprache

6.5 Software Upgrade

6.5.1 OTA Upgrade

7.1.2 oto

7.4 PVR Konfiguration

8. Hotkey

8.1 Nummer

1. Program :

2. Image (Picture)

• Aspect Ratio
• Resolution
• TV Format
• Video Output

3.2 Recherche manuelle (Manual search)

3.3 Pays (Country)

5.1 Langue OSD (OSD language)

• Music
• Photo
• Movie
• PVR

7.1.2 Photo

7.1.3 Film (Movie)

7.4 Configuration PVR

1. Programma:

1.2 EPG

Selecteer "By service ID", "LCN", "ONID" of "Service name".

1.4 LCN

Selecteer tussen "On" en "Off".

2. Beeld

• Aspect Ratio
• Resolution
• TV Format
• Video Output

2.1 Aspectratio

Selecteer tussen "16:9 Pillar Box", "16:9 Pan&Scan", "4:3 Letter Box", "4:3 Pan&Scan", "4:3 Full", "16:9 Wide Screen" en "Auto".

2.2 Resolutie

Selecteer tussen "1080i", "1080p", "576i", "576p", "480i" en "720p".

2.3 TV-formaat

Selecteer tussen "PAL" en "NTSC".

2.4 Video-uitgang

3.3 Land

Selecteer "On" of "Off".

4. Tijd

4.2 Landregio

5.1 OSD-taal

6.3 Fabrieksinstellingen herstellen

6.5 Software-upgrade

6.5.1 OTA upgrade

7. USB

Dit menu heeft 5 submenu's, zoals: Multimedia, Photo Configuration, Movie Configuration, PVR configuration en Record.

7.1 Multimedia

• Music
• Photo
• Movie
• PVR

7.1.4 PVR

8. Sneltoets

8.1 Nummer

8.14 Ondertiteling

1 Telecomando 2x batterie AAA 1 manuale utente

1. Programma:

1.2 EPG

2. Immagine

3.3 Nazione

4.2 Stato Regione

5.1 Lingua OSD

6.2 Impostare la password

7.1.1 Musica

8. Tasti veloci

8.1 Numero

1. Programa:

1.1 Editar programa

1.2 EPG

2. Imagen

• Aspect Ratio
• Resolution
• TV Format
• Video Output

3.3 País

4.2 País región

5. Opción

5.1 Idioma OSD

6.1 Guía paterna

• Music
• Photo
• Movie
• PVR

7.1.4 PVR

8. Tecla caliente

8.1 Número

8.8 OK

PROBLEMAS Y SOLUCIONES

1 Controlo remoto 2x pilhas AAA 1 manual de utilizador

1. Programa:

1.2 EPG

2. Imagem

3.3 País

5.1 Idioma OSD

7.1.1 Música

7.1.2 Fotografia

7.1.3 Filme

8. Tecla de atalho

8.1 Número

8.14 Legendas

CSATLAKOZTATÁS DIGITÁLIS ERÓSÍTÓHÖZ

ÜZEMBEHELYEZÉSI ÚTMUTATÓ

1. Programme:

1.2 EPG

2. Kép

• Aspect Ratio
• Resolution
• TV Format
• Video Output

3.1 Auto search (Aut. keresés)

5. Opció

Ennek a menünek 5 almenüje van

• OSD Language
• Subtitle Language
• Audio Language
• Digital Audio
• Audio Description

6.5.1 OTA frissítés

• Music
• Photo
• Movie
• PVR

7.1.1 Music (Zene)

8. Gyorsbillentyü

8.1 Szám

1. Program (Ohjelma):

2. Picture (picture)

• Aspect Ratio
• Resolution
• TV Format
• Video Output

3.3 Country (maa)

4.2 Country Region (alue)

5.1 OSD language (OSD-kieli)

En fjärrkontroll 2 st AAA-batterier En bruksanvisning

Allmän användning:

1. Program:

1.1 Programredigering

1.2 EPG

Välj by service ID, LCN, ONID eller service name.

1.4 LCN

2. Bild

5.1 OSD-språk

6.2 Ange lösenord

6.5.1 OTA-uppgradering

6.5.2 USB-uppgradering

• Music
• Photo
• Movie
• PVR

7.1.4 PVR

7.3 Filmkonfiguration:

1. Subtitle specific: Välj normal, big eller small.
2. Subtitle background: Välj transparent, grey, white och Yellow green.
3. Subtitle font color: Välj red, white, black, blue eller green.

7.4 PVR-konfiguration

8. Kortkommando

8.1 Siffra

8.14 Undertext

1. Program:

1.1 Editace programu

1.2 EPG

2. Obraz

3.3 Země

5.1 OSD jazyk

6.2 Nastavit heslo

7.1.1 Hudba

7.1.3 Film

8. Rychlá klávesa

8.1 Čísla

1 telecomandă 2 x baterii AAA 1 manual de utilizare

1. Program:

1.1 Editare program

1.2 EPG

2. Imagine

• Aspect Ratio
• Resolution
• TV Format
• Video Output

3.3 Tara

5.1 Limbaj OSD

6.2 Setați parola

7. USB

Acest meniu are 5 sub-meniiuri precum: Multimedia, Photo Configuration, Movie Configuration, PVR configuration and Record.

7.1 Multimedia

• Music
• Photo
• Movie
• PVR

7.1.1 Muzică

7.1.2 Foto

7.4 Configurarea PVR

8. Tastă rapidă

8.1 Număr

8.14 Subtitrări

1 τηλεχειριστήριο

2x μπαταρίες AAA

1 εγχειρίδιο χρήστη

Γενική λειτουργία:

2. Picture (Εικόνα)

3.3 Country (Xώρα)

4.2 Country Region (Xώρα)

5. Option (Επιλογή)

5.1 OSD language (Γλώσσα OSD)

• Music
• Photo
• Movie
• PVR

ANT IN: TILSLUT TIL ANTENNE
LOOP OUT: TILSLUT TIL EN ANDEN MODTAGER

1. Program:

1.1 Programredigering

1.2 EPG

2. Billede

• Aspect Ratio
• Resolution
• TV Format
• Video Output

2.1 Aspektomfang

Vælg mellem 16:9 Pillar Box, 16:9 Pan&Scan, 4:3 Letter Box, 4:3 Pan&Scan, 4:3 Full, 16:9 Wide Screen og Auto.

2.2 Opløsning

3.3 Land

4.2 Landområde

5.1 OSD-sprog

6.3 Gendan fabriksindstillinger

6.5.1 OTA-opgradering

• Music
• Photo
• Movie
• PVR

7.1.4 PVR

7.4 PVR-konfigurering

8. Hotkey

8.1 Tal

1 fjernkontroll 2x AAA-batterier 1 brukerveiledning

Generelt om drift:

1. Program:

1.1 Programendring

Velg by service ID, LCN, ONID eller service name.

1.4 LCN

2. Bilde

• Aspect Ratio
• Resolution
• TV Format
• Video Output

2.1 Bildeformat

Velg mellom 16:9 Pillar Box, 16:9 Pan&Scan, 4:3 Letter Box, 4:3 Pan&Scan, 4:3 Full, 16:9 Wide Screen og Auto.

2.2 Oppløsning

Velg mellom 1080i, 1080p, 576i, 576p, 480i og 720p.

2.3 TV-format

3.1 Automatisk søk

3.3 Land

4.2 Land

6.2 Angi passord

6.3 Gjenopprette fabrikkinnstillinger

6.5.1 OTA-oppgradering

6.5.2 USB-oppgradering

• Music
• Photo
• Movie
• PVR

7.1.1 Musikk

7.1.3 Film

8. Snarveier

8.1 Tall

8.14 Undertekst

1. Program:

1.3 SORT

• Aspect Ratio
• Resolution
• TV Format
• Video Output

3.3 Country (Страна)

5. Option (Опция)

• Music
• Photo
• Movie
• PVR

8.8 OK

1. Program:

1.2 EPG

2. Resim

3.1 Otomatik arama

3.3 Ülke

5.1 OSD dili

6.2 Şifre belirleme

6.5.1 OTA güncellemesi

7.1.2 Fotoğraf

7.1.3 Film

7.1.4 PVR

8. Kısayol tuşu

8.1 Numara
