USER MANUAL SGM1011 Ferm

Fig. A
    note bottom of B "Fig. E Fig. F"

Line drawing of various cleaning and assembly components including spray gun, bulb, and safety helmet (no text or symbols)

HIGH VOLUME, LOW PRESSURE (HVLP) TYPE PAINT SPRAY SYSTEM

Thank you for buying this Ferm product.

By doing so you now have an excellent product, delivered by one of Europe's leading suppliers.

All products delivered to you by Ferm are manufactured according to the highest standards of performance and safety. As part of our philosophy we also provide an excellent customer service, backed by our comprehensive warranty. We hope you will enjoy using this product for many years to come.

The numbers in the following text refer to the pictures on page 2-3

Read the operating instructions carefully before using this device. Familiarise yourself with its functions and basic operation. Service the device as per the instructions to ensure that it always functions properly. The operating instructions and the accompanying documentation must be kept in the vicinity of the device.

Contents

1. Technical specifications
2. Safety instructions
3. Operating instructions
4. Maintenance

1. Technical specifications

Voltage 230 V\~

Frequency 50 Hz

Power input 350 W

Maximum nozzle flow rate 280 ml/min

Maximum viscosity 40 DIN/sec

Container capacity 700 ml

Nozzle diameter 1.8 mm

Weight 2.5 kg

Lpa (Sound pressure level) 83 + 3 dB(A)

Lwa (Sound power level) 96 + 3 dB(A)

Vibration <2.5 m/s ^4

Check the machine, loose parts and accessories for transport damage.

Vibration level

The vibration emission level stated in this instruction manual has been measured in accordance with a standardised test given in EN 60745; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned

• using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level
- the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level

Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

Product information

Fig. A

1. Nozzle
2. Trigger
3. Output control
4. Air hose
5. Air filter
6. On/Off switch
7. Paint container

2. Safety instructions

Explanation of symbols

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Denotes risk of electric shock.

Wear protective gloves.

Wear a dust mask.

Wear eye protection.

Additional safety instructions

• Never spray at persons - Never aim the nozzle at another person or animal. Never allow the spray to come into direct contact with the skin.
• Flash point - This spray gun must not be used for spraying flammable paints and solvents with a flash point of less than 55 °C
• Ventilation - Always make sure that there is adequate ventilation in the work area when spraying.
• Basket nozzle - Always keep the spray basket nozzle in place during use.
• Consider work area environment - Do not use spray guns where there is a risk of fire or explosion.
• Beware of any hazard - Beware of any Hazard by the material being sprayed and consult the markings on the container or the information supplied by the manufacturer.
• Do not spray - Do not spray any material where the hazard is not known.
• Use eye protection - Always use appropriate eye protection to keep hazardous vapours or fumes out of the eyes.
• Wear a mask - Never operate a spray gun without wearing a face mask.
• Protect your ears - Wear ear protectors if the sound pressure exceeds 85 dB(A).
• Maintain your tools - Keep your spray gun, paint container and nozzles clean. Do not clean with flammable liquids with a flash point less than 55 °C Inspect the mains lead periodically and if damaged have it replaced by a qualified person.
• Naked flames - Never spray near a naked flame or appliance pilot flame.
• Smoking - Never smoke whilst spraying.
• Thinning - Always read the paint manufacturers thinning recommendations or instructions before using paint or other materials.
• Disconnect from the mains supply - Always disconnect from the mains supply when filling the paint container or cleaning the spray gun.
• Switch off when not spraying - Avoid running the unit with the flow rate knob fully closed for any length of time.

We accept no responsibility for damage caused by the use of unsuitable substances, or paints that have not been thinned correctly, and any health hazards

that arise from lack of adequate ventilation.

Immediately switch off the spray gun when:

• Interruption in the mains plug, mains lead or mains lead damage.
• Defect switch.
  • Smoke or stench of scorched isolation

Electrical safety

When using electric tools, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury. Read all these instructions before attempting to operate this product and save these instructions.

Always check that the mains voltage corresponds to the voltage on the rating plate.

Class II machine. Your machine is double insulated; therefore no earthwire is required.

Replacing cables or plugs

Immediately throw away old cables or plugs when they have been replaced by new ones. It is dangerous to insert the plug of a loose cable in the wall outlet.

Using extension cables

Only use an approved extension cable suitable for the power input of the machine. The minimum conductor size is 1.5 mm^2 . When using a cable reel always unwind the reel completely.

3. Operating instructions

Preparation

Fig. B

Do not use textured wall paints or coatings as this will block the nozzle.

To obtain the best results, it is important that you prepare the surface to be sprayed and thin the paint to the correct viscosity, before you operate your spray gun. Always ensure that the surfaces to be sprayed are free from dust, dirt and grease. Make sure that you have masked the areas that should not be sprayed, using a good quality

masking tape. The paint or fluid to be sprayed should be thoroughly mixed and free from lumps or other particles. Many substances can be sprayed with your spray gun, but always check the manufacturers recommendations before purchasing your paint.

Thinning

Always remember to disconnect from the mains supply before filling the paint container with sprayable material.

Most paints are supplied ready for brush application and will need to be thinned before they are suitable to be sprayed. Follow the manufacturers advice on thinning the paint when used with a spray gun. The viscosity cup will help you to determine the correct viscosity of paint to be used. To determine the correct viscosity, fill the cup to the brim with the paint. Measure the amount of time it takes for the cup to empty back into the can.

The table below shows recommended times for different types of material.

Spray material Viscosity (seconds)

Alkyd/Oil based primers from 25 to 40

Alkyd/Oil based farnish from 15 to 40

Acryl/Water based primers from 25 to 40

Acryl/Water based farnish from 20 to 35

Impregnation solvents for wood, paint removers, oils undiluted

Disinfectant, insectides undiluted

Car paint from 20 to 35

This tool is not suitable for spraying dispersions and latex paint, caustic solutions, acidic coating materials, coating materials with granules or solids as well as spray and drip-impeding materials.

Mounting the air hose.

• Insert the air hose (4) tightly in the connection on the machine.
• Insert the air hose (4) tightly in the connection on the spray gun.

Switch on/off

- Push the on/off switch (6) on the machine to switch the machine off or on.

- Press the trigger on the air gun to start spraying.

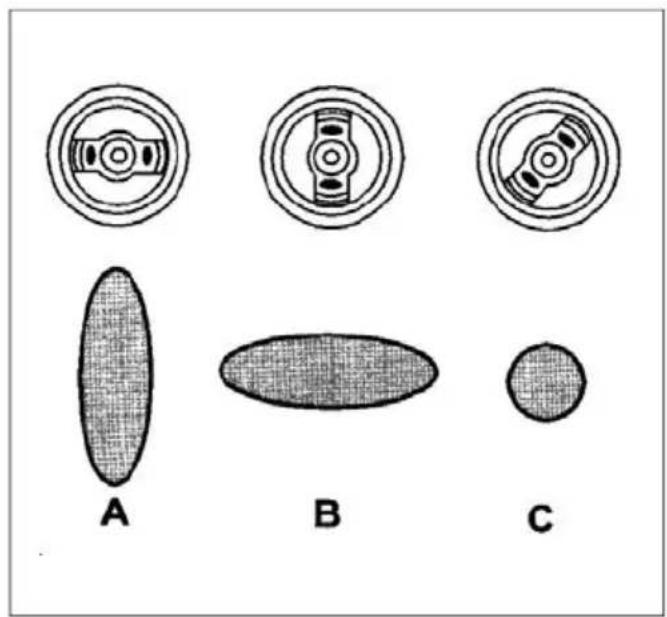

Adjusting the jet settings

Fig. F

A. Horizontal flat jet. This setting is used for horizontal surfaces
B. Vertical flat jet. This setting is used for vertical surfaces
C. Circular jet. This setting is used for corners, edges and hard to reach surfaces.

If the paint takes longer than the recommended time to empty, then further thinning is required. Mix in a small quantity of the appropriate thinner and use the viscosity test until the correct thickness is achieved. Some sprayable materials contain particles and lumps. These materials should be strained before filling the paint container.

Spraying

Fig. C

Fill the paint container with the correctly thinned and strained paint. Connect the spray gun to the mains supply. Aim the spray gun at a piece of scrap material and operate the trigger switch until paint is spraying. Adjust the output control (2) until the required volume of paint is spraying. Turn the output control in a clockwise direction (B) to reduce the flow and anti-clockwise (A) to increase the flow. Adjustment of the output control will affect the spray pattern. A poor spray pattern will concentrate the paint in the centre of the spray and give a blotchy finish. A good spray pattern will give even distribution of paint throughout the pattern.

Spraying techniques

Fig. D

To obtain the best results, keep your spray gun level and parallel to the surface at all times. Keep the nozzle 25 - 30 cm from the surface and spray evenly from side to side or up and down. Do not spray at an angle as this will lead to paint runs on the surface. Use smooth and even strokes. When spraying large areas, use a criss-cross pattern as shown.

Fig. E

Never start or stop the spray gun while it is aimed at the surface to be sprayed. Evenly control the speed of movement of the spray gun. A fast speed of movement over the surface will give a thin coat

and a slow speed will give a heavy coat. Apply one coat at a time. If a further coat is required, make sure you observe the manufacturers drying time recommendations before applying a second coat. When spraying small areas, keep the output control on a low setting. This will avoid using too much paint and prevent overspray. Where possible, avoid stopping and starting when spraying an object. This can lead to too much, or not enough paint being applied. Do not tip the spray gun to more than 45^ .

4. Maintenance

Make sure that the machine is not live when carrying out maintenance work on the motor.

This machine has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper machine care and regular cleaning.

Troubleshooting

1. Motor hums but does not spray or irregular spraying

• Worn swirl head.
• Replace swirl head.
• Pick up pipe not in the right position.
  • Re-adjust pick up pipe.
• Blocked pick up pipe.
• Clean with thinner.
• Blocked nozzle.
• Clean nozzle.
• Blocked filter.
• Clean with thinner.
  • Control knob needs adjustment.
• Adjust.

2. Atomization is not good

• Volume adjustment is not correct.
- Adjust.
- Paint too thick.
• Check viscosity of the paint.

3. Over painting

• Too much paint.
• Adjust the volume clockwise to reduce spraying. Two thin coats are better then one thick coat.
• Viscosity too low.

- Check viscosity.

4. Motor louder than normal

• Spray gun not clean, or not lubricated, resulting in piston being stuck in cylinder.
  • Disassemble spray gun and clean with thinner.

5. No spray, no sound

- No electricity.

- Check power supply.

6. Operating sound not right

• Poor output adjustment.
- Re-adjust.
- Not enough paint in the container resulting in air being sucked in.
- Refill with paint.
- Not diluting properly or not passing pick up pipe completely.
• Check pick up pipe and viscosity level.

7. "Orange Skin" excessive fogging

• Incorrect solvent is used.
• Use correct solvent.
• Spray gun too far from the surface.
• Hold spray gun closer to the object.
- Paint too thick.
- Thin the paint.

Cleaning and maintenance

Fig. G

Always remember to disconnect from the mains supply before cleaning the spray gun or paint container.

It is essential that the spray gun is cleaned thoroughly after every use. Failure to clean will almost certainly result in blockages and the spray gun might not operate next time it is being used. The warranty does not cover malfunction due to failure to clean the spray gun properly.

The following actions must be taken after every use and if the spray gun is not going to be used for a longer period. Not taking the following actions can cause the paint to dry;

• Switch off the machine.
• Press the trigger so the paint will flow back in the container.
  • Unscrew the container and pour the paint

back in the paint box.

• Remove the paint residu from the container, using a brush or cloth.
• Pour solvent or water, depending on the type of paint used, in the container and screw it back on the spray gun. WARNING: Only use solvents with a flash point less than 55°C.
• Switch the machine on.
• Press the trigger and spray until only clean water or solvent is coming out of the nozzle.
• Switch off the machine.
• Unscrew and dry the container. Make sure also to clean and dry the surface and the seal. Make sure there is no paint residu left.
• Wipe the exterior of the spray gun with a cloth dampened with water or solvent.
• Unscrew the nut and dismantle the nozzle. Clean all part thoroughly in water or solvent. Do not use sharp metal objects for cleaning!
  • Re-assemble the spray gun.

Changing the air filter.

• Remove the cover by lifting it with a screwdriver.
• Remove the old air filter.
• Place the new filter with the smooth side towards the machine.
• Place the cover back onto the machine.

Never operate the machine without the air filter installed. Dirt could enter the machine and interfere with the function of the machine.

Lubrication

The device does not need any additional lubrication.

Defects

If a defect appears due to a part wearing out, please contact the service center on the warranty card. At the end of these instructions there is an exhaustive overview of the parts that can be ordered.

Environment

To prevent damage during transport, the appliance is delivered in a solid packaging which consists largely of reusable material. Therefore please make use of options for recycling the packaging.

Damaged and/or disposed of electrical or electronic devices must be dropped off at recycling stations intended for that purpose.

Warranty

Read the warranty conditions on the separately supplied warranty card.

The product and the user manual are subject to change. Specifications can be changed without further notice.

FARBSPRÜHSYSTEM MIT HOHEM VOLUMEN UND NIEDRIGEM DRUCK

- Tilstoppet filter.

• Rens med fortynder.

No. Description Position

105045 Nozzle assembly A4 TILL A7

105046 Reservoir assembly A1 TILL A3

105047 Valve assembly A8 TILLA9

105048 Trigger A20

Spare parts list B

105049 Filter B4

105050 On/off Switch B8

105051 Hose assembly B17 TILL B19

105052 Hose connector B11

Exploded view A

Exploded view B

CE

DECLARATION OF CONFORMITY

PAINT SPRAY SYSTEM, SGM1011

(GB) We declare under our sole responsibility that this product is in conformity and accordance with the following standards and regulations:
(DE) Der Hersteller erklärt eigenverantwortlich, dass dieses Produkt den folgenden Standards und Vorschriften entspricht:
(NL) Wij verklaren onder onze volledige verantwoordelijkheid dat dit product voldoet aan, en in overeenstem ming is met, de volgende standaarden en reguleringen:
(FR) Nous déclarons sous notre seule responsabilité que ce produit est conforme aux standards et directives suivants:
(ES) Declaramos bajo nuestra exclusiva responsabilidad que este producto cumple con las siguientes normas y estándares de funcionamiento:
(PT) Declaramos por nossa total responsabilida-de que este produto está em conformidade e cumpre as normas e regulamentações que se seguem:
(IT) Dichiariamo, sotto la nostra responsabilità, che questo prodotto è conforme alle normative e ai regolamenti seguenti:
(SV) Vi garanterar på eget ansvar att denna produkt uppfyller och följer följande standarder och bestämmelser:
(FI) Vakuutamme yksinomaan omalla vastuullamme, että tämä tuote täyttää seuraavat standardit ja säädökset:
(NO) Vi erklærer under vårt eget ansvar at dette produktet er i samsvar med følgende standarder og regler:
(DA) Vi erklærer under eget ansvar, at dette produkt er i overensstemmelse med følgende standarder og bestemmelser:
(HU) Felelősségünk teljes tudatában kijelentjük, hogy ez a termék teljes mértékben megfelel az alábbi szabványoknak és előírásoknak:
(CS) Na naši vlastní zodpovědnost prohlašujeme, že je tento výrobek v souladu s následujícími standardy a normami:

(SK) Vyhlasujeme na našu výhradnú zodpovednosť, že tento výrobok je v zhode a súlade s nasledujúcimi normami a predpismi:
(SL) S polno odgovornostjo izjavljamo, da je ta izdelek v skladu in da odgovarja naslednjim standardom terpredpisom:
(PL) Deklarujemy na własną odpowiedzialność, że ten produkt spełnia wymogi zawarte w następujących normach i przepisach:
(LT) Prisiimdami visą atsakomybę deklaruojame, kad śis gaminys atitinka žemiau paminėtus standartus arba nuostatus:
(LV) Apgalvojam ar visu atbildību, ka šis produkts ir saskaņā un atbilst sekojošiem standartiem un nolikumiem:
(ET) Deklareerime meie ainuvastutusel, et see toode on vastavuses ja kooskõlas järgmiste standardite ja määrustega:
(RO) Declarăm prin aceasta cu răspunderea deplină că produsul acesta este în conformitate cu următoarele standarde sau directive:
(HR) Izjavljujemo pod vlastitom odgovornol,šu da je strojem ukladan sa slijedešim standardima ili standardiziranim dokumentima i u skladu sa odredbama:
(SR) Pod punom odgovornošću izjavljujemo da je usaglašen sa sledećim standardima ili normama:
(RU) Под свою ответственность заявляем, что данное изделие соответствует следующим стандартам и нормам:
(UK) На свою власну відповідальність заявляємо, що дане обладнання відповідає наступним стандартам і нормативам:
(EL) Δηλώνουμε υπεύθυνα ότι προϊόν αυτό συμφωνεί και τηρεί τους παρακάτω κανονισμο ύς και πρότυπα:
(BG) Ние заявяваме, по своя собствена отговорност, че този продукт отговаря на следните стандарти и директиви

EN 55014-1, EN 55014-2, EN 60745-1, EN50144-1, EN50144-2-7, EN 61000-3-2, EN 61000-3-3

2006/42/EC, 2006/95/EC, 2004/108/EC, 2002/96/EC, 2006/95/EC

Zwolle, 01-10-2011

I. Mönnink

CEO Ferm BV

It is our policy to continuously improve our products and we therefore reserve the right to change the product specification without prior notice.

Ferm BV • Lingenstraat 6 • 8028 PM • Zwolle The Netherlands
