USER MANUAL HP-20 DOLMAR

Black and white diagonal striped pattern with no text or symbols

A member of the Makita Group

HP-20

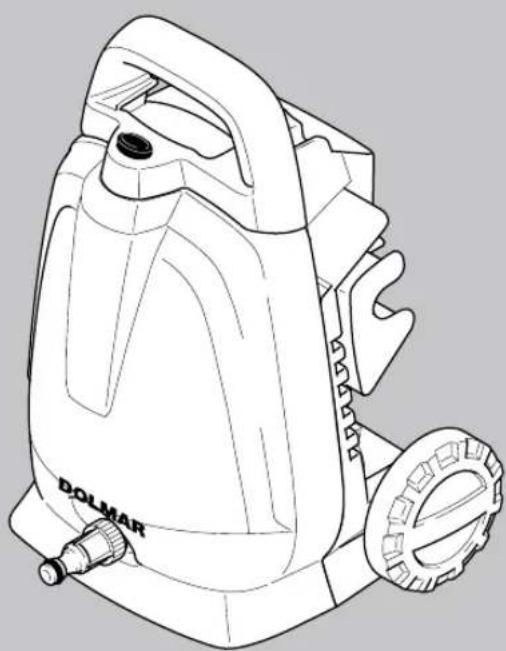

Line drawing of a Dolmar water purifier with attached pump and gear (no text or symbols)

E3 E1 !

cod. 91719 - DU

Betriebsanleitung

Original Instruction Manual

Illustration of hands using a tool to adjust or install a vehicle wheel (no text or symbols present)

Illustration of hands using a tool to adjust a mechanical component (no text or symbols present)

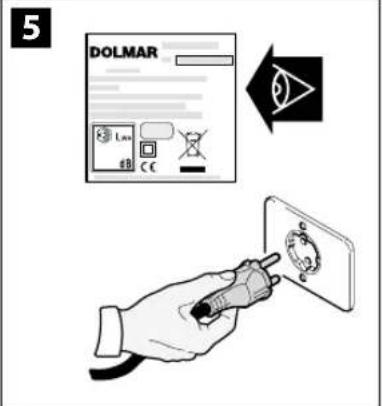

5 DOLMAR Laser dB CC ←

Two identical mechanical tool designs with threaded ends and connectors, shown in 3D rendering (no text or symbols)

Illustration of a person using a flashlight to lift a cable, showing motion and angle (no text or symbols)

Illustration of a hand operating a mechanical device with a close-up inset showing the step of adjustment (no text or symbols present)

Silhouette of a person pushing a roll-up vehicle (no text or symbols)

Technical diagram illustrating a procedure for handling a cable or plastic bottle, with labeled steps and magnified views.

Volt	1÷25m	25÷50m
230 2 x 1,5 mm	2	2 x 2,5 mm²
S L1 N S Z1 T 1~ NCNOC S1 S = Switch Z1 = Capacitor suppressor T = Thermal protection M = Motor S1 = Pressure switch

1

2 SICHERHEITSVORSCHRIFTEN/RESTGEFAHREN

2.1 WARNHINWEISE: UNZULÄSSIG

2.1.1

3 ALLGEMEINE INFORMATIONEN (ABB. 1)

5 INSTALLATION (FIG.2)

5.1 Montage

1 SAFETY INSTRUCTIONS

1.1 The appliance you have purchased is a technologically advanced product designed by one of the leading European manufacturers of high pressure pumps. To obtain the best performance from your unit, read this booklet carefully and follow the instructions each time you use it. We congratulate you on your choice and wish you successful operation.

2 SAFETY RULES/RESIDUAL RISKS

2.1 SAFETY "MUST NOTS"

2.1.1 DO NOT use the appliance with inflammable or toxic liquids, or any products which are not compatible with the correct operation of the appliance. EXPLOSION OR POISONING HAZARD

2.1.2 DO NOT direct the water jet towards people or animals, INJURY HAZARD

2.1.3 DO NOT direct the water jet towards the unit itself, electrical parts or towards other electrical equipment. ELECTRIC SHOCK HAZARD

2.1.4 DO NOT use the appliance outdoors in case of rain. SHORT CIRCUIT HAZARD

2.1.5 DO NOT allow children or incompetent persons to use the appliance. INJURY HAZARD

2.1.6 DO NOT touch the plug and/or socket with wet hands. ELECTRIC SHOCK HAZARD

2.1.7 DO NOT use the appliance if the electrical cable is damaged. ELECTRIC SHOCK AND SHORT CIRCUIT HAZARD

2.1.8 DO NOT use the appliance if the high pressure hose is damaged. EXPLOSION HAZARD

2.1.9 DO NOT jam the trigger in the operating position. ACCIDENT HAZARD

2.1.10 Check that the data plates are affixed to the appliance, if not, inform your dealer. Units without plates must NOT be used as they are unidentifiable and potentially dangerous. ACCIDENT HAZARD

2.1.11 DO NOT tamper with or adjust the setting of the safety valve or the safety devices. EXPLOSION HAZARD

2.1.12 DO NOT alter the original diameter of the spray head nozzle. HAZARDOUSALTERATION OF OPERATING PERFORMANCE

2.1.13 DO NOT leave the appliance unattended. ACCIDENT HAZARD

2.1.14 DO NOT move the appliance by pulling on the ELECTRICAL CABLE. S HORT CIRCUIT HAZARD

2.1.15 Make sure that cars do not drive over the high pressure hose.

2.1.16 DO NOT move the appliance by pulling on the high pressure hose. EXPLOSIONHAZARD

2.1.17 When directed towards tyres, tyre valves or other pressurised components, the high pressure jet is potentially dangerous. Do not use the rotating nozzle kit, and always keep the jet at a distance of at least 30 cm during cleaning. EXPLOSIONHAZARD

2.2 SAFETY "MUSTS"

2.2.1 All electrical conductors MUST BE PROTECTED against the water jet. SHORT CIRCUIT HAZARD

2.2.2 The appliance MUST ONLY BE CONNECTED to an adequate power supply in compliance with all applicable regulations (IEC 60364-1). ELECTRIC SHOCK HAZARD

The appliance may cause network noise DURING startup.

- Use of a safety residual current circuit-breaker (R.C.C.B.) will provide additional protection for the operator (30 mA).

Models supplied without plug must be installed by qualified staff. Use only authorized electrical extension leads with suitable conductor gauge.

2.2.3

High pressure may cause parts to rebound: wear all the protective clothing and equipment needed to ensure the operator's safety. INJURY HAZARD

2.2.4 Before doing work on the appliance, REMOVE the plug. ACCIDENTAL START-UP HAZARD

2.2.5 Before pressing the trigger, GRIP the gun firmly to counteract the recoil. INJURY HAZARD

2.2.6 COMPLY WITH the requirements of the local water supply company. According to EN 12729 (BA), the appliance may only be connected to the mains drinking water supply if a backflow preventer valve with drain facility is installed in the supply hose. CONTAMINATION HAZARD

2.2.7 Maintenance and/or repair of electrical components MUST be carried out by qualified staff. ACCIDENT HAZARD

2.2.8 DISCHARGE residual pressure before disconnecting the unit hose. INJURY HAZARD

2.2.9 Before using the appliance, CHECK every time that the screws are fully tightened and that there are no broken or worn parts. ACCIDENT HAZARD

2.2.10 ONLY USE detergents which will not corrode the coating materials of the high pressure hose/electrical cable. EXPLOSION AND ELECTRIC SHOCK HAZARD

2.2.11 ENSURE that all people or animals keep a minimum distance of 16 yd. (15m) away. INJURY

HAZARD

18 English

3 GENERAL INFORMATION (FIG.1)

3.1 Use of the manual

This manual forms an integral part of the appliance and should be kept for future reference. Please read it carefully before installing/ using the unit. If the appliance is sold, the Seller must pass on this manual to the new owner along with the appliance.

3.2 Delivery

The appliance is delivered partially assembled in a cardboard box. The supply package is illustrated in fig.1.

3.2.1 Documentation supplied with the appliance

A1 Use and maintenance manual

A2 Safety instructions

A3 Declaration of conformity

A4 Warranty regulations

3.3 Disposing of packaging

The packaging materials are not environmental pollutants but must still be recycled or disposed of in compliance with the relevant legislation in the country of use.

3.4 Safety signs

Comply with the instructions provided by the safety signs fitted to the appliance.

Check that they are present and legible; otherwise, fit replacements in the original positions.

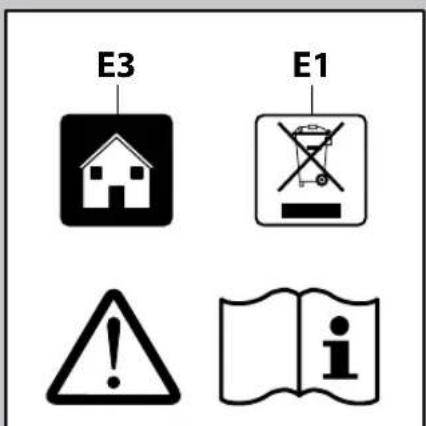

E1 sign – Indicates that the appliance must not be disposed of as municipal waste; it may be handed in to the dealer on purchase of a new appliance. The appliance's electrical and electronic parts must not be reused for improper uses since they contain substances which constitute health hazards.

3.4.1 Symbols

E2 symbol – Indicates that the appliance is intended for professional use, i.e. for experienced people informed about the relative technical, regulatory gislative aspects and capable of performing the ons necessary for the use and maintenance of the ce.

E3 symbol - Indicates that the appliance is intended for non-professional (domestic) use.

4 TECHNICAL INFORMATION (FIG.1)

4.1 Envisaged use

This appliance has been designed for individual use for the cleaning of vehicles, machines, boats, masonry, etc., to remove stubborn dirt using clean water and biodegradable chemical detergents.

Vehicle engines may be washed only if the dirty water is disposed of as per regulations in force.

- Intake water temperature: see data plate on the appliance.

- Intake water pressure: min. 0,1MPa-max 1MPa.

- Operating ambient temperature: above 0°C.

The appliance is compliant with the EN 60335-2-79/A1 standard.

4.2 Operator

The symbol on the front cover identifies the appliance's intended operator (professional or non-professional).

4.3 Improper use

Use by unskilled persons or those who have not read and understood the instructions in the manual is forbidden.

The introduction of inflammable, explosive and toxic liquids into the appliance is prohibited.

Use of the appliance in a potentially inflammable or explosive atmosphere is forbidden.

The use of non-original spare parts and any other spare parts not specifically intended for the model in question is prohibited.

All modifications to the appliance are prohibited. Any modifications made to the appliance shall render the Declaration of Conformity null and void and relieve the manufacturer of all liability under civil and criminal law.

4.4 Main components (see fig.1)

B1 Adjustable spray nozzle

B2 Lance

B3 Gun with safety catch

B4 Power supply cable with plug

B5 High pressure hose

B6 Detergent tank

4.4.1 Accessories

C1 Nozzle cleaning tool

C2 Rotating nozzle kit

C3 Handle

C4 Brush (on models with this feature)

C5 Hose reel (on models with this feature)

4.5 Safety devices

Caution - Danger!

Do not tamper with or adjust the safety valve setting.

Safety valve and/or pressure limiting valve.

The safety valve is also a pressure limiting valve.

When the gun trigger is released, the valve opens and the water recirculates through the pump inlet.

- Safety catch (D): prevents accidental spraying of water.

5 INSTALLATION (FIG.2)

5.1 Assembly

Caution - Danger!

All installation and assembly operations must be formed with the appliance disconnected from the mains supply.

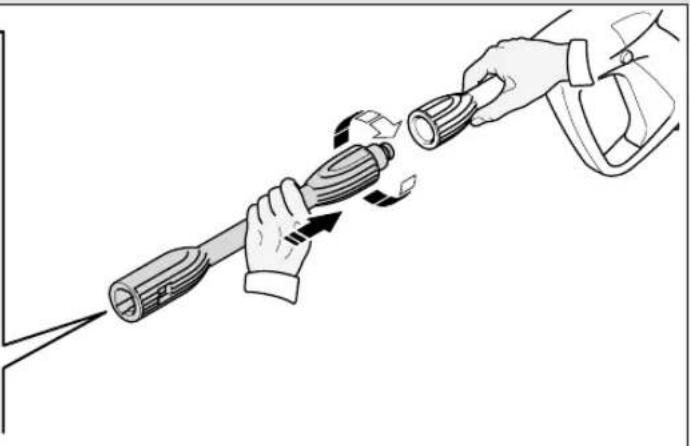

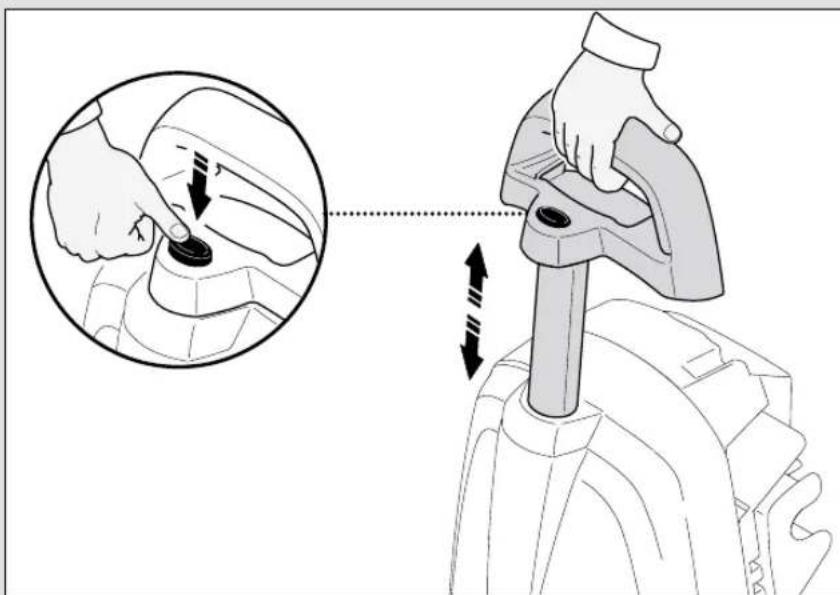

The assembly sequence is illustrated in fig.2.

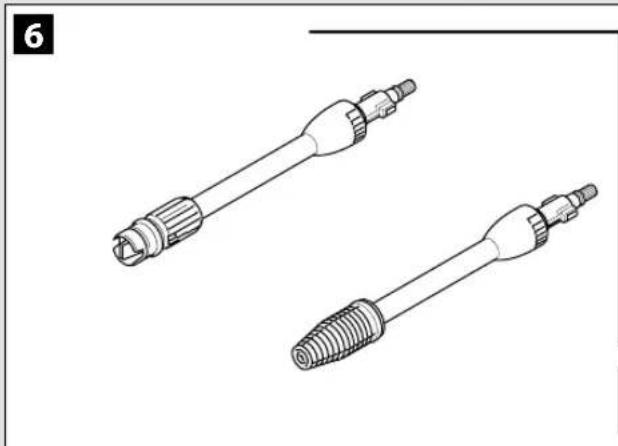

5.2 Assembling the rotating nozzle

(For models with this feature)

The rotating nozzle kit delivers greater washing power.

Use of the rotating nozzle may cause of reduction in pressure of 25% compared to the pressure obtained with the adjustable nozzle. However, the rotating nozzle kit delivers greater washing power due to the rotation of the water jet.

5.3 Electrical connection

Caution - Danger!

Check that the electrical supply voltage and frequen-Hz) correspond to those specified on the appliance plate (fig.2). The appliance should only be connected mains power supply equipped with an adequate earth section and a differential security breaker (30 mA) to cut the electricity supply in the instance of a short circuit.

5.3.1 Use of extension cables

Use cables and plugs featuring "IPX5" protection level.

The cross-section of the extension cable should be proportionate to its length; the longer it is, the greater its cross-section should be. See table I.

5.4 Water supply connection

Caution - Danger!

Only clean or filtered water should be used for intake.

The delivery of the water intake tap should be equal to that of pump capacity.

Place the appliance as close to the water supply system as possible.

5.4.1 Connection points

● Water outlet (OUTLET)

■ Water inlet with filter (INLET)

5.4.2 Connection to the mains water supply

The appliance can be connected directly to the mains drinking water supply only if the supply hose is fitted with a backflow preventer valve as per current regulations in force. Make sure that the hose is at least 13 mm and that it is reinforced.

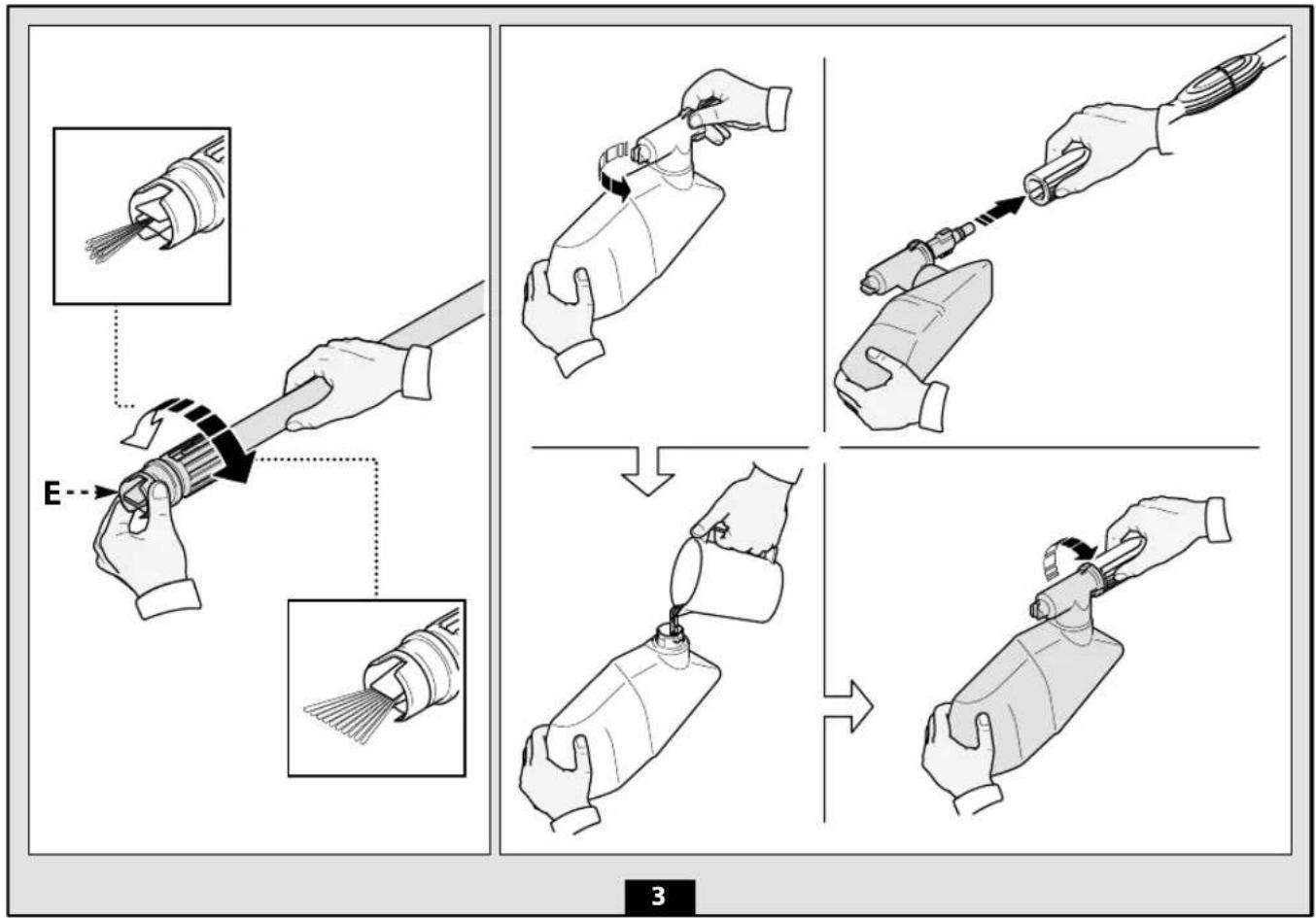

6 ADJUSTMENT INFORMATION (FIG.3)

6.1 Adjusting the spray nozzle (for models with this feature) Water flow is adjusted by regulating the nozzle (E).
6.2 Adjusting the detergent (on models with this feature) Detergent flow is adjusted using the regulator (F).

6.3 Adjusting the detergent pressure

Set the adjustable nozzle (E) on "—" to deliver detergent at the correct pressure (on models with this feature).

6.4 Adjusting the pressure (on models with this feature)

The regulator (G) is used to adjust the working pressure. The pressure is shown on the pressure gauge (where fitted).

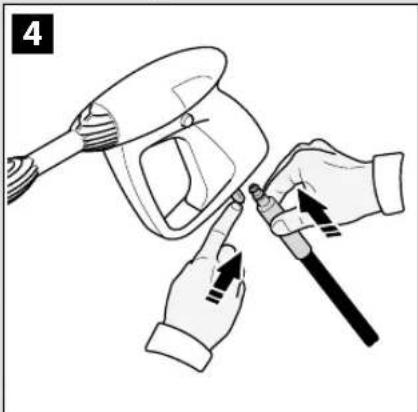

7 INFORMATION ON USE OF THE APPLIANCE (FIG.4)

7.1 Controls

- Starter device (H).

Set the starter switch on (ON/1) to set the motor ready to start.

Set the starter device switch on (OFF/0) to shut down the appliance.

- Water jet control lever (I).

Caution - Danger!

During operation the appliance must be positioned down in fig. 4 on a sturdy, stable surface.

7.2 Start-up

1) Turn on the water supply tap fully.

2) Release the safety catch (D).
3) Depress the gun trigger for a few seconds and start up the appliance using the starter device (ON/1).

Caution - Danger!

Before starting up the appliance check that the water supply hose is connected properly; use of the appliance without water will damage it; do not cover the ventilation grilles when the appliance is in use.

TSS models - In TSS models with automatic delivery flow cut-off system:

• when the gun trigger is released the dynamic pressure automatically cuts out the motor (see fig.4);
• when the gun trigger is depressed the automatic drop in pressure starts the motor and the pressure is restored after a very slight delay;
• if the TSS is to function correctly all gun releasing and depressing operations must be performed at intervals of less than 4-5 seconds.

To prevent damage to the appliance, do not allow it to operate dry.

7.3 Stopping the appliance

1) Set the starter device switch on (OFF/0).
2) Depress the gun trigger and discharge the residual pressure inside the hoses.
3) Engage the gun safety catch (D).

7.4 Restarting

1) Release the safety catch (D).
2) Depress the gun trigger and discharge the residual air inside the hoses.
3) Set the starter device on (ON/1).

7.5 Storage

1) Switch the appliance off (OFF/0).
2) Remove the plug from the socket.
3) Turn off the water supply tap.
4) Discharge the residual pressure from the gun until all the water has come out of the nozzle.
5) Drain and wash out the detergent tank at the end of the working session. To wash out the tank, use clean water instead of the detergent.
6) Engage the gun safety catch (D).

7.6 Refilling and using detergent

When using detergent, the adjustable nozzle must be set on

" (on models with this feature).

Use of a high pressure hose longer than the one originally supplied with the cleaner, or the use of an additional hose extension, may reduce or completely halt the intake of detergent.

Fill the tank with highly degradable detergent.

7.7 Recommended cleaning procedure

Dissolve dirt by applying the detergent mixed with water to the surface while still dry.

When dealing with vertical surfaces work from the bottom upwards. Leave the detergent to act for 1-2 minutes but do not allow the surface to dry. Starting from the bottom, use the high pressure jet at a minimum distance of 30 cm. Do not allow the rinse water to run onto unwashed surfaces.

In some cases, scrubbing with brushes is needed to remove dirt.

High pressure is not always the best solution for good washing results, since it may damage some surfaces. The finest adjustable nozzle jet setting or the rotating nozzle should not be used on delicate or painted parts, or on pressurised components (e.g. tyres, inflation valves, etc.).

Effective washing depends on both the pressure and volume of the water used, to the same degree.

8 MAINTENANCE (FIG.5)

Any maintenance operations not covered by this chapter should be carried out by an Authorized Sales and Service Centre.

Caution - Danger!

Always disconnect the plug from the power socket to be carrying out any work on the appliance.

8.1 Cleaning the nozzle

1) Disconnect the lance from the nozzle.
2) Remove any dirt deposits from the nozzle hole using the tool (C1).

8.2 Cleaning the filter

Inspect the intake filter (L) and detergent filter (if fitted) before each use, and clean in accordance with the instructions if necessary.

8.3 Unjamming the motor (on models with this feature)

In case of lengthy stoppages, limescale sediments may cause the motor to seize. To unjam the motor, turn the drive shaft with a tool (M).

8.4 End-of-season storage

Treat the appliance with non-corrosive, non-toxic antifreeze before storing it away for winter.

Put the appliance in a dry place, protected from frost.

9 TROUBLESHOOTING

Problem Possible causes	Remedy
Pump does not reach working pressure	Nozzle worn Replace nozzle
	Water filter fouled Clean filter (L) (fig.5)
	Water supply pressure low Turn on water supply tap fully
	Air being sucked into system Check tightness of hose fittings
	Air in pump	Switch off the appliance and keep depressing and releasing the gun trigger until the water comes out in a steady flow. Switch the appliance back on again.
	Adjustable nozzle not positioned correctly	Turn the adjustable nozzle (E) (+) (fig.3)
	Thermostatic valve tripped Wait for correct water temperature to be restored
Pressure drops during use	Water intake from external tank Connect appliance to the mains water supply
	Intake water too hot Reduce temperature
	Nozzle clogged Clean nozzle (fig.5)
	Intake filter (L) dirty Clean filter (L) (fig.5)
Motor "sounds" but fails to start	Insufficient power supply	Check that the voltage of the mains power supply line is the same as that on the plate (fig.2)
	Voltage loss due to use of extension cable	Check characteristics of extension cable
	Appliance not used for a long period of time	Contact your nearest Authorized Service Centre
	Problems with TSS device	Contact your nearest Authorized Service Centre
Motor fails to start	No electrical power	Check that the plug is firmly in the socket and that the mains voltage supply is present (*)
	Problems with TSS device	Contact your nearest Authorized Service Centre
	Appliance not used for a long period of time	Using the tool (M) unjam the motor from the hole at the rear of the appliance (in models with this feature) (fig.5)
Water leakage	Seals worn	Have the seals replaced at your nearest Authorized Service Centre
	Safety valve tripped and discharging	Contact an Authorized Service Centre
Appliance noisy	Water too hot	Reduce temperature (see technical data
Oil leakage	Seals worn	Contact your nearest Authorized Service Centre
TSS versions only: motor starts even with gun trigger is released	High pressure system or pump hydraulic circuit not watertight	Contact your nearest Authorized Service Centre
TSS versions only: no water delivery when gun trigger is depressed (with supply hose connected)	Nozzle clogged Clean nozzle (fig.5)
No detergent taken in	Adjustable nozzle on high pressure setting	Set nozzle on "■" setting (fig.3)
	Detergent too dense	Dilute with water
	High pressure hose extension being used	Fit original hose
	Deposits or restriction in detergent circuit	Flush with clean water and eliminate any restrictions. If the problem persists, contact an Authorized Service Centre

(*) If the motor starts and does not restart during operation, wait 2-3 minutes before repeating the start-up procedure (overload cutout has been tripped). If the problem recurs more than once, contact your nearest Authorized Service Centre.

Technical Data (EN) Unit		HP-20
Output	l/min	6
Pressure	MPa	7
Maximum pressure	MPa	10
Power	kW	1,3
T° input	°C	50
Maximum input pressure	MPa	1
Repulsive force of the gun to the maximum pressure	N	9,63
Motor Insulation	-	Class F
Motor Protection	-	IPX5
Voltage	V/Hz	230/50
Maximum allowed net impedance	Ω	-
Sound level (K = 3 dB(A)) : L_RA (EN 60704-1) L_WA (EN 60704-1)	dB (A) 85,74dB (A) 94
Unit vibrations (K = 1,5 m/s2):	m/s2	3,72
Weight	kg	5,8

MODEL SERIAL NUMBER

DOLMAR S/N. xxxxxxxxxxxxx HP XXXX xxx V xx Hz kW x.x IP X5 xxx l/h xx bar Max xxx bar max xx°C (x Mpa) (Max xx Mpa) P IN Max xx bar (x Mpa) LWA XX CE DOLMAR GmbH - Hamburg, Germany

EN EC Declaration of conformity

We, the undersigned, Tamiro Kishima and Rainer Bergfeld, authorised by DOLMAR GmbH, hereby declare that the DOLMAR brand appliance:

Model: HP-20 power-jet cleaner

produced by DOLMAR GmbH, Jenfelder Str. 38, D-22045 Hamburg, complies with the health and safety requirements of the relevant EU directives: machinery directive 2006/42/EC; electromagnetic compatibility directive 2004/108/EC; noise emission directive 2000/14/EC.

To comply in full with the requirements of these EU standards, the following standards have been taken as benchmarks: EN 60335-1, EN 60335-2-79, EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3, EN 61000-3-11, EN 60704-1.

The procedure for assessment of conformity with 2000/14/EC was carried out in accordance with Annex V.

The measured sound-power level ( L_wA ) is 93 dB(A);

The guaranteed sound-power level (Ld) is 94 dB(A).

The technical documentation is held by DOLMAR GmbH, Jenfelder Straße 38, Abteilung FZ, D-22045 HAMBURG.

Hamburg, 28/12/2010

For DOLMAR GmbH

Tamiro Kishima

Director

Rainer Bergfeld

Director

22 Italiano

1 ISTRUZIONI PER LA SICUREZZA

B1 Cabezal regulable

B2 Lanza

5 INSTALLATION (FIG. 2)

5.1 Montering

Advarsel - fare!

8 VEDLIKEHOLD (FIG. 5)

4 TEKNISET TIEDOT (KUVA 1)

4.1 Käyttötarkoitus

3 ALLMÄN INFORMATION (FIG. 1)

5 INSTALLATION (FIG. 2)

5.1 Montering

Varning - fara!

2.1 ZAKÁZANÉ ČINNOSTI

2.2 POVINNÉ ČINNOSTI

5 INSTALACE (OBR. 2)

5.1 Montáž

7 INFORMACE O POUŽITÍ PŘÍSTROJE (OBR. 4)

7.1 Ovládací prvky

Startér (H)

Six black-and-white warning symbols including a warning sign, pictogram, walking figure, helmet, hand gesture, and face mask.

Six black-and-white warning symbols including a warning sign, pictogram, walking figure, helmet, hand gesture, and eyewear.

5 INSTALAREA (FIG.2)

5.1 Asamblarea

Atentie - Pericol!

6 AYARLAMALAR (RES.3)
