| Product Type | Cordless Hedge Trimmer |
| Brand | Bosch |
| Model | AHS 35-15 Li |
| Cutting Length | 350 mm |
| Tooth Spacing | 15 mm |
| No-load Stroke Rate | 2400 strokes/min |
| Weight | 1.9 kg (according to EPTA 01/2003) |
| Power Supply | 10.8V Lithium-Ion Battery |
| Battery Capacity | 2.0 Ah |
| Compatible Charger | Bosch AL 1130 CV or AL 1115 CV |
| Charging Time (AL 1130 CV) | 45 min |
| Charging Time (AL 1115 CV) | 80 min |
| Sound Pressure Level | 67 dB(A) |
| Sound Intensity Level | 87 dB(A) |
| Vibrations (a_h) | < 2.5 m/s², K = 1.5 m/s² |
| Anti-Block Function | Yes, automatic reverse rotation |
| Battery Protection | Electronic Cell Protection (ECP) against deep discharge |
| Blade Maintenance | Lubricate the blade bar before each use |
| Safety | Automatic shutdown in case of overload; double insulation of charger (class II) |
| Intended Use | Cutting and trimming hedges and shrubs in domestic gardens |
Frequently Asked Questions - AHS 35-15 Li BOSCH
User questions about AHS 35-15 Li BOSCH
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Hedge Trimmers in PDF format for free! Find your manual AHS 35-15 Li - BOSCH and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. AHS 35-15 Li by BOSCH.
USER MANUAL AHS 35-15 Li BOSCH
ORJ_DOKU-30867-004.fm Page 1 Wednesday, September 23, 2015 10:56 AM
Power Tools Division
70764 Leinfelden-Echterdingen
GERMANY
www.bosch-garden.com
F016 LB1 269 (2015.09) 0/755 EURO
AHS
45-15 LI|35-15 LI|350 LI
BOSCH
no original British instructors
- A partial mass object
el Pruotótno obryuyn xphnq
K. Hapajana FcCytreatment,
1
ro Instructiuni originale
It is still instruction
2|
Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY Leinfelden, 23.09.2015
Montage und Betrieb
www.bosch-garden.com
Explanation of symbols
Read instruction manual.
Do not expose to rain.
Remove battery before adjusting or cleaning, and before leaving the machine unattended for any period.
General Power Tool Safety Warnings
WARNING Read all safety warnings and all instructions. Failure to follow the warnings and uctions may result in electric shock, fire and/or serious y.
Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
Work area safety
- Keep work area clean and well lit. Cluttered or dark areas invite accidents.
▶ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. - Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
Electrical safety
▶ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
▶ Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
▶ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
▶ Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase the risk of electric shock.
- When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
12 | English
▶ If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
Personal safety
Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
▶ Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
▶ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
▶ Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
▶ Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
Power tool use and care
▶ Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
▶ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
▶ Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
▶ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
▶ Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
▶ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
Battery tool use and care
▶ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
▶ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
▶ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
Service
▶ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
Hedge trimmer safety warnings
▶ Keep all parts of the body away from the cutter blade. Do not remove cut material or hold material to be cut when blades are moving. Make sure the switch is off when clearing jammed material. A moment of inattention while operating the hedge trimmer may result in serious personal injury.
Carry the hedge trimmer by the handle with the cutter blade stopped. When transporting or storing the hedge trimmer always fit the cutting device cover. Proper handling of the hedge trimmer will reduce possible personal injury from the cutter blades.
Hold power tool by insulated gripping surfaces only, because the cutter blade may contact hidden wiring. Cutter blades contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
Additional safety warnings
This tool is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
English | 13
When working with the machine, always hold it firmly with both hands and provide for a secure stance. The power tool is guided more secure with both hands.
▶ Wait until the machine has come to a standstill before placing it down.
▶ Other persons and animals should remain at a distance of 3 metres or more when the machine is being used. The operator is responsible for third persons in the working area.
▶ Never grasp the blade of the hedgecutter.
Children or persons unfamiliar with these instructions must not operate the hedgecutter. Local regulations may restrict the age of the operator.
▶ Never cut a hedge while people, especially children or pets, are nearby.
The operator or user is responsible for accidents or hazards occurring to other people or their property.
Do not operate the hedgecutter when barefoot or wearing open sandals, always wear substantial footwear and long trousers. The use of sturdy gloves, non-skid footwear and safety glasses is recommended. Do not wear loose clothing or jewellery which can be caught in moving parts.
▶ Thoroughly inspect the area where the hedge trimmer is to be used and remove all wires and other foreign objects.
▶ Prior to operation, check cutter blades, blade bolts and cutter assembly for wear or damage. Do not operate with a damaged or excessively worn cutting device.
▶ Know how to stop the hedge trimmer quickly in an emergency.
▶ Cut a hedge only in daylight or in good artificial light.
▶ Never operate the hedgecutter with defective guards or without the guard in place.
▶ Always ensure all handles and guards supplied are fitted when using the hedgecutter. Never attempt to use an incomplete hedgecutter or one with an unauthorised modification.
▶ Never hold the hedgecutter by the guard.
▶ While operating the hedgecutter always be sure of a safe and secure operating position at all times, especially when using steps or a ladder.
▶ Always be aware of your surroundings and stay alert for possible hazards that you may not hear whilst operating the hedgecutter.
- Keep all nuts, bolts and screws tight to ensure that the hedgecutter is always in a safe working condition.
The hedgecutter should be stored in a dry, high or locked up place out of the reach of children.
▶ Replace worn or damaged parts for safety.
▶ Do not attempt to repair the machine unless you are qualified to do so.
▶ Ensure replacement parts fitted are Bosch approved.
Recommendations for Optimal Handling of the Battery

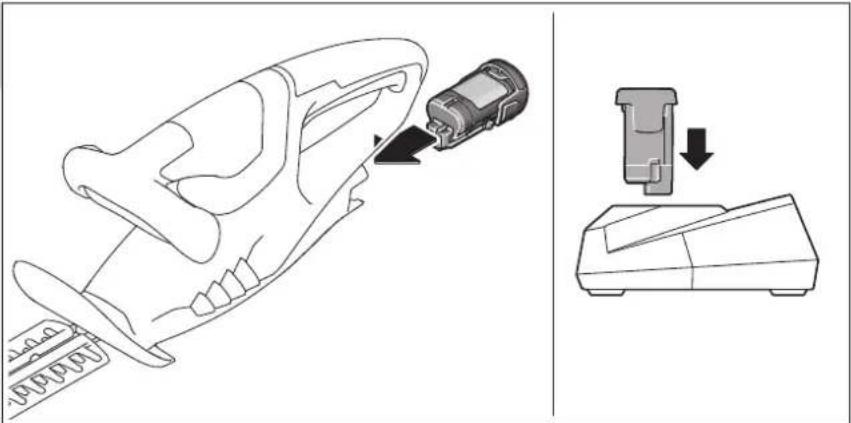

▶ Ensure the switch is in the off position before inserting battery pack. Inserting the battery pack into machines that have the switch on can cause accidents.
▶ Use only Bosch battery packs intended specifically for the machine. Use of any other battery packs may create a risk of injury and fire.
▶ Do not open the battery. Danger of short-circuiting.
Protect the battery against heat, e. g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion.
In case of damage and improper use of the battery, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system.
▶ Use the battery only in conjunction with your Bosch product. This measure alone protects the battery against dangerous overload.
The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit can occur and the battery can burn, smoke, explode or overheat.
▶ Do not short-circuit the battery. There is danger of explosion.
▶ Protect the battery against moisture and water.
- Store the battery only within a temperature range between -20^ and 50^ . As an example, do not leave the battery in the car in summer.
▶ Occasionally clean the venting slots of the battery using a soft, clean and dry brush.
Safety Warnings for Battery Chargers
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in elec-k, fire and/or serious injury.
Save these instructions.
Use the battery charger only when you fully understand and can perform all functions without limitation, or have received appropriate instructions.
This charger is not intended for use by children and persons with physical, sensory or mental limitations or a lack of experience or knowledge. This charger can be used by children aged 8 and by persons who have physical, sensory or mental
14 | English
limitations or a lack of experience or knowledge if a person responsible for their safety supervises them or has instructed them in the safe operation of the charger and they understand the associated dangers.
Otherwise, there is a danger of operating errors and injuries.
▶ Supervise children during use, cleaning and maintenance. This will ensure that children do not play with the charger.
▶ Only charge Bosch lithium-ion batteries with a capacity of 2.0 Ah or more (3 battery cells or more). The battery voltage must match the battery charging voltage of the charger. Do not charge non-rechargeable batteries. Otherwise there is danger of fire and explosion.
Keep the battery charger away from rain or moisture. Penetration of water in the battery charger increases the risk of an electric shock.
▶ Only charge Bosch lithium-ion batteries. The battery voltage must match the battery charging voltage of the charger. Otherwise there is danger of fire and explosion.
- Keep the battery charger clean. Contamination can lead to danger of an electric shock.
Before each use, check the battery charger, cable and plug. If damage is detected, do not use the battery charger. Never open the battery charger yourself. Have repairs performed only by a qualified technician and only using original spare parts. Damaged battery chargers, cables and plugs increase the risk of an electric shock.
▶ Do not operate the battery charger on easily inflammable surfaces (e.g., paper, textiles, etc.) or surroundings. The heating of the battery charger during the charging process can pose a fire hazard.
▶ Do not cover the ventilation slots of the battery charger. Otherwise, the battery charger can overheat and no longer operate properly.
▶ Products sold in GB only: Your product is fitted with a BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362). If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an authorised customer service agent. The replacement plug should have the same fuse rating as the original plug.
The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere.
Products sold in AUS and NZ only: Use a residual current device (RCD) with a rated residual current of 30 mA or less.
Maintenance
Remove battery before adjusting or cleaning, and before leaving the machine unattended for any period. Always wear gardening gloves when handling or working near the sharp blades.
▶ Examine the machine and replace worn or damaged parts for safety.
▶ Always lubricate the cutting blade with protective spray before storage.
- Keep all nuts, bolts and screws tight to be sure that the machine is in safe working condition.
▶ Ensure replacement parts fitted are Bosch approved.

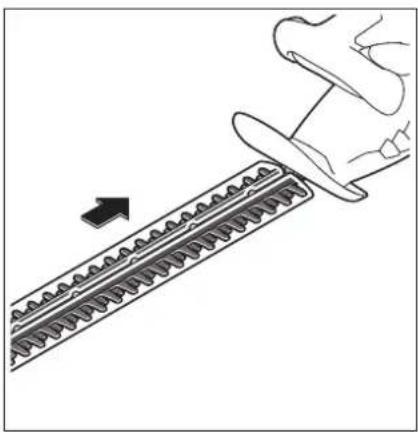

▶ Always lubricate the cutting blade with protective spray before use.
Symbols
The following symbols are important for reading and understanding the operating instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the machine in a better and safer manner.
Symbol Meaning
Wear protective gloves
Wear eye protection.
Movement direction

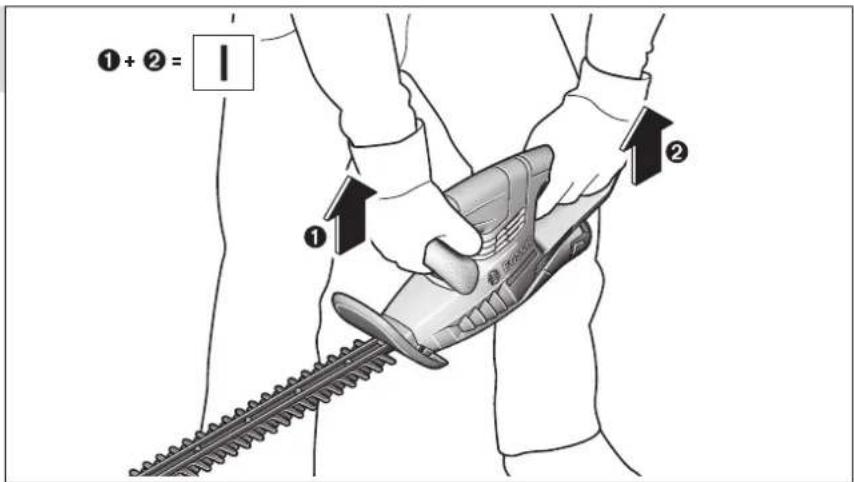

Switching On
Switching Off
Permitted action
Prohibited action
Accessories
Intended Use
The machine is intended for cutting and trimming hedges and bushes in domestic use.
Technical Data
| Cordless hedge trimmer | AHS 35-15 LI | AHS 350 LI | AHS 45-15 LI | |
| Article number | 3 600 H49 B.. 3 600 H49 B.. 3 600 H49 A.. | |||
| No-load stroke rate | min^1 | 2400 2400 2400 | ||
| Cutting length | mm 350 350 450 | |||
| Tooth opening | mm 15 15 15 | |||
| Weight according to EPTA-Procedure 01/2003 | kg 1.9 1.9 2.0 | |||
| Serial number | See serial number (type plate) on the machine | |||
| Battery | Li-Ion Li-Ion Li-Ion | |||
| Article number | 1 607 A35 02W | 1 607 A35 02W | 1 607 A35 02W | |
| Rated voltage | V | 10.8 | 10.8 | 10.8 |
| Capacity | Ah 2.0 2.0 2.0 | |||
| Number of battery cells | 3 | 3 | 3 | |
| Battery Charger | AL 1130 CV | AL 1130 CV | AL 1130 CV | |
| Article number | EU | 2 607 225 133 | 2 607 225 133 | 2 607 225 133 |
| UK | 2 607 225 135 | 2 607 225 135 | 2 607 225 135 | |
| AU | 2 607 225 137 | 2 607 225 137 | 2 607 225 137 | |
| Charging current | mA 3000 3000 3000 | |||
| Allowable charging temperature range | °C | 0 - 45 | 0 - 45 | 0 - 45 |
| Charging period (battery discharged) | min 45 45 45 | |||
| Weight according to EPTA-Procedure 01/2003 | 0.3 0.3 | 0.3 | ||
| Protection class | kg | ☐ / II | ☐ / II | ☐ / II |
| Battery Charger | AL 1115 CV | AL 1115 CV | AL 1115 CV | |
| Article number | EU | 2 607 225 513 | 2 607 225 513 | 2 607 225 513 |
| UK | 2 607 225 515 | 2 607 225 515 | 2 607 225 515 | |
| AU | 2 607 225 517 | 2 607 225 517 | 2 607 225 517 | |
| Charging current | mA 1500 1500 1500 | |||
| Allowable charging temperature range | °C | 0 - 45 | 0 - 45 | 0 - 45 |
| Charging period (battery discharged) | min 80 80 80 | |||
| Weight according to EPTA-Procedure 01/2003 | kg 0.3 0.3 | 0.3 | ||
| Protection class | ☐ / II | ☐ / II | ☐ / II | |
Noise/Vibration Information
Sound emission values determined according to EN 60745-2-15.
Typically the A-weighted noise levels of the product are: Sound pressure level 67 dB(A); sound power level 87 dB(A). Uncertainty K=3 dB.
Wear hearing protection!
Vibration total values a_h (triax vector sum) and uncertainty K determined according to EN 60745-2-15: a_h<2.5 m/s^2, K=1.5 m/s^2 .
The vibration level given in this information sheet has been measured in accordance with a standardised test given in
EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or insertion tools or is poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.
An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.
Bosch Power Tools F 016 L81 269 | (23.9.15)
16 | English
Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.
Declaration of Conformity C€
We declare under our sole responsibility that the product described under "Technical data" is in conformity with all relevant provisions of the directives until 19 April 2016: 2006/95/EC, from 20 April 2016 on: 2014/35/EU, 2011/65/EU, until 19 April 2016: 2004/108/EC, from 20 April 2016 on: 2014/30/EU, 2006/42/EC, 2000/14/EC including their amendments and complies with the following standards: EN 60745-1, EN 60745-2-15 (battery powered product), EN 60335-1, EN 60335-2-29 (battery charger). 2000/14/EC: Guaranteed sound power level 90 dB(A). Conformity assessment procedure according to Annex V. Equipment category: 25
Technical file (2006/42/EC, 2000/14/EC) at:
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
Mounting and Operation
| Action Figure Page | ||
| Delivery Scope | 1 252 | |
| Inserting the Battery | 2 252 | |
| Starting | 3 252 | |
| Stopping | 4 253 | |
| Working Advice | 5 253 | |
| Blade Maintenance | 6 254 | |
| Storage and Transport | 6 254 | |
| Selecting Accessories | 7 254 | |
Starting
Battery Charging
▶ Do not use other battery chargers. The supplied battery charger is designed for the Lithium-Ion battery in your garden product.
▶ Observe the mains voltage! The voltage of the power supply must correspond with the data given on the nameplate of the battery charger. Battery chargers marked with 230 V can also be operated with 220 V.
The battery is equipped with temperature monitoring that allows charging only in the temperature range between 0 °C and 45 °C. In this manner, a high battery service life is achieved.
Note: The battery supplied is partially charged. To ensure full capacity of the battery, completely charge the battery in the battery charger before using your power tool for the first time. The lithium-ion battery can be charged at any time without reducing its service life. Interrupting the charging procedure does not damage the battery.
The "Electronic Cell Protection (ECP)" protects the lithium-ion battery against deep discharging. When the battery is run down or discharged, the garden product is shut off by means of a protective circuit: The blade no longer moves.
IMPORTANT Do not continue to press the On/Off switch after the garden product has
been automatically switched off. The battery can be damaged.
Charging Procedure
The charging procedure starts as soon as the mains plug is plugged into the socket and the battery is then inserted into the battery charger.
Due to the intelligent charging method, the charging condition of the battery is automatically detected and the battery is charged with the optimum charging current, depending on battery temperature and voltage.
This gives longer life to the battery and always leaves it fully charged when kept in the charger for storage.
Note: The charging procedure is only possible when the battery temperature is within the allowable charging temperature range, see section "Technical Data".
AL 1130 CV
Flashing Green Battery Charge Indicator
The rapid-charging procedure is signalled by a flashing green battery charge indicator.
Note: The rapid-charging procedure is only possible when the battery temperature is within the allowable charging temperature range, see section "Technical Data".
Continuous Lighting of the Green Battery Charge Indicator
Continuous lighting of the green battery charge indicator indicates that the battery is fully charged.
Afterwards, the battery can be removed for immediate use. When the battery is not inserted, continuous lighting of the battery charge indicator indicates that the mains plug is inserted in the socket and that the battery charger is ready for operation.
English | 17
Continuous Lighting of the Red Battery Charge Indicator
Continuous lighting of the red battery charge indicator indicates that the temperature of the battery is not within the allowable charging temperature range, see sec-
tion "Technical Data". As soon as the allowable charging temperature range is reached, the battery charger automatically switches to rapid charging.
Flashing Red Battery Charge Indicator
A flashing red battery charge indicator indicates a different malfunction of the charging procedure, see section "Troubleshooting".
AL 1115 CV
Flashing Battery Charge Indicator
The charging procedure is signalled by a flashing battery charge indicator.
Continuous Lighting of the Battery Charge Indicator
Continuous lighting of the battery charge indicator indicates that the battery is fully charged or that the temperature of the battery is not with-
in the allowable charging temperature range, and cannot be charged for this reason. The battery is charged as soon as the allowable charging temperature range is reached.
When the battery is not inserted, continuous lighting of the battery charge indicator indicates that the mains plug is inserted in the socket and that the battery charger is ready for operation.
Charging Advice
With continuous or several repetitive charging cycles without interruption, the charger can warm up. This is not meaningful and does not indicate a technical defect of the battery charger.
A significantly reduced working period after charging indicates that the battery is used and must be replaced.
Working Advice
▶ Hold the garden product away from yourself. Stand in a secure and stable position.
- When storing the product, do no store it hanging on the front handle or switch.
Anti Blocking
If the blade stalls on a tough material, the load of the motor increases. The intelligent micro-electronics senses this overload condition and repeatedly reverses the motor, in order to prevent stalling and to cut the material through.
This audible reversing cut action continues for up to 3 s. After cutting through, the garden product continues in its normal mode, or in case the overload condition continues the blades automatically stop in the open position (e. g. in case a piece of metal fence accidentally blocks the garden product).
Troubleshooting
Problem Possible Cause Corrective Action
| Hedgecutter does not operate | Battery discharged Recharge battery; also see “Battery Charging” | |
| Safety switch not activated correctly see “Mounting and Operation” for correct use | ||
| Hedgecutter operates intermittently | Internal wiring of machine damaged Contact Service Agent | |
| On/Off switch defective Contact Service Agent | ||
| Motor reverses repeatedly then stops after 3 s. see “Working Advice” (Anti Blocking) | ||
| Motor runs but blades remain stationary | Internal fault Contact Service Agent | |
| Cutting blade hot Cutting blade blunt Have blade sharpened | ||
| Cutting blade has dents Have blade inspected/overhauled | ||
| Too much friction, due to lack of lubricant Apply lubricant spray (1 609 200 399) | ||
| Blade will not move Battery discharged Recharge battery; also see “Battery Charging” | ||
Bosch Power Tools F 016 L81 269 | (23.9.15)
18 | English
Problem Possible Cause Corrective Action
| Excessive vibrations/ noise | Machine defective Contact Service Agent | |
| Cutting time per battery charge too low | Too much friction, due to lack of lubricant Apply lubricant spray | |
| Blade needs cleaning Clean blade | ||
| Battery not fully charged Recharge battery; also see “Battery Charging” | ||
| Continuous lighting of the battery charge indicator No charging procedure possible | Battery not (properly) inserted Properly insert battery into battery charger | |
| Battery contacts contaminated Clean the battery contacts (e.g. by inserting and removing the battery several times) or replace the battery | ||
| Battery pack defective Replace the battery | ||
| The blades are running slow or the anti blocking feature is not functioning | Battery discharged Recharge battery; also see “Battery Charging” | |
| Battery stored outside of battery temperature Allow battery to warm naturally to room temperature (within battery operating temperature 0 - 45°C) | ||
| Battery charge indicator does not light up | Mains plug of battery charger not plugged in (properly) | Insert mains plug (fully) into the socket outlet |
| Socket outlet, mains cable or battery charger defective | Check the mains voltage; have the battery charger checked by an authorised after-sales service agent for Bosch power tools | |
After-sales Service and Application Service
www.bosch-garden.com
In all correspondence and spare parts order, please always include the 10-digit article number given on the type plate of the machine.
Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham
Uxbridge
UB 9 5HJ
At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.
Tel. Service: (0344) 7360109
E-Mail: boschservicecentre@bosch.com
Ireland
Origo Ltd.
Unit 23 Magna Drive
Magna Business Park
City West
Dublin 24
Tel. Service: (01) 4666700
Fax: (01) 4666888
Australia, New Zealand and Pacific Islands
Robert Bosch Australia Pty. Ltd.
Power Tools
Locked Bag 66
Clayton South VIC 3169
Customer Contact Center
Inside Australia:
Phone: (01300) 307044
Fax: (01300) 307045
Inside New Zealand:
Phone: (0800) 543353
Fax: (0800) 428570
Outside AU and NZ
Phone: +61 3 95415555
www.bosch.com.au
Republic of South Africa
Customer service
Hotline: (011) 6519600
Gauteng - BSC Service Centre
35 Roper Street, New Centre
Johannesburg
Tel.: (011) 4939375
Fax: (011) 4930126
E-Mail: bsctools@icon.co.za
KZN - BSC Service Centre
Unit E, Almar Centre
143 Crompton Street
Pinetown
Tel.: (031) 7012120
Fax: (031) 7012446
E-Mail: bsc.dur@za.bosch.com
F 016 L81 269 | (23.9.15) Bosch Power Tools
Français | 19
Western Cape - BSC Service Centre
Democracy Way, Prosperity Park
Milnerton
Tel.: (021) 5512577
Fax: (021) 5513223
E-Mail: bsc@zsd.co.za
Bosch Headquarters
Midrand, Gauteng
Tel.: (011) 6519600
Fax: (011) 6519880
E-Mail: rbsa-hq.pts@za.bosch.com
Transport
The contained lithium-ion batteries are subject to the Dangerous Goods Legislation requirements. The user can transport the batteries by road without further requirements.
When being transported by third parties (e.g.: air transport or forwarding agency), special requirements on packaging and labelling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required.
Dispatch batteries only when the housing is undamaged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging. Please also observe possibly more detailed national regulations.
Disposal
Do not dispose of garden products, battery chargers and batteries/rechargeable batteries into household waste!
Only for EC countries:
According to the European law 2012/19/EU, electrical and electronic equipments that are no longer usable, and according to the European law 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.
Batteries no longer suitable for use can be directly returned at:
Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham
Uxbridge
UB 9 5HJ
At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.
Tel. Service: (0344) 7360109
E-Mail: boschservicecentre@bosch.com
Battery packs/batteries:
Li-Ion:
Please observe the instructions in section "Transport".
Subject to change without notice.
Français
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,
Stowmarket, Suffolk IP14 1EY, England
Français | 25
Henk Becker
Executive Vice President Engineering
Helmut Heinzelmann
Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY Leinfelden, 23.09.2015
www.bosch-garden.com
Robert Bosch (France) S.A.S.
Expediente técnico (2006/42/CE, 2000/14/CE) en: Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2, Stowmarket, Suffolk IP14 1EY, England
Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY Leinfelden, 23.09.2015
Montaje y operación
www.bosch-garden.com
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Helmut Heinzelmann
Executive Vice President
Head of Product Certification
Engineering
PT/ETM9
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
www.bosch-garden.com
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker Helmut Heinzelmann
Executive Vice President Head of Product Certification Engineering PT/ETM9
Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY Leinfelden, 23.09.2015
Montaggio ed uso
www.bosch-garden.com
Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY Leinfelden, 23.09.2015
Montage en gebruik
www.bosch-garden.com
Teknisk dossier (2006/42/EF, 2000/14/EF) ved: Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2, Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President Engineering
Helmut Heinzelmann
Head of Product Certification PT/ETM9
Ppa
Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY Leinfelden, 23.09.2015
Montering og drift
www.bosch-garden.com
Bosch Service Center
Telegrafvej 3
2750 Ballerup
På www.bosch-pt.dk kan der online bestilles reservedele eller oprettes en reparations ordre.
Tlf. Service Center: 44898855
Fax: 44898755
E-Mail: vaerktoej@dk.bosch.com
Transport
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2, Stowmarket, Suffolk IP14 1EY, England
Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY Leinfelden, 23.09.2015
Montering och drift
www.bosch-garden.com
Bosch Service Center
Telegrafvej 3
2750 Ballerup
Danmark
Tel.: (08) 7501820 (inom Sverige)
Fax: (011) 187691
Transport
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
www.bosch-garden.com
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Helmut Heinzelmann
Executive Vice President
Head of Product Certification
Engineering
PT/ETM9
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
www.bosch-garden.com
Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY Leinfelden, 23.09.2015
www.bosch-garden.com
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2, Stowmarket, Suffolk IP14 1EY, England
Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY Leinfelden, 23.09.2015
Montaj ve işletim
www.bosch-garden.com
Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY Leinfelden, 23.09.2015
Montaż i praca
www.bosch-garden.com
Robert Bosch Sp. z o.o.
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
i.v. h=mc
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
www.bosch-garden.com
Bosch Service Center PT
K Vápence 1621/16
692 01 Mikulov
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2, Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President Engineering
Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY Leinfelden, 23.09.2015
Montáž a používanie
www.bosch-garden.com
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2, Stowmarket, Suffolk IP14 1EY, England
Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY Leinfelden, 23.09.2015
142 | Magyar
www.bosch-garden.com
No. TC RU C-DE.AЯ46.B.65280
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
www.bosch-garden.com
Henk Becker Executive Vice President Engineering
Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY Leinfelden, 23.09.2015
www.bosch-garden.com
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2, Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President Engineering
Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY Leinfelden, 23.09.2015
www.bosch-garden.com
Documentatie tehnica (2006/42/CE, 2000/14/CE) la: Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2, Stowmarket, Suffolk IP14 1EY, England
Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY Leinfelden, 23.09.2015
Mecanism antiblocare
www.bosch-garden.com
Tel. service scule electrice: (021) 4057540
Fax: (021) 4057566
E-Mail: infoBSC@ro.bosch.com
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2, Stowmarket, Suffolk IP14 1EY, England
Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY Leinfelden, 23.09.2015
Монтиране и работа
www.bosch-garden.com
Henk Becker Executive Vice President Engineering
Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY Leinfelden, 23.09.2015
Монтажа и користење
www.bosch-garden.com
Tehnička dokumentacija (2006/42/EC, 2000/14/EC) kod: Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2, Stowmarket, Suffolk IP14 1EY, England
Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY Leinfelden, 23.09.2015
Montaža i Rad
Cilj rukovanja Slika Strana
| Obim isporuke | 1 252 | |
| Ubaciti akumulator | 2 252 | |
| Uključivanje | 3 252 | |
| Isključivanje | 4 253 | |
| Uputstva za rad | 5 253 | |
| Održavanje noža | 6 254 | |
| Čuvanje i transport | 6 254 | |
| Biranje pribora | 7 254 |
Puštanje u rad
Punjenje akumulatora
▶ Ne koristite neki drugi uredjaj za punjenje. Sporučeni uredjaj za punjenje je usaglašen sa Li-jonskom akumulatorom ugradjenim u Vaš baštenski uredjaj.
▶ Obratite pažnju na napon mreže! Napon strujnog izvora mora biti usaglašen sa podacima na tipskoj tablici aparata za punjenje. Aparati za punjenje označeni sa 230 V mogu da rade i sa 220 V.
Aku-baterija je opremljena kontrolom temperature koja dozvoljava punjenje samo u temperaturnom području između 0°C i 45°C. Na taj će se način postići dugi vek trajanja akubaterije.
Uputstvo: Akumulator se isporučuje delimično napunjen. Da bi osigurali punu snagu akumulatora, punite akumulator pre prve upotrebe u aparatu za punjenje.
Li-jonski akumulator može da se puni u svako doba, a da ne skraćujemo životni vek. Prekidanje radnje punjenja ne šteti akumulatoru.
Li-jonski akumulator je zaštiećn preko „Electronic Cell Protection (ECP)” od dugokog pražnjenja. Kod ispražnjenog akumulatora isključuje se baštenski uredjaj od strane zaštitne veze: Nož za sečenje se ne kreće više.
PAŽNJA
Posle automatskog isključivanja ne pritiskajte više na prekidač za
www.bosch-garden.com
Molimo navedite neizostavno kod svih pitanja i naručivanja rezervnih delova broj predmeta sa 10 brojčanih mesta prema tipskoj tablici električnog alata.
Srpski
Bosch-Service
Dimitrija Tucovića 59
11000 Beograd
Tel.: (011) 6448546
Fax: (011) 2416293
Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY Leinfelden, 23.09.2015
www.bosch-garden.com
Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2, Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President Engineering
Helmut Heinzelmann
Head of Product Certification PT/ETM9
i.v. k.m.
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
www.bosch-garden.com
Za slučaj povratnih upita ili naručivanja rezervnih dijelova, molimo vas neizostavno navedite 10-znamenkasti kataloški broj sa tipske pločice električnog alata.
Hrvatski
Robert Bosch d.o.o
Kneza Branimira 22
10040 Zagreb
Tel.: (01) 2958051
Fax: (01) 2958050
Transport
Tehniline toimik (2006/42/EÜ, 2000/14/EÜ) saadaval: Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2, Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President Engineering
Helmut Heinzelmann
Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY Leinfelden, 23.09.2015
www.bosch-garden.com
Tehniskä lieta (2006/42/EK, 2000/14/EK) no: Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2, Stowmarket, Suffolk IP14 1EY, England
Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY Leinfelden, 23.09.2015
www.bosch-garden.com
Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY Leinfelden, 23.09.2015
www.bosch-garden.com
3
F 016 L81 269 | (23.9.15) Bosch Power Tools
4
Bosch Power Tools F 016 L81 269 | (23.9.15)
254
6
1609 200 399
F016800178
F 016 800 292
1 600 Z00 03M (UK)
1 600 Z00 03P (EU)
1 600 Z00 03R (UK)
- 2|
- www.bosch-garden.com
- Explanation of symbols
- General Power Tool Safety Warnings
- Work area safety
- Electrical safety
- | English
- Personal safety
- Power tool use and care
- Battery tool use and care
- Service
- Hedge trimmer safety warnings
- Additional safety warnings
- English | 13
- Recommendations for Optimal Handling of the Battery
- Safety Warnings for Battery Chargers
- Save these instructions.
- | English
- Maintenance
- Symbols
- Intended Use
- Noise/Vibration Information
- Wear hearing protection!
- | English
- Declaration of Conformity C€
- Starting
- Battery Charging
- IMPORTANT Do not continue to press the On/Off switch after the garden product has
- Charging Procedure
- AL 1130 CV
- Flashing Green Battery Charge Indicator
- Continuous Lighting of the Green Battery Charge Indicator
- Continuous Lighting of the Red Battery Charge Indicator
- Flashing Red Battery Charge Indicator
- Flashing Battery Charge Indicator
- Continuous Lighting of the Battery Charge Indicator
- Charging Advice
- Working Advice
- Anti Blocking
- Troubleshooting
- After-sales Service and Application Service
- Great Britain
- Ireland
- Australia, New Zealand and Pacific Islands
- Republic of South Africa
- Customer service
- Gauteng - BSC Service Centre
- KZN - BSC Service Centre
- Western Cape - BSC Service Centre
- Bosch Headquarters
- Transport
- Disposal
- Only for EC countries:
- Battery packs/batteries:
- Français
- Mecanism antiblocare
- Puštanje u rad
- Punjenje akumulatora
- PAŽNJA
- Posle automatskog isključivanja ne pritiskajte više na prekidač za
- Srpski
- Hrvatski
Brand : BOSCH
Model : AHS 35-15 Li
Category : Hedge Trimmers
