USER MANUAL SMP 6200 A1 SILVERCREST

Information about these operating instructions. 2

Copyright 2

Limitation of Liability 3

Warning Notices 3

Intended Use 4

Safety. 4

Basic safety instructions 4

Items supplied/Transport inspection. 6

Disposal of packaging 6

Operating Elements 7

Technical data. 7

Utilisation 8

The attachments 8

Working with the appliance 9

Cleaning 11

Storage 11

Disposal. 11

Disposing of the appliance. 11

Warranty and Service 12

Importer 12

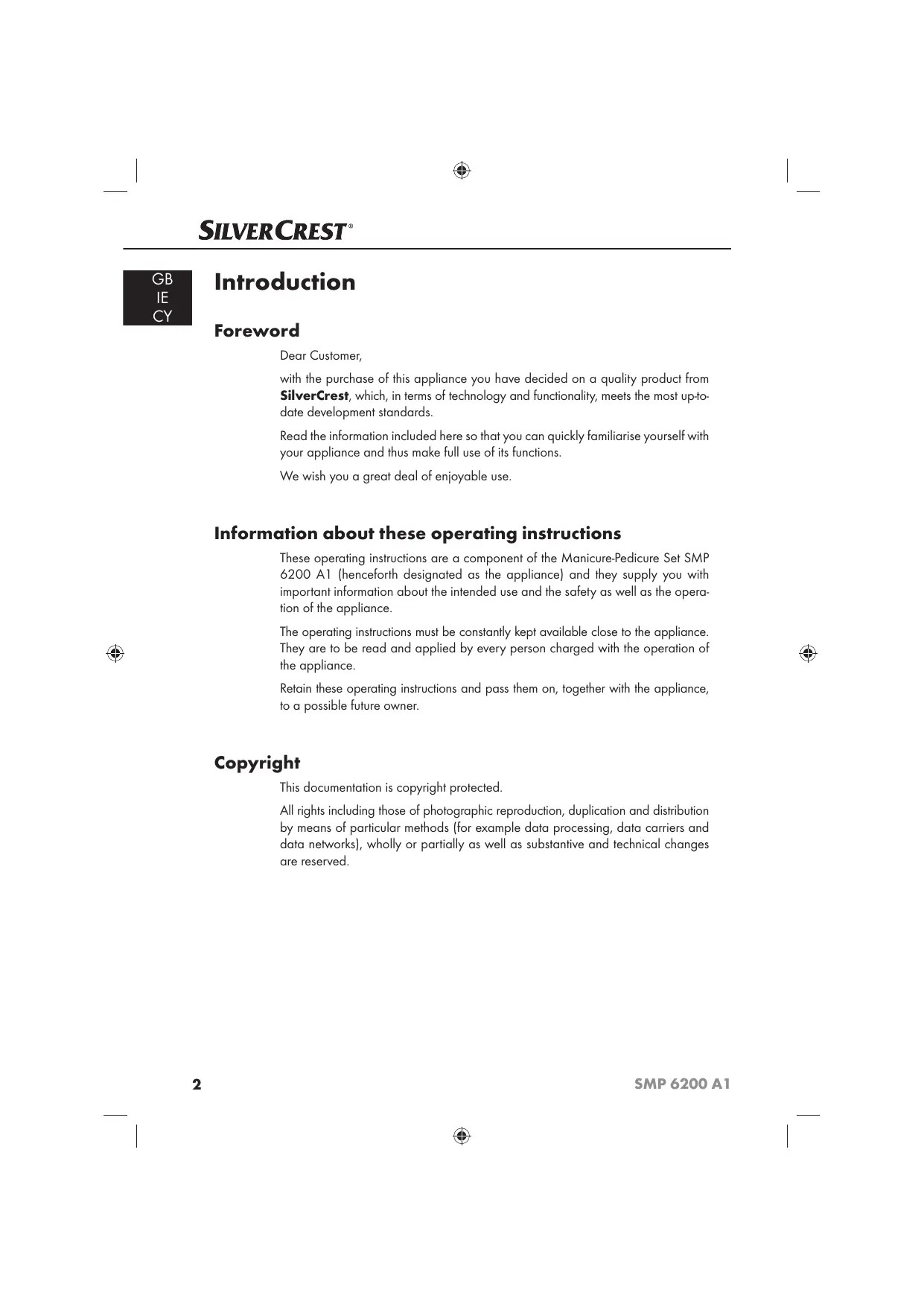

Introduction

Foreword

Dear Customer,

with the purchase of this appliance you have decided on a quality product from SilverCrest, which, in terms of technology and functionality, meets the most up-to-date development standards.

Read the information included here so that you can quickly familiarise yourself with your appliance and thus make full use of its functions.

We wish you a great deal of enjoyable use.

Information about these operating instructions

These operating instructions are a component of the Manicure-Pedicare Set SMP 6200 A1 (henceforth designated as the appliance) and they supply you with important information about the intended use and the safety as well as the operation of the appliance.

The operating instructions must be constantly kept available close to the appliance. They are to be read and applied by every person charged with the operation of the appliance.

Retain these operating instructions and pass them on, together with the appliance, to a possible future owner.

Copyright

This documentation is copyright protected.

All rights including those of photographic reproduction, duplication and distribution by means of particular methods (for example data processing, data carriers and data networks), wholly or partially as well as substantive and technical changes are reserved.

Limitation of Liability

All technical information, data and information for installation and operation contained in these operating instructions corresponds to the latest available at the time of printing and, to the best of our knowledge, take into account our previous experience and know-how.

No claims can be derived from the details, illustrations and descriptions in these instructions.

The manufacturer assumes no responsibility for damage caused by failure to observe the instructions, improper use, inappropriate repairs, making unauthorised changes or for using unapproved replacement parts.

Warning Notices

In the existing operation instructions the following warnings are used:

WARNING

A warning of this danger level indicates a possibly dangerous situation.

If the dangerous situation is not avoided, this could lead to injury.

Follow the instructions in this warning to avoid injuries to persons.

IMPORTANT

A warning of this danger level signifies possible property damage.

If the situation is not avoided it can lead to property damage.

The directives in this warning are there to avoid property damage.

NOTICE

A notice signifies additional information that assists in the handling of the appliance.

Intended Use

This appliance is intended solely for the care and maintenance of fingernails, toenails and feet. It is intended only for domestic use.

This appliance is not intended for any other use or for uses beyond those mentioned here.

WARNING

Danger from unintended use!

Danger can come from the appliance if it used for unintended purposes and/or other types of use.

Use the appliance exclusively for intended purposes.
Observe the procedures described in these operating instructions.

Claims of any kind for damage resulting from unintended use will not be accepted.

The operator alone bears liability.

Safety

In the chapter "Basic safety instructions" you will receive important safety information regarding the handling of the appliance.

This appliance complies with the statutory safety regulations. Incorrect usage can, however, lead to personal injury and property damage.

Basic safety instructions

For safe handling of the appliance observe the following safety information:

WARNING - RISK OF INJURY!

Before use check the appliance for visible external damage. Do not put into operation an appliance that is damaged or has been dropped..
This appliance is not intended for use by individuals (including children) with restricted physical, physiological or intellectual abilities or deficiencies in experience and/or knowledge unless they are supervised by a person responsible for their safety or receive from this person instruction in how the appliance is to be used.
Children should be supervised to ensure that they do not play with the appliance.

Repairs should only be carried out by authorised specialist companies or by the Customer Service Department. Incorrect repairs can result in significant risks for the user. In addition, warranty claims become void.
Extended use may cause the development of a strong heat on the skin. Therefore, take breaks frequently. Otherwise, there is risk of burns!
Do not use the appliance while taking a bath or shower.
Never touch the appliance with wet or moist hands.
To avoid risks, arrange for defective power plugs and/or cables to be replaced at once by qualified technicians or our Customer Service Department..

ATTENTION - PROPERTY DAMAGE

Defective components may only be replaced with original replacement parts. Only by using original replacement parts can you guarantee that you comply with the safety requirements.
Protect the appliance against moisture and the penetration of liquids.
- Protect the appliance against shock, moisture, dust, chemicals, extremes of temperature and from being too close to sources of heat (ovens, radiators).
Never use the appliance under blankets, pillows etc.
The appliance may not be used for longer than 15 minutes at a time, otherwise the motor could overheat. After 15 minutes of use, take a break of at least 30 minutes.
Do not store the appliance where it could fall into a bath tub or wash basin.
NEVER submerse the appliance in water or other liquids!
Always pull the plug from the mains power socket; never pull on the cable.
Ensure that the drive can always rotate freely. Otherwise, the appliancw may overheat and be damaged beyond repair.

NOTICE

A repair to the appliance during the warranty period may only be carried out by a customer service firm authorised by the manufacturer, otherwise no additional warranty claims can be considered for subsequent damages.

Items supplied/Transport inspection

WARNING

Risk of suffocation!

Packaging material should not be used as a play thing.

There is a risk of suffocation.

The appliance is supplied with the following components as standard:

• Hand element with power cable and power adapter

• 6 Attachments:

• Sapphire cone

• Felt cone
• Sapphire disc
• Cylindrical miller
• Flame miller
• Round sapphire miller

Storage bag
- Operating Instructions

NOTICE

• Check the contents to ensure everything has been provided, and for signs of visible damage.
  If the contents are not complete, or are damaged due to defective packaging or transportation, contact the Service Hotline.

Disposal of packaging

The packaging protects the appliance against transport damage. The packaging materials are selected from the point of view of their environmental friendliness and disposal technology and are therefore recyclable.

The recirculation of packaging into the material circuit saves on raw materials and reduces the amount of waste generated. Dispose of packaging material that is no longer needed according to the regionally established regulations.

NOTICE

If possible preserve the appliance's original packaging during the warranty period so that, in the event of a warranty claim, you can package the appliance properly for its return.

Operating Elements

1 Attachment acceptor
"Speed increase" button
"Speed decrease" button
4 Power adapter
5 Hand element
6 On/Off/Direction switch
Sapphire cone
Felt cone
Sapphire disc
10 Cylindrical miller
1 Flame miller
12 Round sapphire miller

Technical data

Input voltage power adapter	100 - 240 V ~ 50/60 Hz
Input current power adapter	0.2 A max.
Output voltage power adapter	21 V——
Output current power adapter	200 mA
Protection class	II / ☐

Utilisation

The attachments

Sapphire cone 7:

For removing dry skin, hardened skin or calluses on the soles and heels, and to process the nails.

Guide the sapphire cone with a circular motion and under gentle pressure over the parts of the sole and heel to be treated. Do not exert too strong a pressure and always make contact carefully with the appliance on the surface to be treated. After every treatment apply a moisturising cream.

Felt cone 8:

For smoothing and polishing nail edges after filing, as well as cleaning the nail surface.

Use the felt cone 8 to polish and smooth the edge of the nail and to clean the nail surface after milling. Always polish in a circular motion and never let the felt cone 8 rest in one place.

Sapphire disc 9:

For filing and processing the nails..

Process the edge of the nails with the sapphire disc ⑨. As only the inner disc rotates and the outer edge does not move, you can file your nails accurately without damaging your skin with the rapidly rotating disk. Always work from the outside of the nail to the tip.

Cylindrical miller 10:

For milling thickly growing toe nails and rough smoothing of the surfaces.

With the cylinder miller 10 you can mill away thickly growing nail surfaces.

Always hold the cylinder miller 10 parallel to the nail surface and, with light pressure and circular movements, remove the excess growth.

Flame miller 1:

To release ingrown nails.

With the flame miller 1 you can release ingrown nails. Guide the flame miller 1 carefully onto the treatment area and cut away the affected nail part.

Round sapphire miller 12:

For the removal of corns.

WARNING - RISK OF INJURY

At too high speeds and with a too heavy pressure, the sapphire miller can quickly penetrate into deeper, healthy skin layers.

This can cause injury and damage to the periosteum!

Always take care and a cautious approach when removing corns. If in doubt, consult a pedicurist, podolgist or a dermatologist.

To remove corns, mill very carefully and slowly at low speed with the round sapphire cutter 12.

Under no circumstance should you use undue pressure, otherwise you could rapidly penetrate healthy skin and injure it.

Working with the appliance

WARNING - RISK OF INJURY

Too long and too intensive treatment can also injure deeper layers of skin.

• Therefore regularly check the treatment progress and results. Diabetics in particular are less sensitive on the hands and feet.

NOTICE

The attachments show only a reduced effect with softened skin. Therefore do not carry out any pretreatment in a water bath before using the appliance.
1) Find a well-lit place to work. A mains power outlet must be positioned in close proximity.
2) Insert the appropriate attachment for your purpose in the attachment acceptor 1. The attachment must sit securely.
3) Insert the power adapter 4 into a mains power outlet.
4) Slide the on/off/direction switch ⑥ into the desired direction. The appliance runs with the lowest speed.

NOTICE

Always select the direction of run so that you can treat the nails in their direction of growth. Where possible, treat the nails from the outside towards the inside (to the nail tip). Otherwise, the nails split more easily.
If you feel that the nails could tear during treatment, select the other direction of run.

5) Always start the treatment at low speed and increase it only when needed. When you wish to increase the speed, press the "Speed increase" ② button. When you wish to decrease the speed, press the "Speed decrease" ③ button.
6) You can now begin with the task.

WARNING - RISK OF BURNS

Risk due to severe heat development!

While you are working, never let the attachments rest on one point.

Due to friction this leads to increased heat generation and may cause injury.

Always work in a circular motion.

ATTENTION - PROPERTY DAMAGE

Risk due to overheating!

If you use the appliance for more than 15 minutes at a time, the motor may overheat.

After 15 minutes of operation take an approx. 30 minute break so that the motor can cool down.

7) Place the on/off/direction switch 6 at "●" and remove the power adapter 4 from the mains power socket when you have finished the treatment.

NOTICE

If you have treated callouses, after completing the procedure apply a moisturising cream to the treated areas.

Cleaning

WARNING

Risk of electrical shocks!

Always remove the power adapter 4 from the mains power socket before you clean the appliance.

ATTENTION - PROPERTY DAMAGE

Do not use chemical, aggressive or abrasive cleaning agents. These damage the upper surfaces.

Clean the hand element 5 and the power adapter 4 with a moist cloth. For stubborn stains use a mild detergent on the cloth. Ensure that no water or moisture can penetrate the appliance. Dry everything well.
For hygienic reasons, we recommend cleaning the attachments with a clean cloth or brush moistened with alcohol after each use. Dry everything well.

Storage

After you have cleaned the appliance, put it back in the storage bag.
Store the appliance at a dry and clean location.

Disposal

Disposing of the appliance

Do not dispose of the appliance in your normal domestic waste. This product is subject to the provisions of the European Directive 2002/96/EC-WEEE (Waste Electrical and Electronic Equipment).

Dispose of the appliance through an approved disposal centre or at your community waste facility. Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre.

Warranty and Service

The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery.

Please retain your receipt as proof of purchase. In the case of a warranty claim, please make contact by telephone with our service department. Only in this way can a post-free despatch for your goods be assured.

The warranty covers only claims for material and manufacturing defects, but not for transport damage, wearing parts or for damage to fragile components, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use.

The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorized service branch. Your statutory rights are not restricted in any way by this warranty.

The warranty period is not extended by repairs made under the warranty. This applies also to replaced and repaired parts. Damages and defects extant at the time of purchase must be reported immediately after unpacking, resp. no later than two days after the date of purchase. Repairs made after the lapse of the warranty period are subject to charge.

Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

Service Cyprus

Tel.: [phone]

E-Mail: [e-mail]

Importer

KOMPERNASS GMBH

BURGSTRASSE 21

44867 BOCHUM, GERMANY

www.kompernass.com
