USER MANUAL SKATG 1050 A1 COFFEE MACHINE SILVERCREST

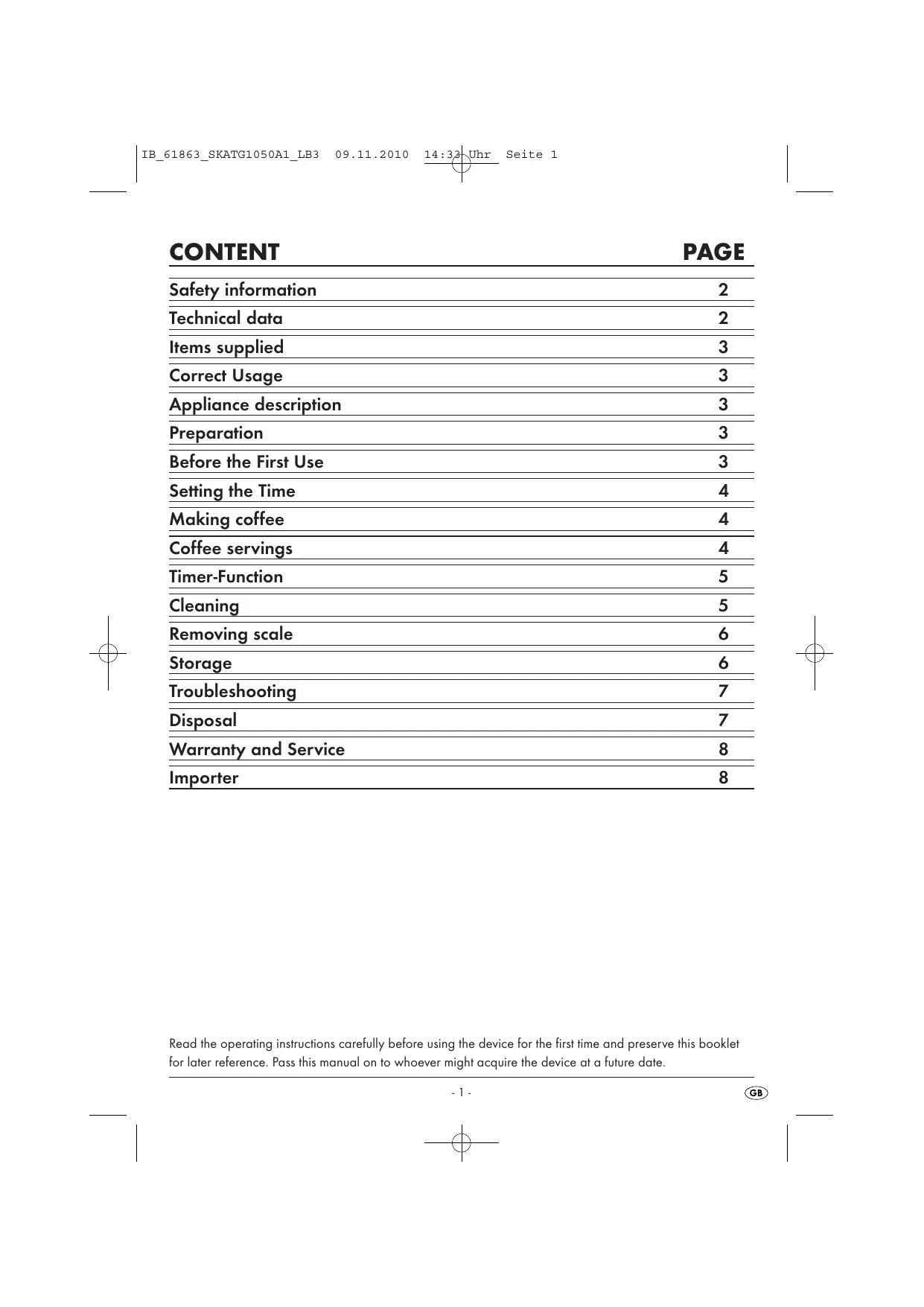

CONTENT	PAGE
Safety information	2
Technical data	2
Items supplied	3
Correct Usage	3
Appliance description	3
Preparation	3
Before the First Use	3
Setting the Time	4
Making coffee	4
Coffee servings	4
Timer-Function	5
Cleaning	5
Removing scale	6
Storage	6
Troubleshooting	7
Disposal	7
Warranty and Service	8
Importer	8

Read the operating instructions carefully before using the device for the first time and preserve this booklet for later reference. Pass this manual on to whoever might acquire the device at a future date.

Safety information

Danger of electric shock!

• Connect the appliance only to correctly installed and properly earthed power sockets.
• Remove the plug from the wall socket when you move the appliance, fill it with water, if it malfunctions, before cleaning it and when it is not in use.

NEVER submerse the appliance in liquids.

Should liquids nonetheless permate into the appliance housing, immediately remove the plug from the wall socket. Arrange for it to be repaired by a qualified specialist.

• NEVER grasp the appliance, power cable or power plug with wet hands.
• To disconnect, always pull out the plug itself out of the power socket, do not pull the power cable.
• Do not fold or crush the power cable.
• Arrange for defective power plugs and/or cables to be replaced at once by qualified technicians or our Customer Service Department.

Risk of fire!

• Do not leave the appliance unattended when in use.
• Never operate the appliance without mains tap-water.
• Never place the appliance near sources of heat.
• Do not use an extension cable. In the event of danger, the plug must be quickly and easily accessible.
• Do not use an external timing switch or a separate remote control system to operate the appliance.

Risk of personal injury!

• NEVER use the glass jug in a microwave oven.
• Lay the power cable in such a way that no one can tread on or trip over it.
• This appliance is not intended for use by individuals (including children) with restricted physical, physiological or intellectual abilities or deficiencies in experience and/or knowledge unless they are supervised by a person responsible for their safety or receive from this person instruction in how the appliance is to be used.
  Children should be supervised to ensure that they do not play with the appliance..

Caution! Hot surface.

Risk of scalding!

• Never open the lid during the brewing process.
• Do not touch the hot filter. Remove the filter bag when all of the coffee has drained away and the bag has cooled down somewhat.
• Do not hold your hands in the rising steam.
• Never move/transport the appliance during the brewing process.

This symbol warns you about hot steam clouds. Risk of scalding!

To avoid damage to the appliance!

• Fill the water tank of the appliance exclusively with freshly drawn mains water.
• Never subject the glass jug to large temperature fluctuations. The glass may be damaged.
• No liability will be accepted for damage caused by glass breakage!

Technical data

Mains voltage: 220-240V 50Hz

Power consumption: 1050 W

Items supplied

• Coffee Machine
  Glass jug
• Measuring spoon
• Operating Instructions

Before taking the appliance into use check to ensure that all of the items listed have been supplied and that there are no visible signs of damage.

Note:

On delivery, the measuring spoon is to be found in either the water tank or the glass jug.

Correct Usage

The coffee maker is intended exclusively for brewing coffee. This coffee maker is intended exclusively for use in private households. Do not use it commercially. This appliance in intended only for indoor use.

Appliance description

1 Filter
Lid
Water tank
4 Keep-warm plate
Display
red indicator lamp
green indicator lamp AUTO SET
8 Button MIN
Button HOUR
10 Button PROG
11 Button ON/AUTO/OFF
12 Coffee button
B Dripray grill
14 Coffee passage
15 Outer lock
16 Coffee passage lock
Outer lock
Glass jug
19 Filter basket

Preparation

• Remove all packaging material from the appliance and the accessories.
• Clean the appliance and all accessories (see chapter "Cleaning").
• Place the coffee maker on a level and slip-free surface.
• Open the lid ②.
  Install the filter basket 19 so that the lever settles into the recess on the coffee maker.
• Place the filter 1 in the filter basket 19.
• Lay the driptray grill in the driptray on the coffee maker.
• Insert the power plug into a power socket.

Before the First Use

Note:

When filling the appliance with water, never exceed the MAX marking in the water tank 3. The appliance could overflow! Never fill the water tank 3 with less water than is needed for 4 cups. The appliance could be damaged.

• To remove possible production residues, before the first use brew up 10 cups of plain water, without coffee, and allow it to flow through the appliance.

Setting the Time

• Press the button PROG 10 once, so that CLOCK appears in the display 5.
• Repeatedly press the button HOUR 9 for hours, resp. the button MIN 8 for minutes, until the correct time is programmed in. If you hold the buttons down, the numbers run through faster.
• Press the button PROG 10 twice. The time display is now programmed, or
• if you do not press any other button for ca. 10 seconds, the indicator CLOCK extinguishes in the display ⑤ and the time is programmed.

Making coffee

• Open the lid ②.
• Using the measuring spoon, place coffee powder (coarse to medium ground) into the filter ①. A level measuring spoon of coffee approximates to ca. 6 gr of coffee powder.

Note:

Should you use finely ground coffee powder it could block the filter 1, water can no longer flow through it and the coffee maker could overflow!

• Fill the water tank ③ with the required amount of water. For this, use the glass jug ⑧ with the scale. When filling the appliance with water, never exceed the MAX marking in the water tank ③.
• Close the lid ②.

Note:

After brewing, there is always somewhat less coffee in the glass jug 18 than the amount of water that you filled the water tank 3 with. The coffee powder absorbs some of the water.

• Place the glass jug 18 in the coffee maker.
• Press the button ON/AUTO/OFF 11 once.

The red indicator lamp ⑥ glows. The coffee maker begins the brewing process.

• When the brewing process is complete, the coffee is kept warm by the keep-warm plate 4 for two hours. On the expiry of this period the coffee maker switches itself.
• Should you wish to switch the coffee maker off earlier, repeatedly press the button ON/AUTO/OFF until the indicator lamps 6 / 7 are extinguished.

Risk of scalding!

After the brewing process the coffee machine must first cool down, for at least 10 minutes, before you start another brew. If you do not, there is a risk of being scalded by escaping steam!

Coffee servings

With this coffee maker you can fill a cup with coffee using only one hand:

• When there is coffee in the glass jug 18, press and hold your cup against the coffee button 12. Coffee flows into the cup.
• When the cup is full, remove the cup from the coffee button 12.
• Any drips that might fall will be caught by the driptray grill .

Note:

Regularly empty and clean the driptray under the driptray grill 3. Otherwise, it could overflow.

Note:

If you pour coffee using the coffee button 12, a small amount of coffee will always be left in the glass jug 18.

You can also pour coffee from the glass jug 18 in the usual manner:

• Lift the glass jug 18 and then pull it to the front.

Note:

If, before you lift the glass jug 18 out, you have activated the coffee button 12, it can happen that a few drops of coffee will drip from the glass jug 18.

Timer-Function

By use of the button PROG 10, you can programme the coffee maker so that it starts the brewing process at a pre-determined time (Timer function). First, always fill the filter 1 in the filter basket 19 with coffee powder and the water tank 3 with water. Place the glass jug 18 in the coffee maker. Ensure that the glass jug 18 is empty and the water tank 3 is not filled beyond the Max marking.

• Press the button PROG 10 twice, so that TIMER appears in the display 5. Programme in the desired start time with the button HOUR 9 and the button MIN 8 (see chapter "Setting the Time").
• When the desired start time has been entered in, press the button PROG 10 once more. The start time is now programmed. The display 5 shows the normal time.
  To activate the timer, press twice on the button ON/AUTO/OFF 1. The green indicator lamp AUTO SET glows. The coffee maker will now start the brewing process at the programmed time.
• If you want to deactivate the timer, press the button ON/AUTO/OFF 11. The green indicator lamp AUTO SET 7 extinguishes.

Cleaning

Before cleaning, ALWAYS remove the plug from the wall power socket.

Risk of electric shock!

Before you clean the Coffee Maker you MUST remove the plug from the power socket.

Attention!

NEVER submerge the Coffee Maker in water. This would irreparably damage the appliance.

Risk of burns!

Always wait until the coffee maker has cooled down before cleaning it.

• Wipe the housing with a damp cloth. For stubborn soiling use a mild detergent on the cloth.

Caution! Appliance Damage!

NEVER clean the glass carafe 18 in a dishwasher. This would cause irreparable damage to the glass jug 18.

• Clean the glass jug 18, filter 1 and filter basket 19 in mild sudsy water and rinse them with lots of clean and clear water.

Note:

Clean the filter 1 as soon as possible after it has cooled. At a later time it will be more difficult to clean.

If coffee powder or something similar has deposited itself in the coffee sieve of the glass jug 18, proceed as follows:

• Upturn the glass jug 18.

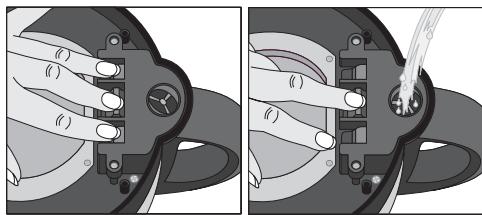

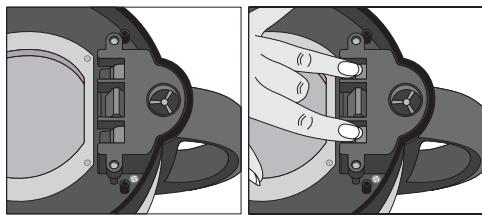

• Press the two outer locks 15 / 17 inwards and hold them firmly.
• You can now slide the coffee passage lock 16 inwards. The coffee passage 14 opens itself. Hold it open.

• You can release the outer locks 15 / 17
• Allow water to flow through the opened coffee passage 14. The residues in the sieve should be washed out with the water. Should they still not dissolve/detach themselves, gently scrub the sieve with a soft brush.
• When the sieve is free of residues, release the coffee passage lock 15. The coffee passage 14 is now closed.

Removing scale

Scale removal is already necessary after ca. 30 brewing processes with hard water, after ca. 60 brewing processes with soft water.

Use only scale removal products that are suitable for coffee makers and pay heed to the instructions for use.

The procedure for scale removal is:

• Place the scale removal product in the water tank ③.
• Pour in the volume of water detailed in the usage instructions for the descaler (max. 12 Cups).
• Press the button ON/AUTO/OFF 11 once. The brewing process starts, the red indicator lamp 6 glows.
• Wait until the solution has completely run through the Coffee Maker.
  After descending, rinse the Coffee Maker through twice with 12 cups of clean water each time.

Storage

• If you do not intend to use the Coffee Maker for an extended period, remove the plug from the power socket.
• Store the power cable in the cable shaft on the rear of the Coffee Maker.

Troubleshooting

The Coffee Maker does not function:

• The plug is not inserted into a power socket. Connect the appliance with the mains. Push the power plug into the wall socket.
• The power socket is defective. Try another wall socket.
• The Coffee Maker is still hot from the previous brewing process. Wait until the Coffee Maker has cooled down.

The brewing process does not start at the desired time:

• The timer is not activated. To activate the timer, press twice on the button ON/AUTO/OFF 11.
• The time is not correctly programmed. Check the time entered and, if necessary, re-programme it.

The coffee is too strong/too weak:

• There is too little/too much water in the water tank ③. Fill it with the correct amount of water.
• It is filled with too much/too little coffee powder. Fill it with less/more coffee powder.
• The coffee powder is too finely/too coarsely ground. Select a different grade of grinding for your coffee powder.

Water collects in the filter 1 and it then flows over:

• The coffee powder is too finely ground, causing a blockage of the filter ①. Use a more coarsely ground coffee powder.

The brewing process takes unusually long. The appliance switches itself off during the brewing process.

The appliance is becoming louder when brewing. There is excessive steam.

• The brewing system of the appliance is calcified. Descale the appliance as described under "Removing scale".

Disposal

Do not dispose of the appliance in your normal domestic waste. This product is subject to the European guideline 2002/96/EC.

Dispose of the appliance through an approved disposal centre or at your community waste facility. Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre.

Dispose of all packaging materials in an environmentally friendly manner.

Warranty and Service

The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service Department. Only in this way can a post-free despatch for your goods be assured.

The warranty covers only claims for material and manufacturing defects, but not for transport damage, for wearing parts or for damage to fragile components, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use. The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorized service branch. Your statutory rights are not restricted in any way by this warranty.

The warranty period will not be extended by repairs made under warranty. This applies also to replaced and repaired parts. Any damage and defects extant on purchase must be reported immediately after unpacking the appliance, at the latest, two days after the purchase date. Repairs made after the expiration of the warranty period are subject to payment.

GB DES UK LTD

Tel.: [phone] (£ 0.10 / minute)

e-mail: [e-mail]

IE Kompernass Service Ireland

Tel.: [phone] (0,082 EUR/Min.)

Standard call rates apply. Mobile operators may vary.

e-mail: [e-mail]

Cyt Kompernass Service Cyprus

Tel.: [phone]

e-mail: [e-mail]

Importer

KOMPERNASS GMBH

BURGSTRASSE 21

44867 BOCHUM, GERMANY

www.kompernass.com
