| Product type | Extractor/recirculation hood |
| Brand | DE DIETRICH |
| Model | DHC116B |
| Supply voltage | 230 V ~ 50 Hz |
| Double insulation | Yes, no mandatory earthing |
| Lighting power | 1 or 2 bulbs of 40 W max |
| Number of speeds | 4 (stop, min, medium, max) |
| Minimum distance to cooking surface | 65 cm |
| Connection diameter | Ø 100 or 120 mm |
| Synthetic grease filter | Replacement every 2 months |
| Metal grease filter | Wash every 2 months, dishwasher safe |
| Active carbon filter | Replacement every 4 months |
| Installation type | Wall-mounted or under wall unit |
| Extraction version | External discharge |
| Recirculation version | Internal recirculation |
| Certifications | CE, EEC 73/23, EEC 89/336, EEC 93/68 |
| Consumer service | 0892 02 88 04 (€0.34/min) |
| Original parts | Recommended for maintenance and repair |
Frequently Asked Questions - DHC116B DE DIETRICH
User questions about DHC116B DE DIETRICH
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Basket in PDF format for free! Find your manual DHC116B - DE DIETRICH and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DHC116B by DE DIETRICH.
USER MANUAL DHC116B DE DIETRICH
3.1 - Wall installation 11
3.2-Wall unit installation 13
3.3 - Connecting suction or filter hoods 13
3.4 - Electrical connection and working test 14
1-SAFETYWARNINGS 15
2-USE 15
3 - MAINTENANCE 16
3.1 - Synthetic grease filters 16
3.2-Metal grease filters 16
3.3 - Charcoal filters 16
3.4-Lighting 17
3.5 - Cleaning 17
1 - GÉNÉRALITÉS 18
2-CONSEILS CONCERNANT LA SECURITE 18
3-INSTALLATION 18
This hood has been designed to be wall-mounted above a cooking hob. It can be installed under a wall unit or directly onto a wall. It can work either by ducting system (external discharge) or filter (internal recirculation). Before starting the installation, consideration should be given to the difficulties to be found during installation. The installation work must be undertaken by a qualified and competent person in conformity to the rules concerning the evacuation of contaminated air. The manufacturer disclaims all liability for any damage or injury caused as a result of not following the instructions for installation contained in the following text.
2 - SAFETY WARNINGS
2.1 - When used in the extraction mode, the cooker hood ducting must not be connected to a flue which is used for exhausting fumes from appliances supplied with energy other than electric, such as a central heating flue or water heating flue.
2.2 - Before connecting to the mains supply ensure that the mains voltage corresponds with the voltage on the rating plate inside the hood.
2.3 - Connect the cooker hood to the mains via a bipolar switch which has 3mm clearance between the contacts.
2.4 - The device does not require earthing, as it is double-insulated.
2.5 - When installed, the hood must be positioned at least 65~cm above the hotplate.
2.6 - Never do flambe cooking under this cooker hood.
2.7 - Never leave frying pans unattended during use as overheated fat and oil may catch fire.
2.8 - Before carrying out any kind of maintenance or cleaning, disconnect the hood from the mains supply.
2.9 - If the room where the cooker hood is to be used contains a fuel burning appliance such as a central heating boiler then this must be of the room sealed or balanced flue type. If other types of flue or appliance are fitted, ensure that there is an adequate supply of air into the room. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0.04 mbar to prevent fumes being drawn back into the room by the cooker hood.
2.10 -The appliance must be positioned so that the plug is accessible.
2.11 -If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

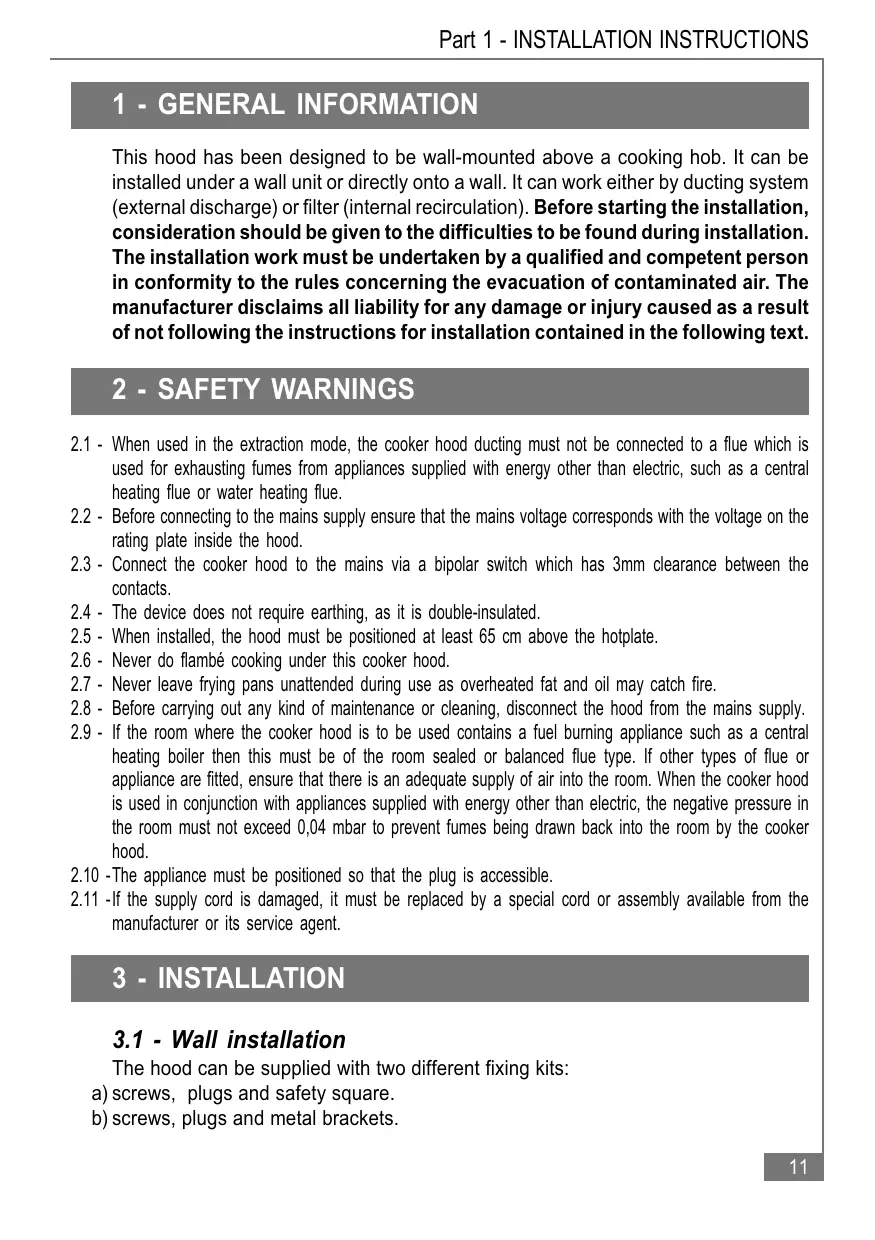

3 - INSTALLATION
3.1 - Wall installation
The hood can be supplied with two different fixing kits:
a) screws, plugs and safety square.
b) screws, plugs and metal brackets.
1 - Fixing with screws

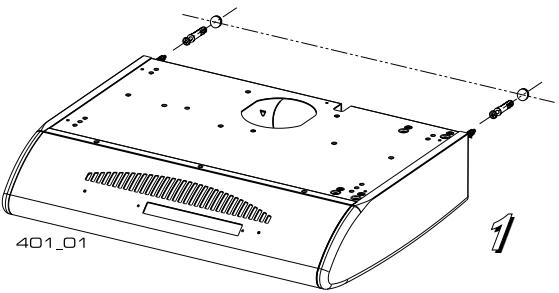

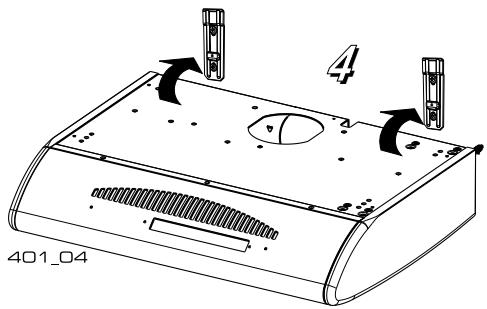

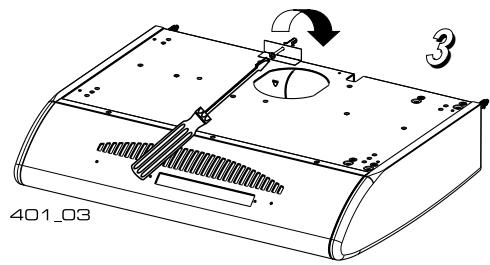

Using the cardboard template, mark and drill the holes on the wall (2 holes 0.8mm see instructions on the template), insert the plugs in the holes, tighten both 4,2× 44,4 screws (supplied) leaving about 5mm unscrewed, hook the hood onto the screws (fig.1) and secure tightly from inside (fig.2). Mount the safety square (supplied) above the hood (fig.3).
2 - Fixing with brackets

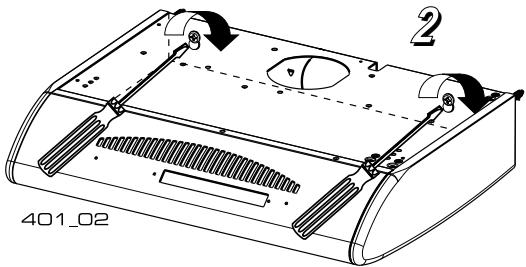

Using the cardboard template, mark and drill the holes on the wall (4 holes 0.8mm see instructions on the template), fix the metal brackets with screws and plugs (supplied), hook the hood onto the

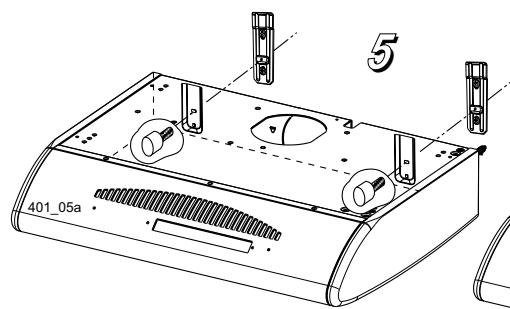

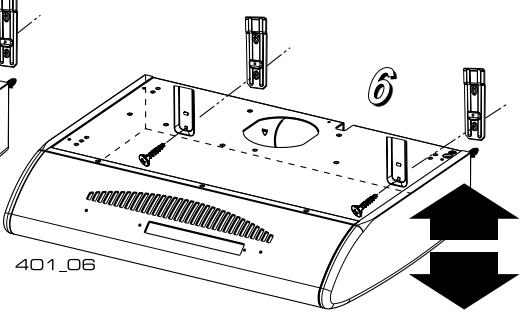

brackets (fig. 4). Fix the hood with two knobs (supplied) (fig. 5). Make sure the hood is level and, if necessary, adjust by acting upon the adjustment screws (fig. 6).
3 - Respect warning 2.5.




3.2 - Wall unit installation

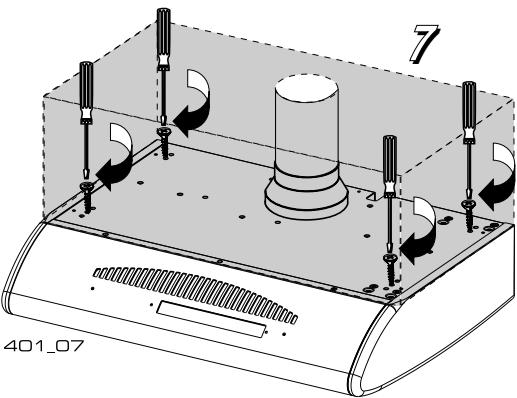

Using the cardboard template, mark and drill the bottom of the wall unit, (see instructions on the template). Fasten the hood from inside the unit using four screws 4,2 × 44,4 (supplied) (fig.7). For suction hoods, the wall unit must be drilled to allow for the air discharge duct. Filter hoods do not require this type of drilling operation since the air is recycled into the room through vents situated on the front of the hood.

3.3 - Connecting suction or filter hoods
1 - Connecting suction hoods (air is discharged into the atmosphere)

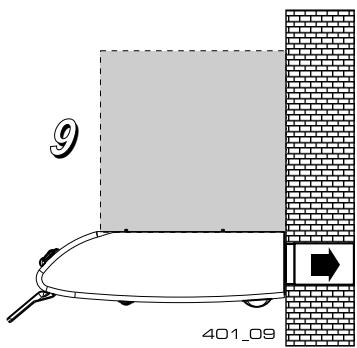

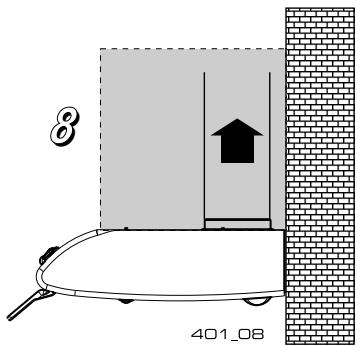

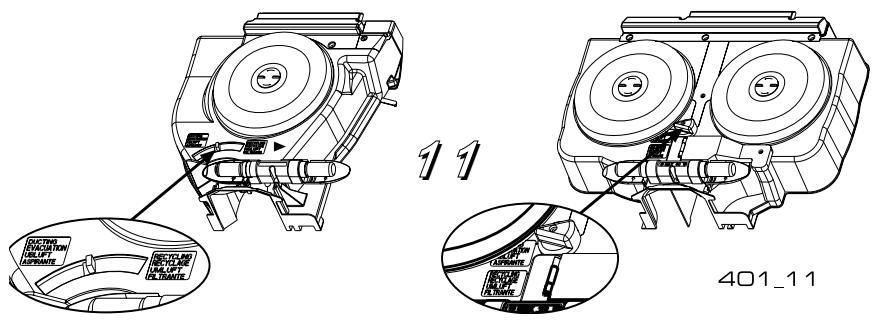

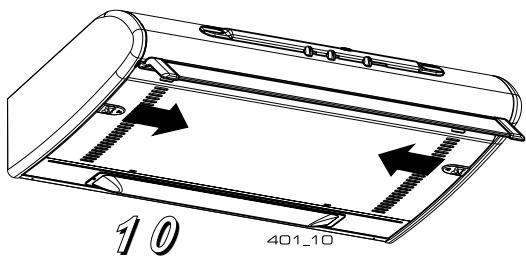

The hood comes with two air outlets, a plastic cover fitted in the rear hole and a flange to be fitted according to the solution chosen: top discharge (fig. 8), rear discharge (fig. 9). In case of installation with rear discharge, fit the plastic cover in the top hole and the flange in the rear hole. Using a pipe 100 o 120mm , connect the air discharge flange to the external discharge duct. Open the grid panel by pressing inwards on the knobs (fig. 10), check that the lever (hood with one motor) or the handle (hood with two motors) points to the ducting mode position (fig. 11), remove the charcoal filter, if any, by turning the handle anti-clockwise (see par.3.3 2 part 2^ - Respect warning 2.1



2 - Connecting filter hoods (air is filtered and recirculated inside the room) Open the grid panel, check that the lever (hood with one motor) or the handle (hood with two motors) points to the filter mode position (fig. 11), insert the charcoal filter (see par.3.3 2 part 2^ ).

3.4 - Electrical connection and working test
1 - The safety measures 2.2, 2.3 and 2.4 of paragraph 2 are to be strictly observed.
2 - Once the electrical connection has been completed, check that the worktop illumination, motor and speeds work properly.
1 - SAFETY WARNINGS
(It is most important that all the warnings shown in paragraph 2 of the Installation Instructions are strictly observed). Moreover, special attention must be paid to the following warnings during the use and maintenance of the cooker hood:
1.1 - The grease filters and the charcoal filters should be cleaned or replaced as recommended by the manufacturer or more frequently if the hood is used consistently (more than 4 hours per day).
1.2 - When using a gas hob in connection with the cooker hood never leave the burners of the hob uncovered while the hood is in use or when the pans have been removed. Switch off the gas before removing the pan or for just short periods and never leave the hob unattended.
1.3 - Always ensure that the appliance is kept at the correct intensity to prevent the flame from licking round from the bottom of the pan; this will save energy and will avoid a dangerous concentration of heat.
1.4 - Always ensure that the appliance is used in accordance with the manufacturer's instructions for the removal of contaminated odours during cooking.
2 - USE

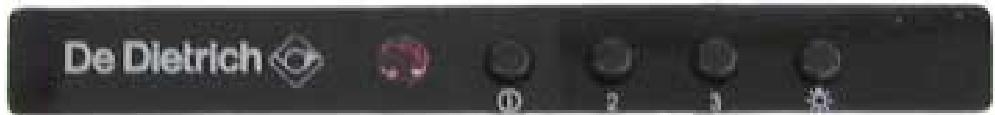

Control panel (fig. 12)
BUTTON T1 = controls the worktop illumination.
BUTTON T2 = switches the motor on or off. Low speed, should be selected when simmering or using only one pan: the noise level is kept to the minimum.
BUTTON T3 = medium speed, should be selected for normal cooking. This speed offers the best ratio between air capacity and noise level.
BUTTON T4 = top speed, should be selected when frying or cooking food with strong odours, even for a long period.
L = pilot light
12

L T2 T3 T4 T1
3 - MAINTENANCE
Regular maintenance will ensure good performance and extend the working life of the hood. Special attention should be taken to the grease filters and, for the filter hoods only, to the charcoal filters.
3.1 - Synthetic grease filters
1 - They cannot be washed and should be replaced every two months on average. If the filter is equipped with chemical indicators of saturation, replace it when the visible red-coloured dots show all over the surface.

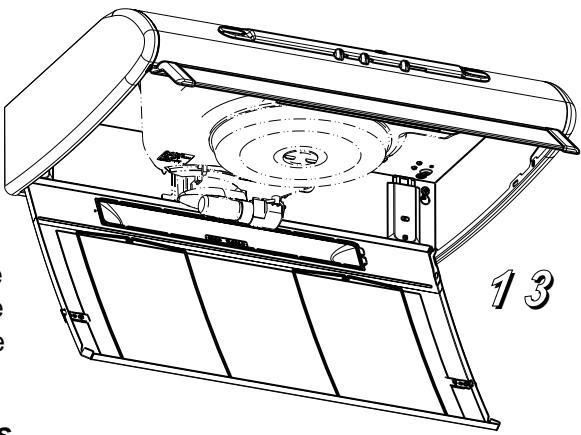

2 - Replacement Open the grid panel, remove the steel-wire clips and replace the grease filter (fig. 13). Close the grid panel.

3.2 - Metal grease filters
1 - Cleaning
These filters need to be washed with ordinary household detergent every 2 months maximum. Thanks to their reduced dimensions, they can also be washed in the dishwasher.
2 - Removing the filter
Open the grid panel, remove the steel wire clips and the grease filter (fig. 13). Make sure that the filter is dry before replacing it, close the grid panel.
WARNING : Respect replacement and maintenance schedules recommended in order to avoid fire hazards caused by over-saturated filters.
3.3 - Charcoal filters
1 - How they work
Charcoal filters can absorb smells and odours until they are saturated. They cannot be washed or recycled and so they should be replaced at least every 4 months or more frequently if the hood is heavily used.
2 - Replacement:

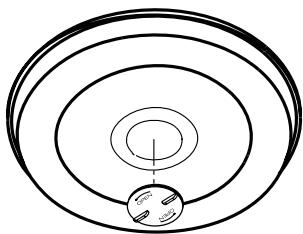

Open the grid panel, replace the charcoal filter by turning the locking handle anti-clockwise for removing and clockwise for replacing (fig. 14). Close the grid panel.

14
3.4 - Lighting

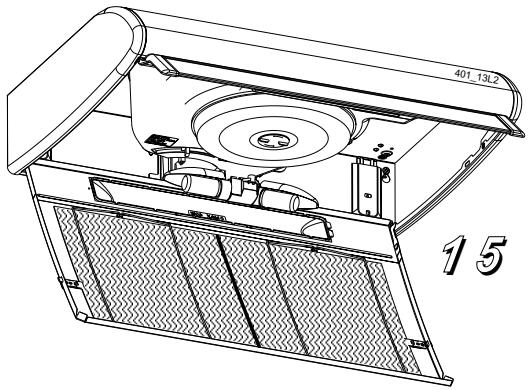

It is composed of one or two 40 W lamps which can be reached by removing the grid panel (Fig.15). If the lights fail to function, check that they are fully screwed into place. If they have blown, they should be replaced with similar lamps having the same voltage and power.
