DHD498XE1 - Range hood DE DIETRICH - Free user manual and instructions

Product type	Decorative hood
Brand	De Dietrich
Model	DHD498XE1
Power supply	Mains, nominal voltage according to rating plate
Lighting	Halogen lamp 20 W
Air outlet diameter	120 mm minimum
Minimum distance to cooking surface	650 mm
Number of speeds	4 speeds + turbo
Special functions	24h function (100 m³/h, 28 dB(A)), delayed shut-off (30 min), turbo (10 min), optional remote control
Filter type	Anti-grease metal filters (dishwasher safe) + activated carbon filter (optional)
Filter maintenance	Metal filters: wash every 2 months; carbon filter: replace every 4 months
Saturation alarm	Indicator light for metal filters (100 h) and carbon (200 h)
Surface cleaning	Damp cloth and neutral liquid detergent; do not use abrasive products
Safety	Mandatory grounding, bipolar switch (3 mm opening), avoid open flames
Customer service	0892 02 88 04 (€0.34/min) - Brandt Customer Service
Included documents	User and installation manual (48 pages)

Frequently Asked Questions - DHD498XE1 DE DIETRICH

What is the minimum installation height between the hood and the cooking surface?

The minimum safety distance is 650 mm. Respect this distance to avoid any risk of overheating or fire.

How to clean the metal filters?

The metal filters are dishwasher safe. Remove them by pushing them backwards and pulling downwards. Clean them every 2 months (more often with heavy use) and let them dry before reinstalling.

When should I replace the activated carbon filter?

The activated carbon filter must be replaced at least every 4 months or when the saturation alarm flashes (indicator S1). It is neither washable nor regenerable.

How to reset the filter saturation alarm?

Turn off the lights and motor. Press the T3 button for at least 3 seconds until the indicators flash in confirmation.

How to activate the 24h function?

Press the T1 button for about 5 seconds. This function provides continuous extraction of 100 m³/h at only 28 dB(A). It can be activated even when the hood is off.

What is the turbo function for?

The turbo function (button T4) offers maximum extraction for strong steam emissions. Activate it by pressing T4 for 2 seconds. It turns off automatically after 10 minutes.

How to use the delayed shut-off (Delay)?

Press the T2 button for about 2 seconds to activate the 30-minute delayed automatic shut-off. Ideal for removing residual odors after cooking.

Can I use a remote control?

Yes, a remote control is available on request. It uses LR03-AAA alkaline batteries (1.5 V). Do not expose the remote to heat sources.

How to replace the halogen lamp?

Unscrew the ceiling light, remove the old lamp and replace it with an identical 20 W halogen lamp. Make sure the plugs are correctly inserted into the socket.

What type of electrical wiring is required?

The installation must include a bipolar switch with a contact opening of at least 3 mm. Check that the mains voltage matches that indicated on the rating plate located inside the hood.

USER MANUAL DHD498XE1 DE DIETRICH

If you follow the recommendations contained in this Instruction Manual, your appliance will give you constant high performance and will remain efficient for many years to come.

CONTENTS

RECOMMENDATIONS AND SUGGESTIONS 12

CHARACTERISTICS 13

INSTALLATION 14

USE 17

MAINTENANCE 18

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.

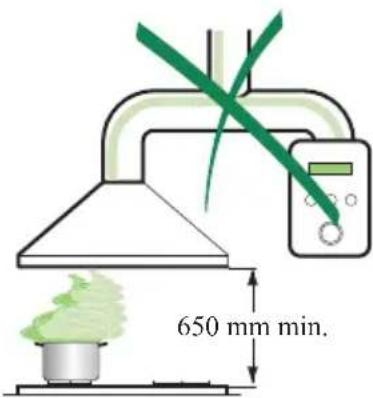

• The minimum safety distance between the cooker top and the extractor hood is 650~mm

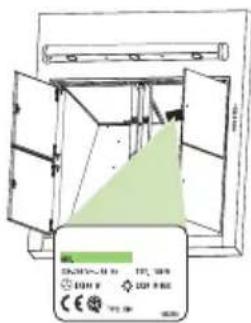

• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

Connect the extractor to the exhaust flue through a pipe of minimum diameter 120mm . The route of the flue must be as short as possible.

• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air.

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.

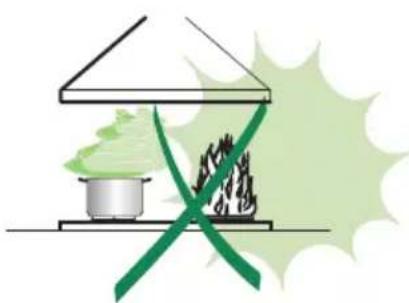

• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use; overheated oil can burst into flames.
• The hood should not be used by children or persons not instructed in its correct use.

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period.
• Clean the hood using a damp cloth and a neutral liquid detergent.

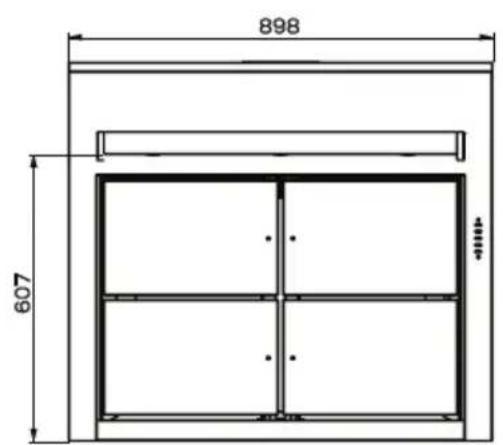

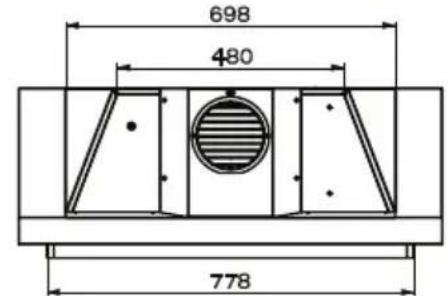

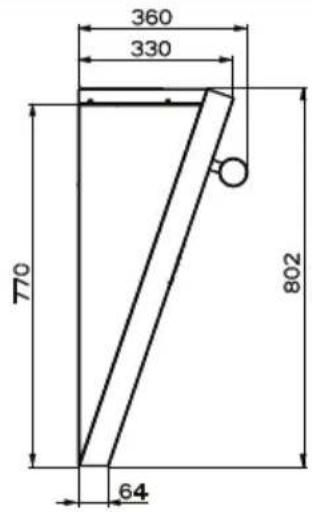

Dimensions

Components

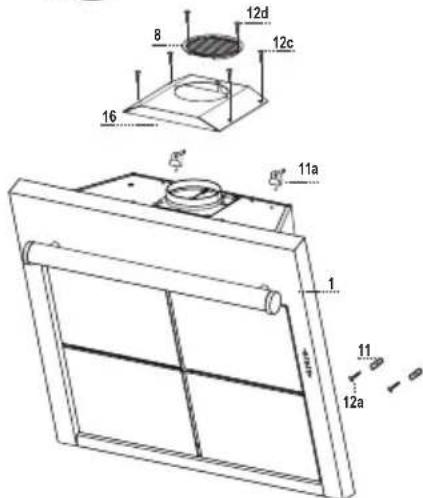

Ref. Q.ty Product Components

1 1 Hood Body, complete with: Controls, Light, Blower, Filters

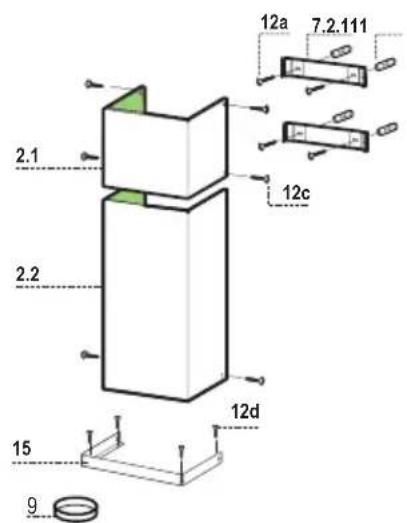

2.1 1 Upper Section (optional)
2.2 1 Lower Section (optional)
81 Directional Air Outlet grille
91 Flange (optional)
15 1 Angle iron (optional)
16 1 Filter cover

Ref. Q.ty Installation Components

7.2.1 2 Upper Chimney Section Fixing Brackets (optional)

116 Wall Plugs (4 optional)
11a 2 Wall Plugs SB 12/10
12a 6 Screws 4,2× 44,4 (4 optional)
12c 10 Screws 2,9× 6,5 (6 optional)
12d 6 Screws 2,9 x 9,5 (4 optional)

Q.ty Documentation

1 Instruction Manual

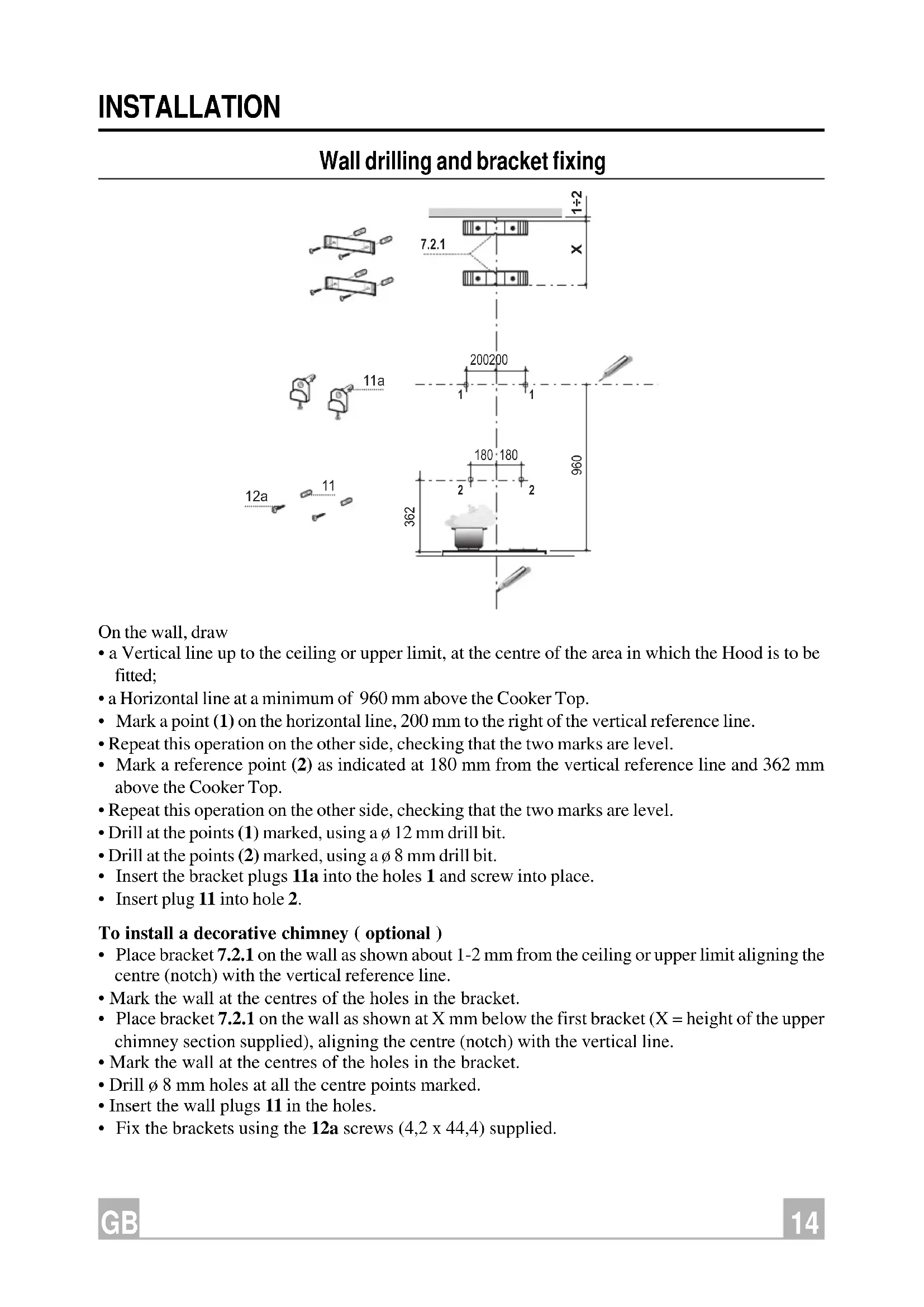

Wall drilling and bracket fixing

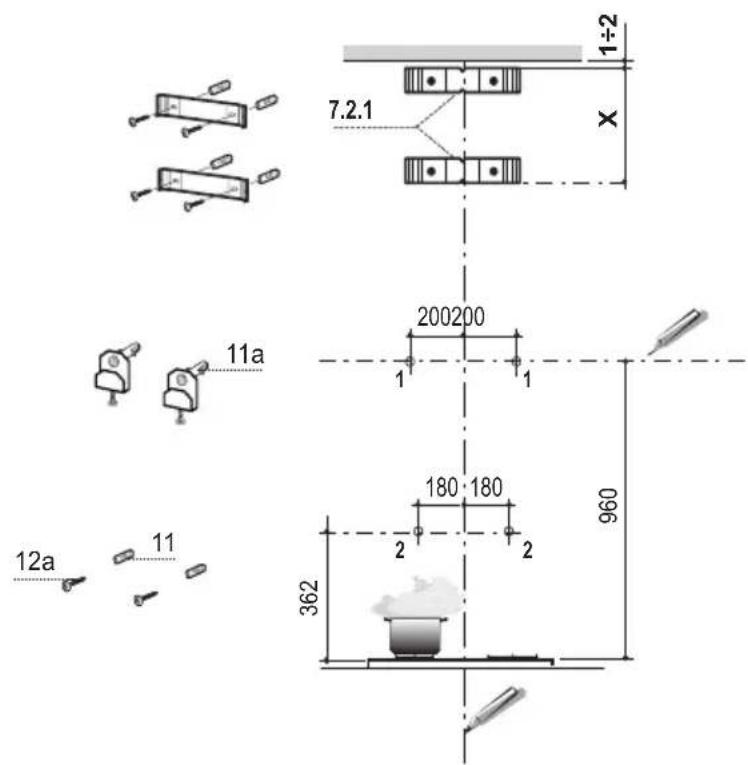

On the wall, draw

• a Vertical line up to the ceiling or upper limit, at the centre of the area in which the Hood is to be fitted;
• a Horizontal line at a minimum of 960mm above the Cooker Top.
• Mark a point (1) on the horizontal line, 200 mm to the right of the vertical reference line.
• Repeat this operation on the other side, checking that the two marks are level.
• Mark a reference point (2) as indicated at 180mm from the vertical reference line and 362mm above the Cooker Top.
• Repeat this operation on the other side, checking that the two marks are level.
• Drill at the points (1) marked, using a 12mm drill bit.
• Drill at the points (2) marked, using a 8mm drill bit.
• Insert the bracket plugs 11a into the holes 1 and screw into place.
• Insert plug 11 into hole 2.

To install a decorative chimney ( optional )

• Place bracket 7.2.1 on the wall as shown about 1 - 2mm from the ceiling or upper limit aligning the centre (notch) with the vertical reference line.
• Mark the wall at the centres of the holes in the bracket.
• Place bracket 7.2.1 on the wall as shown at X mm below the first bracket ( X = height of the upper chimney section supplied), aligning the centre (notch) with the vertical line.
• Mark the wall at the centres of the holes in the bracket.
• Drill 8mm holes at all the centre points marked.

• Insert the wall plugs 11 in the holes.
  Fix the brackets using the 12a screws (4,2 x 44,4) supplied.

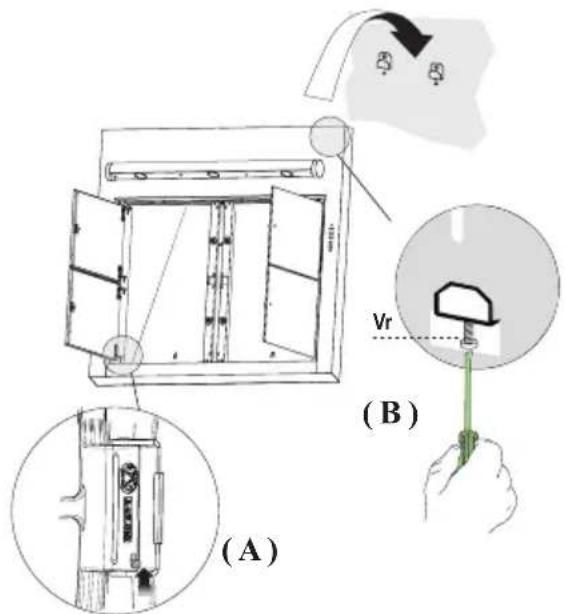

• Open the ducting panels.

• Disconnect the panel from the hood canopy by sliding the fixing pin lever.(A)
• Remove the metal grease filters by turning the handles provided.
• Adjust the two screws Vr , on brackets 11a, to a minimum.(B)
• Hook the hood canopy onto the two brackets 11a.
  From inside the hood canopy, adjust the screws Vr to set the Hood Canopy level.
• Tighten the safety screw 11.

Connections

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe, the choice of which is left to the installer.

• Insert the flange 9 (optional), on the hood body outlet.
  Fix the pipe in position using sufficient pipe clamps (not supplied).
• Remove any activated charcoal filters.

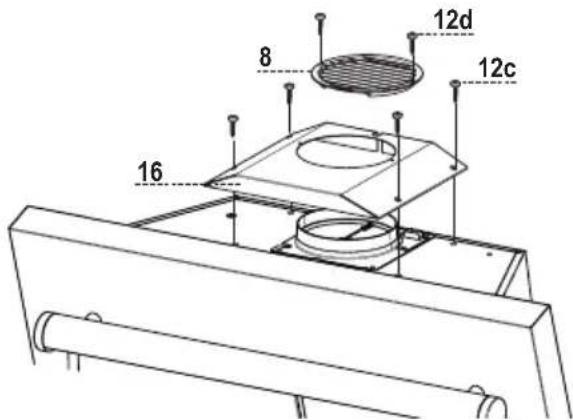

RECIRCULATION VERSION AIR OUTLET

To install the Recirculation Version of the hood, the optional Activated charcoal cartridge kit must be purchased.

• Screw the filter cover onto the air outlet, using four screws 12c (2.9 x 12.5).
  Fix the directional grille 8 on the recirculation air outlet using the 2 screws 12d (2,9 x 9,5) provided.

The chimney can only be installed with exhausting hood

• Fasten the angle iron 15 to the hood canopy using the screws 12d (2,9 x 9,5) provided.

Upper exhaust flue

• Slightly widen the two sides of the upper flue and hook them behind the brackets 7.2.1, making sure that they are well seated.
• Secure the sides to the brackets using the 4 screws 12c (2,9× 6,5) supplied.

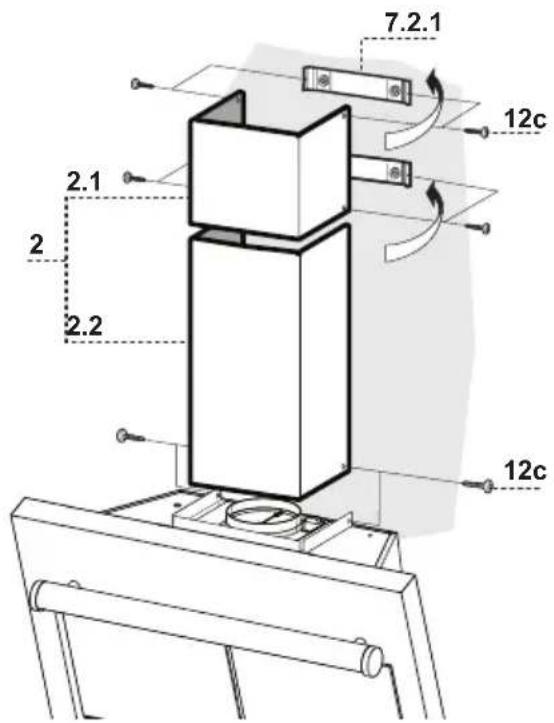

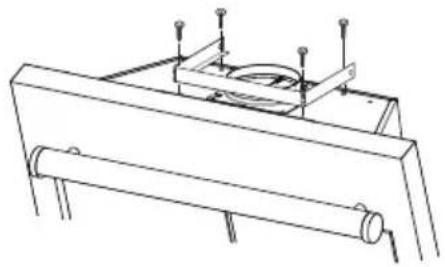

Lower exhaust flue

• Slightly widen the two sides of the flue and hook them between the upper flue and the wall, making sure that they are well seated.
  Fix the lower part laterally to the hood body using the 2 screws 12c (2,9 x 6,5) supplied.

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3mm .
• Remove the grease filters being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan.

Control Panel
The hood can be switched on pushing directly onto the requested speed without firstly having to select 0/1 button.
KEY LED FUNCTIONS	L
L 0/1 Light Turns lighting on and off.	*
T1 0/1 Motor on First speed.	T1
	①/24
	T2
	2/D
Flashing 24h Changeover This is enabled by pressing and holding the button for approximately 5". It allows a suction level of 100 m3/h with a noise level of just 28dB(A). Can be enabled at any speed, even with the hood turned off. To disable, press and hold the button for approximately 5".	T3
	3
	T4
	4/i
	S1
T2 Speed on Second speed.	F
Flashing Delay (30') Press the button for approximately 2" to enable automatic shutdown with a 30' delay. Suitable to complete elimination of any residual smells. Can be enabled at any speed and is disabled by pressing the button briefly.
T3 Speed on Third speed.
T4 Speed Fixed Max. speed
Flashing Intensive speed. Suitable for the strongest cooking vapours and odours. The function becomes active when the button is pushed for about 2 seconds. After 10 minutes of functioning it turns off automatically. This function can be interrupted by means of pressing any of the buttons.
S1 Led Fixed Indicates that the Metal grease filters saturation alarm has been triggered, and the filters need to be washed. The alarm is triggered after 100 working hours. (Reset; check the Maintenance-paragraph)
Flashing indicates that the activated charcoal odour filter saturation alarm has been triggered, and the filter has to be replaced; the metal grease filters must also be washed. The activated charcoal odour filter is triggered after 200 working hours. (Activation and Reset; check the Maintenance-paragraph)

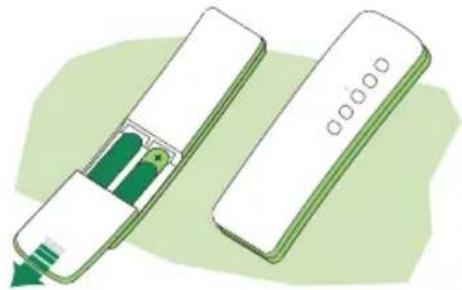

REMOTE CONTROL (OPTIONAL)

The appliance can be controlled using a remote control powered by a 1.5V carbon-zinc alkaline batteries of the standard LR03-AAA type.

• Do not place the remote control near to heat sources.
• Used batteries must be disposed of in the proper manner.

MAINTENANCE

Grease filters

CLEANING METAL SELF- SUPPORTING GREASE FILTERS

Alarm signal reset

• Switch off the lights and extractor motor.
• Press button T3 for at least 3 seconds, until the leds start to flash.

Cleaning the filters

• The filters are washable and must be cleaned when led S1 flashes or at least every 2 months of operation, or more frequently for particularly heavy usage.
• Remove the filters one at a time by pushing them towards the back of the group and pulling down at the same time.
• Wash the filters, taking care not to bend them. Allow them to dry before refitting.
• When refitting the filters, make sure that the handle is visible on the outside.

Ducting panels

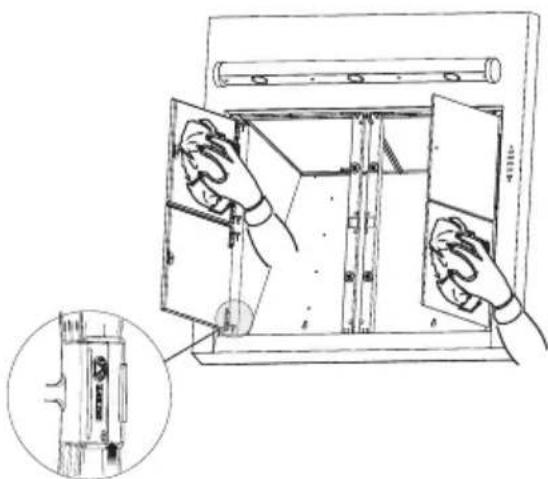

• Clean the outside using a damp cloth and neutral liquid detergent.
• Clean the inside using a damp cloth and neutral detergent; do not use wet cloths or sponges, or jets of water; do not use abrasive substances.

REPLACING THE ACTIVATED CHARCOAL FILTER

• The filter is not washable and cannot be regenerated. It must be replaced when led S1 flashes or at least every 4 months. The alarm signal will only light up when the extractor motor is switched on.

Alarm signal reset

• Switch off the lights and extractor motor.
• Press button T3 for at least 3 seconds, until the leds start to flash.

Replacing the Filter

• Remove the metal grease filters

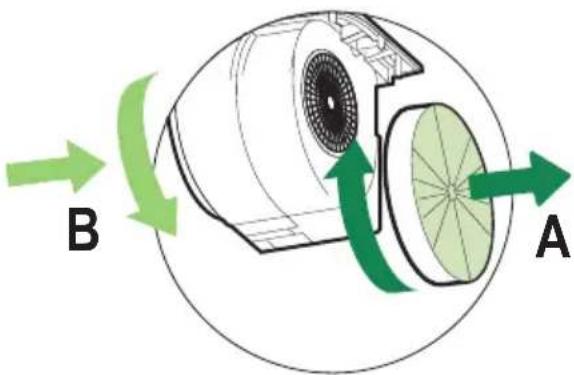

• Remove the saturated activated carbon filters as shown (A).
• Fit the new filters (B).
• Replace the metal grease filters.

Alarm signal activation

• In Recirculation version Hoods, the Filter saturation alarm can be enabled on installation or at a later date. Turn the Lights and the suction Motor off.
• Disconnect the Hood using the Main switch or the double-pole switch on the mains power supply.
• Restore the connection by pressing and holding T1.
• Release the button. All five LEDs are turned on
• Within 3 seconds press T1 until LEDs T1 and T4 flash in confirmation: LED flashes twice - Activated charcoal filter saturation alarm ENABLED LED flashes once - Activated charcoal filter saturation alarm DISABLED

Lighting

LIGHT REPLACEMENT

20 W halogen light.

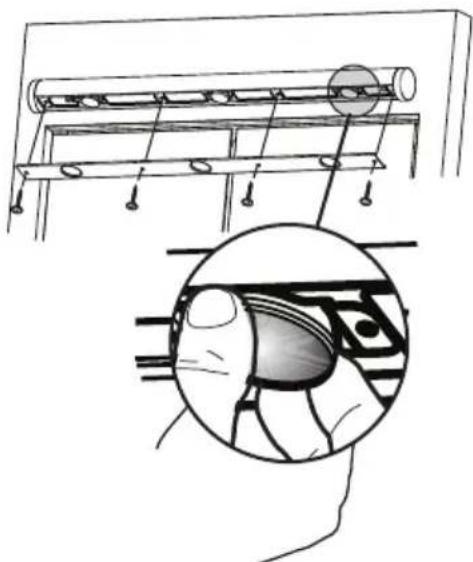

• Remove the light cover by unfastening the screws that hold it.
• Extract the lamp from the Support.
• Replace with another of the same type, making sure that the two pins are properly inserted in the lamp holder socket holes.
• Replace the light cover.
