USER MANUAL X-HM11-K PIONEER
SERVICE PERSONNEL. WARNING This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filed with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture. D34244 D34243 A1 En WARNING To prevent a fire hazard, do not place any naked flame sources (such as a lighted candie) on the equipment: D42-t7a A1 En VENTILATION CAUTION When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 25 cm at top, 10 cm at rear, and 5 cm at each side) WARNING Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed D342470+ At En Operating Environment Operating environment temperature and humidity: +5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH (cooling vents not blocked) Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight or strong artificial light) D342-tres At En WARNING Store small parts out of the reach of children and infants, I accidentally swallowed, contact a doctor immediately. Das At En This product is for general household purposes. Any failure due to use for other than household purposes such as long-term use for business purposes in à restaurant or use in à car or ship} and which requires repair will be charged for even during the warranty period KOë AE CAUTION The OSTANDBY/ON switch on this unit will not completely shut off all power from the AC outlet Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power plug can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for à long period of time (for example, when on vacation). D342228 An CAUTION This product is a class 1 laser product classified under the Safety of laser products, IEC 60825-1:2007.
CLASS 1 LASER PRODUCT

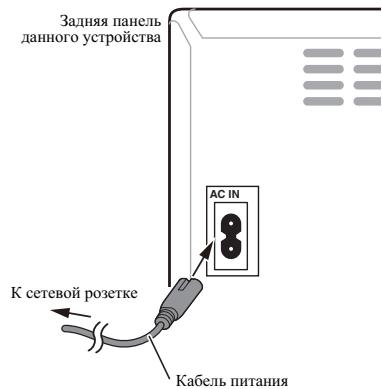

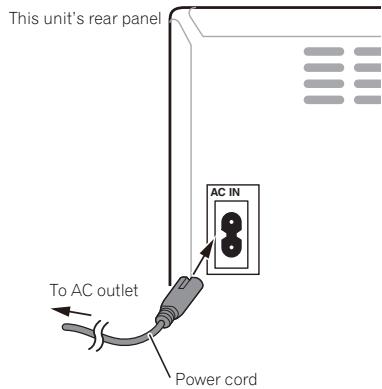

5852-28 A1 En POWER-CORD CAUTION Handle the power cord by the plug. Do not pull out the plug by tugging the cord and never touch the power cord when your hands are wet as this could cause à Short cireuit or electric shock. Do not place the unit, a piece of furniture, ete., on the power cord, or pinch the cord. Never make a knot in the cord or tie it with other cords. The power cords should be routed such that they are not likely to be stepped on. À damaged power cord can cause a fire or give you an electrical shock. Check the power cord once in a while. When you find it damaged, ask your nearest PIONEER authorized service center or your dealer for a replacement. so02 at En Do not install your speakers overhead on the ceiling or wall, The grill is designed to be detachable, and as such it may fall and cause damage or personal injury if installed overhead. Sékooë A1 En
Information for users on collection and disposal of old equipment and used batteries (srmvoi for ) equipment (Srmboi sxemples) for batteries
These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation. By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. For more information about collection and recycling of old products and batteries, please contact your local municipaliy, your waste disposal service or the point of sale where you purchased the items. These symbols are only valid in the European Union. For countries outside the European Union: If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal. KOSta_A_En
Thank you for buying this Pioneer product. Please read through these operating instructions so that you will know how to operate your model proper. After you have finished reading the instructions, put them in a safe place for future reference. Contents 01 Before you start 06 Disc playback What's in the box 5 Playing discs or files 17 Loading the batteries in the remote control 5 Advanced CD or MP3/WMA disc playback 18 Using the remote control 5 Direct track search 18 02 Part names and functions Rare, 4 h Remote control 6 Programmed play (CD or MP3AMMA) 19 Speaker system 7 About downloading MP3/MMA 19 Front panel 8 ‘About folder playback order 19 Display 9 Specify the folder to play. 20 : Switch the display contents 20 03 Connections Speaker connection 10 07 USB playback Connecting antennas 11 Playing USB storage devices a Using external antennas 11 Repeat play. 21 Plugging in 1 Random play al Specify the folder to play. 22 04 Getting started Switch the display contents. 22 To turn the power on 12 Playing inthe desired order (Programmed Plaÿ) .…. 22 Setting the clock 12 General control 12 08 Using the tuner Input function 12 Listening to the radio broadcasts 23 Display brightness control 12 Tuning. 23 Volume auto setting nm Saving station presets 3 Volume cantro! 2 To recall a memarised station 24 Muting 5 To scan the preset stations. 24 Sound cuntiols 5 To erase entire preset memory 24 Equalizer 13 Using the Radio Data System (RDS) 24 BRASS cond a ‘An introduction to RDS; 24 Bass/treble control 13 Searching for RDS programs 24 Setting the wake-up timer 13 Information provided by RDS . 2 Calling the wake-up timer M Using the Auto Station Program Memory (ASPM).… 25 Cancelling the wake-up timer 14 Notes for RDS operation: 25 Using the wake-up timer 14 09 Other connections Uars Dis 5 Connecting auxiliary components 26 05 iPod/iPhone/iPad playback 10 Adi ooti “ forma a OCHM21 only) Playable discs and formats 2 Contirming what iPod/iPhone/iPad models are Regarding copy protected CDs 29 supported 15 Supported audio file formats 29 Connecting your iPad/iPhone/iPad 15 Cautions on use 29 Connecting iPod/iPhone/iPad using supplied When maving this unit 29 stand 15 Place of installation 29 Playing iPod/iPhone/iPad 16 Do not place objects on this unit 30 ‘About condensation 30 Cleaning the product 30 Cleaning the lens. 30 Handling discs 30 Storing 30 Cleaning discs 30 About specially shaped discs 30 About iPod/iPhone/iPad sa Restoring all the settings to the defaults si Specifications 32

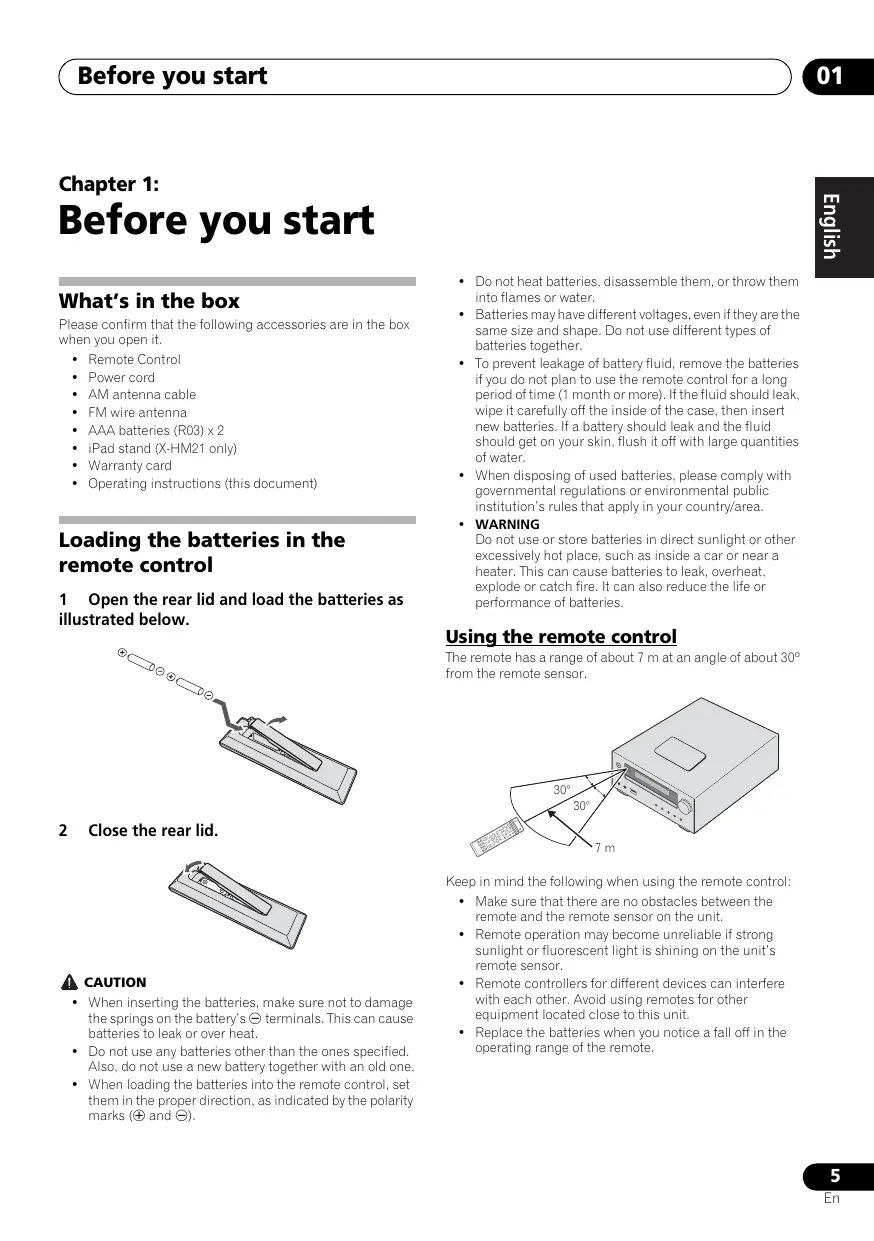

Before you start What's in the box Please confirm that the following accessories are in the box when you open it + Remote Control + Power cord + AM antenna cable + FMwire antenna + AAA batteries (ROS) x 2 iPad stand (X-HM21 only) Warranty card + Operating instructions (this document) Loading the batteries in the remote control 1 Open the rear lid and load the batteries as illustrated below.

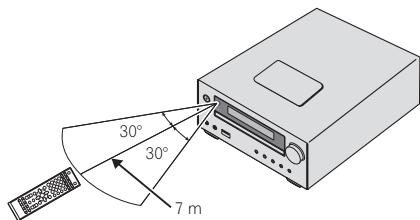

À CAUTION +" When inserting the batteries, make sure not to damage the springs on the batter/s © terminals. This can cause batteries to leak or over heat + Do not use any batteries other than the ones specified Also, do not use a new battery tagether with an old one. +_ When loading the batteries into the remote control, set them inthe proper direction, as indicated by the polarity marks (® and ©) + Do notheat batteries, disassemble them, orthrow them into flames or water. Batteries may have different voitages, even ifthey arethe same size and shape. Do not use different types of batteries together To prevent leakage of battery fluici remove the batteries if you do not plan to use the remote control for a long period oftime (1 month or mare). the fluid should leak, wipe it carefully off the inside of the case, then insert new batteries. If a battery should leak and the fluid should get on your skin, flush it off with large quantities of water When disposing of used batteries, please comply with govermental regulations or environmental public institution’'s rules that apply in your country/area. WARNING Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a heater, This can cause batteries to leak, overheat explode or catch fire. It can also reduce the life or performance of batteries. Using the remote control The remote has a range of about 7 m at an angle of abaut 30° from the remote sensor. Keep in mind the following when using the remote control Make sure that there are no obstacles between the remote and the remote sensor on the unit Remote operation may become unreliable if strong sunlight or fluorescent light is shining on the unit's remote sensor. Remote controllers for different devices can interfere with each other. Avoid using remotes for other equipment located close ta this unit. Replace the batteries when you notice a fall off in the operating range of the remote.

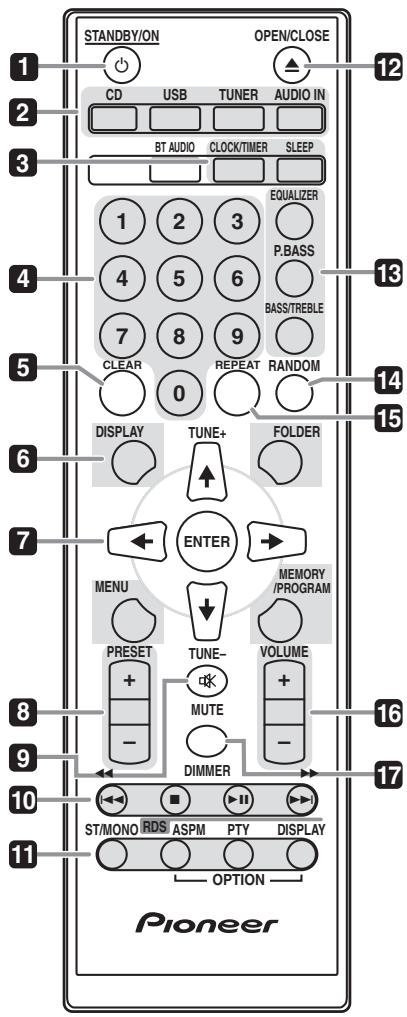

_ 02} (Part names and functions ) Chapter Part names and functions 1 © STANDBY/ON Remote control Switches the receiver between standby and on (page 12). 2 Input function buttons Use to select the input source to this receiver (pages 16, 17. 23, 26). STANDEVION OPENCLOSE o CD Receiver control buttons a-! Cm ES INR ADN CLOCK/TIMER Use for setting the clock, as well as for settir checking the timers (page 12). un SLEEP ©) @ ©] e) See Using the sleep
Use to memory or program the MPS/ MA disc (page 19).
[+] @ [+] 7 $/Veæ/= (TUNE +/-), ENTER 8 EI ue [1 G Use to select/switch system settings and modes, and to CE] (@ CE] confirm actions. Lo) sl F7 Use TUNE +/- can be used to find radio frequencies (page 23). De © © © srmono RDS asp PrY — DISPLAY 8 PRESET +/- œ Use to select preset radio stations (pag OPTION —7 9 MUTE Mutes/unmutes the sound (page 12) Piron roneer 10 Playback control buttons Use to cantrol each function aiter you have selected it using the input functian buttons (page 17)
(Part names and functions 11 Tuner control buttons ST/MONO Use to switch the sound mode between stereo and monaural. (page 23) RDS ASPM Use to search for RDS Auto station program memory (page 24). RDS PTY Use to search for RDS program types (page 24) RDS DISPLAY Press to change the RDS display for information mode (page 24) 12 OPEN/CLOSE Use ta open or close the disc tray (page 17) 13 Sound control buttons Adjust the sound quality (page 1) 14 RANDOM Randomize order of track playback from a CD, iPad or USB (page 18) 15 REPEAT Press to change the repeat play setting from a CD, iPod or USB (page 18). 16 Volume control buttons Use to set the listening volume (page 12) 17 DIMMER Dims or brightens the display. The brightness can be contralled in four steps (page 12) @ note +_ The BT AUDIO button is not available for this unit Speaker system Tweeter Woofer Bass Reflex Duct © important + Speaker grille cannot be removed. (CHM11) Make sure nothing comes into contact with the speaker diaphragms when you remove the speaker grilles. (X: M2)

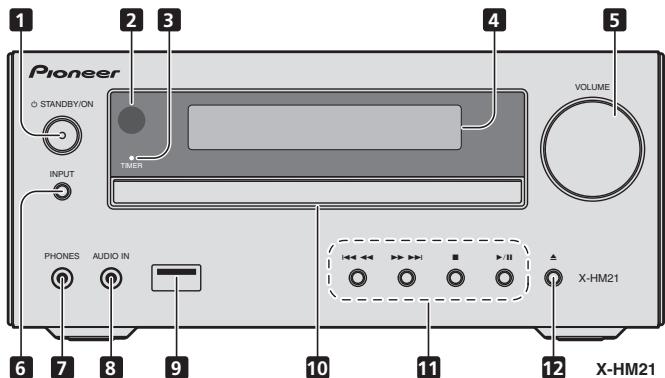

_ 02} (Part names and functions Front panel © ru 1 © STANDBY/ON button Switches the receiver between standby and on (page 12): 2 Remote sensor Receives the signals from the remote control. 3 TIMERindicator Lights when the unit power is off but when the timer setting is activated. 4 Character See Display on page 9. 5 Volume control Use to set the listening volume (page 12). 6 INPUT button Selects the input source. 7 Headphone socket Use to connect headphones. When the headphones are connected, there is no sound output from the speakers {page 14) 8 AUDIO IN socket Use to connect an auxiliary component using a stereo minijack cable (page 26) xHn21 9 USB terminal (X-HM21) Use to connect your USB mass storage device or Apple iPod/ iPhone/iPad as an audio source (page 21) USB terminal (X-HM11) Use to connect your USB mass storage device as an audio source (page 2). 10 Disc tray Place the disc, label side up (page 17) 11 Playback control buttons Selectthe desired track orflle to be played back. Stop current playback. Stap playback or resume playback from the point where it was paused 12 Disc tray open/close button Use to open or close the disc tray (page 17).

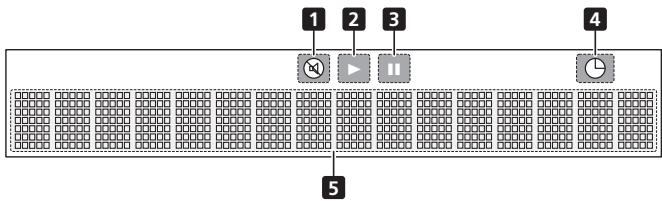

Part names and functions Display on A
Timer function is set. Bite 5 Character display Displays various system information. + The mute icon will be d
Chapter Connections À CAUTION +_ Be suretoturn off the power and unplug the power cord from the power outlet whenever making or changing connections. + Connect the power cord after all the connections between devices have been completed Speaker connection + Push open the tabs and insert exposed wire. + Connect the black wire to (-) terminal, and the red wire to the (+) terminal. e e Right Left speaker speaker “This units rear panel

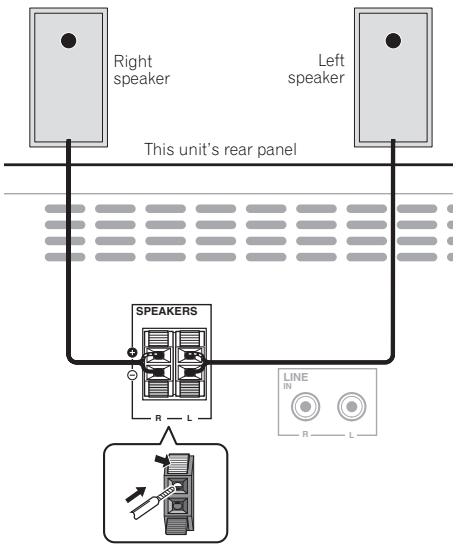

À cAUTION These speaker terminals carry HAZARDOUS LIVE voltage. To prevent the risk of electric shock when connecting or discannecting the speaker cables, disconnect the power cord before touching any uninsulated parts. Do not connect any speakers other than those supplied to this system Do not connect the supplied speakers to any amplifier other than the one supplied with this system. Connection ta any other amplifier may result in malfunction or fire.
Da not attach these speakers to the wall or ceiling. They may fall off and cause injury. These speakers are magnetically shielded. However, depending on the installation location, color distortion may occur f the speaker system is installed extremely close to the screen of a television set. Ifthis happens, turn off the television set, and then turn it on afler 15 to 30 minutes. the problem persists, move the speaker system away from the television set Make sure that the speaker cable cores do not become exposed and make contact with other cable cores. This may cause malfunction of the product Donotallow the speaker cable core to come into contact with the receiver body. the speaker cable core comes into contact with any metal portion ofthe receiver's body, it may damage the speakers and cause smoke and fire. Insert speaker cables securely into the terminals and check that the cable does not come out of easily. @ note + There is no difference between Land R speakers.

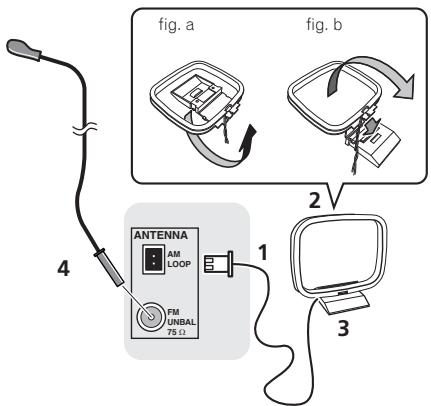

Ç Connections Connecting antennas Connect the AM loop antenna and the FM wire antenna as shown below. To improve reception and sound quality connect external antennas (see Using extemal anter below.

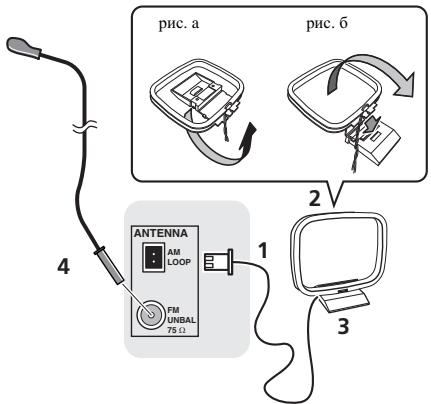

1 Connect the AM antenna wires. Hold the terminal part of the wire when connecting 2 Fixthe AM loop antenna to the attached stand. Tofixthe standto the antenna, bendinthe direction indicated bythe arrow (fig. a) then clip the loop onto the stand (fig. b) 3 Place the AM antenna on a flat surface and in a direction giving the best reception. 4 Connect the FM wire antenna into the FM antenna socket. For best results, extend the FM antenna fully and fix to a wall or door frame. Don't drape loosely or leave coiled up. Using external antennas To improve FM reception Use a PAL connector (not supplied) to connect an external FM antenna. One-touch PAL connector cabi Plugging in À CaAuUTION + Do not use any power cord other than the one supplied with this unit. + Do not use the supplied power cord for any purpose other than that described below Before making or changing the connections, switch off the power and disconnect the power cord from the AC outlet After you've finished making all connections, plug the unit into an AC outlet ‘This units rear panel outiet
_ 04) (Getting started Chapter Getting started To turn the power on Press the © STANDBY/ON to turn the power on. After use: Press the © STANDBY/ON to enter the power stand-by mode. @ note *_In standby mode, if iPod/iPhone/iPad is connected, the unit tums charge mode. 1 Press à STANDBY/ON to turn the power on. 2 Press CLOCK/TIMER on the remote control. ‘CLOCK” is shown on the main display, 3 Press ENTER. 4 Press 4/= to set the day, then press ENTER. 5 Press 4/=> to set the hour, then press ENTER. Setting the clock 6 Press æ=/=+ to set the minute, then press ENTER to confirm. 7 Press ENTER. To confirm the time display: Press the CLOCK/TIMER. The time display will appear for about 10 seconds. To readjust the clock: Perform “Setting the clock" from step 1 @ note + When power supply is restored after unit is plugged in again or after a power failure, reset the clock. General control Input function hen the INPUT on main unit is pressed, the cur will change to different mode. Press the INPUT repx select desired function: tediyt X-HM21 CD + FM > AM UNE <— AUDIOIN €— USByiPod X-HM11 CD + FM > AM T |
LINE € AUDIOIN €<— USB
Display brightness control Press DIMMER to dims the display brightness. The brightness can be controlled in four steps. Volume auto setting if you turn off and on the main unit with the volume set to 31 ar higher, the volume starts at 30 and sets in to the last set level Volume control Turn the VOLUME on the unit or press VOLUME +/- on the remote control to increase or decrease the volume. À CAUTION + The sound level at a given volume setting depends on speaker efficiency, location, and various other factors. is advisable to avoid exposure to high volume levels. Do not turn the volume on to full at switch an. Listen ta music at moderate levels. Excessive sound pressure from earphones and headphones can cause hearing loss. Muting The volume is muted temporarily when pressing the MUTE on the remote control. Press again to restore the volume.

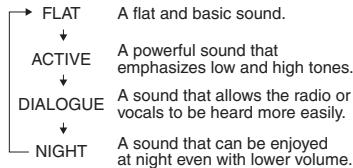

(Getting started Sound controls e EQUALIZER is pressed, the current mode setting will be displayed. To change to a different mode, press the EQUALIZER repeatediy until the desired sound mode appears. FLAT A flat and basic sound. A poerlul sound that ACTIVE | emphasizes low and high tones. A sound that allows the radio or DIALOGUE. Vocals to be heard more easily.
NIGHT À Sound that can be enjoyed At night even wilh lower volume. P.BASS control hich emphasises th ue cancel the P.BASS mode, press the P.BASS on control remote Bass/treble control BASS/TREBLE, then press #/4/#/=+ to adjustthe @ note Simultaneous operation of EQUALIZER. P.BASS and BASS/ TREBLE is not possible. Only the functions that you have selected will be acte I you select one of three functions, features that are not selected will be set as follows. 1 If you change the settings of P.BASS (ON/ OFF).
Setting the wake-up timer Used to change the existing timer setting, or to set a new timer 1 Press à STANDBY/ON to turn the power on. 2 Press and hold CLOCK/TIMER. 3 Press æ=/=> to select "ONCE" or “DAILY”, then press ENTER. rks once only at a preset time. rks at the preset time on a preset day. 4 Press 4=/=> to select “TIMER SET", then press ENTER. 5 Press /=b to select the timer playback source, then press ENTER. + CD. FM, AM. USB/Pod, USB, AUDIO IN and LINE can be selected as the playback source. 6 Press æ/= to select the timer day, then press ENTER. 7 Press æ/=+ to set the hour, then press ENTER. 8 Press æ=/= to set the minute, then press ENTER. + Setthe time to finish as in steps 7 and 8 above. 9 Adjust the volume press VOLUME +/-, then press ENTER. 10 Press © STANDBY/ON to enter the power standby mode + The TIMER à ator lights up
_ 04) (Getting started Calling the wake-up timer AAn existing timer setting can be reused 1 Follow steps 1 to 3 in “Setting the wake-up timer”. 2 Press æ/= to select “TIMER ON”, then press ENTER. Cancelling the wake-up timer Turn off the timer setting] 1 Follow steps 1 to 3 in “Setting the wake-up timer”. 2 Press 4=/=> to select ‘TIMER OFF", then press ENTER. Using the wake-up timer 1 Press à STANDBY/ON to turn the power off. 2 Atthe wake-up time, this unit will turn on automatically and play the selected input function. @2 note +_Hatthe wake-up time an iPod/Phone/iPad is not connected to the unit or a disc is not inserted, the unit will be turned on but will not play back the track Some dises may not be played automatically at the wake- up time When setting the timer set at least one minute between the start and'end time. Using the sleep timer The sleep timer switches off the unit after a specified time so you can fall asleep without worrying about it. 1 Press SLEEP repeatedly to select a switch off time. Choose between 10 min, 20 min, 30 min, 60 min, 90 min, 120 min, 160 min, 180 min or OFF. The new} set value displays for 8 seconds, and then the setting is completed @ note +_The sleep timer can be set by pressing SLEEP while the remaining time is displayed Using Headphones Insert the headphone's jack plug into the connector. When the headphones are connected, there is no sound output from the speakers. + Do notturnthe volume on to full at switch on and listen to music at moderate levels. Excessive sound pressure from earphones and headphones can cause hearing loss. Before plugging in or unplugging the headphone. reduce the volume: Be sure your headphone has a 3.5 mm diameter plug and impedance between 16 and 50 Q. The recommended impedance is 32 Q: Audio from the iPod/iPhone/iPad cannot be heard via the headphones connected to the unit. “HP MUTE" will be displayed if you connect the headphones when the iPod/iPhane/iPad function is selected
Ç Pod/iPhone/iPad playback (X-HM21 only)
iPod/iPhone/iPad playback (X-HM21 only) Merely by connecting your iPad/iPhone/iPad to th can enjoy high-quality sound from your iPod/iPhone/iPa Playback setting for iPod/iPhane/iPad music can be performed from this unit or the iPod/iPhone/iPad Confirming what iPod/iPhone/iPad models are supported The iPod/iPhone/iPad playable on this unit are shown below hone/iPad USB Terminal (Au iPod nano 3G/46/56/66/7G / only) iPod touch 16/26/3G/4G/5G iPhone 5 iPhone 45 iPhone 4 iPhone 365 iPhone 3G iPhone iPad mini iPad (Ath generation) iPad (Brd generation) iPad 2 SEEN ENENENENENENENES iPad @ note Pioneer does not guarat s unit plays iPod/ Phone/iPad models other than the ones specified. Some functions may be restricted depending on the model or software version. Pod/iPhone/iPad is licensed for reproduction of non- copyrighted materials or materials the user is legally permitted to reproduce. Features such as the equalizer cannot be controlled using this system, and we recommend switching the equalizer off before connecting. Pioneer cannot under any circumstances responsibility for any direct or indirect lo: g from anyinconvenience or loss of recorded material resulting from iPod/iPhone/iPad failure. + For detailed instructions on using the iPod/iPhone/iPad, please refer to the manual supplied with the iPod/ Phone/iPad This system has been developed and tested for the software version of iPod/iPhone/iPad indicated an the website of Pioneer (http://pianeer.jp/homeav/support jos/eu, ling software versions other than indicated on the website of Pioneer to your iPod/iPhone/iPad may result n incompatibility with this system +_ This unit cannot be used to record CI content an an iPod/iPhane/iPad. tuner or other Connecting your iPod/iPhone/iPad Connecting iPod/iPhone/iPad using supplied stand 1 Connect the iPod/iPhone/iPad cable to the unit. 2 Pass the iPod/iPhone/iPad cable through the bottom of the stand and connect it to the iPod/ iPhone/iPad. 3 Set the iPod/iPhone/iPad on the stand.
05] Ç Pod/iPhone/iPad playback (X-HM21 only) Playing iPod/iPhone/iPad 1 Connect your iPod/iPhone/iPad. Ian iPod/iPhone/iPad is connected while the unit is turned on, playback of the iPod/iPhone/iPad wil not begin 2 Press USB as the input source. »od” is shown on the main display 3 When the recognition is completed, will begin playing automatically. +_The available iPod/iPhone/Pad playback controls from the unit are DA, A 44, D DD In the following case, operate your iPod/iPhone/iPad directly: Searching a file by artist name or genre. Playing in the repeat or random mode. À cauTIoN When your iPod/iPhone/iPad is connected to this unit and you wish to operate the iPod/iPhone/iPad directly be sure to steady the iPod/iPhone/iPad with the other hand to prevent malfunctions due to faulty contacts. @ note + Fordetailed instructions on using the iPod/iPhone/iPad, please refer to the manual supplied with the iPod/ iPhone/iPad. iPod/iPhone/iPad recharging occurs whenever an iPod/ iPhone/iPad is connected to this unit. (This function is supported in standby mode as well.) When input is switched from USB/iPod to another function, iPod/iPhone/iPad playback is temporarily stopped © important Hthis unit cannot play your iPod/iPhone/iPad, perform the following troubleshooting checks: + Check whether the iPod/iPhone/iPad is supported by this unit + Reconnect the iPod/iPhone/iPad to the unit. H this doesn't seem to work, try resetting your iPod/iPhone/ iPadi. + Check that iPod/iPhone/iPad software is supported by the unit Hthe iPod/iPhone/iPad cannot be operated, check the following items: +_IstheiPod/iPhone/iPad connected correctly? Reconnect the iPod/iPhone/iPad to the unit Is the iPod/iPhone/iPad experiencing a hangup? Try resetting the iPod/iPhone/iPad, and reconnect it to the unit
Disc playback This system can play back a standard CD, CD-R/RW in the CD format and CD-R/RW with MP3 or WMA files, but cannot record on them. Some audio CD-R and CD-RW discs may not be playable due to the state ofthe disc ar the device that was used for recording. MP3: MP3 is a form of compression. It is an acronym which stands for MPEG Audio Layer 3. MP3 is a type of audio code which is processed by significant compression from the original audio source with very litle loss in sound quality. +_Thissystem supports MPEG-1/2 Audio Layer3 (Sampling rates: 8 kHz to 48 kHz: Bit rates: 64 kbps to 384 kbps). + During VER file playback, time counter in the display may differ from its actual playback time: WMA: WMA (Windows Media Audio) files are Advanced System Format files that include audio files which are compressed with Windows Media Audio codec. \/MA is developed by Microsoft as an audio farmat file for Windows Media Player. +_Thissystem supports WMA (Sampling rates: 32 kHz/44.1 KHz/48 kHz; Bit rates: 64 kbps to 320 kbps). + During VER file playback, time counter in the display may differ from its actual playback time. Playing discs or files 1 Press © STANDBY/ON to turn the power on. 2 Press CD on the remote control or INPUT repeatedly on the main unit to select CD input. 3 Press À OPEN/CLOSE to open the disc tray. 4 Place the disc on the disc tray, label side up. 5 Press À OPEN/CLOSE to close the disc tray. 6 Press »/Il to start playback. After the last track is played, the unit will stop automatically. À CAUTION + Do not place two discs in one disc tray + Do not play dises of special shapes (neart, octagon, etc). It may cause malfunctians. Do not push the disc tray whilst it is moving. I the power fails whilst the tray is open, wait until the power is restored Be sure to place 8 cm disc in the middle of the disc tray. 2 note + Due tothe structure ofthe disc information, i takes longer to read an MP3/AWMA disc than a normal (approximately 20 to 90 seconds) + When the beginning ofthe firsttrackis reached during fast reverse, the unit will enter the playback mode (only for CD). + Rewritable multi-session discs with unfinished writing, can still be played + HTV or radio interference occurs during CD operation move the unit away from the TV or radio. © Tip +_ When no operation has done in CD mode and the audio fl is not played for more than 80 minutes, the power will automatically turn of Various disc functions Function | Main | Remote Operation unit | control Play Press in he Stop mode. Stop Press in te playback mode Pause Press in te playback mode Press /AILo resume playback from the paused point Track up/ Press in the playback or stop down mode. If you press the button in the stop mode, press b/A1 to start 1e desired track. Fast Press and hold down in the forward playback mode. reverse Release the butlon to resume playback.
Advanced CD or MP3/WMA disc playback Direct track search By using the numeric buttons, the desired tracks on the current disc can be played Use the numeric buttons on the remote control to select the desired track whilst playing the selected disc. B note + Atrack number higher than the number of tracks on the disc cannot be selected To stop playbac Press Bi. Repeat play Repeat play can play one track, all tracks or a programmed sequence continuousy To repeat one trac Press REPEAT repeatedly until *REPEAT ONE" appears. Press ENTER. To repeat all tracks: Press REPEAT repeatedly until "REPEAT ALL" appears. Press ENTER. To repeat desired tracks: Perform steps 1 to in “Programmed play (CD or MP3/WMA) section on next page and then press REPEAT repeatedly until “REPEAT ALL" appears. Press ENTER. To cancel repeat play: Press REPEAT repeatediy until *REPEAT OFF" appears. Press ENTER. @ note +_ After performing repeat play, be sure to press M Otherwise, the disc will play continuousiy + During repeat play, random play is not possible Random play The tracks on the disc can be played in random order automatically To random play all tracks: Press RANDOM repeatedly until RANDOM ON" appears Press ENTER To cancel random play: Press RANDOM repeatedly until RANDOM OFF appears. Press ENTER @ note +_ you press the mæi during random play, you can move ta the track selected next by the random operation. On the other hand, the #4 does not allow you to move to the previous track. The beginning of the track being played wi be located. In random play, the unit will select and play tracks automatically. (You cannot select the arder of the tracks.) + During random play, repeat play is not possible:
Ç Disc playback Programmed play (CD or MP3/WMA) About downloading MP3/NMA You can choose up to 32 selections for playback in the order you like: 1 Whilst in the stop mode, press MEMORY/ PROGRAM on the remote control to enter the programming save mode. 2 Pressi@4 »»1 or the numeric buttons on the remote control to select the desired tracks. 3 Press ENTER to save folder and track number. 4 Repeat steps 2 to 3 for other folder/tracks. Up to 32 tracks can be programmed. *_Ifyou want to check the programmed tracks, press MEMORY/PROGRAM +_ If you make a mistake, the last programmed tracks will be canceled by pressing CLEAR. 5 Press æ/H to start playback. To cancel the programmed play mode: To cancel the programmed play, press M twice on the remote control. The display wall shaw “PRG CLEAR" and all the programmed content vil be cleared Adding tracks to the program: Press the MEMORY/PROGRAM. Then follow steps 2 to 3 to add tracks. @ note When a disc is ejected anything programmed is cleared I you press the © STANDBY/ON to enter the standy mode or change the function from CD to another, the programmed selections wil be cleared During the program operation, random play is not possible There are many music sites on the internet that you can download MP3/WMA music files. Follow the instructions from the website on how to download the music files. You can then play backthese downloaded music files by burning them to a CD-R/RW disc: +_ Your downloaded songfiles are for personal use only Any other usage of the song without ouners permission, is against the law. About folder playback order H MP3/WMA files are recorded in several folders, a folder number will be set to each folder automatically. These folders can be selected by the FOLDER on the remote control. I there is no supported file formats inside the selected folder, the folder is skipped and the next folder will be selected Exemple: How the folder numbers are assigned if MP3/WMA format files are recorded are as shown below. 1 ROOT folder is set as FOLDER 1. 2 As for folders inside ROOT folder (FOLDER A and FOLDER B), the folder which is recorded earlier on the disc will be set as FOLDER 2 and FOLDER 3. 3 As for folder inside FOLDER A (FOLDER C and FOLDER D), the folder which is recorded earlier on the disc will be set as FOLDER 4 and FOLDER 4 FOLDERE that is inside FOLDER D will be set as FOLDER 6. +_ The folder and file order information which is recorded on the disc depends on the writing software. There maybe possibilities that this unit will playback the files not according ta our expected playback arder. + From a disc with MP3/WMA files up to 285 folclers and
les (including non playable files) can be read.

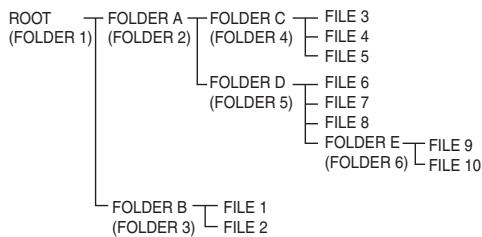

FOOT —-FOLDERA—FOLDERC — FILE3
(FOLDER 1)] (FOLDER 2) | (FOLDER4) L FLE4
Spe the folder to pla; To specify the folder to play, perform the following steps. 1 Press CD, and load an MP3/WMA 2 Press FOLDER, and press $/4 to select desired playback folder. 3 Press ENTER. Playback wil start from the first song of the selected folder + Even ifitis stopped, i is possible to press @/4. to select a folder isc. Switch the display contents 1 Press DISPLAY. the title, artist and album name has been written to the ile. that information will be displayed. (The unit can only display alphanumeric characters. Non-alphanumeric character are displayed as *") Number oftrack, playback —+ Title/Artist/Album display time display
File type display @ note + “Copyright protected WMA files” or *Unsupported files cannot be played back. In these case the files will be skipped automatically There may be cases where no information can be displayed Displayingtitle, artist and album name is only supported for MP files, Number of folder/track <— display
USB playback Playing USB storage devices It is possible to listen to two-channel audio using the USB interface on the front of this receiver +_ Pioneer does not guarantee that any file recorded on a USB storage device will play or that power will be supplied to a USB storage device. Also note that Pioneer will accept no responsibility whatsoever for loss of files on USB storage devices caused by connection to this unit 1 Press USB as the input source. >od" is shown on the main display. 2 Connect the USB storage device. The number of folcers or iles stored on the connected USB storage device appear on the main display automatically +_ This receiver does not support a USB hub +_IfaniPod/iPhane/iPad is connected ta the unit, the unit will automatically begin charging it
USB storage device {commercially available) 3 When the recognition is completed, press »/H to start playback. +_ When changing to a different input source, stopthe USB memory playback first before changing. 4 Disconnect USB storage device from the USB terminal. Turn the power off before removing the USB storage device. @ note + USB flash drive that supports USB 2.0 can be used. + This unit may not recognize a USB storage device, play files or supply power to a USB storage device. For details, see Wen a USB storage device is connected on page 28 When a USB storage device is not playing and no operations have been performed for mare than 30 minutes, the unit will automatically power off Repeat play Repeat play can play one track, all tracks or a programmed sequence continuoush. To repeat one track: Press REPEAT repeatedly until REPEAT ONE” appears. Press ENTER. To repeat all tracks: Press REPEAT repeatedly until "REPEAT ALL" appears. Press ENTER. To repeat desired tracks: Perform steps 1 to in “Programmed play (CD or MP3/WMA)' section on next page and then press REPEAT repeatedly until REPEAT ALL" appears. Press ENTER To cancel repeat play: Press REPEAT repeatedly until “REPEAT OFF" appears. Press ENTER. @ note After performing repeat play, be sure to press M. Otherwise, the file of USB storage device will play continuousiy. During repeat play, random play is not possible. Random play The fill of USB storage device can be played in random order automatical,. To random play all tracks: Press RANDOM repeatedly until “RANDOM ON” appears. Press ENTER To cancel random pla Press RANDOM repeatedly until “RANDOM OFF" appears. Press ENTER @B note + Ifyou press the me» during random play, you can move to the track selected next by the random operation. On the other hand, the 144 does not allow you to move to the previous track, The beginning of the track being played will be located +_ In random play, the unit will select and play tracks automatically. (You cannot select the order of the tracks.) During random play, repeat play is not possible.
_ 07] ÇusB playback the folder to 1 Press USB, and connect the USB storage device. 2 Press FOLDER, and press #/4 to select desired playback folder. 3 Press ENTER. will start m the first song of the selected folder Even ifitis stopped, itis possible to press 4/4. to a folder Switch the display contents The unit ca information recorded in the Playing in the desired order (Programmed Play) The unit can play fol the desired order. For MPS/WMA) on F
Using the tuner istening to the radio broadcasts The following steps show you how to tune in to FM and AM radio broadcasts using the automatic (search) and manual step) tuning functions. Once you are tuned to a station you can memorize the frequency for recall later. See Saving station presets below for more on how to do this. Tuning 1 Press the STANDBY/ON to turn the power on. 2 Press TUNER repeatedly to select desired frequency band (FM or AM). 3 Press TUNE +/- on the remote control to tune in to the desired station. Automatic tuning: Press and hold TUNE +/-, scanning will start automatically 1d the tuner will stop at the first receivable broadcast station Manual tuning: Press the TUNE +/- repeatediy to tune in to the desired station @ note When radio interference oceurs, automatic tur stop automatically at that point Automatic tuning will skip weak signal stations. To stop the automatic tuning, press 1 When an RDS (Radio Data System) station is tuned in, the frequency wil be displayed first. Finally, the station name will appear Full auto tuning can be achieved for RDS stations using AAuto Station Program Memory (ASPM) mode, see page 25 To receive an FM stereo transmission: +_ Press ST/MONO to select stereo mode and “AUTO” will be displayed. Improving poor FM reception: 1 Press ST/MONO repeatedly to select MONO. This will change the tuner from stereo to mono and usually improve the reception. Saving station presets I you often listen to a particular radio station. it's convenient to have the receiver store the frequency far easy recall whenever you want to listen to that station (Preset tuning). his saves the effort of manuallytuning in each time, This unit can memorize up to 45 station {FM 30 stations/AM 15 stations)

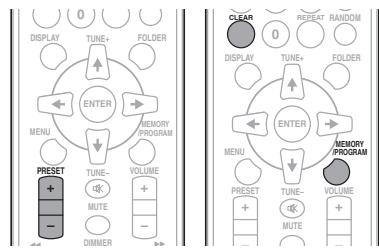

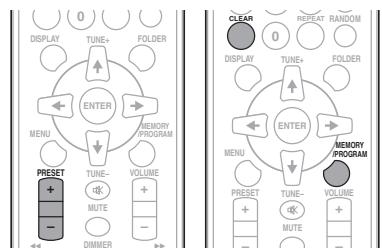

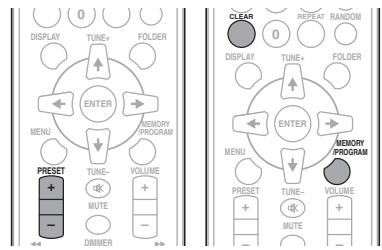

1 Tune to a station you want to memorize. See Tuning above for more on this. 2 Press MEMORY/PROGRAM. The preset number will flash. 3 Press PRESET +/- to select the preset channel number. 4 Press MEMORY/PROGRAM to store that station in memory. Hthe preset number has changed from flashing to lighting before the station is memarised, repeat the operation from step 2 + Repeat steps 1 to 4 to set other stations, or to change a preset station. When a new station is stored in the memory, the station previously memorised for that preset channel number will be erased. @ note *_ Thebackupfunction protects the memorised stations for a few hours should there be a power failure or the AC power cord become discannected
To recall a memorised station 1 Press PRESET +/- to select the desired station. To scan the preset stations The statians saved in the memory can be scanned automatically. (Preset memory scan) 1 Press and hold PRESET +/-—. The preset number will appear and the programmed stations will be tuned in sequentially, for 5 seconds each 2 Press PRESET +/- again when the desired station is located. To erase entire preset memory 1 Press TUNER on the remote control. 2 Press CLEAR until “MEMORY CLEAR" appears. B note + Allstations will be erased Using the Radio Data System (RDS) An introduction to RDS Radio Data System (RDS) is a system used by most FM radio stations to provide listeners with various kinds of information—the name of the station and the kind of show they're broadcasting, for example. One feature of RDS is that you can search by type of program. For example, you can search for a station that's broadcasting a show with the program type, JAZZ. You can search the following program types: News - News Current Affairs - Current Finance - Stock market reports, commerce, trading, Affairs etc. Information - General Children's Progs - Programs Information for children Sport - Sport Social Affairs - Social afairs Education - Educational Religion - Programs conceming reg Phone In - Public expréssing their veses by Phone Travel & Touring - Holiday technology type travel rather an traffic Varied Speech - Usualy talk Announcements based material such as quiz Leisure & Hobby - Leisure shows or interviews nterests and hobbies Pop Musi- Pop mus Jazz Music - Jaz Rock Music - Rock us Country Music Country Easy Listening - Easy music istening National Music Popular Light Classics M — Light music in a language other than classical music English Serious Classics — Serious” Oldies Music Popular music classical music from the "50S and' 608 Other Music - Music not Folk Music - Foik music Drama - Radio plays, etc. Cultures - National or regional culture, theater etc. Science - Science and fiting above categories. Documentary - Documentary Weather & Metr- Weather Alarm Test Broadcasting reports when testing emergency broadcast equipment or Alarm - Alarm! Searching for RDS programs You can search a program type listed above. 1 Press TUNER on the remote control. + RDS is onty possible in the FM 2 Press RDS PTY on the remote control. "SELECT" will appear for about 6 seconds. 3 Press æ/= to select the program type you want to hear. Each time the button is pressed, the program type will appear. I the button is held down, the program type wil appear continuausly.
4. Whilst the selected program type is
displayed (within 6 seconds), Press RDS PTY again. After the selected program type has been lit for 2 seconds. “SEARCH will appear, and the search operation will start. @ note Hthe display has stopped flashing, start again from step
2. Hthe unit finds a desired program type, the
corresponding channel number will be lit for about 8 seconds, and then the station name will be displayed
(Using the tuner ) Œ + Ifyouwantto listen tothe same program type of another To stop the ASPM operation before Station, press the RDS PTY whilstthe channel number or : Station name is flashing. The unit wi Look forte next complete: station: Press Im whilst it is scanning for stations. The stations which +_Ifno station can be found, “NOT FOUND" wi appear for "€ already stored in memory will be kept there. 4 seconds. B note Hthe same station is broadcasting on different Information provided by RDS Eachtime the RDS DISPLAY is pressed, the display will switch frequencies, the strongest frequency will be stored in as follows: memory. +_ Any station which has the same frequency as the one me tared in memary will not be stored. me +_1f30 stations have already been stared in memary, the (=) Scan will be abarted. H you want to redo the ASPM operation, erase the preset memory. I no station have been stored in memory, *END" will appear for about 4 seconds. Ithe RDS signals are very weak, station names may not be stored in memory. The same station name can be stored in different
channels. +_ In a certain area or during certain time periods, the Los | station names may temporarily be different.
Notes for RDS operation If any of the following events occur, it does not mean that the unit is faulty: + PS". ‘NO PS" and a station name appear alternately and property, Ia particular station is not broadcasting proper or a Station is conducting tests, the RDS reception function may not wark properiy. When you receive an RDS station whose signal is too D Station name (PS) —> Programme type (PTY) ] Frequency Radio text (RT) When tuning in to a station otherthan an RDS station orto an RDS station which sends weak signal, the display will change in the following order: No RDS weak, information like the station name may not be PEUT displayed. FM 98.80 MHz + “NO PS", “NO PTY or "NO RT- will flash for about & seconds, and then the frequency will be displayed. : Notes for radio text: Using the Auto Station Program The first 16 characters of the radio text will appear and Memory (ASPM) then they will scroll across the display. Whilst in the ASPM operation mode, the tuner will I you tune in to an RDS station which is not automatically search for new RDS stations. Up to 30 stations broadcasting any radio text, NO RT" will be displayed can be stored when you switch to the radio text position. H you have already stored some stations in memory, the +_Whilst radio text data is received or when the text number of new stations you can store will be less. contents change, "RT' will be displayed. 1 Press TUNER on the remote control. 2 Press and hold down RDS ASPM on the remote control. After “ASPM" has flashed for about 4 seconds, scanning will start (87.5 MHz to 108 MH). After scanning, the number of stations stored in memory will be displayed for 4 seconds, and then *END" will appear for 4 seconds.

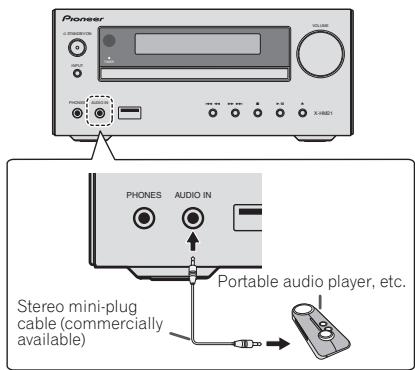

Other connections À CAUTION + Before making or changing the connections, switch off the power and disconnect the power cord from the AC outlet Connecting auxiliary components Connect the front panel AUDIO IN mini-plug jack to your auxiiary playback component +_ This method can be used to play music on this unit from Pods/iPhones/iPads that do not support use of an iPod Dock and USB terminal. oQE Portable audio player, etc. Stereo mini-plug cable (commercially available) — 1 Press AUDIO IN as the input source. When AUDIO IN is selected * AUDIO IN” wil be displayed on the main display 2 note +_Ifthe AUDIO IN mini-plug jack is connected to auxiliary phones jack, the volume of the unit will be adjusted by the volume on the playback component. H the sound is distorted after you lower the volume of the unit, try lowering the volume on the auxiliary playback component

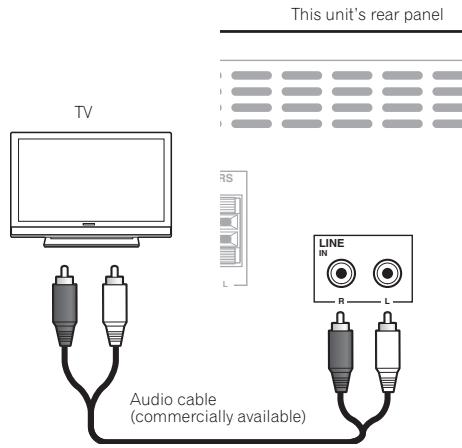

Connect the rear panel LINE IN audio jacks to your auxiliary playback component This units r panel Audio cable {commercially availa 1 Press AUDIO IN twice as the input source. When LINE is selected "LINE" will be displayed on the main display
Additional information Troubleshooting Incorrect operations are often mistak component, check the points below. S id electrical appliances being used. Ith est Pioneer authorized serv or trouble times d malfunctions. H you think that there is somethi he trouble may lie in another component, Investigat trouble cannot be rectif ing the chi center or your dealer to carry out re e normally due to extemal effects such as static electricity di gain to retum to normal wrong with th the other components sted below, ask your *_Ifthe unit does not op: outiet and ins: General problem jonnect the power plug from the Problem Remedy unpluggec? When pouer cordisu tings you have made is cleared. Please set the clock again. you do not want lo clearthe settings, do not unplug the poser cord. Difference in volume This is not a problem with this unit. The volume may sound differently depending on the input source between CDs, MP3, WMA, and recording format Pod/iPhone/iPad, Tuner AUDIO IN and LINE. This unit cannot be op Are you operating from far away? sith the remote control (page 5) Hhin 7m, 300 of he remets sensor on Ine front panel Is the remote control sensor exposed The remote control signals may not be received properly if the to direct sunlight or strong artificial remote control sens or strong light from a fluorescent bulb, etc.? artificial light from Are the batteries dead? feplace the batteries (pé Disc cannot be played or disc _ Is the disc scratched? Scratched discs may not play: ejected automatically Is the disc dirty? Wipe the dirt off the di Is this unit placed in a humid There could be condensation inside. Wait a while for the location? condensation to evaporate. Do not place this unit near an air Folder or Île names are not Have you exc cognized on one disc. Up 10 % recognized. (WMA, MP3) number of folder or file n be recognized within one folder. Depending on the fol unit can recognize? however, this unit may not bk certain folders or files. The unit turns off If no play back and no operation has done for 30 minutes or more, automatically te unit turns off autom
ED (Addï ional information ) When a USB storage dev connected Problem Check Remedy is the USB storag connected? vice properly … Connect the dvi IS The USE storage device connecled This und 8 hui storage device dire is the USB storage device supported This unit only si by this unit? This uni supports portable flash memory and digital playback devices Oniyine FATIS systems (exFAT, NT USE flash drive thai supports USE 20 can be used This device does not support le use of extemal hard dise drives This is not a problem win this unit Tumihe power off Inen back on Some USE storage devices may not be recognied proper Fil cannot be played IS te le copyrgnprotected (by prigntprotected files cannot be played DRM? This is not a problem win this uni Files stored on a compuier cannot be played IE may not be possible to play some les Folder or ile names are not. Dothe older or le names contain The mamum number of characters dsplayeble forte folder displayed or are not properly | more than 30 characters? fl names is 30. isplayed Folder or le na This is not problem with this uni The order inwichÎhe folder and le names are 6 displayed in alph on the order in which tn folders or files were rec Much lime 1 USE storage devices Somelime maybe required lolo Poneris not supplied to the IS AUTH ERROR diplajedontne — lumihe poner offnen Dackon USE storage deuce front panel display? No parer is Tee ne pores conan is Turn the power off then disconnectandrreconnect{he USB storage Loc high. device. Press INPUT 10 switch to the olher Input then swlch again lothe USB iPod inpui When an iPod/iPhoneliPad is connected Problem Remedy 'taperate the iPod/Phone/iPad by ne remote c: Make sure {he iPodiPhone/iPad is connected correct (reler to Connecting your iPod/iPhone/iPad on FE operate the IPod/iPhone Pad. Make sure Ine IPod/iPhone/iPad is fPhone/iPad on If the iPod/iPhone/iPad is iPod/iPhane/iPad, and nnecteg correct (rferto Connecting your xperiencing a hangup, try resetting the jo the unit
(Additional information Playable discs and formats 7 Commercial avaable aude CDS Audio CD + CD-R/-RW/-ROM discs containing music recorded in the CD-DA format wma WMA files recorded on CD-R/-RW/-ROM dises or USE storage devices M3 MP3 fes recorded on CD-R/RW -ROM dises or USB storage devices Only the discs that have been played. Discs recorded in packet write mode (UDF format) are not compatible with this unit Only dises recorded in IS09660 Level 1, Level can be played. Files protected by DRM (Digital Rights Management) cannot be played. Corporation and product names mentioned herein are trademarks or registered trademarks of the respective corporations. @ note This unit does not support multise multiborder recording Muftsession/muliborder recording is a method in which data is recorded on a single disc in bo or more sessions/borders. À “session” or “border” is one recording unit, cansisting of a complete set of data from leadin to lsad-out ed can be and Joliet ion discs or Regarding copy protected CDs This unit is designed to conform ta the specificatians of the audio CD format. This unit does not support the playback or function of discs that do not canfarm to these specifications. Supported audio file formats *+_ This unit does not support lossless encoding Cautions on use When moving this unit When moving this unit, be sure to first check that there is no disc loaded and disconnect the iPod/iPhone/iPad, Then press © STANDBY/ON, wait for "STAND BY” disappears on main display to turn off, then unplug the power cord. Damage may oceur ifthe unit is transported or moved with a disc insertedi or when another device is connected to the USB terminal or AUDIO IN mini-plug jack Place of installation + Choose a stable place nearthe TV or stereo system being used with this unit + Donot place this unit on top of a TV or color monitor. Also nstall it away from cassette decks and other devices easily affected by magnetic forces. Avoid the following locations: + Places exposed to direct sunlight + Humid or poorly ventilated places Extremely hot places + Places exposed to vibrations Places in which there is much dust or cigarette smoke Places exposed to soot, steam or heat (kitchens, etc.)
ED (Additional information Do not place objects on this unit Do not place any objects on top of Do not obstruct the ventilation holes. Do not use this unit on shaggy rugs, beds, sofas, ete. or wrapped in cloth, etc. Doing so will prevent dispersing, leading to damage. Do not expose to heat. Do not place this unit on top of an amplifier or other component that generates heat, When rack mounting it, to avoid the heat given off by the amplifier or other audio component, place it on a shelf below the amplifier. is unit + Turn offthe unit's power when not using it + Depending on signal conditions, striped pat appear on a TV screen and noise may enter radio broadcasts when the units power is on. H this. happens, tm the uni's power of. About condensation Hthis unit is moved suddenty from a cold place into a warm room (in winter, for example) or ifthe temperature in the room in which this unit is installed rises suddenly due to heater operation, etc, water droplets (condensation) may form inside (on operating parts and the lens). When condensation is present, this unit will not operate properiy and playback is not possible. Let this uni stand at room temperature for 1 or 2 hours with the power turned an (the time depends on the extent of condensation), Te water droplets wi dissipate and playback will become possible. Condensation can also occur in he summer if this unit is directly exposed to the air flow from an air-conditioner. this happens, move this unit to a different place. Cleaning the product + Unplug the power cord from the power outlet when cleaning this unit Clean this unit using a soft cloth. For tough dirt, apply some neutral detergent diluted in 5 to 6 parts water to a soft cloth, wring out thoroughy, wipe off the dirt, then wipe again with a soft, dry cloth Alcohol, thinner, benzene, insecticides, etc. could cause the print or paint to peel off, Also, leaving rubber or vinyl products in contact with this unit or long periods oftime could mar the cabinet. When using chemicalimpregnated wipes, etc., read the cautions included with the wipes carefully. Cleaning the lens +_ This unit's lens should not become dirty in normal use, but if for some reason it should malfunction due to dust or dirt, consult your nearest Pioneer authorized service center. Although lens cleaners for players are commercially available, we advise against using them since some may damage the lens. Handling discs Storing + Always place discs in their cases and store them vertically, avoiding hot, humid places, places exposed direct sunlight and extremely cold places. + Be sure to read the cautions included with the disc. Cleaning discs Discs may not play if there are fingerprints or dust on them. In this case, use a cleaning cloth, et. to gentiy wipe the disc from the inside towards the outside. Do not use dirty cleaning cloths. Do not use benzene, thinner or other volatile chemicals. Also da not use record spray ar antistatic agents. For tough dirt, apply some water to a soft cloth, wring out thoroughly, wipe off the dirt, then wipe off the moisture with a dry cloth Do not use damaged (cracked or warped) discs. Da not let the signal surface of discs get scratched or dirty. Do not attach pieces of paper or stickers to discs. Doing so could warp dises, making it impossible to play them. Also note that rental discs often have labels attached to them, and the label's glue may have oozed out, Check that there is no glue around the edges of such labels before using rented discs. About specially shaped discs Specially shaped discs (heart-shaped, hexagonal, etc.) cannot be played on this unit, Do not attempt to play such dises, as they could damage this unit
(Additional information About iPod/iPhone/iPad Made for iPod ÜiPhone [iPad Pod," “Made for iPhone.” and “Made for iPad ean that an electronie accessony has been designed to connect specificallyto iPod, iPhone, oriPad, respectively, and has been centified by the developer to meet Apple performance standards. Apple is not responsible for the operation of tr e regulatory standard! 1e Bacon vod IPhone où Pad may atlas performance. iPad, iPhone, iPod, iPod nano a! Appl registered in the U.S. iPod tou Restoring all the settings to the defaults Use the steps below to restore the all settings to their defaults. 1 Press à STANDBY/ON to turn the power on. 2 Press CD on the remote control or INPUT on the main unit repeatedly to select CD input. 3 Press À OPEN/CLOSE to open the disc tray. 4 Press à STANDBY/ON while pressing Use the buttons on this unit's top panel. *DEFAULT" is displayed while the settings are being restored. Power is tumed o trademarks of
ED (Additional information Specifications + Amplifier section RMS Power Output: 15W+15W {1 kHz, 10%, TH.D., 8 0) + Tuner section Frequency Range (FM) Antenna Input (FM) Frequency Range (AM) Antenna (AM)
+ Accessories Remote control 1 AAA batteries (RO3) 2 AM antenna cable 1 FM wire antenna Power cord iPad Stand (-HM21 only) Warranty card Operating instructions (This document)
@ note +_ The specifications are applicable when the power supply is 230 V. + Specifications and the design are subject to possible modifications without notice, due to improvements. © 2012 PIONEER CORPORATION. All rights reserved’
Additional information
