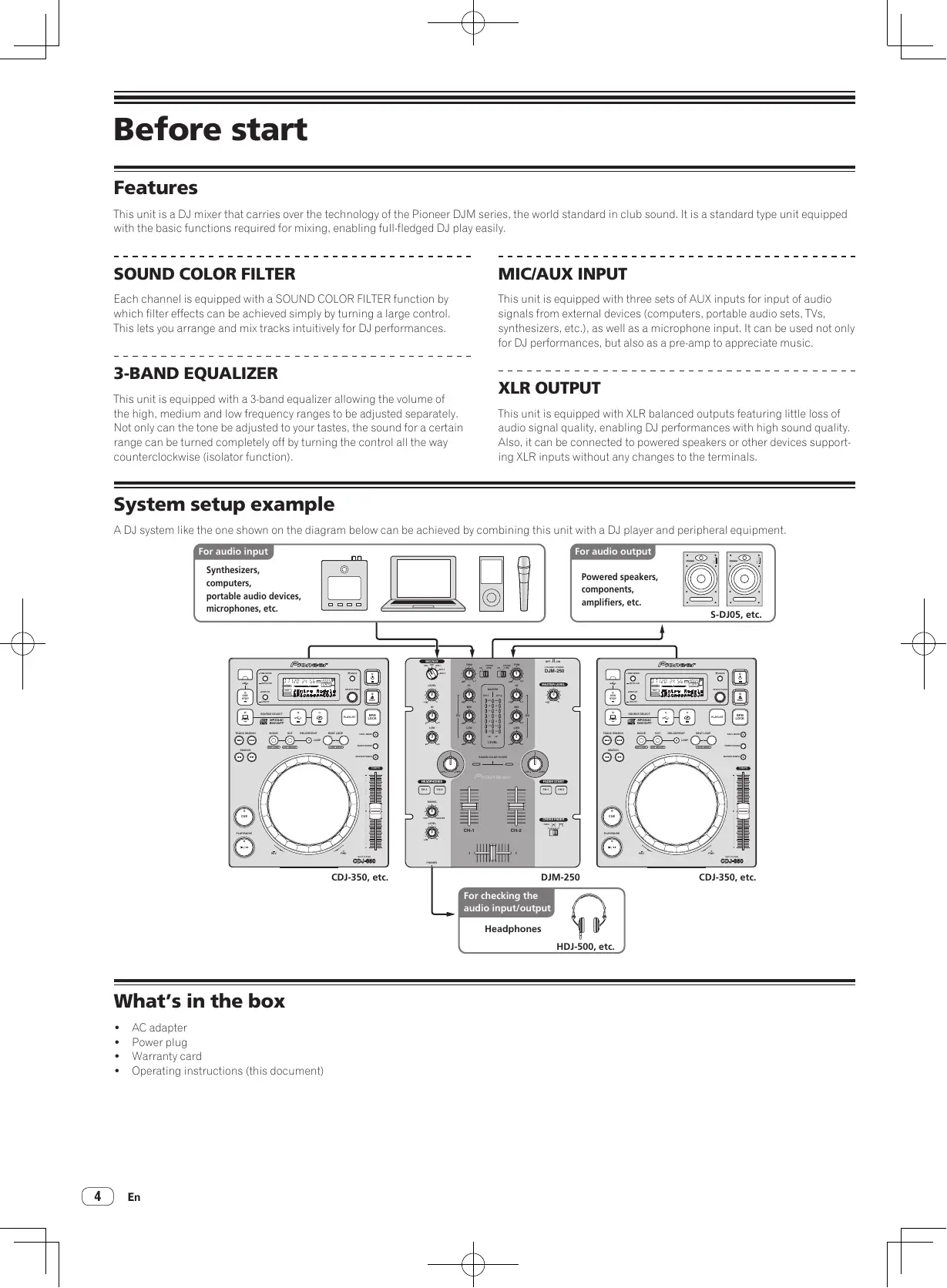

Before start Features This unit is a DJ mixer that carries over the technology of the Pioneer DJM series, the world standard in club sound. It is a standard type unit equipped with the basic functions required for mixing, enabling full-fledged DJ play easily.

Each channel is equipped with a SOUND COLOR FILTER function by which filter effects can be achieved simply by turning a large control. This lets you arrange and mix tracks intuitively for DJ performances. This unit is equipped with three sets of AUX inputs for input of audio signals from external devices (computers, portable audio sets, TVs, synthesizers, etc.), as well as a microphone input. It can be used not only for DJ performances, but also as a pre-amp to appreciate music. 3-BAND EQUALIZER XLR OUTPUT This unit is equipped with a 3-band equalizer allowing the volume of the high, medium and low frequency ranges to be adjusted separately. Not only can the tone be adjusted to your tastes, the sound for a certain range can be turned completely off by turning the control all the way counterclockwise (isolator function). This unit is equipped with XLR balanced outputs featuring little loss of audio signal quality, enabling DJ performances with high sound quality. Also, it can be connected to powered speakers or other devices supporting XLR inputs without any changes to the terminals. System setup example A DJ system like the one shown on the diagram below can be achieved by combining this unit with a DJ player and peripheral equipment. For audio input For audio output INPUT INPUT

POWER 4 Synthesizers, computers, portable audio devices, microphones, etc. Powered speakers, components, amplifiers, etc. S-DJ05, etc. MIC/AUX MIC OFF TRIM AUX 1

AC adapter Power plug Warranty card Operating instructions (this document)

POWER 4 CDJ-350, etc. English Connections Be sure to turn off the power and unplug the AC adapter from the power outlet before making or changing connections between devices. Wait until all connections between devices have been completed before connecting the AC adapter. Only use the AC adapter included with this unit. Refer to the operating instructions for the component to be connected. Names of Parts Rear panel, front panel

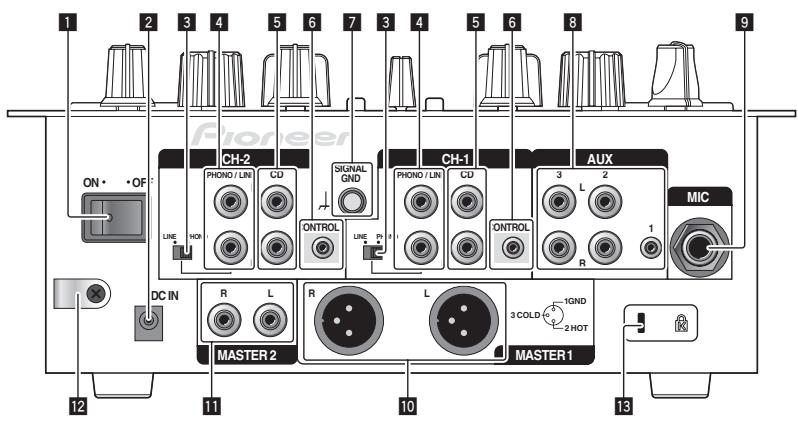

1 ON/OFF switch (page 9) Turns this unit’s power on and off. 2 DC IN terminal Connect to a power outlet using the included AC adapter (with the power plug mounted). Wait until connection of all equipment is completed before connecting the AC adapter. Only use the included AC adapter. 3 PHONO/LINE selector switch (page 6) Switches the function of the [PHONO/LINE] terminals. CAUTION

a MASTER 1 terminals (page 6) Connect powered speakers, etc., here. ! Compatible with XLR connector type balanced outputs. b MASTER 2 terminals (page 6) Connect powered speakers, etc., here. ! Compatible with RCA pin-jack type unbalanced outputs. c Cord hook Hook the AC adapters’ power cord here. d Kensington security slot e PHONES jack (page 6) Connect headphones here. When switching the [PHONO/LINE] selector switch, set [MASTER LEVEL] to [-∞]. Note that noise may be generated and sound output at a high volume. 4 PHONO/LINE terminals (page 6) Connect a phono level output device (analog player (for MM cartridges), etc.) or a line level output device (DJ player, etc.) here. Switch the terminals’ function according to the connected device using the [PHONO/LINE] selector switch on this unit’s rear panel. 5 CD terminals (page 6) Connect to a DJ player or other line level device. 6 CONTROL terminal (page 6) Connect using a control cord (included with Pioneer DJ players). 7 SIGNAL GND terminal (page 6) Connect an analog player’s ground wire here. This helps reduce noise when the analog player is connected. 8 AUX terminals (page 6) Connect to the output terminals of external devices (computers, portable audio sets, TVs, synthesizers, etc.). 9 MIC terminal (page 6) Connect to a microphone.

When creating a DVS (Digital Vinyl System) combining a computer, audio interface, etc., be careful in connecting the audio interface to this unit’s input terminals and in the settings of the input selector switches. Also refer to the operating instructions of the DJ software and audio interface. Rear panel, front panel Audio input section Example: CDJ-350 Audio cable

AUDIO OUT Analog player Control cord 1 CONTROL USB To ground wire terminals To audio output terminals Ground wire Audio cable Microphone Microphone cable Rear panel CH-2 To power outlet

PHONO To microphone AUX

MIC Portable audio device

1GND Audio cable 3 COLD 2 HOT AC adapter (included)

MASTER 2 To audio output terminals MASTER 1 Audio output section Computer Powered speaker, component, amplifier, etc. Front panel INPUT Headphones INPUT

POWER 4 synthesizer To audio input terminals Audio cable Headphones cord Audio cable 1 To use the fader start function, connect a control cord (page 11). The fader start function can only be used when connected to a Pioneer DJ player. Cord hook Loosen the cord hook’s screw and pinch the AC adapters’ power cord under the hook. Cord hook

Place the cord hook out of reach of children. If a child should swallow it, contact a physician immediately. Audio cable To audio output terminals Safety instructions To ensure your personal safety and to maximize the full operating potential of your unit, read and follow these safety instructions. Read & Retain Instructions Read all operating and user information provided with this product. Cleaning Use a damp cloth to clean the exterior housing. Avoid using any fluids including liquid, aerosol or alcohol-based cleaning products. Water or Moisture English About the AC adapter Check that there are no irregularities with the AC adapter or power plug, then insert the power plug into the specified position of the AC adapter using the specified procedure until a click is heard. For details, see Mounting the power plug on page 8. If there are irregularities with the AC adapter or power plug, ask your nearest Pioneer authorized service center or your dealer to carry out repair work. ! Do not place the AC adapter cord around your neck. Doing so could result in suffocation. ! Do not use this unit with a coin, paper clip or other metal object stuck between the AC adapter and power plug. Doing so could cause a short circuit, leading to fire or electric shock. Avoid operating or locating this product near water or other sources of fluid. Accessories Do not place this product on an unstable cart, stand, or table. The product may fall and be seriously damaged. Ventilation Do not block or cover this product in use. This unit should not be placed in a built-in installation unless properly ventilated. Environment Avoid placing this product in a location with exposure to large quantities of dust, high temperatures, high humidity, or subject to excessive vibrations or shocks.

Power Sources When mounting the AC adapter on a wall outlet, make sure there is no space between the AC adapter and the wall outlet. Faulty contact or a coin, paper clip or other metal object getting stuck in the space could cause a short circuit, leading to fire or electric shock. Coin, paper clip or other metal object Operate this product only from the recommended power sources. If you are unsure of the power source, consult an authorized Pioneer representative. Power-Cord Protection When unplugging the unit, pull on the plug – not on the cord. Do not handle the cord or plug with wet hands; doing so could cause an electric short or shock. Do not allow anything to pinch or rest on the power cord and do not place in a walkway. Power Turn OFF the system before installing this or any other hardware device. Overloading Avoid connecting too many devices to a single wall socket or power source as this can cause fires or short circuits. Object & Liquid Entry Never push inappropriate objects in to the device. Avoid spilling any liquids in to or on the outside of the drive. Top Side

The power plug could come detached from the AC adapter and remain in the power outlet if someone trips on the AC adapter’s power cord or if something hits the AC adapter. If this happens, remove the power plug remaining in the outlet with dry hands, holding it as shown on the diagram below and without touching metal parts. Do not use any tools to remove it. Servicing Opening or removing the cover exposes you to possible electrical shock or other danger. Contact a Pioneer authorized service representative for repairing this product (refer to the enclosed Service & Support Card). Damage Requiring Service Unplug the unit and refer servicing to qualified service personnel in the following situations: ! When the power cord, plug, or chassis is damaged. ! If liquid has been spilled, or objects have fallen into the product. ! If the product has been exposed to rain or water. ! If the product does not operate normally when the operating instructions are followed. Adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage and can require extensive work by a qualified technician to restore the unit to its normal operation. ! When the product exhibits a distinct change in performance – this indicates a need for service. Do not touch.

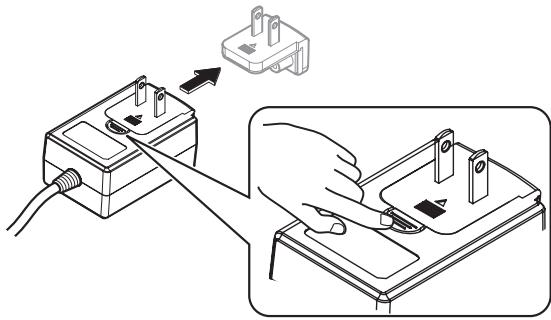

Mounting the power plug Slide the power plug along the guide rails in the AC adapter unit as shown on the diagram below, then press in until a click is heard. Removing the power plug While pressing the [PUSH] button on the AC adapter unit, slide the power plug away from the adapter as shown on the diagram below to remove it. Once the power plug is mounted, there is no need to remove it. Power plug This product comes with the types of power plugs shown below. Use the appropriate power plug for the country or region you are in. Type 1 (for Europe) Type 2 (for the UK)

English Operation Mixer section Control panel MIC/AUX section

AUX 3 LEVEL Two sets of audio signals can be adjusted separately for basic DJ mixing (page 10). Mixer section

b EQ (HI, MID, LOW) control c Master level indicator MID

(crossfader curve selector switch) 1 MASTER LEVEL control (page 10) MIC/AUX section This section handles the sound of microphones or external devices (computers, portable audio sets, TVs, synthesizers, etc.) (page 12). 2 MIC, OFF, AUX 1, AUX 2, AUX 3 input selector switch 3 LEVEL control (MIC/AUX section) About the power switch of this unit To turn the power on Set the [ON/OFF] switch on this unit’s rear panel to [ON]. This turns this unit’s power on (page 5). 4 HI, LOW controls Headphones section The sound being input to this unit can be checked over headphones (page 12). 5 CH-1, CH-2 buttons (headphones section) 6 MIXING control 7 LEVEL control (headphones section) 8 PHONES jack

Basic operations (mixer section)

Switch the channel whose sound is output from the speakers. — Left edge: The [CH-1] sound is output. — Center position: The sound of [CH-1] and [CH-2] is mixed and output. — Right edge: The [CH-2] sound is output. ! This operation is not necessary when the [THRU, ] (crossfader curve selector) switch is set to [THRU]. CH-2 OVER OVER

Sound is output from the speakers. The master level indicator c on the control panel lights. Adjust [MASTER LEVEL] so that the orange indicator lights at the point in the track where the volume is loudest (the climax, etc.). Be careful that the red indicator does not light, or the sound could be distorted.

LPF HPF LPF HPF Turn the [CH-1] 1 or [CH-2] 2 EQ (HI, MID, LOW) control

CH-1 Adjusting the sound quality CH-2

Refer to Specifications on page 14 for the range of sound that can be adjusted by each control. ! The sound for that range can be turned completely off by turning the control all the way counterclockwise (isolator function). Mixing using the faders Outputting sound Check that this unit is properly connected to the DJ player, etc., before outputting sound. For instructions on connections, see Connecting the input/output terminals on page 6. Set the volume of the powered speakers connected to the [MASTER 1] and [MASTER 2] terminals to a suitable level. Note that sound will be output at a high volume if the volume is set too high. For instructions on monitoring the sound, see Monitoring the sound over headphones (headphones section) on page 12. To output the sound of channel 1 [CH-1] 1 To output the sound of channel 2 ([CH-2]) 2, perform the procedure below replacing [CH-1] with [CH-2]. 1 Switch the [CH-1] 1 [CD, PHONO/LINE] input selector switch 9. Select the input source for [CH-1] from among the devices connected to this unit. — [CD]: Selects the DJ player connected to the [CD] terminals. — [PHONO/LINE]: Selects the device connected to the [PHONO/LINE] terminals. 2 Turn the [CH-1] 1 [TRIM] control a clockwise. Adjusts the audio level input to the [CH-1] terminal. The [CH-1] channel level indicator d lights when audio signals are being properly input to [CH-1]. Adjust the [TRIM] control so that the orange indicator lights where the track’s volume is highest (at the climax, etc.) Be careful that the red indicator does not light, or the sound could be distorted. 3 Move the [CH-1] 1 channel fader e away from you. Mixing using the channel faders 1 Set [THRU, , ] (the crossfader curve selector switch) j to [THRU]. 2 Switch the [CH-2] 2 [CD, PHONO/LINE] input selector switch 9. 3 Turn the [CH-2] 2 [TRIM] control a clockwise. 4 Press the [CH-2] button 5 in the headphones section. The sound of [CH-2] is monitored from the headphones. 5 Turn the [MIXING] control 6. Adjust the monitor volume balance of the sound output from the [MASTER 1] or [MASTER 2] terminals (the [CH-1] sound) and the [CH-2] sound. 6 Operate the DJ player connected to the [CH-2] terminals. While checking the sound over the headphones, adjust the tempo of [CH-2] track to match the tempo of [CH-1] track. 7 While moving the [CH-2] 2 channel fader to the back, move the [CH-1] 1 channel fader to the front. While checking the sound output from the speakers, operate the channel faders to substitute the sound of [CH-1] with the sound of [CH-2]. Mixing is completed once only the [CH-2] sound is being output from the speakers. Mixing using the crossfader The level of the sound output from the [CH-1] terminals is adjusted. 1 Set [THRU, , ] (the crossfader curve selector switch) j to [ ] or [ ]. 4 Switch [THRU, switch) j. 2 Operate [CH-2] 2.

] (the crossfader curve selector This switches the crossfader’s curve characteristics. For details, see Selecting the crossfader’s curve characteristics (crossfader section) on page 11.

Prepare the unit in advance so that the sound of [CH-1] 1 is being output from the speakers. For instructions on preparation, see Outputting sound on page 10.

Operate as described in steps 2 to 6 under Mixing using the channel faders on page 10. While checking the sound output from the speakers, operate the crossfader to substitute the sound of [CH-1] with the sound of [CH-2]. Mixing is completed once only the [CH-2] sound is being output from the speakers. Selecting the crossfader’s curve characteristics (crossfader section) English 3 Move the crossfader f gradually towards the right. CROSS FADER THRU

Using the filter function (filter section)

Each channel is equipped with a SOUND COLOR FILTER function by which filter effects can be achieved simply by turning a large control. The treble or bass sound can be removed by turning the [SOUND COLOR FILTER] control h. Turn the [CH-1] 1 or [CH-2] 2 [SOUND COLOR FILTER] control h. The effect is applied to the sound and the indicator’s color changes. The effect type and indicator color differs according to the direction in which the [FILTER] control is turned, as shown on the table below. Direction of rotation Description of effect Indicator Left Applies the effect of the treble sound fading out. (LPF: low pass filter) Red (flashing) Center

Orange (lit) Right Applies the effect of the bass sound fading out. (HPF: high pass filter) Green (flashing) Mixing using the SOUND COLOR FILTER control Prepare the unit in advance so that the sound of [CH-1] 1 is being output from the speakers. For instructions on preparation, see Outputting sound on page 10. For instructions on monitoring the sound, see Monitoring the sound over headphones (headphones section) on page 12. 1 Operate the crossfader and [CH-2] 2. Operate as described in steps 2 to 6 under Mixing using the channel faders on page 10. — [THRU]: Choose this when you do not want to use the crossfader. — [ ]: Set here for a curve that rises gradually. — [ ]: Set here for a curve that rises steeply. (When the crossfader moves away from either the left or right edge, the sound is immediately output from the opposite side.) Starting playback of a Pioneer DJ player using the fader (fader start section) FADER START CH-1 CH-2

If you connect a Pioneer DJ player using a control cable (supplied with a DJ player), you can start playback of control other operations of the DJ player with the fader of this unit. The fader start function can only be used when connected to a Pioneer DJ player. Connect this unit and Pioneer DJ player beforehand. For instructions on connections, see Connecting the input/output terminals on page 6. To start playback using the channel faders 1 Set [THRU, , ] (the crossfader curve selector switch) j to [THRU]. 2 Press the [CH-1] or [CH-2] button i in the fader start section. Turn the fader start function on. 3 Move the channel fader e to the very front. 2 Turn the [CH-2] 2 [SOUND COLOR FILTER] control h fully clockwise. The DJ player pauses playback at the cue point. 3 Move the [CH-2] 2 channel fader e away from you. 5 Move the channel fader e away from you. 4 While turning the [CH-1] 1 [SOUND COLOR FILTER] control h counterclockwise from the center, turn the [CH-2] 2 [SOUND COLOR FILTER] control h towards the center. 4 Set the cue on the DJ player. Playback starts on the DJ player. ! If you set the channel fader back to the original position, the player instantaneously returns to the cue point already set and pauses playback (back cue). While checking the sound output from the speakers, operate the [SOUND COLOR FILTER] controls h and replace the [CH-1] and [CH-2] sound. Move the [CH-1] 1 channel fader e towards the front. Mixing is completed once only the sound of [CH-2] is output from the speakers.

To start playback using the crossfader 1 Set [THRU, , ] (the crossfader curve selector switch) j to [ ] or [ ]. Using a microphone or external device (MIC/AUX section) MIC/AUX MIC 2 Press the [CH-1] or [CH-2] button i in the fader start section. Turn the fader start function on. AUX 3 LEVEL

Move the crossfader to the opposite edge from the channel for which you want to use the fader start function.

4 Set the cue on the DJ player. The DJ player pauses playback at the cue point. 5 Move the crossfader f. Playback starts on the DJ player. ! If you set the crossfader back to the original position, the player instantaneously returns to the cue point already set and pauses playback (back cue). Monitoring the sound over headphones (headphones section) HEADPHONES CH-1 MIXING CUE

1 Switch the [MIC, OFF, AUX 1, AUX 2, AUX 3] input selector switch 2. — [MIC]: The microphone connected to the [MIC] terminal is selected. — [AUX1–3]: Selects the external device connected to the [AUX1–3] terminals. 2 Turn the [LEVEL] control 3 in the MIC/AUX section clockwise. The sound of the microphone or external device is output from the speakers. Adjusting the sound quality MASTER LEVEL Turn the [HI] or [LOW] control 4 in the MIC/AUX section.

PHONES 1 Connect headphones to the [PHONES] terminal. For instructions on connections, see Connecting the input/output terminals on page 6. 2 Press the [CH-1] or [CH-2] button 5 in the headphones section. Select the channel you want to monitor. — [CH-1]: The sound of [CH-1] is monitored. — [CH-2]: The sound of [CH-2] is monitored. ! This operation is not necessary to monitor the [MASTER 1] or [MASTER 2] (master channel) sound. 3 Turn the [MIXING] control 6. — When turned counterclockwise: The volume of [CH-1] and [CH-2] becomes relatively louder. — Center position: The volume of the [CH-1] and [CH-2] sound is the same level as the [MASTER 1] and [MASTER 2] sound. — When turned clockwise: The volume of [MASTER 1] and [MASTER 2] become relatively louder. 4 Turn the [LEVEL] control 7 in the headphones section clockwise. Sound is output from the headphones. ! When the [CH-1] or [CH-2] button in the headphones section is pressed again, monitoring is canceled. ! [MASTER 1] and [MASTER 2] monitoring cannot be canceled.

Refer to Specifications on page 14 for the range of sound that can be adjusted by each control. English Additional information Troubleshooting

Incorrect operation is often mistaken for trouble or malfunction. If you think that there is something wrong with this component, check the points below. Sometimes the trouble may lie in another component. Inspect the other components and electrical appliances being used. If the trouble cannot be rectified after checking the items below, ask your nearest Pioneer authorized service center or your dealer to carry out repair work. This unit may not operate properly due to static electricity or other external influences. In this case, proper operation may be restored by turning the power off, waiting 1 minute, then turning the power back on. Problem Check Remedy The power is not turned on. Is the included AC adapter properly connected? Connect the included AC adapter properly to the power outlet. (page 6) Properly attach the included AC adapter’s power cord to this unit’s cord hook. (Page 6) No sound or small sound. Is the [ON/OFF] switch for power supply set to [ON]? Set the [ON/OFF] switch for power supply to [ON]. (Page 9) Is the [CD, PHONO/LINE] input selector switch set to the proper position? Switch the [CD, PHONO/LINE] input selector switch to the channel’s input source. (Page 10) Is the [PHONO/LINE] selector switch on this unit’s rear panel set to the proper position? Switch the terminals’ function using the [PHONO/LINE] selector switch on this unit’s rear panel. (Page 5) Are the [TRIM], [channel fader], [crossfader] and [MASTER LEVEL] controls set to the proper positions? Set the [TRIM], [channel fader], [crossfader] and [MASTER LEVEL] controls to the proper positions. (Page 10) Are the connected powered speakers, etc., properly set? Properly set the external input selection, volume, etc., on the powered speakers, etc. Are the connection cables properly connected? Connect the connection cables properly. (page 6) Are the terminals and plugs dirty? Clean the terminals and plugs before making connections. Is [MASTER LEVEL] set at the proper position? Adjust the [MASTER LEVEL] control so that the master level indicator’s orange indicator lights at the peak level. (Page 10) Is [TRIM] set at the proper position? Adjust the [TRIM] control so that the channel level indicator’s orange indicator lights at the peak level. (Page 10) Can’t crossfade. Is the [THRU, ] (crossfader curve selector) switch set to [THRU]? Set the [THRU, ] (crossfader curve selector) switch to a position other than [THRU]. (Page 10) Can’t fader start a DJ player. Is the [CH-1] or [CH-2] button in the fader start section set to the off position? Set the [CH-1] or [CH-2] button in the fader start section to the on position. (page 11) Is the control cord properly connected? Connect this unit and DJ player with a control cord. (page 6) Are the audio cables properly connected? Connect this unit to the audio output terminal of a DJ player with an audio cable. (page 6) Have you connected an analog player with a builtin phono equalizer? If the analog player is equipped with a built-in phono equalizer, connect it to the [CD] terminals. (page 6) Distorted sound. Sound is distorted when an analog player is connected to this unit’s [PHONO/LINE] terminals. Or, lighting of the channel level indicator does not change even when the [TRIM] control is turned. If the analog player with built-in phono equalizer has a PHONO/LINE selector switch, switch it to PHONO. Is an audio interface for computers connected between the analog player and this unit? If the computer audio interface’s output is line level, connect it to the [CD] terminals. (page 6) If the analog player has a PHONO/LINE selector switch, switch it to PHONO. Block Diagram CD1 TRIM LINE1/ PHONO1 3Band
