Contents How to read this manual + The names of displays, menus, and buttons in this manual are enclosed in brackets. (e.g. [MASTER] channel, [ON/OFFI, [File] menu) + Descriptions of functions and procedures px indicated ZT + The TRAKTOR manual and TRAKTOR GETTING STARTED can be viewed from the TRAKTOR help menu after TRAKTOR is installed med on the computer are ® Before start Features What's in the box. @® Quick Start Guide Operation overview .. Installing the TRAKTOR sofiware Launching TRAKTOR... ” Performing product activation Installing the driver software... Connecting the input/output terminals Setting this uni Changing the setting utility's: settings . Playing tracks. (03) Operation Browse section Transport section Mixer section … Effect section. Hot cue/sampler section. Global section... MIC/AUX section. MIDI section @ Changing the seti

Changing the TRAKTOR Preferences. Changing the setting utility s settings … Changing this units settings... ® List of MIDI Messages List of MIDI Messages ….. © Additional information Troubleshooting Block Diagram Disclaimer. Cautions on copyrights. Specifications... DRB1557-A 4

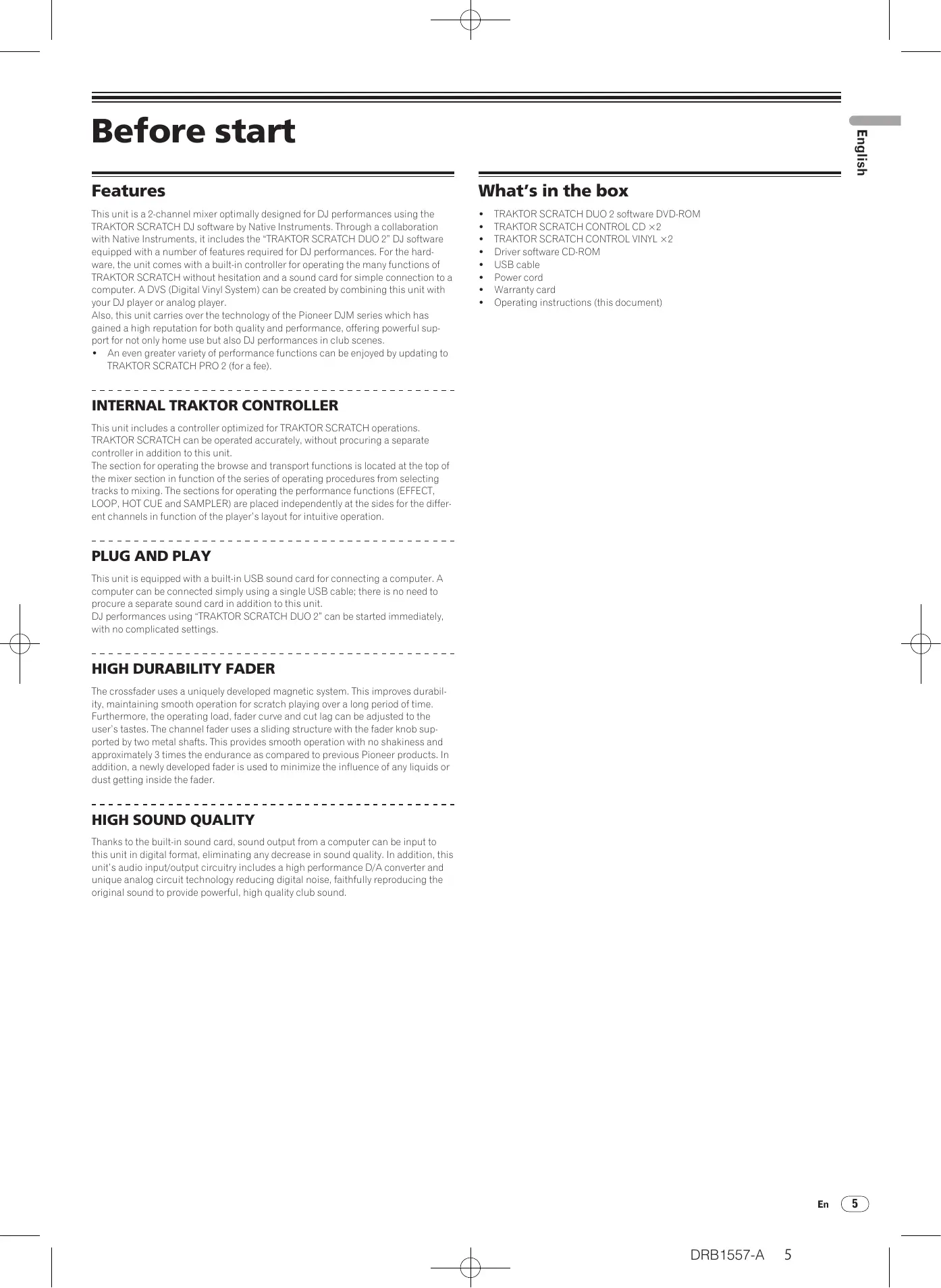

Before start ys1Bug | Features This unit is a 2-channel mixer optimally designed for DJ performances using the TRAKTOR SCRATCH DI software by Native Instruments. Through a collaboration with Native Instruments, it includes the ‘TRAKTOR SCRATCH DUO 2" DJ software equipped with a number of features required for DJ performances. For the hard. ware, the unit comes with à built-in controller for operating the many functions of TRAKTOR SCRATCH without hesitation and a sound card for simple connection to a computer. À DVS (Digital Vinyl System) can be created by combining this unit with your DJ player or analog player. Also, this unit carries over the technology of the Pioneer DJM series which has gained a high reputation for both quality and performance, offering powerful sup port for not only home use but also DJ performances in club scenes. + An even greater variety of performance functions can be enjoyed by updating to TRAKTOR SCRATCH PRO 2 (for a fee).

INTERNAL TRAKTOR CONTROLLER

This unit includes a controller optimized for TRAKTOR SCRATCH operations. TRAKTOR SCRATCH can be operated accurately, without procuring a separate controller in addition to this unit The section for operating the browse and transport functions is located at the top of the mixer section in function of the series of operating procedures from selecting tracks to mixing, The sections for operating the performance functions (EFFECT, LOOP, HOT CUE and SAMPLER) are placed independentiy at the sides for the differ- ent channels in function of the player's layout for intuitive operation.

This unit is equipped with a built-in USB sound card for connecting a computer. À computer can be connected simply using a single USB cable; there is no need to procure a separate sound card in addition to this unit. DJ performances using ‘TRAKTOR SCRATCH DUO 2" can be started immediately with no complicated settings.

HIGH DURABILITY FADER

The crossfader uses a uniquely developed magnetic system. This improves durabil ity, maintaining smooth operation for scratch playing over à long period of time. Furthermore, the operating load, fader curve and cut lag can be adjusted to the user's tastes. The channel fader uses a sliding structure with the fader knob sup- ported by two metal shafts. This provides smooth operation with no shakiness and approximately 3 times the endurance as compared to previous Pioneer products. In addition, a newly developed fader is used to minimize the influence of any liquids or dust getting inside the fader.

Thanks to the built-in sound card, sound output from a computer can be input to this unit in digital format, eliminating any decrease in sound quality. In addition, this unit's audio input/output circuitry includes a high performance D/A converter and unique analog circuit technology reducing digital noise, faithfully reproducing the original sound to provide powerful, high quality club sound. What's in the box +__ TRAKTOR SCRATCH DUO 2 software DVD-ROM +" TRAKTOR SCRATCH CONTROL CD x2 +" TRAKTOR SCRATCH CONTROL VINYL x2 + Driver software CD-ROM + USB cable + Power cord + Warranty card + Operating instructions (this document) DRB1557-A 5

Quick Start Guide This section describes the procedure for using this unit as a DVS (Digital Vinyl System) + Descriptions of functions and procedures performed on the computer are indicated (EXT Operation overview 1 _installing the TRAKTOR software 2 pageë 2 Launching TRAKTOR 3 page7 3 Performing product activation 3 page7 4 _installing the driver software 2 pages 5 Connecting the inputoutput terminals 3 page 10 6 Setting this unit 3 page 11

7. Changing the setting utility's settings

3 page 11 8 Playingtracks 3 page 11 Installing the TRAKTOR software + This unit also supports TRAKTOR SCRATCH PRO 2. If you own TRAKTOR SCRATCH PRO 2, update the software to the latest version Cautions on installing the TRAKTOR software Supported operating systems. Installation Procedure (Windows) 1 Insert the included TRAKTOR SCRATCH DUO 2 software DVD-ROM into the computer‘'s DVD drive.

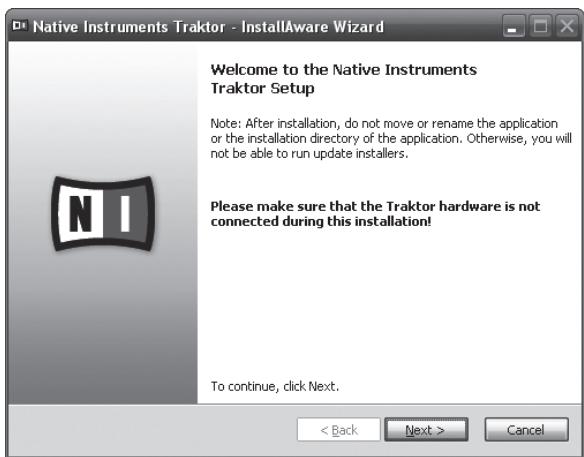

2. From the Windows [Start] menu, double-click the [Computer

{or My Computer)] > [Traktor] icon. The contents of the DVD-ROM are displayed. 3 Double-click [Traktor 2 2.0.x Setup PC.exe]. The TRAKTOR installer is launched 4 Once the TRAKTOR installer is launched, click [Next]. — To return to the previous screen: Click [Back] — To cancel installation: Click [Cancel] Welcome Lo the Native Instruments Araktor Setup Rare: rer italien, d not over rename ne applcaben he mstaleion dretur o e applcaon, CERTA, Ou Pot be able te tune als Please make sure that the Fraktor hardware is not connected during Us instalationt a contmus, ik HE. 5 Read the contents of the [License Agreement] carefully, and if you agree, check [I accept the terms of the license agreement],

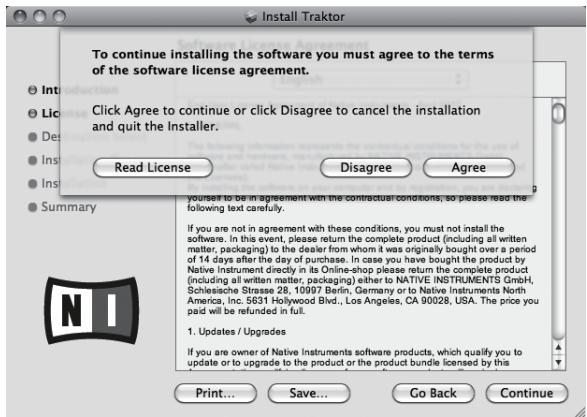

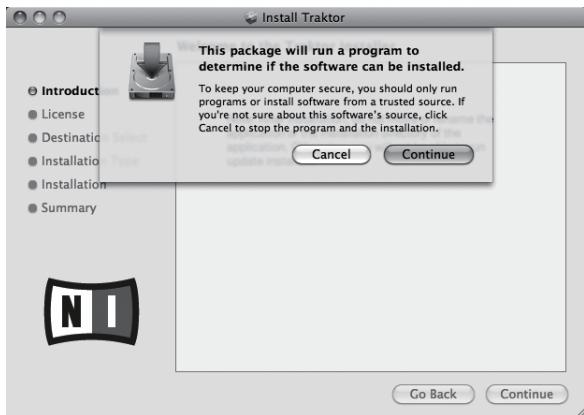

Mac 7 then click [Next]. If you do not agree ta the terms of the (License Agreement], click [Cancel to can Windows® 7 Home Premium/Professional Ultimate Deer £ cel Installation. bitversior 7 5 DAV TASTTUMENTS rraRIOr MS tATANeTE Wizard Cie) Windows Vista® Home ome Premium/Business/ bit version { Ultimate (SP or late License Agreement bitersior CA Bec caro rot fol ce are Windons® XP Home Edition/Prot later 32-itversion 7 formation on the operating environment and compatibilif, and to acquire the nd Use License Agent ofaivelnsanents-Bepember ID m ng system, please visit the following Native Instruments website: Ho native-instruments.com/raktor IL GENERAL IThe fotovang nformaon represent te sontracbudl concicrs for he use uf softrere and hardrare merufactared by NATIVE INSTRUMENTS Go (hereinefier Minimum operating calé are struments) y Fou, ta ina user hereinañr celle tne License) environment for TRAKTOR (Byinstag the sofurare on your sompnier and by te giron Fou a declang PSN] Iraeafta Een agreement PA he conan rondians, so oase read the Macintosh computer equipped with an Intel® Core” Foloming ten careral ordee Duo proc : _—_— Léon are notin agreement mt thase conditions ponsmmstctinstl de safran cpu C/AT compatible computer equipped with à 2.4 GHz or En is vent, please cet the complete product Greluéing a intien matter, ® É 4 ntel® Gore" a greater Intel® Pentium? 4, ntel® Core"* Duo or AMD Fee indons® XP_Athlon'” 64 processor Required B or more of RAM Hard Free space of 500 MB or greater DD drive Optical dise di OMS ar mentis requi ne TRAKTOR sotwar r registration with 0 connect the computer with this uni even those meeting the operating resident programs, the numbx from offering optimal functionality and performant recommend installing additional n ble operation c.. the CPU and harc C6) En 6 Choose the type of TRAKTOR installation, then click [Next]. Normaly install all options, including [Controller Editor] and [Service Center! 7 Choose where to install TRAKTOR, then click [Next]. To choose the normal place of installation, simply click [Next To install in a different location, click [Change], choose the place of installation, then click [Next] 8 Select the Native Instruments hardware driver, then click [Next]. Check the check box for your hardware. 9 Toinstall the Traktor Kontrol X1 driver, check the check box, then click [Next]. 10 When the following screen appears, click [Next]. Installation begins. DRB1557-A 6

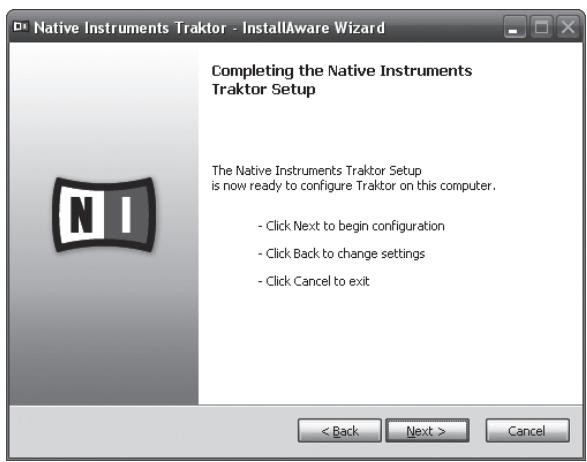

The installation completed screen appears once installation is completed. Completing the Native Instruments Araktor Setup The Nate Dnatrunents Trek Set ie nou tea te cerfigure Trahér ent computer. ik Net tn bsgin congurron lc Badte charge cothge Cle Caneeita et CCE ons) 11 Click [Finish] This completes the tallation procedure. Installation Procedure (Macintosh) 1 Insert the included TRAKTOR SCRATCH DUO 2 software DVD-ROM into the computer‘s DVD drive. The [Traktor] icon appears on the screen. 2 Double-click the [Traktor] icon. The contents of the DVD-ROM are displayed. 3 Double-click [Traktor 2 2.0.x Installer Mac.mpkg]. The TRAKTOR installer is hed. 4 Once the TRAKTOR installer is launched, click [Continue]. “this package wi run a program (rte ie sefvare eur be ras © introduct To kee your cempre secure you ho ani am License re at aue about sara ou, ce | Egrenens ns

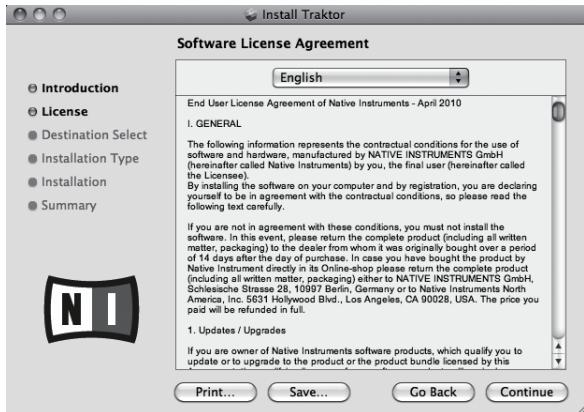

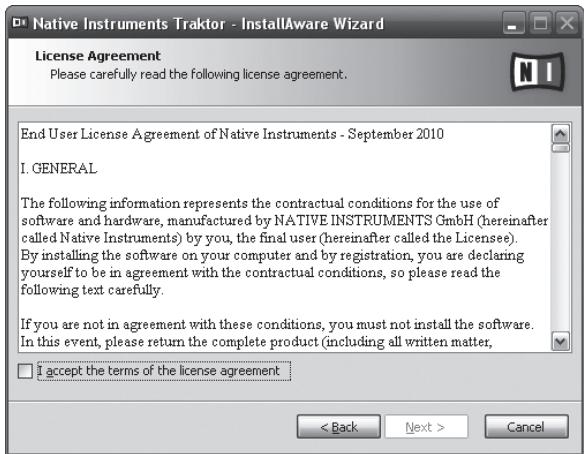

Cu) 5 Read the contents of the license agreement careully, then click [Continue]. Com) Corne ) Software License Agreement : Dr | jus FC Ro a AE 8 Destination Select © instalation Type stalltion Lee ro aim D RATVE INSTRUMENTS Ga TR no nes Do surement De mec Rene 2 dos emo © Summary D Je 6 _ If you agree to the contents of the usage agreement, click [Agree]. If you do not agree to the contents of the usage agreement, click [Disagree] to cancel installation 1 aude LU RoYe a —) us ‘0 continue instaling the software you must agree to the terms ys1Bug | PRRREREES

“PC — 2 7 Select the Native Instruments hardware driver, then click [Continue]. Check the check box for your hardware. 8 Choose where to install TRAKTOR, then click [Install]. To choose the normal place of installation, simply click [Install] To install in a different location, click [Change Install Location..], choose the p ofinstallation, then click [Install] Installation begins. The installation completed screen appears once installation is completed. 9 Click [Restart]. This completes the installation procedure. Launching TRAKTOR For Windows From the Windows [Start] menu, open [II Programs] > [Native Instruments] > [Traktor 2], then click the [Traktor 2] icon. For Mac OS X In Finder, open the [Application] folder, next open [Native Instruments] > [Traktor 2], then double-click the [Traktor 2] icon. Performing product activation To use TRAKTOR SCRATCH DUO 2, first perform product activation (referred to simply as “activation” below) using Native Instruments SERVICE CENTER (referred to simply as "SERVICE CENTER" below) Launching the SERVICE CENTER There are three ways to do this: — Launching from the dialog displayed when TRAKTOR is started up — Launching from the TRAKTOR [Help] menu — Launching SERVICE CENTER directly + To launch from the dialog displayed when TRAKTOR is started up 1 Launching TRAKTOR The screen below appears. Achat

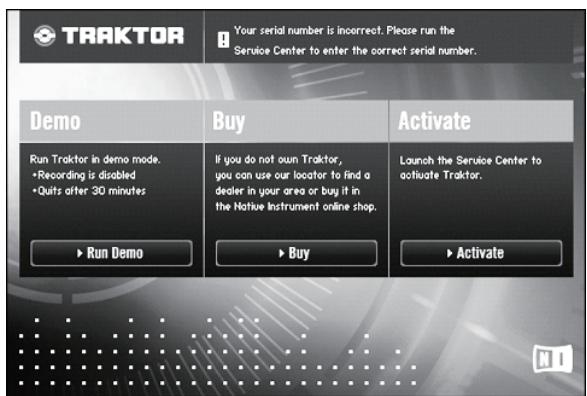

+ This dialog is displayed each time TRAKTOR is launched until he license is acquired from SERVICE CENTER. 2 Select the method for acquiring the license, then click. — [Run Demo]: Launch TRAKTOR in the demo mode. — {Buyl: Purchase TRAKTOR from the Native Instruments online shop. — [Activate]: Acquire the license immediately from the SERVICE CENTER + To launch from the TRAKTOR [Help] menu From the TRAKTOR [Help] menu, click [Launch Service Center]. + To launch the SERVICE CENTER directly For Windows From the Windows [Start] menu, click the [Native Instruments] > [Service Center] > [Service Center] icons. For Mac OS X In Finder, open the [Application] folder, then double-click the [Service Center] - [Service Center] icons. Activation procedure — Online activation: When your computer is connected to the Internet — Offline activation: When your computer is not connected to the Internet

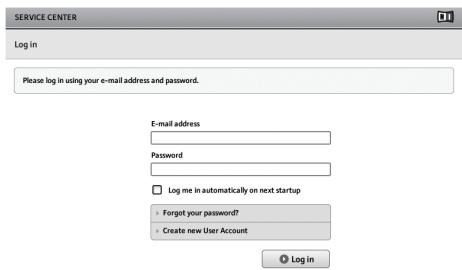

• Online activation 1 Launch the SERVICE CENTER. The log-in screen is displayed 2 Input your e-mail address and password, then click [Log in]. + When logging in for the first time, you must create a new user account When [Create new User Account] is clicked, the new user account registration screen appears: Input the required items (e-mail address, first and last names), select your cour. try/region, then click [Next]. When the registration information confirmation screen appears, check the contents, then click [OK] A password is sent Lo the e-mail address input on the form, Return to the log-in screen and log in. + The personal information input when registering a new user account may be collected, processed and used based on the privacy policy on the Native Instruments website. Pioneer Corporation does not collect, process or use this personal information: 3 Input the serial number indicated on the package of the TRAKTOR SCRATCH DUO 2 software DVD-ROM, then click [Activate]. 4 Once the product license registration successful screen appears, click [Exit]. + Offline activation To activate TRAKTOR SCRATCH DUO 2 installed on a computer that is not con nected to the Internet, use SERVICE CENTER in the offline mode. C8) En With this procedure, a second computer that can be connected to the Internet is required 1 Launch the SERVICE CENTER on the computer on which TRAKTOR SCRATCH DUO 2 is to be installed. 2 Click [Offline] at [Continue without connecting to the internet].

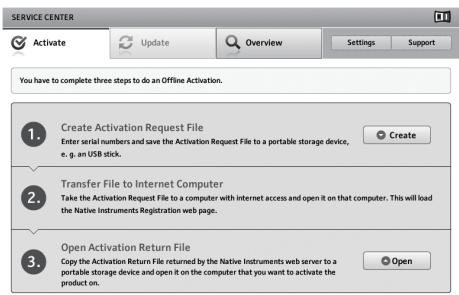

3. Click [Create] at [Create Activation Request File].

CECEET" Gisssu CHE - arte Ft interet Comoter

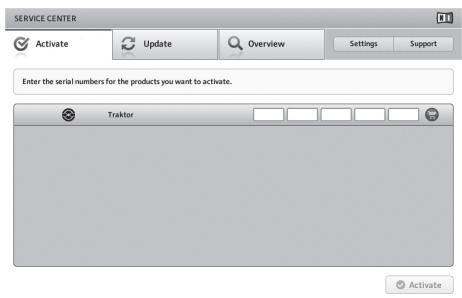

annee CES Son 4 Input the serial number indicated on the package of the TRAKTOR SCRATCH DUO 2 software DVD-ROM, then click [Create]. A launch request file is created. Save this file on a USB device, etc. 5 Connect the USB device on which the launch request file is saved to the computer that can be connected to the Internet. 6 Double-click the launch request file on the computer that can be connected to the Internet. The web browser is launched

7. Once the product activation screen appears, click [Send].

8 Input your e-mail address and password, then click [SUBMIT]. + When logging in for the first time, you must create a new user account When [No - 1 do not have an NI account.] is checked and [SUBMIT] is clicked the new user account registration screen appears. Input the required items (e-mail address, first and last names, street address, city and postal code), select your country/region, then click [NEXTI When a survey screen appears, select answers to the various questions, then click [SUBMIT] A password is sent to the e-mail address input on the form. Return to the log-in screen and log in. + The personal information input when registering a new user account may be collected, processed and used based on the privacy policy on the Native Instruments website Pioneer Corporation does not collect, process or use this personal information 9 When the [Service Center Activation Page] appears, click INEXTI. 10 Check that [Product] is [TRAKTOR SCRATCH DUO 2] and [Status] is [OK], then click [NEXT]. A launch return file is created. Save this file on a USB device, etc. 11 Launch the SERVICE CENTER on the computer on which TRAKTOR SCRATCH DUO 2 is to be installed. 12 Click [Offline] at [Continue without connecting to the internet]. 13 Click [Open] at [Open Activation Return File]. The launch return file is loaded. 14 Check in the SERVICE CENTER that product activation has completed. Installing the driver software This driver software is designed exclusively for inputting and outputting sound from the computer, To use this unit connected to a computer on which a Windows or Mac OS is installed, first install this driver software on the computer. Software end user license agreement This Software End User License Agreement (‘Agreement") is between you (both the individual installing the Program and any single legal entity for which the individual is acting) (‘You” or “Your') and PIONEER CORPORATION (“Pioneer'). TAKING ANY STEP TO SET UP OR INSTALL THE PROGRAM MEANS THAT YOU ACCEPT ALL OF THE TERMS OF THIS LICENSE AGREEMENT. PERMISSION TO DOWNLOAD AND/OR USE THE PROGRAM IS EXPRESSLY CONDITIONED ON DRB1557-A 8

YOUR FOLLOWING THESE TERMS. WRITTEN OR ELECTRONIC APPROVAL IS NOT REQUIRED TO MAKE THIS AGREEMENT VALID AND ENFORCEABLE. IF YOU DO NOT AGREE TO ALL OF THE TERMS OF THIS AGREEMENT, YOU ARE NOT AUTHORIZED TO USE THE PROGRAM AND MUST STOP INSTALLING IT OR UNINSTALL IT, AS APPLICABLE. 1 Defi ns I Documentation” means written documentation, specifications and help content made generally available by Pioneer to aid in installing and using the Program. B ‘Program means all or any part of Pioneer's software licensed to You by Pioneer under this Agreement 2 Programlicense I Limited License. Subject to this Agreement's restrictions, Pioneer grants to You a limited, non-exclusive, nontransterable, license (without the right to sublicense) a Toinstall a single copy of the Program on the hard disk drive of Your computer, to use the Program only for Your personal purpose complying with this Agreement and the Documentation (‘Authorized Use”): To use the Documentation in support of Your Authorized Use: and € To make one copy of the Program solely for backup purposes, provided that all titles and trademark, copyright and restricted rights notices are reproduced on the copy. B Restrictions. You will not copy or use the Program or Documentation except as expressiy permitted by this Agreement. You will not transfer, sublicense, rent, lease or lend the Program, or use it for third-party training, commer- cial time-sharing or service bureau use. You will not Yourself or through anythird party modify, reverse engineer, disassemble or decompile the Program, except to the extent expressly permitted by applicable law, and then only after You have notified Pioneer in writing of Your intended activi- ties. You will not use the Program on multiple processors without Pioneer s prior written consent & Ownership. Pioneer or its licensor retains al right, title and interest in and Lo all patent, copyright, trademark, trade secret and other intellectual prop- erty rights in the Program and Documentation, and any derivative works thereof. You do not acquire any other rights, express or implied, beyond the limited license set forth in this Agreement. Æ No Support. Pioneer has no obligation to provide support, maintenance. upgrades, modifications or new releases for the Program or Documentation under this Agreement. 3 Warranty disclaimer THE PROGRAM AND DOCUMENTATION ARE PROVIDED “AS 1S° WITHOUT ANY REPRESENTATIONS OR WARRANTIES, AND YOU AGREE TO USE THEM AT YOUR SOLE RISK. TO THE FULLEST EXTENT PERMISSIBLE BY LAW, PIONEER EXPRESSLY DISCLAIMS ALL WARRANTIES OF ANY KIND WITH RESPECT TO THE PROGRAM AND DOCUMENTATION, WHETHER EXPRESS, IMPLIED, STATUTORY, OR ARISING OUT OF COURSE OF PERFORMANCE, COURSE OF DEALING OR USAGE OF TRADE, INCLUDING ANY WARRANTIES OF MERCHANTABILITY, FITNESS FOR À PARTICULAR PURPOSE, SATISFACTORY QUALITY, ACCURACY, TITLE OR NON-INFRINGEMENT. 4 Damages and remedies for breach You agree that any breach of this Agreement’ restrictions would cause Pioneer irreparable harm for which money damages alone would be inadequate. In addition to damages and any other remedies to which Pioneer may be entitled, You agree that Pioneer may seek injunctive relief to prevent the actual, threatened or contin- ued breach of this Agreement. 5 Termination Pioneer may terminate this Agreement at any time upon Your breach of any provi sion. If this Agreement is terminated, You will stop using the Program, permanently delete it from the computer where it resides, and destroy all copies of the Program and Documentation in Your possession, confirming to Pioneer in writing that You have done so. Sections 2.2, 2.3, 2.4,8, 4, 5 and 6 will continue in effect after this Agreement's termination 6 Generalterms Æ Limitation of Liability. In no event will Pioneer or its subsidiaries be liable in connection with this Agreement or its subject matter, under any theory of liability, for any indirect, incidental, special, consequential or punitive damages, or damages for lost profits, revenue, business, savings, data, use, or cost of substitute procurement, even if advised of the possibility of such damages or ifsuch damages are foreseeable. In no event will Pioneer's liability for all dar: ages exceed the amounts actually paid by You to Pioneer or its subsidiaries for the Program. The parties acknowledge that the liability limits and risk allocation in this Agreement are reflected in the Program price and are essential elements ofthe bargain between the parties, without which Pioneer would not have provided the Program or entered into this Agreement. Æ The limitations or exclusions of warranties and liability contained in this Agreement do not affect or prejudice Your statutory rights as consumer and shall apply to You only to the extent such limitations or exclusions are per mitted under the laws of the jurisdiction where You are located E Severability and Waiver. If any provision of this Agreement is held to be illegal, invalid or otherwise unenforceable, that provision will be enforced to the extent possible or, if incapable of enforcement, deemed to be severed and deleted from this Agreement, and the remainder will continue in full force and effect. The waiver by either party of any default or breach of this Agreement will not waive any other or subsequent default or breach No Assignment. You may not assign, sell, transfer, delegate or otherwise dispose of this Agreement or any rights or obligations under it, whether vol untarily or involuntarily, by operation of law or otherwise, without Pioneer's prior written consent, Any purported assignment, transfer or delegation by You will be null and void. Subject to the foregoing, this Agreement will be binding upon and will inure to the benefit of the parties and their respective successors and assigns. I Entre Agreement, This Agreement constitutes the entire agreement between the parties and supersedes all prior or contemporaneous agree- ments or representations, whether written or oral, concerning its subject matter. This Agreement may not be modified or amended without Pioneer's prior and express written consent, and no other act, document, usage or custom will be deerned to amend or modify this Agreement. Æ You agree that this Agreement shall be governed and construed by and under the laws of Japan: Before installing the driver software Read Software end user license agreement carefully. Turn off this unit's power switch, then disconnect the USB cable connecting this unit and the computer. I any other programs are running on the computer, quit them. To install or uninstall the driver software, you need to be authorized by the administrator of your computer. Log on as the administrator of your computer before proceeding with the installation I you connect this unit to your computer without installing the driver soft ware first, an error may occur on your computer depending on the system environment installation of the driver software is interrupted after it has started, start the installation procedure over again from the beginning, The provided CD-ROM includes installation programs in the following 12 languages English, French, German, Italian, Dutch, Spanish, Portuguese, Russian, Chinese {simplified characters), Chinese (traditional characters), Korean, Japanese When using an operating system in any language besides the ones listed above, select [English] during the installation procedure. Supported operating systems © 32-bit version / Windows® 7 Home Premium/Protessional Ultimate 64-bit version / Windows Vista® Home Basic/Home Premium/Business/ …_32-bit version { Ultimate 64-bit version 4 Windows® XP Home Edition/Professional (SP2 or later) 32-bit version { Mac OS X 10.48 or later 32-bit version / 32-bit version / Mac OS X 10.5 64-bit version / Windows® XP Professional x64 Edition is not supported. Installation Procedure (Windows)

Insert the included driver software CD-ROM into the computer's DVD drive.

Proceed with installation according to the instructions on the screen. If [Windows Security] appears on the screen while the installation is in progress. click [install this driver software anyway] and continue with the installation: When installing on Windows XP If {Hardware Installation] appears on the screen while the installation is in progress, click [Continue Anyway] and continue with the installation. When the installation program is completed, a completion message appears. Installation Procedure (Macintosh)

Insert the included driver software CD-ROM into the computer's DVD drive.

Double-click [DIM-T1AudioDriver.pkg]. Proceed with installation according to the instructions on the screen. ysiBuz | En (9) DRB1557-A 9

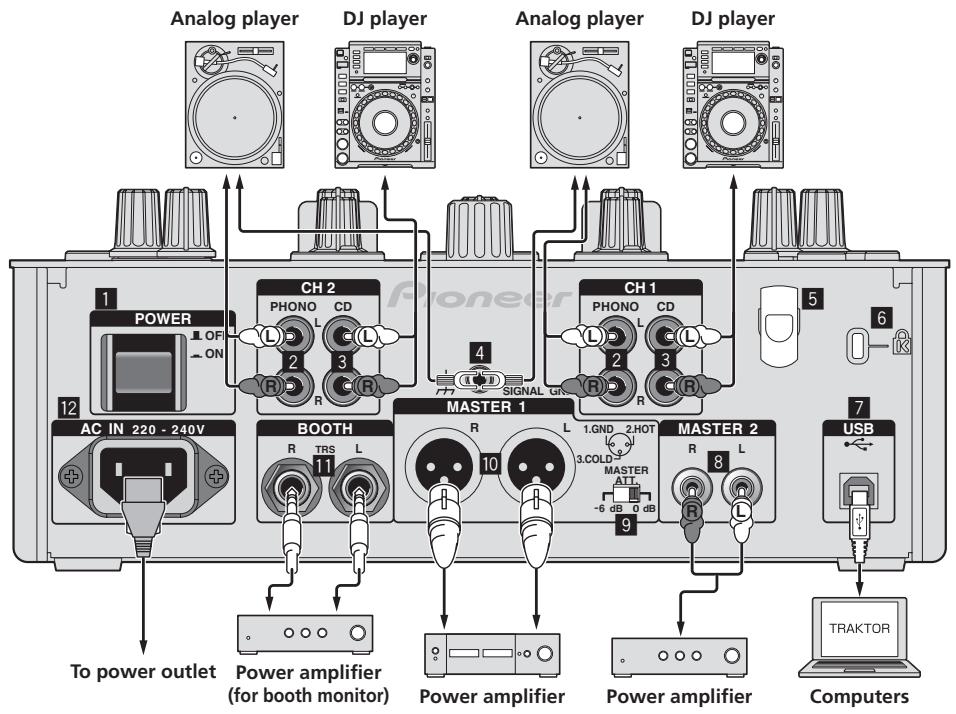

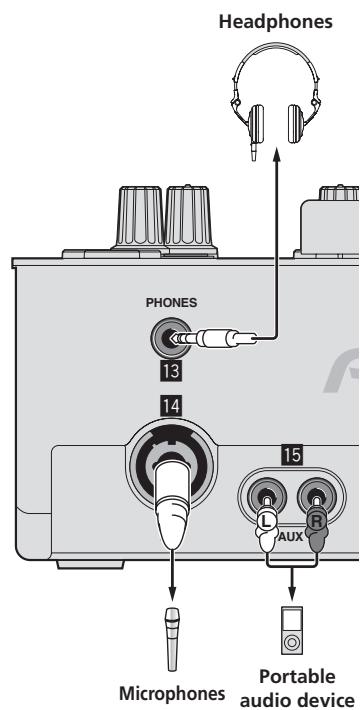

Connecting the input/output terminals Be sure to turn off the power and unplug the power cord from the power outlet whenever making or changing connections. Connect the power cord after all the connections between devices have been completed Be sure to use the included power cord Refer to the operating instructions for he component to be connected + When creating a DVS (Digital Vinyl System) combining a computer, audio interface, etc. be careful in connecting the audio interface to this unit's input terminals and in the settings of the input selector switches. Also refer to the operating instructions of the DJ software and audio interface. Rear panel, front panel Analog player DJ player Analog player DJ player

To power outlet Power amplifier {or booth monitor) EH POWER button Turns this unit's power on and off. H PHONO terminals Connect to a phono level (MM cartridge) output device. Do not input line level signals. To connect a device ta the [PHONO] terminals, remove the short-cireuit pin plug inserted in the terminals. Insert this short-circuit pin plug into the [PHONO] terminals when nothing is connected to them to cut external noise. E CD terminals Connect to a DJ player or a line level output component. SIGNAL GND terminal Connect an analog player's ground wire here. This helps reduce noise when the analog player is connected. EH Cord hook Hook the USB cable here. + The sound will be interrupted if the USB cable is disconnected during playback Kensington security slot USB port Connect to a computer. + Connect this unit and the computer directly using the included USB cable. + AUSB hub cannot be used. EÆ MASTER? terminals Connect to a power amplifier, etc. MASTER ATT. Sets the attenuation level of the sound output from the [MASTER] and IMASTER?] terminals. When set to [6 dB], the audio level output from the [MASTER] and [MASTER2] terminals is decreased by half I MASTER! terminals Connect to a power amplifier, etc. (10) En Power amplifier î Portable Microphones audio device Computers B00TH terminals (page 17) Output terminals for a booth monitor, compatible with balanced or unbalanced output for a TRS connector. + The sound will be distorted if the level is raised too high when using unbal: anced outputs. ACIN Connect to a power outlet using the included power cord. Wait until all connec: tions between the equipment are completed before connecting the power cord Be sure to use the included power cord I PHONES terminal (page 16) Connect headphones here. MIC terminal (page 22) Connect a microphone here: IE AUXIN terminals (page 22) Connect t the output terminal of an external device (sampler, portable audio device, etc.) # Cord hook The USB cable is fastened in place by catching it on the cord hook. This prevents the USB cable from being pulled accidentally and its plug getting disconnected from the port. + The sound will be interrupted if the USB cable is disconnected during playback B cable DRB1557-A 10

Setting this unit Playing tracks Be sure to install this unit's exclusive driver software before connecting this unit and . m the a computer by USB cable 1 Setthe CONTROL CD in the DJ player. E +__ To use an analog player, set the CONTROL VINYL. = 1 Switch the [CD, PHONO, USB] input selector switch. g Set it to [USB]. 2 Set TRAKTOR to the [Scratch Control] mode. su TRAKTOR _ 1) co— + —use FaôNo

2. Connect this unit to your computer via a USB cable.

This unit functions as an audio device conforming to the ASIO standards. 2 This operation does not work with computers that do not support USB 2.0 + _ IF (CUE] and [CUP] are displayed, operate the computer to switch TRAKTOR to + When using applications supporting ASIO. [USB 1/2], [USB 3/4] and [USB 5/6] the (Scratch Control] mode can be used as inputs. + The computer's recommended operating environment depends on the DJ appli 3 Press the [»/I1 (REL.)] or [CUE (ABS.)] button while pressing cation. Be sure to check the recommended operating environment for the DJ the [SHIFT] button application you are using, Select the Relative or Absolute mode. + When another USB audio device is connected to the computer at the same time, = Press the AR (REL)] button while pressing the [SHIFT] button: Switches t may not operate or be recognized normal. to the Relative mode We recammend only connecting the computer and this unit. The Relative mode is a mode that ignores the playback position of the . en connecting the computer and this unit, we recommend connecting CONTROL CD/CONTROL VINYL directly to this unit's USB port — Press the [CUE (ABS.)] button while pressing the [SHIFT] button: Switches 3 Press [POWER] button. to the Absolute mode. Turn on the power of this unit The Absolute mode is a mode that reflects the playback position of the + The message [Installing device driver software] may appear when this unit is CONTROL CD/CONTROL VINYL on the playback position of the track. first connected to the computer or when it is connected to a different USB port 4 Turnthe rotary selector. on the computer. Wait a while until the message [Your devices are ready for Selectthe track usel appears + When installing on Windows XP _— {Can Windows connect to Windows Update to search for software? FPS may appear while the installation is in progress. Select [No, not this time] K D then click [Next] to continue installation NN Qu — [What do you want the wizard to do?] may appear while the ins! FÈ lation is in progress. Select [Install the software automatically {Recommended)], then click [Next] to continue installation — If [Windows Security] appears on the screen while the installation is in 5 Press the [LOAD (DUPLICATE)] button. progress, click [Install this driver software anyway] and continue with he selected track is loaded in the deck. the installation. RD mA CA) Changing the setting utility's settings + For detailed instructions on selecting tracks and loading tracks in decks, see Browse section on page 13 1 Displaying the setting utility 6 Playthe CONTROL CD. + For Windows Playback of the track loaded in the TRAKTOR deck begins. Click [Start] menu > [AI Programs] > [Pioneer] > [DIM-T1] > [DIM-T1 + To use an analog player, play the CONTROL VINYL. Setting Utility] + ForMacOSX Click [Macintosh HD] icon > [Application] > [Pioneer] > [DIM-T1] > [DJM-T1 Setting Utility] 2 Click the [MIXER OUTPUT] tab. 3 Click the [Mixer Audio Output] pull-down menu. Set as shown below, according to the devices connected to this unit When using a DJ player When using an analog player (CONTROL CD) (CONTROL VINYL) USB 1/2 CH Timecode CD CH1 Timecode PHONO USB 3/4 CH2 Timecode CD CH2 Timecode PHONO MNERMEUEN] mer urrur [RMI 10 rt uPrducon Sat Aude ro Alert ! f use: 4 ne . ù 1 à er À 2 aus US8 out En (1) DRB1557-A 11

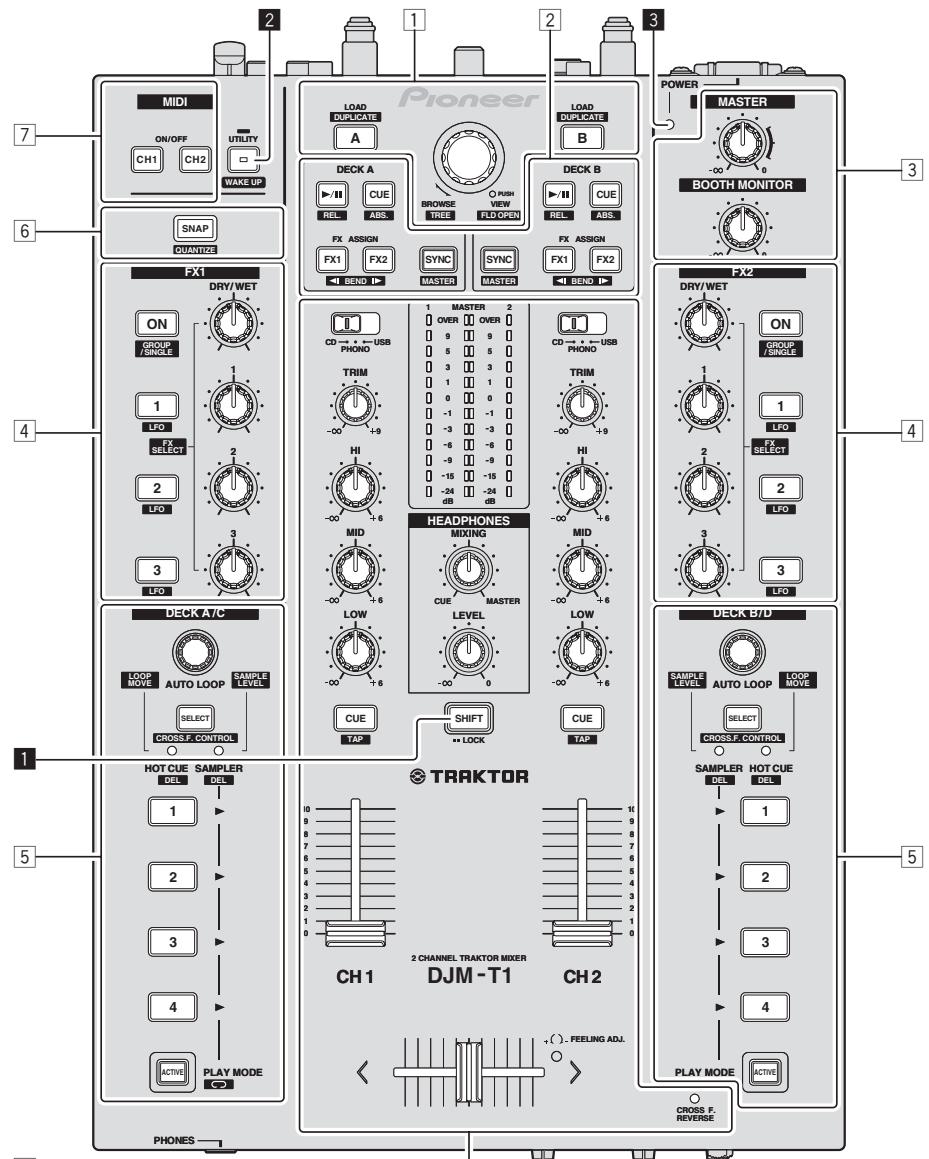

I HT , Es —= [1] Browse section (page 13) EL SHIFT button . + Press another button while pressing the [SHIFT] button [21 Transport section (page 14) The other function assigned to the button that is pressed is called out " " + Press the [SHIFT] button twice 13} Mixer section (page 16) The [SHIFT] button is locked in the pressed status. To unlock it, press the [4] Effect section (page 18) FSHIFT] button [5] Hot cue/sampler section (page 20) Æ UTILITY (WAKE UP) button [6] Global section (page 22) to standby mode is canceled (page 25). . over 1 second [7] MIDI section (page 22) Switches to the mode for changing this unit's settings (page 25) [8] MIC/AUX section (page 22) E POWER indicator Lights when this units power is on (12) En 1 DRB1557-A 12

LOAD (DUPLICATE) button + Press The track selected with the cursor is loaded in the respective deck + [SHIFT] + press: The track loaded in the one deck is copied and loaded into the other deck Rotary selector + Tum The cursor in the [TRACK] area moves. + Press: The [BROWSE] area's magnified display turns on and off. + [SHIFT] + turn The cursor in the [TRE] area moves. + [SHIFT] + press: The folder opens/closes.

• Description of areas — (TRE) ar n [Mon the diagram above is called the [TEE] area — (TRACK] ar Zion the diagram above is called the [TRACK] area — (FAVORITES] area: Section [3] on the diagram above is called the IFAVORITES] — (BROWSE] area: Sections [1] [2] and []on the diagram above are collec: tively called the [BROWSE] area: Importing tracks to TRAKTOR TRAKTOR From Explorer or Finder, drag & drop music files or folders containing music files to [Track Collection] in TRAKTOR's [TREE] area. + Right-click [Track Collection] (on Mac OS X, click [Track Collection] while pressing the [control] key), then select [Import Music Folders] from the menu. Allthe music files in your system's (My Music] or [Music] folder are imported # Creating playlists 1 Right-click [Playlists] in TRAKTOR'S [TREE] area. + For Mac OS X, click it while pressing the [control] key 2 From the menu, select [Create Playlist]. 3 Inputthe playlist name, then click [OK]. The playlist you have created is displayed at [Playlists]. 4 Drag & drop music files to the playlist you have created to add them. + Creating a FAVORITES Drag and drop a playlist folder to an open slot in the [FAVORITES] area.

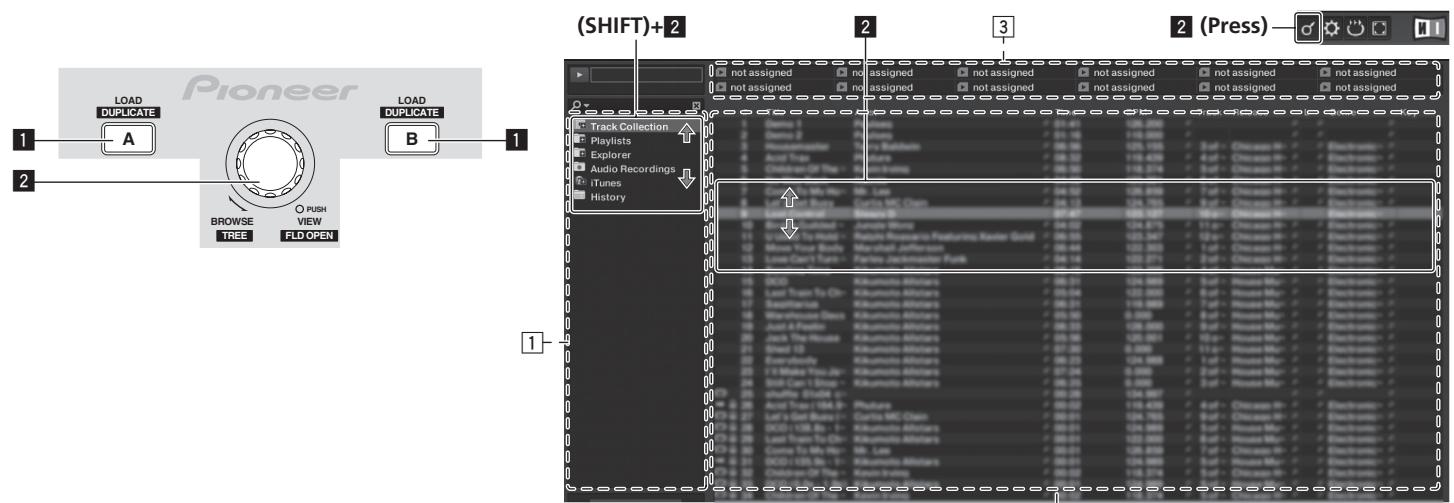

L E (Press) È Ë : F E A Loading tracks to decks 1 Turn the rotary selector while pressing the [SHIFT] button. Select the playlist or folder. 2 Press the rotary selector while pressing the [SHIFT] button. The folder opens/closes. + _ltems without the [+] mark cannot be opened/closed. 3 Release the [SHIFT] button and turn the rotary selector. Select the track. 4 Press the [LOAD (DUPLICATE)] button. The selected track is loaded in the deck. + Playing iTunes music files If you are managing music files with iTunes, the iTunes library and playlists can be accessed directly with the TRAKTOR browser. 1 Turn the rotary selector while pressing the [SHIFT] button. Select the [iTunes] folder. 2 Press the rotary selector while pressing the [SHIFT] button. The folder opens/closes. 3 Browsing the library and playlists in the same way as with iTunes + The iTunes library and playlists cannot be edited with the TRAKTOR brows + When played from the TRAKTOR browser, iTunes music files are automati imported to the TRAKTOR [Track Collection] list. Using the duplicate function This function allows you to easily copy tracks that are loaded in one of the decks onto the other deck. The following describes the procedure for copying a track from deck [A] onto 1 Select the track, then press the [LOAD (DUPLICATE)] button of the deck [A]. The track is loaded into deck [A] 2 Press the [LOAD (DUPLICATE)] button of the deck [B] while pressing the [SHIFT] button. The track loaded in deck [A] is copied and loaded into deck [B] En (13) DRB1557-A 13

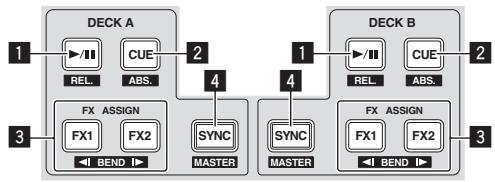

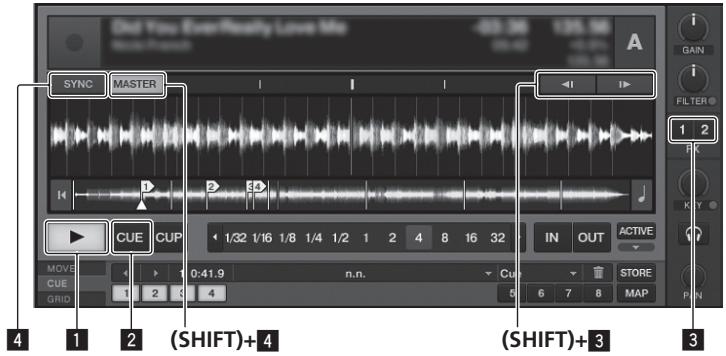

Transport section nn | L CE ÉD. (REL.) button Press Use this to play ISHIFT] + press: The TRAKTOR playback tracking mode switches to the Relative mode. The R mode is a mode that ignores the playback position of the

CONTROL CD/CONTROL VINYL

HA CUE (ABS.) button le pausing Press: A cue point is set at the paused position: en the [SNAP] function of TRAKTOR is off e eue point is set to the currently paused position [Beat Grid) en the [SNAP] function of TRAKTOR is on The cue point is set to the same position as the nearest During p use tracks. regardless of the Beat Grid) t eue point and cues, and playback pauses (back cue) Ifthe [CUE (ABS.)] button is pressed and held in after returning to the cue point, playback continues as long as the button is held ISHIFT] + press: The TRAKTOR playback tracking mode switches to the Absolute mode: The Absolute mode is à mode that reflects the playback position of the CONTROL CD/CONTROL VINYL on the playback position of the track E Fx ASSIGN («1 BEND 1) button Press the [EX 1] button: TRAKTOR effect unit [EX 1] is assigned to the deck whose button Press the [FX 2] button: TRAKTOR effect unit [EX 2] is assigned to the deck whose button When using TRAKTOR SCRATCH DUO 2, the assignment is 10 deck [AÏ, [FX 2] to deck [B] I you upgrade to TRAKTOR SCRATCH PRO 2, [FX 1] and [FX 2] can be assigned freely Lo the desired deck Press the [SHIFT] + [FX 1] buttons: The tracks playing speed temporarily slows down Press the [SHIFT] + [FX 2] buitons: The track's playing speed temporarily speeds up. SYNC (MASTER) button + Press: The [BPM] and (Beat Grid] of the track for the d pressed are synchronized to the master for syr ISHIFT] + press: The deck whose button was pressed is set as the master for synchronization s pressed s pressed xed: [FX 1] ck whose button onization. was

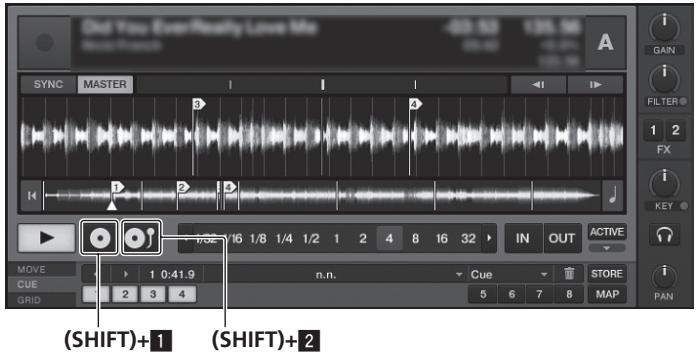

C4) En Scratch Control mode (SHIFD+Æ (SHIFT)} Playback Press the [»/11 (REL.)] button. + Pausing During playback, press the [»/I1 (REL.)] button. Set the cue 1 During playback, press the [»/Il (REL.)] button. Playback is paused 2 Press the [CUE (ABS.)] button. Cue point [A] is set at the position at which playback was paused. No sound is output at this time + When a new Cue Point is set, the previously set Cue Point is deleted + Returning to Cue Point (Back Cue) During playback, press the [CUE (ABS.)] button. The set immediately returns to the currently set cue point and pauses. + When the D/I (REL.)] button is pressed, playback starts from the cue point Checking Cue Point (Cue Point Sampler) Press and hold the [CUE (ABS.)] button after returning to the cue point. Playback starts from the set cue point. Playback continues while the [CUE (ABS.)] button is pressed. Bending the pitch Press the [FX 1] or [FX 2] button while pressing the [SHIFT] button. — Press the [SHIFT] + [FX 1] buttons: The track's playing speed temporarily slows down — Press the [SHIFT] + [FX 2] buttons: The track's playing speed temporarily speeds up. Synchronizing the playing speed with other decks (beat sync) 1 Press the [SYNC (MASTER)] button while pressing the [SHIFT] button on the currently playing deck. The deck whose button was pressed is set as the ster for synchronization DRB1557-A 14

2 Press the [SYNC (MASTER)] button on the deck not set as the master for synchronization. The (BPM) and [Beat Grid] of the track for the deck not set as the master for syn: chronization are synchronized to the [BPM] and [Beat Grid] of the track for the deck set to the master for synchronization + For information about setting the master for synchronization, see Se master for synchronization on page 15. + The beat sync function may not operate properly in the following ca: — When the loop length is under 1 beat — When the [BPM] of the or the deck set as the master for synchroni zation is out of the adjustable tempo range of the track for the deck to be synchronized. — When the track has not been analyzed es. + Setting the master for synchronization TRAKTOR MASTER | AUTO Click [F1 The master for synchronization can be selected from one of the two types below — [MASTER]: The BPM value input by the user or the BPM value set by tap- ping is set as the master — [AUTOI: The master is set automatically. When to decks are playing and the deck set as the master is paused, the other deck is automatically set as the master + When using TRAKTOR SCRATCH DUO 2, this is always set to [AUTO]. If you upgrade to TRAKTOR SCRATCH PRO 2, you can select [MASTER] or [AUTO]

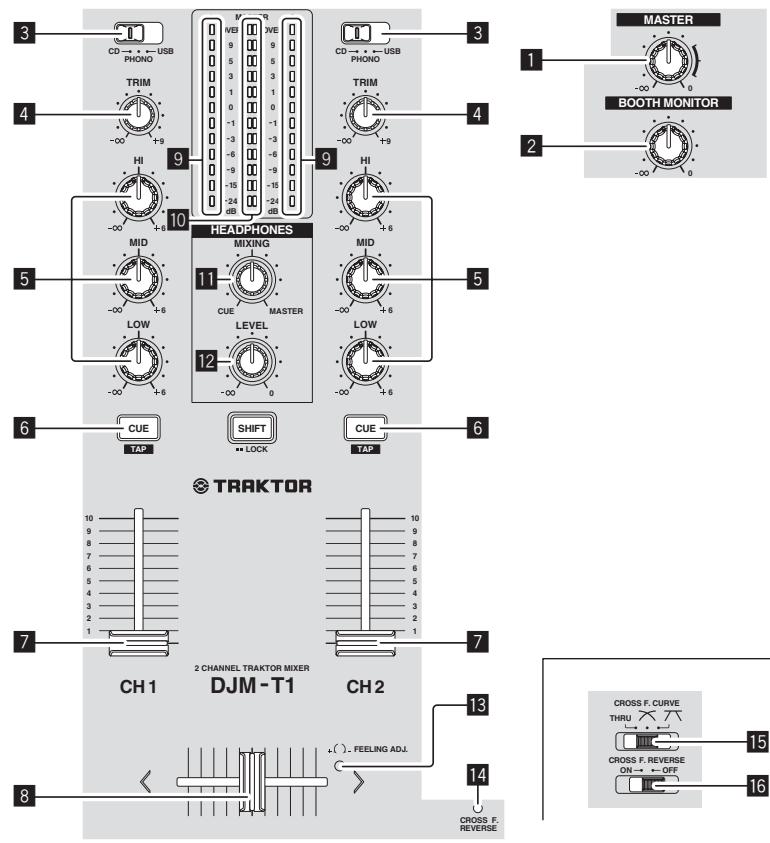

Mixer section cH1 DJM-T1 cH2 EH MASTER LEVEL control Adjusts the audio level output from the [MASTER1] and [MASTER?2] terminals. H BOOTH MONITOR control Adjusts the level of audio signals output from the [BOOTH] terminal. E CD, PHONO, USB input selector switch Select the input source of each channel from the components connected to this unit — (CDI: Selects the DJ player connected to the [CD] terminals. — IPHONO}: Selects the analog player connected to the [PHONO] terminals. — [USB]: Selects the sound of the computer connected to the [USB] port TRIM control Adjusts the level of audio signals input in each channel. EH EQ (HI, MID, LOW) controls These adjust the sound quality of the respective channels These adjust the [HI] (high range), [MID] (middle range) and (LOWI (low range) respectively. CUE (TAP) button Press the [CUE (TAP)] button for the channel you want to monitor. Channel fader Adjusts the level of audio signals output in each channel E Crossfader The sound of the respective channels is output according to the curve character- istics selected with the [CROSS F. CURVE (THRU, 7%, V)] selector switch Channel Level Indicator Displays the sound level of the respective channels before passing through the channel faders. I Master Level Indicator Displays the audio level output from the [MASTER1] and [MASTER2] terminals. I HEADPHONES MIXING control Adjusts the monitor volume balance between the sound of the channel whose ICUE (TAP)] button is pressed and the [MASTER] channel sound: I HEADPHONES LEVEL control Adjusts the audio level output from the [PHONES] terminal. ŒÆ FEELING AD). adjustment hole This can be used to adjust the crossfader's operating loac CROSS F. REVERSE indicator Lights when the [CROSS F. REVERSE) switch is on (16) En Æ CROSS F. CURVE (THRU, >, 79) selector switch This switches the crossfader curve characteristics. CROSS F. REVERSE switch Turns the crossfader reverse function on and off. Do not pull on the channel fader and crossfader knobs with excessive force. The knobs are not designed to be removed. Pulling the knobs strongly may result in damaging the unit Outputting sound Set the volume of the power amplifiers connected to the (MASTER1] and IMASTER?2] terminals to the volume is set too high uitable level. Note that loud sound will be produced if 1 Switch the [CD, PHONO, USB] input selector switch. Select the input source of each channel from the components connected to this unit 2 Turn the [TRIM] control. Adjusts the level of audio signals input in each channel. 3 Move the channel fader away from you. Adjusts the level of audio signals output in each channel. 4 Setthe crossfader. Switch the channel whose sound is output from the speakers. — Left edge: The [CH 1] sound is output — Center position: The sound of [CH 1] and [CH 2] is mixed and output. — Right edge: The [CH 2] sound is output + This operation is not necessary when the [CROSS F. CURVE (THRU, 7<. 7X)] selector switch is set to [THRU] 5 Turn the [MASTER LEVEL] control. Audio sigl re output from the [MASTER1] and [MASTER2] terminals. Adjusting the sound quality Turn the [EQ (HI, MID, LOW)] controls for the respective channels. Refer to Specifications on page 30 for the range of sound that can be adjusted by each control. Monitoring sound with headphones 1 Connect headphones to the [PHONES] terminal. DRB1557-A 16

2 Press the [CUE (TAP)] button for the channel you want to monitor. 3 Turn the [HEADPHONES MIXING] control. Adjusts the monitor volume balance between the sound of the channel whose [CUE (TAP)] button is pressed and the [MASTER] channel sound. + To monitor only the sound of the [MASTER] channel, turn the IHEADPHONES MIXING] control clockwise from the center position: 4 Turn the [HEADPHONES LEVEL] control. The sound of the channel whose [CUE (TAP)] button is pressed and the sound of the [MASTER] channel are mixed and output from the headphones. + Monitoring is canceled when the [CUE (TAP)] button is pressed again. Select the crossfader curve characteristics. Switch the [CROSS F. CURVE (THRU, 7, 7%)] selector switch. — [THRUI: Choose this when you do not want to use the crossfader. — (I: Set here for a curve that rises gradually. — [7XI: Sets an abruptiy rising curve. (When the crossfader is moved away from the edge on the [CH 1] side, the sound of the [CH 2] side is output immediately.) Adjusting the crossfader's operating load The load (resistance) when the crossfader is operated can be adjusted using a flathead screwdriver. + The crossfader's attenuation curve and the play at the two edges of the fader (the cut lag) can be adjusted. For details, see Changing this unit's settings on page 25. 1 Move the crossfader to the right (ICH 2]) edge. 2 insert the flathead screwdriver into the [FEELING AD.] adjustment hole and turn — Turn clockwise: The load decreases (the resistance of fader movement gets weaker). — Turn counterclockwise: The load increases (the resistance of fader move- ment gets stronger) Using the fader reverse function The crossfader's operating direction can be reversed by turning the [CROSS F. REVERSE] switch on Set the [CROSS F. REVERSE] switch to [ON]. Audio is output from the [BOOTH] terminal Turn the [BOOTH MONITOR] control. Adjusts the level of audio signals output from the [BOOTH] terminal. DRB1557-A

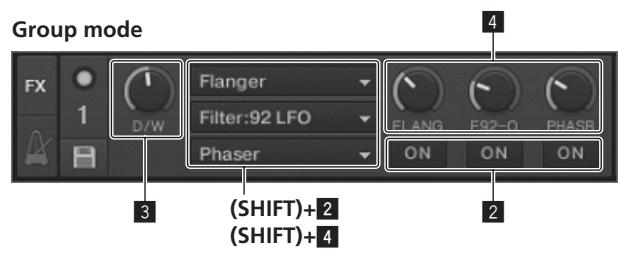

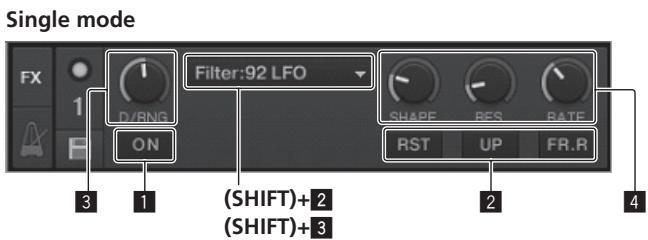

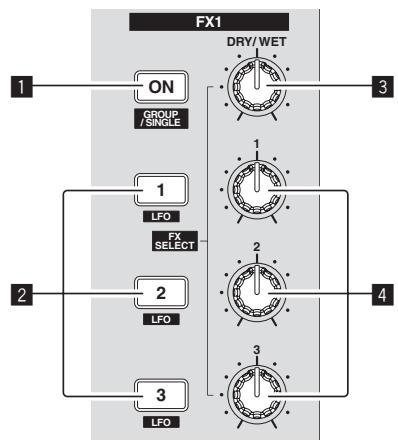

Effect section Group mode El ON (GROUP/SINGLE) button en using in the [Group] mode + Press: Does not function + SHIFT] + press: Switches the effect panel mode [Group] mode & [Single] mode en using in the [Single] mode + Press: Turns the el + ISHIFT] + press: Switches the effect panel mode [Group] mode & [Single] mode — [Group] mode: Up to three effects can be selected and operated simultaneously per effect panel. — [Single] mode The parameters of the selected effect can be operated in detail The [Single] mode cannot be selected with TRAKTOR SCRATCH DUO 2 I you upgrade to TRAKTOR SCRATCH PRO 2, the effect panel can be switched to the [Single] mode. on and of. H Effect control buttons When using in the [Group] mode + Press: Turns the effects on and off. + SHIFT] + press: — When [Generic Controller Mode] is turned on in this unit's settings: Switches the effect type. en [Generic Controller Mode] is turned off in his unit's settings: Turns the LFO CONTROL function on and off en using in the [Single] mode + Press the [1] button: Restores the parameters of all the + Press the [2] or [3] button Turns the respective effect on and off. The type of parameter differs accord ing to the effect + Press the [SHIFT] + [1] buttons: en [Generic Controller Mode] is turned on in this unit's settings: Switches the effect type. en [Generic Controller Mode] is turned off in his unit's settings: Turns the LFO CONTROL function on and off + Press the [SHIFT] + [2] or [SHIFT] + [3] buttons: — When [Generic Controller Mode] is turned on in this unit's settings: Does not function Vhen [Generic Controller Mode] is turned off in this unit's settings: urns the LFO CONTROL function on and off. Æ DRY/WET control en using in the [Group] mode + _Tum Adjusts the balance between th + [SHIFT] + turn: Does not function en using in the [Single] mode + _Tum Adjusts the balance between th + [SHIFT] + turn: Switches the effect type. cts to the base settings. fect sound and original sound. flect sound and original sound (18) En (HIFI (SHIFT)+E Effect control dials When using in the [Group] mode Adjusts the degree of the respective effect. *[SHIFT] + turn: Switches the effect type. When the LFO CONTROL function is on — Tum Adjusts the cycle for changing the degr — ISHIFTI + turn Does not function: When using in the [Single] mode ° Tum Adjusts the respective parameter. *[SHIFT]) + turn: Does not function When the LFO CONTROL function is on — Turn: Adjusts the cycle at which the respective parameter changes. — ISHIFT] + turn Does not function. Using the effect function + The following section describes the procedure for operating the effect function in the [Group] mode. 1 Press the [FX 1] or [FX 2] button. The TRAKTOR effect unit is assigned to the deck + When using TRAKTOR SCRATCH DUO 2, the assignment is fixed: [EX 1] to deck A], [FX 2] to deck [B] f you upgrade to TRAKTOR SCRATCH PRO 2, [FX 1] and [FX 2] can be assigned freely to the desired deck. 2 Turn an effect control dial while pressing the [SHIFT] button. This selects the type of effect + When [Generic Controller Mode] is turned on in this unil's settings, the type of effect can also be selected by pressing an effect control button while pressing the [SHIFT] button. 3 Turn the effect control dial. Adjusts the degree of the effect sound 4 Press the effect control button. This turns the effect on + When the button is pressed again, the effect is turned off. 5 Turn the [DRY/WET] control. Adjust the balance between the effect sound for all of the effects together and the original sound. Using the LFO CONTROL function When the LFO CONTROL function is on, the parameter value of the effect sent to TRAKTOR can be changed at the specified speed. This function allows you to create unique effect sounds not possible through manual operation. With the LFO CONTROL function, effect control buttons [1] - [3] can each be set eparately First turn off [Generic Controller Mode] in this unit's settings. For details, see Changing th 1gs on page 25. DRB1557-A 18

+ The following section describes the procedure for operating the LFO CONTROL function in the [Group] mode. 1 Turn an effect control dial while pressing the [SHIFT] button. This selects the type of effect 2 Press an effect control button while pressing the [SHIFT] button. The LFO CONTROL function turns on. Ifthe effect is off, it turns on simultaneously. + When the same button is pressed again, the LFO CONTROL function turns off and the effect turns back on. 3 Turn the effect control dial. Adjusts the cycle for changing the degree of each effects. 4 Turn the [DRY/WET] control. Adjust the balance between the effect sound for all of the effects together and the original sound DRB1557-A

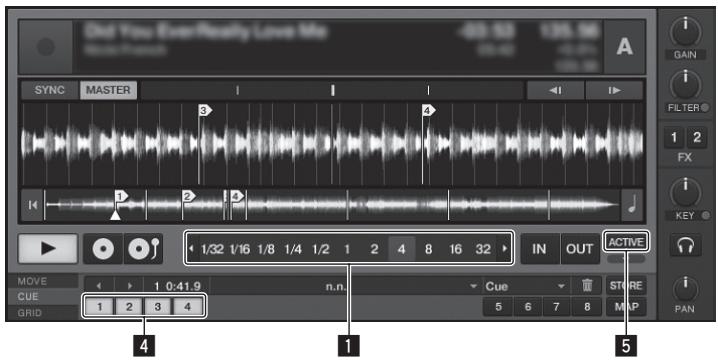

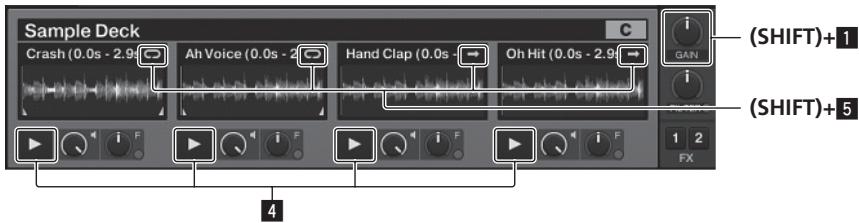

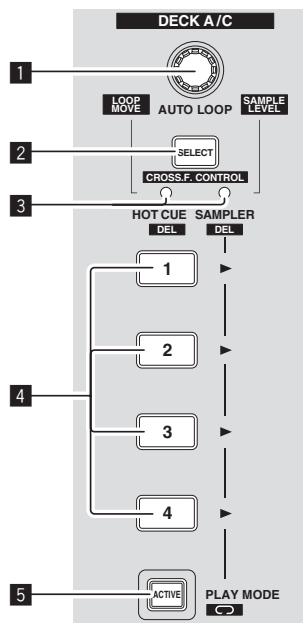

BR ———. — - (SHIF 005 {© nan GHIFD+EN (SHIF)+F H AUTO LOOP (LOOP MOVE/SAMPLE VOLUME) control en using with the hot cue function + Tum Changes the loop size + Press Turns loop playback on and off. + ISHIFT] + turn: Moves the position of the loop. + [SHIFT] + press: Does not function en using with the sampler function + ISHIFT] + turn: Adjusts the volume of the sample deck. + [SHIFT] + press: Resets the volume of the sample deck to the base setting B SELECT button + Press Switches the function of the hot cue/sampler section with Hot cue function #2 Sampler function + [SHIFT] + press: Turs the CROSS FADER CONTROL function on and off. Æ SELECT indicator Lights or flashes according to the hot cue/sampler section's function. — When the hot cue function is set: Lights green. — When the sampler function is set: Lights orange. — When the CROSS FADER CONTROL function is on: Flashes green or orange. HOT CUE/SAMPLER button en using with the hot cue function + Press: en no hot cue is set during playack or while pausing A hot cue is set at the position at which the button is pressed en a hot cue is set during playback or while pausing Calls out the hot cue. + [SHIFT] + press: Deletes the hot cue EN TRAKTOR ÎCUE TYPE] (the type of hot cue) can be changed by clicking [w] to the eft of the [ff] icon When using with the sampler function For details, see Table of HOT CUE/SAMPLER button oper Æ ACTIVE button en using with the hot cue function + Press: Switches the playing mode of the loop registered at the hot cue. Loop is played # Loop is not played en using with the sampler function + Press: Switches the button mode of the sample deck's [HOT CUE/SAMPLER) button Sample play mode # Trigger play mode ns on page 21 (20) En For details, see Table of HOT CUE/SAMPLER but

• ISHIFT] + press: Switches the loop mode of the sample on the sample deck Loop play mode 7 One shot play mode — MSI Loop play mode: When the end of the sample is reached, sample playback returns to the beginning and continues. — TX One shot play mode: When the end of the sample is reached, sample playback stops. n operations on page 21 Using the hot cue function 1 Press the [SELECT] button. The hot cue/sampler section switches to the hot cue function. Switches to the mode in which the [SELECT] indicator, [HOT CUE/SAMPLER] button and [ACTIVE] button light green. 2 Press the [HOT CUE/SAMPLER] button. The hot cue is set to the position playing when the button is pressed. + Whenthe [HOT CUE/SAMPLER] button is pressed during loop play currently playing loop can be stored at the hot cue button. + This operation is not necessary if a hot cue is already stored at the [HOT CUE/ SAMPLER] button:

3. During playback or while pausing, press the [HOT CUE/

SAMPLER] button. The hot cue is called out. + fa loop is stored atthe [HOT CUE/SAMPLER] button, press the [ACTIVE] button to switch the loop playback mode Using the sampler function Samples can be loaded into the sample deck [C] and sample deck [D] sampler slots and played. + When operating sample deck [C] — The deck [A] track is loaded into the sampler slot — The [HOT CUE/SAMPLER] buttons on {his unit's [CH 1] side support the respective sampler slots. + When operating sample deck [D] — The deck [B] track is loaded into the sampler slot — The [HOT CUE/SAMPLER] buttons on this unit's [CH 2] side support the respective sampler slots. + The operation of the [HOT CUE/SAMPLER) buttons differ according to the samples loop mode and the [HOT CUE/SAMPLER] button's button mode. For details, see Table of HOT CUE/SAMPLER button operations. + The following section explains the procedure for loading the deck [A] track in the sample deck [CI sampler slot and playing it Operate the hot cue/sampler section on this unit's [CH 1] side. 1 Load the track in deck [A]. 2 Press the [SELECT] button. Switch the hot cue/sampler section to the sampler function DRB1557-A 20

Switches to the mode in which the [SELECT] indicator, [HOT CUE/SAMPLER] button and [ACTIVE] button light orange. 3 Press the [HOT CUE/SAMPLER] button. — To associate deck [A] and sample deck [CI Operate the hot cue/sampler section on this unit's [CH 1] side. — To associate deck [B] and sample deck [D] Operate the hot cue/sampler section on this unit's [CH 2] side. m The track loaded in deck [A] is loaded into the sampler slot on sample deck [C]. + When the [CROSS F. REVERSE] switch is on, the crossfaders direction of operation @ + The track is sampled for 48 seconds from the position playing when the button s inverted. F was pressed, and this is loaded into the sampler slot £ + The track selected with the cursor in the [TRACK] area can be loaded into the 1 Press the [SELECT] button while pressing the [SHIFT] button. sampler slot by pressing the (HOT CUE/SAMPLER] button while pressing the The CROSS FADER CONTROL function turns on [SHIFT] button. (Tracks with a playing time longer than 48 seconds cannot be The [SELECT] indicator flashes. oaded.) + When the [SELECT] button is pressed again while pressing the [SHIFT] button. . . the CROSS FADER CONTROL function turns off, 4 Press the [ACTIVE] button while pressing the [SHIFT] button. The sample's loop mode switches. 2 Press the [SELECT] button. — (M Loop play mode: Select the function to be associated with the CROSS FADER CONTROL function (the When the end of the sample is reached, sample playback returns to the hot cue function or the sampler function) beginning and continues. — To associate the hot cue function — Orne shot play mode: Switches ta the mode in which the [SELECT] indicator, [HOT CUE/ When the end of the sample is reached, sample playback stops SAMPLER] button and [ACTIVE] button light and flash green — To associate the sampler function: 5 Press the [ACTIVE] button. Switches to the mode in which the [SELECT] indicator, [HOT CUE/ The [HOT CUE/SAMPLER] button's button mode switches. SAMPLER!] button and [ACTIVE] button light and flash orange. — Sample play mode: + _Itis also possible to associate both the hot cue function and the sampler func The sample is played or muted each time the button is pressed. tion with operation of the crossfader. (The hot cue and sample to be associated — Trigger play mode: with the crossfader must be selected si tely for each function.) When the button is pressed, the sample is played from the beginning, and stops when the button is released. 3 Press the [HOT CUE/SAMPLER] button. + For details, see Table of HOT CUE/SAMPLER button operations on page 21 Select the hot cue and sample to be associated with operation of the crossfader — To select a hot cue 6 Press the [HOT CUE/SAMPLER] button or press and hold the Press the [HOT CUE/SAMPLER] button at which the hot cue is set. Only one [HOT CUE/SAMPLER] button. of hot cues [1] - [4] can be selected. The sample is played — To select a sample: + When the [HOT CUE/SAMPLER] button is pressed again or he [HOT CUE/ Press the (HOT CUE/SAMPLER] button at which the sample is loaded. Up to SAMPLER] button is release, output of the sample's sound stops. four of samples [1] - [4] can be selected + With this procedure, the hot cue and sample are not played. + When the [HOT CUE/SAMPLER] button is pressed again, the selection is Using the CROSS FADER CONTROL function canceled CROSS FADER CONTROL is a function allowing you to call out hot cues and start 4 Move the crossfader. playing samples in association with operation of the crosstader. Move the crossfader to the side opposite the side to which the hot cue or sample t + First make the following preparations. be associated with the CROSS FADER CONTROL function is set. — Turn off [Generic Controller Model in this un ie seit ngs. 2 L 5 Move the crossfader. — Re When the crossfader is moved to the right from the [CH 1] edge, the deck [B] hot cue 9 n page 20 and sample deck [D] sample are played — Lo mple deck an (BI When the crossfader is moved to the left from the [CH 2] edge, the deck [A] hot cue Ê ion on page 20. and sample deck [C] sample are played. +__ The section operated differs according to the decks to be associated. Table of HOT CUE/SAMPLER button operations + Press: Loop play mode One shot play mode Sampler slot : = : Sample play mode Trigger play mode Sample play mode Trigger play mode When no sample is loaded ‘The music file Loaded in the deck is loaded into the sampler slot as a sample The sample played while the button The sample IS played wnile the button When a sample is oadec ayback ofthe sample begins. presses. lyback of the sample begins is pressed (pen a sample ondes Frappackofine sample beats When the button is released, play. | 2P6k fine sample beg en the button is released, pla back ofthe sample stops. back of ine sample stops The sample is mutedi® : While playing a sample When pressed for over 1 second The samples qued and playback | playack f the sample stops he sample is cued and playback playback ofthe sample sta contes continues 1] The mode can be switched using the [ACTIVE] button (page 20) 2] When the sample is muted, muting is canceled

• ISHIFT] + press Loop play mode One shot play mode ! Sampler slot = : = : Sample play mode Trigger play mode Sample play mode Trigger play mode When no sample is loaded The music file selected in the [TRACK] area is loaded in the sampler siot as a sample. pen à sample is loaded The sample is deleted While playing a sample The sample is deleted 1] The mode can be switched using the [ACTIVE] button (page 20) En (21) DRB1557-A 21

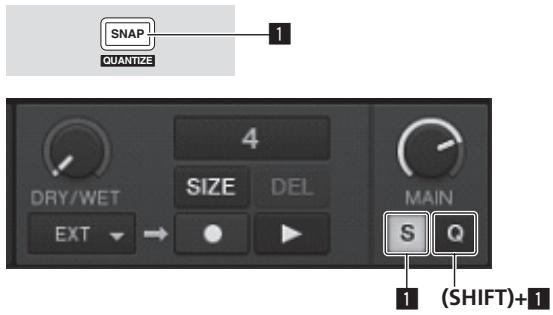

Global section El SNAP (QUANTIZE) button + Press: Tums the TRAKTOR snap function on and off. When the snap function is on, the cue and loop point position as the nearest [Beat Grid] + [SHIFT] + press: Turs the TRAKTOR quantize function on and of. When the quantize function is on, movement to the cue and loop points is synchronized with the timing of the beats. ts are set la the same MIC/AUX section Pure EX INPUT SELECT switch Switches the audio input between the external device and the microphone. — [AUX]: The external device connected to the [AUX] terminals is selected — (OFFI: The [MIC/AUX] channel is turned of. — [IC]: The microphone connected to the [MIC] terminal is selected + The sound input to the [MIC] and [AUX] terminals is mixed with the [CH 1] and [CH 2] sound that has passed through the crox B LEVEL control Adjusts the audio level input to the [MIC] and [AUX] terminals. E EQ (HI LOW) controls These adjust the tone of the [MIC/AUX] channel Inputting the sound of a microphone or external device 1 Connect the external device to the [MIC] or [AUX] terminal.

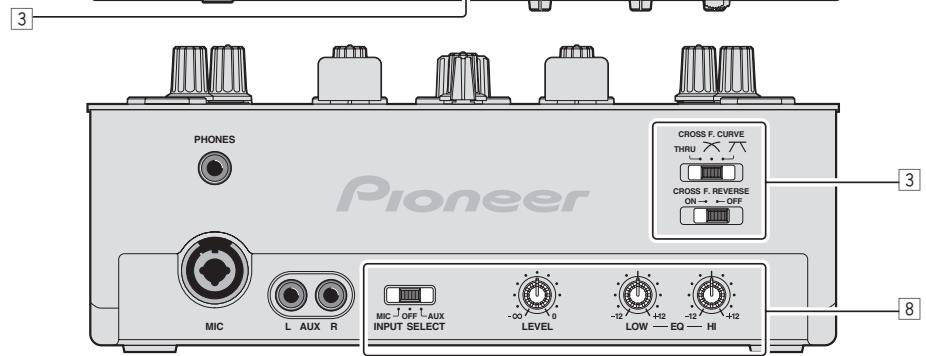

2. Switch the [INPUT SELECT] switch.

3 Turnthe [LEVEL] control. Adjust the audio level input to the [MIC] or [AUX] termina + Pay attention that rotating to the extreme right position outputs a very loud sound. + Adjusting the sound qua Turn the [EQ (HI, LOW)] controls. Refer to Specifications on page 30 for the range of sound that can be adjusted by each control. (22) en MIDI section This unit outputs the operation information of buttons and controls in universal MIDI format. en connected by USB cable to a computer on which a MIDI-compatible DJ soft ware program is installed, the DJ software can be operated from this unit Operating DJ software using the MIDI function Install the DJ software on your computer in advance. Also, adjust audio and MIDI settings for the DJ software: + For MIDI channel setting instructions, see Setting t + Forthe messages output bythis unit, see List of A 1 Connect this unit's [USB] terminal to the computer. For instructions on connections, see Connecting the input/output terminals on page 10. 2 Startthe DJ software. 3 Press the [CH 1] or [CH 2] button. The mixer sections MIDI function turns on Transmission of the mixer section's MIDI messages begins. + When a fader or control is moved, a message correspondi sent When the [CH 1] or [CH 2] button is pressed again, transmission of the mixer section's MIDI messages stops. + The MIDI messages of the browse section, transport section, effect section and hot cue/sampler section are transmitted regardless of the [CH 1] and [CH 2] buttons. ng ta the position is DRB1557-A 22

Changing the settings Changing the TRAKTOR Preferences ange TRAKTOR your hardware. For details on TRAKTOR's environmental settings, see the TRAKTOR manual + Ifyou wish to restore the changes to the environmental settings to their defaults, please check the following website. http;/hmww.prodinet 1 Click the TRAKTOR [El (Preferences Button)] button. Open the TRAKTOR settings menu. ge conditions of environmental settings according to the 2 Select the category and make the settings. 1 Launch the SERVICE CENTER and log in. For instructions on launc! SERVICE CENTER and logging in, see La

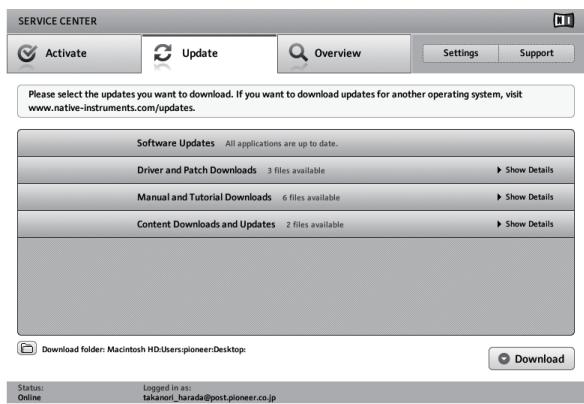

2 Click the [Update] tab. Available updates are checked' 3 Check the check box. cify the update to be downloaded. ECMET net re ptet ont yo rt dodo nat pr ae em eine Sharp ap i Dr Ds ne ent trou nds ent TE nn ren semen Ovni) me SES 4 Click [Download]. Updating begins. Category es to be used for audio input/output Audio Setup Set ihe audio latency when using a Macintosh computer Select [Mixing Mode) —_ {Internal}: Select this to control TRAKTOR mixer section from this Output Routing mi —_ lExternal]: Select this to use this uni seen the TRAKTOR deck's audio outputs and this units input channels, veen the TRAKTOR deck's audio inpi mputrouing Mie ouput rames : Timecode Setup Set is to use time codes (CONTROL CD/CONTROL VINYL Loading Sel ine conditions and functions for loading tracks to Ihe deck. Transport Make 1e settings relaled to {ne lempo and key lock functions. Decks Sel ine TRAKTOR deck section's display method Sel auto gain to on or off Mixer Set the TRAKTOR mixer section's display method. Global Settings Setwhether or not o display the global sector Effects Set the types of ss to be displayec selecting effects. Mix Recorder Make the settings related to TRAKTOR recording functions. Make the settings related to the [BROWSE] area ar Browser Details nts. Make the settings for track importing, auto analysis, the analysis BPM File Management a

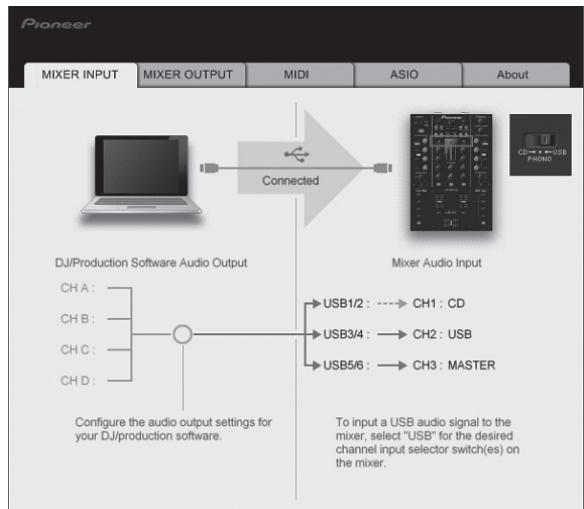

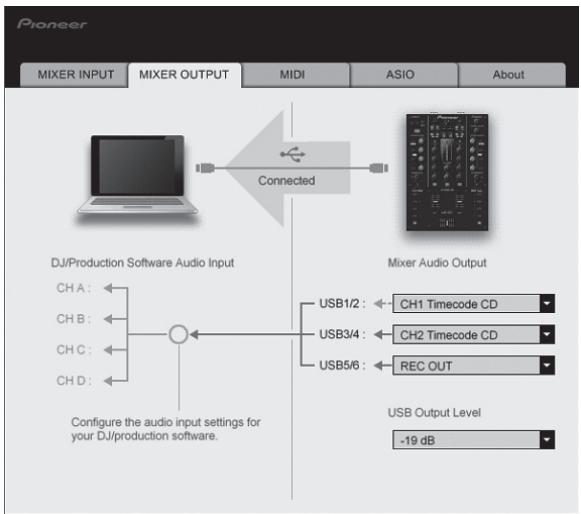

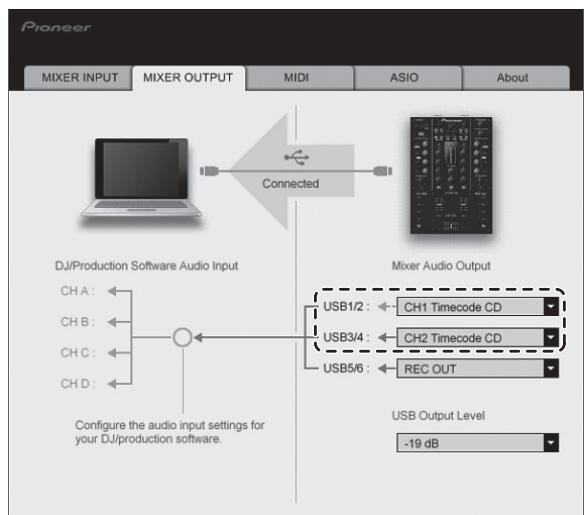

USB Ouour Levoi 2 Click the [Mixer Audio Output] pull-down menu. Select and set the audio data to be de this unit utput to the computer from the flow of audio USB 1/2 USB 3/4 CH2 Timecode PHONO USB 5/6 CH1 Timecode PHONO Post CH1 Fader CH1 Timecode CD CH2 Timecode CD Post CH2 Fader — Cross Fader À — Cross Fader B —_ —_ MIC/AUX Post EQ — REC OUT ind output from [USB 1/2) and [USB 3/4] output with the same volume as input to of the [USB Output Level) setting 3 Click the [USB Output Level] pull-down menu. Adjust the volume of the audio data output from [USB 5/6] + Ifnot enough volume can be achieved with the DJ softwa change the [USB Output Level] setting to adjusi data output from this unit. Note that the sound will b raised too high. s volume adjustment he volume of the audio storted if the volume is alon Setting the MIDI channel Display the setting utility before starting, 1 Click the [MIDI] tab. MRERMPUT JueouTeuT] wi 2s0 atout

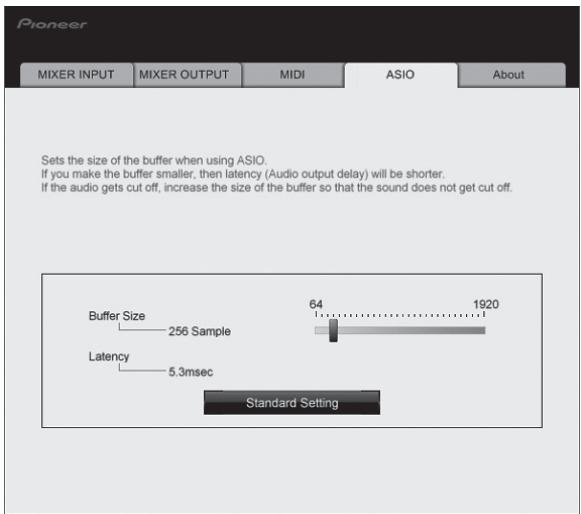

Adjusting the buffer size (when using Windows ASIO) If an application using this unit as th ning, quit that application before ac Display the setti io device (DJ software, etc.) is run. ting th g utility before starting Click the [ASIO] tab. MER MPUT Jr ourPur | mnt 2510 beat ae nan urg (Aud output el be snoner er size is made large, dro occur less easily, but the time audio data (latency) increases. io data (breaks in the sound) y in the transfer of the Checking the version of the driver software Display the setting utility before starting. Click the [About] tab. MER UT |urerourPuT | — Mo 290 bot LE Ent Ga Ut Uan verso 100 Dé Vase a Dam 100 Conso © 2011 Pons Gamoron Checking the latest information on the d software ver For the latest information on the driver software for exc wn below m/support/ sive us with this unit, visit + Operation cannot be guaranteed when multiple units of this mixer are connected to a single computer. DRB1557-A 24

Changing this unit's settings

1 Press the [UTILITY (WAKE UP)] button for over 1 second. u ea The [UTILITY (WAKE UP)] indicator and ne top of the [CH 1] channel level inaicator About the auto standby function £

flash. When [Auto Standbyl is set to [ON], the standby mode is set automatically if 4 5 2 Press the [LOAD (DUPLICATE) B] button. hours pass with all of the conditions shown below met The setting item changes each time the [LOAD (DUPLICATE) B] button is pre: — That none ofthis unit's buttons or controls are operated The flashing position of the [CH 1] channel level indicator moves downwards. — That no audio signals are input to this unit's input terminals: + When the [LOAD (DUPLICATE) A] button is pressed, the selection returns tothe That no computer is connected by USB previous setting item + When the [UTILITY (WAKE UP)] button is pressed, the standby mode is The flashing position of the [CH 1] channel level indicator moves upwards: canceled + This unit is shipped with the auto standby function turned on. f you do not want 3 Turnthe rotary selector. to use the auto standby function, set [Auto Standby] to [OFF] Change the setting value +" When the setting value can be switched on and off — On: The green section of the [CH 2] channel level indicator lights. — Off: The green section of he [CH 2] channel level indicator turns off +" When the setting value can be switched in steps — One's place of setting value: Value indicated by the number of segments of the CH 2] channel level indicator that are lit — Ten's place of setting value: Value indicated by the number of segments of the master level indicator that are lit 4 Press the rotary selector. The settings are stored in this unit The [UTILITY (WAKE UP)] button flashes rapidiy. Do not turn this unit's power off while the settings are being stored. + Storing is completed when the [UTILITY (WAKE UP)] button switches from flashing rapidiy to flashing normally Options setting Settingvalue … Default value Adjusts the play at the edges of the erossfader (he eut lag). The cut ag (ess Fader cut lag een °0s 5 be adjusted betieen 0.74 mm and 5.94 mm, in 0.1 mm units. on ton te ; Adjusts ne [CH 11 side aftenuation cunve characteristics when {he [CROSS F. L Gross Fader Curve Slow A Second from top 0132 16 CRE CU PR PO ah cale DRE djusts te [CH 2] side attenualion cunve characteristics when the [CROSS F. Gross Fader Curve SlowB Thirdiromton 032 16 CURE RD PR PR ane cure DR iron co : djusts te [CH 11 side aftenualion cunve characteristics when the [CROSS F. Gross Fader Curve Fast À Fourth from top 032 2 CURE D PR PO ane care DR - djusts te [CH 2] side attenualion cunve characteristics when the [CROSS F. Gross Fader Curve Fast B Fifi from top 0132 2 QURVE RU PS D) ane eat PE Turns on and offlhe function for selecting effects using he effect control buttons. Generic controller Mode San ton ep ONOFE OFF When off the LEO CONTROL and CROSS FADER CONTROL functions can be used ic Output To Booth Monitor Sienna top wo où Set elher ornel le uit micreghene aude nas om (BOTH) Auto Standby Eighth from top onorr on Turns the auto standby function on and of 1]. Hthe setling value is extremely small. he sound may not be completely muled even vihen he osiioned at {he very edge. 2] Aftenuation has an abrupt eurve characterisic when the setting value is small a gentie curve characterstic when the setting value is large: En (25) DRB1557-A 25

Additional information Troubleshooting + _ incorrect operation is often mistaken for trouble or malfunction. you think that there is something wrong with this component, check the points below. Sometimes the trouble may lie in another component. Inspect the other components and electrical appliances being used. Ifthe trouble cannot be rectified after checking the items below, ask your nearest Pioneer authorized service center or your dealer to carry out repair work + The player may not operate properly due to static electricity or other external influences. In such ca then plugging it back in. Problem ‘The power is not turned on Check Is the power cord properly connected? es, normal operation may be restored by unplugging the power cord Remedy Plug in the power cord to an AC outlet ‘This unitis not recogni Is the LON/OFF] switch for power s y set to [ON]? Set the (ON/OFF] switch for power supply to [ON) Isthe included USB cable properiy conné onnect the included USB c ble properly. (page 10) Is ICTRL) lit in TRAKTOR? Press any button other than one in this unit's mixer section and check that ICTRL] lights in TRAKTO} heck that [Pioneer DJM-T1] is selected al [Preferences] > [Controller Manager) - [Device Setup] > [Device]. (page Music files cannot be played. Are the music files damaged? Play music files that are not damaged. No tracks are disp d'in the [TRACK] area Have the music files been properiy imported? Import the music iles proper. (pat Have you selected a [Playlists] or [(FAVORITES) slot tnat does not contain any tracks? Select à [Playlists] or [FAVORITES) slot {hat contains tracks. Volume of device connected to [AUX IN] terminals is low Is the [LEVEL] control on the front panel set to the proper positior Adjust the [LEVEL] control on the front panel according to the connected device. (page 22) Distorted sound. Ave the [MAIN VOL] and [GAIN] controls of TRAKTOR set to the proper positions? Adjust the [MAIN VOL] and [GAIN] controls while watching the [MAINI level Is the audio level being input to the [AUX IN] and [MIC] terminals set to a suitable level? Is the sound level output from the [MASTER] channel Adjust the [MASTER LEVEL) control so that the mas lights at around [0 dB] at the peak level. (pat channel level indicator Ifthe sound is distorted even when the [MASTER LEVEL) control is adjusted set [MASTER ATT. 10 [-6 dB). (page 10) Is the level of audio input to each channel property set? ‘Adjust the [TRIM] control so that the channel level indicator lights at about [0 dBJ at ne peak level. (page 16) Sound being played is interrupted. Are the included power cord and the included B cable properiy connected? The sound will be interrupted if he included power cord or the included USB cable is disconnected from the main unit during playback B cable to the cord hook on the main unit (en the included Is the audio latency value suitable? When using Windows, open the [ASIO] tab in the settings utility and set the audio latency to a suitable value. en using à Macintosh computer, set [Preferences] > [Audio Setup [Latency] in TRAKTOR to a suitable value. (page 24) Sound of an external device or microphone cannot be output Is the [INPUT SELECT] switch on the front panel set to the OFF] position? Set the [INPUT SELECT] switch to the [AUX] position when using an external device, to the [MIC] position when using a microphone. (page 2 No sound is produced. Are the connection cables properly connected? onnect the connection cables pro) y. (page 10) onnect the USB hub omputer and this unit directly using the included USE cable. annot be used. (page 10) Are terminal or plug Wipe any dirt of terminals and plugs before connecting. Is the driver software properly installed on your computer? Install the driver software properly on the computer. (page 8) Are [Audio Setup], [Output Routing] and [Input Routing) in TRAKTOR properly set? heckthat [Preferences] is set as Shoun below. (Page Audio Setup] - {Audio Device] - [PIONEER DJM-T1 (Core Audio) (Mac OS X) or (PIONEER DJM-T1 ASIO (AIO) (Windows) (Output Routing] - [Output Deck A! [LI > [1.PIONEER DJM-T1 OUT 1] and

IRI > (2.PIONEER DJM-T1 OUT 2

(Output Routingi - [Output Deck 8] IL] > [3.PIONEER DJM-T1 OUT 3] and IRI > 14.PIONEER DJM-T1 OUT 4) {input Routing] [Input Deck A] IL(Mono)) > {1.PIONEER DJM-T1 IN 1] and (RI > (2.PIONEER DJM-T1 IN 2] {input Routing| [Input Deck B] IL(Mono)] > [3.PIONEER DJM-T1 IN 3] anci IRL > 14.PIONEER DJM-T1 IN 4) Are the connected components and amplifiers properly set? Set the external input selection and volume on the components and amplifiers: proper} Ne sound or small sound. Is the [CD. PHONO, USB] input selector switch set to he

er position? itch and switch the channels Switch 1e (CD. PHONO. USB] input selecte input source. (page 16) IS IMASTER AT.) set to 1-6 dB]? Set [MASTER ATT.) lo [0 dB; ge 10) BPM or overall waveform is not displayed. Has the music file been analyzed? Put a check at [Preferences] = [File Management} = [Analyze new tracks when loading into deck], then reload the track in the deck SYNC] function does not work Have the music files been properiy imported? Reimport the music fes and load them in the decks. (page 13) Has the music file been analyzed? If music files cannot be analyzed automatically, input the [Beat Grid] manu (SYNC function does not work ever IS IBEAT MARKER (Gridi] sex for hot cu Set at least one [BEAT MARKER) (Grid) Put a check at [Preferences] = [File Management) - [Set Beat-Grid when detecting BPMI, then reload he track in the deck On the TRAKTOR operation screen, is the [BPM] of the track for which the [MASTER] icon is lit too different from the BPM of ne track for which the [SYNC] icon is lit? The [SYNC] function wall not operate normal if the [BPM] of the track for which the [MASTER] icon is lit is out of the adjustable tempo range for the track for which the [SYNC] icon is lit Are you scratching? The [SYNC] function is disabled when scratching, Deck area display is small Double-click the track infor name, BPM. etc. are dis mation art where the track ‘play section (the layed) in the deck area: (28) En DRB1557-A 28

ISINGLE/GROUP) selector button does not work - Problem Remedy The [Single] mode cannot be selected with TRAKTOR SCRATCH DUO I you upgrade to TRAKTOR SCRATCH PRO 2, the effect panel can be switched to the [Single] mode. K cue function does not work. S a cue point set? Set a cue point. (page 14) MIDI contrel does not work the MIDI channel propery set? Set the MIDI channel from the [MIDI] tab in the settings utility. (page 24) he MIDI settings roperly set? must be 0 operate DJ software with this unit, this unit's MIDI messag igned to the DJ software you are using. For instructions on assigning mes: sages, see your DJ software's operating instructions This unit is not recognized after it has been connected Isthe driver software properly installed on your computer? Install the driver software. Ifitis already installed, uninstall it then reinstall it to a computer. (page 8 und of a computer cannot be output from this unit Are this unit and computer properly connected? Connect this unit and computer using a USB cable. (p: he audio output device settings property set? Select this unit with the audio output device settings. For instructions on mak. ing settings for your application, see your application's operating instructions. Ss the [CD, PHONO, USB] input seïector switch settotne Seth [CD, PHONO, USB] input selector switch lo the [USB position. (page proper position? 11) (page 16) Sound is distorted when an analog player is connected Have you connected an analog player with a built-in phono When using an analog player with a built-in phono equalizer, connect it to the to this units PHONO] terminals, equalizer Or lighting of the channel level indicator does not change even when the [RIM] control is turned [CD] terminal {page 10) Ifthe analog player with builtin phono equalizer has a PHONO/LINE selector Is an audio interface for computers connected between the analeg player and this unit? switch, switch it to PHONO. Ifthe audio interface for computers has a line level output, connect it to the [CD] terminals. (page 10) Ifthe analog player has a PHONO/LINE selector switch, switch it to PHOI Block Diagram

are À] Disclaimer + Pioneer is a registered trademark of Pioneer Corporation + Microsoft®, Windows Vista®, Windows® and Internet Explorer? are either reg stered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. + Apple, Macintosh, Mac OS, Safari, Tunes, and Finder are trademarks of Apple Inc. registered in the U.S. and other countries. + _ Intel and Pentium are trademarks of Intel Corporation in the US. and other countries. + ASIOis a trademark of Steinberg Media Technologies GmbH. +" TRAKTOR is a registered trademark of Native Instruments. + AMD Athlon is a trademark of Advanced Micro Devices, Inc. The names of companies and products mentioned herein are the trademarks of their respective owners. not been icast This product has been licensed for nonprofit use. This product licensed for commercial purposes (for profit-making use), such as br ing (terrestrial, satellite, cable or other types of broadcasting), streaming on the Internet, Intranet (a corporate network) or other types of nebworks or distributing ofelectronic information (online digital music distribution service). You need to acquire the corresponding licenses for such uses. For details, see http:/Anww mpâlicensing.com. ys!16uz Cautions on copyrights Recordings you have made are for your personal enjoyment and according to copy- right laws may not be used without the consent of the copyright holcier + Music recorded from CDs, etc. is protected by the copyright laws of individual countries and by international treaties. I is the full responsibility of the person who has recorded the music to ensure that it is used legally + When handling music downloaded from the Internet, etc. it is the full respon sibility of the person who has downloaded the music to ensure that it is used in accordance with the contract concluded with the download site:

Specifications General Power requirements Power consumption. Power consumption (standby) Main unit weight Max. external dimensions Tolerable operating temperature Tolerable operating humidity Audio Section Sampling rate AD, D/A converter. Frequency characteristic AC 220 V to 240 V, 50 Hz/60 Hz 25 W

MID Low Microphone equalizer characteristic Low Input / Output terminals PHONO input terminal RCA pin jack CD input terminal RCA pin jack MIC input terminal XLR connector/phone jack (3 6.3 mm) AUX input terminal RCA pin jacks MASTER output terminal XLR connector RCA pin jacks BOOTH output terminal TRS phone jack (9 6.3 mm) PHONES output terminal Stereo phone jack (9 6.3 mm) USB terminal B type + The specifications and design of this pro! +6 dBu/10 kQ/10 Q or lower +2 dBu/10 kQ/330 Q +6 dBu/10 kQ/10 Q or lower +5.4 dBu/32 kQ/10 @ or lower +24 dBu/10 kQ +20 dBu/10 kQ 86 dB - to +6 dB (13kHz) = to +6 dB (1 kHz) 00 to +6 dB (70 Hz) 12 dB to +12 dB (10 kHz) —12 dB to +12 dB (100 Hz) 1set duct are subject to change without notice. + The software screens used in these operating instructions are from the development stage and may differ from t he actual screens. + ©2011 PIONEER CORPORATION. All rights reserved.

D'ÉLECTROCUTION, NE PAS ENLEVER LE

CLLE CELL CENT COLE ETC LED DL

(SHIFD)4E (SHIFT)+ÆI

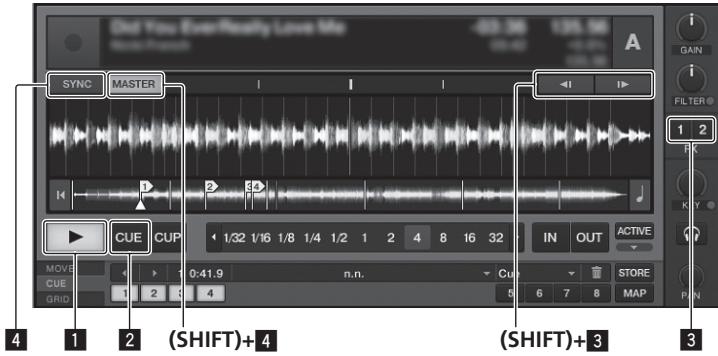

Lecture Appuyez sur la touche [> + Pause Spécifiez le repère 1 Pendant la lecture, appuyez sur la touche [»/11 (REL.)]. La lecture se met en pause. 2 Appuyez sur la touche [CUE (ABS.)]. Un point de repère [A] est posé à la position où la lecture a été mise en pause. À ce moment le son est coupé. + Lorsqu'un au point de repère est posé, le point de repère antérieur est supprimé. + Retour au point de repère (Back Cue) Pendant la lecture, appuyez sur la touche [CUE (ABS.)]. L'appareil revient immédiatement au point de repèr t s'y arrête. + Lorsque la touche [1 (REL.)] est pressée, la lec{ t de repère. + Vérification du point de repère (Cue Point Sampler) Appuyez sur la touche [CUE (ABS.)] et maintenez enfoncée après le retour au point de repère. La lecture commence au point de repère posé La lecture continue tant que la touche [CUE (ABS.)] est maintenue enfoncée. Inflexion du pitch Appuyez sur la touche [FX 1] ou [FX 2] tout en appuyant sur la touche [SHIFT]. — Appuyez sur les touches [SHIFT] + [FX 1] La vitesse de lecture du morceau ralentit temporairement. — Appuyez sur les touches [SHIFT] + [FX 2] La vitesse de lecture du morceau augmente temporairement. Synchronisation de la vitesse de lecture avec d'autres platines (beat sync) 1 Appuyez sur la touche [SYNC (MASTER)] tout en tenant la touche [SHIFT] enfoncée sur la platine en cours de lecture. La platine dont la touche a été pressée sert de maître pour la synchronisation. Fr (15) DRB1557-A 45
