Product type	Support for electronic device (table stand for plasma display)
Brand	PIONEER
Model	PDK-1014
Compatibility	Pioneer 61-inch plasma displays (PRO-1410HD/PDP-615EX)
Dimensions (W x H x D)	1000 x 221.6 x 470 mm (39.4 x 8.72 x 18.5 inches)
Weight	12.3 kg (27.1 lb)
Material	Metal (steel) with black finish
Color	Black
Installation	By a qualified professional, at least 3 persons required
Package contents	PDK-1014 stand, 4 decorative screws M6 x 60, screwdriver
Safety attachment	Holes for safety attachments (rope/chain) for earthquake prevention
Ventilation	Do not obstruct the ventilation openings of the display
Installation precautions	Stable, non-sloping surface, avoid humidity, dust, excessive heat
Maintenance	Clean with a soft, dry cloth. Do not use chemical products
Repairability	Spare parts available from the dealer. Do not modify parts
Warranty	2 years (according to applicable legislation)

Frequently Asked Questions - PDK-1014 PIONEER

What type of plasma display is compatible with the PDK-1014 stand?

The PDK-1014 stand is specifically designed for Pioneer 61-inch plasma displays, particularly the PRO-1410HD and PDP-615EX models. It is not suitable for other brands or sizes.

Can I install the PDK-1014 stand alone?

No, installation must be performed by at least three people due to the weight and high center of gravity of the display. It is recommended to hire a professional installer.

What are the dimensions of the PDK-1014 stand?

The external dimensions are 1000 mm width, 221.6 mm height and 470 mm depth (39.4 x 8.72 x 18.5 inches).

What is the weight of the PDK-1014 stand?

The weight of the stand alone is 12.3 kg (27.1 lb). The plasma display is not included.

Is the PDK-1014 stand delivered with the necessary screws?

Yes, the package includes four decorative M6 x 60 screws for mounting the display, as well as a screwdriver.

How can I prevent the display from tipping over?

Use the safety attachments provided on the back of the stand: screw the attachments into the anchor holes, then attach a rope or chain (not supplied) to a solid wall or pillar.

Can I use this stand with a display of another brand?

No, the PDK-1014 is exclusively designed for Pioneer 61-inch plasma displays. Using it with other equipment could cause instability and risk of falling.

What precautions should be taken during installation?

Install the stand on a stable, flat surface, away from humidity, dust and vibrations. Do not block the display's ventilation openings. Ensure the location can support the total weight.

How should I clean the PDK-1014 stand?

Use a soft, dry cloth. Do not use abrasive products or solvents that could damage the finish.

Where can I find spare parts for the PDK-1014 stand?

Contact your Pioneer dealer or an authorized service center. Use only original parts and never modify the stand, as this could compromise safety.

USER MANUAL PDK-1014 PIONEER

Operating instructions

Mode d'emploi

Bedienungsanleitung

3D diagram of a mechanical assembly with two vertical supports and a flat base plate, labeled '●スタンド' (no other text or symbols)

50mm 50mm 50mm 50mm 壁

Technical illustration of a mechanical bracket component within a circular boundary (no text or symbols)

Line drawing of three people assembling a large panel or fixture, with no visible text or symbols.

Technical diagram showing installation of a wall-mounted device with labeled components and directional arrows indicating assembly or repair.

Operating Instructions

We greatly appreciate your purchase of this Pioneer Table Top Stand (PDK-1014).

Read these instructions carefully to ensure proper usage.

* This table top stand is designed specifically for use with Pioneer 61-inch (PRO-1410HD/PDP-615EX) plasma displays.

Notes on Installation Work:

This product is marketed assuming that it is installed by qualified personnel with enough skill and competence.

Always have an installation specialist or your dealer install and set up the product.

PIONEER cannot assume liabilities for damage caused by mistake in installation or mounting, misuse, modification or a natural disaster.

Attention: Sales Agents and Technicians

To ensure the user's safety, be sure to select a place sufficiently strong to bear the weight of the Plasma Display and the different units.

Installation should be performed by a minimum of three persons.

Be careful not to lose removed screws, etc.

Parts Included

3D diagram of a stand with two metal supports on a flat base, labeled 'Stand (1)' at the bottom (no other text or symbols)

PDK-10Y4 PDK-10Y4

Operating Instructions

Decorative screws for display mounting M6 x 60 (4)
Screwdriver

Before Use...

Symbols

Various symbols are used in this Installation Manual for the safe and proper use of the product as well as preventing any injury or damage to persons or property. These symbols and their meanings are described below. Please have a good understanding of these matters before reading the main text of the manual.

WARNING

Ignoring this indication and improper handling could be the cause of personal injury such as a serious injury or death.

CAUTION

Ignoring this indication and improper handling could cause injury to a person or damage to the surrounding household belongings.

Examples of Symbols

⚠ This symbol informs that there are contents that demand caution (including warnings).

Concrete details of the caution are written within the diagram.

⊗ This symbol indicates a prohibited matter.

Concrete details of the prohibition are written within the diagram.

This symbol indicates something that must be done.

Concrete details of the prohibition are written within the diagram.

WARNING

- Be sure to have the Plasma Display installed by your store of purchase following the instructions in this manual. If installed incorrectly, the Plasma Display could tip over, resulting in injury.

- To ensure safety, tighten bolts and screws securely. Failure to do so could cause the Plasma Display to tip over, resulting in injury.

- Do not modify parts. Doing so could cause the Plasma Display to tip over, resulting in injury.

- Do not use damaged parts. Doing so could cause the Plasma Display to tip over, resulting in injury. If a part should be damaged, contact the store of purchase.

- Each unit is designed specifically for use with Pioneer 61-inch (PRO-1410HD/PDP-615EX) plasma displays. Please do not mount any other equipment with these items. Doing so may cause the item to fall over and result in injury.

- Do not set on shaky stands, tilted surfaces or other unstable places. Doing so could cause the Plasma Display to tip over or fall, resulting in injury.

CAUTIONS

- Do not obstruct the Plasma Display's ventilation holes. If the ventilation holes are covered, the heat will build up inside, and this could lead to fire. For example, do not install the Plasma Display in narrow spaces where ventilation is poor, do not place covers over it, etc.

- Do not install the Plasma Display near air conditioner air outlets or in places where vibrations are strong. Doing so could lead to fire or electric shock.

- Do not install the Plasma Display in humid or dusty places or places exposed to soot or vapor (such as in kitchens, near humidifiers, etc.). Doing so could lead to fire. Do not install the Plasma Display outdoors. Doing so could lead to fire or electric shock.

- When installing the Plasma Display, leave sufficient space around it, as shown in the diagram. Failure to do so could cause heat to build up inside, leading to fire.

50mm 50mm 50mm 50mm Wall

- Hold the Plasma Display securely when mounting the units on it. Failure to do so could cause the Plasma Display to fall, resulting in injury.

- When installing the Plasma Display on a stand with casters, be sure to block the casters. If the stand should move, the Plasma Display could fall, resulting in injury.

- The Plasma Display is heavy, so be sure to install in a stable place and take measures to prevent it from tipping over and causing injury. The Plasma Display has a high center of gravity. It should be unpacked and moved by a minimum of two people, holding it at the top and bottom. Failure to do so could cause the Plasma Display to fall, resulting in injury.

NOTES

Avoid dusty or humid rooms and rooms filled with soot or cigarette smoke.

The Plasma Display's screen could get dirty, resulting in poor picture quality.

Avoid places where the screen is exposed to direct sunlight or strong artificial light.

If surrounding light should shine on the screen, the screen will appear white and be hard to see.

Do not install in places where the temperature is high or low.

Doing so could result in damage.

Installing the Plasma Display on the Stand

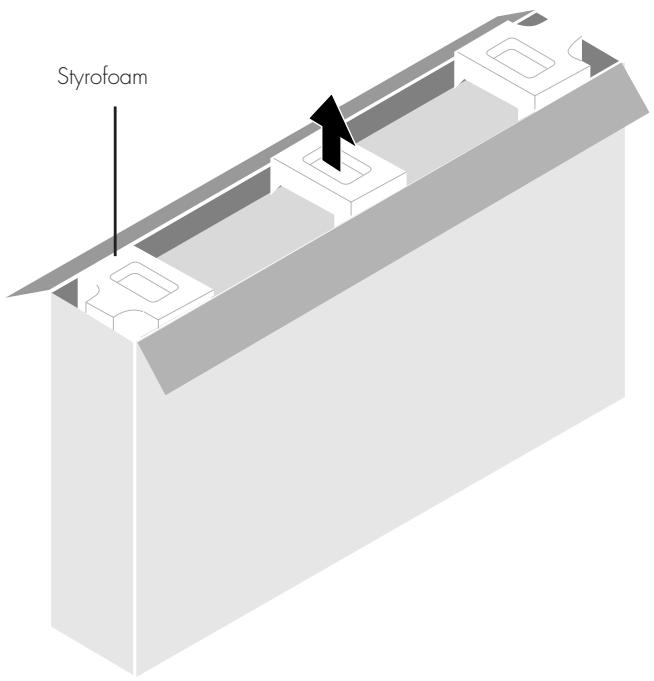

1. Unfasten the wrapping of the plasma display

1. Open the top of the cardboard in which the plasma display is packed and remove the three pieces of styrofoam.

Styrofoam

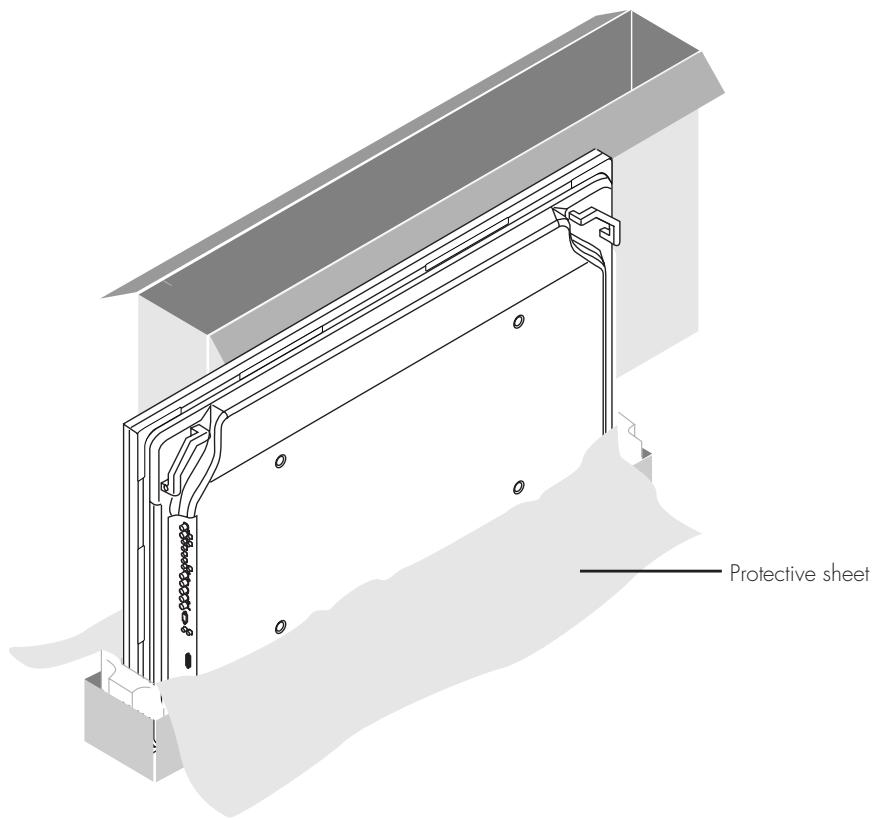

1. Remove the cardboard from the top and open the protective sheet.

Protective sheet

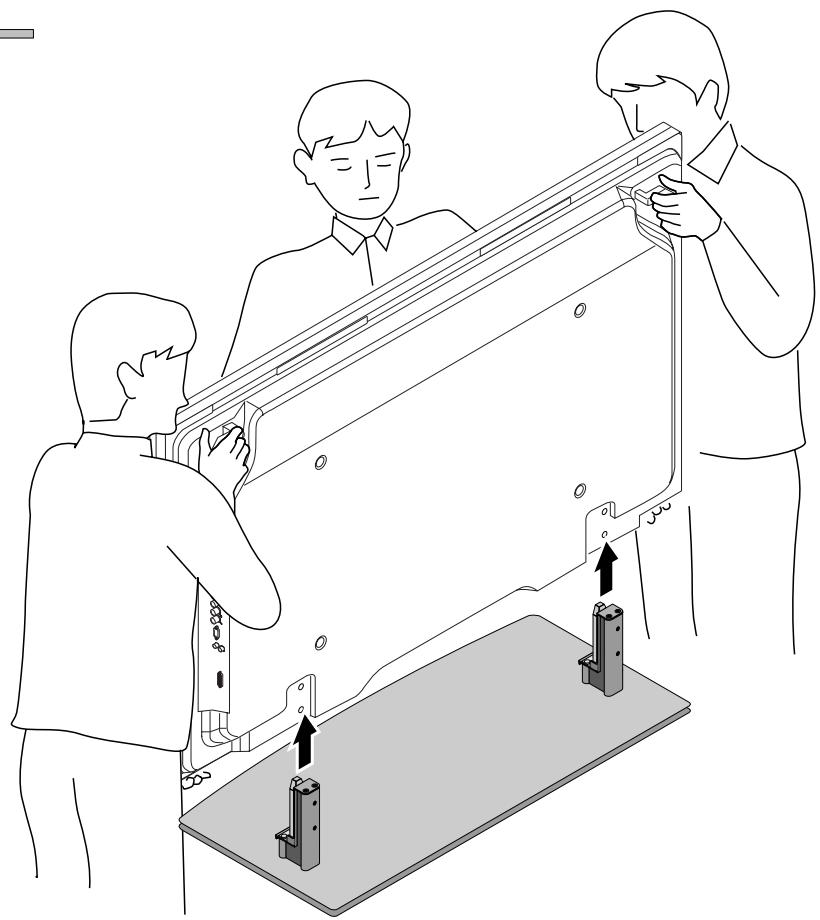

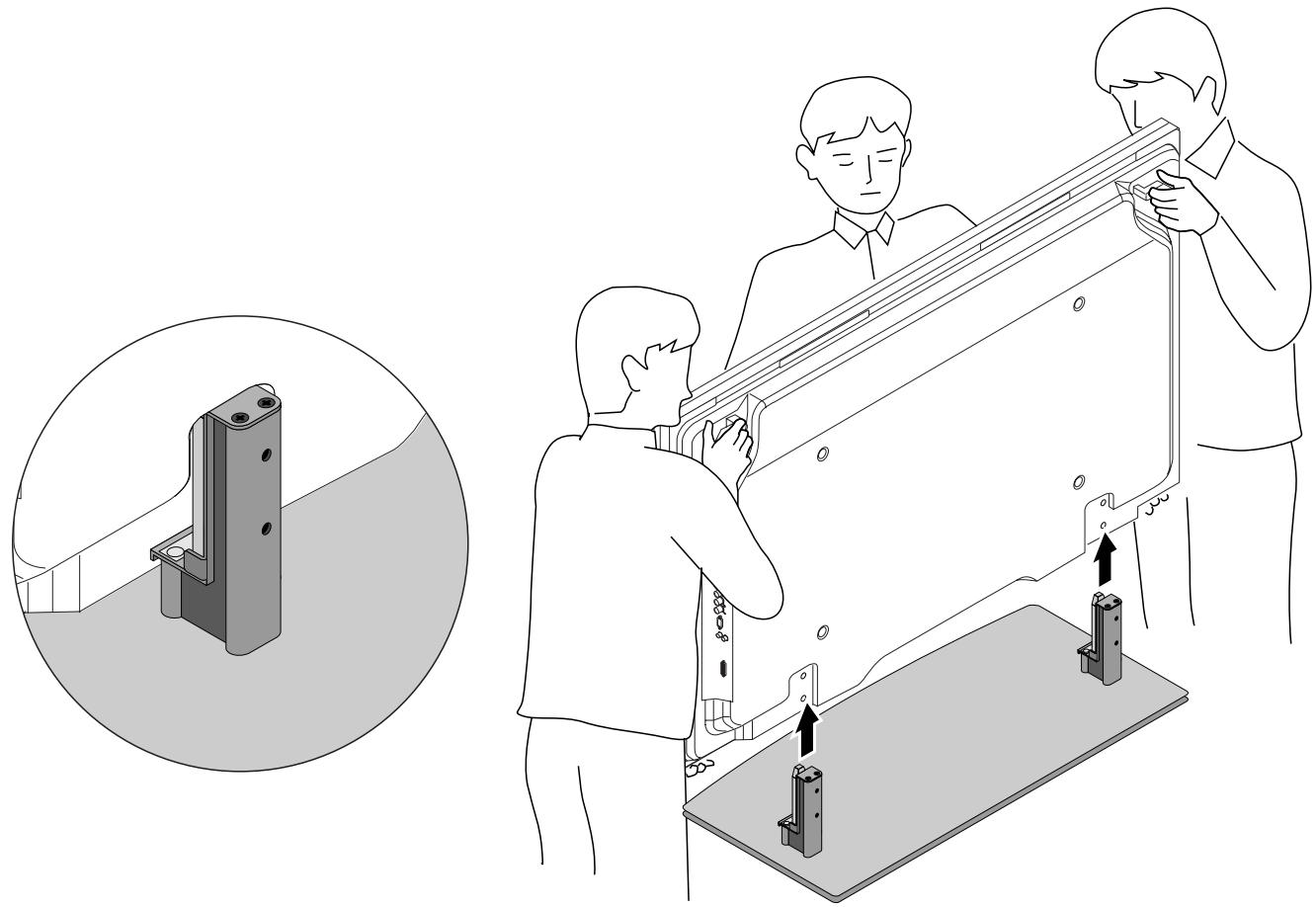

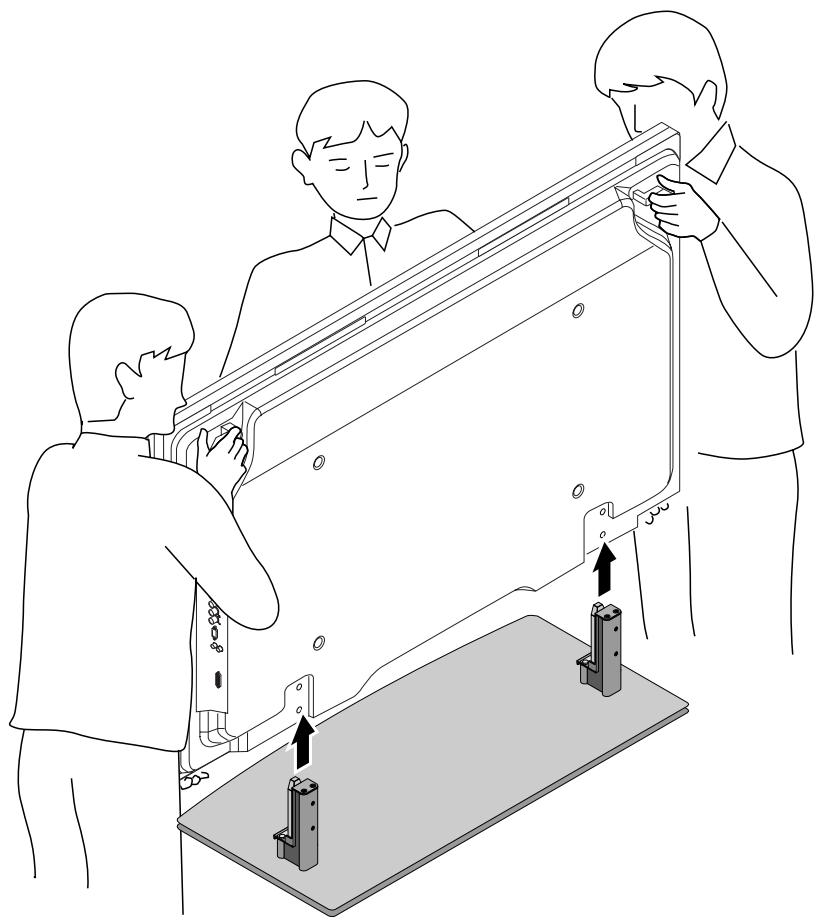

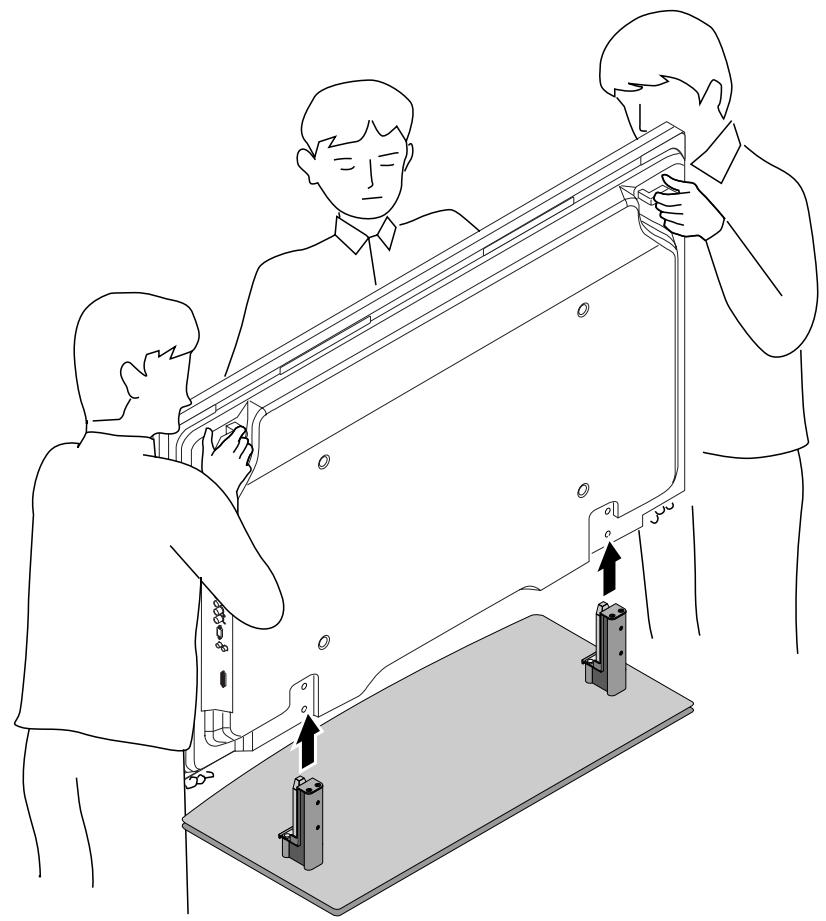

2. Insert the stand into the plasma display

Check that the stand and plasma display are facing the proper direction, then insert the plasma display into the stand.

This procedure should be done by at least three persons, since the plasma display is heavy and has a high center of gravity.

Hold the bottom and the grips on the back of the plasma display and support the top when inserting the plasma display into the stand.

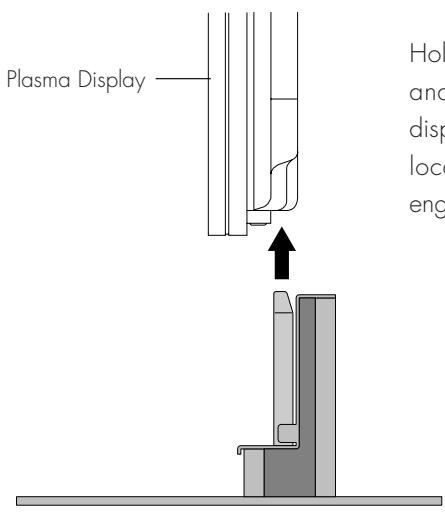

Plasma Display Hol and disp loc eng

Hold both sides of the plasma display and lift it up, then place the plasma display onto the stand so that the holes located at the bottom of the display engage with the stand.

Technical illustration showing two workers installing or adjusting a mechanical component, with an inset close-up of a bracket component (no text or symbols present)

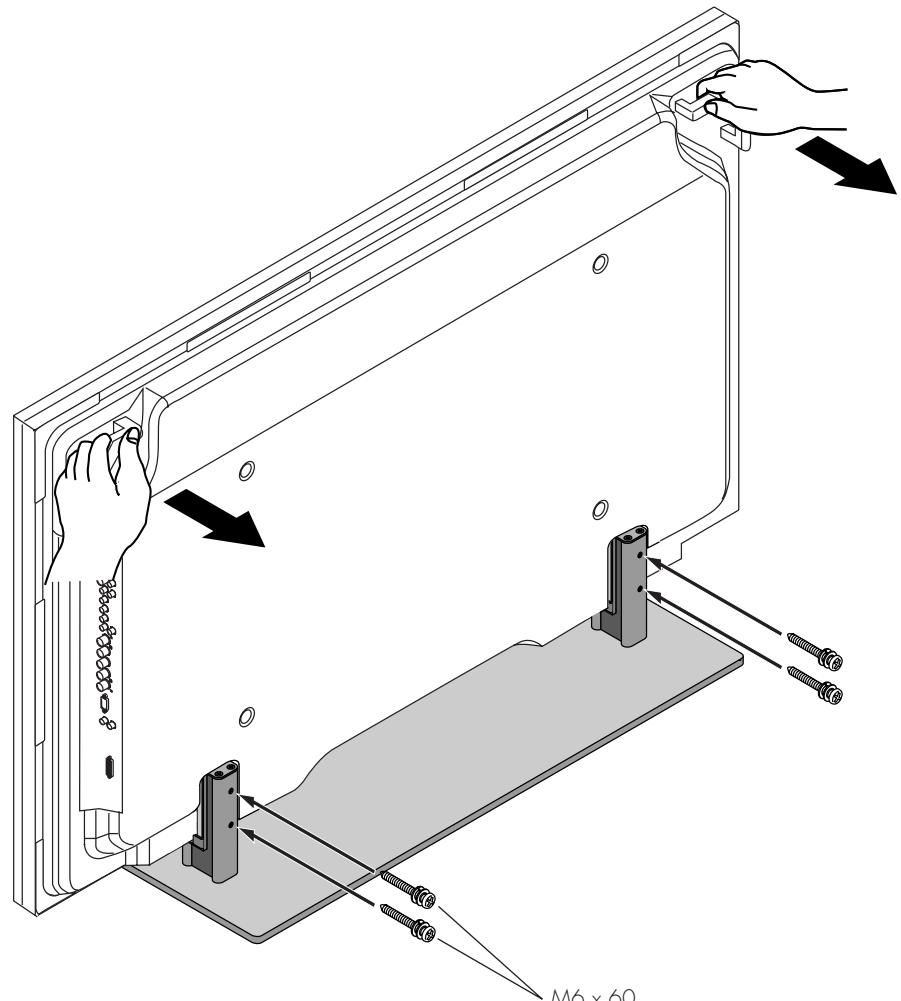

3. Fasten the Stand and the Plasma Display

Pull the top part of the plasma display toward yourself, insert the four supplied screws into the holes of the stand, and fasten with a Phillips screwdriver.

M6 x 60

M6 × 60
Decorative screws for
display mounting

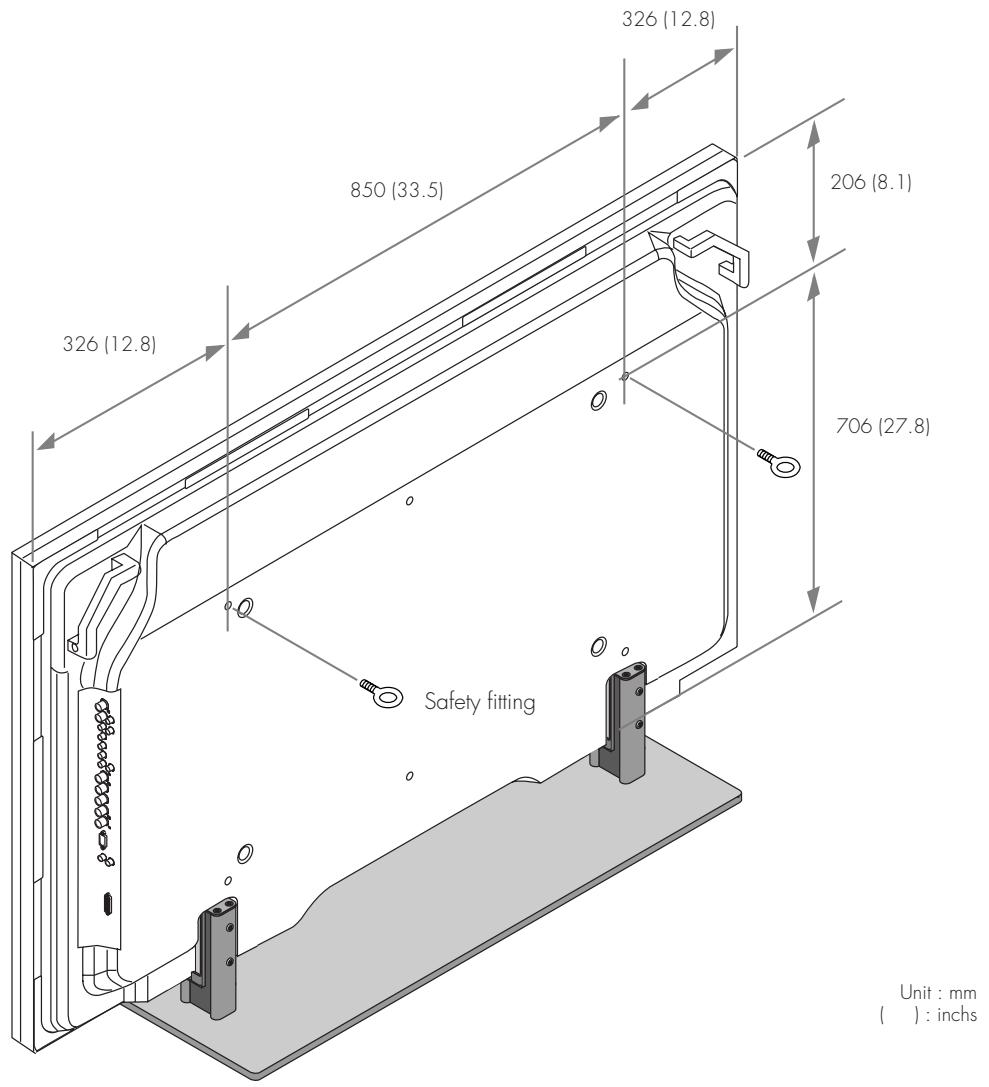

Additional fall prevention measures

- As a fall prevention measure against earthquakes and shocks, fasten the two safety fittings into the screw holes used for anchoring at the rear cover of the plasma display. Pass a rope or chain (available on the market) through the fittings and securely attach the plasma display to a wall or post.

(Do not do this when using the separately sold wall mount unit.)

- Pay attention to the rope when moving the Plasma Display.

326 (12.8) 850 (33.5) 326 (12.8) 206 (8.1) 706 (27.8) Safety fitting Unit : mm ( ) : inches

Specifications

Model: PDK-1014

External dimensions: (W) 1000 x (H) 221.6 x (D) 470 mm

(W) 39.4 × (H) 8.72 × (D) 18.5 inches

Weight: 12.3 kg

27.1 lbs

Mode d'emploi

3D diagram of a support structure with two vertical metal components mounted on a flat base plate (no text or symbols)

PDEK-1014 PDK-1014

Mode d'emploi

50mm 50mm 50mm 50mm Mur

3D diagram of a flat plate with two metal bracket supports, labeled 'Stativ (1)' at the bottom (no other text or symbols)

PDK-1014 PDK-1014

Bedienungsanleitung

50mm 50mm 50mm 50mm 50mm Wand

3D mechanical component diagram showing a bracket mounted on a platform, enclosed in a circular boundary (no text or symbols)

Line drawing of three people assembling a large panel or fixture, with arrows indicating assembly or installation (no text or symbols present)

3D diagram of a Cavalletto (1) platform with two metal bracket components on a flat base (no text or symbols on the diagram itself)

PDK-1014 PDK-1014

50mm 50mm 50mm 50mm 50mm Parete

Technical illustration of a mechanical bracket assembly (no text or symbols)

Line drawing of three people assembling a large panel or enclosure with mounting brackets (no text or symbols)

3D diagram of a rectangular plate with two vertical metal fixtures, labeled 'Soporte (1)' at the bottom (no other text or symbols)

PDK-1014 PDK-1014

50mm 50mm 50mm 50mm 50mm Pared

3D mechanical component diagram showing a bracket mounted on a platform, enclosed in a circular frame (no text or symbols)

Line drawing of three people assembling or adjusting a mechanical component, with no visible text or symbols.
